Brunner BPH 7/24 User manual

Instructions for Use
BRUNNER
Pellet heating
BPH 7/24 und BPH 9/30
©2023

2 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

Contents
1 Introduction.................................................................................................................5
1.1 Purpose of this manual................................................................................................................. 5
1.2 Target audience.............................................................................................................................5
1.3 Validity of these instructions......................................................................................................... 5
1.4 Keeping of documents.................................................................................................................. 5
1.5 Symbols and text style rules.........................................................................................................6
1.5.1 Specified symbols........................................................................................................... 6
1.5.2 Text style rules................................................................................................................ 6
1.6 For your safety.............................................................................................................................. 7
1.6.1 Dangers and safety measures........................................................................................7
1.6.2 Warnings......................................................................................................................... 8
1.6.3 Regulations......................................................................................................................9
1.6.4 Conformity....................................................................................................................... 9
1.6.5 Obligations of our Natural Power Partners...................................................................10
2 Product description..................................................................................................11
2.1 Intended use................................................................................................................................11
2.2 Type plate....................................................................................................................................12
2.3 Overview of the boiler................................................................................................................. 13
2.4 Safety concept.............................................................................................................................14
2.5 Fuel and water quality requirements.......................................................................................... 15
2.5.1 Pellets............................................................................................................................15
2.5.2 Heating water................................................................................................................ 15
3 Planning advice........................................................................................................ 16
3.1 Requirements for the installation site......................................................................................... 16

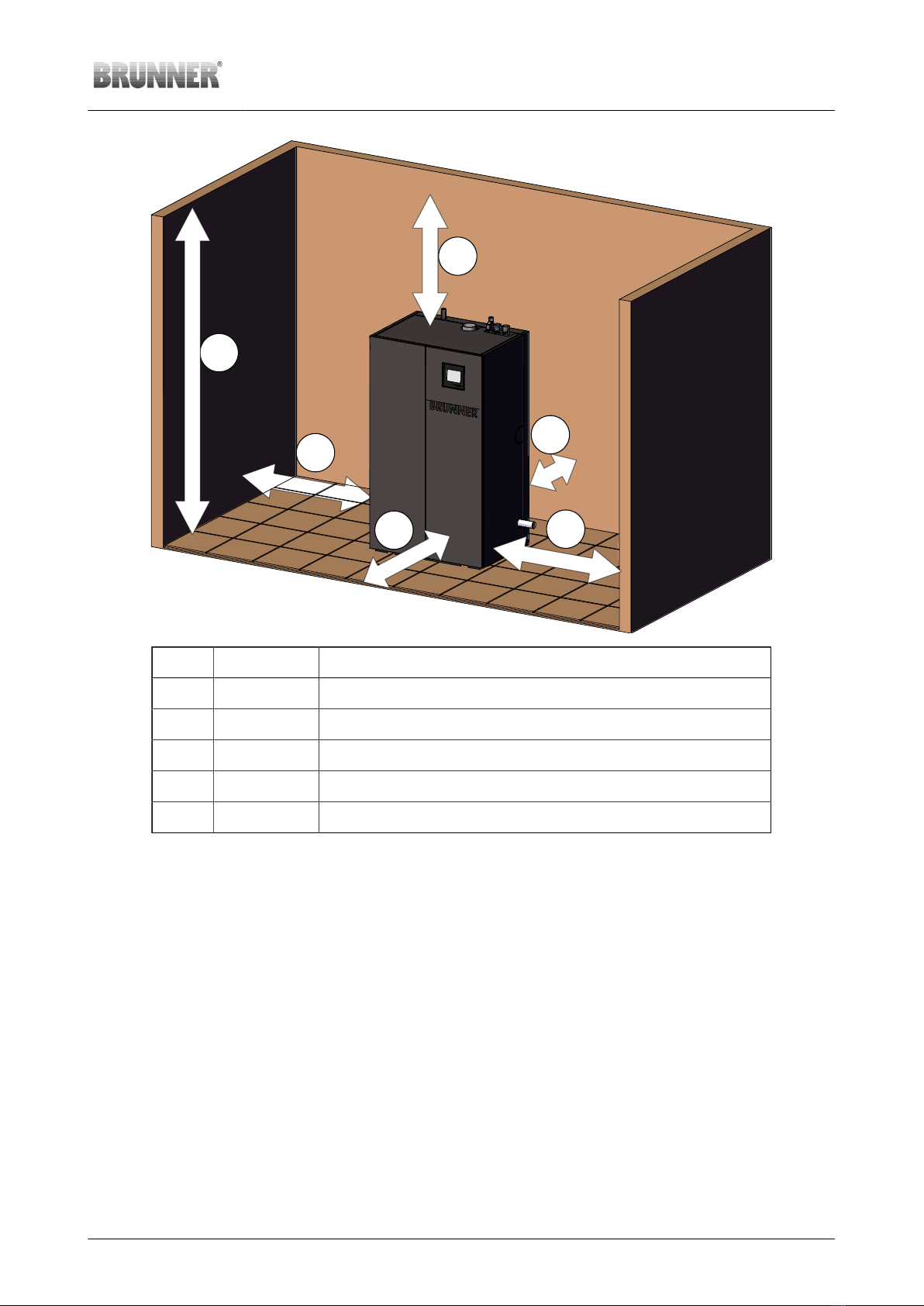

3.2 Minimum clearances....................................................................................................................16
3.3 BPH separator (UE10160).......................................................................................................... 18
3.4 Hydraulic diagrams and wiring diagrams....................................................................................19
4 Operation basics...................................................................................................... 21
4.1 Licenses.......................................................................................................................................21
4.2 Touch-sensitive display................................................................................................................22
4.3 Display overview..........................................................................................................................23
4.3.1 Buttons.......................................................................................................................... 24
4.3.2 Combustion chamber - display views...........................................................................27
4.3.3 Ash box - display views................................................................................................28
4.4 Heating display views..................................................................................................................28
4.4.1 Heating control panels.................................................................................................. 29
4.5 Display views Pellet storage....................................................................................................... 30
4.5.1 Daily pellet container.................................................................................................... 30
4.5.2 Annual pellet hopper/weekly hopper............................................................................ 32
4.6 Own settings................................................................................................................................34
4.6.1 Individualisierung des Displays.....................................................................................34
4.6.2 Locking the boiler - for filling the pellet store............................................................... 40
4.6.3 Exhaust gas test........................................................................................................... 41
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 3

4.6.4 Selecting or creating new heating programs................................................................ 43
4.6.5 Setting the program for hot water.................................................................................45
4.6.6 Absence time................................................................................................................ 46
4.6.7 Lowering type................................................................................................................48
4.6.8 Summer/Winter switching............................................................................................. 49
4.6.9 Permanent..................................................................................................................... 49
4.6.10 Heating circuit frost protection...................................................................................... 49
4.6.11 Disinfection.................................................................................................................... 49
4.7 Remote access via myBRUNNER..............................................................................................50
4.7.1 Preconditions and instructions......................................................................................50
4.7.2 Registration................................................................................................................... 51
4.7.3 Logging in......................................................................................................................62
4.7.4 Enabling for Service access......................................................................................... 64
4.7.5 Connect keypads to the Internet.................................................................................. 66
4.7.5.1 Activate WLAN................................................................................................67
4.7.6 Brunner App.................................................................................................................. 68
4.7.7 Network adverts............................................................................................................ 68
4.7.8 Synchronisation with network....................................................................................... 69
4.8 Data protection declaration of Ulrich Brunner GmbH................................................................. 69
5 Information and error messages............................................................................ 71
5.1 List of error codes and rectification............................................................................................ 71
5.2 Acknowledge error messages BPH............................................................................................ 76
5.3 Communication of the system.................................................................................................... 76
6 Cleaning and maintenance......................................................................................78
6.1 Cleaning and maintenance intervals...........................................................................................78
6.2 Cleaning tool................................................................................................................................80
6.3 Emptying the ash box................................................................................................................. 80
6.4 Ash disposal................................................................................................................................ 83
6.5 Operation with electrostatic separator........................................................................................ 84
6.6 Update of the control unit........................................................................................................... 85
6.6.1 Software from PC on the USB-Stick............................................................................ 85
6.6.2 Software from USB-Stick on the control unit................................................................87
6.6.2.1 Variant 1......................................................................................................... 87
6.6.2.2 Variant 2......................................................................................................... 89
7 Decommissioning.....................................................................................................91
7.1 Temporarily take the boiler out of operation...............................................................................91
7.2 Decommissioning the boiler........................................................................................................ 91
7.3 Waste disposal............................................................................................................................ 92
7.3.1 Disposing of packaging.................................................................................................92
7.3.2 Disposing of boilers...................................................................................................... 92
8 Technical and commercial data..............................................................................93
8.1 Declaration of Conformity BPH................................................................................................... 93
8.2 Dimension sheets........................................................................................................................94
8.2.1 BPH separator (UE10160)............................................................................................95
8.3 Technical data BPH 7/24 and BPH 9/30.................................................................................... 95
4 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

1 Introduction
1.1 Purpose of this manual
This document contains information about the BRUNNER Pellet-heating BPH 7/24 und BPH 9/30. Among others, you
will find here information about:
•Safety and risks
•Assembly, installation and commissioning
•Product description and principles of operation
•Operating instructions and control description
•Cleaning and maintenance
•Fault finding and troubleshooting
•Decommissioning and disposal
•Technical and commercial data
1.2 Target audience
This document contains also information for the User of the heating system.
1.3 Validity of these instructions
This technical documentation is valid for the BRUNNER pellet heating BPH 7/24 und BPH 9/30 starting from
October 2019.
Ulrich Brunner GmbH reserves the right to introduce technical changes, as far as they serve for technical
progress, or if they are required by technical safety provisions.
1.4 Keeping of documents
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
The User is responsible for keeping of the BRUNNER pellet heating BPH 7/24 und BPH 9/30 documentation,
as well as all other important documents.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 5

1.5 Symbols and text style rules
1.5.1 Specified symbols
In this documentation, a distinction is made between:
Operating personnel as the User of the system, i.e. the end user, which has received instructions from the Contractor
and does not necessarily have additional qualifications.
Operating personnel as the Contractor, i.e. the qualified professionals, which are entitled to perform the indicated spe-
cialist works.
In this document, the following symbols are used:
DANGER
A danger of high risk persists, which leads to severe injury or death, if this endangering situa-
tion is not avoided.
WARNING
A danger of medium risk persists, which can lead to severe injury or death, if this endangering
situation is not avoided.
CAUTION
A danger of low risk persists, which can lead to minor or moderate injury, if this endangering
situation is not avoided.
ATTENTION
There is a certain risk, which can lead to a malfunction or damage of the related system and all
devices connected with it, if the indicated notifications are not followed.
NOTE
Additional helpful information
1.5.2 Text style rules
In this document, the following text style rules are in use:
Handling or operating instructions with several steps
Descriptions of operations or actions with several steps, when these steps must be performed in chronologi-
cal sequence.
1. First working step;
2. Second working step;
3. Third step.
→ Final result
6 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

Appearance of on-screen display text in this manual
For descriptions of settings performed on the BRUNNER Touch Display, the displayed text is shown as bold
letters.
1.6 For your safety
1.6.1 Dangers and safety measures
Assembly, installation and maintenance may only be carried out by a specialist company.
•Only carry out activities that are described in these instructions.
Electric shock
Work on the electrical installation may only be carried out by a qualified specialist
company.
•The electrical connections are live. This can lead to an electric shock.
•Observe all applicable regulations.
Risk of injury due to scalding
High water temperatures can lead to scalding. Small children or elderly people can be
at risk even at lower temperatures.
•Do not set the hot water temperature of a connected hot water storage tank higher
than 65°C.
Avoid damage to the appliance and resulting hazards
Sprays, solvents or cleaning agents containing chlorine, paints, adhesives etc. can
cause damage to the appliance under unfavorable circumstances.
Under no circumstances should you make any changes to parts or equipment of the
heating system if these changes could impair operational safety.
Risk of frost
If the BPH remains out of operation in an unheated room for an extended period of
time (e.g. during the vacations), the water in the pipes may freeze. Freezing water
can damage the pipes and cause consequential damage.
•Inform the operator about the frost protection of the heating system.
•Install the BRUNNER pellet heating system in rooms with an ambient temperature
of 5 °C to 40 °C.
DANGER
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children must not play
with the appliance. Cleaning and operator maintenance must not be carried out by
children without supervision.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 7

Risk of injury from burns
Contact with hot surfaces of the boiler can cause burns.
- Do not touch the boiler's flue gas pipe, especially if it is not insulated.
- Allow the boiler to cool down and wear protective gloves before removing the ash.
- Allow the boiler to cool down or wear protective gloves before carrying out cleaning
and maintenance.
1.6.2 Warnings
Warnings in this document are emphasized by pictographs and signal words.
The pictograph and the signal word indicate the type, the source or causes of a certain action. The neces-
sary measures or calls for action are indicated.
The result or purpose is shown as well. These warnings refer to possible misuse of the system, which seems
likely based on our experience. The residual risks are indicated too.
The residual risks remain:
- despite the means for integration of safety during construction,
- despite the safety precautions,
- despite the additional protective measures.
For certain points, there are also given some recommendations and instructions on the application of protec-
tive measures, including personal protective equipment. Special safety instructions and recommendations
are applied for transport, handling and storage. Instructions for safe setup and maintenance include separate
protective measures too.
Structure of warnings
The warnings that precede each assembly step, are shown as follows:
Hazard for humans
Type, source and causes of danger
Measures
Calls for action
→ Result or safe use
Hazard for the system
Type, source and causes of danger
Measures
Calls for action
→ Result or safe use
8 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

1.6.3 Regulations
Among others, the following regulations and guidelines must be observed during installation, commissioning and main-
tenance of the BPH 7/24 und BPH 9/30 :
Legal requirements:
■the legal regulations for accident prevention
■the legal regulations for environment protection
■the provisions of the industry associations
■the “Energy Saving in Buildings” law (Energieeinsparungsgesetz-EnEG)
■the Energy Saving Act (Energieeinsparverordnung)
■the Master Fireplace Act (MFeuVo) of the respective Federal Countries (FeuVo)
■the Country Building Code and the list of technical building regulations
■the governmental, regional building codes and boiler room equipment listings.
Standards and Guidelines:
• the relevant safety conditions included in DIN, EN, DVGW, TRI and VDE standards
• DIN EN 12828 Heating systems in buildings - Hot-water heating systems
• BImSchV Federal Immission Control Ordinance
• EN 13384-1 Exhaust systems - thermal and fluidic calculation methods
• DIN 18160-1 Exhaust systems - Part 1: Planning and execution
• EN12831 Heating systems in buildings; Method for calculation of the design heat load
• EN14597 Temperature control devices and temperature limiters for heat generating systems
• DIN 4753 Water heating systems for drinking and process water
• DIN 4109 Sound insulation in buildings, supplementary sheets and permissions
• DIN 1988 Technical rules for drinking water installations (TRWI)
• DIN EN ISO 4126 or TRD 721- Safety devices for protection against excessive pressure - Safety valves
• Details Norm: DIN VDE 0100-540 VDE 0100-540:2012-06 Setting up low voltage installations
• DIN VDE 0100 Teil 701 DIN VDE 0100-710 Low voltage installations
• DVGW worksheets W551 and W552 Technical measures to reduce the growth of Legionellae
• VDI 2035 Prevention of damage in hot-water heating systems
• VDI 4708 Heating equipment - pressure maintenance, venting, degassing.
1.6.4 Conformity
Hereby we declare as the manufacturer that this product - BRUNNER pellet heating
BPH 7/24 und BPH 9/30 complies with the basic guidelines for sale in the EU.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 9

1.6.5 Obligations of our Natural Power Partners
To ensure the proper functioning of the BPH 7/24 und BPH 9/30 , observe the following guidelines:
■Perform works only if you have the necessary expertise.
■Perform only such activities, which are indicated or described in this manual.
■Please ask an expert for instructions on the operation and maintenance of the system and potential haz-
ards that may arise during operation.
10 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

2 Product description
2.1 Intended use
The BRUNNER pellet heating system BPH 7/24 und BPH 9/30 has been designed and constructed in accor-
dance with the generally recognized rules of technology and the recognized safety regulations.
The BRUNNER pellet heating system is intended for heating domestic hot water and drinking water in single
or multi-family houses or commercial buildings.
Intended use also includes compliance with the operating instructions and operating manual associated with
the boiler.
NOTE
The operator of a Brunner boiler is obliged to regularly service and maintain the sys-
tem in accordance with the Ordinance on Energy Saving Thermal Insulation and En-
ergy Saving Systems Technology in Buildings (Energy Saving Ordinance - EnEV) §
11. We recommend the conclusion of a maintenance agreement between the special-
ist tradesman and the operator of the heating system.
Improper use:
The BRUNNER pellet heating system BPH 7/24 und BPH 9/30 is not intended to:
- directly heat drinking water;
- burn fuels other than those specified in the technical documentation.
Any other use of the boiler is not permitted. The manufacturer is not liable for any resulting damage to prop-
erty or personal injury.
Non-compliant operation may result in danger to life and limb of the operator or third parties or damage to
the boiler.
Any other use or modifications to the product, including during assembly and installation work, will invalidate
all warranty claims.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 11

2.2 Type plate
The type plate is located on the ash door, clearly vis-
ible after opening the cladding door.
Illustration 1: Type
plate BPH 7/24
Illustration 2: Type
plate BPH 9/30
It contains the following important informa-
tion
CE mark;
Recycling symbol;
Manufacturer's data;
Designation;
Nominal heat output range;
Nominal firing output range;
Boiler class;
Fuel class;
Approved operating pressure;
Approved operating temperature;
Water content of the boiler;
Operating mode;
Required mains connection;
Current manufacturing number of the
existing boiler
12 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

2.3 Overview of the boiler
7
6
5
4
32
1
8
911
12
10
13
2
3
4
15
6
14
7
16
Pos. Designation
1 Boiler cladding
2 Buffer loading return
3 Buffer loading flow
4 Flue gas connection
5
Cold water for heat exchanger flushing,
connection safety hose with solenoid
valve included with the boiler
6 Pellet feed
7 Return air pellet feed
8STB button
(safety temperature limiter)
9 Inspection hole
10 Ash door
11 Ash box
12 Cleaning tool
13 Cladding door
14 Waste water connection with siphon
15 Recess for connections:
external supply air
16 Recess for connections:
Exhaust gas connection
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 13

2.4 Safety concept
The detailed safety concept of the boiler control system ensures continuous monitoring and control of all op-
erating states and all connected sensors, fans and drives.
The primary aim is to control the combustion process and to comply with the safety requirements, including
EN 303-5 (“Boilers - Part 5: Boilers for solid fuels, manually and automatically fired, nominal heat output up
to 500 kW”).
If required, the following functions are also controlled automatically:
- Heat removal (with boiler pump)
- Boiler cleaning (grate and heat exchanger cleaning)
- Filling the storage tank
- Control of the pellet feed to the combustion chamber
- Automatic ignition
- Flue gas fan control
- Potential-free contact for external fault evaluation.
Control, communication and monitoring functions are automatically activated by appropriate configuration
during installation/commissioning.
All operating states as well as the current operating parameters are shown on the touch display. If operating
faults occur, the error messages appear on the display and warning signals sound.
All information and error messages are automatically saved in the archive and can be retrieved from there for
error assessment.
Software can be updated at any time via the existing USB port.
NOTE
Necessary safety devices in accordance with EN 12828 (“Heating systems in build-
ings”), which are not part of the scope of delivery, must be provided by the customer.
All safety devices must be professionally installed and checked for proper function at
least once a year. Expansion vessels, expansion pipes, safety valves and blow-out
pipes must be protected against freezing, e.g. by being installed in a frost-proof boiler
room.
The safety temperature limiter (STB) is a component that interrupts the control operation of the boiler. This
protects the boiler itself, or the system connected to it, from damage. Accordingly, the STB only becomes ef-
fective if the actual temperature controller should fail.
The boiler can only continue to operate if the safety temperature limiter is switched back on manually. The
boiler safety group also protects the heating circuit.
The blow-out line consists of the lines between the safety valve and the boiler.
The following applies to the blow-out line:
Nominal diameter [DN] Max. Length [m] Max. Number of bends [pieces]
20 2 4
25 2 4
14 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

2.5 Fuel and water quality requirements
2.5.1 Pellets
Wood pellets are a modern, environmentally friendly and standardized wood fuel. They are mainly pressed
from the bark-free sawdust from sawn timber production. The strength of the wood pellets is ensured by the
lignin contained in the wood, supported by the small addition of natural binding agents such as starch.
Quality classes of the pellets
The BRUNNER BPH pellet heating system may only be operated with wood pellets
that comply with the DIN EN 14961-2/ A1 standard or the international DIN EN ISO
17225-2 standard and have a diameter of 6 mm.
Only purchase wood pellets from suppliers who can guarantee their high quality.
The following certificates stand for assured pellet quality (wood pellets for use in small fires):
ENplus-
certification
mark:
ENplus A1 quality certificate with
ID number of a certified
German pellet dealer:
2.5.2 Heating water
Heating water
In modern heating systems, the quality of the heating water has a significant influence on the functionality
and service life of the heating system due to the combination of different heat generators and components
such as high-efficiency pumps or modern sensor technology. For this reason, there are corresponding na-
tional specifications such as VDI 2035 in Germany, ÖNORM H 5195-1 in Austria and similar regulations.
BRUNNER therefore recommends filling and refilling the heating system with appropriately treated water.
Drinking water analyses for the respective supply area can be requested from the responsible water supply
companies.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 15

3 Planning advice
3.1 Requirements for the installation site
The boiler may only be installed in a dry environment.
The permissible ambient temperatures are between +4°C and +30°C.
The floor must be level, sufficiently stable and non-flammable. Stability and stability must be ensured from
the start. If the ceiling load is not sufficient, suitable measures must be taken to distribute the load.
The installation room must have adequate local lighting.
The combustion air must be technically free of chemical substances containing fluorine, chlorine, sulphur,
etc.
During operation, the boiler unit is closed and there is no risk of injury due to imbalance of rotating parts.
The boiler must not be installed in rooms in which:
- the required combustion air supply is not guaranteed.
- highly flammable or explosive substances are stored, manufactured or processed.
- in the case of room air-dependent operation, room air systems such as extractor hoods or controlled
ventilation systems are installed. This is only permitted if the safe operation of the boiler is ensured, if
- the ventilation and air conditioning systems only circulate air within a room;
- the ventilation and air conditioning systems have safety devices that automatically and reliably
prevent negative pressure in the installation room;
- simultaneous operation of the fireplace and the ventilation and air conditioning systems is pre-
vented by safety devices;
- the total negative pressure does not exceed 4 Pa - the negative pressure is created by the
combustion air flow of the boiler and the volume flows of the ventilation systems in the installa-
tion room and in the rooms connected via the ventilation network.
Inform the responsible district chimney sweep about the installation of the boiler be-
fore planning the system.
Ask him for advice regarding the planned installation room, connection and suitability
of the chimney and an adequate supply of combustion air.
3.2 Minimum clearances
It is necessary to adhere to the minimum clearances when setting up the boiler in order to ensure accessibility for main-
tenance and service work on the boiler.
Exhaust systems must be easily accessible for the chimney sweep for measuring, checking and cleaning work. A suit-
able stand area should therefore be planned.
16 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

C
E
D
F
BA
A 500 mm Maintenance side
B 600 mm Operating side
C 50 mm Wall clearance
D 50 mm Wall clearance
E 367 mm Maintenance (removal of heat exchanger-cleaning)
F 2000 mm Resulting room height
Distances to fuel stores
The Model Firing Ordinance (MFeuV) is decisive for the minimum distances between fireplaces and flue systems to
combustible components or fuel stores.
Distances to fuel stores conform §12 (3):
If fireplaces are set up in the rooms in accordance with Paragraph 2 No. 2 to 4, these must:
- be outside the required collecting areas for leaking fuel and
- have a distance of at least 1 m from containers for heating oil or diesel fuel.
A distance of 0.1 m is sufficient if it has been proven that the surface temperature of the fireplace does not exceed 40°
C.
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 17

3.3 BPH separator (UE10160)
Separator with BPH 7/24 or BPH 9/30:
18 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH

Condensate lifting unit
- Waste water lifting unit for above-floor installation, type: SWH 100
- Collecting tank made of PP with approx. 10 l usable capacity
- Switching device integrated in the tank cover with acoustic alarm signal in the event of
an impermissibly high water level
- Potential-free contact for external alarm
- Simple installation and maintenance thanks to DN 40 sliding piece for the washbasin in-
let connection
- Easy to maintain, thanks to pump mounted directly on the cover
- separate appliance connection with hose nozzle
- prepared shower inlet DN 50 that can be used on both sides (only 80 mm from the bot-
tom edge of the tank to the middle of the shower inlet pipe)
- 1 ¼“ pressure outlet with integrated non-return valve
- tank ventilation via activated charcoal filter Scope of delivery:
- 1.5 m connection cable with Schuko plug
Voltage: 230 V
Motor power P1: 300 W and motor power P2: 130 W
Rated current: 1.3 A
Speed: 2800 1/min
Max. Max. delivery head: 6.0 m and max. delivery rate: 8.0 m³/h
Max. media temperature: 40°C (briefly 90°C)
Grain size: 10 mm; individual weight per LME: 5.0000
Electrical connection diagram between BPH and condensate lifting unit:
Info:
Disconnect the ex-
isting bridge from
STP8before con-
necting.
24V IN2 IN1
STP8
Störkontakt
Schmutzwasser
Hebeanlage
& Reserve
(Digital
Eingänge)
Platine PBH
Follow the manufacturer's technical instructions!
3.4 Hydraulic diagrams and wiring diagrams
Hydraulic diagrams and the relevant wiring diagrams can be found in the BRUNNER Hydraulic Manual:
© 2023 Brunner GmbH Instructions for Use BPH 7/24 und BPH 9/30 (1.22) 19

The BRUNNER Hydraulic Manual is currently in the craftsmen's area at:
https://www.brunner.de
BRUNNER Hydraulic Manual 2020:
BRUNNER Hydraulic Manual 2022:
20 Instructions for Use BPH 7/24 und BPH 9/30 (1.22) © 2023 Brunner GmbH
