BSi iCAVA User manual

1
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
iCAVA INSTALLATION GUIDE
PRODUCT FEATURES:
Compact recessed wall lights, producing a clearly defined wash of light.
Adopted to illuminate ground surfaces with downward orientation of light.
Designed to last inextremely harsh environments.
RECOMMENDATIONS FOR THE USER:
1)Before the installation, make sure that there is no voltage.
2)Do not touch the fitting when it is working on / switched on
3)Do not look at the fitting directly or from a short distance.
4)Disconnect / switch off the fitting before changing the lamps
NOTES:
-Technical amendments are reserved.
-CE – Conformity mark
-The manufacturer is then discharged from liability when damage is caused by improper
use or installation.
-Clean luminaire regularly with solvent-free cleansers from dirt and deposits. Do not use
high pressure cleaners.
2
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]

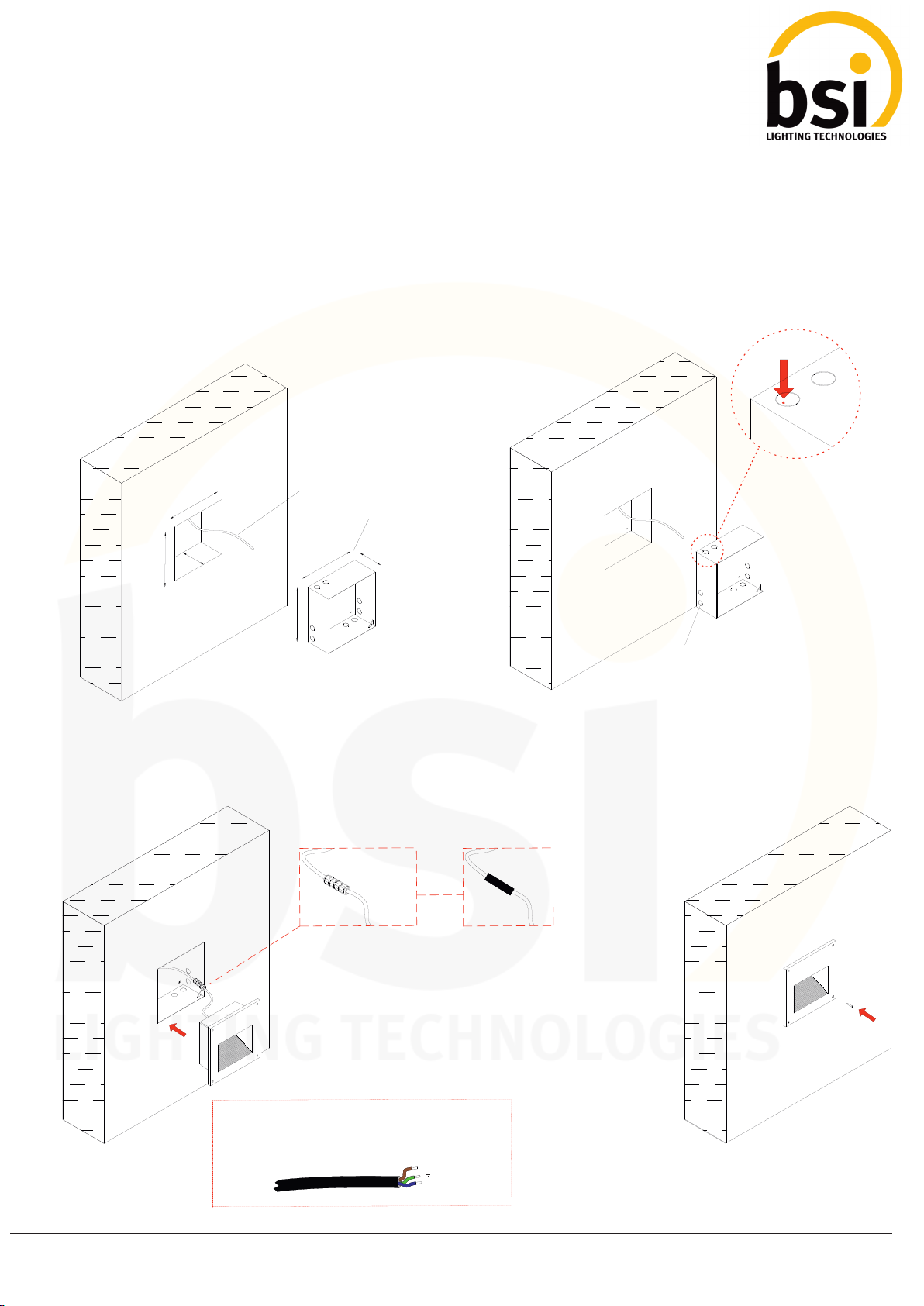

1) - Holes are mounted on the mounting surface
according to the dimensions of the mounting case.
- Mounting holes are opened so that they fit into the
mounting holes on the back of the mounting case.
- Electrical cabling is done.
iCAVA INSTALLATION GUIDE
Mounting Surface
Cable Hole
Mounting Surface
Energy Cable
Mounting Case
a
ab
a
ab
2) - In which direction the power cable will be routed
to the mounting frame, the cable hole on that
surface is opened.
- Mounting case is screwed to the mounting surface
and tightened by passing the cable hole.
3) -Electrical connection is done and the luminaire is placed.
IP 68 Terminal
Block
*Page 3
When connecting the
luminaires, make sure that the
same color cables are
matching. (+) Brown
( ) Yellow - Green
(-) Blue
Resin
or
4) Screw the luminaire.
AC5013-AC5014 iCava - a:300mm b:116mm
AC5015-AC5016 iCava - a:250mm b:116mm
3
Headquarters : Konutkent Mah. 3029 Cad. No:3/91 06810 Çankaya Ankara/TURKEY Phone : +90 312 472 42 50 Fax : +90 312 502 74 75 Email : [email protected]
iCAVA INSTALLATION GUIDE
