Buck BUCK-Libra Plus LP-5 User manual

A.P. BUCK, INC.
7101 Presidents Drive •Suite 110 •Orlando, FL 32809 USA
Tel [phone] •Fax [phone]
[email protected] •www.apbuck.com
MAN-LIBRA PLUS
Dated : February 8, 2006
BUCK-Libra Plus™
MODEL LP-5
7101 Presidents Drive •Suite 110 •Orlando, FL 32809
Tel: [phone] •Fax: [phone]
[email protected] • www.apbuck.com
INSTRUCTION
MANUAL

22 2323

2222 33
Table of Contents
Section Description Page
1 Quick Start Tutorial……………..……….………...5
2 Design and Basic Features….…………….……...6
3 Pump Specification.……. ….…………...............7-8
4 Operational and Menu Displays…………….….9-11
5 Filter Cassette Sampling………………………….12
6 Bubble and Impingers Sampling………………...13
7 Low Flow Tube Sampling………………………...14
8 Battery Chargers and A/C Power Supply……….15
9 Parts and Accessories…………………………….17
Warranty & Limitation of Liability…..…...…........18
Service Information & Technical Support..........19
Registration Form………………………………...21

44 2121
Contact Name
Company
Address
City State Zip Code
Country Phone Number
Fax Email Address
Purchased From
Purchase Date
Important: List all products purchases and corresponding serial numbers:
OWNER REGISTRATION
Please complete and fax this card to 407-851-8910 to properly register your unit
OR register on line at www.apbuck.com on the service and support page.
Please obtain an RMA number prior to returning any product. Call us at
407-851-8602 and have the serial number and model of the unit available.
OWNER SURVEY
Where did you learn about our products: What made you decide to buy:
Mailing Product Technology / Features
Direct Sale Phone/Fax Website Product Quality / Reliability
Magazine Price
Name & Issue Date Reputation of Company
Trade Show Product Availability
Distributor Referral
Name: Service / Support
Comments:

2020 55
OFF
ON
CALIBRATOR
BUCK
THE
mini-
Orlando, Florida
By
RANGE 1 CC/MIN - 6000 CC/MIN
GAS FLOWSTANDARD
A PRIMARY
FLOW RATE
A.P. BUCK, INC.
BUCK-GENIE
VSS-5
HOLD
ON OFF
ENTER
Section 1
Buck-Libra Plus Series Quick Start Guide
Note: Connect a representative sampling filter cassette using 1/4
inch tubing to the pump prior to setting Flow Rate for optimal per-
formance.

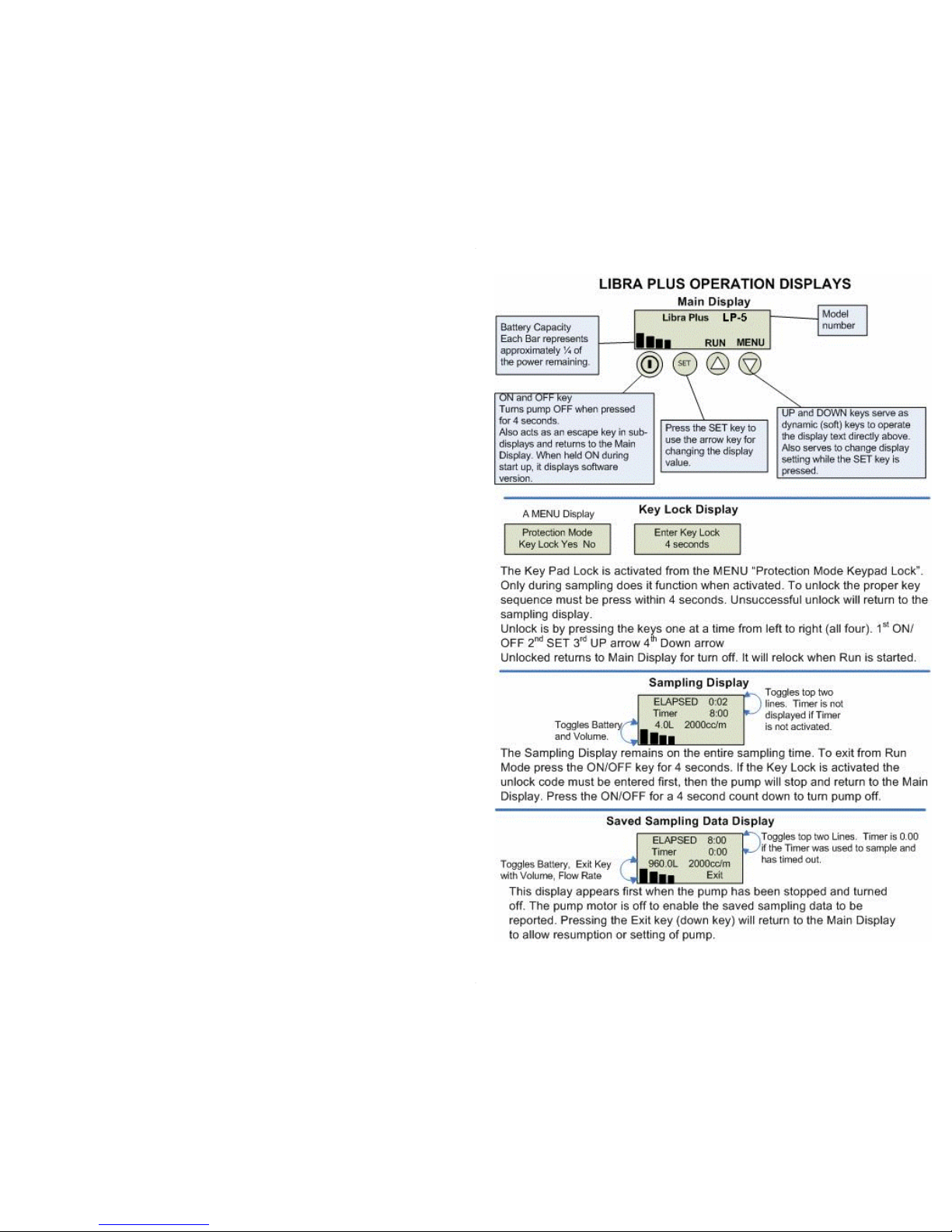

Main Display
Setting the Flow rate
1. Connect sampling filter with a hose to the pump.
2. Turn on the pump by pressing the ON key.
3. Next press the down arrow to the Flow adjust Menu.
4. Press and hold the SET key and
use arrows to adjust flow.
(This clears all previous data).
5. Releasing the SET key will store the flow rate.
6. Press the ON/OFF key to return to Main Display, then
press the up arrow (RUN) to begin sampling.
Pump calibration Adjustment if needed at point of Flow Set
1. To measure the flow rate have a Calibrator ready and con-
nected to the filter as shown below.
2. From the Main Display down arrow to the Calibration
Mode.
3. Press the SET key and release, pump
begins to flow at preset flow rate from
the steps above.
4. Measure flow, if it matches +/- 5% of setting, press the ON/
OFF key and resume sampling. Press and hold the SET
key to adjust the Factor for the pump speed to match de-
sired flow rate.

66
Section 2
Design and Features
The main purpose of this battery-operated personal sampling
pump is to draw contaminants from an air sample into, onto
or through a sampling media such as 25 and 37mm filter
cassettes, bubble impingers, long-duration color detector
tubes to gauge personnel exposure to gases, vapors, particu-
lates, aerosols, etc. Both the analytical method required for
the contaminant and the types of contaminants sampled
determine the selection of sampling media. Many sampling
methods specify the use of filters for collection. (i.e. Asbes-
tos and Lead). The pore size, filter diameter, and filter
material affect the ability of the sample pump to draw air
through the filter for contaminant collection.
The BUCK-Libra Plus™ Model LP-5 Personal Air Sampler
consists of a pump contained in a Lexan case, exclusive and
proprietary electronic circuit board for flow control, an LCD
display with 2 lines of 16 characters, a single diaphragm
pump mechanism and a rechargeable nickel metal hydride
battery pack.
Features:
▪Flow Compensation for filter plugging and battery voltage
▪Compact, Rugged and quiet
▪No tools required to change flow rates.
▪Battery pack rechargeable while attached or separately
▪Stainless steel belt clip with built-in tripod connector
▪One-hour rechargeable batteries and optional extended run
triple packs
▪High impact Lexan case, antistatic and RFI shielded
▪“Auto-restart” within one minutes of a flow fault
▪Flows up to 4 LPM for special cyclone requirements
▪Dual flow range easily handles filters, impingers, cyclones,
and tubes
▪High backpressure capable for 25mm 0.45 u asbestos filters
▪Built in washable stainless steel 100 micron filter
▪Displays: elapsed time, accumulated volume and flow rate
▪Accuracy +/- 5% of display reading or pump Flow Faults
▪Count down timer up to 40 hours, turns off pump.
▪Key pad lock system
▪One year warranty
1919
SERVICE INFORMATION
For all work not covered under warranty, A.P. Buck, Inc. will repair
any instrument for the cost of parts and labor as quoted. If major
components must be replaced, A.P. Buck, Inc. will notify the
customer before proceeding with repairs.
When returning any instrument for service, please include a
Purchase Order marked: “Repair – Cost Not to exceed $250.00
without customer authorization”. Please provide the following
information with your instrument:
Company Name:
Address:
Telephone:
Fax:
Contact Name:
Serial Number(s):
Date of Purchase:
Service Required or Description of Problem:
You must obtain an RMA number prior to returning any product.
Obtain your RMA number by calling A.P. Buck, Inc. Customer
Service at 800-330-BUCK or 407-851-8602. To expedite service and
repairs, have your Customer ID handy.
Please ensure that all products returned to A.P. Buck, Inc. contain
no hazardous materials. Any obviously contaminated product
received will be returned to the customer. All products scheduled
for service must be received within 30 days of the RMA number
issuance date. Unauthorized products will be returned to the
customer.
TECHNICAL SUPPORT SERVICES
Technical Assistance: [phone]
Fax: [phone]
Email: apbuck @apbuck.com
Web site: www.apbuck.com
Hours : Monday–Friday
8:00 AM to 4:30 PM (EST)
If you need additional information or help during installation or
normal use of this product, contact A.P. BUCK, Inc. Technical
Support. Our customer support staff will attempt to answer your
installation questions by phone or issue a service authorization
number for repair or replacement of your product. Unauthorized
returns will not be accepted. When calling for support, please have
your product serial number and product model available.

1818
WARRANTY
The seller warrants to the Purchaser that any equipment
manufactured by it and bearing its name plate to be free
from defects in material or workmanship, under proper and
normal use and service, as follows: if, at any time within 1
year from the date of sale, the Purchaser notifies the Seller
that in his opinion, the equipment is defective, and returns
the equipment to the Seller's originating factory prepaid,
and the Seller's inspection finds the equipment to be
defective in material or workmanship, the Seller will
promptly correct it by either, at its option, repairing any
defective part or material or replacing it free of charge and
return shipped lowest cost transportation prepaid (if
Purchaser requests premium transportation, Purchaser will
be billed for transportation costs). If inspection by the
Seller does not disclose any defect in material or workman-
ship, the Seller's regular charges will apply. This warranty
shall be effective only if installation and maintenance is in
accordance with our instructions and written notice of a
defect is given to the Seller within such period. This
warranty is exclusive and is in lieu of any other warranties,
written, oral or implied; specifically without limitation,
there is no warranty of merchantability or fitness for any
purpose. The liability of the Seller shall be limited to the
repair or the replacement of materials or parts as above set
forth.
LIMITATION OF LIABILITY
The seller shall not be liable for any claim for consequen-
tial loss or damage arising or alleged to have risen from
any delay in delivery malfunction or failure of the equip-
ment. The Seller's liability for any other loss or damage
arising out of or connected with the manufacture, sale or
use of the equipment sold, including damage due to negli-
gence, shall not in any event exceed the price of the equip-
ment supplied by us.
A.P. Buck, Inc. reserves the right to make changes at any
time, without notice, in prices, colors, materials, specifica-
tions, and models; and to discontinue models.
77
Pump Specifications
Model: LP-5
Flow Range: 0.8-5 LPM (800-5000 cc/min)
5-800 cc/min with Universal Low Flow Holder
P.N. APB-109030
Compensation Range:
5000 cc/min up to 5” water back pressure
4500 cc/min up to 7” water back pressure
4000 cc/min up to 10” water back pressure
3500 cc/min up to 20” water back pressure
3000 cc/min up to 30”: water back pressure
2500 cc/min up to 35”: water back pressure
2000 cc/min up to 35”: water back pressure
1500 cc/min up to 25”: water back pressure
1000 cc/min up to 25”: water back pressure
800 cc/min up to 15”: water back pressure
Accuracy: 5% or less of Compensation Range back pressure
Run Time:
Flow Rate cc/min 37 mm 0.8u 25mm 0.8u 25mm 0,45u
2000 43 hours 29 hours 12 hours
2500 32 hours 20 hours 9 hours
3000 22 hours 14 hours
3500 16 hours 11 hours
Low Flow using Universal Low Flow Holder
5 to 800 24 hours
Data Storage: Last flow rate, elapsed clock time and
accumulated volume is saved into
memory until cleared for next sampling.
Display: Back-lighted LCD with 2 lines by 16 Characters
Normal Operation Battery Level, Flow Rate, Elapsed
Time, Volume Collected, Timer
Flow Fault Displays: Flow Fault, or Filter Off
5 Menu Displays: Adjust Flow, Clear Data, Calibration,
Timer, Key Pad Lock option
Section 3

88
Flow Faults
Flow Fault for blockage of hose/filter and greater than
+/-5% for flow of 2000 to 3500cc/m with Auto-Restart for
one minute, then turns off pump with data saved.
Filter OFF detects hose or filter has come off, stops
pump and saves data. Pump turns OFF in 5 minutes.
Power Supply:
Single Pack, NiMH Batteries: 4.8V, 2.15 Ah
Triple Pack, NiMH Batteries 4.8V, 6.45 Ah
Recharge Time: QuickOne and QuickFive Chargers
Single Pack 1 Hour
Triple Pack 3 Hours
Quick-Chargers: input voltage 100 to 240 VAC
A/C adapter/ overnight Charge 110 VAC or 240 VAC
Approvals CE EMC Directive (EMCD) 89/336/EEC
Temperature:
Operating 32°F to 113°F (0°C to 45°C)
Storage 32°F to 113°F (0°C to 45°C)
Charging 41°F to 104°F (5°C to 40°C)
Case: Polycarbonate steel fiber filled, RFI/EMI-shielded
Size:
4.5”H x 4”W x 2”D (11.4 cm H x 10.2 cm W x 5 cm D)
Weight: 19 oz (538g)
Section 3 cont.
1717
Section 9
Parts and Accessories
1. BUCK QuickOne™ Charger 100–230 VAC (APB-601800 ) Single
Station Automatic One Hour Charger for use with the BUCK-
Libra Plus Series of Pumps.
2. BUCK QuickFive™ Charger 100–230 VAC (APB-605800), Five
Station Automatic One Hour Charger for use with the BUCK-
Libra Plus Series of Pumps.
3. BUCK Standard Charger 120VAC (APB-603400) Designed to
charge the Libra Plus Pump battery-pack (max 16 hours
charge time). Not Recommended for the triple pack.
4. BUCK "One Hour" Rechargeable “Standard” Battery Pack
(APB-109023) for the Libra Plus Series of Pump. These self
contained packs may be charged independently from the
pump and used as additional back up batteries in the field.
Simple four screw changing operation.
5. BUCK Triple Rechargeable Battery Pack (APB-109323) for the
BUCK-Libra Plus Pumps.
6. BUCK Adjustable Universal Low Flow Tube Holder (APB-
109030). Desired flow may be precisely adjusted for flows of 5
to 800 cc/min. with the mini- BUCK Calibrator™ and a screw-
driver using the tube holder’s built-in adjustable screw.
7. Tube Cover for Adjustable Universal Low Flow Tube Holder
(Sorbent sample tube size determines cover size).
8. Luer Adapter (APB-109000) (pkg 10). Adapter (black) fits onto
tubing to easily attach filter cassette outlet to tubing to aid in
calibration.
9. Sample Hose Clip (APB-109020) (pkg 10). Clothing clip for
attaching hoses and sampling heads to a worker's collar or
shirt, with snap nylon strap for 3/8" O. D. hose.
10. Multi Low Flow Manifold (APB-109034). Poly-carbonate mani-
fold allows connection of up to three sorbent tubes and Pro-
tective Covers for independent multiple low flow sampling with
a single pump.
11. Non-Adjustable Flow Sample Holder (APB-109032). To be
used with any model of Buck pump in Constant Flow.
12. 5-Pack Pump Case (APB-109017). Designed to hold up to 5
Libra Plus Series pumps, QuickOne™ or QuickFive™ charger
(s), accessories, media, tubing, etc. Rugged design protects
contents even when shipped by UPS™, air freight, etc.

1616
A/C Power Supply (continuous sampling)
The Standard Battery Charger for BUCK pumps, will supply
enough power to operate the Libra Plus Pump continuously while
sampling. Simply plug the charger into the battery pack into 120
VAC outlet and turn the pump on to sample.
Interchangeable Batteries
The BUCK-Libra Series incorporates a unique system of inter-
changeable batteries to provide additional flexibility in sampling.
A Triple Pack is available for extended run times. All run times
are tripled from those stated for a single Standard Pack.
Battery Pack
The BUCK-Libra Series Standard Battery Pack consists of four
nickel metal hydride batteries. The batteries are rated at 2150mA
hour capacity. The QuickOne™ and QuickFive™ Battery Chargers
connect to the back of each battery case; by lifting the protective
rubber cover, the charger lead can be easily inserted. A Triple
Battery Pack may be substituted for the standard battery pack to
provide three times as much battery capacity for the Libra Plus.
When a Battery Pack or pump with Battery Pack is connected to a
BUCK QuickOne™ or QuickFive™ Charger, a yellow LED
(CHARGING) will indicate the charging cycle has begun. The
charge cycle takes approximately one hour for the single packs
and 3 hours for the triple packs. When the charging cycle is
completed, a green LED will light (READY) indicating end of cycle.
Individual battery packs may be charged independently of the
pump if required. The pump may be left connected to the charger
in “trickle charge” indefinitely. Battery pack cases are connected
to the pump case bottom with four self-retaining screws.
Caution: Never charge batteries in hazardous areas.
99
Section 4

1010
Section 4
1515
Section 8
BATTERY CHARGERS and A/C Power Supply
Note: The BUCK QuickOne™ and QuickFive™ Battery
Chargers are designed to charge only the Nickel Metal
Hydride (NiMH) battery packs for the BUCK-Libra Plus
Pumps.
BUCK QuickOne™ and QuickFive™ Battery Chargers Description
The BUCK QuickOne™ and QuickFive™ Chargers are microproc-
essor-controlled battery chargers providing an entirely automatic
battery charging cycle in approximately one hour. The pump bat-
tery pack can be recharged with or without the pump connected.
When inserting the charger lead into the battery pack socket, first
lift up the protective rubber cover. The charger uses a voltage/
temperature detection technique that provides a full recharge.
When plugged in, the Yellow and Green LED light to indicate the
microprocessor is functioning and the charging cycle is in
progress (“Yellow”) and finished or ready (“Green”).
The QuickOne™ and QuickFive™ Chargers will charge a
completely discharged pump battery in one (1) hour. Three (3)
hours for the optional Triple Pack with a fully discharged pack.
After a full charge, a trickle charge cycle (“Green” LED) will begin.
Batteries may be left in trickle charge indefinitely.
The charger is designed to operate from a 100 - 240 VAC. The
charger begins operation automatically when plugged in to an AC
source.
Operation
When plugged in, the “Charging” light will indicate Yellow (ON).
When the green light turns ON and Yellow turns OFF, the batteries
are fully charged.
Standard Charger
The Standard Charger is designed to charge the BUCK PUMP
NiMH battery single pack in 16 hours. The connection is made
through the same charge port on the rear bottom of the battery
pack. The RED LED light on the A/C charger will light. After 16
hours, the pump batteries will be fully recharged for portable
operation. The battery pack can be charged either on or off the
pump. Note: The Standard Charger is not recommended for the
Triple Packs.

1414
Section 7
LOW FLOW TUBE SAMPLING (5 to 800 cc/min.)
Using the setup as shown above, flows of 5 to 800 cc/min.
may be collected in adsorbent tubes (charcoal, silica gel,
etc.). NOTE: first set up sorbent tube in Tube Holder with
proper tubing before turning pump on.
Low Flow Sampling Procedure:
1. The pump must be in PRESSURE MODE
under Flow Adj. MENU. Arrow the flow
below 800 cc/m. This will place the pump
in Pressure Mode and turn on the pump motor to
operate at a set speed.
2. Using the mini-BUCK Calibrator M1 (0.1 to 300 cc/min.)
or M5 (1 to 6000 cc/min.), measure the flow through the
adsorbent tube as shown above. Use a screw driver to
adjust the flow to the desired rate.
3. Once the sample flow rate has been set, press the SET
and Arrow key to match the measured flow on the
Calibrator. An accuracy flow of ± 5% will be maintained
throughout the sampling day. In Run Mode the flow rate
will be displayed and the accumulating volume will be
accurate.
4. Some new higher flow thermal desorption with higher
backpressure tubes may be used in “Constant Flow”
Mode with the non-adjustable tube holder (P.N. APB
-109032) for flow above 800 cc/min.
OFF
ON
A PRIMARY
FLOW RATE
BUCK
STANDARD
RANGE 1 CC/MIN - 6000 CC/MIN
By
A.P. BUCK, INC.
Orlando, Florida
mini-
CALIBRATOR
UNIVERSAL LOW
FLOW HOLDER
AIR FLOW
BUCK-BASIC
BASIC-5
HOLD
ON OFF
ENTER
GAS
FLOW
THE
1111
Section 4

1212
Main Display
Note: Connect a representative
sampling filter cassette using 1/4
inch tubing to the pump prior to
setting Flow Rate.
OFF
ON
CALIBRATOR
BUCK
THE
mini-
Orlando, Florida
By
RANGE 1 CC/MIN - 6000 CC/MIN
GAS FLOW STANDARD
A PRIMARY
FLOW RATE
A.P. BUCK, INC.
BUCK-GENIE
VSS-5
HOLD
ON OFF
ENTER
Section 5
Setting the Flow rate
1. Connect sampling filter with a hose to the pump.
2. Turn on the pump by pressing the ON key.
3. Next press the down arrow to the Flow adjust Menu.
4. Press and hold the SET key and
use arrows to adjust flow.
(This clears all previous data).
5. Releasing the SET key will store the flow rate.
6. Press the ON/OFF key to return to Main Display, then
press the up arrow (RUN) to begin sampling.
To clear all sampling data and sample at the previous flow
rate, from the Main Display press the down arrow key twice to
the “Clear Data Menu”. Press and hold the SET key and press
the up key for Yes clear data. Press the ON/OFF key to return
to the Main Display and press up arrow to begin sampling.
Pump calibration Adjustment if needed at point of Flow Set
1. To measure the flow rate have a Calibrator ready and con-
nected to the filter as shown above.
2. From the Main Display down arrow to
the Calibration Mode.
3. Press the SET key and release, pump
begins to flow at preset flow rate from the steps above.
4. Measure flow, if it matches +/- 5% of setting, press the ON/
OFF key and resume sampling. Press and hold the SET
key to adjust the Factor for the pump speed to match de-
sired flow rate.
5. Press ON/OFF to return to Main Display and begin sam-
Filter Cassette Sampling
1313
Section 6
Bubbler and Impingers Sampling
CAUTION: FIRST SET THE FLOW WITHOUT SOLUTION IN BUBBLER.
The default flow rate at 2000cc/min. or previously selected flow
may be too fast and draw bubbler solution into the pump.
Generally, 1,000 cc/min. is the flow of choice.
Connect a standard 37mm three piece filter cassette (with a
0.8 micron filter in place) close to the inlet of the pump. This
serves as a protective trap to prevent any fluids from being
drawn into the pump.
1. Attach a bubbler using desired length of hose to the input
of the cassette, so the order of the sampling train from
right to left (traveling upstream of the flow) is pump,
cassette and then bubbler as shown in drawing. Set flow
at 1,000 cc/min
2. Turn pump off, and next add solution to bubbler and
reinstall flow tube to holder.
3. Press Run begin sampling. Even though different brands
of bubblers/impingers have varying amounts of flow
resistance, the BUCK-Libra Series Pumps will operate at
the pre-selected flow.
A.P. BUCK, INC.
FLOW RATE
A PRIMARY STANDARD
GAS FLOW
RANGE 1 CC/MIN - 6000 CC/MIN
By
mini-
THE
BUCK
CALIBRATOR
ON OFF
ORLANDO, FLORIDA
BASIC-5
HOLD
ON OFF
ENTER
BUCK-BASIC
