Budan BUDCG102 User manual
COFFEE GRINDER
USER MANUAL
IMPORTANT SAFEGAURDS
When using electrical appliances, basic safety precautions should always be followed:
1. Read all instructions.
2. To protect against fire, electric shock and injury to persons, do not immerse cord, plugs or machine in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.
4. Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. To unplug, grasp plug and pull from electrical
outlet. Never pull cord.
5. Avoid contact with moving parts
6. To reduce the risk of severe injury to persons or damage to the appliance, keep hands and utensils out of the coffee bean box while
grinding, and when the appliance is plugged in.
7. Do not operate the grinder with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. In
this case, return the appliance to the approved Service Center for examination, repair, or electrical or mechanical adjustment.
8. The use of attachments not recommended or sold by may cause fire, electric shock or injuries.
9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
11. Check coffee bean box for presence of foreign objects before using.
12. Always operate the burr grinder with the lid securely in place.
13. Do not place on or near a hot gas or electric burner or in a heated oven.
14. This product has been designed for household use only. Any commercial use, inappropriate use or failure to comply with the instructions
will void the manufacturer's Warranty.
15. This appliance is only used for roasted coffee beans grinding. Do not use the appliance for other intended use (such as hard seeds,
spice, nuts, etc.)
16. Every appliance is inspected strictly during mass production, and be tested with coffee beans for grinding, which may cause slight traces
of use or residual coffee grounds
17. All machines are subject to stringent quality control. Practical tests using machines taken at random are conducted and this may explain
any slight marks or coffee residue showing prior to use.
02
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing other than cleaning and user maintenance should be performed by the nearest
authorized Service Center.
■ Do not immerse appliance in water.
■To reduce the risk of fire or electric shock, do not dismantle the appliance. Repair should be done by an authorized Service Center only.
SHORT CORD INSTRUCTIONS
Regarding your Cord Set:
A. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.
B. Extension cords should be used with caution.
C. If an extension cord is used, (1) the marked electrical rating of the extension cord should be at least as great as the electrical rating of the
appliance, (2) if the appliance is of the grounded type, the extension cord should be of a grounded type and (3) the longer cord should be
arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.
POLARIZED PLUG
This appliance has a polarized plug (one blade is wider than the other), to reduce the risk of electrical shock. This plug will fit into a polarized
outlet only one way.
If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit,contact a qualified electrician. Do not modify the plug in any
way.
03
ABOUT GRINDING COFFEE
The proper grind gives the most flavorful cup of coffee. The grind size and amount depend on the method by which the coffee is to be
brewed. Generally, the finer the grind the more quickly the coffee should be prepared. That is why coffee ground for an espresso machine
extraction is much finer than coffee to be brewed in a drip system.
Coffee that is ground too fine for a particular brewing process - (For example, fine espresso grind used in a filter drip coffee machine) will
result in over-extraction and bitter, pungent tasting coffee. Conversely, coffee that is too coarse for a particular brew method will result in
under-extraction and weak, watery coffee. If the correct grind is used, adding more coffee simply makes a brew stronger without making it
bitter.
In addition to providing a range of grind settings, coffee grinders provide a consistent grind. This is important to ensure the extraction is
consistent across all of the ground coffee particles.
CAUTION：
Power saving mode: If without operation over 3 minutes, the unit enters
Power saving mode automatically, press any button it restarts.
A. Coffee Bean box lid
B. Coffee Bean box
C. Removable upper conical burr
D. Coarseness adjustment ring
E. Control panel
F. Stainless steel plate
G. LED display
H. Cup selection button
I. Timer button
J. START/STOP button
K. Brush
L. Coffee powder lid
M. Coffee powder jar
A
B
C
D
G
K
L
M
H
I
J
E
F
DESCRIPTION
04
BEFORE FIRST USE
SET THE COFFEE BEAN BOX
Before using the coffee grinder, wipe the housing and Coffee bean box with a clean damp cloth, and take off the adhesive tape as well.
NOTE: If the coffee bean box is not assembled properly, the coffee grinder won't work.
2. Press the Coffee bean box release lever located at the
opposite of the grinding size markings,
1. Make sure the top part of the conical
burr is clear. If not, please use the brush
provided to clean the top part of the burr,
2. Align the unlock icon on the base
with the arrow on the Coffee bean box,
Turn the Coffee bean box clockwise until
the lock icon aligns with the arrow
3. Turn the Coffee bean box counter-clockwise until the
unlock icon aligns with the arrow and lift it up.
HOW TO REMOVE THE COFFEE BEAN BOX
1. Make sure the coffee grinder is unplugged.
HOW TO ASSEMBLE THE COFFEE BEAN BOX
05
SET COFFEE GRIND SIZE
1.Put the coffee powder jar at the correct position.
See chart below:
GRIND SIZE SETTING RECOMMENDATIONS
2.Fill coffee beans into coffee bean box, close the lid. 3. The coffee grinder has 31 grind size options. To adjust the grind
size, rotate the coffee bean box and adjust from fine to coarse
according to the type of coffee you want.
COFFEE
TYPE
Grind Size
Grind Setting
Fine
1-2
Cezve Espresso Siphon Drip Coffee Pour Over French Press
Middle Fine
3-5
Middle
6-10
Middle
11-20
Middle Coarse
11-20
Coarse
26-31
06
1. Add coffee beans into the coffee bean box.
2. Select the coarseness by rotating the coarseness adjustment ring.
3.Power on the unit, the buzzer sounds one time and the LED display shows "01”, which means entering "Cup selection mode" and it
prepares one cup coffee powder.
4. Cup selection button
When press “Cup selection button”, LED displays "01".
Default setting range is 1-10 cups, press this button each time to add 1 cup, it shows 01.02.03.04....10. After selecting the number of cups
you like, press "start button" to start grinding.
If you want to stop grinding during operation, press “Start/stop button” one more time.
5. Timer button
When selecting "Timer button", LED displays "00", Press "start button" to start grinding.
If you want to stop grinding during operation, press “Start/stop button” one more time.
The max grinding time is 40 seconds. The unit will stop grinding after 40s automatically.
6. Start/stop button
After selecting “Cup selection button” or "Timer button", press “Start/stop button” to start grinding.
If you want to stop grinding during operation, press “Start/stop button” one more time.
OPERATION INSTRUCTIONS
INSTRUCTIONS
1. Control Panel Instruction
2. Button Instruction
This unit has 3 buttons :
Cup selection button, cup setting from 1 to 10 cups.
Cup selection button, cup setting from 1 to 10 cups.
Cup selection button, cup setting from 1 to 10 cups.
07

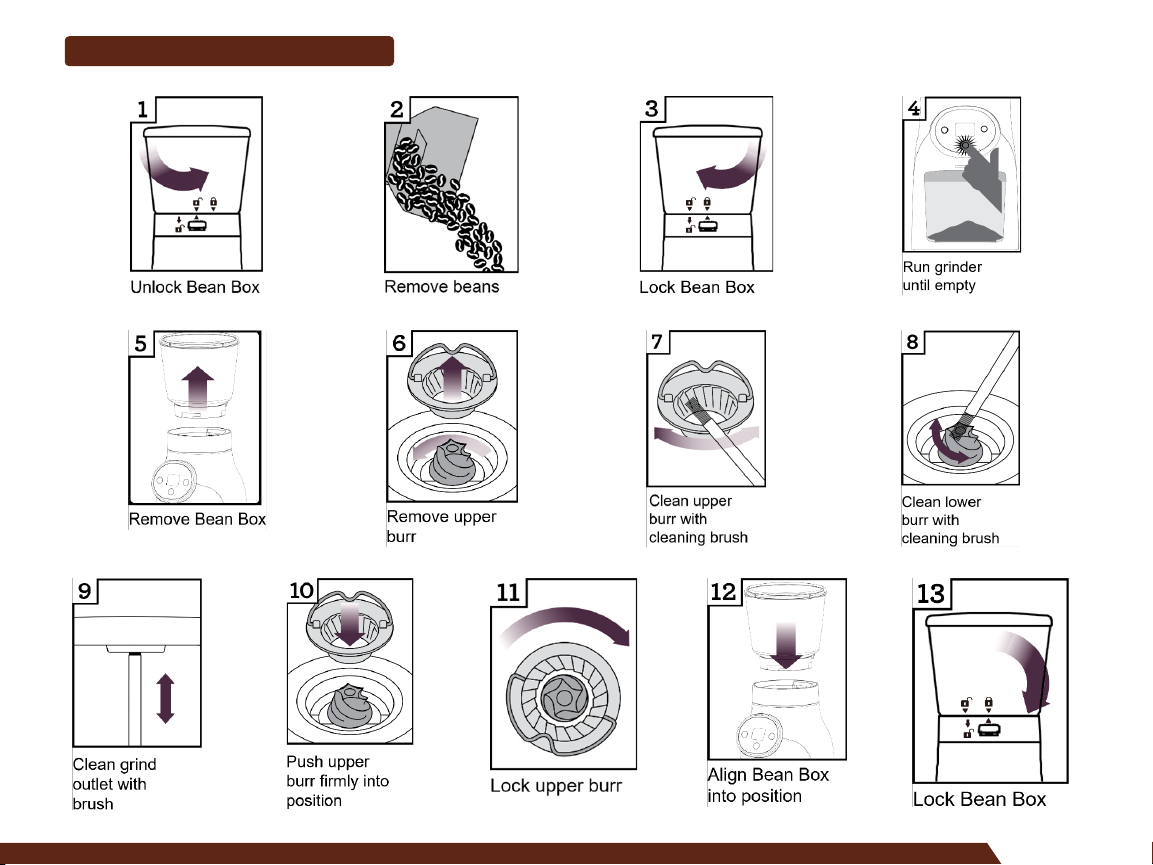

CLEANING CONICAL BURRS
08
IMPORTANT!
For your appliance to run correctly, make certain that:
■ The lid to the coffee bean box is correctly closed.
■ The coffee powder jar and its lid are correctly placed in the body of the appliance.
■ This appliance is equipped with an overheat protective device. If the appliance overheats, it will switch off automatically. In this case let it
cool down for 30 minutes then restart..
MAINTENANCE
■ To keep all your coffee`s aroma and to avoid a degradation of the ground coffee, empty the ground coffee container after each use.
■ Always unplug from the power outlet before cleaning.
■ Never place the grinder, power supply cord or plug in water or under running water.
■ Do not use strong detergents or abrasive pads to clean the appliance.
■ Clean the lids and the ground coffee holder in warm, soapy water.
■ To remove the upper burr, hold of the upper mill and turn counter clockwise, then raise it vertically to remove.
■ Clean the upper burr with the cleaning brush (k).
■ Carefully clean the inside of the coffee bean box with a damp cloth.
■ To replace the upper burr, insert the burr and turn it once in the clockwise direction. For proper alignment, residual coffee and coffee
grounds in the lower burr will need to be cleared.
09
TROUBLESHOOTING GUIDE
This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
Children shall not play with the appliance.
Trouble description
No bean holder or bean holder is not connected tightly.E1
E2 Total operating is 5 cycles, it powers off automatically to
protect the unit.
Unplug power cord, waiting for it cooling down, then
restart.
Motor is overheating. Waiting for motor cooling down over 30 minutes and
restart.
Assembly the bean holder or tighten the bean holder
until the micro switch is closed, once bean holder is
close then error code E1 in display disappears.
Trouble description
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used device, please use the
return and collection systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
Trouble description
10
Power
Voltage / Hz
Bean hopper capacity
Grounds container capacity
Dimensions
Net weight
165 W
220 - 240 V ~ 50 / 60 Hz
275 g
100 g
230 mm x 175 mm x 360 mm
1.6 kg
Product Name Budan Coffee Grinder
