Bull 17400 User manual
1
PREMIUM DOUBLE DRAWER
OUTDOOR RATED REFRIGERATOR
MODEL # 17400
OWNERS MANUAL
BEFORE INSTALLATION OR USE, PLEASE READ AND
FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS
Write Serial No. in box below for future reference
Version2
SerialNo.__________________
2
TABLEOFCONTENTS PAGENO.
GETTINGSTARTED
oPRODUCTREGISTRATIONINSTRUCTIONS_______________________3
oPRODUCTSERIALNUMBERLOCATIONS____________________________3
oAPPLIANCESAFETYANDIMPORTANTSAFEGUARDS ____4
INSTALLATION
oSITEPREPARATION 5
oANTI‐TIPBRACKETINSTALLATION ____5‐6
oLEVELINGTHEUNIT ____6
oINSTALLINGDRAWERHANDLES____________________________________6
oELECTRICALANDPLUMBINGCONNECTION___________________________7
oEXTENSIONCORD_______________________________________________7
OPERATINGYOURREFRIGERATOR:

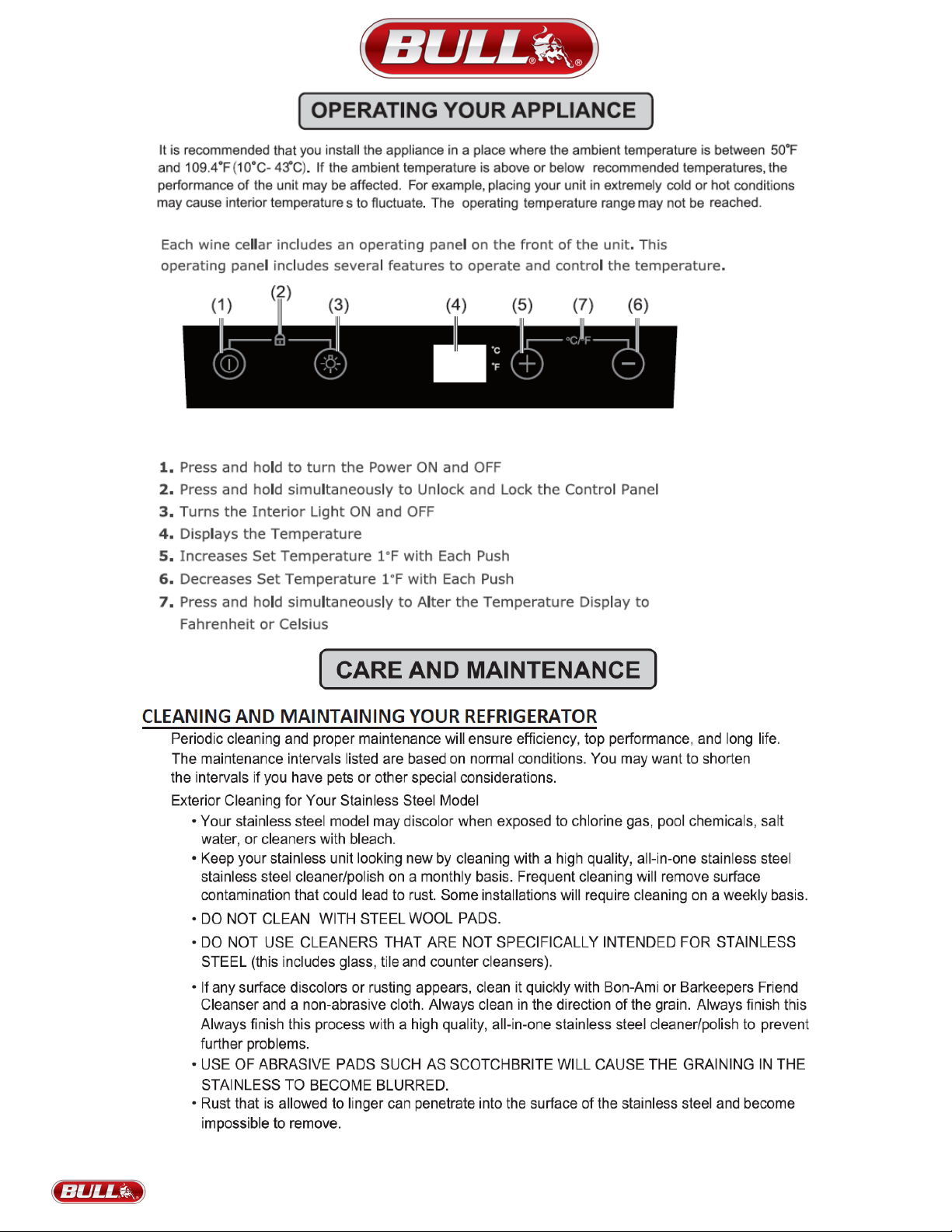

oCONTROLPANEL 8
CAREANDMAINTENANCE:
oCLEANINGANDMAINTENANCE 8

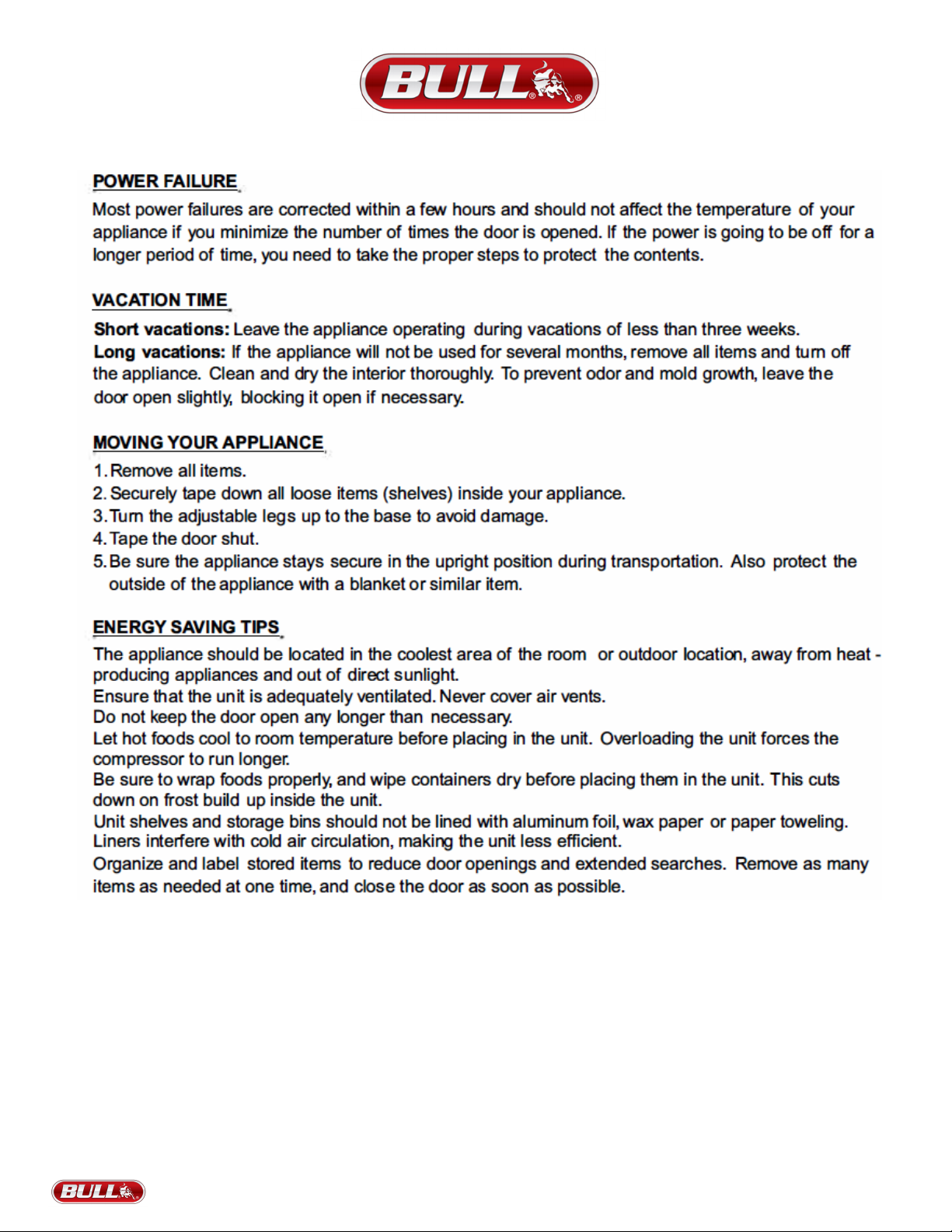

oPOWERFAILURE9
oVACATIONTIME(OFF‐SEASONSET‐UP)9
oMOVINGYOURREFRIGERATOR9
oENERGYSAVINGTIPS9
TROUBLESHOOTING10
PARTSLISTANDILLUSTRATION___________________________________________11
HOWTOORDERREPLACEMENTPARTS_____________________________________11
WARRANTYINFORMATION12
WARNING:THISPRODUCTCANEXPOSEYOUTOCHEMICALSINCLUDINGCARBONMONOXIDE,
WHICHISKNOWTOTHESTATEOFCALIFORNIATOCAUSEBIRTHDEFECTSOROTHER
REPRODUCTIVEHARM.FORMOREINFORMATIONVISITwww.P65Warnings.ca.gov
3
REGISTERINGYOURREFRIGERATOR
InordertovalidateyourBullLimitedWarranty,youmustcompletethe
WarrantyRegistrationCardwithin90daysfromtheProofofPurchase.You
mayregisteryouruniteitheronlineatwww.bullbbq.comorbysendingin
thecompletedhardcopyalongwithacopyoftheProofofPurchaseto:
BullOutdoor
Products,Inc.,2483
W.WalnutAve.
Rialto,CA92376
ATTN:WarrantyService
Center
LOCATIONOFSERIALNUMBER
Essentialinformationaboutyourproductisencodedintheserialnumber.Thisinformationwillberequiredforallwarranty
claims,orderingreplacementpartsandwillidentifyanyvariationsofyourunit.Itisextremelyimportantthatyourecord
yourserialnumberandregisteryourgrillfromtheProofofPurchase.TheSerialnumberinfocanbefoundinthelocations
shownbelow:
FORWARRANTY
PURPOSES,PLEASE
RECORDORRETAINTHE
FOLLOWING:
1)
MODEL NUMBER
2)
SERIAL NUMBER
3)
DATE OF PURCHASE
4)
COPY OF YOUR RECEIPT
OR INVOICE
Thedataplateonthebackoftheunitalso
showstheserialnumber.
Theserialnumberinfoisonthetopandon
eachsideoftheboxitwasshippedin.
4
APPLIANCESAFETYANDIMPORTANTSAFEGUARDS
SAVETHESEINSTRUCTIONS
RISK OF CHILD ENTRAPMENT
Child entrapment and suffocation are not problems of
the past. Junked or abandoned appliances are still
dangerous, so please do the following before
discarding your old refrigerator:
1) Take off the doors or drawers.
2) Leave shelves in place so children may not easily
climb inside.
Before the appliance is used, it m\ust be
properly positioned and insatalled as described in this manual, so read
the manual carefully to reduce the risk of fire, electrical shock or injury
when using the appliance by folllowing the basic precautions
below:Electrical cord for Refrigerator must be plugged into a 3 prong
outlet.
•
Do not remove grounding prong.
•
Do not use an adapter or extension cord.
•
It is recommended your Refrigerator be powered by a separate
circuit dedicated only to your appliace.
•
Use a receptacle that cannot be turned fo off by a swithch or
pull-chain.
•
Do not connect or disconnect the electric plug when your
hands are wet.
•
Unplug the appliance or disconnect power before cleaning or
servicing. Failuer to do so can result in electrical shock or
death.
•
Never clean appliance parts with flammable liquids. These
liquids have fumes that can create a fire or explosion hazard.
•
Do not store or use gasoline or other liquids with flammable
vapors in the vicinty of the or any other appliance that can
create a fire or explosion hazard.
•
Do not attempt to repair or replace any part of your appliance
unless it is specifically recommended in this manual. All other
servicin
g
should be referred to a
q
ualified
technician.
Yoursafetyandthesafetyofothersisveryimportant.
We have provided many safety messages in this manual and
on your appliance. Always read and obey all safety messages.
This is the Safety Alert Symbol. This symbol alerts you to
potential hazards that can injure or kill you and others. All safety
messages will follow the Safety Alert Symbol with the word ‘DANGER’
or ‘WARNING’
‘DANGER’ means that failure to heed this
safety statement may result in severe personal injury or death.
‘WARNING’ means that failure to heed this
safety statement may result in extensive product damage, severe
personal injury or death.
All safety messages will alert you about the potential hazard, tell you
how to reduce the chance for injury and let you know what can happen if the
instructions are not followed.
APPLIANCE SAFETY
IMPORTANT SAFEGUARDS
BEFORE INSTALLING YOUR APPLIANCE
Remove the exterior and interior packing.
Before connecting the appliance to the power source, let it stand
for approximately 24 hours.This will reduce the possibility of a
malfunction in the cooling system from handling during
transportation.
Clean the interior surface with lukewarm water using a soft cloth.
Install the handle to the door if needed.
INSTALLING YOUR APPLIANCE
Your outdoor double drawer refrigerator has been designed for
built-in or free standing use.
For built-in use, the front grill must not be obstructed.
No air space is required for the top, side or rear.
NOTE:
It is recommended that you do not install the appliance near
an oven, radiator or other heat source as it may increase
appliance electrical consumption.
Do not install in a location where the temperature will below
50 degrees Fahrenheit, or in a moist area.
For best performance, do not install behind a cabinet door or
in a manner that obstructs the front grill.
Plug the appliance into a dedicated, properly grounded wall
outlet
INSTALLATIONINSTRUCTIONS
5
SITEPREPARATION
1) Positiontheunitonaflat,levelsurfacecapableofsupportingtheentireweightoftheunit.
NotethatyourRefrigeratorwillbesignificantlyheavieronceitisfullyloaded.
Beforefilling,wipeoutinsideofunitwithadampcloth.
2) Positiontheunittoallowfreeairflowthroughthefrontgrillasshownbelow
3) TheRefrigeratormustbeinstalledaccordingyourlocalcodesandordinances.
4) ELECTROCUTIONHAZARD!
ElectricalGroundingRequired–Thisapplianceisequippedwitha3prong
(grounding)polarizedplugforyourprotectionagainstpossibleshockhazards.
•NEVERremovethegroundingprongfromtheplug.
•NEVERusea2pronggroundingadapter.
•NEVERuseanextensioncordconnectpowertotheunit.
Wherea2prongwallreceptacleisencouteredoralongerpowercordis
Required,contactaqualifiedelectriciantohaveitreplacedinaccordancewith
Applicableelectricalcodes.
5) BesuretoinstalltheAnti‐Tipbracketusingthekitprovided.Pleasenotesafetyconcernsbelow.
ANTI‐TIPBRACKETINSTALLATION
YourRefrigeratorcomeswithanAnti‐TipBracketthatmustbeproperlyinstalledperinstructionsbelowtoreducetheriskoftipover
duetoabnormaluseorimproperloading.
STEP1PerFigure1,
•PlacetheAnti‐Tipbracketsonthefloorwiththeintentionofmountingthebracketstoholdtherefrigeratorfromthebackside.
•Markthelocationofthe4holesforoneofthebracketsonthefloor.
•Markthelocationforthemountingholesofthe2
nd
bracket.Insureslotsoncentersofbracketlikeupwithlevelingfeetonfridge.
•Usea5/16masonrydrillbitandinserttheplasticanchors
•Securebrackettofloorusingscrews.
Figure1
6
ANTI‐TIPBRACKETINSTALLATION(CONTINUED)
STEP2
• Liftthebottomoftheunitasshownbelow.
• Useascrewdrivertoremovethescrewsindicatednexttothelevelingfeet.Thisenablesyoutoadjustthelevelingfeet.Note,toprevent
thelevelingfeetfromfallingoutoftheirmounts,donotloosenthelevelingfeetdistancemorethan1/8inch.
STEP3
• Slidethelevelingfeetoftherefrigeratorintoanti‐tipbracketsforfinalpositioningasshownbelow.
IMPORTANT!DonotuseRefrigeratorwithouttheAnti‐TipBracketinplace.
LEVELINGYOURREFRIGERATOR
Positiontheunitonaflatlevelsurfacecapableof
supportingtheentireweightoftheunitwhenfull.This
unitcontains4adjustablelevelingfeet.Turnclockwiseto
raiseandcounterclockwisetolower.
INSTALLINGTHEDRAWERHANDLES
Useprovidedscrewstoinstall
fingertightandverifyhandlelines
upstraighttodrawerbefore
tighteningwithscrewdriverper
figureshown.
Leveling Feet
7

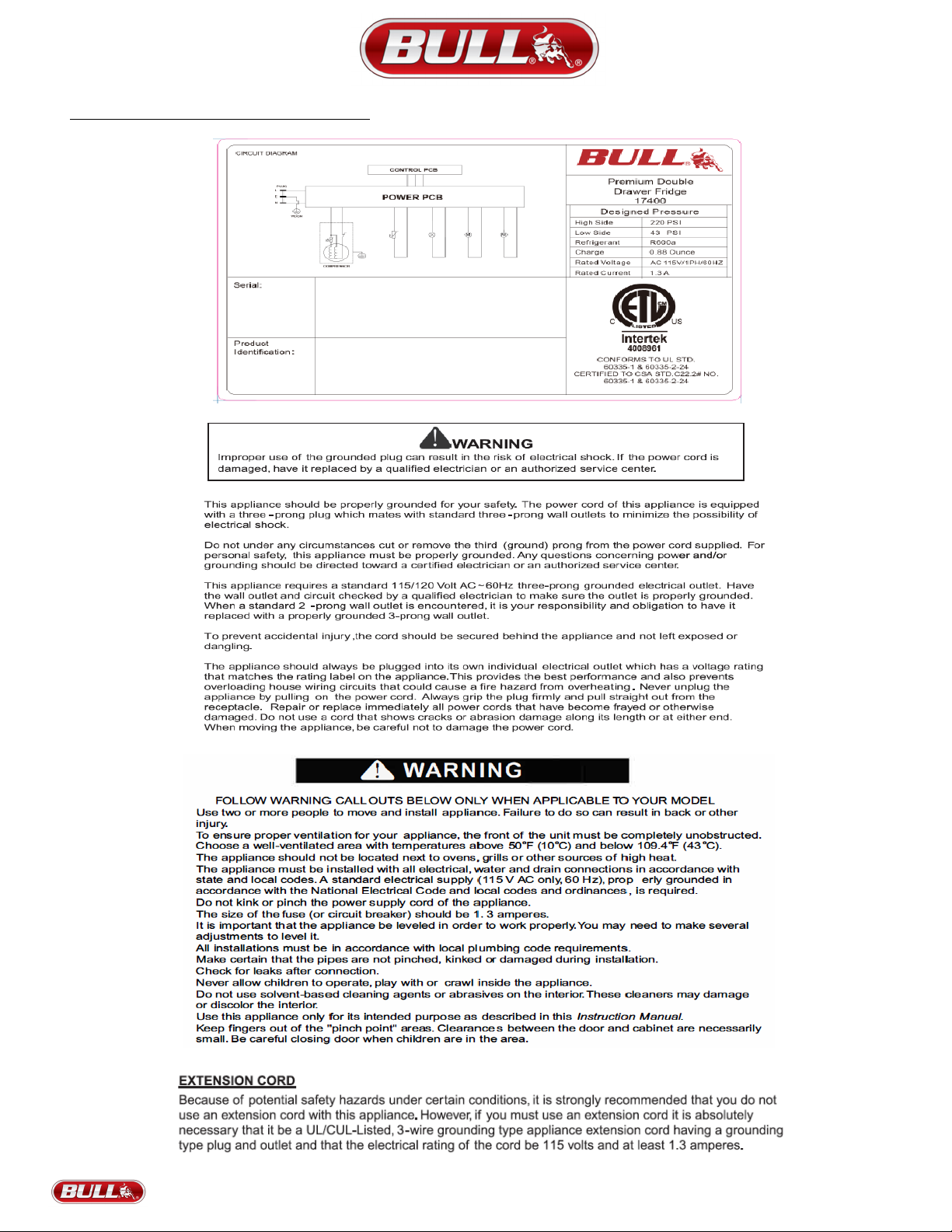

ELECTRICAL/PLUMBINGCONNECTIONS
8
9
10
You can solve many common problems easily, saving you the cost of a possible service call. Try the suggestions below
to if you can solve the problem before calling for help.
Troubleshooting Guide
PROBLEM POSSIBLE CAUSE REMEDY
Appliance does not operate. * Appliance is not connected to power supply.
* The appliance is turned off.
* The power supply has a tripped circuit breaker or blown
fuse.
* Connect the appliance
* Turn on the appliance
* Switch on circuit breaker or replace fuse
Appliance is not cold enough. * The temperature is not set correctly.
* The ambient temperature could require a lower
temperature setting.
* The drawer was opened too often.
* The drawer was not closed completely.
* Drawer is not hermetically sealed.
* The condenser is too dirty.
* The ventilation opening to blocked or too dusty.
*Check the set temperature.
* Set a lower temperature.
* Do not open the drawer more often than
necessary.
* Close the door properly.
* Check the door seal and clean or replace.
* Clean the condenser when necessary.
* Clear the obstructions and clean the dust
Appliance turns itself on and off
frequently.
* The room temperature is higher than average.
* A large amount of food has been added to the unit.
* One of the drawers is open too often.
* The drawer is not closed completely.
* The drawer gasket does not close seal properly.
*Check the set temperature.
* Set a lower temperature.
* Do not open the drawer more often than
necessary.
* Close the door properly.
* Check the door seal and clean or replace.
* Clean the condenser when necessary.
* Clear the obstructions and clean the dust
Vibrations or Excessive noise. * The appliance is not properly leveled.
* Noises such as rattling.
* If temperature fluctuations occur, the contraction and
expansion of the inner walls may cause popping and
cracking noises.
*Level the appliance with the adjustable feet.
* These noises are normal and may come from
the flow of the refrigerant which is normal. As
each refrigeration cycle ends, you may hear
gurgling sounds caused by the flow of refrigerant
in your appliance.
The drawer will not close
properly
* The appliance is not properly leveled. *Level the appliance with the adjustable feet.
* Check the door hinge and reassemble
correctly.
* Clean the door gasket.
* Check the drawers and refit correctly.
The alarm sounds and the
temperature display flashes.
* Has the appliance door been open for longer than 60
second?
If not, then the temperature has risen higher or lower than
the temperature that has been set.
This could be due to:
* The appliance door being opened too often.
* The ventilation opening being covered or too dusty.
* A lengthy interruption in the power supply.
* A large amount of food has been added to the unit.
*If yes, close the door.
* Do not open the door more often than
necessary.
* Clear the obstructions and clean the dust
* Leave the appliance to work for a while until the
set temperature has been reached.
TROUBLESHOOTING
11

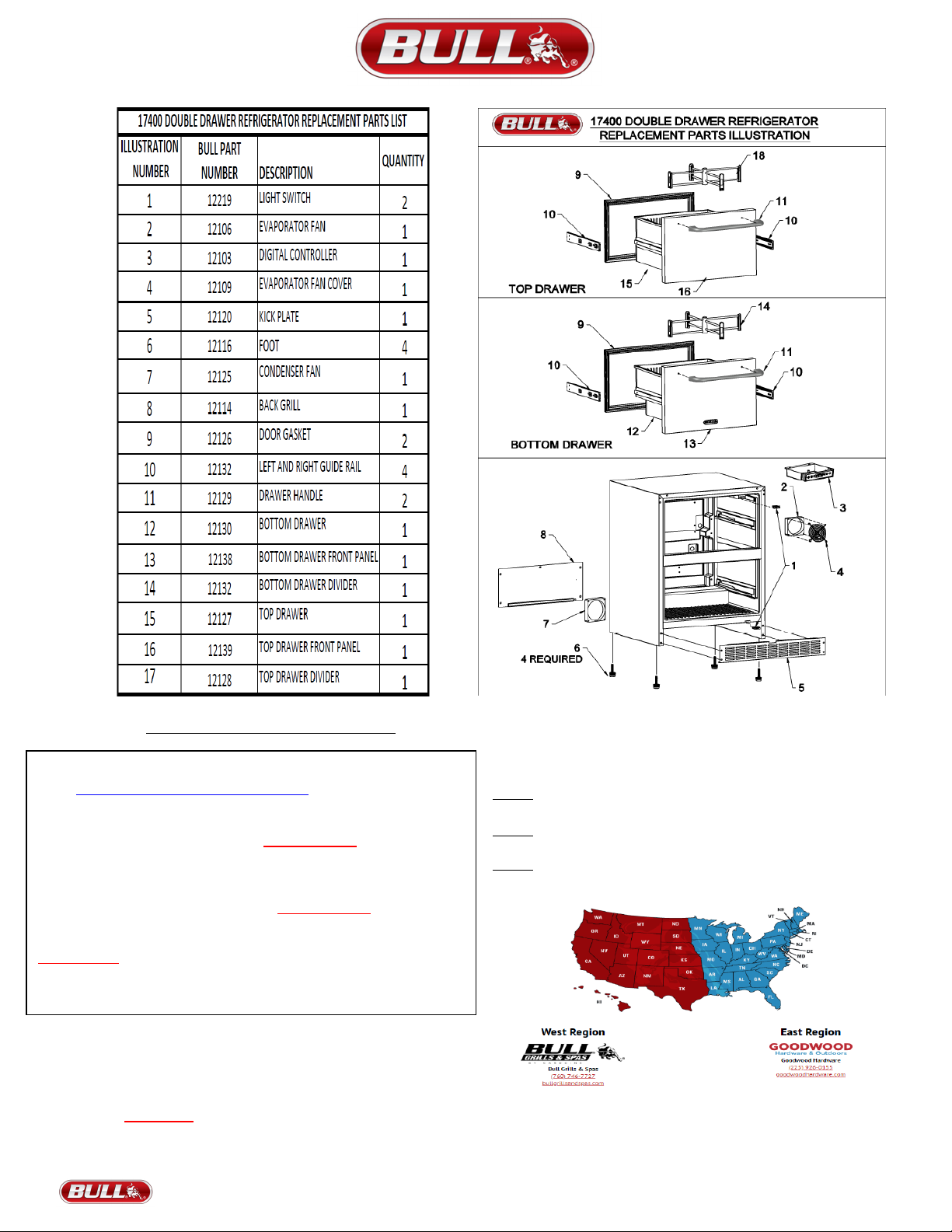

HOWTOORDERREPLACEMENTPARTS
YourBullAuthorizedDealerisyourbestsourceforpartsor
accessoriestokeepyourRefrigeratorintopcondition.
Step1:We’llneedyourRefrigeratorserialnumbertoassureyou
gettherightparts.
Step2:Toidentifywhatyouneedpleaserefertopage11forpart
numbersandtheIllustrationsonpage12toidentifywhatyouneed.
Step3:Nowyou’rereadytoorderon‐lineorgiveusacall,eitherway
we’rereadytohelpwithtworegionalsuppliers
WARNING:Useofanypartthatisnotfactoryauthorizedwillvoidyourwarrantyandmaybedangerous.
ToOrderReplacementPartson‐linego
tohttps://www.bullbbq.com/buy‐parts
ToOrderingPartsbyphonefortheWesternRegion:
pleasecallBullGrills&Spasat(760)746‐7727Open
MondaythroughFriday8:00amto5:00pmPDT
ToOrderingPartsbyphonefortheEasternRegion:
PleasecallGoodwoodHardware(225)926‐0155
OpenMondaythroughFriday8:00amto5:00pmCDT
IMPORTANT:DonotdiscardyourOwner’sManual,retainforparts
orderingandguidelinesforsafeoperationofyourrefrigerator.
12
Bull Outdoor Products continues to be the industry’s leader in Warranty Durations. Your Refrigerator
Warranty Durations are shown in the Parts Section of each manual. Components such as refrigerators,
doors, drawers, and non-mechanical items are covered under a one-year warranty from the date of
purchase on invoice or purchase order.
Warranty Claims must be filed online through the Bullbbq.com Website. Warranty Claims will not be
accepted via email, fax, or phone.
Bull Outdoor Products, Inc. warrants to the original purchaser at the original site of delivery with proof of
purchase of each Outdoor Gas Grill that when subject to normal residential use, it is free from defects in
workmanship and materials for the periods specified below. This warranty excludes refrigerators used in
rental or commercial applications. It does not apply to rust, corrosion, oxidation, or discoloration, which
may occur due to moisture, overheating, or packaging, unless the affected product becomes inoperable.
Warranty Claims do not include shipping charges of item(s), labor or any labor related charges. There will
be a shipping and handling charge for the delivery of the warranty part(s).
Our obligation under this warranty is limited to repair or replacement, at our option, of the product during
the warranty period. The extent of any liability of Bull Outdoor Products, Inc., under this warranty is limited
to repair or replacement. This warranty does not cover normal wear of parts, damage resulting from any
of the following: negligent use or misuse of the product, use contrary to operating instructions, or
alteration by any person other than our factory service center. The warranty period is not extended by
such repair or replacement. Product repair as provided under this warranty is your exclusive remedy. Bull
Outdoor Products, Inc. shall not be liable for any incidental or consequential damages for breach of any
express or implied warranty on its products.
Product repair as provided under this warranty is your exclusive remedy. Bull Outdoor Products, Inc. shall
not be liable for any incidental or consequential damages for breach of any express or implied warranty
on its products. Except to the extent prohibited by applicable law, any implied warranty or merchantability
or fitness for a particular purpose on this product to the duration of the above warranty. Some states do
not allow the exclusion or limitation of incidental or consequential damages or allow limitations on how
long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights, and you may have other rights, which vary from state to state.
Based on country or geographical area, the following methods are used to file a Warranty Claim:
www.bullbbq.com/support-warranty
United States of America / Canada / Central America / South America
www.bullbbq.eu/en/warrantyform.html
Belgium / Denmark / France / Germany / Italy / Latvia
Malta / Netherlands / Norway / Portugal / Romania / Spain
Sweden / Switzerland / United Kingdom
Mail= Exim International PTY LTD PO Box 70 Helensvale, Queensland 4212 Australia
Other manuals for 17400
1
Table of contents
Other Bull Refrigerator manuals
