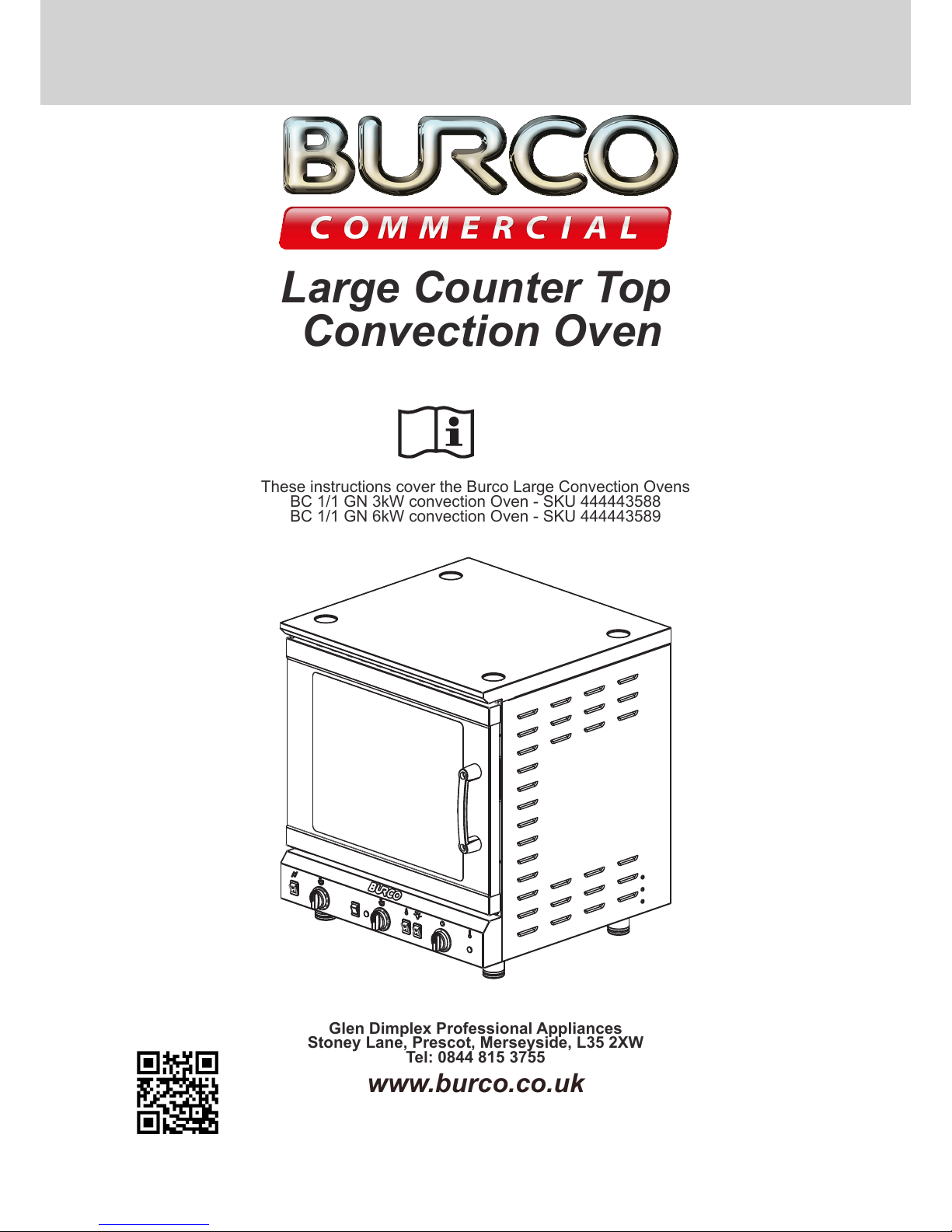

Burco BC 1/1 GN 3.0 kW Convection Oven Operator's manual

User Instruction Manual
Large Counter Top
Convection Oven
These instructions cover the Burco Large Convection Ovens
BC 1/1 GN 3kW convection Oven - SKU 444443588
BC 1/1 GN 6kW convection Oven - SKU 444443589
Glen Dimplex Professional Appliances
Stoney Lane, Prescot, Merseyside, L35 2XW
Tel: [phone]
www.burco.co.uk
Please read and
keep these
instructions
WARRANTY
3 Year Parts
1 Year Labour

INTRODUCTION.
To ensure you obtain full benets from your new oven:
• Please read this instruction booklet carefully, and follow all instructions.
• If you are unsure of any aspect of the installation, use or performance of your oven,
please contact the after sales number shown on the back page.
SPECIFICATIONS
Model No. BC 1/1 GN 3.0 kW
Convection Oven
BC 1/1 GN 6.0 kW
Convection Oven
HW
Dimensions Height 753mm 753mm
Width 670mm 670mm
Depth 662mm 662mm
Weight 51kg 52kg
Voltage 240V 240V
Power Rating 3070W 6070W
Water Pressure 0.2 - 0.8MPa
WARNING: Do not open drain cocks or other emptying devices until the pressure has been re-
duced to approximately atmospheric pressure. symbol 5021 of IEC 60417-1 is marked on the ap-
pliance its meaning shall be explained.
WARNING: To avoid scalding, do not use loaded containers with liquids or cooking goods which
becomes uid by heating in higher levels than those which can be easily observed.
WARNING: Extreme caution must be used when moving this unit as it is VERY HEAVY
WARNING: Metal surfaces may become very hot whilst in operation. Use caution when touching
these surfaces.
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appli-
ance must not be supplied through an external switching device, such as a timer, or connected to a
circuit that is regularly switched on and off by the utility.
Caution: Where this appliance is to be positioned in close proximity to a wall, partitions, kitchen
furniture, decorative nishes, etc., it is recommended that they be made of non-combustible mate-
rial, or if not, that they shall be clad with a suitable non-combustible heat-insulating material, and
that the closest attention be paid to re prevention regulations.
INSTALLATION
Installation Requirements
It is essential that this appliance is installed correctly. Installation should comply with all local
electrical, and health and safety requirements.
WEEE directive registration no. WEE/CK0046SY/PRO
At end of unit life, dispose of appliance and any replacement parts in a safe manner,
via a licenced waste handler. Units are designed to be dismantled easily and recycling
of all material is encouraged whenever practicable.

European Directives
As a producer and a supplier of cooking appliances we are committed to the protection of the en-
vironment and are in the compliance with the WEEE directive. All our electric products are labelled
accordingly with the crossed out wheeled bin symbol. This indicates, for disposal purposes at end
of life, that these products must be taken to a recognised collection points, such as local authority
sites/local recycling centres
This appliance Complies with European Community Directives (CE) for household and similar elec-
trical appliances and Gas appliances where applicable.
This appliance conforms to European Directive 2009/125/EC regarding Eco design requirements for
energy-related products.
• Install the unit on a heat-resistant work surface.
• This appliance should have at least 100mm clearance at the back, as it has a rear facing
ue to enable two appliances to be stacked using our optional stacking kit. Where it is to be
positioned in close proximity to walls, partitions, kitchen furniture, decorative nishes, etc.,
it Is recommended that they be made of non-combustible material, or if not, be clad with a
suitable non-combustible heat insulating material, and that the closest attention be paid to re
prevention regulations.
• Make sure that the surface is rm and level.
• Inform all users that the surfaces and base will become hot
• For safety regulations the plug or means of disconnection must always be accessible
Before Connection to Power Supply:
Remove all packaging.
Check the oven and parts for damage. Report any damage immediately to the carrier or supplier.
Remove any protective plastic coating from the outer panels.
Check the following parts have been supplied with your oven:
4 x Oven shelves
Check the available power supply corresponds to that shown on the oven rating label.
Location:
This oven is for indoor use only.
Do not install the oven in a cabinet, it is for counter top use only (Please note this oven can be
stacked).
The oven is only to be installed in locations where its use and maintenance is restricted to trained
personnel.
The mains lead should reach from the mains socket without straining the connections (if tted).
Do not let the mains lead hang over the edge of the table or counter, and keep it away from any hot
surfaces.
Do not let the mains lead run across an open space.
Do not place the oven where the mains lead could fall into a sink.
Do not place the oven near a hot gas or electric burner.
Ensure the oven is level both from side to side and front to back, to ensure even cooking. There
are adjustable feet on each corner, tighten the locknuts after adjustment.
The oven should be positioned such that it can be loaded and unloaded easily, and the controls
can be operated conveniently.
Important: DO NOT OBSTRUCT THE VENTILATION SLOTS IN THE BASE /SIDE AND REAR
OF THE OVEN.
CONNECT TO THE ELECTRICITY SUPPLY
WARNING: This appliance must be earthed.
This appliance is not intended to be operated by means of an external timer or separate
remote control system.

The oven should be positioned such that it can be loaded and unloaded easily, and the controls can be
operated conveniently.
Important: DO NOT OBSTRUCT THE VENTILATION SLOTS IN THE BASE /SIDE AND REAR OF THE
OVEN.
Electrical Connection 3.0kW:
Fitting a plug (if applicable)
The mains lead of this oven will already be tted with a BS1363 13A plug. If the fuse has to be replaced, use
a 13 amp fuse complying with BS 1362.
If the plug is not suitable for your socket then the plug must be cut off and disposed of safely.
An appropriate plug should be tted as follows:
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire which is coloured green and yellow must be connected to the terminal in the plug which is marked
with the letter E or the earth symbol or coloured green or green and yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black or blue.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red or brown.
Make sure that the connections are tight and that there are no loose strands of wire and no insulation
trapped under the terminals. Tighten the clamp in the plug making sure that it grips the outer covering
of the cord. If tting a BS 1363 13A fused plug then t a 13A fuse. Tighten the plug cover securely. If
you are in any doubt, consult a qualied electrician.
IMPORTANT: if the supply cord is damaged, it must be replaced by the manufacturer, service agent or similar
qualied person in order to avoid a hazard. The supply cord may become warm when the appliance is in use.
WARNING - THIS APPLIANCE MUST BE EARTHED
In addition to the earth within the mains plug, connect the equipotential bonding terminal on the rear
panel.
Electrical Connection 6.0kW:
The appliance must be installed by a competent electrician using a double pole control unit of 32 ampere
minimum capacity with 3mm minimum contact separation at all poles.
We recommend that the appliance is connected by a competent person who is a member of a competent
persons scheme.
1. Access to the mains terminal is gained by opening the terminal block cover at the rear of the appliance
(use a small at-bladed screwdriver).
2. Connection should be made with 6.0mm2 exible twin and earth cable.
3. First strip the wires, then push the cable through the cable clamp in the terminal block cover.
4. Connect the cable to the terminal block and tighten the cable clamp screw (see diagram).
5. Close the terminal box, ensuring that the cover is engaged on the locking tabs.
L1
Cable clamp
Earth
(Green / Yellow
or sleeving)
PHASE 1
Neutral
N4
L2
L3
PHASE 2
PHASE 3
N5
Block C

Before Use:
Operate the oven for approximately 30 minutes at the highest temperature, to remove any fumes
or odour which may be emitted - this is due to oil used during manufacture, or from the oven insu-
lation, but is not harmful.

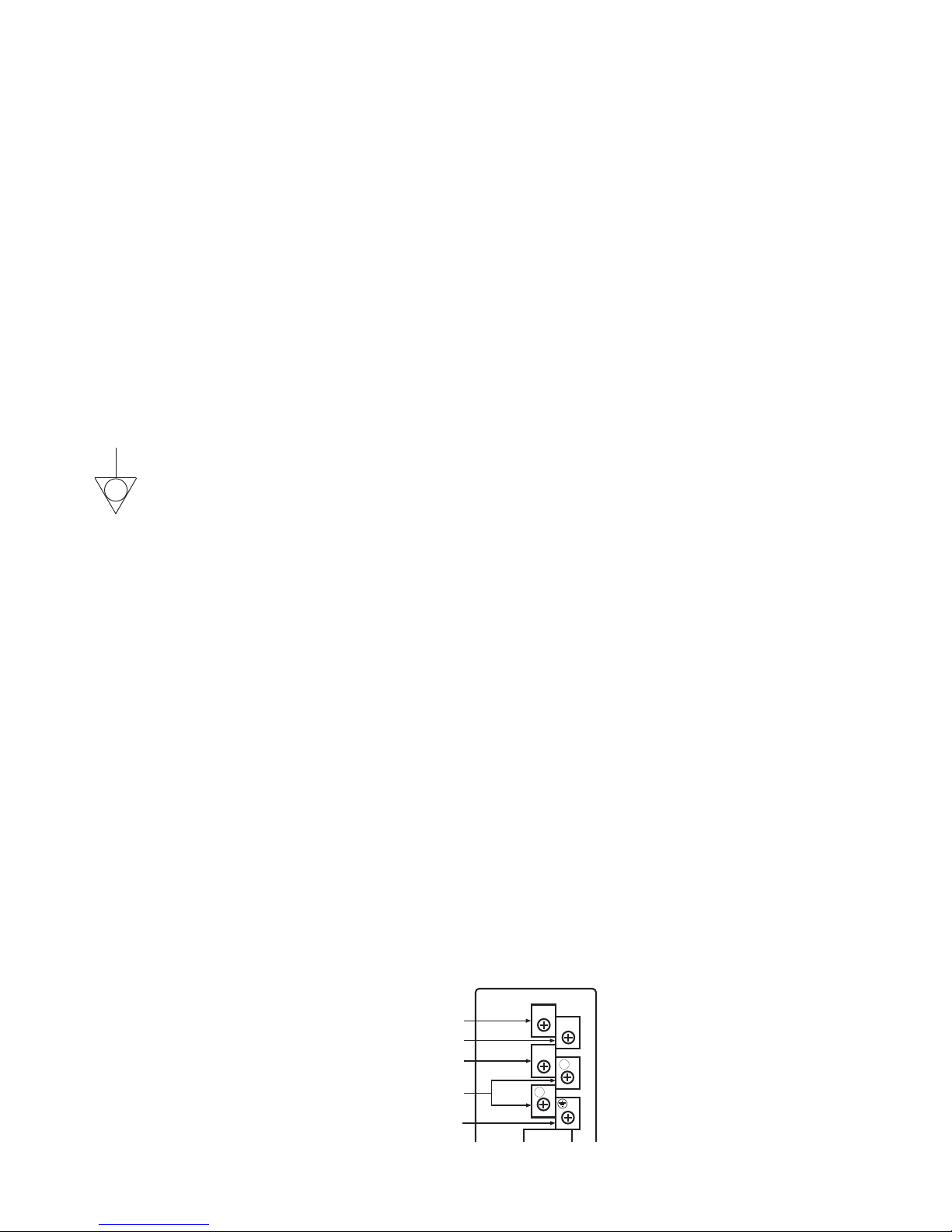

If your appliance is tted with the terminal block below, for multi phase appliances please remove
the links from terminals L1, L2 and L3 only. Leave neutral links tted to terminals N4 and N5.
Once the supply cable has been connected, please ensure that all 6 screws are secured tight.
WARNING - THIS APPLIANCE MUST BE EARTHED
Technical Data
Type Power (Watts) Current (Amps) Voltage
6.0kW 6070 25.3 240
3.0kW 3070 12.8 240
Before Use:
Operate the oven for approximately 30 minutes at the highest temperature, to remove any fumes
or odour which may be emitted - this is due to oil used during manufacture, or from the oven
insulation, but is not harmful.

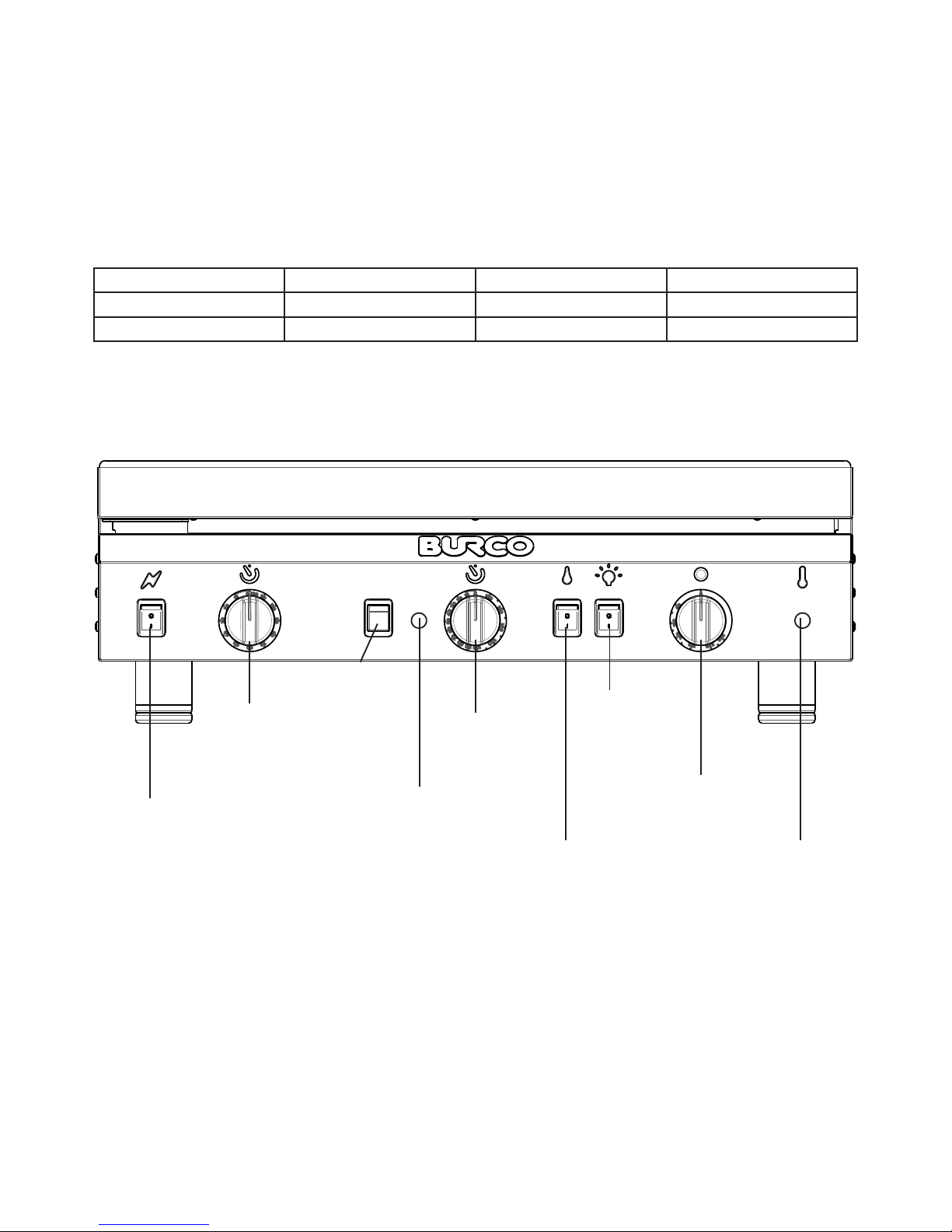

Power On
switch
Pinger
Minute Minder
Cook &
Hold Neon
Cook & Hold
Switch
Cook & Hold
timer
Water Injection
Switch
Light
Switch
Temperature
Selector
Thermostat
Neon

USER GUIDE
DO NOT COVER THE OVEN ELEMENT OR OVEN SHELVES WITH METAL FOIL.
DURING USE THE OVEN BECOMES HOT. BE CAREFUL NOT TO TOUCH HOT SURFACES.
TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG WHEN NOT IN USE, BEFORE
CLEANING, AND BEFORE REPLACING ANY PARTS.
OPERATING THE OVEN
Once the green ‘on’ button is pressed and is illuminated the fan or fans will start to turn.
Set the temperature control to your desired temperature. The orange temperature
neon illuminates until your set temperature is achieved. The neon will cycle on and off
throughout the duration of your cooking time.
To turn off the oven return the temperature control to the off position.
Press the green power on button to the off position to turn the oven off.
SWITCHING THE OVEN LIGHT ON
To turn the oven light on, press the oven light switch to the on position.
To turn the oven light off, press the oven light switch to the off position.
COOK & HOLD FUNCTION
Maximum duration - 180 minutes
Set the temperature control to your desired temperature.
Set the cook & hold timer to your desired cook time.
Press the cook & hold switch. The orange neon will illuminate.
The oven will now operate for the desired cook time at which point the timer will switch off
automatically and the cook & hold function will take over.
The temperature in the cavity will drop from your set temperature down to 80°C. This
temperature will be held until the cook & hold function is switched off.
Once the cook & hold function is switched off return the temperature setting to off.
WATER INJECTION
Water can be injected into the cavity by pressing the switch.
This is a momentary action so the longer the switch is activated the more water goes into
the cavity.
This is a personal preference action.

SETTING THE 120MINUTE MINDER
The appliance is tted with a 120minute timer. The timer does not control any function and
its sole purpose is to notify the user that their desired time has elapsed. To set the minute
minder, turn the timer control knob clockwise to your desired time. Once your set time has
nished a bell will sound.
Please note that the timer can be adjusted at any time by turning the control either
clockwise or anti-clockwise.
WARNING: To avoid scalding, do not use loaded containers with liquids or cooking goods
which becomes uid by heating in higher levels than can be easily observed.
Cleaning:
ALWAYS TURN OFF THE POWER SUPPLY AND REMOVE THE PLUG BEFORE
CLEANING. THIS OVEN IS NOT WATERPROOF. DO NOT USE A WATER JET SPRAY
TO CLEAN THE INTERIOR OR EXTERIOR OF THE OVEN, OR USE A WATER JET IN
THE VICINITY OF THE OVEN
Exterior
Clean with a good quality stainless steel cleaning compound. Do not use harsh abrasive
cleaners as this could damage the surface nish.
Interior
Ensure that the oven chamber is cool. Do not use wire brushes, steel wool or sharp
utensils. Clean the oven regularly with a good quality oven cleaner. Take care not to
damage the fan or the tube at the top of the oven which controls the thermostat.
Oven shelves
To remove, slide out to the stop position, raise the front edge up, and lift out. Clean with
hot water and detergent.
Oven door glass
To remove, slide out of slots in door. Clean with a good quality glass cleaner.
THERMAL CUTOUT
This can be checked by a competent person.
WARNING:ALWAYS TURN OFF THE POWER SUPPLY
BEFORE REMOVING ANY PARTS.
Remove 14 screws from the back panel, and lift off the back
panel by unhooking the supporting tabs from the side panels.
To reset, press button in the centre of the cut-out. Replace the
back in reverse order.
RESET

WARNING: IF THE THERMAL CUTOUT HAS TRIPPED, THE REASON FOR OVERHEATING
MUST BE IDENTIFIED AND REMEDIED BEFORE PUTTING THE UNIT BACK INTO SERVICE.
Trouble-shooting:
Fault Possible Cause Remedy
The oven does not
operate.
No power to the oven.
Thermostat or element
faulty.
Check supply socket is switched on. Check
fuse and circuit breaker.
Check green power indicator is illuminated.
Replace thermostat or element.
Timer does not time
down. Timer faulty. Replace timer.
Oven light not
illuminated. Blown bulb. Replace bulb.
WARRANTY
This convection oven is guaranteed against defective materials or faulty workmanship, for a period
of 3 years parts and 1 year on parts and labour.
This Warranty is given subject to the appliance being used in accordance with the instructions
supplied, and on the supply voltage marked on the rating label. The Warranty is subject to fair
wear and tear conditions.
The Warranty does not cover consequential damage arising out of any failure acceptable under
guarantee, nor does it cover damage resulting from misuse, accident or unauthorized alterations
to the oven.
Proof of purchase will be required.
In any communication with the supplier or manufacturer, quote the model and serial number
marked on the oven rating label.
This guarantee does not affect your statutory rights.
The products are intended for commercial use as detailed in these instructions.
The Company has a policy of continuous improvement in product quality and design. The
Company therefore reserves the right to change the specication at any time.
FAQ’s
1. What is the temperature range of my appliance and how can I adjust the temperature?
The temperature range for this product is 0°C – 260°C. If you wish to change the temperature, this
can be achieved by Rotating the thermostat control dial to the desired temperature.
2.What is the size of the oven cavity?
The oven cavity measures 578mm (w) x 469mm (d) x 421mm (h).
SPARES
If you require any spare parts, please do not hesitate to contact one of advisors on our helpline
and they will be happy to assist.

WIRING DIAGRAM
COUNTER TOP CONVECTION OVEN
Y
M.O. STAT.
NEON
Bk
Bk
OVEN
STIR FAN
Bk
Y
MAIN
OVEN LAMP
W
OVEN ELEMENT
12
3
4
5
6
C.&.H.
NEON
1A
2A
3A
4B
5B
6B
1A
2A
3A
4B
5B
6B
M.O.
T’STAT
1 2
COOK & HOLD
FIXED T‘STAT
1 2
COOK & HOLD
SWITCH
POWER ON
SWITCH
COOK & HOLD
TIMER
Mounting
Plate
Earth
point
W
W
W
W
W
Bk
Bn
Bn
Bk
Bk
Bk
Bk
Bk
Bk
Bk
LIGHT
SWITCH
Bu
Bu
Bu
Gn
Gn
Or
Or
Or
Bn
Bn
R
R
R
R
Bn
Bn
Bn
Bn
W
BURCO 3.0kW CONVECTION OVEN
Wiring colour code: Bk=Black, Bn=Brown, Bu=Blue, Gn=Green or Green/Yellow, Or=Orange, W=White, Y=Yellow.
1A
2A
4B
5B
WATER
SWITCH
1A
2A
3A
4B
5B
6B
WATER
INJECTION
SOLENOID
Bn
INLET TERMINAL BLOCK
L N
MANUAL
RESET
THERMAL
CUTOUT
Bk
Bk
Gn
Bn

Wiring colour code: Bk=Black, Bn=Brown, Bu=Blue, Gn=Green or Green/Yellow, Or=Orange, W=White, Y=Yellow.
OVEN
ELEMENT
M.O.STAT.
NEON
OVEN
STIR FAN
MANUAL
RESET
THERMAL
CUTOUT
OVEN
ELEMENT
OVEN
STIR FAN
Operating
Relay
A
B
1
3
4
6
7
9
Safety
Relay
2Amp
Fuse
A
B
1
3
4
6
7
9
Bk
Bk
Bk
Bk
Bk
Bk
W
Bn
R
Bn
Bn Bn
W
R
W
R
Bu
Bu
Bu
Y
Y
Bk
Bk
Bk
Y
T/STAT
1 2
1A
2A
3A
4B
5B
6B
POWER ON
SWITCH
Bn
C.&.H.
NEON
1A
2A
3A
4B
5B
6B
COOK & HOLD
SWITCH
COOK & HOLD
FIXED T‘STAT
1 2
12
3
4
5
6
COOK & HOLD
TIMER
W
W
W
W
Bn
Y
BURCO 6.0kW CONVECTION OVEN
Bu
Or
Or
Or
Or
Or
Or
Or
Or
Bk
Bk
Bk
Bu Bk
Bn
INLET TERMINAL BLOCK
L1 L2 L3 N4 N5
Fit All Links For Single Phase
1A
2A
4B
5B
WATER
SWITCH
1A
2A
3A
4B
5B
6B
LIGHT
SWITCH
MAIN OVEN
LAMP
Bu
Or
Bn
WATER
INJECTION
SOLENOID
Bn
Bu
Bu
Bk
Bk
Bk
Mounting
Plate
Earth
point
Mounting
Plate
Earth
point
Gn
Gn
Gn

Please keep this handbook for future reference, or for anyone else
who may use the appliance.

083443801 © 12.2014
Customer helpline
For spares and after-sales service please contact
Burco on:
T: 0844 815 3755
F: 0844 815 3748
E: [email protected]
Glen Dimplex Professional Appliances
(A Division of Glen Dimplex Home Appliances)
Stoney Lane,
Prescot,
Merseyside L35 2XW
www.burco.co.uk
