Operating Manual for
Kup-L-Weld® II
Thermocouple Welder
Burrell # 073-077-00-00
Reagents # B7307700-Each
Burrell Scientific, LLC
1010 Jackson’s Pointe Court
Zelienople, PA 16063
800-732-8484 | [e-mail]

OPERATIONS MANUAL
CONTENTS PAGE
Unpacking your Kup-L-Weld®.................................................................................................................................2
Specifications............................................................................................................................................................3
Using your Kup-L-Weld®.....................................................................................................................................3-4
Accessories and Replacement Parts.....................................................................................................................5
Maintenance and Cleaning......................................................................................................................................5
Service........................................................................................................................................................................5
Warranty......................................................................................................................................................................6
Please read the User Manual carefully before use
and follow all operating and safety instructions!
2 800-732-8484 www.reagents.com 3
WARNING
Do not attempt to assemble, connect to power source, or operate the Kup-L-Weld®
II Thermocouple Welder without first reading these instructions. Also assure that
each person that will operate this unit becomes familiar with these operating
instructions.
UNPACKING YOUR KUP-L-WELD® II
LISTING OF ITEMS
The packing includes the following items:
1. The Burrell Scientific Kup-L-Weld® II Thermocouple Welder
2. Welding Pen
3. Power Cord
4. QR Code access to Operating Manual
Unpack the unit carefully and check for any damages that may have occurred during shipment.
Dimensions (H x W x D) 15 x 11 x 12 inches
Weight 12 pounds
Voltage 110-120 VAC
Material (metal case) Abrasion and corrosion-resistant paint
Warranty One year
SPECIFICATIONS

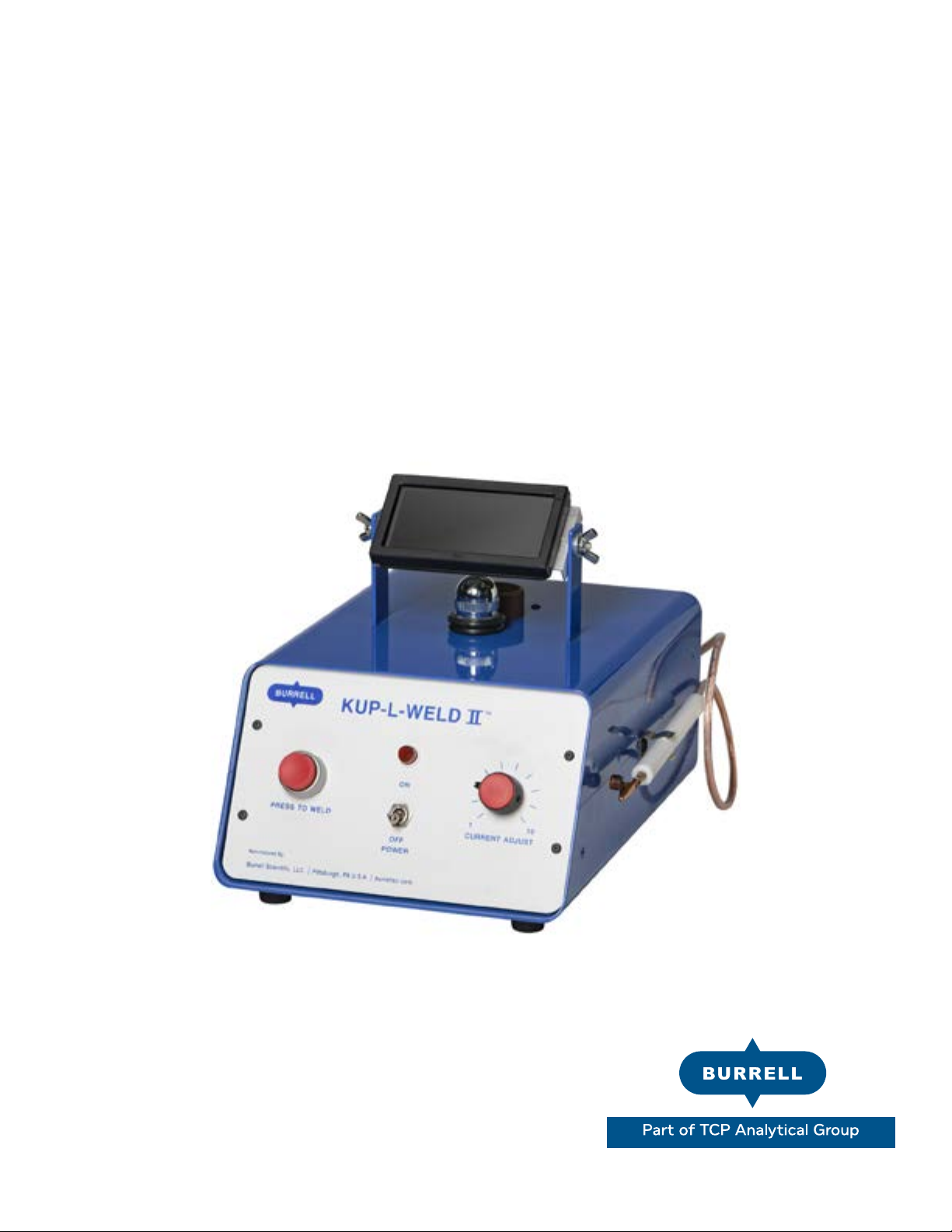

Figure 1: Front of Kup-L-Weld Figure 2: Side/ Back of Kup-L-Weld
A. Push to Weld Button
B. Power On/Off Toggle Switch
C. Weld Current Adjustment: Set from 1-10
(18-30 amps)
D. Thermocouple Holding Pen
E. Adjustable Weld Flash Protection Lens
F. Weld Point Illumination Bulb
G. Carbon Electrode Weld Contact
A CB D FE G
WARNING
If there is any apparent damage to the system, do not plug it into the power line.
Notify Customer Service at 800-732-8484 or [e-mail].
USING YOUR KUP-L-WELD® II
PREPPING THE KUP-L-WELD® II
The Kup-L-Weld® II Thermocouple Welder must be connected to a properly wired, 3-prong, grounded
outlet capable of supplying 110-120 volts at 30 amperes. Set up the welder in a spacious area on a
stable, clean, non-slip, dry, and fireproof surface. Safety goggles or glasses must be worn when
operating the welder.
TO WELD
1. The operator sets the Current Adjustment control to the appropriate setting - the maximum of 10
for most welds - however it is adjustable from 1 to 10 depending on wire gauge.
a. The Kup-L-Weld® II can be set to draw from a minimum of 19 amps up to a maximum of 28
amps.
2. After twisting together the ends of a thermocouple wire, use the alligator clamp holder to grasp
the thermocouple wires about one inch from the ends to be welded.
3. Press the “WELD” button and strike an arc between the carbon rod and wires.
a. Voltage is present on the carbon rod only while the “WELD” button is depressed.

4 800-732-8484 www.reagents.com 5
THE USE OF BORAX FLUX
The use of borax flux while welding is optional. Some operators prefer not to use any flux and
produce clean, acceptable welds. If flux is desired, the flux cup surrounding the carbon electrode is a
convenient place to store a quantity of borax flux.
Borax flux will adhere to the ends of the wires to be welded in 2 ways:
1. By dipping the wire ends in water and then the flux.
2. By heating the ends of the twisted wires. Do to this, contact the wire ends with the carbon rod
momentarily while gripping the wire in the pen style alligator clamp holder with its insulated
handles and pressing the “WELD” button.
CHANGING THE CARBON ELECTRODE
1. Disconnect the Kup-L-Weld® from power source.
2. Loosen the Flux Cup screw
3. Lift the Flux Cup. Be careful not to stretch connecting wires too harshly.
4. Loosen set screw with an Allen Wrench on Flux Cup and remove the Flux Cup.
5. Remove copper clamp holding the Carbon. Remove Carbon.
6. To re-install, reverse these procedures.
If you encounter any problems with the installation or initial operations of this unit, notify
Customer Service at 800-732-8484 or [e-mail].
MAINTENANCE AND CLEANING
Switch the welder to the OFF position and store in a dry, clean, and stable place at room temperature
when not in use. Do not allow moisture to get into the unit when cleaning. The welder must not be
placed in the cleaning agent for the purpose of cleaning. Spot clean only. The welder must be cleaned
and put into the original packaging carton before sending out for service or repair.
Do not attempt any repair of a Kup-L-Weld without consulting a Burrell Technical Representative
800-732-8484. This is required during the warranty period and it is advisable after the expiration of
the warranty. Any unauthorized maintenance or repair without Burrell Scientific’s written authorization
will void the manufacturer’s warranty. Do not return any instrument directly to Burrell Scientific, LLC
without first obtaining approval and a Return Goods Authorization (RGA) from BURRELL SCIENTIFIC,
LLC. Any Kup-L-Weld returned must be free of hazardous contamination.
CAUTION: FUMES WILL RESULT FROM A BORAX FLUX
Please consult the manufacturer’s Safety Data Sheet.
For operator safety, a flash protection viewing screen is standard, however the screen is not to be
used as a substitute for proper eye protection. The viewing screen can be locked in the desired
position by tightening the thumb screws.
The Kup-L-Weld® II welder has a 115-volt lamp which illuminates the carbon rod contact area while
welding. This very useful feature adds to the overall safety of the unit because it is not necessary to
look over the viewing screen to observe weld contact. The lamp may be replaced by removing the
lamp shield, then removing the lamp. Safety goggles or glasses are required, despite these safety
features.
SAFETY FEATURES
APPROVED WIRES
The Kup-L-Weld® II welder will accommodate wire sizes from 14 gauge to 30 gauge in chromel-alumel,
chromel-constantan, copper-constantan, iron-constantan, and platinum-rhodium.
CURRENT ADJUST
The “Current Adjust” control can be set at maximum for most work. If difficulty is experienced with
excessive heat on smaller gauge wires, the “Current Adjust” control can be turned counter-clockwise
to achieve a lower setting.
ACCESSORIES AND REPLACEMENT PARTS
FLUX CUP
Reagents #: B0005866-Each
Burrell #: 073-077-25-00
KUP-L-WELD CARBON
Reagents #: B0006840-Each
Burrell #: 073-077-05-00
WELDING PEN
Reagents #: B0006638-Each
Burrell #: 073-077-06-00
BULB
Reagents #: B0006066-Each
POWER CORD
Reagents #: B0006392-Each
3 PRONG KNOB
Reagents #: B0005902-Each
KUP-L-WELD GLASS
Reagents #: B0008403-Each

6 800-732-8484
WARRANTY
BURRELL SCIENTIFIC, LLC warrants that your Kup-L-Weld, manufactured by Burrell, shall be free of
defects in materials and workmanship for one (1) year from the earliest of (1) the date the product
is sold by Burrell or (2) the date the product is purchased by the original dealer partner. Except as
stated above, BURRELL SCIENTIFIC, LLC MAKES NO OTHER WARRANTY, EXPRESSED OR IMPLIED,
WITH RESPECT TO THE PRODUCTS AND EXPRESSLY DISCLAIMS ANY AND ALL WARRANTIES
INCLUDING BUT NOT LIMITED TO, WARRANTIES OF DESIGN, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. An authorized representative of Burrell must perform all warranty
inspections. In the event of a defect covered by Burrell’s warranty, Burrell shall, at its sole obligation
and exclusive remedy, provide free replacement parts for 1 year. In addition Burrell shall provide free
labor for a period of 90-days for those customers within the continental United States and Canada.
BURRELL SCIENTIFIC’s warranty provided here under shall be null and void and without further
force or effect if there is any: (1) repair made to the product by a party other than Burrell Scientific,
or its duly authorized service representatives. (2) misuse (including use inconsistent with written
operating instructions for the product), mishandling, contamination, exposure to extreme conditions,
modifications or alteration of the product by any customer or third party. (3) use or replacement
parts that are obtained from a party who is not an authorized distributor of BURRELL SCIENTIFIC,
INC. IN NO EVENT SHALL BURRELL SCIENTIFIC BE LIABLE TO ANY PARTY FOR ANY DIRECT,
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, OR FOR ANY DAMAGES
RESULTING FROM LOSS OF USE OR PROFITS, ANTICIPATED OR OTHERWISE, ARISING OUT OF OR
IN CONNECTION WITH THE SALE, USE OR PERFORMANCE OF ANY PRODUCTS, WHETHER SUCH
CLAIM IS BASED ON CONTRACT, TORT (INCLUDING NEGLIGENCE), ANY THEORY OF STRICT
LIABILITY OR REGULATORY ACTION
