Bush Hog®TOUGH
Backhoes
For 15 to 100
PTO HP Tractors
For 15 to 100
PTO HP Tractors

Save Money
Digging construction footings.
Digging holes for shrubs and
decorative trees. Digging and
cleaning out field drainage.
Installing drainage tile. Digging
up stumps. Digging trenches.
Ditching roads.
Tough, everyday jobs. Jobs that
require performance you can count
on. Jobs that are just right for
Bush Hog®Backhoes.
Bush Hog Backhoes tackle these
jobs and more. And save money
when you buy, save time on the job,
save downtime and maintenance
costs, save stress on you. Because
Bush Hog Backhoes deliver
performance you can count on.
Save With
Bush Hog®
Backhoes
Save Time
Save Money When You Buy
You get big savings when you buy Bush Hog®
Backhoes. Because, along with durability, style,
colors to match your tractor, smooth operation and
greater digging forces, price is part of performance
with Bush Hog. See the chart that compares Bush
Hog’s size of key stress areas on boom, foot room,
visibility of work and digging forces to popular brands.
Experience for yourself the smooth operation. Note
the superior visibility from the operator's seat, the
comfortable seat and spacious footrest. Then
compare prices. From large backhoes for heavy
farm and field jobs to smaller units for landscape or
contracting work, you’ll find that you get more value,
more features and more performance with
Bush Hog Backhoes.
Save Time On The Job
Bush Hog Backhoes save time because they are fast
and easy to operate with precision. Ease of operation,
precise operation and superior digging forces are built
in. Sitting in the operator’s seat and looking forward,
the narrow console, strategic location of the valve,
boom and dipperstick let you see where you are
digging. So you don't waste motions.

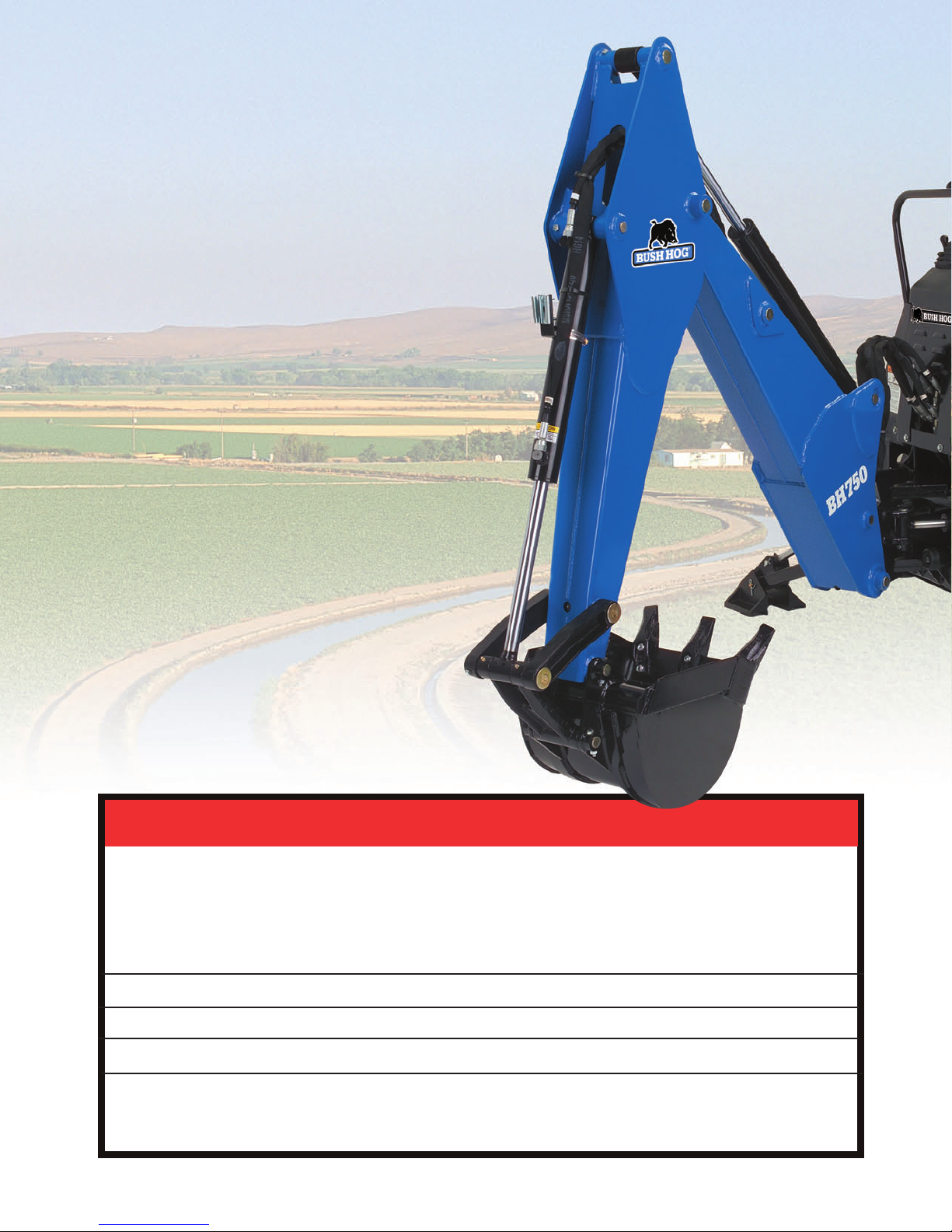

SAVE WITH SUPERIOR PERFORMANCE
BUSH HOG PERFORMANCE MEASUREMENT
(Compared to Popular Brands)
Digging forces Up to 29% greater
Size of key stress areas on boom Up to 50% more steel
Foot room Up to 70% more
Visibility of work 30% narrower console
Comparisons based on published specifications and actual measurements, results can vary with models and brands.

Save Stress
Money
Tough, everyday jobs.
Jobs that require
performance you can
count on. Jobs that
are just right for
Bush Hog¨ Backhoes.
Operate the backhoe. You’ll experience its
smoothness immediately. Its smooth, precise
movements speed up work. The jerky motion of
out-dated, high-maintenance chain wrap designs
used by some competition are a thing of the past
when you buy Bush Hog, eliminated by Bush Hog’s
Performance-Based Engineering.
Bush Hog Performance-Based Engineering uses
unique hydraulic metering and integral cylinder oil
ports to automatically cushion the dual swing
cylinders in the last 20 degrees of arc. Movements
are fluid and gentle.
Bush Hog Backhoes use control valves, rated at
8 gallons per minute, on the boom and swing
cylinders so you can do more than one operation
simultaneously.
The greater digging forces of the Bush Hog Backhoes
save time and work. Bush Hog Backhoes deliver
more powerful digging forces than other brands.
Bush Hog digging forces are as much as 29% greater
than competitors. That's as much as 29% more
work in every cycle.

Save Stress
Save Maintenance
Bush Hog®
Backhoes
Save Maintenance Costs
You can actually see the strength and durability of Bush
Hog® Backhoes. The highest stress areas on the Bush
Hog dipperstick are constructed of high-grade steel
formed in the large, boxed construction that delivers
maximum strength. Booms are massive at the key
stress areas--50% larger than competition. All cylinders
are protected by relief valves. Access to the control valve
is convenient. Bush Hog manufactured buckets feature
2 1/2 inch thick welded cutting edges. Regular duty
buckets for the 665H feature replaceable tooth tips.
Heavy-duty buckets have removable teeth for a smooth
cutting edge. Both regular duty and commercial grade
buckets for the BH650 and BH750 have removable
bucket teeth for a smooth cutting edge. Both regular
duty and commercial grade buckets for the BH850 and
BH950 feature replaceable bucket tooth tips.
Save Stress On Yourself
Bush Hog Backhoes make long days more productive
with comfort that reduces fatigue. The numbers prove
it. The platform provides more room for the operator’s
feet -- 70% more than a popular brand. Vertical plates
keep the operator’s feet secure on the footrest. The
perforated platform increases traction. The operator
mounts the seat easily without having to sling a leg
over it. The seat adjusts forward and aft as well
as up and down.
Smooth operation of the Bush Hog dual swing cylinder
design reduces fatigue for the operator. Superior visibili-
ty allows the operator to see the work without straining
to the left or right to look around the console or the
boom and dipperstick. Bush Hog’s superior digging
forces save stress by getting work done faster.
BH650
For 25-35
PTO HP
Tractors
BH750
For 25-50
PTO HP
Tractors
BH850
For 35-100
PTO HP
Tractors
BH950
For 55-100
PTO HP
Tractors
665H
For 15-35
PTO HP
Tractors

Maintenance
Save Time
Bush Hog Backhoes -
The Perfect Match For
Your Tractor/Job
Bush Hog Performance-Based Engineering means
you get the maximum performance available in a
backhoe. Bush Hog Backhoes fit hundreds of tractor
models. Large models for heavy-duty farm and field
work fit tractor three point hitches and deliver a new
level of digging power to the farm. Models for compact
tractors mount on subframes and bring a new standard
of digging power, versatility and ease of operation to
landscape and construction operations.
Experience the smooth operation
of Bush Hog Backhoes firsthand
at your Bush Hog dealer.
SAVE WITH GREATER DIGGING FORCES
Compared To Popular Brands
BUSH HOG DIGGING FORCE DIGGING FORCE
MODEL AT BUCKET AT DIPPERSTICK
BH650 24% greater 19% greater
BH750 35% greater 25% greater
BH850 8% greater same
BH950 2% greater 3% greater
Comparisons based on published specifications and actual measurements, results can vary with models and brands.

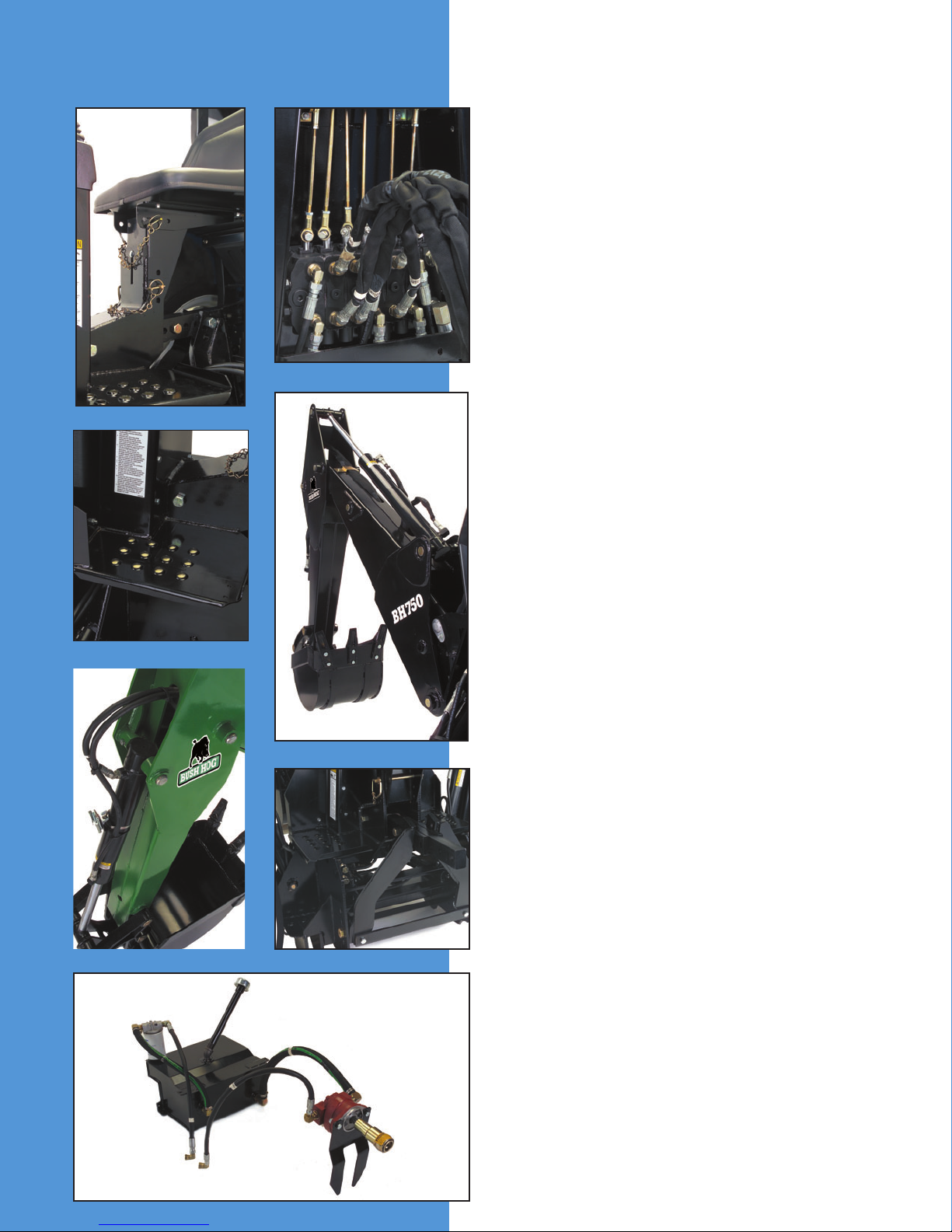

1 Comfort Increases Productivity.
70% more room for the operator’s feet. The seat adjusts
forward and aft as well as up and down and is easily
mounted without the operator having to step over it.
2 Easy Access To The Valves.
Valves are located at the base of the operator’s platform
and are easy to access. Only high quality valves and
hoses are used on all Bush Hog Backhoes.
3 Cylinder Protection.
All cylinders are protected by relief valves.
4 Secure Footing.
Operator’s feet are made more secure by vertical plates
and the perforated operator’s platform.
5 Top Quality Cylinders.
Fast response and durability are provided by top
quality cylinders.
6 Three Point Hitch And Subframe
Mounts Are Easy To Use.
Bush Hog Backhoes fit literally hundreds of tractor
models and all major brands.
7 Independent Power.
Backhoe hydraulics can be delivered by optional pump
kits. Attachment is quick and easy.
2
1
6
5
3
4
7
Get the most out of your tractor.
Bush Hog®
Backhoes match jobs of
all sizes and hundreds of tractor
models and all major brands. Every
model is designed to deliver the
maximum amount of work and
productivity from your tractor.

Smooth, Precise Operation.
The dual swing cylinder design
reduces stress on the operator and
makes work go faster.
Tough, Boxed Construction.
Rugged design of the dipperstick
provides long-term durability.
Bush Hog boxed construction dis-
tributes force loads over four planes
for superior strength and durability.
Simultaneous Operations.
Bush Hog Performance-Based
Engineering means the backhoes
perform multiple functions
simultaneously.
Stability In The Field
And On The Street.
Bush Hog’s strong outriggers are
equipped with flip-over field or
street pads. Optional bolt-on
street pads are available for
hard surfaces.
Color and style that match your tractor.
Bush Hog Backhoes not only match your tractor’s design and maximize
its productivity at backhoe work, they also match your tractor’s color.
You Can See The
Strength Of The Boom.
Compared to another brand, the
Bush Hog boom is up to 50%
thicker at key stress areas.
Greater Digging Forces.
Bush Hog Backhoe designs and
components improve productivity
and deliver performance you can
count on year after year.
Tough Versatile Buckets.
All buckets have 2 1/2 inch thick
welded cutting edges. Regular duty
buckets for the 665H feature
replaceable tooth tips. Heavy-duty
buckets have removable teeth for a
smooth cutting edge. Both regular
duty and commercial grade buckets
for the BH650 and BH750 have
removable teeth for a smooth
cutting edge. Both regular
duty and commercial
grade buckets for
the BH850 and
BH950 feature
replaceable
tooth tips.

Bush Hog®, L.L.C.
P.O. Box 1039 Selma, AL 36702-1039
[phone]
Dealer Info:
©June 2007 Bush Hog, LLC
Bush Hog®Backhoes
Compact Backhoes For Landscaping & Contracting Applications 665H BH650 BH750
Maximum Digging Depth 7’0” 7’0” 8’0”
Digging Depth (two foot flat bottom) 6’6” 6’6” 7’6”
Swing Arc 180 ° 180 ° 180 °
Loading Height (bucket at 60 ° )5’0” 4’4” 5’4”
Reach From Center LIne of Swing Pivot 8’6” 9’4” 10’0”
Transport Height (maximum) 4’11” 5’6” 6’7”
Bucket Rotation 180 ° 180 ° 180 °
Loading Reach (bucket at 60 ° )3’2” 4’6” 3’9”
Transport Overhang 3’5” 3’8” 3’9”
Undercut 2’4” 2’6” 2’9”
Stabilizer Spread (down position) 6’6” 7’2” 7’2”
Stabilizer Spread (up position) 3’11” 3’7” 3’7”
Bucket Cylinder Digging Force 2450 lbs 2970 lbs 3380 lbs
Dipperstick Cylinder Digging Force 1250 lbs 1480 lbs 2240 lbs
Craning Force (boom lift ability) 654 lbs 350 lbs 675 lbs
Angle of departure (subframe mounted) 18 ° 17 ° 18 °
Hydraulic Volume Requirements 4 to 5 GPM 6 GPM 6 to 8 GPM
Hydraulic Pressure Requirements 2250 psi 2400 psi 2400 psi
Recommended Tractor PTO HP Requirements 15-35 25-35 25-50
Reinforced Buckets (regular duty & commercial grade buckets) Yes Yes Yes
Removable Bucket Teeth (regular duty & commercial grade buckets) Yes* Yes Yes
*Heavy duty buckets only
Big Backhoes For Farm & Field Applications BH850 BH950
Maximum Digging Depth 9’0” 10’0”
Digging Depth (two foot flat bottom) 8’6” 9’6”
Swing Arc 180 ° 180 °
Loading Height (bucket at 60 ° )6’8” 7’6”
Reach From Center LIne of Swing Pivot 11’1” 12’4”
Transport Height (maximum) 6’11” 8’0”
Bucket Rotation 180 ° 180 °
Loading Reach (bucket at 60º) 4’1” 4’7”
Transport Overhang 4’5” 4’9”
Undercut 3’0” 3’0”
Stabilizer Spread (down position) 8’9” 8’9”
Stabilizer Spread (up position) 4’7” 4’7”
Bucket Cylinder Digging Force 4023 lbs 4668 lbs
Bucket Cylinder Digging Force (in “power dig” position) 4319 lbs 4853 lbs
Dipperstick Cylinder Digging Force 2445 lbs 3261 lbs
Craning Force (boom lift ability) 800 lbs 1000 lbs
Angle of Departure 18 ° 18 °
Hydraulic Volume Requirements 6 to 8 GPM 6 to 8 GPM
Hydraulic Pressure Requirements 2400 psi 2400 psi
Recommended Tractor PTO HP Requirements 35-100 55-100
Reinforced Buckets (regular duty & commercial grade buckets) Yes Yes
Replaceable Bucket Tooth Tips (regular duty & commercial grade buckets) Yes Yes
