Doosan DX180LC Install guide

used throughout this manual are used only as a representation of the actual piece of
equipment, and may vary from the actual item.
Shop Manual
K1015439E
Serial Number 5001 and Up
DX225LC

Product Label
Instructions
Trim Out The Label Along
The Lines And Insert Into
Pocket On The Binder Spine
DX225LC Serial Number 5001 and Up Pub.No. K1015439E
Pub. No. K1015439E

Table of Contents
Page 1
1Table of Contents
Publication Request for Proposed Revision
Safety
Track Excavator Safety......................................................................... SP000014
Specifications
Specification for DX225LC.................................................................... SP000908
General Maintenance
General Maintenance Procedures........................................................ SP000016
Standard Torques................................................................................. SP000017
Upper Structure
Cabin .................................................................................................... SP000943
Counterweight....................................................................................... SP000940
Fuel Tank.............................................................................................. SP001005
Fuel Transfer Pump.............................................................................. SP000021
Swing Bearing....................................................................................... SP000022
Swing Reduction Gear.......................................................................... SP000915
Lower Structure and Chassis
Track Assembly .................................................................................... SP000911
Engine and Drivetrain
Air Conditioner...................................................................................... SP000025
Drive Coupling (Main Pump)................................................................. SP000912
Hydraulics
Hydraulic System Troubleshooting, Testing and Adjustment ............... SP000913

Table of Contents
Page 2
Accumulator.......................................................................................... SP000028
Center Joint (Swivel)............................................................................. SP000029
Cylinders............................................................................................... SP000914
Swing Motor.......................................................................................... SP000194
Travel Motor.......................................................................................... SP000922
Gear Pump ........................................................................................... SP000931
Main Control Valve ............................................................................... SP001024
Axle Piston Pump ................................................................................. SP000932
PTO Server........................................................................................... SP000933
Remote Control Valve (Work Lever / Joystick)..................................... SP000069
Travel Control Valve (with Damper)...................................................... SP000070
Solenoid Valve Assembly ..................................................................... SP000445
Breaker EPPR Valve (Opt) ................................................................... SP000192
Hydraulic Schematic (DX225LC).......................................................... SP000934
Electrical System
Electrical System .................................................................................. SP000935
Electrical Schematic (DX180LC/DX225LC/DX225NLC/DX255LC)...... SP000936
Attachments
Boom and Arm...................................................................................... SP000937
Bucket................................................................................................... SP000939

1Safety

SP000014
Page 1
Track Excavator Safety
SP000014
TRACK EXCAVATOR SAFETYSP000014
Track
Excavator
Safety
Edition 1

Track Excavator Safety
SP000014
Page 2
MEMO

SP000014
Page 3
Track Excavator Safety
Table of Contents
Track Excavator Safety
Safety Precautions................................................ 5
Applicable Models................................................. 5
To the Operator of a
DOOSAN Excavator ............................................. 6
General Safety Essentials .................................. 10
Location of Safety Labels ................................... 11
Summary of Safety Precautions for Lifting
in Digging Mode.................................................. 12
Unauthorized Modifications ................................ 13
General Hazard Information ............................... 13
Before Starting Engine ....................................... 22
Machine Operation ............................................. 26
Maintenance ....................................................... 33
Battery ................................................................ 42
Towing................................................................. 44
Shipping and Transportation............................... 45
Lifting With Sling................................................. 45

Track Excavator Safety
Page 5
SP000014
SAFETY PRECAUTIONS
APPLICABLE MODELS
The contents of this section apply to the following models and
serial number ranges.
CAUTION!
Follow all safety recommendations and safe shop practices
outlined in the front of this manual or those contained
within this section.
Always use tools and equipment that are in good working
order.
Use lifting and hoisting equipment capable of safely
handling the load.
Remember, that ultimately safety is your own responsibility.
MODEL SERIAL NUMBER RANGE
DX180LC 5001 and Up
DX225LC 5001 and Up
DX225NLC 5001 and Up
DX255LC 5001 and Up
DX300LC 5001 and Up
DX340LC 5001 and Up
DX420LC 5001 and Up
DX480LC 5001 and Up
DX520LC 5001 and Up

SP000014Track Excavator Safety
Page 6
TO THE OPERATOR OF A
DOOSAN EXCAVATOR
Please respect the importance of taking responsibility for your
own safety, and that of other people who may be affected by
your actions.
The safety information on the following pages is organized into
the following sections:
1. “General Safety Essentials” on page 1-10
2. “Location of Safety Labels” on page 1-11
3. “Summary of Safety Precautions for Lifting in Digging
Mode” on page 1-12
4. “Unauthorized Modifications” on page 1-13
5. “General Hazard Information” on page 1-13
6. “Before Starting Engine” on page 1-22
7. “Machine Operation” on page 1-26
8. “Maintenance” on page 1-33
9. “Battery” on page 1-42
10. “Towing” on page 1-44
11. “Shipping and Transportation” on page 1-45
12. “Lifting With Sling” on page 1-45
DANGER!
Unsafe use of the excavator could lead to serious injury or
death. Operating procedures, maintenance and equipment
practices or traveling or shipping methods that do not
follow the safety guidelines on the following pages could
cause serious, potentially fatal injuries or extensive damage
to the machine or nearby property.

Track Excavator Safety
Page 7
SP000014
WARNING!
Improper operation and maintenance of this machine can
be hazardous and could result in serious injury or death.
Operator and maintenance personnel should read this
manual thoroughly before beginning operation or
maintenance.
Keep this manual in the storage compartment to the rear of
the operator's seat, and have all personnel involved in
working on the machine read the manual periodically.
Some actions involved in operation and maintenance of the
machine can cause a serious accident, if they are not done
in a manner described in this manual.
The procedures and precautions given in this manual apply
only to intended uses of the machine.
If you use your machine for any unintended uses that are
not specifically prohibited, you must be sure that it is safe
for others. In no event should you or others engage in
prohibited uses or actions as described in this manual.
DOOSAN delivers machines that comply with all applicable
regulations and standards of the country to which it has
been sent. If this machine has been purchased in another
country or purchased from someone in another country, it
may lack certain safety devices and specifications that are
necessary for use in your country. If there is any question
about whether your product complies with the applicable
standards and regulations of your country, consult
DOOSAN or your DOOSAN distributor before operating the
machine.

SP000014Track Excavator Safety
Page 8
Learn Signal Words Used With Safety Alert
Symbol
The words "CAUTION," "WARNING," and "DANGER" used
throughout this manual and on decals on the machine indicate
degree of risk of hazards or unsafe practices. All three degrees
of risk indicate that safety is involved. Observe precautions
indicated whenever you see the Safety Alert "Triangle," no
matter which signal word appears next to the "Exclamation
Point" symbol.
SAFETY ALERT SYMBOL
Be Prepared - Get to Know All Operating and Safety
Instructions
This is the Safety Alert Symbol. Wherever it appears in this
manual or on safety signs on the machine you must be alert
to the potential for personal injury or accidents. Always
observe safety precautions and follow recommended
procedures.
CAUTION!
This word is used on safety messages and safety labels and
indicates potential threat of a hazardous situation that, if
not avoided, could result in minor or moderate injury. It may
also be used to alert against a generally unsafe practice.
WARNING!
This word is used on safety messages and safety labels and
indicates potential threat of a hazardous situation that, if
not avoided, could result in serious injury or death. It may
also be used to alert against highly unsafe practice.
DANGER!
This word is used on safety messages and safety labels and
indicates an imminent hazard of a situation that, if not
avoided, is very likely to cause death or extremely serious
injury. It may also be used to alert against equipment that
may detonate or explode if handled or treated carelessly.

Track Excavator Safety
Page 9
SP000014
Safety precautions are described in SAFETY from page -11 on.
DOOSAN cannot predict every circumstance that might involve a
potential hazard in operation and maintenance. Therefore the
safety messages in this manual and on the machine may not
include all possible safety precautions. If any procedures or
actions not specifically recommended or allowed in this manual
are used, you must be sure that you and others can do such
procedures and actions safely and without damaging the
machine. If you are unsure about the safety of any procedures,
contact a
DOOSAN distributor.

SP000014Track Excavator Safety
Page 10
GENERAL SAFETY ESSENTIALS
Accessory Applications
The excavator has been primarily designed for moving earth
with a bucket. For use as a grapple or for other object handling,
contact
DOOSAN for proper installation and application.
Lifting-work applications (unless restricted or prohibited by local
regulations) are permitted in approved lift configuration, to rated
capacity only, with no side-loading. DO NOT use the machine for
activities for which it was not intended. DO NOT use the bucket
for lifting work, unless lift slings are used in the approved
configuration.
Use of an accessory hydraulic hammer (breaker), work in rough
terrain, demolition applications or other hazardous operation
may require installation of additional protective structures to
safeguard the operator.
Lifting Capacity Rating Configuration
Lifting capacity ratings that are printed at the end of this safety
section are based on the machine being level, on a firm
supporting surface, with hooks and slings attached in approved
configuration. Loads must be balanced and supported evenly.
Use tag lines to keep the load steady if wind conditions and
large surface area are a problem. Work crew hand signals,
individual tasks and safe procedures should all be universally
understood before the lift is made.
IMPORTANT
Before using the excavator to make lifts check municipal
and regional regulations or statutes that could apply.
Governing ordinances may require that all heavy lifting be
done with single purpose equipment specifically designed
for making lifts, or other local restrictions may apply.
Making heavy lifts with a general purpose excavator that
can be used for digging, loading, grading or other work may
be expressly forbidden by a regional injunction or other
legal prohibition. Always follow all the other instructions,
guidelines and restrictions for Safe Lifting in the Operation
and Maintenance Manuals.

Track Excavator Safety
Page 11
SP000014
LOCATION OF SAFETY LABELS
Location of safety labels (decals) can vary from unit to unit.
Refer to appropriate Operation and Maintenance Manual, and
parts manual for your unit.
Always replace damaged or faded decals.

SP000014Track Excavator Safety
Page 12
SUMMARY OF SAFETY
PRECAUTIONS FOR LIFTING
IN DIGGING MODE
To lift safely while in Digging Mode, the following items must be
evaluated by the operator and the work site crew.
• Condition of ground support.
• Excavator configuration and attachments.
• Weight, lifting height and lifting radius.
• Safe rigging of the load.
• Proper handling of the suspended load.
Tag lines on opposite sides of the load can be very helpful in
keeping a suspended load secure, if they are anchored safely to
control points on the ground.
Always engage the "Digging Mode" control on the Instrument
Panel before using the excavator for lifting work.
DANGER!
Unsafe use of the excavator while making rated lifts could
cause serious, potentially fatal injuries or extensive damage
to the machine or nearby property. Do not let anyone
operate the machine unless they've been properly trained
and understand the information in the Operation and
Maintenance Manual.
WARNING!
NEVER wrap a tag line around your hands or body.
NEVER rely on tag lines or make rated lifts when wind gusts
are more than 48.3 km/h (30 MPH). Be prepared for any wind
gust when working with loads that have a large surface
area.
WARNING!
If you need more information or have any questions or
concerns about safe operating procedures or working the
excavator correctly in a particular application or in the
specific conditions of your individual operating
environment, please consult your local
DOOSAN
representative.

Track Excavator Safety
Page 13
SP000014
UNAUTHORIZED
MODIFICATIONS
Any modification made without authorization or written approval
from
DOOSAN can create a safety hazard, for which the
machine owner will be held responsible.
For safety's sake, replace all OEM parts with the correct
authorized or genuine
DOOSAN part. For example, not taking
the time to replace fasteners, bolts or nuts with the correct
replacement parts could lead to a condition where the safety of
critical assemblies are dangerously compromised.
GENERAL HAZARD
INFORMATION
Safety Rules
Only trained and authorized personnel can operate and maintain
the machine.
Follow all safety rules, precautions and instructions when
operating or performing maintenance on the machine.
Do not operate the machine if you are not feeling well, if you are
taking medication that makes you feel sleepy, if you have been
drinking, or if you are suffering from emotional problems. These
problems will interfere with your sense of judgment in
emergencies and may cause accidents.
When working with another operator or with a person on work
site traffic duty, be sure that all personnel know the nature of the
work and understand all hand signals that are to be used.
Always observe strictly any other rules related to safety.
Safety Features
Be sure that all guards and covers are installed in their proper
position. Have guards and covers repaired immediately if
damaged.
Be sure that you understand the method of use of safety
features such as safety lock lever and the seat belt, and use
them properly.
Never remove any safety features. Always keep them in good
operating condition.
Failure to use safety features according to the instructions in the
Operation and Maintenance Manual could result in serious
bodily injury.

SP000014Track Excavator Safety
Page 14
Inside Operator's Cabin
When entering the operator's cabin, always remove all mud and
oil from the soles of your shoes. If you operate the travel pedal
with mud or oil stuck to your shoes, your foot may slip and this
may cause a serious accident.
After using the ashtray, make sure that any matches or
cigarettes are properly extinguished, and be sure to close the
ashtray. If the ashtray is left open, there is a danger of fire.
Do not stick suction pads to the window glass. Suction pads act
as a lens and may cause fire.
Do not leave lighters laying around the operator's cabin. If the
temperature inside the operator's cabin becomes high, there is a
danger that the lighter may explode.
Do not use cellular telephones inside the operator's cabin when
driving or operating the machine. There is a danger that this may
lead to an unexpected accident.
Never bring any dangerous objects such as flammable or
explosive items into the operator's cabin.
To ensure safety, do not use the radio or music headphones
when operating the machine. There is a danger that this may
lead to a serious accident.
When operating the machine, do not put your hands or head out
of the window.
When standing up from the operator's seat, always place safety
lock lever securely in the "LOCK" position. If you accidentally
touch the work equipment levers when they are not locked, the
machine may suddenly move and cause serious injury or
damage.
When leaving the machine, lower the work equipment
completely to the ground, set safety lock lever to the "LOCK"
position and shut down engine. Use the key to lock all the
equipment. Always remove key and take it with you.
Clothing and Personal Protective Items
Secure long hair, and avoid loose clothing and jewelry. These
items have the tendency to catch on controls or protrude into
parts and cause serious injury or death.
Do not wear oily clothes. They are flammable.
Full eye protection, a hard hat, safety shoes and gloves may be
required at the work site.
While working on the machine, never use inadequate tools. They
could break or slip, causing injury, or they may not adequately
perform intended functions.
HAOA020L
Figure 1

Track Excavator Safety
Page 15
SP000014
Breathing Masks, Ear Protection May Be
Required
Do not forget that some risks to your health may not be
immediately apparent. Exhaust gases and noise pollution may
not be visible, but these hazards can cause disabling or
permanent injuries.
NOTE:
The equivalent continuous A-weighted sound
pressure level at the workstation for this machine is
given in the operation manual.
Measurement is obtained on a dynamic machine
following the procedures and cabin conditions as
described in ISO 6396.
NOTE: The guaranteed sound power level emitted by the
machinery for this machine is given in the operation
manual.
Measurement is obtained on a dynamic machine with
the procedures as described in 2000/14/EC.
Vibration Level Information
Hands/Arms: The weighted root mean square acceleration to
which the hands/arms are subjected, is less than 2.5 m/s2.
Whole body: The weighted root mean square acceleration to
which the whole body is subjected, is less than 0.5 m/s2.
Measurements are obtained on a representative machine, using
measuring procedures as described in the following standard:
ISO 2631/1. ISO 5349, and SAE J1166.
Recommendations for Limiting Vibrations
1. Select the right machine, equipment and attachments for a
particular application.
2. Replace any damaged seat by a genuine
DOOSAN part.
Keep the seat maintained and adjusted.
• Adjust the seat and suspension for the weight and
size of the operator.
• Inspect and maintain the suspension and adjustment
mechanisms of the seat regularly.
3. Check that the machine is properly maintained.
• Tire pressure, brakes, steering, linkages, etc.
4. Steer, brake, accelerate, shift gears, move the attachments
and load the attachments smoothly.

SP000014Track Excavator Safety
Page 16
5. Adjust the machine speed and travel path to reduce the
vibration level.
• Slow down if it is necessary when traveling through
rough terrain.
• When driving machine, avoid obstacles and
excessive rough terrain.
6. Keep the machine on terrain where working and traveling
conditions are good.
• Remove any large rocks or obstacles.
• Fill any ditches and holes.
• Provide machines for and schedule time to maintain
good terrain conditions.
7. Travel over longer distances (e.g. on public roads) at
adjusted (medium) speed.
• Always adjust the speed to prevent bouncing.
Mounting and Dismounting
Before getting on or off the machine, if there is any oil, grease, or
mud on the handrails, steps, or track shoes, wipe it off
immediately. Always keep these parts clean. Repair any damage
and tighten any loose bolts.
Never jump on or off the machine. In particular, never get on or
off a moving machine. These actions may lead to serious injury.
When getting on or off the machine, always face the machine,
and maintain three-point contact (both feet and one hand or one
foot and both hands) with the handrails, steps, and track shoes
to ensure that you support yourself securely.
Never hold any control levers when getting on or off the
machine.
Apply the door lock securely. If you grip the handrail inside the
door when moving on top of the track shoes, and the door lock is
not applied securely, the door may move and cause you to fall.

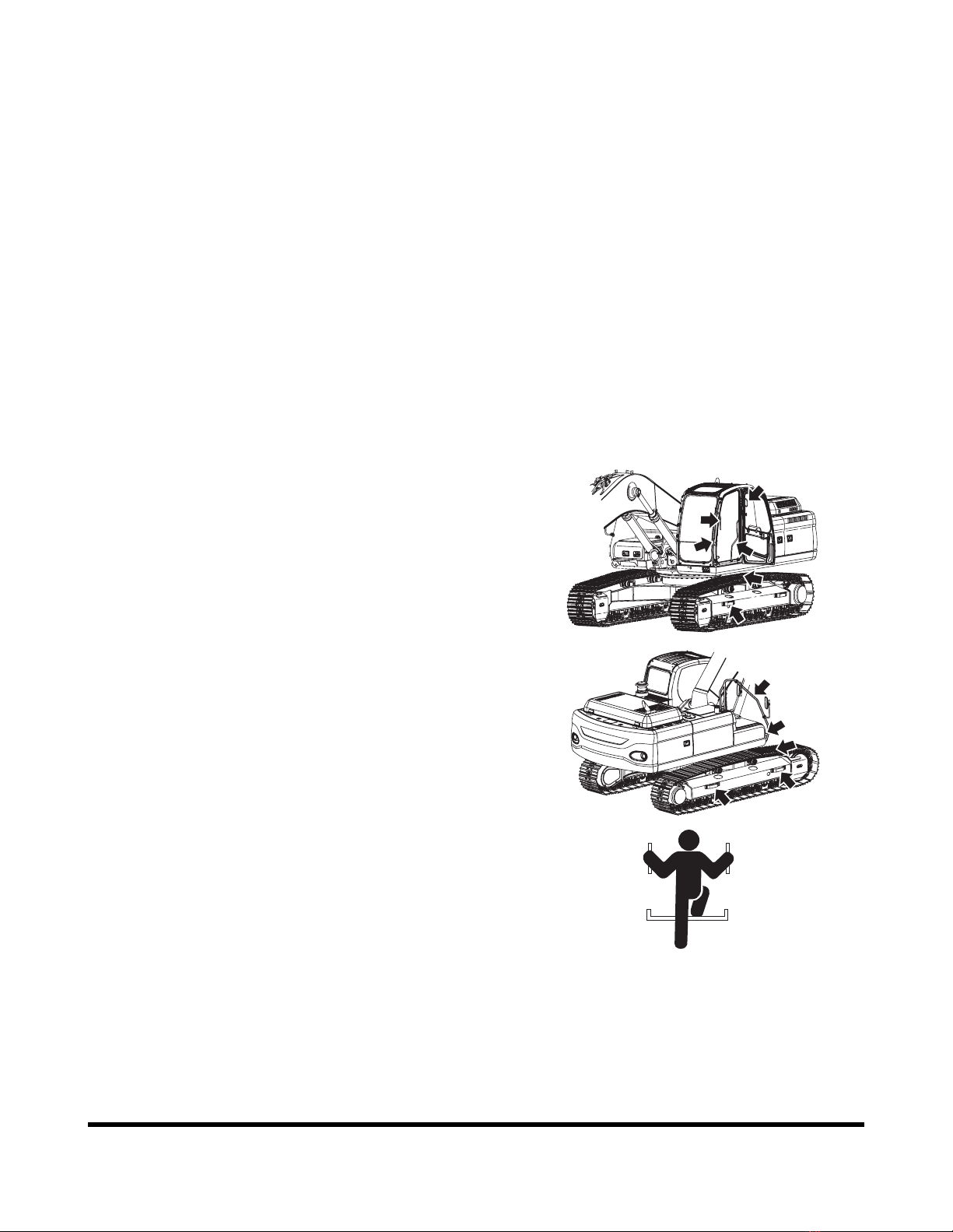

Use the points marked by arrows in the diagram when getting on
or off the machine.
FG 00035
Figure 2
