Case CX290B User manual

SERVICE MANUAL
CRAWLER EXCAVATOR
CX290B
English
Part Number 87673891 B
Printed in U.S.A. • Rac
© 2010 CNH America LLC. All Rights Reserved.
Case is a registered trademark of CNH America
Replaces 87673891
Issued February 2010
87673891 B
CNH AMERICA LLC
700 STATE STREET
RACINE, WI 53404 U.S.A.

Copyright © 2010 CNH America LLC.
All rights reserved.
Printed in U.S.A.
Issued January, 2010
CNH AMERICA LLC.
700 State Street
Racine, WI 53404 U.S.A. Lep SMCX290BTOC-1NA
CRAWLER EXCAVATOR
CX290B
SERVICE MANUAL
TABLE OF CONTENTS
DIVISION/SECTION SECTION N° REFERENCE N°
1 GENERAL INFORMATION
Safety, general information and standard torque data..................................... 1001 7-27691EN
General specifications and special torque setting ........................................... 1002 SM290B1002-1NA
2ENGINE
Removal and installation of the engine............................................................ 2000 SM290B2000-0EN
Removal and installation of the fuel cooler, engine inter-cooler,
radiator and oil cooler.................................................................................. 2001 SM290B2001-0EN
Removal and installation of the turbo charger ................................................. 2004 SM290B2004-0EN
Removal and installation of EGR cooler and EGR valve................................. 2005 SM350B2005-0EN
Removal and installation of the engine hood................................................... 2006 SM350B2006-0EN
Engine specifications..............................................................................................*
Disassembly and assembly of the engine ..............................................................*
3 FUEL SYSTEM
Removal and installation of the fuel tank......................................................... 3001 SM290B3001-0EN
Removal and installation of the supply pump and common rail ...................... 3004 SM290B3004-0EN
Removal and installation of the injectors ......................................................... 3005 SM350B3005-0EN
Fuel engine system ................................................................................................*
4 ELECTRICAL SYSTEM
Service connector kit....................................................................................... 4000 SM350B4000-1EN
Electrical and engine functions and service support ....................................... 4001 SC210B4001-2EN
Removal and installation of the starter motor.................................................. 4004 SM290B4004-0EN
Removal and installation of the alternator ....................................................... 4005 SM350B4005-0EN
Electrical equipment and electrical circuit diagrams........................................ 4020 SM210B4020-1EN
Engine error code (DTC) ................................................................................. 4021 SM350B4021-0EN
Main body error code (DTC)............................................................................ 4022 SM210B4022-0EN
Troubleshooting, 6HK1 engine ........................................................................ 4023 SM350B4023-0EN
5 UNDERCARRIAGE
Removal and installation of tracks................................................................... 5001 SM290B5001-0EN
Rollers ............................................................................................................. 5003 SM290B5003-0EN
Take-up roller................................................................................................... 5005 SM290B5005-0EN
Removal and installation of grease cylinder .................................................... 5006 SM290B5006-0EN
Disassembly and assembly of grease cylinder................................................ 5007 SM290B5007-0EN
6 DRIVE TRAIN
Removal and installation of the drive motor and
final drive transmission................................................................................ 6001 SM350B6001-0EN
Disassembly and assembly of the drive motor and
final drive transmission................................................................................ 6002 SM350B6002-0EN
Removal and installation of the swing motor and
swing reduction gear ................................................................................... 6003 SM290B6003-0EN
Disassembly and assembly of the swing reduction gear................................. 6004 SM350B6004-0EN
7 UNDERCARRIAGE HYDRAULICS
* Consult the Engine Service Manual

Lep SMCX290BTOC-1NA Issued 01-2010
DIVISION/SECTION SECTION N° REFERENCE N°
8 UPPERSTRUCTURE HYDRAULICS
Specifications, troubleshooting, checks and
hydraulic pressure settings..........................................................................8001 SC290B8001-0NA
Removal and installation of the hydraulic reservoir .........................................8002 SM290B8002-0EN
Removal and installation of the main hydraulic pump......................................8003 SM350B8003-0EN
Removal and installation of the main hydraulic control valve...........................8004 SM290B8004-0EN
Removal and installation of the attachment cylinders......................................8005 SM350B8005-0EN
Removal and installation of the hydraulic swivel..............................................8006 SM290B8006-0EN
Removal and installation of the pilot blocs.......................................................8007 SM290B8007-0EN
Disassembly and assembly of the main hydraulic pump .................................8010 SM290B8010-0EN
Disassembly and assembly of the main hydraulic control valve ......................8011 SM350B8011-0EN
Disassembly and assembly of the attachment cylinders .................................8012 SM130B8012-0EN
Disassembly and assembly of the hand control levers ....................................8013 SM130B8013-0EN
Disassembly and assembly of the foot control levers ......................................8014 SM160B8014-1EN
Disassembly and assembly of the cushion valve.............................................8016 SM290B8016-0EN
Removal and installation of the safety valve....................................................8017 SM350B8017-0EN
Disassembly and assembly of the hydraulic swivel .........................................8018 SM290B8018-0EN
Disassembly and assembly of the swing motor ...............................................8019 SM290B8019-0EN
Hydraulic functions ..........................................................................................8020 SC290B8020-0NA
Hydraulic component functions........................................................................8030 SC290B8030-0NA
9 UPPERSTRUCTURE
Removal and installation of the counterweight ................................................9002 SM290B9002-0EN
Removal and installation of the boom, dipper and bucket ...............................9003 SM350B9003-0EN
Removal and installation of the seat................................................................9004 SM130B9004-0EN
Removal and installation of the cab and cab equipment .................................9005 SM130B9005-0EN
Air conditioner functions and troubleshooting..................................................9006 SC210B9006-3EN
Air conditioning unit .........................................................................................9007 SM130B9007-0EN
Air conditioning components............................................................................9009 SM290B9009-0EN
Large size hydraulic schematics ................................................................... Pocket 87601004A
Large size electrical schematics ................................................................... Pocket 87601010A
NOTE: CNH France S.A. Company reserves the right to make changes in the specification and design of
the machine without prior notice and without incurring any obligation to modify units previously sold.
The description of the models shown in this manual has been made in accordance with the technical speci-
fications known as of the date of design of this document.
All data given in this manual is subject to production variations. Dimensions and weights are provided with
approximate values and the machine fitting shown in the illustrations may not correspond with standard
models. For precise information on specific machine models and versions, please contact your CASE
dealer.
Reproduction or tranlation, even partial, is prohibited without written authorization from CNH France SA
Company.

CNH
Copyright ©2006 CNH France S.A.
Printed in France
February 2006
Lep 7-27691EN
1001
SAFETY, GENERAL INFORMATION
AND TORQUE SPECIFICATIONS
Section
1001

Thanks very much for your reading,
Want to get more information,
Please click here, Then get the complete
manual
NOTE:
If there is no response to click on the link above,
please download the PDF document first, and then
click on it.
Have any questions please write to me:
[e-mail]

1001-2
Lep 7-27691EN Issued 02-06
TABLE OF CONTENTS
GENERAL INFORMATION .......................................................................................................................................3
SAFETY.....................................................................................................................................................................4
STANDARD TORQUE DATA FOR CAP SCREWS AND NUTS...............................................................................6
WARNING : This symbol is used in this manual to indicate important safety messages. Whenever you see
this symbol, carefully read the message that follows, as there is a risk of serious injury.
!

1001-3
Lep 7-27691EN Issued 02-06
GENERAL INFORMATION
Cleanning
Clean all metal parts except bearings, in a suitable
cleaning solvent or by steam cleaning. Do not use
caustic soda for steam cleaning. After cleaning, dry
and put oil on all parts. Clean oil passages with
compressed air. Clean bearings in a suitable cleaning
solvent, dry the bearings completely and put oil on
the bearings.
Inspection
Check all parts when the parts are disassembled.
Replace all parts that have wear or damage. Small
scoring or grooves can be removed with a hone or
crocus cloth. Complete a visual inspection for
indications of wear, pitting and the replacement of
parts necessary to prevent early failures.
Bearings
Check bearings for easy action. If bearings have a
loose fit or rough action replace the bearing. Wash
bearings with a suitable cleaning solvent and permit
to air dry. DO NOT DRY BEARINGS WITH
COMPRESSED AIR.
Needle bearings
Before you press needle bearings in a bore always
remove any metal protrusions in the bore or edge of
the bore. Before you press bearings into position put
petroleum jelly on the inside and outside diameter of
the bearings.
Gears
Check all gears for wear and damage. Replace gears
that have wear or damage.
Oil seals, O-rings and gaskets
Always install new oil seals, O-rings and gaskets. Put
petroleum jelly on seals and O-rings.
Shafts
Check all shafts that have wear or damage. Check
the bearing and oil seal surfaces of the shafts for
damage.
Service parts
Always install genuine Case service parts. When
ordering refer to the Parts Catalog for the correct part
number of the genuine Case replacement items.
Failures due to the use of other than genuine Case
replacement parts are not covered by warranty.
Lubrication
Only use the oils and lubricants specified in the
Operator’s or Service Manuals. Failures due to the
use of non-specified oils and lubricants are not
covered by warranty.

1001-4
Lep 7-27691EN Issued 02-06
SAFETY
This symbol means ATTENTION! BECOME ALERT! YOUR
SAFETY IS INVOLVED. The message that follows the
symbol contains important information about safety. Carefully
read the message. Make sure you fully understand the
causes of possible injury or death.
!
To prevent injury always follow the Warning, Caution
and Danger notes in this section and throughout the
manual.
Put the warning tag shown below on the key for the
keyswitch when servicing or repairing the machine.
One warning tag is supplied with each machine.
Additional tags Part Number 331-4614 are available
from your service parts supplier
.
WARNING: Read the operator’s manual to
familiarize yourself with the correct control
functions.
!
WARNING: Operate the machine and
equipment controls from the seat position
only. Any other method could result in
serious injury.
!
WARNING: This is a one man machine, no
riders allowed.
!
WARNING: Before starting engine, study
Operator’s Manual safety messages. Read
all safety signs on machine. Clear the area of
other persons. Learn and practice safe use
of controls before operating.
It is your responsibility to understand and
follow manufacturers instructions on
machine operation, service and to observe
pertinent laws and regulations. Operator’s
and Service Manuals may be obtained from
your Case dealer.
!
WARNING: If you wear clothing that is too
loose or do not use the correct safety
equipment for your job, you can be injured.
Always wear clothing that will not catch on
objects. Extra safety equipment that can be
required includes hard hat, safety shoes, ear
protection, eye or face protection, heavy
gloves and reflector clothing.
!
WARNING: When working in the area of the
fan belt with the engine running, avoid loose
clothing if possible, and use extreme caution.
!
WARNING: When doing checks and tests
on the equipment hydraulics, follow the
procedures as they are written. DO NOT
change the procedure.
!
WARNING: When putting the hydraulic
cylinders on this machine through the
necessary cycles to check operation or to
remove air from a circuit, make sure all
people are out of the way.
!

1001-5
Lep 7-27691EN Issued 02-06
WARNING: Use insulated gloves or mittens
when working with hot parts.
!
WARNING: Lower all attachments to the
ground or use stands to safely support the
attachments before you do any maintenance
or service.
!
WARNING: Pin sized and smaller streams
of hydraulic oil under pressure can penetrate
the skin and result in serious infection. If
hydraulic oil under pressure does penetrate
the skin, seek medical treatment
immediately. Maintain all hoses and tubes in
good condition. Make sure all connections
are tight. Make a replacement of any tube or
hose that is damaged or thought to be
damaged. DO NOT use your hand to check
for leaks, use a piece of cardboard or wood.
!
WARNING: When removing hardened pins
such as a pivot pin, or a hardened shaft, use
a soft head (brass or bronze) hammer or use
a driver made from brass or bronze and a
steel head hammer.
!
WARNING: When using a hammer to
remove and install pivot pins or separate
parts using compressed air or using a
grinder, wear eye protection that completely
encloses the eyes (approved goggles or
other approved eye protectors).
!
WARNING: Use suitable floor (service)
jacks or chain hoist to raise wheels or tracks
off the floor. Always block machine in place
with suitable safety stands.
!
WARNING: When servicing or repairing the
machine, keep the shop floor and operator’s
compartment and steps free of oil, water,
grease, tools, etc. Use an oil absorbing
material and/or shop cloths as required. Use
safe practices at all times.
!
WARNING: Some components of this
machine are very heavy. Use suitable lifting
equipment or additional help as instructed in
this Service Manual.
!
WARNING: Engine exhaust fumes can
cause death. If it is necessary to start the
engine in a closed place, remove the exhaust
fumes from the area with an exhaust pipe
extension. Open the doors and get outside
air into the area.
!
WARNING: When the battery electrolyte is
frozen, the battery can explode if (1), you try
to charge the battery, or (2), you try to jump
start and run the engine. To prevent the
battery electrolyte from freezing, try to keep
the battery at full charge. If you do not follow
these instructions, you or others in the area
can be injured.
!

1001-6
Lep 7-27691EN Issued 02-06
STANDARD TORQUE DATA FOR CAP SCREWS AND NUTS
Tightening of cap screws, nuts
Tighten alternately so that tightening torque can be applied evenly. The numbers in the figure below indicate the
order of tightening.
JS00481A
Cap screws which have had Loctite used (white residue remains after removal) should be cleaned with loght oil or
suitable cleaning solvent and dried. Apply 2-3 drops of Loctite to the thread portion of the cap screw and then
tighten.
Torque table
Tighten cap screws and nuts according to the table below if there are no other special instructions.
Cap Screw Name Size (Size) M6 M8 M10 M12 M14 M16 M18 M20
Cap Screw
Spanner [mm] 10 13 17 19 22 24 27 30
[in.] 0.39 0.51 0.67 0.75 0.87 0.95 1.06 1.18
Tightening
torque
[Nm] 6.9 19.6 39.2 58.8 98.1 156.9 196.1 294.2
[lb-ft] 5.1 14.5 28.9 43.4 72.3 115.7 144.6 217
Socket
Head Cap
Screw
Spanner [mm] 5 6 8101214 1417
[in.] 0.20 0.24 0.32 0.39 0.47 0.55 0.55 0.67
Tightening
torque
[Nm] 8.8 21.6 42.1 78.5 117.7 176.5 245.2 343.2
[lb-ft] 6.5 15.9 31.1 57.9 86.9 130.2 181 253.2

CNH Lep SM290B1002-1NA
1002
Copyright ©2010 CNH America LLC.
All rights reserved.
Printed in USA.
January 2010
SPECIFICATIONS
AND SPECIAL TORQUE SETTINGS
Section
1002

Lep SM290B1002-1NA Issued 01-2010
1002-2
TABLE OF CONTENTS
TYPE, SERIAL NUMBER
AND YEAR OF MANUFACTURE OF THE MACHINE..................................................................................................... 4
Machine ....................................................................................................................................................................... 4
Engine.......................................................................................................................................................................... 4
Serial numbers of the components .............................................................................................................................. 4
FLUIDS AND LUBRICANTS ............................................................................................................................................ 5
Hydraulic fluid .............................................................................................................................................................. 5
Transmission component oil ........................................................................................................................................ 5
Grease ......................................................................................................................................................................... 5
Engine Oil .................................................................................................................................................................... 6
Fuel .............................................................................................................................................................................. 7
Anti-freeze/Anti-corrosion............................................................................................................................................. 8
Environment................................................................................................................................................................. 8
Plastic and resin parts.................................................................................................................................................. 8
SPECIFICATIONS ........................................................................................................................................................... 9
Main data ..................................................................................................................................................................... 9
Performance ................................................................................................................................................................ 9
Complete machine dimensions.................................................................................................................................... 9
Main body dimensions ................................................................................................................................................. 9
Engine........................................................................................................................................................................ 10
Cooling system .......................................................................................................................................................... 10
Capacity of coolant and lubricants ............................................................................................................................. 10
Hydraulic oil filter........................................................................................................................................................ 10
Fuel filter .................................................................................................................................................................... 10
Operating devices ...................................................................................................................................................... 11
Hydraulic system........................................................................................................................................................ 12
Swing unit .................................................................................................................................................................. 14
Travel lower body....................................................................................................................................................... 14
Work Unit ................................................................................................................................................................... 15
Digging force (ISO 6015) ........................................................................................................................................... 15
COMPONENT WEIGHT................................................................................................................................................. 16
Major component weight............................................................................................................................................ 16
Other component weight............................................................................................................................................ 17
DIMENSIONS AND WEAR LIMIT OF THE TRACK ASSEMBLY .................................................................................. 18
Sprocket..................................................................................................................................................................... 18
Idler wheel.................................................................................................................................................................. 19
Upper roller ................................................................................................................................................................ 20
WARNING: This symbol is used in this manual to indicate important safety messages. Whenever you see this
symbol, carefully read the message which follows. Your safety depends on it.
!

Lep SM290B1002-1NA Issued 01-2010
1002-3
Lower roller.................................................................................................................................................................21
Track...........................................................................................................................................................................22
DIMENSIONS AND WEAR LIMITS OF ATTACHEMENT MOBILE JOINTS ..................................................................23
1. Boom foot/Frame ....................................................................................................................................................23
2. Boom cylinder foot/Frame.......................................................................................................................................24
3. Boom cylinder head/Boom......................................................................................................................................24
4. Arm cylinder foot/Boom ..........................................................................................................................................25
5. Boom/Arm...............................................................................................................................................................25
6. Arm cylinder head/Arm ...........................................................................................................................................26
7. Bucket cylinder foot/Arm.........................................................................................................................................26
8. Connecting rod/Arm................................................................................................................................................27
9. Compensator/Bucket ..............................................................................................................................................27
10. Connecting rod/Compensator/Bucket cylinder head ............................................................................................28
11. Arm/Bucket ...........................................................................................................................................................29
SPECIAL TORQUE SETTINGS......................................................................................................................................30
MACHINE OVERALL DIMENSIONS ..............................................................................................................................34

Lep SM290B1002-1NA Issued 01-2010
1002-4
TYPE, SERIAL NUMBER
AND YEAR OF MANUFACTURE OF THE MACHINE
For all part orders, request for information or assistance, always specify the type and the serial number of the machine to
your Case dealer.
Fill in the following lines with the required information: Type, serial number, year of manufacture of the machine and the
serial numbers of the hydraulic and mechanical components.

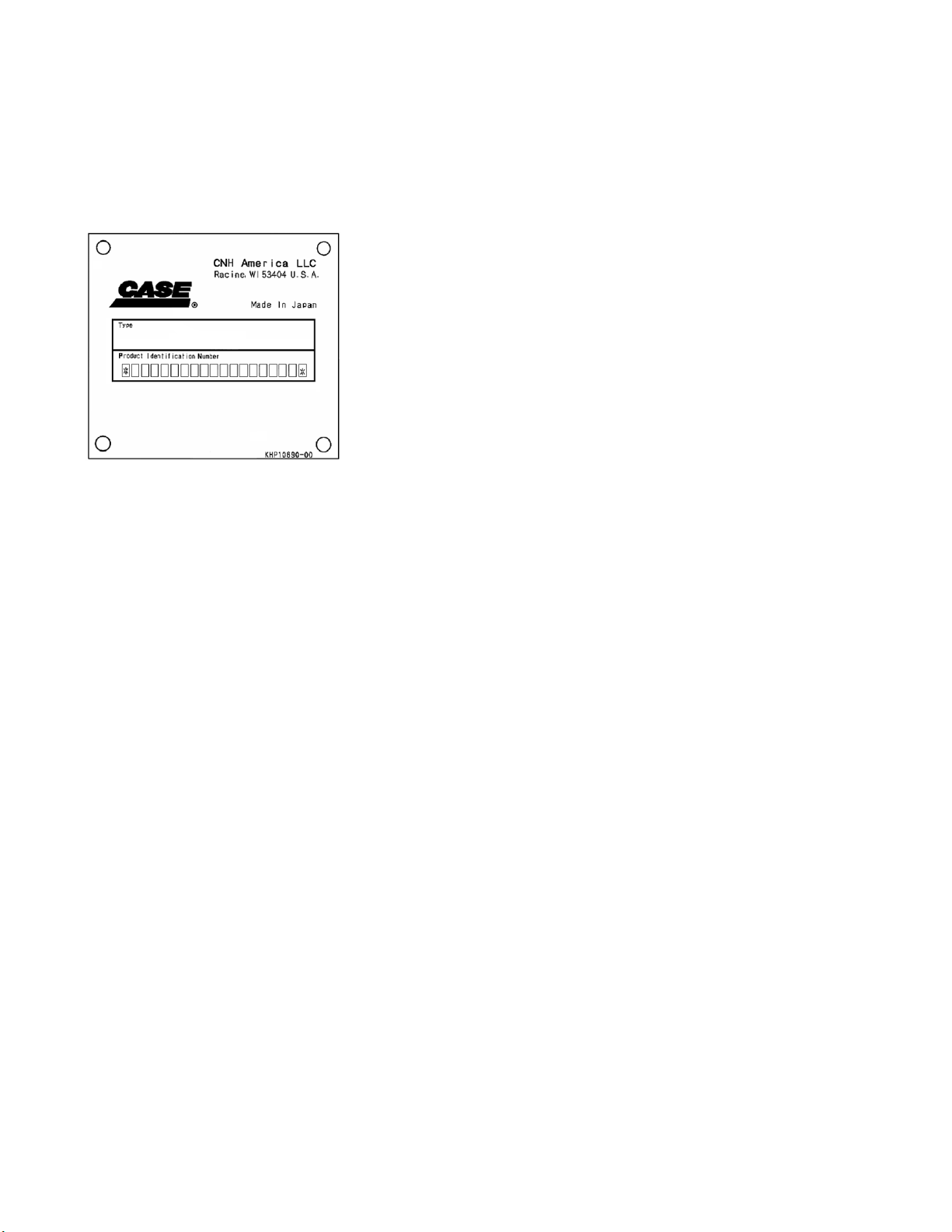

Machine
CRIL05J002E00
(Type............................................................................................................................................................................
(Serial number.............................................................................................................................................................
Year of manufacture ....................................................................................................................................................
Engine
Make and type.............................................................................................................................................................
Serial number ..............................................................................................................................................................
Serial numbers of the components
Hydraulic pump ...........................................................................................................................................................
Swing reduction gear...................................................................................................................................................
Travel reduction gears .................................................................................................................................................
Control valve................................................................................................................................................................

Lep SM290B1002-1NA Issued 01-2010
1002-5
FLUIDS AND LUBRICANTS
Lubricants must have the correct properties for each application.
Hydraulic fluid
CASE/AKCELA hydraulic fluid is specially designed for high pressure applications and for the CASE hydraulic system.
The type of fluid to be used depends on the ambient temperature.
Temperate climates: -20°C to +40°C (-4° to 104° F)
CASE/AKCELA: HYDRAULIC EXCAVATOR FLUID (MS 1230. ISO VG 46. DIN 51524 PART 2 HV)
Hot climates: 0°C to +50°C (32° to 122° F)
CASE/AKCELA: AW HYDRAULIC FLUID 68 HV (MS 1216. ISO VG 68. DIN 51524 PART 3 CATEGORY HVLP)
Cold climates: -25°C to +20°C (-13° to 68° F)
CASE/AKCELA: AW HYDRAULIC FLUID 32 (MS 1216. ISO VG 32. DIN 51524 PART 2)
Biodegradable fluid: -30°C to +40°C (-22° to 104° F)
This yellow-colored fluid is miscible with standard fluid. If used to change standard fluid, it is advised to drain the circuit
completely before refilling with this fluid.
CASE/AKCELA: HYDRAULIC EXCAVATOR FLUID BIO (MS 1230. ISO VG 46. DIN 51524 PART 2 HV)
Transmission component oil
Extreme pressure oil used for enclosed transmission components.
CASE/AKCELA: GEAR 135H EP (SAE 80W-90. API GL 5.MIL-L-2105 D.MS 1316.ZF TE-ML 05A)
Grease
CASE/AKCELA: MOLY GREASE 251H EP-M (251H EP-M.NLGI 2)
"Extreme Pressure" multipurpose grease with lithium soap and molybdenum disulphide.
CASE/AKCELA: MULTIPURPOSE GREASE 251H EP (251H EP
.NLGI 2)
"Extreme Pressure" multipurpose grease with lithium soap and calcium.
CASE/AKCELA: PREMIUM GREASE EP2 (NLGI 2)
"Extreme Pressure" multipurpose grease with lithium soap.
Hydraulic breakers
CASE/ AKCELA: MULTIPURPOSE GREASE 251H EP (NLGI 2).
WARNING: The conditions of use for individual fluids and lubricants must be respected.
!

Lep SM290B1002-1NA Issued 01-2010
1002-6
Engine Oil
THE CASE/AKCELA No. 1 engine oil is recommended
for your engine. This oil ensures proper lubrication of
your engine for all operating conditions.
If the CASE/AKCELA Multigrade "No. 1 ENGINE OIL"
cannot be obtained, use the oil corresponding to one of
the following categories: ACEA E7. API CI-4.
CP02N001
Oil viscosity / Oil range
CT02M001
1) With mineral base
(2) With semi-synthetic base
(3) With synthetic base
3
3
1
2
2

Lep SM290B1002-1NA Issued 01-2010
1002-7
Fuel
Use fuel which is to ASTM (American Society for Testing and Materials) D975 standard.
Use grade No. 2-D fuel. The use of other types of fuel can result in a loss of power of the engine and may cause high
fuel consumption.
In cold weather (below -7°C (19.4°F)), it is provisionally approved to use a mixture of fuels No. 1-D and No. 2-D. Consult
your fuel supplier or your CASE Dealer.
If the temperature falls below the fuel cloud point (point at which wax begins to form) the wax crystals will cause power
loss or will prevent the engine from starting.
Required conditions for diesel fuel
The diesel fuel used must:
- be free from dust particles, even minute ones.
- have the proper viscosity.
- have a high cetane number.
- present great fluidity at low temperatures.
- have low sulphur content.
- have very little residual carbon.
Diesel fuel recommendation
- JIS (Japanese Industrial Standard) : No. 2
- DIN (Deutsche Industrie Normen) : DIN 51601
- SAE (Society of Automotive Engineers) Based on SAE-J-313C: No. 2-D
- BS (British Standard) Based on BS/2869-1970: Class A-1
IMPORTANT : Using any other fuel will reduce the operating performance of the engine.
Using fuels other than those recommended can damage the fuel injection pump, the injector and other parts of the fuel
supply system and the engine. CASE disowns any responsibility concerning this kind of damage, which is not
covered by the guarantee. To avoid any damage to the engine fuel supply system, you are recommended to take the
following safety messages into account:
Some fuel suppliers mix used engine oil with diesel fuel. Certain manufacturers of large engines allow them to do this.
However, for your engine, do not use diesel fuel contaminated by engine oil. In addition to damaging the engine, this fuel
can actually adversely affect the correct purification of exhaust gases. Before using any diesel fuel, ask the supplier if
this fuel has been mixed with engine oil.
IMPORTANT : For a proper use of fuel additives consult your supplier or your CASE Dealer. Do not inject fuel oil or
gasoline, both fuels can damage the engine.
IMPORTANT : In cold weather, fill the fuel tank at the end of the day's work, in order to prevent the formation of conden-
sation.
Fuel storage
Long storage can lead to the accumulation of impurities and condensation in the fuel. Engine trouble can often be
traced to the presence of water in the fuel.
The storage tank must be placed outside and the temperature of the fuel should be kept as low as possible. Drain off
water and impurities regularly.

Lep SM290B1002-1NA Issued 01-2010
1002-8
Anti-freeze/Anti-corrosion
Use anti-freeze in all seasons to protect the cooling system from corrosion and all risk of freezing.
CASE/AKCELA: PREMIUM ANTI-FREEZE (MS 1710)
For areas where the temperature goes down to -38°C (-36.4°F), mix 50/50 with water.
IMPORTANT : Do not mix products of a different origin or brand. The same product must be used when topping up the
system.
Environment
Before carrying out any maintenance operation on this machine and before disposing of used fluids or lubricants,
always think of the environment. Never throw oil or fluid on the ground and never place it in leaking receptacles.
Contact your local ecological recycling centre or your CASE Dealer to obtain information on the correct method of dis-
posing of these lubricants.
Plastic and resin parts
When cleaning plastic parts, the console, the instrument panel, the indicators etc... avoid using petrol, kerosene, paint
solvents etc... Use only water, soap and a soft cloth.
The use of petrol, kerosene, paint solvents etc... causes discoloration, cracks or deformation of these parts.

Lep SM290B1002-1NA Issued 01-2010
1002-9
SPECIFICATIONS
Main data
Model name ......................................................................................................................... CX290B Hydraulic Excavator
Operating weight...............................................................................................................................29800 kg (65698 lbs)
Engine output....................................................................................................................................... 154 kW / 1800 rpm
Performance
Swing speed.....................................................................................................................................................10.2 Tr/min.
Travel speed ................................................................................................................... Low Speed 3.2 km/h (1.99 mph)
........................................................................................................................................High Speed 5.6 km/h (3.48 mph)
Maximum drawbar pull................................................................................................................... 233.2kN (52425.45 lbf)
Grade ability........................................................................................................................................................70% (35°)
Ground pressure ............................................................................................... 56 kPa (600 mm (23.62 in) grouser shoe)
..........................................................................................................................49 kPa (700 mm (27.56 in) grouser shoe)
..........................................................................................................................43 kPa (800 mm (31.50 in) grouser shoe)
Complete machine dimensions
Main body dimensions
Main body width ..............................................................................................................See machine overall dimensions
Upper side swing body width ............................................................................................................ 2870 mm (112.99 in)
Cab width ............................................................................................................................................ 1000 mm (39.37 in)
Main body height............................................................................................................................... 3110 mm (122.44 in)
Engine displacement......................................................................................................................... 3160 mm (124.41 in)
Swing body tail distance.................................................................................................................... 3150 mm (124.01 in)
Swing body rear section bottom height............................................................................................... 1190 mm (46.85 in)
Distance between tumblers............................................................................................................... 3980 mm (156.69 in)
Overall track length ........................................................................................................................... 4850 mm (190.94 in)
Width of track shoe .................................................. 800 mm (31.50 in) (Optional: 600 mm (23.62 in) 700 mm (27.56 in)
Minimum ground clearance.........................................................................470 mm (18.50 in) (To bottom of lower frame)
Arm (dipper)
3180 mm
(125.20 in)
2650 mm
(104.33 in)
3600 mm
(141.73 in)
Lenght (without attachment) 5590 mm
(220.08 in)
5590 mm
(220.08 in)
5590 mm
(220.08 in)
Lenght (with attachment) 10450 mm
(411.4 in)
10480 mm
(412.6 in)
10470 mm
(412.2 in)
Height (with attachment) 3260 mm
(128.35 in)
3340 mm
(131.5 in)
3460 mm
(136.22 in)

Lep SM290B1002-1NA Issued 01-2010
1002-10
Engine
Name.......................................................................................................................................................... ISUZU, 6HK1X
Type: ....................................................... 4-cycle, water-cooled, overhead camshaft, vertical in-line, direct injection type
...............................................................................................................................(electronic control), with turbocharger.
No. of cylinders - bore x stroke.............................................................................6 - Ø115 mm x 125 mm (4.53 x 4.92 in)
Displacement............................................................................................................................................ 7.79 L (2.06 gal)
Compression ratio ....................................................................................................................................................... 17.5
Rated output.......................................................................................................................................154 kW / 1800 min-1
Maximum torque.......................................................................................................... 850 N.m (626.93 lb-ft) / 1500 min-1
Engine dimensions (LxWxH) ....................................................................1357x995.4x1141 mm (53.42 x39.19x44.92 in)
Oil pan ..................................................................................................................................All direction 35 rad, inclinable
Oil pan capacity................................................ Maximum: 38 L (10.04 gal) Minimum: 28 L (7.40 gal) (excluding oil filter)
Direction of rotation ......................................................................................................................Right (as seen from fan)
Starter, reduction type ...................................................................................................................................... .24 V, 5 kW
Alternator, AC type ............................................................................................................................................. 24 V, 50 A
Battery................................................................................................................................................ 2 x 12V,128 Ah/5 Hr
Cooling system
Fan type.......................................... Ø 850 mm (33.46 in), suction type - 6 blades, plastic with belt mouth-type fan guide
Pulley ratio................................................................................................................................................. 0.80 (reduction)
Radiator
Fin type .................................................................................................................................................................. wavy
Fin pitch ............................................................................................................................................. 2.0 mm (0.078 in)
Oil cooler
Fin type .................................................................................................................................................................. wavy
Fin pitch ........................................................................................................................................... 1.75 mm (0.069 in)
Inter-cooler
Fin type ...............................................................................................................................................triangular straight
Fin pitch ............................................................................................................................................. 2.0 mm (0.078 in)
Fuel cooler
Fin type .................................................................................................................................................................. wavy
Fin pitch ............................................................................................................................................. 2.0 mm (0.078 in)
Coolant capacity................................................................................................................. 14.5 L (3.83 gal) (engine only)
Capacity of coolant and lubricants
Coolant ........................................................................................................................................................ 29 L (7.66 gal)
Fuel ....................................................................................................................................................... 450 L (118.88 gal)
Lubricant for engine................................................................................................................................... 38 L (10.04 gal)
Lubricant for travel reduction gear (per side).............................................................................................. 9.1 L (2.40 gal)
Lubricant for swing reduction gear (per side) ................................................................................................ 6 L (1.58 gal)
Hydraulic oil............................................................................................................................................. 300 L (79.25 gal)
Capacity of hydraulic oil tank................................................................................................................... 147 L (38.43 gal)
Hydraulic oil filter
Suction filter (inside tank) ....................................................................................................................................150 mesh
Return filter (inside tank) ............................................................................................................................................ 6 µm
Pilot line filter (inside housing).................................................................................................................................... 8 µm
Fuel filter
Main filter.................................................................................................................................................................... 4 µm
Pre-filter...................................................................................................................................................................... 8 µm
