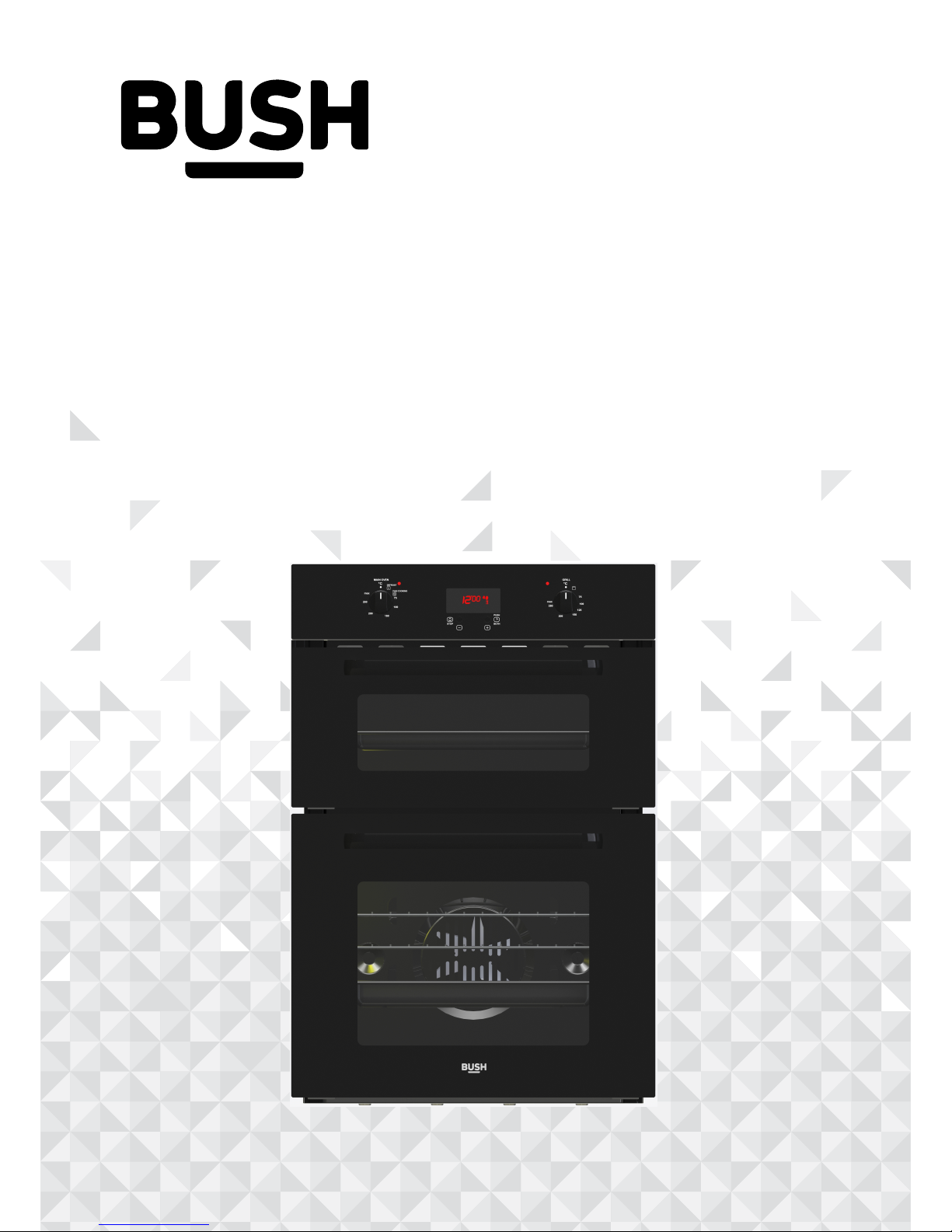

Bush 5569144 User manual

Instruction manual
Built-In Double Oven
5499874 Bush BDOBF White
5569144 Bush BDOBF Black

If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
You’ll soon be enjoying your new Built-In Double Oven
It all begins here, with your instructions. Don’t worry,
there’s nothing too technical coming up. Just simple,
step-by-step guidance to get you up and running
quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your Built-In Double Oven. Should you require
any guidance, a simple solution can often be found online at:
www.argos-support.co.uk
If you still require further assistance, call one of our experts on 01759 487838.

5
8
9
10
10
11
14
16
17
17
18
19
20
21
22
23
3
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Contents
Product support
Troubleshooting
Help and assistance
Declaration of conformance to product
standards
Disposal
Guarantee
6
Safety information
Safety information
Getting to know your Built-In
Double Oven
Ready? Let’s begin
Accessories
Installing your Built-In Double
Oven
Installation requirements
Unpacking
Connections (electrical)
Using your Built-In Double
Oven
First use of Built-In Double Oven
Standard and advanced functions/use
Care and Maintenance
Cleaning
Maintenance actions
Technical specifications
1
2
3
4
5

1Safety information

5
Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
INSTALLATION WARNINGS
IMPORTANT: This product MUST be installed
by a qualied installer in accordance with local
regulations.
IMPORTANT: This appliance has been designed
for non-professional, domestic use only.
IMPORTANT: Carefully unpack and examine
the appliance for any damage. If you think there
is a defect, do not use the appliance and contact
Argos Product Support on 01759 487838.
IMPORTANT: The oven is supplied setup
according to the conditions shown on the rating
label which is stuck to the rear of the appliance.
IMPORTANT: Keep the electrical cable (not
supplied) of your oven away from the hot areas;
do not let it touch the appliance. Keep the cable
away from sharp edges and heated surfaces.
IMPORTANT: In the event that the cable
connecting your oven becomes damaged, it must
be replaced by a suitably qualied person.
This cable must not be replaced by an
unauthorised person.
IMPORTANT: When using the grill the oven door
must be kept closed to prevent damage to the
oven knobs and to prevent the burn hazard that
very hot knobs would present.
IMPORTANT: Children and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge should not be allowed
to use the oven unless supervised and warned of
the hazards involved
DURING USAGE
IMPORTANT: Children and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge should not be allowed to
use the oven unless supervised and warned of the
hazards involved
WARNING: The appliance and its accessible parts
become hot during use. Care should be taken to avoid
touching hot parts.
WARNING: NEVER try to extinguish a cooking re
with water. Instead switch o󰀨 the appliance and cover
ame e.g. with a lid or a re blanket.
CAUTION: Do not allow children in the kitchen when
cooking or while oven parts may still be hot. Many
parts of the oven will become hot and present a
considerable hazard to children.
CAUTION: When the oven is hot never touch the oven
glass by hand or with tools.
CAUTION: Before starting to use your appliance,
ensure curtains, paper or ammable items are kept
away from your appliance.
Do not keep ammable materials inside of or around
your oven.
CAUTION: Take care when closing the oven door that
there is nothing obstructing it from closing as this may
break the glass door.
IMPORTANT: When using the grill the oven door must
be kept closed.

6
Safety information
Important - Please read these instructions fully before
installing or operating
Safety information
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
IMPORTANT: Make sure the oven is turned o󰀨 when
not in use
IMPORTANT: If you do not intend to use your oven for
a long period of time turn o󰀨 the electric supply to the
oven
GENERAL SAFETY WARNINGS
IMPORTANT: This appliance has been designed for
non-professional, domestic use only. Do not use this
oven for commercial use or any other application e.g.
room heating
WARNING: Danger of re: do not store ammable
items on or near the cooking surfaces or inside the
oven.
IMPORTANT: Do not try to lift or move this oven by
pulling on the door handle
WARNING: Ensure that the appliance is switched o󰀨
before replacing the lamp to avoid the possibility of
electric shock.
IMPORTANT: Your appliance is produced in
accordance with all applicable local and
international standards and regulations.
IMPORTANT: Maintenance and repair work must only
be performed by authorized service technicians.
Installation and repair work that is carried out by
unauthorised technicians is dangerous and could
invalidate your guarantee
IMPORTANT: When the door of the oven is open, do
not hang or lean anything on it. You may damage the
door or door hinges.
IMPORTANT: Do not hang towels, dishcloths or
clothes from the oven handle.
CLEANING AND MAINTENANCE
IMPORTANT: Always turn the appliance o󰀨
before operations such as cleaning or
maintenance. You can do this by switching the oven
o󰀨 using oven isolation switch.
TO MAINTAIN THE EFFICIENCY AND SAFETY
OF YOUR APPLIANCE,
WE RECOMMEND YOU ALWAYS USE
OUR AUTHORIZED SERVICE AGENTS AND
ORIGINAL SPARE PARTS.
FOR ASSISTANCE CALL
ARGOS PRODUCT SUPPORT
01759 487838.

Getting to know your
Built-In Double Oven 2

8
Getting to know your Built-In Double Oven
You’ll be up and running in no time
Getting to know your Built-In Double Oven
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Ready? Let’s begin...
Please read these instructions carefully. They contain
important information which will help you get the best
from your Built-In Double Oven and ensure safe and
correct installation and operation.
If you require any further assistance, our technical
experts are happy to help. For full details, refer to
the product support section at the end of these
instructions.
Getting to know your Built-In Double Oven
You’ll be up and running in no time
Oven Parts
9-Digital Timer

Installing your
Built-In Double Oven 3

10
Installing your Built-In Double Oven
Bringing it all together
Installing your Built-In Double Oven
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

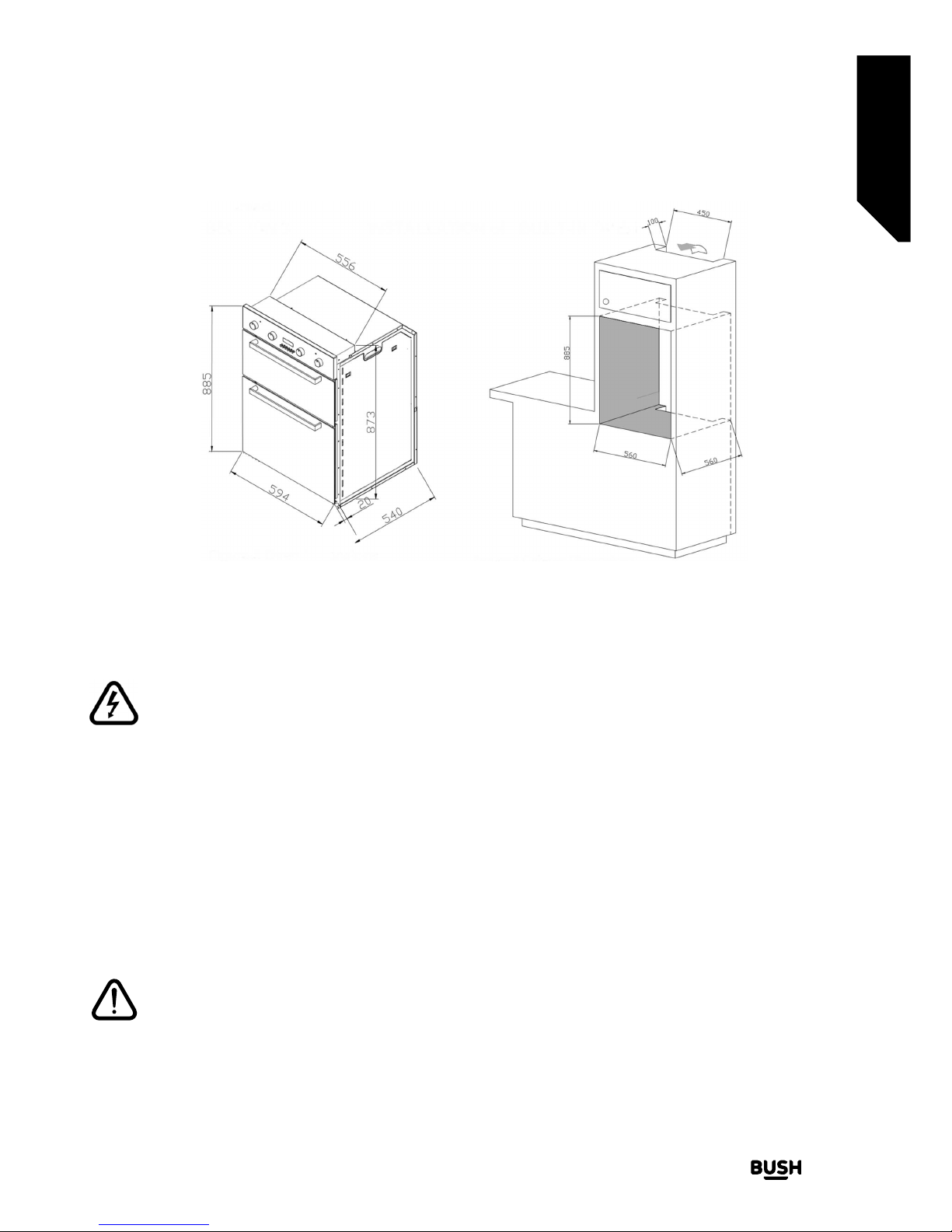

Installation requirements
THIS OVEN MUST BE INSTALLED BY A SUITABLY
QUALIFIED INSTALLER
This modern oven was manufactured with
parts and materials of the highest quality and
was designed to meet your cooking needs. You
should read this manual so that you are able to
use the oven correctly and to avoid any potential
problems with using the oven. The following
information outlines the required rules for correct
installation and service of your oven. This is
particularly important for the technician who will
install the appliance.
Positioning
The furniture close to the oven must be
manufactured resistant to temperatures up to
100°C
First Use
IMPORTANT: When using your oven for the first time
your oven may give o an unusual odour from the
heating elements and insulation materials. This is
normal for new ovens. To eliminate this odour run
the oven at 250 degrees for 40-60 mins with the
oven empty.
Unpacking
Carefully unpack and examine the appliance for
any damage. If you think there is a defect, do not
use the appliance and contact Argos Product
Support on 01759 487838.
Packaging materials should be collected
together and disposed of immediately as they
may be harmful to children.

11
Installing your Built-In Double Oven
Bringing it all together
Installing your Built-In Double Oven
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838.
Connections
Electrical
• IMPORTANT: Electrical connections must
be carried out by a suitably qualified
person and in accordance with all
relevant local building and installation
regulations.
1. See the rating label at the rear of the product for the
appliance’s load rating.
2. The oven must be connected to a dedicated circuit
suitably rated for the load of the appliance (see rating
label at rear of appliance) it must be connected via
a suitably rated cable to a double pole isolator oven
switch also suitably rated for the appliance.
3. The electrical cable should not touch the hot
parts of the appliance.
The electrical cable (not supplied) should not be
routed through any area that may be aected by
heat from the oven, especially the area directly
behind the oven.
The Connection diagram can be found on
the rear of the appliance
In the event of a power failure please reset the
timer. This oven will not operate until the timer is
properly set
This appliance must be installed by a suitably
qualified installer
! Failure to do this
will invalidate your warranty

Using your Built-In Double Oven 4

13
Using your Built-In Double Oven
Getting the most from your appliance
Using your Built-In Double Oven
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Main oven
Turn the Main Oven knob clockwise and
align the marker on the control knob with the
required temperature (°C)
The indicator light on the control panel will go
out and the thermostat will turn the element
o when the selected temperature has been
reached inside the oven. These will come
back on once the thermostat falls below the
set value.
Fan only defrost
The fan can be used without heat to defrost
food (DEFROST)
IMPORTANT! Before using this method
of defrosting refer to the food packaging
defrosting information
Always turn the control knob to o (l) when
cooking has finished.
Please note: The appliance incorporates a
safety thermostat which cuts the electric
supply to the oven if the temperature
becomes excessive.
When using your oven for the first time your
cooker may give o an unusual odour from
the heating elements. This is normal for new
cookers. To eliminate this odour run the oven
at 250 degrees for 40-60 mins with the oven
empty.
Main oven Top oven
Top oven functions
Grill
Grill andTop element
Using the top oven and grill
Select the required function then
turn the temperture control knob clockwise
and align the marker on the knob with the
required temperature.
The indicator light on the control panel will
go out when the selected temperature has
been reached inside the oven. When the
temperature begins to decrease the oven will
come back on and the indicator will come
back on
Always turn the control knob to o when
cooking has finished.
Please note: The appliance incorporates a
safety thermostat which cuts the electric
supply to the oven if the temperature
becomes excessive.

14
Using your Built-In Double Oven
Getting the most from your appliance
Using your Built-In Double Oven
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Main oven functions

15
Using your Built-In Double Oven
Getting the most from your appliance
Using your Built-In Double Oven
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Using the Timer
TIME OF DAY ADJUSTMENT
Press the + and – buttons together. The point between the hours and minutes will start to
ash. Using the + and – buttons, you can adjust the current time of day. Long presses of
those buttons will enable fast adjustments.
Pressing the + and – buttons together a long time ,until the hour and point between the hours
and minutes start to ash, will enable you to adjust just the hours portion of the display.
MINUTE MINDER ADJUSTMENT
Press the + button. The screen will return to displaying the ‘0.00’ and the bell symbol will start
to ash. You can adjust the minute minder using the + or – buttons.
After 6 seconds following the adjustment, the bell symbol will be stabilized. The Minute
minder will start to countdown.
The minute minder time increments are in 10 seconds up to 99 minutes 50 seconds,
thereafter the display will show 1 hour and 40 minutes and the adjustment will be in 1 minute
steps.
Note: In order to cancel a minute minder program, set the minute minder time down to 0.00
CANCELLING THE BUZZER SOUND
When countdown of the minute minder is completed, the screen will return to displaying the
current time of day. The bell symbol will start to ash, a buzzer alarm is heard and will sound,
if not stopped, for 7 minutes. Press any button to cancel the sound.
BUZZER TONE ADJUSTMENT
You may adjust the buzzer tone of the timer in the following way:
1) Pressing the (-) button, you can hear the currently set tone.
2) Releasing (-) and then pressing again, you can hear the next available ( total 3) tone.
3) The last sound heard will be your adjusted one.
Note: Factory setting is the maximum level ( highest frequency ) A long interrupt of power
may result in reloading this setting.

Care and maintenance 5

17
Care and maintenance
Looking after your appliance
Care and maintenance
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Cleaning
WARNING! Isolate the power supply to the oven and
make sure that the oven is cool.
Do not clean using caustic creams, abrasive
cleaning powders, thick wire wool or hard
tools. Enamelled parts of the oven can be
damaged if excess cleaning liquids are not
immediately removed.
After cleaning the interior parts of the oven
with a soapy cloth, rinse it and then dry
thoroughly with a soft cloth.
Clean the glass surfaces with special glass
cleaning agents.
Never use flammable agents like acid, thinner
or petrol when cleaning your oven.
Do not clean your oven with a steam cleaner.
Do not wash any part of your oven in a
dishwasher.
Changing the oven lamp:
1. Turn o and unplug your oven
2. Unscrew the glass lamp cover by turning
it anti-clockwise
3. Unscrew the bulb by turning it
anti-clockwise
4. Screw in a replacement bulb
5. Replace the glass bulb cover
Oven door seal:
Please check the oven door seal at regular
intervals. If the seal requires cleaning, clean
it without using abrasive materials
If the door seal is damaged contact your
authorised service agent on 01759 487838
Do not use the oven until the door seal has
been repaired or replaced
Enamelled Parts:
In order to keep them as new, it is necessary
to clean them frequently with mild warm
soapy water and then dry with a cloth. Do not
wash them while hot and never use abrasive
powders or abrasive cleaning materials. Do
not leave anything spilled onto enamelled
parts for long periods of time.
Stainless Steel:
Stainless steel parts must be cleaned
frequently with mildly warm soapy water and
a soft sponge and then dried with a soft cloth.
Do not use abrasive powders or abrasive
cleaning materials. Do not leave anything
spilled onto stainless steel parts for long
periods of time.
Bulb Type: 25E screwed

Care and maintenance
Looking after your appliance
Care and maintenance
or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Technical specification
Model Bush BDOBF White
Bush BDOBF Black
Power supply 220-240V~50 Hz
Maximum power 5400W
Size (H x W x D) 885 x 556 x 540
Net Weight 45,78 kg
Main Oven volume 68 lt
Top Oven volume 31 lt
Energy rating A
We apologise for any inconvenience caused by minor inconstancies within these instructions
that may occur due to product improvements and development
All images and drawing are for illustration purposes only.
18
Symbol Value Unit
Brand BUSH
Model Built-in oven
Type of oven
Mass of the appliance M 45,78 k
Number of cavities 2
Heat source per cavity (electricity or as) Electricity
Volume per cavity - Main cavity V 68 lt
Volume per cavity - Secondary cavity V 31 lt
Ener y Efficiency Class - Main cavity A
Ener y Efficiency Class - Secondary cavity A
Ener y consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven durin a cycle in conventional mode per cavity (electric final ener y) - Main cavity 0,86 kWh/cycle
Ener y consumption required to heat a standardised load in a cavity of an electric heated oven durin a cycle in fan-forced mode per cavity (electric final ener y) - Main cavity 0,8 kWh/cycle
Ener y consumption (electricity) required to heat a standardised load in a cavity of an electric heated oven durin a cycle in conventional mode per cavity (electric final ener y) - Secondary cavity 0,73 kWh/cycle
Ener y consumption required to heat a standardised load in a cavity of an electric heated oven durin a cycle in fan-forced mode per cavity (electric final ener y) - Secondary cavity - -
Ener y consumption required to heat a standardised load in a as-fired cavity of an oven durin a cycle in conventional mode per cavity ( as final ener y) - Main cavity - -
Ener y consumption required to heat a standardised load in a as-fired cavity of an oven durin a cycle in fan-forced mode per cavity ( as final ener y) - Main cavity - -
Ener y consumption required to heat a standardised load in a as-fired cavity of an oven durin a cycle in conventional mode per cavity ( as final ener y) - Secondary cavity - -
Ener y consumption required to heat a standardised load in a as-fired cavity of an oven durin a cycle in fan-forced mode per cavity ( as final ener y) - Secondary cavity - -
Ener y Efficiency Index per cavity-conventional mode - Main cavity 103,1
Ener y Efficiency Index per cavity-fan forced mode - Main cavity 95,5
Ener y Efficiency Index per cavity-conventional mode - Secondary cavity 106,6
Ener y Efficiency Index per cavity-fan forced mode - Secondary cavity -
Product Fiche compliant to commission delegated regulation (EU) No 65/ 014
Product Information compliant to commission regulation (EU) No 66/ 014
BDOBF BLACK
BDOBF WHITE
BDOMFF
ECelectric cavity
ECelectric cavity
ECelectric cavity
ECelectric cavity
ECgas cavity
ECgas cavity
ECgas cavity
ECgas cavity
EEIcavity
MJ/cycle
kWh/cycle (1)
EEIcavity
MJ/cycle
kWh/cycle (1)
EEIcavity
MJ/cycle
kWh/cycle (1)
EEIcavity
MJ/cycle
kWh/cycle (1)
1);1kWh/cycle = 3,6 MJ/cycle

Product support 6

20
Product support
Help is always at hand
Product support
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
1. If no electrical functions appear to work,
check the oven isolation switch has not been
turned o󰀨 also check the fuse in the switch
and the circuit breaker in your consumer unit
2. After replacing the fuse or resetting the
circuit breaker turn on your oven and check
the functions
3. DO NOT attempt to repair this oven
yourself. Call Argos Product Support or
consult a qualied person
Troubleshooting
If oven does not power up
Check that your supply has not tripped
If oven does not heat
Ensure timer is set and an oven function is selected
Temperature incorrect
Please check that the correct temperature has been set
Please check that any fuses have not blown
If oven lamp does not light
Check that your oven is turned on
Change the bulb (see page 24)
If oven does not cook evenly
Adjust shelf positions check temperature settings
Ensure that you preheat the oven before use
If there is still a problem
Call Argos product support on 01759 487838
17
