Safety information
Important - Please read these instructions fully before
installing or operating
INSTALLATION WARNINGS
IMPORTANT: This product MUST be installed by a
qualified installer in accordance with local
regulations.
IMPORTANT: Prior to Installation ensure that the local
supply conditions (electricity voltage and frequency)
are compatible with the requirements of your cooker
hood.
IMPORTANT: Carefully unpack and examine the
appliance for any damage. If you think there is a
defect, do not use the appliance and contact Bush
Product Support on 01759 487838. Packaging
materials should be collected together and disposed
of immediately as they may be harmful to children.
IMPORTANT: Ensure that the electric supply cable is
not trapped or damaged during installation.
IMPORTANT: Protect your cooker hood against
atmospheric effects. Do not expose your cooker
hood to effects such as sun, rain, snow etc.
WARNING: The cooker hood must be mounted on the
wall in accordance with the dimensions specified in
the mounting diagrams.
DURING USAGE
IMPORTANT: Always replace the aluminium filter of
the range hood with an original spare part
otherwise the suction power may be reduced in
addition to the reduction of service life.
WARNING: The LED lamps become hot during use,
do not touch the surface
WARNING: Disconnect the mains power before
changing bulbs.
CAUTION: This cooker hood must be kept clean, oil or
residue build up could be a fire hazard
*GZPVSFRVJSFBOZUFDIOJDBMHVJEBODFPSGJOEUIBUZPVSQSPEVDUJTOPUPQFSBUJOHBTJOUFOEFEBTJNQMFTPMVUJPODBOPGUFOCFGPVOEJOUIF5SPVCMFTIPPUJOHTFDUJPOPGUIFTF
JOTUSVDUJPOT
Safety information

Safety information
Important - Please read these instructions fully before
installing or operating
INSTALLATION WARNINGS
IMPORTANT: This product MUST be installed by a
qualified installer in accordance with local
regulations.
IMPORTANT: Prior to Installation ensure that the local
supply conditions (electricity voltage and frequency)
are compatible with the requirements of your cooker
hood.
IMPORTANT: Carefully unpack and examine the
appliance for any damage. If you think there is a
defect, do not use the appliance and contact Bush
Product Support on 01759 487838. Packaging
materials should be collected together and disposed of
immediately as they may be harmful to children.
IMPORTANT: Ensure that the electric supply cable is
not trapped or damaged during installation.
IMPORTANT: Protect your cooker hood against
atmospheric effects. Do not expose your cooker hood
to effects such as sun, rain, snow etc.
WARNING: The cooker hood must be mounted on the
wall in accordance with the dimensions specified in the
mounting diagrams.
DURING USAGE
IMPORTANT: Always replace the aluminium filter of
the range hood with an original spare part otherwise
the suction power may be reduced in addition to the
reduction of service life.
WARNING: The halogen lamps become hot during
use, do not touch the surface
WARNING: Disconnect the mains power before
changing bulbs.
CAUTION: This cooker hood must be kept clean, oil or
residue build up could be a fire hazard
*GZPVSFRVJSFBOZUFDIOJDBMHVJEBODFPSGJOEUIBUZPVSQSPEVDUJTOPUPQFSBUJOHBTJOUFOEFEBTJNQMFTPMVUJPODBOPGUFOCFGPVOEJOUIF5SPVCMFTIPPUJOHTFDUJPOPGUIFTF
JOTUSVDUJPOT
Safety information
(FUUJOHUPLOPXZPVS 
$PPLFS)PPE

2

8
(FUUJOHUPLOPXZPVS$PPLFS)PPE
:PVōMMCFVQBOESVOOJOHJOOPUJNF
3FBEZ -FUōTCFHJO
1MFBTFSFBEUIFTFJOTUSVDUJPOTDBSFGVMMZ5IFZDPOUBJO
JNQPSUBOUJOGPSNBUJPOXIJDIXJMMIFMQZPVHFUUIFCFTU
GSPNZPVS$PPLFS)PPEBOEFOTVSFTBGFBOE
DPSSFDUJOTUBMMBUJPOBOEPQFSBUJPO
*GZPVSFRVJSFBOZGVSUIFSBTTJTUBODFPVSUFDIOJDBM
FYQFSUTBSFIBQQZUPIFMQ'PSGVMMEFUBJMTSFGFSUP
UIFQSPEVDUTVQQPSUTFDUJPOBUUIFFOEPGUIFTF
JOTUSVDUJPOT
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Cooker Hood

9
(FUUJOHUPLOPXZPVS$PPLFS)PPE
:PVōMMCFVQBOESVOOJOHJOOPUJNF
3FBEZ -FUōTCFHJO
1MFBTFSFBEUIFTFJOTUSVDUJPOTDBSFGVMMZ5IFZDPOUBJO
JNQPSUBOUJOGPSNBUJPOXIJDIXJMMIFMQZPVHFUUIFCFTU
GSPNZPVS$PPLFS)PPEBOEFOTVSFTBGFBOE
DPSSFDUJOTUBMMBUJPOBOEPQFSBUJPO
*GZPVSFRVJSFBOZGVSUIFSBTTJTUBODFPVSUFDIOJDBM
FYQFSUTBSFIBQQZUPIFMQ'PSGVMMEFUBJMTSFGFSUP
UIFQSPEVDUTVQQPSUTFDUJPOBUUIFFOEPGUIFTF
JOTUSVDUJPOT
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Cooker Hood
(FUUJOHUPLOPXZPVS$PPLFS)PPE
:PVōMMCFVQBOESVOOJOHJOOPUJNF
PSPOMJOFBUXXXCVTITVQQPSUDPm.*GZPVTUJMMSFRVJSFGVSUIFSBTTJTUBODFDBMMPOFPGPVSFYQFSUTPO
Hood
Accessories
Overview
1
2
3
4
5
67

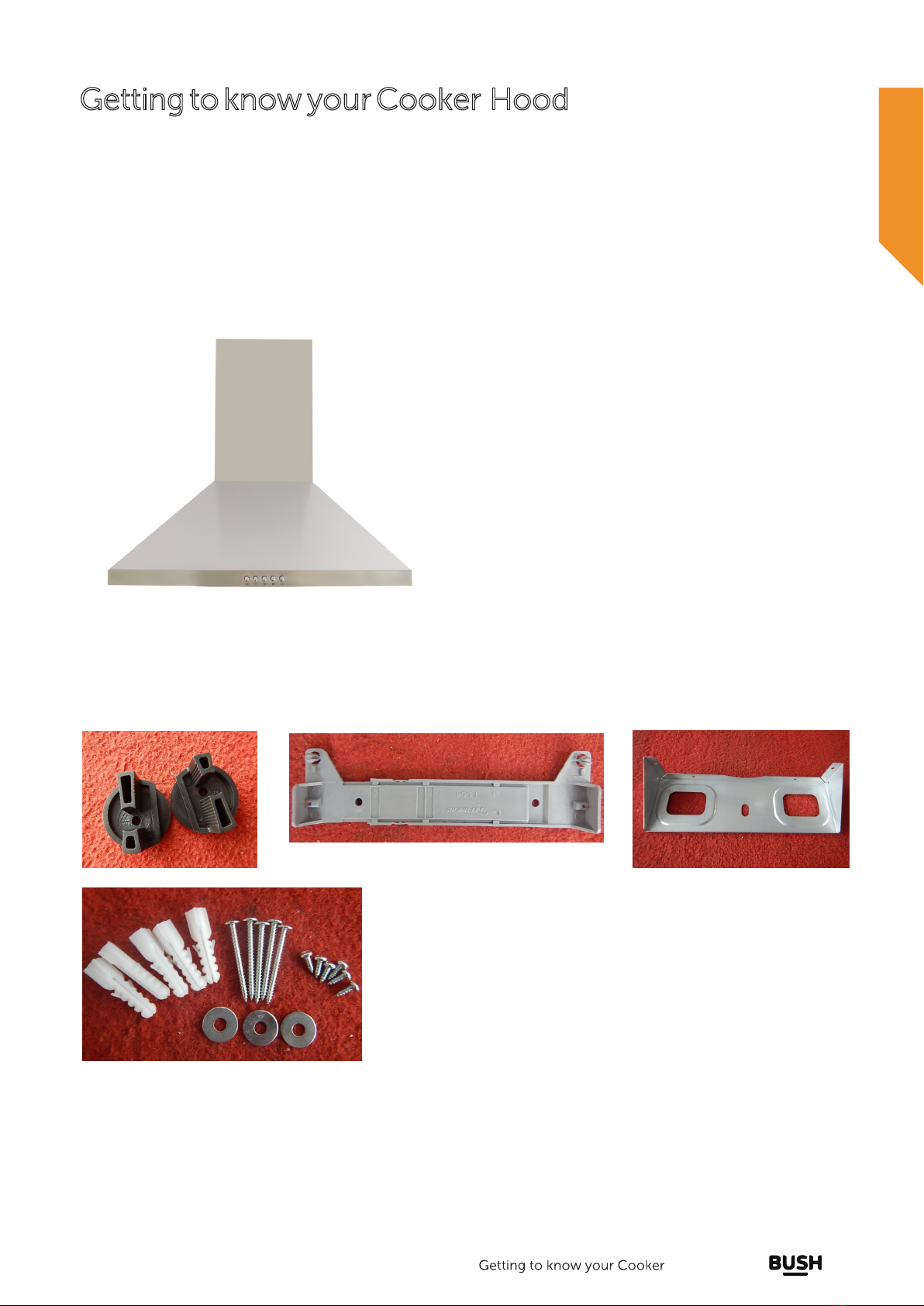

1. Fixing knobs
2. Wall plugs
3. Screws
4. Washer
5. Screws
6. Fixing mount
7. Fixing mount

Installing your
Cooker Hood
3

12
Installing your Cooker Hood
Bringing it all together
Installation requirements
Unpacking
Carefully unpack and examine the appliance for
any damage. If you think there is a defect, do not
use the appliance and contact Product Support
on 01759 487838.
Packaging materials should be collected
together and disposed of immediately as they
may be harmful to children.
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Hood
Tools Required for Installation
Electric Drill Cross-end Screwdriver

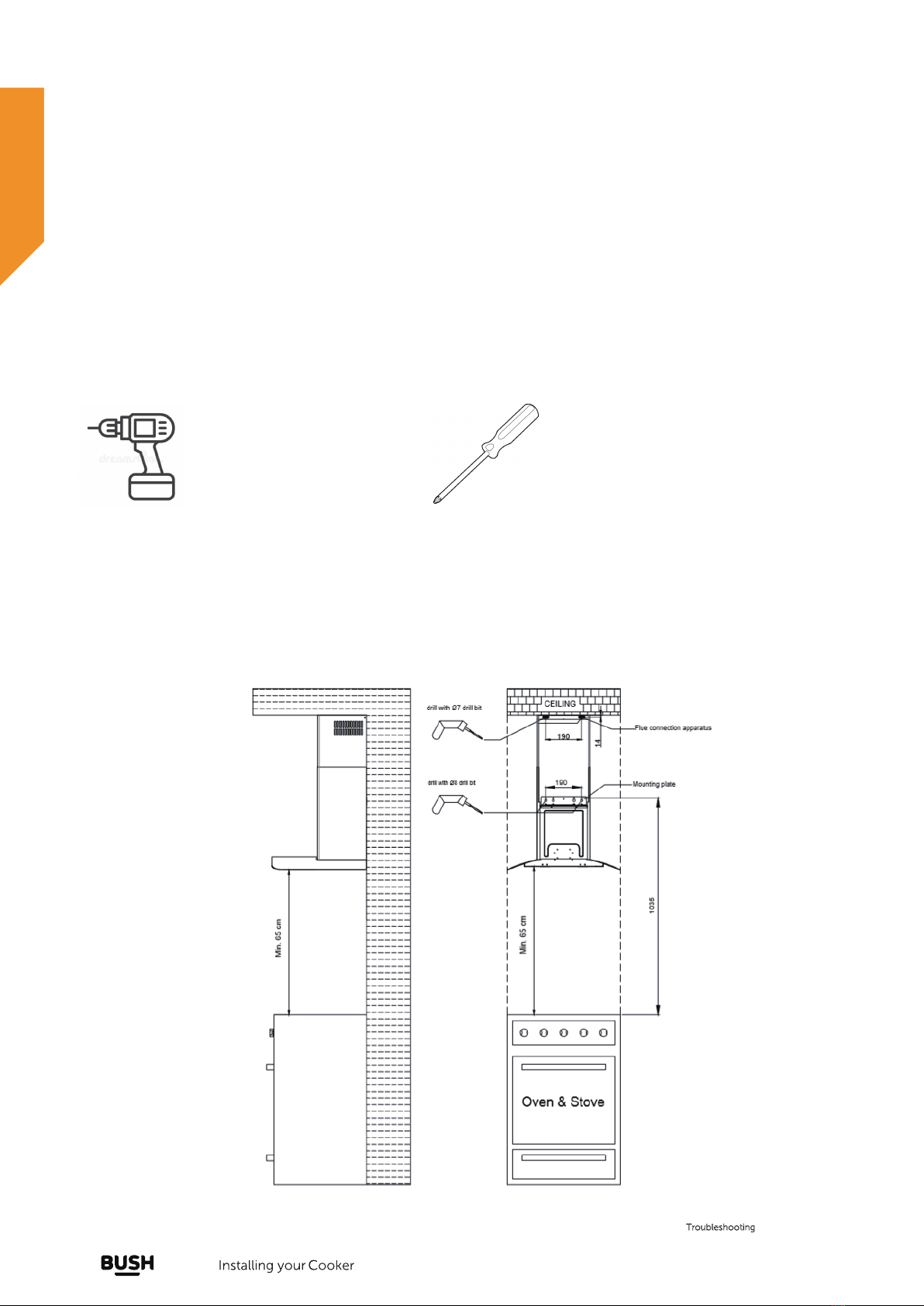

PLEASE NOTE: The cooker hood must be installed at a minimun of 65cm above the hob
THIS COOKER HOOD MUST BE
INSTALLED BY A COMPETENT PERSON TO
LOCAL REGULATIONS

13
Installing your Cooker Hood
Bringing it all together
Installation requirements
THIS COOKER +22'0867%(,167$//('
%<$&203(7(173(562172/2&$/
5(*8/$7,216
Unpacking
Carefully unpack and examine the appliance for
any damage. If you think there is a defect, do not
use the appliance and contact Product Support
on 01759 487838.
Packaging materials should be collected
together and disposed of immediately as they
may be harmful to children.
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Hood
3/($6(127(7KHFRRNHUKRRGPXVWEHLQVWDOOHGDWDPLQLPXPRIFPDERYHWKHKRE
or online at www.bush-support.com. If you still require further assistance, call one of our experts on 01759 487838.
Hood
Mounting Instructions
ȘDrill five 8 mm diameter holes to a depth of 50 mm for the
attachments and press in the wall plugs flush with the wall.
Installation
ȘScrew on the fixing bracket for the flue duct.
ȘScrew on brackets for the extractor hood hand-tight. Do not firmly tighten
the screws.
Preparing the installation Caution!
Ensure that there are no electric wires, gas or water pipes in
the area where holes are to be made.
●Mark a vertical centre line on the wall from the ceiling to the lower edge of the
extractor hood.
●Mark positions for the screws and the contour of the attachment
Installing your Cooker Hood
Bringing it all together

14
Installing your Cooker Hood
Bringing it all together
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Installing your Cooker Hood
Attaching and aligning the appliance
ȘFirst, remove the mounting bracket, screw on the machine.
ȘWhen attaching the appliance, ensure that it engages firmly with the
brackets.
ȘAlign the appliance horizontally by turning the brackets. If required, the
appliance can be moved to the right or left.
ȘFirmly tighten the screws for the brackets. When doing so, hold the
brackets securely in place.
ȘFirmly tighten the screws.

15
Installing your Cooker Hood
Bringing it all together
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Installing your Cooker Hood
Attaching and aligning the appliance
ȘFirst, remove the mounting bracket, screw on the machine.
ȘWhen attaching the appliance, ensure that it engages firmly with the
brackets.
ȘAlign the appliance horizontally by turning the brackets. If required, the
appliance can be moved to the right or left.
ȘFirmly tighten the screws for the brackets. When doing so, hold the
brackets securely in place.
ȘFirmly tighten the screws.
Installing your Cooker Hood
Bringing it all together
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,
Installing your Cooker Hood
For the various installations use screws and screw anchors suited to the
type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and
screw anchors are provided with the product, kindly check the screws are
suitable for the type of wall in which the hood is to be fixed.
Fixing the Telescopic Flue
Arrange the electrical power supply within the dimensions of the
decorative flue. If your appliance is to be installed in the ducting version or
in the version with external motor, prepare the air exhaust opening. Adjust
the width of the support bracket of the upper flue. Then fix it to the ceiling
using the screws make sure that it is in line with your hood and respecting
the distance from the ceiling. Connect the flange to the air exhaust hole
using a connection pipe.
To transform the hood from a ducting version into a filtering version, ask
the product support
department for the charcoal filters and please follow the installation
instructions.
This cooker hood can be used without access to outside filtration. A
charcoal filter (not supplied) can be fitted to recirculate the extraction.

Installing your Cooker Hood
Bringing it all together

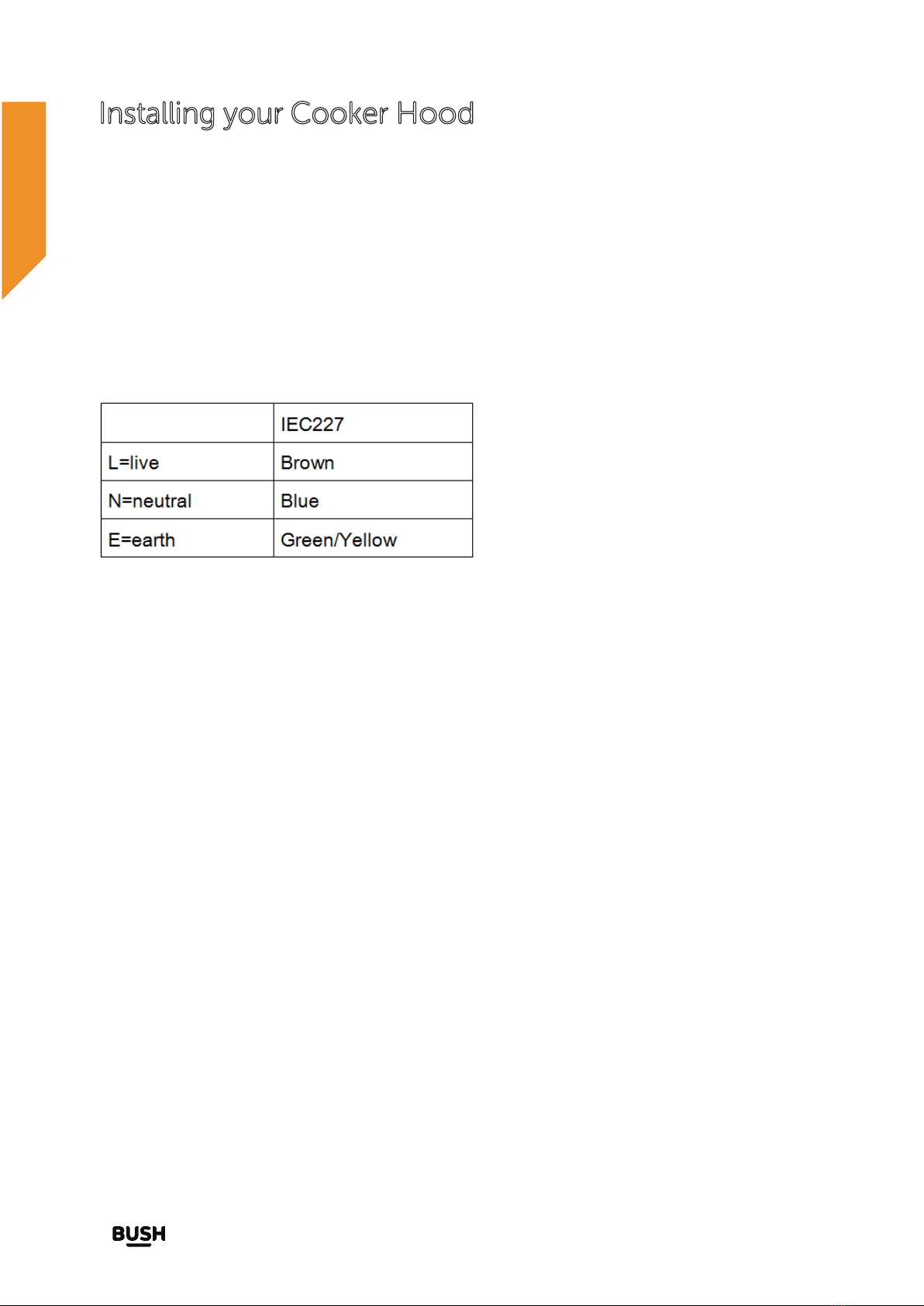

Electric Connection
The appliance has been manufactured as Class I,
therefore earth cable is necessary
16
or online at www.bush-support.com. If you still require further assistance, call one of our experts on 01759 487838
Using your Cooker Hood
The connection to the mains is carried as follows:
If the plug is not provided, connect the electrical load as indicated
on the description label. When a plug is provided, the cooker
hood must be installed in order that the plug is easy to access.
An omni polar switch with minimum aperture of 3mm between
contacts; in line with the electrical load and local standards, must
be placed between the appliance and the network in the case of
direct connection to the electrical network.
The minimum distance between the support surfaces of the
cooking pots on the hob top and the lowest part of the cooker
hood must be at least 65cm. If a connection tube composed of
two parts is used, the upper part must be placed outside the lower
part.
Do not connect the cooker hood exhaust to the same conductor
used to circulate hot air or for evacuating fumes from other
appliances generated by other than an electrical source.
Before proceeding with thew assembly oeprations, remove the
anti-grease filter(s) so that the unit is easier to handle.
In the case of assembly the appliance, in the suction version
prepare thew hole for evacuation of the air.

Using your Cooker Hood 4

18
or online at www.bush-support.com. If you still require further assistance, call one of our experts on 01759 487838
Using your Cooker Hood
Using your Cooker Hood
Getting the most from your appliance
USE AND MAINTENANCE
It is recommended to operate the appliance prior to cooking.
It is recommended to leave the appliance in operation for 15 minutes after
cooking is terminated in order to completely eliminate cooking vapors and
odours.
The proper function of the cooker hood is conditioned by the regularity of
the maintenance operations, in particular, the active charcoal filter.
The anti-grease filters capture the grease particles suspended in the air,and
are therefore subject to clogging according to the frequency of the use of
the appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a
maximum of 2 months by carrying out the following instructions:
●Remove the filters from the cooker hood and wash them in a solution
of water and neutral liquid detergent, leaving to soak.
●Rinse thoroughly with warm water and leave to dry.
●The filters may also be washed in the dishwasher.
Please take note that the aluminum panels may alter in color after several
washes.
The active charcoal filters purify the air that is replaced in the environment. T
he filters are not washable or reusable and must be replaced at maximum
every four months. The saturation of the active charcoal filter depends on th
e frequency of use of the appliance, also by the type of cooking and the
regularity of cleaning on the anti-grease filters. To remove the charcoal
filters place our hand on one filter at a time and turn it toward the front part.
The charcoal filter can now be removed. Always ensure to replace both
filters at the same time.
Clean the fan and other surfaces of the cooker hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
The illumination installation is designed for use during cooking and not for
prolonged general illumination of the environment. Prolonged use of the
illumination installation notably reduces the duration of the bulb.
Use a one-edged screwdriver or any other appropriate tool to lift and
remove the overhead light fixture. Replace the damaged lamp. Use only
halogen lamps as the original specification, avoiding contact with hands.
Return the light fixture to its position (snap fastening).

19
Using your Cooker Hood
Getting the most from your appliance
or online at www.bush-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Using your Cooker Hood
USE AND MAINTENANCE
It is recommended to operate the appliance prior to cooking.
It is recommended to leave the appliance in operation for 15 minutes after
cooking is terminated in order to completely eliminate cooking vapors and
odours.
The proper function of the cooker hood is conditioned by the regularity of
the maintenance operations, in particular, the active carbon filter.
The anti-grease filters capture the grease particles suspended in the air,and
are therefore subject to clogging according to the frequency of the use of
the appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a
maximum of 2 months by carrying out the following instructions:
●Remove the filters from the cooker hood and wash them in a solution
of water and neutral liquid detergent, leaving to soak.
●Rinse thoroughly with warm water and leave to dry.
●The filters may also be washed in the dishwasher.
Please take note that the aluminum panels may alter in color after several
washes.
The active carbon filters purify the air that is replaced in the environment.
The filters are not washable or reusable and must be replaced at maximum
every four months. The saturation of the active carbon filter depends on the
frequency of use of the appliance, also by the type of cooking and the
regularity of cleaning on the anti-grease filters. To remove the charcoal
filters place our hand on one filter at a time and turn it toward the front part.
The charcoal filter can now be removed. Always ensure to replace both
filters at the same time.
Clean the fan and other surfaces of the cooker hood regularly using a cloth
moistened with denatured alcohol or non abrasive liquid detergent.
The illumination installation is designed for use during cooking and not for
prolonged general illumination of the environment. Prolonged use of the
illumination installation notably reduces the duration of the bulb.
Use a one-edged screwdriver or any other appropriate tool to lift and
remove the overhead light fixture. Replace the damaged lamp. Use only
halogen lamps as the original specification, avoiding contact with hands.
Return the light fixture to its position (snap fastening).
or online at www.bush-support.co.uk If you still require further assistance, call one of our experts on 01759 487838
Using your Cooker Hood
Getting the most from your appliance
How to replace the charcoal filters:
The charcoal filters are not supplied with appliance. These can be
sourced via the product support helpline.

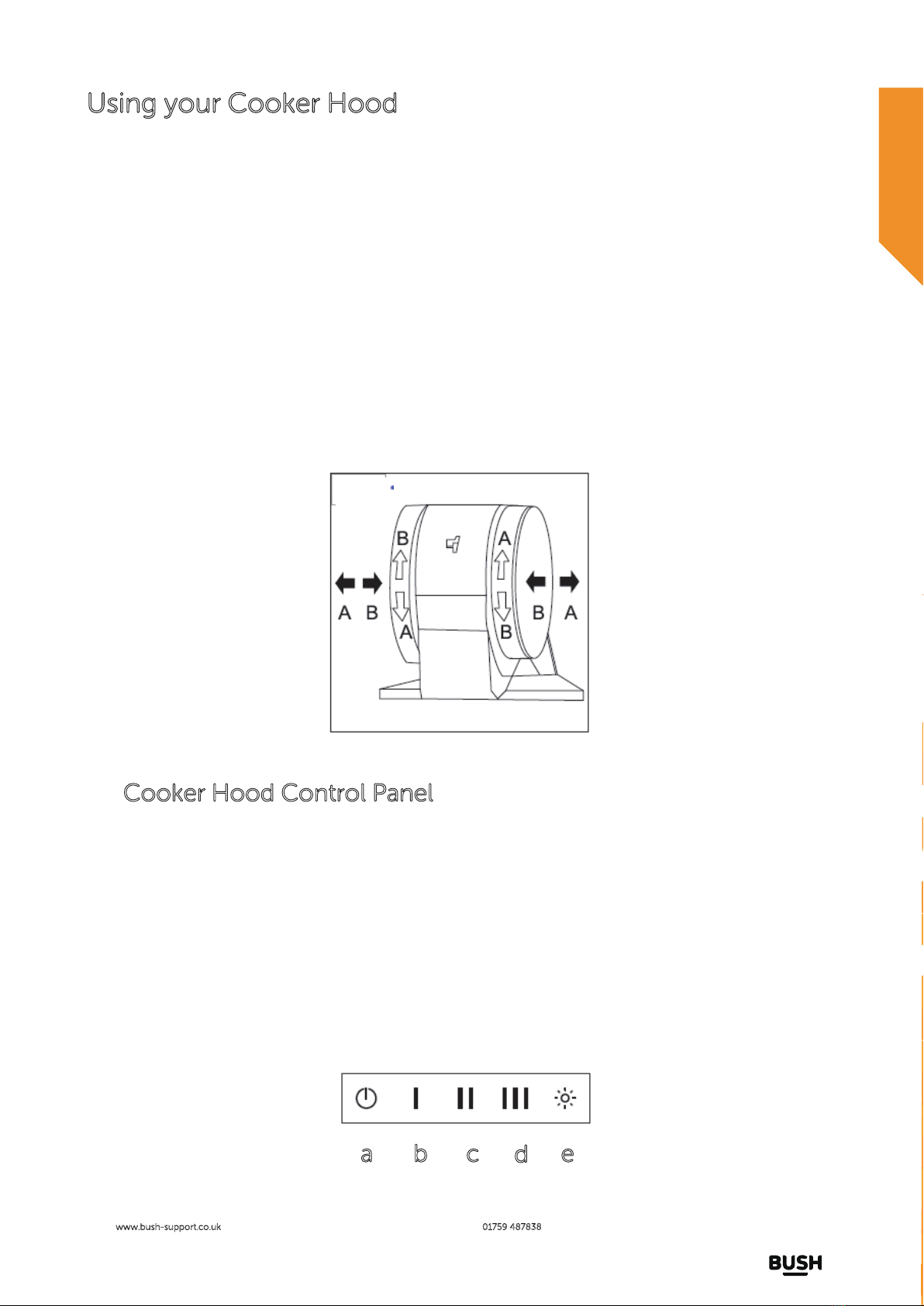

As indicated in the diagram below, push charcoal filter as shown as
arrow B and twist in an anti-clockwise motion to lock in. Twist in a
clockwise motion as show as arrow A and pull outwards
to remove filter.
Cooker Hood Control Panel
The cooker hood has a 5 button control panel as shown in
the image below.
a. Reset button
b. Low speed button
c. Medium speed button
d. High speed button
e. Light button
a b c de
Using your Cooker Hood
