Bush DC-7132 User manual

DC-7132
2MP Webcam
User’s Manual

1
Index
Package Content...........................................................................2
System Requirements...................................................................2
Description for Each Part.............................................................3
Features........................................................................................4
Setting the Software.....................................................................5
Install the Hardware.....................................................................7
Uninstall the Software..................................................................13
Maintenance.................................................................................13

2
Package Content
7 MP PC Webcam
Instruction
CD
System Requirements
Windows XP(Service Pack2) / Vista / 7
Pentium III 800MHz or higher processor
Available USB port & CD-ROM Drive
256MB RAM or higher
Hard drive with 1GB free space
16-bit Color Display

3

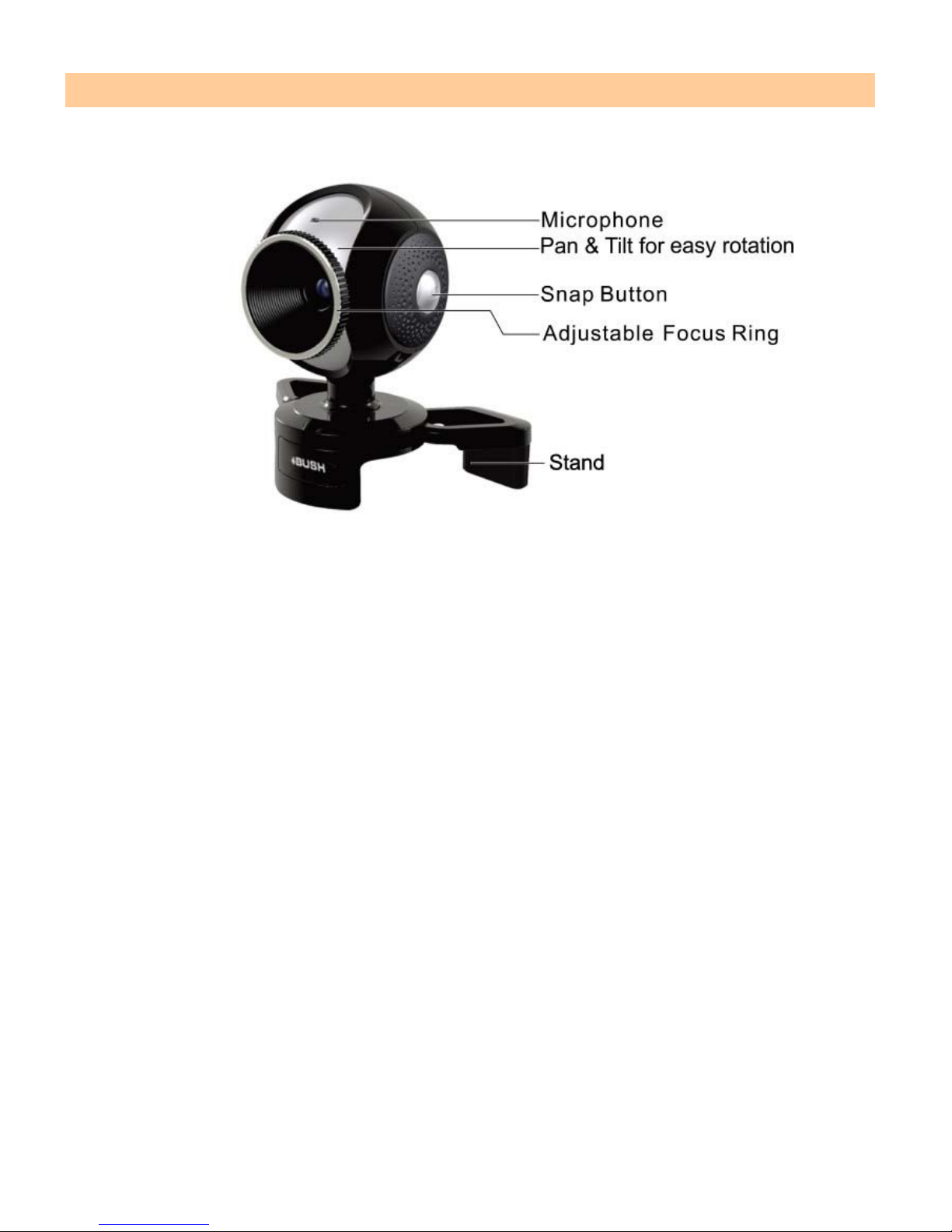

Description for Each Part

4
Features
1. 2.0MP Pixels
2. Easy Plug and Play
3. Multi-Swivel Design
4. Clip on LCD monitor / Laptop
5. USB PC Webcam Driver features:
(1) Effects and digital frames
(2) Face tracking and digital zoom
(3) Anti-flicker (50/60Hz) setting
6. Webcam Specification:
(1) Sensor type: CMOS
(2) Native resolution: 1600 x 1200
(3) Software enhancement still resolution: 3200 x 2400
(4) Software enhancement video resolution: 1600 x 1200
(5) Frame rate: 5fps ~ 30fps
(6) Image format: JPG
(7) USB protocol: UVC
(8) Power input: USB
(9) Product size: 48mm x 82.1mm x 77.3mm

5
Setting the Software
Install Device driver first and follow the on-screen instruction.
The steps of installation:
1. Insert the CD into your CD-ROM drive
2. The installer screen will automatically come up.
Note:
If the installer screen does not come up automatically, click Start, then run and
execute the file “launch.exe” on the CD to start the installer program.
3. Click the “Install Device Driver” button to start installation.

6

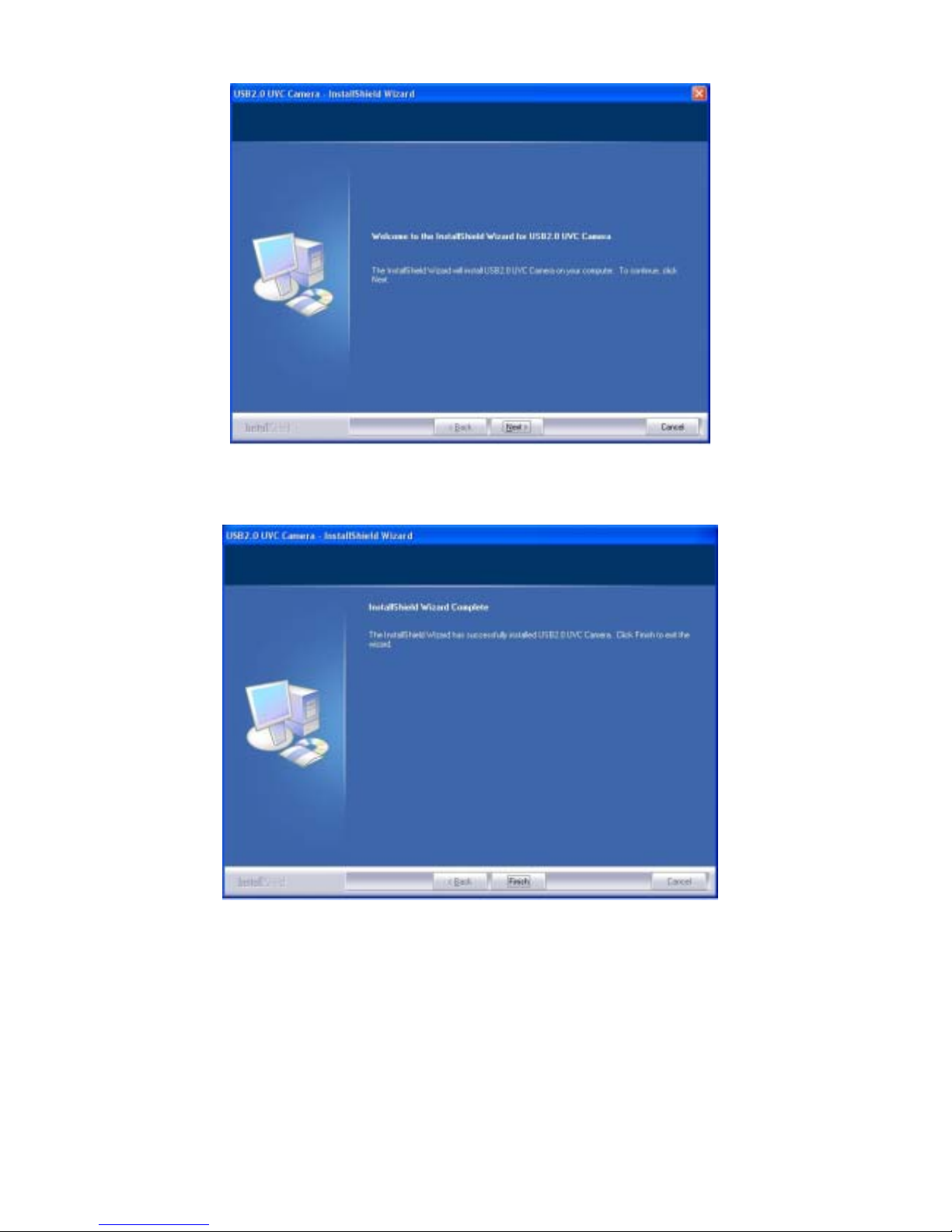

4. Click “Next” to begin the installation.
5. Select “ Finish” then the software installation is completed.

7
Install the Hardware
Ensure to install the device driver before connect the webcam.

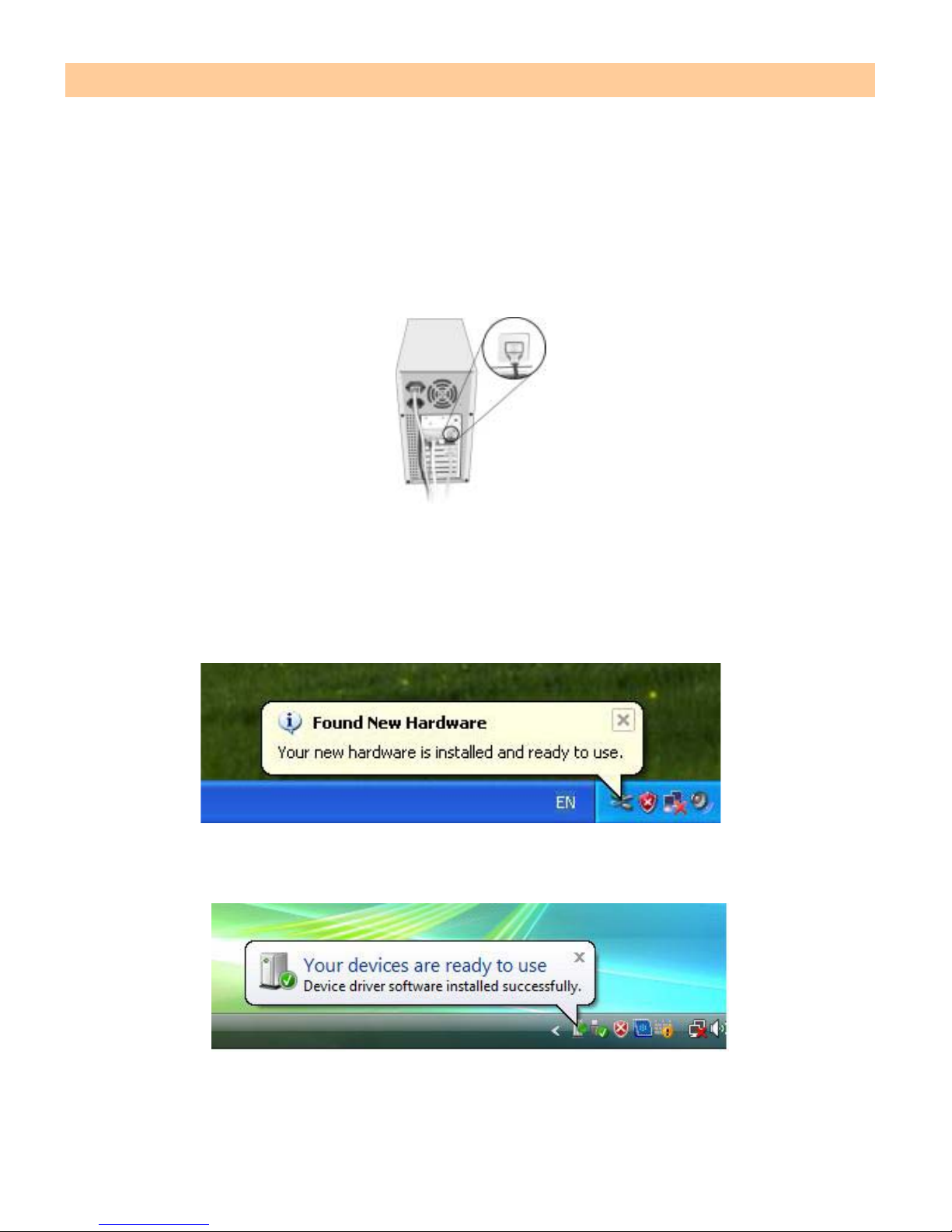

Plug Webcam’s cable to the USB port on your computer.
Note: This Webcam features USB easy plug-and-play for Instant Messenger (e.g.
MSN, Yahoo and Skype etc).
When you connect the webcam to your PC, it will install the driver automatically.
The different icons will pop up on Windows XP and VISTA as below:
Windows XP
Windows VISTA

8
How to use AMCAP tool
AMCAP is an application that let you capture video in your system.
Please click “ Start” “Program” USB2.0 UVC Camera “ AMCAP” to launch
the program.
After launch the AMCAP program, you can see the live picture is in the screen. If the
live picture is not good, please turn the focus ring in either clockwise or anticlockwise
until the picture is changed to sharp.
File/ Save Captured Video As: Use this to copy the captured data to another file, so
you can reuse the same preallocated for your next capture.

9

Device: under the devices menu you choose which of your video cameras you will
be capturing from.

Files/ Allocate file space: It is to set up the initial movie file size. The program will
adjust the file automatically while recording. It is recommend to set it as default value.

Options / preview: lets you watch the input video that is being recorded in the
application window.


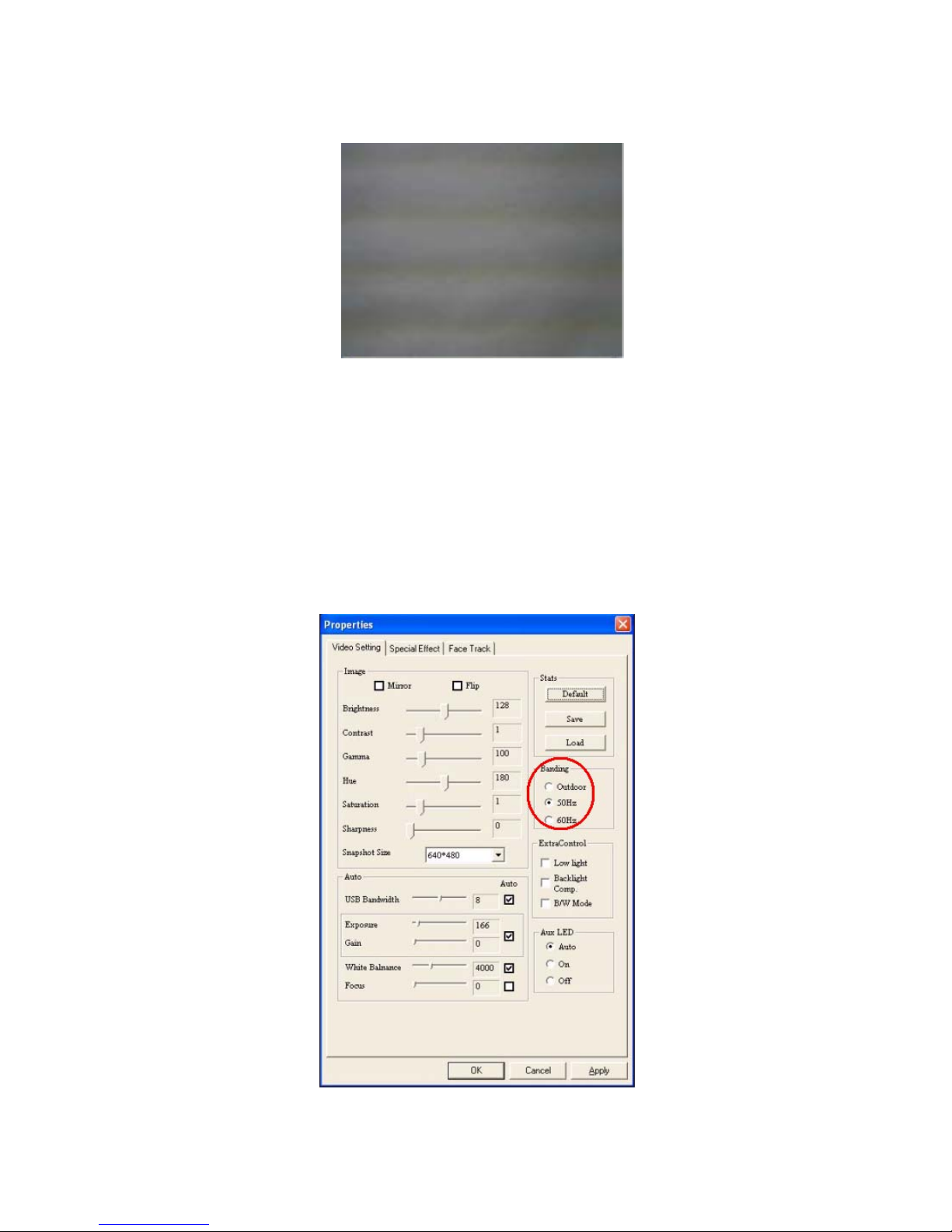

Options/ Video Capture Filter:
(1) Select “ Setting” page to adjust various video setting, such as brightness, contrast,
etc.
(2) Select the “Effects”page to choose the video effect.
(3) Select the “Zoom” page to enable face tracking and adjust the digital zoom.
