BVA Hydraulics HNS05T User manual

MODEL NUMBERS: HNS05T, HNS10T, HNS15T & HNS20T
Hydraulic Nut Splitter
Instruction Manual
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
HNS15T-M0_022018
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
Model No. T3014
Drawn By: 蕭益彰
J
K L
G
D
C
E
B
A
F
H
Drawn By: 蕭益彰
Model No. T30-1-1400-103

2
Save these instructions. For your safety, read and
understand the information contained within. The owner and
operator shall have an understanding of this product and safe
operating procedures before attempting to use this product.
Make certain that the operator thoroughly understands the
inherent dangers associated with the use and misuse of the
product. If any doubt exists as to the safe and proper use of
this product as outlined in this factory authorized manual,
remove from service immediately.
Inspect before each use. Do not use if broken, bent,
cracked or otherwise damaged parts are noted. If any
component of this product has been or suspected to have
been subjected to a shock load (a load dropped suddenly,
unexpectedly upon it), discontinue use until checked out by
a BVA Hydraulics authorized service center. Owners and
operators of this equipment shall be aware that the use and
subsequent repair of this equipment may require special
training and knowledge. It is recommended that an annual
inspection be done by qualied personnel and that any
missing or damaged parts, decals, warning / safety labels or
signs be replaced with factory authorized replacement parts
only. Any spreader that appears to be damaged in any way, is
worn or operates abnormally shall be removed from service
immediately until such time as it can be repaired/replaced.
Instruction Manuals are available from manufacturer.
BVA Hydraulic Nut Splitters are designed for rated capacity
pushing and spreading. A wide variety of applications exist
for this category of product.
Special skill, knowledge and training may be required for
a specic task and the product may not be suitable for all
the jobs described above. Unsuitable applications would
include applications that call for a device to move, level
or support persons, animals, hazardous materials, mobile
homes/dwellings in general, mirrors and/or plate glass, and/
or to connect/secure hatches, components, etc. between
bulkheads. The user ultimately must make the decision
regarding suitability of the product for any given task and
therefore accept responsibility for that decision. Immediately
after lifting, loads must be supported by appropriate
mechanical means.
PRODUCT DESCRIPTION
NEVER rely upon a Hydraulic Nut Splitter as a support
device! Immediately after lifting, loads must be
supported by appropriate mechanical means.
Always check connections before using. Alteration
of these products is strictly prohibited. Use only
those adapters and attachments provided and approved
by the manufacturer.
To reduce the risk of personal injury and/or property
damage, ensure that the rated working pressure of
each pressurized attachment be equal to or greater than the
rated working pressure developed by the hydraulic pump.
!
!
!
GENERAL SAFETY INFORMATION

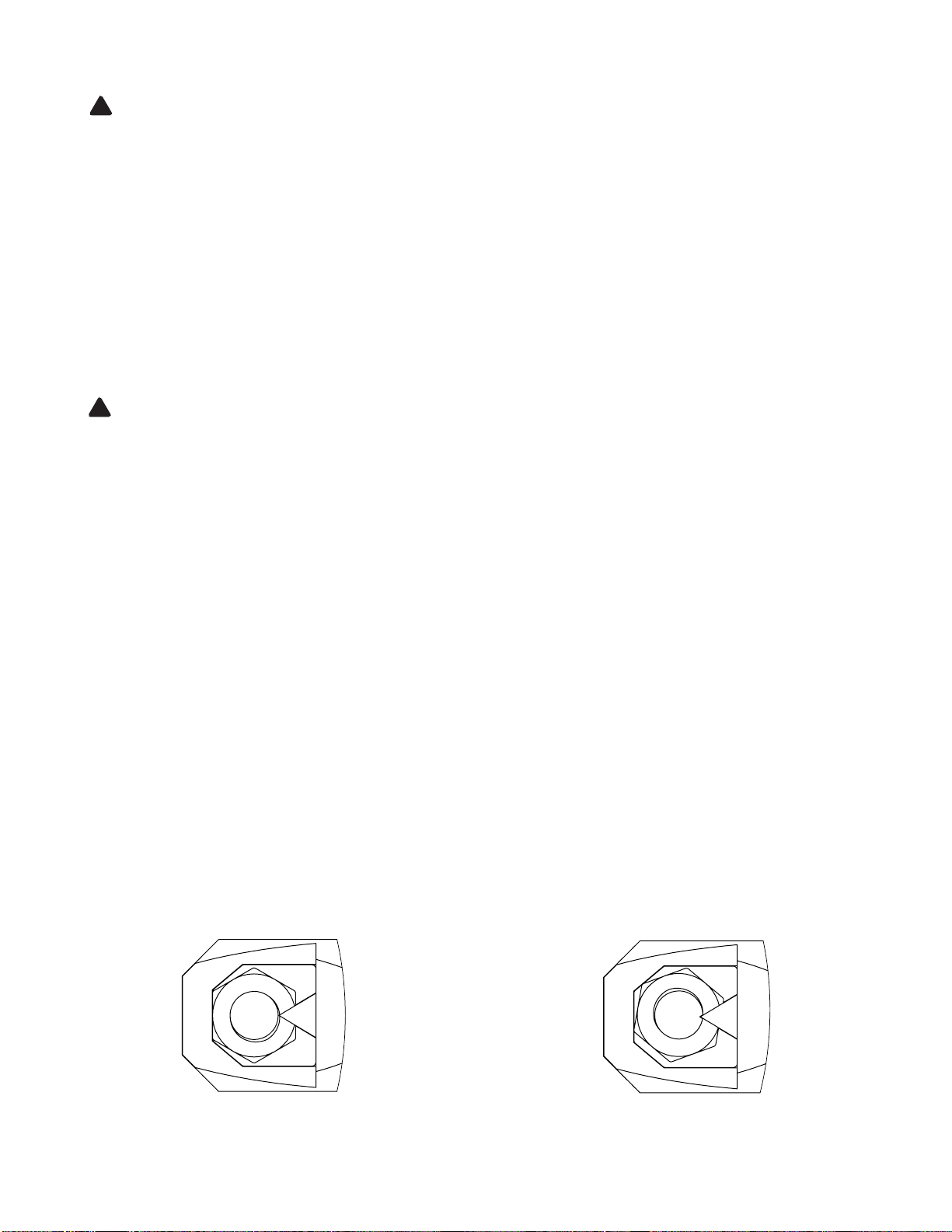

1. Ensure that both spreader jaws fully engage the load
and that the load is centered on the serrated portion of
each spreader jaw before pressurizing spreader. Do not
load off center.
2. Always monitor the hyraulic pressure pressure developed
in the spreader ram by using an inline pressure gauge.
These spreaders are designed to develop 10,000 psi at
rated capacity.
BEFORE USE
1. Before using this product, read the owner's manual
completely and familiarize yourself thoroughly with the
product, its components and recognize the hazards
associated with its use.
2. Verify that the product and the application are compatible.
If in doubt, call BVA Hydraulics Technical Service (888)
332-6419.
3. Inspect before each use. Do not use if bent, broken,
leaking or damaged components are noted.
4. Replace worn or damaged parts and assemblies with BVA
Hydraulics authorized replacement parts only. Lubricate
as instructed in Maintenance Section.
5. Use ANSI compliant eye protection when operating or
near this equipment.
6. Ensure method of conrming load is accurate and working
properly. Have gauge or load cell accuracy veried by
qualied personnel on a yearly basis.
7. Spreaders should be stored where protected from the
elements, abrasive dust, and damage. These devices
may be stored in virtually any position.
!
If bowing or bending of the spreader jaws occurs,
STOP, immediately release pressure! Evaluate
the set-up and consider a higher capacity system.
Bowing or bending of components indicates that the
spreader is overloaded.

3

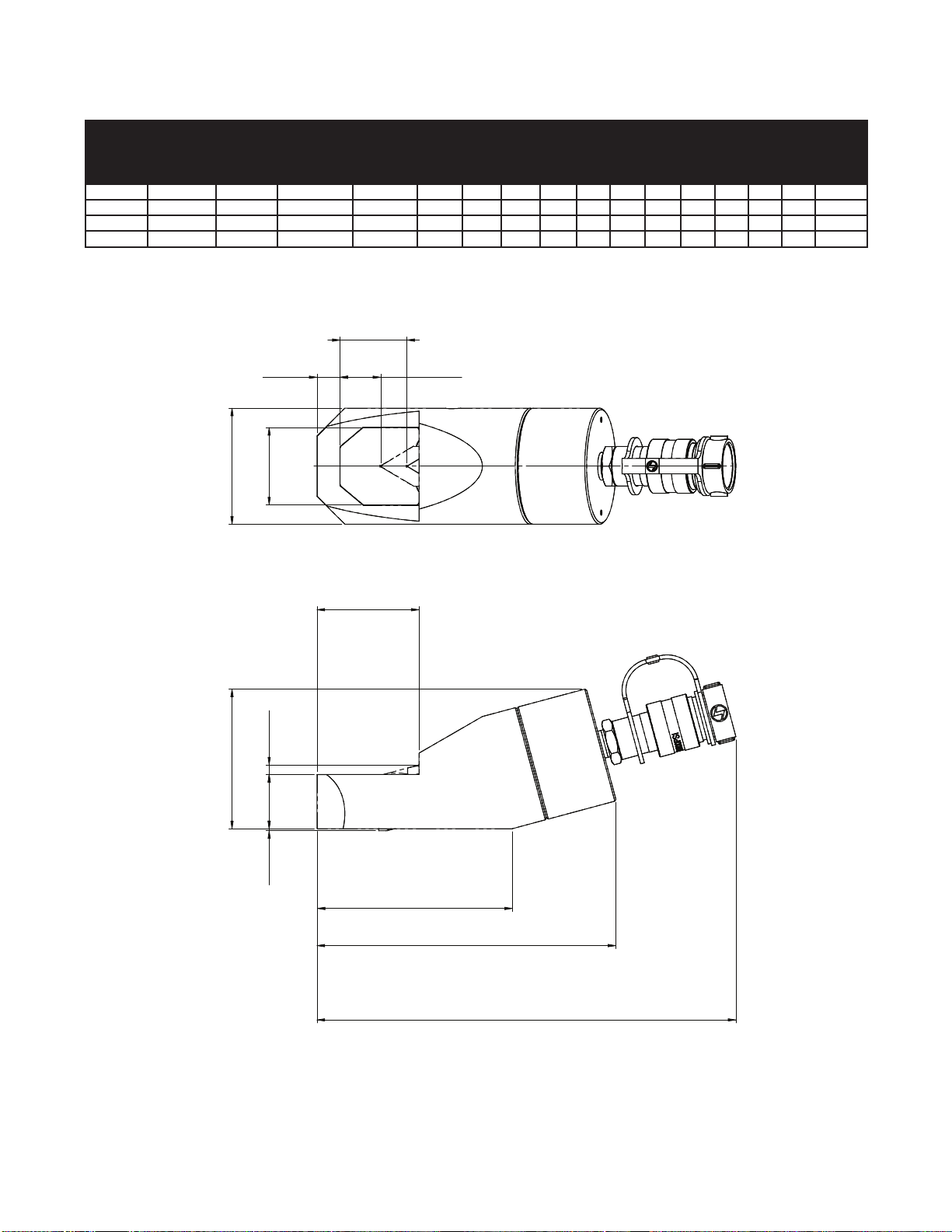

SPECIFICATIONS
Model No. T3014
Drawn By: 蕭益彰
J
K L
G
D
C
E
B
A
F
H
Model
No.
Rated
Capacity
(Ton)
Oil
Capcity
(In3.)
Hexagon
Nut Range
(In.)
Bolt
Range
(In.)
Dimension (In.) Weight
(Lbs.)
A B C D E F G H J K L
HNS05T 5 0.63 0.5 - 0.75 .31 - .50 7.72 4.49 2.45 2.05 0.75 1.1 1.57 0.98 0.84 0.24 0.29 2.2
HNS10T 10 1.14 0.75 - 0.94 .50 - .63 8.59 5.44 3.55 2.59 0.98 1.5 2.17 1.26 1.03 0.31 0.57 4.0
HNS15T 15 2.39 0.94 - 1.13 .63 - .88 9.86 6.76 4.27 3.17 1.22 1.93 2.60 1.57 1.33 0.39 1.02 6.8
HNS20T 20 3.61 1.13 - 1.56 .88 - 1.13 10.66 7.61 4.96 3.55 1.38 2.6 2.95 1.97 1.7 0.59 1.02 9.5

4
Failure to comply with the following warnings
may result in personal injury as well as
property damage.
• Study, understand, and follow all instructions
provided with and on this device before use.
• The user must be a qualied operator familiar
with the correct operation, maintenance, and use of rams.
Wear protective gear when
operating hydraulic equipment.
This device is NOT suitable for use as support
device! As the load is lifted, use blocking and
cribbing to guard against a falling load. Stay
clear of a lifted load before it is properly supported .
Never rely on hydraulic pressure to support a load.
Crush Hazard. Keep hands and feet
away from ram and workpiece
during operation.
• Do not exceed rated capacity of the ram or
any equipment in the system. The ram is
designed for a max. pressure of 10,000 psi.
• Do not connect a ram to a pump with higher
pressure rating.
• Do not subject ram to a shock loads, a load
dropped suddenly, causing the system pressure to
exceed rated pressure.
The system operating pressure must not exceed
the pressure rating of the lowest rated component
the system. Install a pressure gauge or other load
measuring instrument to monitor the operating pressure. Burst
hazard exists if hose, connection or any other component in
the system exceed its rated pressure.
Avoid damaging hydraulic hose. Do not allow
hose to kink, twist, curl, crush, cut or bend so
tightly that uid ow within the hose is blocked or
reduced. Periodically inspect the hose for wear.
Do not pull, position or move ram setup by
the hose. Use carrying handle or other means
of safe transport.
Do not handle pressurized hoses. Never attempt
to grasp a leaking pressurized hose. Ensure to
release the system pressure before disconnecting
hydraulic hose or connections.
Hydraulic uid can ignite and burn. Keep
hydraulic equipment away from ames and
heat. Excessive heat will soften seals, resulting in
uid leaks. Heat also weakens hose materials.
Ram must be on a stable base which is able
to support the load while pushing or lifting. Use
shims, friction material or constrains to prevent
slippage of the base or load. Ensure ram is fully engaged
into/onto adapters, extension accessories.
Center load on ram. Distribute load evenly
across the entire saddle surface. Do not
off-center loads on a ram. The load can tip
or the ram can “kick out”.
Never try to disassemble a hydraulic ram,
refer repairs to qualied, authorized personal.
Contact BVA Hydraulics tech service for authorized
service center.
Do not subject hose to sharp objects or
heavy impact.
Hose material or seals must not come in
contact with corrosive materials such as
battery acid, creosote-impregnated objects
and wet paint. Never paint a coupler or hose.
• No alteration shall be made to the ram.
• Use only factory authorized fasteners,
accessories and hydraulic uid.
Heavy
WARNING
!

5
OPERATION
ALWAYS monitor pressure, load or position using
suitable equipment. Pressure may be monitored by means
of an optional manifold and gauge. Load may be monitored
by means of a load cell and digital indicator.
Note: Any attachment that is not loaded centrally, as through
the centerline of the ram, is considered to be “offset”. When
extension tubes and/or offset attachments are used, the
rated capacity is always reduced by 50% for each tube or
offset attachment connected.
1. Locate and close release valve by turning it clockwise
until rmly closed. (Do not over tighten)
2. Operate by pumping handle. This will send uid from the
pump reservoir into the high pressure hose assembly and
into the ram assembly.
3. Continue pumping until ram reaches desired position.
NEVER operate pump with release valve closed and
disconnected from application. If operated in this condition,
the hose and connections become pressurized. This
increases burst hazard. Damage may occur to pump and
its components.
4. To Release Pressure on work piece: Slowly, carefully turn
the release valve counter-clockwise until ram retracts
to desired position. Never turn release valve more than
1/2 full turn. The ram return system is spring loaded and
the release valve system is metered, allowing controlled
retraction of the ram.
MAINTENANCE
1. Inspect hoses and connections daily. Replace damaged
components immediately with BVA Hydraulics
Replacement Parts only.
2. Tighten connections as needed. Use pipe thread sealing
compound when servicing connections.
3. Use only good quality hydraulic uid. We recommend BVA
FJZ01 or equivalent. Never use brake uid, transmission
uid, turbine oil, motor oil, alcohol, glycerin etc. Use of
other than good quality hydraulic oil will void warranty
and damage the pump, hose, and application.
Adding Hydraulic Oil
1. With ram fully lowered, set pump unit in its normal, level
position. Locate and remove oil ller screw.
2. Fill until oil is within 3/8" of the oil ller screw hole opening,
re-install oil ller screw.
Changing Hydraulic Oil
For best performance and increased system life, replace the
complete uid supply at least once per year.
1. With ram fully lowered, remove the oil ller screw from the
pump reservoir as above.
2. Lay the pump on its side and drain the uid into a suitable
container.
Note: Dispose of hydraulic uid in accordance with local
regulations.
3. Set pump in its level upright position.
4. Fill with good quality jack oil to within 3/8" of the oil ller
screw hole opening. Reinstall oil ller screw.
Lubrication
A coating of light lubricating oil to pivot points and hinges
will help to prevent rust and assure that pump assemblies
move freely.
Cleaning
Periodically check the pump piston and ram for signs of rust
or corrosion. Clean as needed and wipe with an oily cloth.
Note: Never use sandpaper or abrasive material on these
surfaces!
Storage
When not in use, store with the pump piston and ram fully
retracted.
How to remove faulty coupler:
If ram does not retract,:
1. Secure load by other means.
2. Depressurize pump and hose
3. Remove the ram from application.
4. Disconnect and replace with new coupler.
Important: Do not attempt to grasp ram with pliers or
wrench without rst wrapping the jaws of such tool with
rags or similar padding.
How to bleed air from system:
1. Place pump at a higher elevation than the hose and ram
as shown in gure 3 below.
2. Operate pump to fully extend and retract the ram 2 or 3
times. The objective is to force the air bubbles up hill and
back to the pump reservoir.
3. To bleed the air from pump reservoir, simply open the oil
ller screw. Re-install after bleeding.
!
!
File name: T3014
Date: 2017.10.31
Drawn By: 蕭益彰
Checked By:
Approved By:
Model No. T3014
File name: T3014
Date: 2017.10.31
Drawn By: 蕭益彰
Checked By:
Approved By:
Model No. T3014
Fig. 1: Nut is in the correct position Fig. 2: Nut is in the incorrect position

6
TROUBLESHOOTING GUIDE
The following information is intended as an aid in determining if problem exists. Pump and ram should be repaired only by
authorized BVA Service Center. For repair service, contact service center in your area.
Symptom Possible Causes Corrective Action
Erratic action •
Air in system or pump cavitation.
• External leakage in ram.
• Ram sticking or binding.
• Vent the system.
• Contact service center.
• Contact service center.
Ramr will not extend, or
respond to pressurized uid
•
Overload condition.
• Loose/Faulty couplers.
• Oil level in pump is low.
• Remedy overload condition.
• Tighten/Replace couplers.
• Fill and bleed the system.
Ram extend only partially • Oil level in pump is low.
•
Overload condition.
• Ram is sticking or binding.
• Pump malfunction.
• Fill and bleed the system.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Ram move slower than normal • Loose connection or coupler.
•
Restricted hydraulic line or tting.
• Pump not working correctly.
• Ram seals leaking.
• Tighten connection or coupler.
• Clean and replace if damaged.
• Check pump’s operating instructions.
• Contact service center.
Ram responds to pressurized uid, but
system does not maintain pressure
• Overload condition.
• Pump malfunctioning.
• Ram seals leaking.
• Remedy overload condition.
• Contact service center.
• Contact service center.
Oil leaking from ram • Worn or damaged seals. • Contact service center.
Ram will not retract or retracts slower
than normal
• Malfunctioning coupler, damaged
application.
• Pump reservoir overlled.
• Ram damage internally.
• Secure load by other means.
Depressurize pump and hoses,
remove application and replace
coupler.
• Secure load by other means.
Depressurize pump and hoses,
remove application, then drain uid to
proper level.
• Contact service center.
Poor performance • Oil level in pump is low.
• Air trapped in system.
• Ensure proper oil level.
• Vent the system.

7
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.

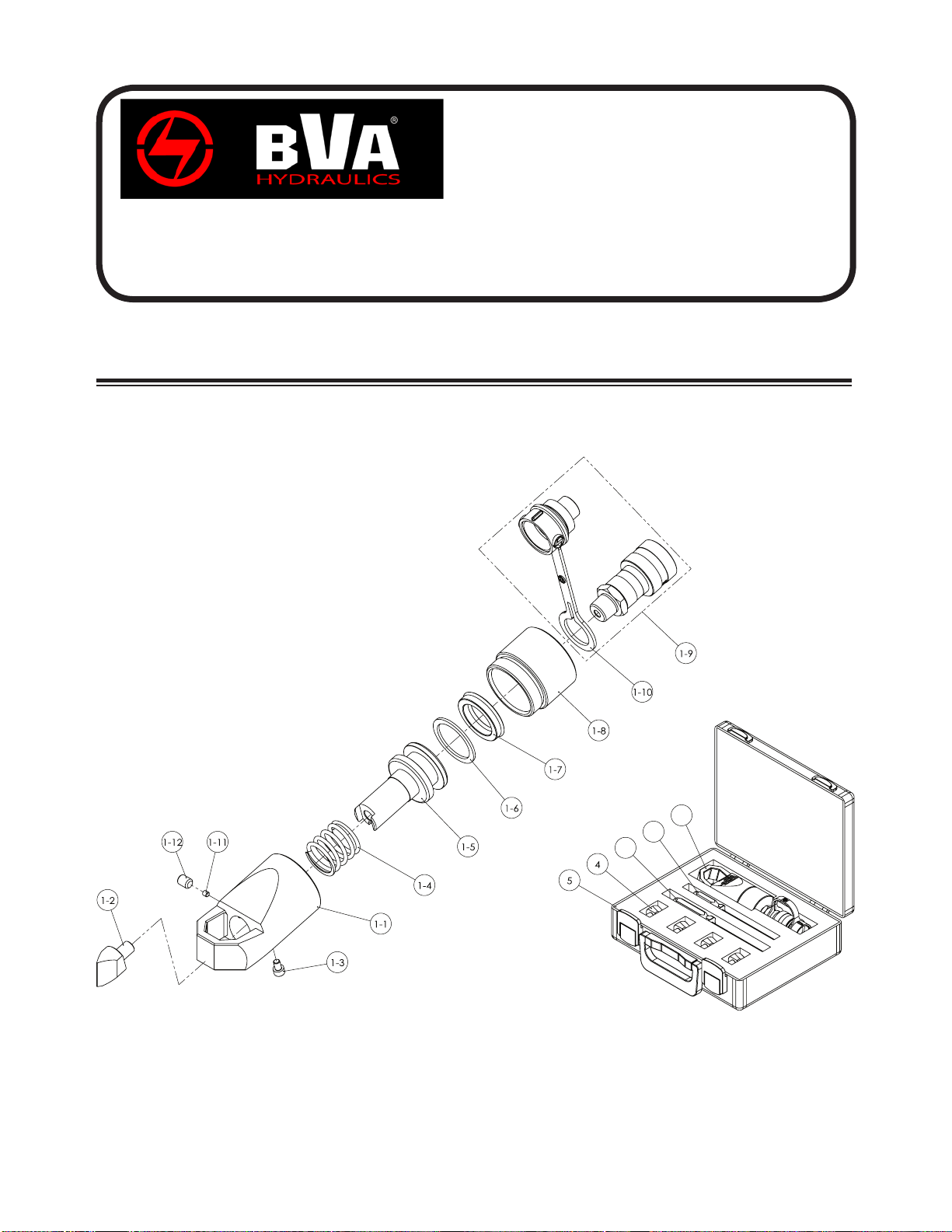

Parts Illustration
Note: Not all components of the Hydraulic Nut Splitter are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
MODEL NUMBERS: HNS05T & HNS10T
Hydraulic Nut Splitter
Service Parts
1
2
3
Drawn By: 蕭益彰

8
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.
Parts List
Note: Not all components of the Hydraulic Nut Splitter are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
No. Part No. Description Qty.
HNS05T HNS10T
1 HNS05T-1 HNS10T-1 Hydraulic Nut Splitters 1
1-1 N/A N/A Base 1
1-2 HNS05T-2 HNS10T-2 Blade 1
1-3 649-1-0040-007 649-1-0050-028 Hex Socket Screw 1
1-4 512-2-0245-100 512-2-0310-105 Compress Spring 1
1-5 N/A N/A Plunger 1
1-6 * * Back-up ring 1
1-7 * * U-cup 1
1-8 N/A N/A Cylinder 1
1-9 CH38F Coupler 1
1-10 CDC38 Dust Cap 1
1-11 644-1-0040-204 Set Screw 1
1-12 644-1-0080-004 Hex Socket Screw 1
2 T30-6-1020-103 Hex Driver I 1
3 T30-6-1040-109 Hex Driver II 1
4 HNS05T-2 HNS10T-2 Blade 4
5 HNS05T-3 HNS10T-3 Aluminum Carry Case 1
* T30-3-9901-107 T30-3-9902-109 Repair Kit 1
MODEL NUMBERS: HNS05T & HNS10T
Hydraulic Nut Splitter
Service Parts

9
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.
Parts Illustration
Note: Not all components of the Hydraulic Nut Splitter are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
MODEL NUMBERS: HNS15T & HNS20T
Hydraulic Nut Splitter
Service Parts
1
2
3
Drawn By: 蕭益彰

10
Note: To ensure safe and reliable performance, replace worn or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.
Parts List
Note: Not all components of the Hydraulic Nut Splitter are replacement items, but are illustrated as a convenient
reference of location and position in the assembly sequence.
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
No. Part No. Description Qty.
HNS15T HNS20T
1 HNS15T-1 HNS20T-1 Hydraulic Nut Splitters 1
1-1 N/A N/A Base 1
1-2 HNS15T-2 HNS20T-2 Blade 1
1-3 649-1-0050-028 Hex Socket Screw 1
1-4 512-2-0450-101 Compress Spring 1
1-5 N/A N/A Plunger 1
1-6 * * Back-up ring 1
1-7 * * U-cup 1
1-8 N/A N/A Cylinder 1
1-9 CH38F Coupler 1
1-10 CDC38 Dust Cap 1
1-11 641-1-0060-007 Set Screw 1
1-12 641-1-0100-104 Hex Socket Screw 1
2 T30-6-1030-106 Hex Driver I 1
3 T30-6-1050-102 Hex Driver II 1
4 HNS15T-2 HNS20T-2 Blade 4
5 HNS15T-3 HNS20T-3 Aluminum Carry Case 1
- T30-3-9903-101 T30-3-9904-103 Repair Kit 1
MODEL NUMBERS: HNS15T & HNS20T
Hydraulic Nut Splitter
Service Parts

11
LIMITED LIFETIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [“SFA”] warrants this product to be free from defects in
material and workmanship for the life of the product as long as the original purchaser owns the product. The warranty is non-
transferable and is subject to the terms, exclusions, and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed ram walls, broken welds or couplers as
well as worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not
provide any warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not
performed by BVA Hydraulics or one of its authorized personnel), improper uid use, or use of the product in any manner for
which the product was not intended or the use of which is not in accordance with the instructions or warnings provided with
the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for
disposition. In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is limited
to the repair or replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER
CHANNELS DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA
HYDRAULICS IS AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR
PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and other are not
covered by this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the
package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

12
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
