BVA Hydraulics HNS105 User manual

Hydraulic Portable
Nut Splitter
Model: HNS105, HNS200, HNS308
HNS105-M0_102018
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
!
• Study, understand, and follow all instructions
provided with/on this product before use.
• Failure to heed the instructions may result in
personal injury and/or property damage.
Read this manual and follow all the Safety Rules and Operating Instructions before using this product.
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
WARNING: Cancer and Reproductive Harm.
www.P65Warnings.ca.gov
WARNING
!

2
SAFETY and GENERAL INFORMATION
Save these instructions. For your safety, read, understand, and follow the information provided with and on this nut
splitter before using. The owner and operator of this equipment shall have an understanding of this nut splitter and
safe operating procedures before attempting to use. The owner and operator shall be aware that use and repair of
this product may require special skills and knowledge. Instructions and safety information shall be conveyed in the
operator's native language before use of this nut splitter is authorized. If any doubt exists as to the safe and proper
use of this nut splitter, remove from service immediately.
Inspect before each use. Do not use if broken, bent, cracked or damaged parts are noted. Any nut splitter that appears
damaged in any way, or operates abnormally shall be removed from service immediately. It is recommended that an
annual inspection be done by qualied personnel. Labels and Operator's Manuals are available from manufacturer.
Always preform a visual inspection of any tool and its accessories before use. Never attempt to use
excessively worn, broken, or dull tools.
Keep all objects, other than the nut being slpit, out of the way of the tool, or tool damage and injury may
occur.
When splitting metal objects there is a chance that debris may be ejected. Eye protection and safety
gloves are encouraged at all times while in operation. Do not split nuts into any pieces smaller than half
the nuts original size.
Do not allow the hydraulic hoses to kink, twist, curl, or bend so tightly that the ow of hydraulic oil is
blocked or slowed in any way. Never exceed 10,000 psi of hydraulic pressure while operating the nut
splitter.
Never attempt to grasp a pressurized hose that is leaking.
PRODUCT DESCRIPTION
Adaptability: BVA Nut Splitter is available with special nut adapters to allow you to split huck nuts, round nuts, and
12 point hex nuts.
Versatility: BVA Nut Splitter comes in various sizes and models including straight head models, angle head models,
and double cutting angle head models. Each model can split multiple nut sizes.
Flexability: BVA Nut Splitter is designed to t into tight spaces and because of our multiple model selection; we can
nd the right tool for your specic application.
Precision: BVA Nut Splitter cutting chisels, can be positioned so that only the nut is cut leaving the stud and threads
unharmed.
Speed: BVA Nut Splitter can be unpacked from its toolbox, assembled, and ready to use in less than ve minutes;
and it only takes mere seconds to split a nut.
Safety: BVA Nut Splitter's do not use any sort of of hammering, impact, or ame to split nuts, and as such, there are
no specialty permits required for operation on the job.
!
!
!
!
!

3
Model Capacity
(Tons) Nut Size Capacity Stud Dimension Weight (lbs)
HNS105 25 0625"-1.4375" 0.4375"-0.875" 20.0
HNS200 25 1.1875" - 2.375" 0.4375" - 0.875" 21.0
HNS308 100 2.625" - 3.5" 1.75" - 2.25" 95.0
POWER REQUIREMENTS
The BVA Nut Splitter is hydraulically driven. All models require a hydraulic pump that delivers 10,000 PSI
pressure. Exceeding 10,000 PSI pressure will void any and all warranties. Any type of hydraulic pump may
be used to operate the BVA Nut Splitter; including air, electric, foot driven, or hand pumps. Pumps can
be purchased seperaely from BVA and include all the necessary hoses and ttings. See the list below for
appropriate pump and Nut Splitter combinations.
BVA HNS Series Specication
Model Valve Type Hose Rating Usable Minimum Oil
Capacity
HNS105 2-Way 10,000 PSI 10 Cu. In.
HNS200 2-Way 10,000 PSI 10 Cu. In.
HNS308 2-Way 10,000 PSI 82 Cu. In.
If a BVA hydraulic pump is not used, refer to the chart listed
below for the appropriate power requirements

4
ASSEMBLY
Within the BVA Nut Splitter there are three "Model" types; the Straight Head
Models, Angle Head Models, and Angle Head Double Cutting Models. All three
models share similar features of assembly, but between the three models there
are two di󰀨erent methods of holding the cutting chisels. See illustration below.
Type 1 Type 2
The assembly instructions are seperated based on the chisel holder
types. Section 1 assembly shall cover all assemblies involving the "Type
1" chisel holder and section 2 shall cover all assemblies involving the
"Type 2" chisel holder.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

5
1. Unscrew the chisel holder from the cylinder.
2. Place the knobbed end of the cutting chisel into the center hold of the chisel holder.
3. Insert the set screw into the threaded side hole of the chisel holder. Do not over
tighten the set screw, it is provided to hold the cutting chisel inside the chisel holder
only. The cutting chisel should be loose enough to spin with minimal friction inside the
chisel holder, but not fall out.
4. Place the appropriate space for the nut you are cutting inside the cylinder. The spacer
shall be placed inside the cylinder in such a way that engraved side can be read.
Only one spacer is required to split a nut. Never split a nut with more than one spacer
installed at a time, doing so will damage the stud threads.
5. Screw the chisel holder and chisel assembly (from step 3) into the cylinder until it is
seated rmly and bottomed out in the cylinder.
6. Connect the cylinder and pump together via 10,000 PSI hydraulic hose.
7. Pressure up the cylinder until the internal piston has been fully extended from the
cylinder. Hold the pressure so that the piston stays in this extended positon.
8. Place the BVA Nut Splitter housing on the threaded end of the cylinder and screw the
housing onto the cylinder. Screw the housing all the way onto the cylinder until it is
seated rmly and bottomed out on the cylinder, unscrew the housing one full turn.
9. Insert the set screw into the threaded side hole of the housing and tighten to secure it
into place.
10. Release the held pressure on the cylinder to allow the piston to retract back into the
cylinder.
11. Your BVA Nut Splitter is now fully assembled and ready for use.
Section 1- Assembly Instructions for
"Type 1" Chisel Holders.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

6
1. Unbolt the chisel holder from the cylinder.
2. Place the knobbed end of the cutting chisel into the center hold of the chisel holder.
3. Insert the set screw into the threaded side hole of the chisel holder. Do not over
tighten the set screw, it is provided to hold the cutting chisel inside the chisel holder
only. The cutting chisel should be loose enough to spin with minimal friction inside the
chisel holder, but not fall out.
4. Place the appropriate space for the nut you are cutting inside the cylinder. The spacer
shall be placed inside the cylinder in such a way that engraved side can be read.
Only one spacer is required to split a nut. Never split a nut with more than one spacer
installed at a time, doing so will damage the stud threads.
5. Align the two bolt holes of the chisel holder and spacer assembly (from step 3) to the
two threaded holes on the top of the piston on the cylinder, and screw in the two bolts
removed from step 1. Tighten the two bolts until they are seated rmly in the cylinder.
Some of the BVA Nut Splitter models are packaged with two sets of bolts; this is to
accomdate thicker spacers. If during assembly it is discovered that the two bolts are
too short, use the the longer second set to rmly bolt the chisel holder assembly and
spacer into the cylinder.
6. Connect the cylinder and pump together via a 10,000 PSI hydraulic hose.
7. Pressure up the cylinder until the internal piston stays in this extended position.
8. Place the BVA Nut Splitter housing on the threaded end of the cylinder and screw the
housing onto the cylinder all the way until it is seated rmly and bottomed out on the
cylinder. Once the housing has been rmly seated and bottomed out, unscrew the
housing one full turn.
9. Insert the set screw into the threaded side hole of the housing and tighten it to secure
it into place.
10. Release the held pressure on the cylinder to allow the piston to retract back into the
cylinder.
11. Your BVA Nut Splitter is now fully assembled and ready for use.
Please see illustration on next page to see BVA Nut Splitter fully assembled.
Section 2- Assembly Instructions for
"Type 2" Chisel Holders.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

7
Assembled BVA Nut Splitter
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

8
OPERATION
*Before operation read and follow all warnings, safety tips and assembly instructions.
1. Lubricate the cutting edge of the chisel with an anti-seize lubricant before each split is
attempted.
2. Place the BVA Nut Splitter over the but to be split. Orientate the BVA Nut Splitter in the
exact position as illustrated below. The BVA Nut Splitter should be parallel to the surface of the
ange, and the cutting chisel should be centered on the at side of the nut being split. Refer to
the illustration below for proper alignment.
3. Pressurize the cylinder to extend the chisel slowly until the cutting edge makes
contact with the at nut face. Verify that the cutting edge is centered on the at
of the nut before continuing.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

9
4. Continue to pressurize the cylinder slowly to begin splitting the nut. You will hear a loud
pop; this noise indicates that the but has been successfully split. Once you hear the loud
pop, stop pressurizing the cylinder.
5. If the nut was frozen in place, it should now be freed enough to rotate the nut 180 de-
grees to split the opposite at on the nut for complete removal. If the nut cannot be ro-
tated, reorient the BVA Nut Splitter itself instead and repeat steps 1 through 4.
6. Having two opposite ats faces of the nut successfully split, the nut should now be in two
pieces and can easily be removed from the stud.

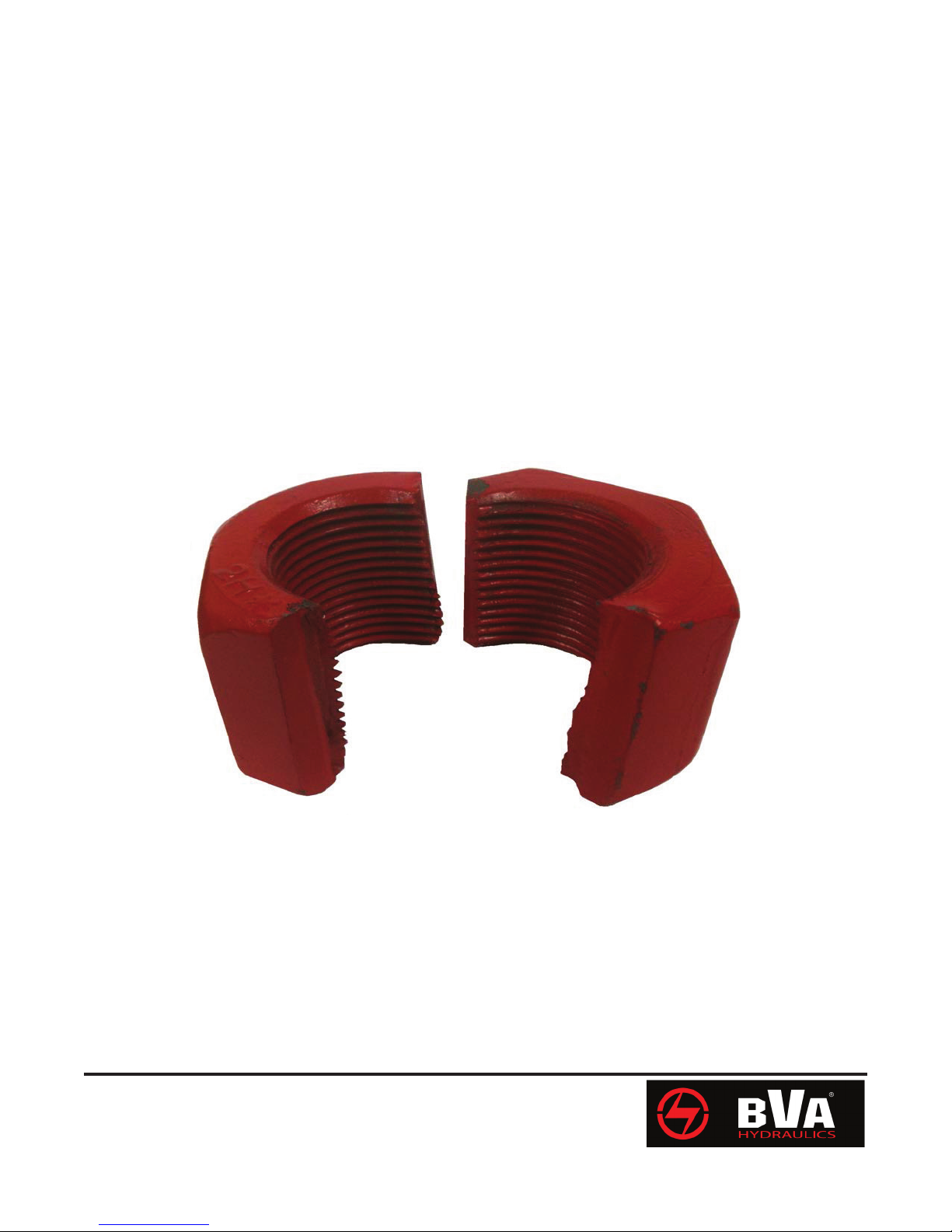

A successfully split nut should look like the illustration below.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

10
Maintenance
The BVA Nut Splitter is designed to be a low maintenance tool. Following the steps below will
help ensure a long useful shelf life of the tool for years to come.
* Always lubricate the cutting edge of the chisel with an anti-seize lubricant before each slpit
it attempted. Grease and molly based lubricant is recommended and can be purchased
seperately.
*Do not let the cutting chisel get dull. The cutting chisel can be re-sharpened by hand with a
whestone or on a bench grinder using a slow rpm and a ne ground wheel. Keeping the
cutting chisel well lubricated and cool during sharpening will allow you to sharpen the cut-
ting edge quickly and safely.
* After each use thoroughly clean the tool and its accessories before storage.
* Replace all thread protectors and dust covers on the tool when not in use or during stor-
age. This will help keep any debris from entering the hydraulic system and keep the oil
clean and ready for use.
* For storage, always keep your BVA Nut Splitter in its supplied tool box. The supplied tool
boxes have been manufactured to keep the tool and its accessories safe from any acci-
dental damage and will increase the longevity of the tool.
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

11
TROUBLE SHOOTING
PROBLEM P OSSIBLE CAUSE POSSIBLE SOLUTION
Cylinder does not hold pressure
1. Cylinder seal is leaking.
2. onnection
3. Pump malfunction
1. Change cylinder
2.
3. Change pump
Cylinder does not advance or only
advances partially
1. Pump release valve is ope n
2.
3. Air in hose lines
4. Couplers not tight
5. Pump reservoir too smal l
1. Close valve
2. to pump
3. Bleed air from hose line s
4. Tighten couplers
5. Change pump to one wit h
larger reservoir
Cylinder advances slowly
1.
2.
3. Loose coupler
4.
1.
2. Chan
3. Tighten couplers
4. Change pump to one wit h
Cylinder does not retract, retracts
slowly or retracts partially
1. Pump release valve closed
2. Coupler not fully closed
3.
4. Damaged retraction spring
5.
1. Open valve
2. Close coupler
3.
4. Replace spring
5.
Cutting chisel does not penetrate
the nut
1. Inadequate pump pressure
2. Incorrect spacer used
3. Cutting chisel edge dull
4. Housing not fully threaded
onto cylinder
1. Increase pump pressure t o
10,000 psi, MAX.
2. Change spacers
3. Sharpen or replace cutting
chisel
4. Thread housing fully on
cylinder as per assembly
instructions
Cutting chisel splits the nut and
damages the stud thread s
1. Incorrect spacer used
2. Housing threaded more than
necessary
1. Change spacer
2. Thread housing fully on
cylinder as per assembly
instructions
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

12
Hydraulic Portable
Nut Splitter Parts List
Model: "Type 1" Style
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Note:
Only use one
spacer per
BVA Nut Splitter

13
Hydraulic Portable
Nut Splitter Parts List
Model: "Type 2" Style
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Note:
Only use one
spacer per
AutoSPLITTER

14
Item
No. Descripon HNS105 HNS200 HNS308 Qty
1 Housing CB7112 C87114 D87079 1
2 Housing Set Screw SSN04-20X05 SSN04-20X05 SSN6-16X12 1
3 Cung Chisel B86216 B2K980 B87090-2 1
4 Chisel Holder B86215 B2K979 B87089 1
5 Chisel Holder Set Screw SSN6-32X04 SSN6-32X04 SSN04-20X05 1
Spacer Set ( 8 Pcs) A99077 A2K996 N/A 1
Spacer Set ( 6 Pcs) N/A N/A A91001 1
7 Adjustment Spacer A2K682 A2K988 N/A 1
8 Hydraulic Cylinder H2501 H2501 H10002A 1
9 Female Coupler CH38F CH38F CH38F 1
9A Dust Cover CDC38 CDC38 CDC38 1
Chisel Holder Bolt Set A N/A N/A SHCS06-16X12 2
Chisel Holder Bolt Set B N/A N/A SHCS06-16X20 2
11 Chisel Holder Allen Key (not shown) WSS1 WSS1 WSS2 1
12
Chisel Holder Bolt Set Allen Key
(not shown)
N/A N/A WSS5 1
13 Housing Allen Key (not shown) WSS2 WSS2 WSS3 1
14 Toolbox with Foam Insert (not shown) 25TB / 25TBI 25TB / 25TBI 100TB28 / 100TBI28 1
- Repair Kit for Hydraulic Cylinder H25-3-9902-108 H25-3-9902-108 H99-3-9901-106 1
10
6
Hydraulic Portable
Nut Splitter Parts List
Model: "Type 1 & 2" Style
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
HNS-25 HNS-25

15
2
15
9
10
11
12
8
7
13
1
14
5
6
4
3a
3
MODELS: H2501
Single Acting Cylinders
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
Not all components of the cylinder are replacement items, but are illustrated as a convenient reference of location and position
in the assembly sequence.
Item Part Number Description Qty
1 N/A Cylinder 1
2 N/A Ram 1
3 SD25 Saddle Assy 1
3a * O-ring 1
4 H25-6-2305-103 Protective Cap 1
5 H25-5-1804-100 Upper Bearing 1
6 * Dust Seal 1
7 * Bolt 1
8 * Special Washer 1
9 H25-4-0201-109 (H2501) Return Spring Assy 1
10 H25-5-1204-102 Bearing 1
11 * Back-up Ring 1
12 * U-cup 1
13 CH38F Female Coupler 1
14 CDC38 Dust Cover 1
15 644-1-0060-200 Bolt 1
(*) H25-3-9902-108 (H2501) Repair Kit -
(*) - indicates items included in, and available only as part of Repair
Kit
N/A - part is not available as replacement
To ensure safe and reliable performance, replace worn
or damaged parts with BVA Hydraulics Authorized
Replacement Parts only.

16
Item Part Number Description Qty.
1 N/A Cylinder Housing 1
2 N/A Ram Plunger 1
3 H55-6-1103-100 Saddle 1
4 649-1-0010-109 Bolt 2
5 H99-6-2305-208 Protecting Cap 1
6 * Dust Seal 1
7 H99-5-1804-205 Upper Bearing 1
8 H99-6-2100-109 Spring Base 2
9 614-1-0060-206 Bolt 8
10 H26-3-2875-103 Return Spring Assy. 4
Item Part Number Description Qty.
11 H99-5-1204-100 Bearing 1
12 * Back-up Ring 1
13 * U-cup 1
14 * Washer 1
15 649-1-0100-302 Bolt 1
16 CH38F Female Coupler
(3/8”-18NPTF)
1
17 CDC38 Dust Cover 1
18 H55-3-1806-106 Handle Assy. 2
19 644-1-0100-105 Bolt 1
(*) H99-3-9901-106 Repair Kit -
4
3
19
15
2
11
12
13
17
5
6
7
1
16
14
9
18
8
10
8
9
Note: Not all components of the pump are replacement items, but are illustrated as a convenient reference of location and
position in the assembly sequence.
Single Acting
Cylinder
Service Parts
SFA Companies 10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone] * Fax: [phone]
E-mail: [email protected] Website: www.bvahydraulics.com
MODEL: H10002A

17
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
LIMITED LIFETIME WARRANTY
BVA Hydraulics®, represented in the United States by SFA Companies [“SFA”] warrants this product to be free from defects in material
and workmanship for the life of the product as long as the original purchaser owns the product. The warranty is non-transferable and is
subject to the terms, exclusions, and limitations described below:
• Damaged components, including but not limited to bent rams, dented or crushed cylinder walls, broken welds or couplers as well as
worn out seals, o-rings and springs are the result of misuse and not covered by warranty and BVA Hydraulics will not provide any
warranty credit for such damaged components.
• This warranty does not cover ordinary wear and tear, overloading, alterations (including repairs or attempted repairs not performed
by BVA Hydraulics or one of its authorized personnel), improper uid use, or use of the product in any manner for which the product
was not intended or the use of which is not in accordance with the instructions or warnings provided with the product.
• In the unlikely event that a BVA Hydraulics product fails due to material defect in workmanship, you may contact SFA for disposition.
In such cases, the customer’s sole and exclusive remedy for any breach or alleged breach of warranty is limited to the repair or
replacement of the defective product.
• Under no circumstances is BVA Hydraulics liable for any consequential or incidental damage or loss whatsoever.
• THIS WARRANTY IS LIMITED TO NEW PRODUCTS SOLD THROUGH AUTHORIZED DISTRIBUTORS AND OTHER CHANNELS
DESIGNATED BY BVA HYDRAULICS. NO AGENT, EMPLOYEE OR OTHER REPRESENTATIVE OF BVA HYDRAULICS IS
AUTHORIZED TO MODIFY THIS WARRANTY.
• THE FOREGOING IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING BUT
NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FOR A FITNESS FOR A PARTICULAR PURPOSE.
• Components not manufactured by BVA Hydraulics including certain motor systems, gasoline engines, and other are not covered by
this warranty and instead are covered by the manufacturer’s separate manufacturer’s warranty provided in the package.
• BVA Hydraulics’ liability in all cases is limited to, and will not exceed the purchase price paid for the product.

18
NOTES:
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

19
NOTES:
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]

20
NOTES:
SFA Companies
10939 N. Pomona Ave. Kansas City, MO 64153
Tel: [phone]
E-mail: [email protected]
