BZB Gear BG-OMNITALK User manual

BG-OMNITALK
USB/Bluetooth Desktop Conference Speakerphone
with 360° Audio Pickup up to 16ft
User Manual

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Table of Contents
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Package Contents 5
Specifications 6
Panel Descriptions 7
LED Status 8
Connections 8
Application Example 10
Tech Support 11
Warranty 11
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●Unplug this device during lightning storms
●Clean only with a soft dry microfiber cloth.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Only use accessories specified by the manufacture
●Product specifications may be subject to technical upgrades without further notice
●Do not hot plug when it is working.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Introduction
The BG-OMNITALK Bluetooth Conference Speakerphone is a robust audio solution
designed to cater to modern communication requirements. With its 360° omni-directional
microphone array, 5-meter voice pickup range, and seamless integration with popular
conferencing applications, this speakerphone is perfect for a wide range of uses, from
business meetings and online conferences to distance education.
The built-in battery also means that the BG-OMNITALK is portable and can be used when
and where you need it at a moment's notice. At full charge the device talk time can last for
up to 6 hours thanks to its 2400mA battery.
Features
●360° Omni-directional Microphone
●Microphone pick up range up to 16ft (5 meters)
●2400mA battery for up to 6 hours of use
●Portable and lightweight
●Easy and intuitive functionality
●Bluetooth capable
●Works with all major conferencing systems such as Zoom, Skype, Teams, etc.
●3.5mm stereo audio output to connect to external speakers
Package Contents
●1 x BG-OMNITALK
●1 x USB Type-C Cable
●1 x User Manual
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Specifications
Technical Specifications
Bluetooth
BT 5.0
Battery
Battery Size: 2400mA Lithium
Music: up to 8 hours
Calls: up to 6 hours
Charge time: approximately 3 hours
Connection Types
USB, 3.5mm Stereo AUX, Bluetooth
Pickup Range
16.4 feet (5m)
Mics
2x professional mics array
Microphone Type
Omni-directional (360°pickup)
Microphone Sensitivity
-29dBFS
Noise Reduction
Yes
Full Duplex Audio
Yes
AEC
Yes
Frequency Range
100Hz - 22kHz
Speaker
5W/95dB
Physical Connections
1 x USB Type-C, 1 x 3.5mm audio port
System Compatibility
Windows 7/8/10/11 or above, Mac OS 10.7 or above, Chrome OS V29.01547
or above
Application Support
Software: Skype, FaceTime, Zoom, Microsoft Teams, Google Hangouts, OBS,
Xsplit, etc.
Work Temperature
0° -- 50°C
Storage Temperature
-10° -- +60°C
Work Humidity
20% -- 85% RH (non-condensing)
Power Supply
USB: DC12v @ 500mA
Product Size (LxWxH)
160mm x 160mm x 38mm
Product Weight
1lb
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-OMNITALK PRODUCT MANUAL

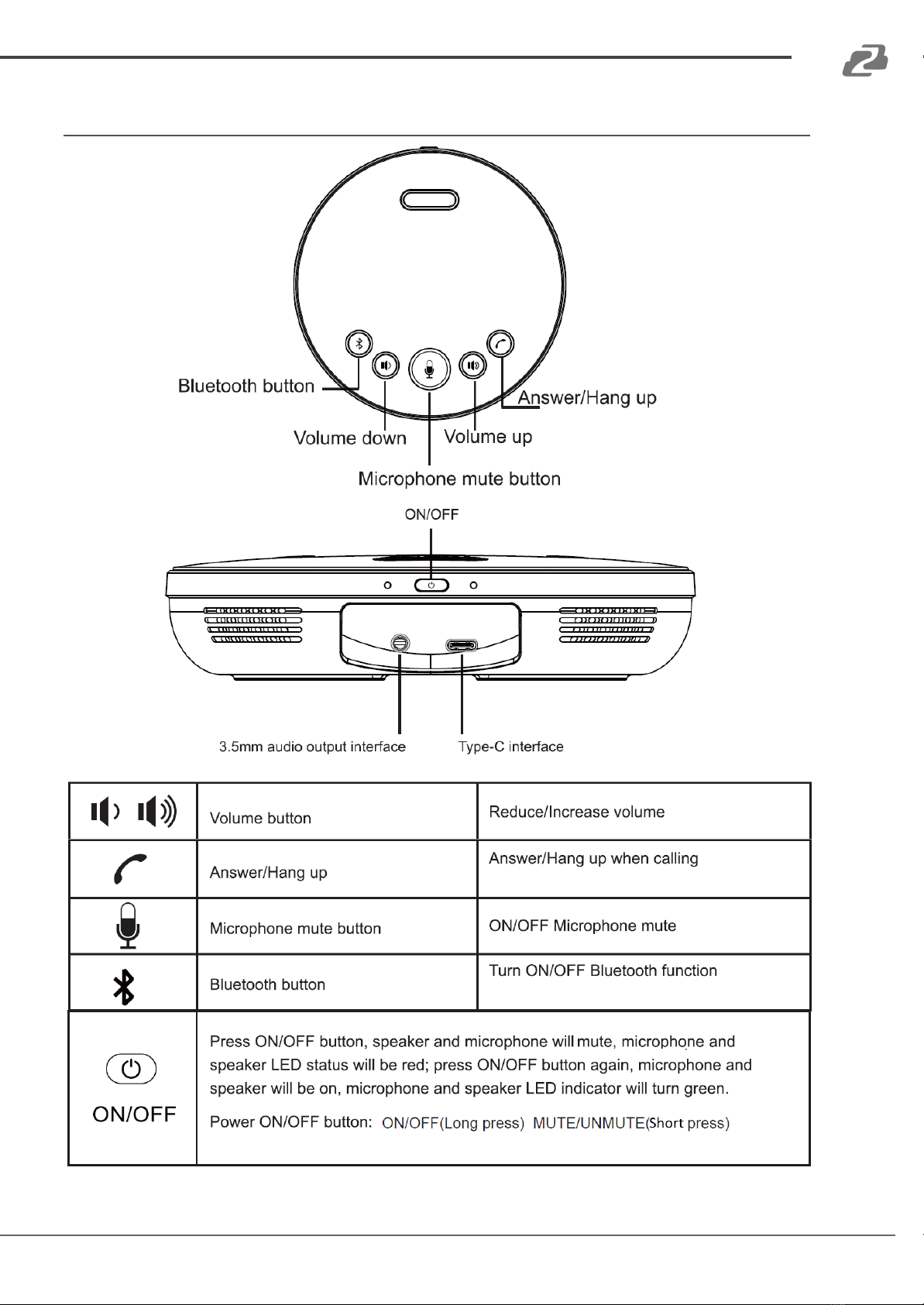

Panel Descriptions
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-OMNITALK PRODUCT MANUAL
LED Status
Bluetooth Status Indicator
Blue light flashing
Bluetooth is in pairing mode
Green light on
Bluetooth is connected
Microphone Status Indicator
Red light on
Microphone is muted
Green light on
Microphone is working normally
Power Status Indicator
Green light on
Unit is powered on and charged
Red light flashing
Battery is low and a voice will prompt
Speaker Status Indicator
Green light on
Speaker working normally
Red light on
Speaker mute
Connections
USB Connection
1. It is recommended to use the original USB cable when connecting the speakerphone to a
computer or another compatible device.
2. When the device is connected to a computer, it will automatically power on and will power
off automatically after 10 minutes of inactivity or if no source is detected.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Bluetooth Connection
1. When the device is in its normal state, press and hold the button to turn on Bluetooth
pairing. The Bluetooth status indicator will begin to flash.
2. Enable Bluetooth on the device you wish to connect to the BG-OMNITALK and let it scan
for the device.
3. Select the BG-OMNITALK from the list of devices to connect to. After pairing is complete,
the Bluetooth status indicator will be illuminated solid.
4. Each time the BG-OMNITALK is turned on, it will automatically pair with the last connected
device if it is available and in range.
5. To turn Bluetooth off, press and hold the button.
3.5mm Stereo Connection
1. Connect the BG-OMNITALK to either headphones or an external audio system using a
3.5mm stereo audio cable.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-OMNITALK PRODUCT MANUAL

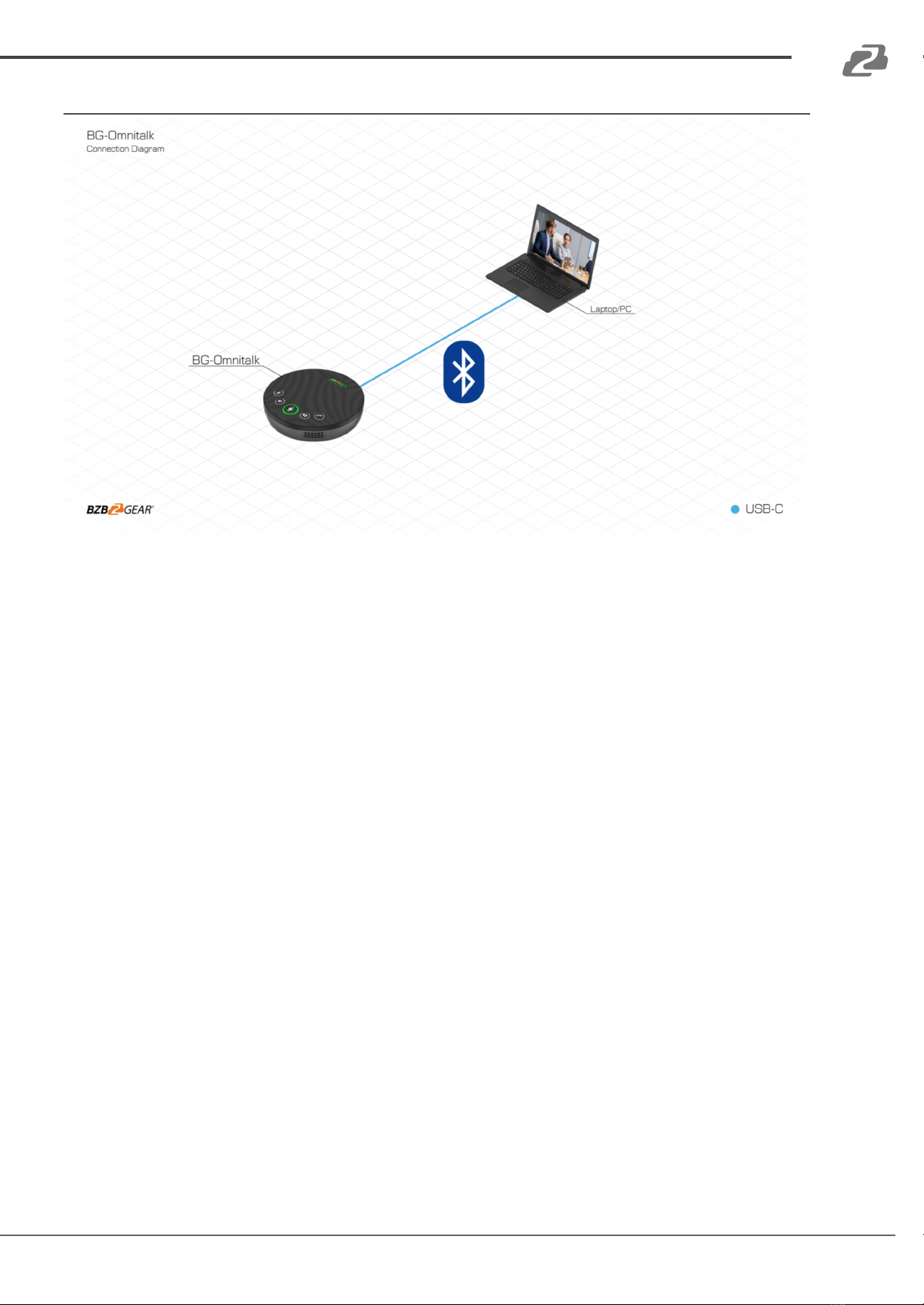

Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips
regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base)
with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. Or
explore our YouTube channel, BZB TV (youtube.com/c/BZBTVchannel), for help setting up,
configuring, and other helpful how-to videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended two-year
warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-OMNITALK PRODUCT MANUAL
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming
solutions. We pride ourselves on unparalleled customer support and services. Our team offers
system design consultation, and highly reviewed technical support for all the products in our
catalog. BZBGEAR delivers quality products designed with users in mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to
imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no
guarantee, standpoint expression or other implies in any form. Product specification and
information in this manual is for reference only and subject to change without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 12
