BZB Gear BG-SMB-5M User manual

BG-SMB-5M
USB/2.4Ghz Wireless Desktop Conference Speakerphone with 360°
Audio Pickup up to 5m
User Manual

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-SMB-5M PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 5
Technical Specifications 6
Operation Controls and Functions 7
Tech Support 12
Warranty 12
Mission Statement 12
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●Unpack the equipment carefully and save the original box and packing material for
possible future shipment.
●Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to
persons.
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●Do not dismantle the housing or modify the module.
●Using supplies or parts not meeting the products’ specifications may cause damage,
deterioration or malfunction.
●Do not put any heavy items on the extension cable in case of extrusion.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Unplug this device during lightning storms.
●Do not use liquid or aerosol cleaners to clean this unit. Clean only with a soft dry
microfiber cloth.
●If an object or liquid falls or spills on to the housing, unplug the module immediately.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Product specifications may be subject to technical upgrades without further notice.
●Unplug the power cord when left unused for a long period of time.
●Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.
●Please keep the device away from motors, transformers and other electronic devices to
avoid noise.
●This device should be placed in a horizontal position, not wall mounted or ceiling
mounted.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Introduction
The BG-SMB-5M is a full duplex 16kHz echo canceling speaker-phone. The voice pickup
radius is 5m, which is ideal for one-on-one and small to medium group conference calls. It
uses wireless and USB connections to replace PC and smartphone speakers and
microphones with outstanding audio quality. The USB interface can be connected to a PC
or other video conference terminals, mobile phones, tablets, and other smart devices that
can connect using 2.4Ghz.
Features
●Ensures everyone experiences clear sound with the 4 built-in omnidirectional
microphones within 5m (360°) pick up radios. Supports 2 expansion mics which pick
up voices at a range of 8m (360°).
●Seamless Connectivity: The simple plug and play set up via USB or 2.4Ghz gets
your meetings started quickly.
●Equipped with a 3.5mm headset port that allows users to switch from a conference
call to a private conversation.
●Full duplex echo cancellation and noise reduction, Ultra Wideband HD Voice Call
Technology provides Crystal clear sound without any echoes or distortion.
●Intuitive red, green, and blue LED indicators give you visual guidance
●Volume of the speaker can reach 85dB. Device can connect to an external speaker if
you need a louder volume.
●Compatible with all leading video conferencing programs such as ZOOM, Vidyo,
WebEx, Skype for business, Google hangout, etc.
Packing List
●1x BG-SMB-5M unit
●1x USB Cable
●1x 2.4G Wireless Receiver
●1x Power adapter
●1x 3.5mm Stereo Audio Cable
●1x User Manual
●1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Technical Specifications
General
Voice technical
parameters
Acoustic Echo cancellation (AEC): >65dB
Echo length cancellation: ≥500ms
Bidirectional noise compression (NC): <25dB
Automatic Direction finding Technology of Intelligent microphone (EMI)
Automatic gain control (AGC)
Audio parameters
Microphone frequency response: 100Hz-22KHz
Speaker frequency response: 100Hz-22KHz
Speaker volume: 95dB at the most
Microphone sound-pickup diameter: 5m
360° full range (2 external microphones optional for connection makes the
sound-pickup diameter up to 8m)
Interface
USB interface, RJ45 Ext1, Ext2, I/O line in/out, DIP6 interface
Power supply
USB power supply (5V/500m)
Computer environment
Windows, Mac OS X, Android
Operating environment
Operational environment: 0 ~ 40°C
Working humidity: 20 ~ 85% (no frost)
Size
180 x 180 x 42mm / 355 x 265 x 120mm (before/after packaging )
Weight
1.3 lbs / 2.6 lbs [600g/1200g] (Net/Gross weight)
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Operation Controls and Functions

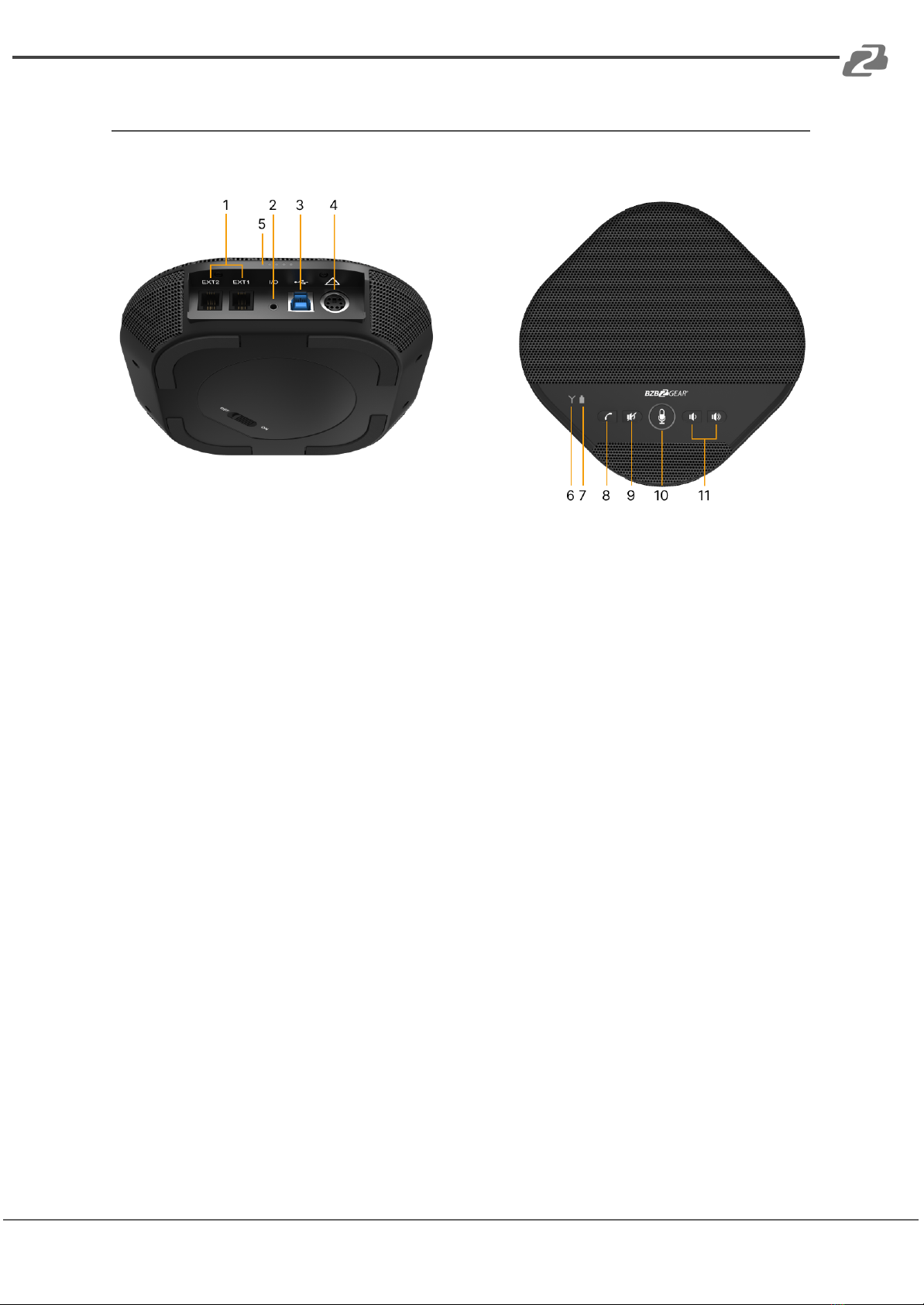

1. Ext1 and Ext2: RJ11 connectors for extension mic BG-EXM-SM5 (optional).
2. In/Out: 3.5mm stereo mini line in/out.
3. USB interface (rechargeable).
4. Din6: Not used.
5. LED status bar indicates volume level.
6. 2.4G indicator.
7. Battery indicator.
8. Answer/hang up: Answer/Hang up call.
9. Speaker mute: Turn on/off speaker mute function.
10. Microphone mute: Turn on/off microphone mute function.
11. Volume up/down: Increase/Reduce the volume.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-SMB-5M PRODUCT MANUAL

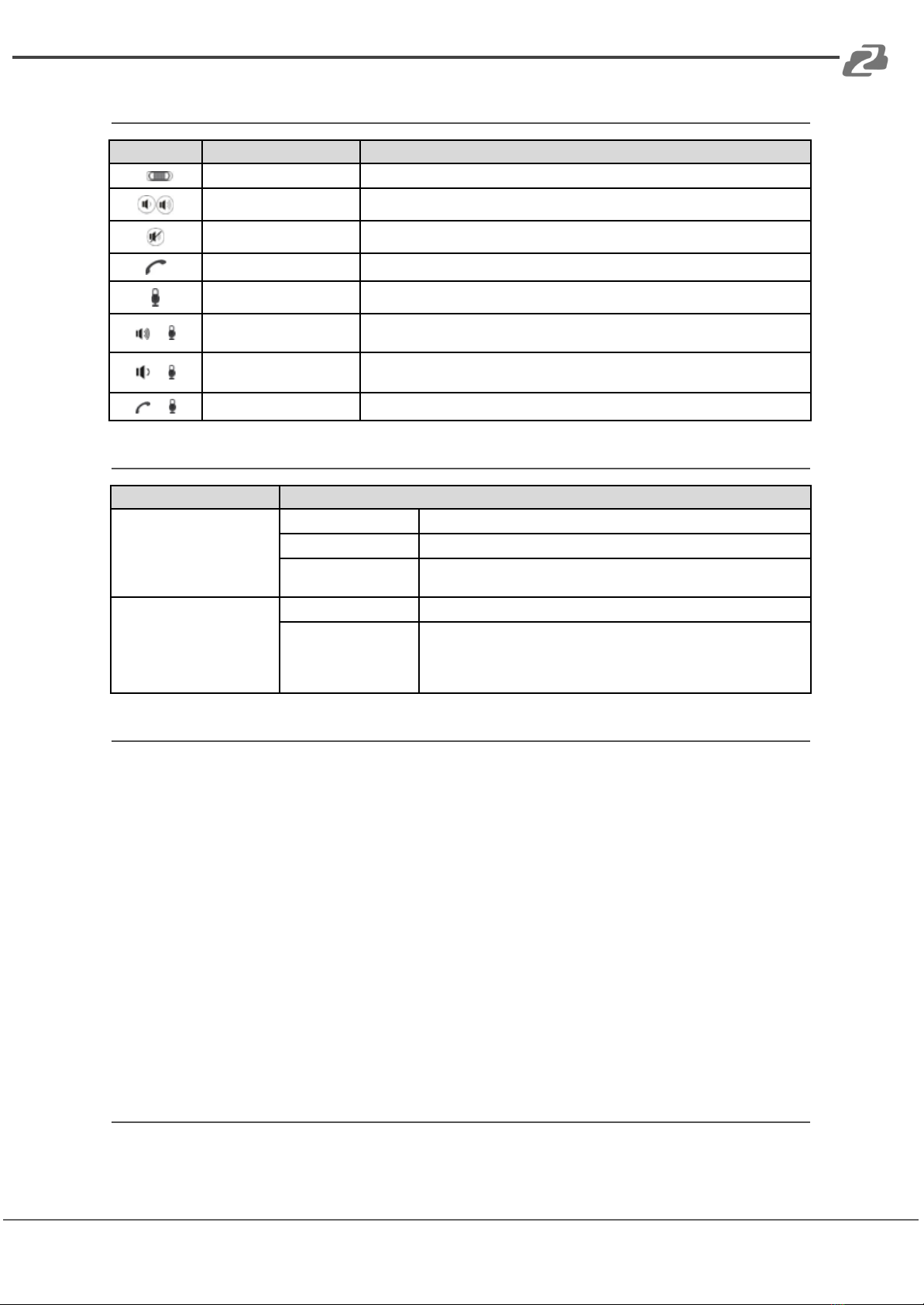

Button
Button
Function
Description
OFF ON
Power on/off
Long press 3 seconds to turn on/off the device
Volume up/down
Increase/decrease the volume
Speaker mute
Turn on/off speaker mute function
Answer/hang up
Answer/Hang up call
Microphone mute
Turn on/off microphone mute function
+
PC mode
Long press 5 seconds to enter PC mode, exit mobile mode, working indicator
flash 3 times.
+
Mobile mode
Long press 5 seconds to enter mobile mode, exit PC mode, working indicator
flash 2 times.
+
Echo cancellation
Long press 5 seconds to enter/exit echo cancellation mode
LED Indicator Function
The device works normally
Blue indicator on
Volume indicator
Green indicator flashes
Speaker mute
Red indicator on
Microphone mute
Green and red indicator
alternating flash
Both speaker and microphone mute
Y type/battery indicator
Y type
2.4G and Bluetooth connect green indicator on
Battery indicator
1.Red indicator flashes if the remaining battery power is less than
15%.
2.Green indicator flashes while charging.
3.Green light on means full of electricity.
Charging instructions
Please charge before using it as a wireless/Bluetooth device.
This device comes with a built-in rechargeable battery, please charge it with the included
USB cable and power adapter, or charge by connecting the device to PC.
Note: Device takes 2-3 hours to be fully charged.
Basic Connection
This device can be connected via the included USB cable as a speaker and a microphone.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-SMB-5M PRODUCT MANUAL
1. Supports Windows, IOS, Android, etc. with a USB port.
2. PC and other devices will automatically recognize and install the device.
It will take approximately 1 minute to show successfully installed for first use on a
new connected device..
3. Blue LED indicator will be on when connected successfully.
2.4G Wireless Connection
1. Plug the 2.4G Wireless Receiver to PC or other devices.
2. Turn on the button of the device.
3. PC or other devices will automatically recognize and install the device. It will take
approximately 1 minute to show successfully installed for first use on a new
connected device.
4. Blue LED indicator will be on when connected successfully.
5. Open your conference platform of choice and set the audio input and output to
BG-SMB-5M.
IN/OUT connection
1. Connect the included cable to a source device to use the unit as a speaker.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Note: When the terminal device is PC, please set it as PC mode. When the terminal device
is the mobile phone, please set speakerphone to “mobile mode.”
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Pick up range
5m radius pick up range, fit for small to medium meeting rooms.
Function Diagram
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 11

BZBGEAR BG-SMB-5M PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
Copyright
All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed
to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual
contains no guarantee, standpoint expression or other implies in any form. Product
specification and information in this manual is for reference only and subject to change
without notice.
All rights reserved. No reproducing is allowed without acknowledgement.
