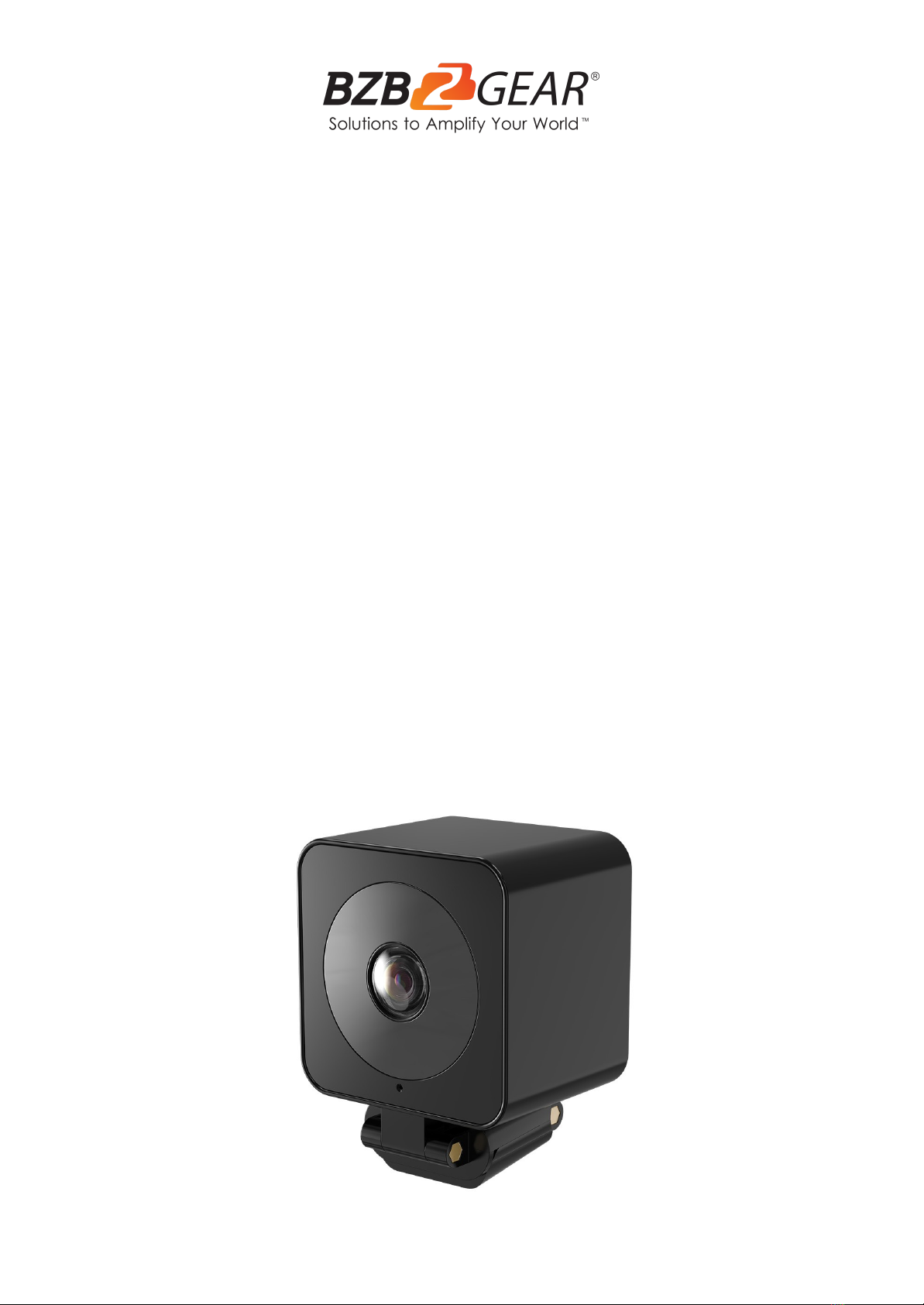

BZB Gear BG-EPTZ-UH4K User manual

BG-EPTZ-UH4K
4K UHD USB 3.0 and HDMI 2.0 Conference/Education ePTZ
Compact Camera
User Manual

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 2

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
TABLE OF CONTENTS
Statement 4
Safety Precaution 4
Introduction 5
Features 5
Packing List 6
Technical Specifications 7
Camera Overview 8
Remote Control 9
Application Example 10
Tech Support 11
Warranty 11
Mission Statement 11
Copyright 12
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 3

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Statement
Please read these instructions carefully before connecting, operating, or configuring this
product. Please save this manual for future reference.
Safety Precaution
●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion
during transportation, storage, and installation.
●The housing of this product is made of organic materials. Do not expose to any liquid,
gas, or solids which may corrode the shell.
●Do not expose the product to rain or moisture.
●The product has no power switch. Remove power immediately if camera is not in proper
working condition to avoid electrical shock.
●To prevent the risk of electric shock, do not open the case. Installation and maintenance
should only be carried out by qualified technicians.
●Do not use the product beyond the specified temperature, humidity, or power supply
specifications.
●This product does not contain parts that can be maintained or repaired by users.
Damage caused by dismantling the product without authorization from BZBGEAR is not
covered under the warranty policy.
●Installation and use of this product must strictly comply with local electrical safety
standards.
●Do not turn camera head manually. Doing so may result in mechanical damage. Camera
should only be placed on a stable horizontal surface and cannot be installed at an
angle.
●Make sure there are no obstacles within the camera’s rotational range when installing.
Never power on before installation has been completed.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 4

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Introduction
The BG-EPTZ-UH4K is a powerful webcam in the hands of educators, students, remote
employees, and other home broadcasters. This compact webcam offers users a degree of
flexibility with simultaneous USB 3.0 and HDMI outputs while capturing images in up to
4k@30Hz resolution with 4x digital zoom.
With electronic pan/tilt/zoom (ePTZ), the BG-EPTZ-UH4K is a great option for presenters
who need to zoom and shift the image to focus on different subjects in a field of view of up
to 130°. Equipped with an omnidirectional microphone, this camera has the ability to clearly
pick up voices from up to 8 meters away.
Its USB 3.0 connectivity isn’t just for high-speed data transmission. It also provides power
to the device making for easy setup and reducing the number of cables required to operate
the webcam. With a universal mounting solution, the small BG-EPTZ-UH4K will fit perfectly
in any situation, whether it be at home or in the studio on a desktop, monitor, tripod, or
bracket.
Features
●4K Ultra HD - Crystal clear image in any application
●USB 3.0 - High speed data transmission and power supply in one cable
●Integrated Microphone - Omni-directional pickup up to 8 meters
●Wide Angle - One of the widest FOV on the market - 130°!
●Integrated Mount - Mount to desktop, monitor, tripod, or bracket
●HDMI Output - Ideal for capture cards or extra monitors
●Sony 1/2.5” CMOS
●0.02Lux @ F1.8
●Auto, indoor, outdoor, one push, and manual WB
●H.265 / H.264 / MJPEG encoding
●Voice pickup up to 8 meters
●4X ePTZ digital zoom @1080p
●Small enough to take with you
●1/30s ~ 1/10000s shutter speed
●Control with IR remote
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 5

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Packing List
●1x ePTZ Camera
●1x IR Remote Controller
●1x USB 3.0 Cable
●1x User Manual
●1х Quick Start Guide
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 6

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Technical Specifications
Camera
Video System
Sony 1/2.5" CMOS
Min Illumination
0.02Lux @ F1.8, AGC ON
Effective Pixel
4K@3820*2160
Digital Noise Reduce
2D, 3D
Zoom
4X Digital Zoom @ 1080p
Shutter
1/30s ~ 1/10000s
Lens
F=2.8mm FOV 130°
Auto Focus
Supported
White Balance
Auto / Indoor / Outdoor / ONE PUSH, Manual
USB Function
Video Output
4K@30Hz/25;
1080p@30Hz/25;
1080i@60Hz/50/30/25;
720p@60Hz/50Hz
Encoding
H.265 / H.264 / MJPEG
UVC Protocol
Support
Video
UVC1.0 - UVC1.5
Audio Function
Built-in
YES
Audio
USB 3.0
Voice Pickup Range
8 Meters
HDMI Interface
Video Output
4K@30Hz/25;
1080p@30Hz25;
1080i@60Hz/50/30/25;
720p@60Hz/50
Encoding
H.265 / H.264 / MJPEG
Audio Output
N/A
ePTZ
Supported, 4X Digital Zoom @ 1080p
Interface: USB 3.0
Type B Female
Compatible with all interfaces below USB 3.0, support video, control, power supply, audio input
and output
Interface: HDMI 2.0
Compatible with HDMI 2.0, 1.4, 1.3A, 1.3 and other interfaces, only supports video transmission
Dome Parameter
Input Voltage
5V (USB 3.0)
Operation Temperature
-10°C -+50°C (14)
Storage Temperature
-40°C ~ 60°C
MTBF
50000 hours
Camera Brackets
Brackets with Damper, Support±30° adjustment
Dimensions (L*W*H)
70*70*56mm (Bracket not included）
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 7

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Camera Overview
Connections Overview
1. USB: Connect a USB 3.0 type B cable to a PC for plug & play connectivity for any
conferencing service like Skype or Zoom.
2. HDMI: Connect to an HDMI device such as a video production switcher or a video
display up to 4K@30Hz.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 8

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Remote Control
No.
Key
Function
1
Power Key
After pressing, the camera enters standby mode
2
P/T RST Key
After pressing, the camera enters self-check
3
Flip Key
Set the camera image to flip
4
Camera
Select Key
Select the camera to be controlled
5
BLC Key
Turn on/off BLC
6
Menu Key
Enter/Exit Menu
7
Camera PTZ
Control Key
Press the HOME button to return the camera to the
center position
8
Preset
Erase Key
Press "Reset"+ Number (1-9)to erase the
corresponding Preset
9
Preset
Setting Key
Press "Preset"+ Number (1-9)to save the
corresponding preset
10
Focus Key
[AUTO]: Automatic focus
[MANUAL]: Manual focus
[FAR]: Manual focus on distant objects
[NEAR]: Manual focus on nearby objects
11
Zoom Key
+ increase, - decrease
12
Number Key
Used for setting and recalling Presets
Note:
Always maintain a direct and unobstructed line of sight between the remote control and the
sensor on the front of the camera.
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 9

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Application Example
Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: [phone] ·Email: [e-mail] 10

BZBGEAR BG-EPTZ-UH4K PRODUCT MANUAL
Tech Support
Have technical questions? We may have answered them already!
Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and
tips regarding our products. Here you will find our Knowledge Base
(bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step
troubleshooting instructions. Or explore our YouTube channel, BZB TV
(youtube.com/c/BZBTVchannel), for help setting up, configuring, and other helpful how-to
videos about our gear.
Need more in-depth support? Connect with one of our technical specialists directly:
Phone
1.888.499.9906
Email
[e-mail]
Live Chat
bzbgear.com
Warranty
BZBGEAR Pro AV products and cameras come with a three-year warranty. An extended
two-year warranty is available for our cameras upon registration for a total of five years.
For complete warranty information, please visit bzbgear.com/warranty.
For questions, please call 1.888.499.9906 or email [e-mail].
Mission Statement
BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment
ranging from AVoIP, professional broadcasting, conferencing, home theater, to live
streaming solutions. We pride ourselves on unparalleled customer support and services.
Our team offers system design consultation, and highly reviewed technical support for all
the products in our catalog. BZBGEAR delivers quality products designed with users in
mind.
