C-Data CR200-1432R-B User manual

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
Wireless Router Products
CR200-1432R-B 300M Wireless Router
User Manual
Version：V1.1

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
Content
1Note...........................................................................................................................................1
1.1 Installation Precautions.................................................................................................1
1.2 Precautions for Use .......................................................................................................1
2Brief ..........................................................................................................................................3
2.1 Product Features............................................................................................................3
2.2 Product Specifications...................................................................................................3
2.3 Device Interface Definition...........................................................................................4
2.4 LED Description ...........................................................................................................5
2.5 Device Connection........................................................................................................5
3WIFI Router Local Web Login Management...........................................................................5
3.1 Physical Connection of WIFI Router And PC...............................................................5
3.2 PC Access the WEB of WIFI Router ............................................................................6
4View WIFI Router Status..........................................................................................................7
4.1 View WIFI Router System Status .................................................................................7
4.2 View WIFI Router LAN Port Information ....................................................................8
4.3 View WIFI Router Wireless Information ......................................................................8
5WIFI Router Internet WAN Configuration...............................................................................9
5.1 Set WIFI Router PPPoE Access Internet Method .........................................................9
5.2 Set WIFI Router DHCP Access Internet Method........................................................11
5.3 Set WIFI Router Static IP Address Access Internet Method .......................................12
5.4 View WIFI Router Internet WAN Connection Status .................................................14
6WIFI Router LAN Port Configuration....................................................................................14
6.1 LAN IP Address And DHCP Server Configuration ....................................................14
6.2 View LAN Side Connect Client..................................................................................15
7AP,Universal Repeater,Wireless-isp,AP-Client Mode Introduce............................................16
7.1 AP Mode Introduce.....................................................................................................16
7.2 Universal Repeater& Wireless Isp&AP-Client Mode Introduce.................................17
8WLAN Configuration .............................................................................................................18
8.1 WLAN Basic Configuration .......................................................................................18
8.2 WLAN Password Configuration.................................................................................19
8.3 Config Parental Control Strategy................................................................................21
9WIFI Router Management ......................................................................................................21
9.1 Time Zone Config.......................................................................................................21
9.2 Backup And Restore Configuration Files....................................................................22
9.3 Firmware Upgrade ......................................................................................................23
9.4 Reboot And Restore Default Settings WIFI Router ....................................................23
9.5 Config WIFI Router Login Username And Password.................................................23
Concluding Remarks.......................................................................................................................24

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
1
1 Note
1.1 Installation Precautions
Do not place the equipment near flammable or conductive items, high temperatures (such as
direct sunlight) or in wet conditions, or on a PC chassis, and check that the surrounding
appliances are stable.
Check the cable for aging. Check and verify that the AC or DC input voltage is within the
permissible range of the device and that the polarity of the DC is correct.
Unless the manufacturer permit, use the type of power indicated on the label and the adapter
supplied with the product.
To prevent damage to the product from lightning, make sure that the ground of the power
outlet and the power adapter is securely grounded. In the thunderstorm, be sure to unplug
the power and all the connections.
Equipment input voltage fluctuation should be less than 10%, the power plug, refrigerators,
hair dryer and iron should not use the same socket.
To avoid electric shock or fire due to overload of the power outlet, damage to the cord or
damage to the plug, check the power cord regularly. If damage is found, replace it
immediately.
Please place the device on a flat surface and can not place items on the device.
Equipment is easy to produce heat when working, should maintain the appropriate cooling
space to avoid damage caused by overheating products. The elongated hole on the shell is
designed for heat dissipation. Keep the ventilation clean and avoid falling from the heat
sink into the equipment. Otherwise, the equipment may be damaged or fire. Do not spill
liquid onto the surface of the equipment.
1.2 Precautions for Use
Please read the user manual carefully before using the equipment and follow all the
precautions on the user manual and the product.
Avoid eye looked at the optical interface directly, so as to avoid the laser beam emitted by the
interface damage the eyes. Please try to wear safety glasses to effectively protect your eyes
from damage. It is best to plug in the fiber optic interface jacket when the optical interface
is not in use .
Turn off the power when the device is not in use
Before plugging the power supply, make sure that the power switch is turned off to avoid
surge. Be careful when unplugging the power supply and the transformer temperature may
be high.

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
2
To ensure safety, do not open the enclosure of the device, especially when the device is
powered up.
Unplug the power supply before cleaning the equipment. Use a soft dry cloth to clean the
equipment to avoid the use of liquids or sprays.
Do not connect this product to any electronic product unless it is instructed by our customer
engineer or your broadband supplier, as any incorrect connection may cause power or fire
hazard.

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
3
2 Brief
The CR200-1432RB is a wireless router, support one wan port，four 100M lan port, double
antennas integration to the 300M wireless access points , allows you to quickly set up a 300Mbps
wireless network, and lets your computers can access to Internet.The wireless router is compatible
with IEEE802.11b/g/n standard,have two external antenna which supports data rate up to 300
Mbps,with the characteristics of strong penetrating power and wide coverage, it provides users with
more efficient data transmission protection.
2.1 Product Features
A wan port and four lan port all support automatic negotiation and port automatic reverse
300M Wireless Router with two external antenna.
Support NAT function
WPS fast security Settings, set a wireless encryption key
Support IP bandwidth control, reasonable distribute network bandwidth
Support WDS wireless bridge, easily extend wireless networks
Support parents control function, can control time online and Internet content
Supports PPPoE, Dynamic IP, Static IP access to internet
Use wireless Roaming technology, to ensure efficient wireless connection
Automatic dialing, on-demand dialing, timing dialing, meet the demand of various dial
Support UPnP, DDNS, static routing, VPN Pass - through
Provide DoS attack prevention, with functions of automatic isolation virus
Support virtual servers, special application and DMZ host port forwarding, can be used in
the construction of Intranet web sites
Support SSID broadcasting control, support access control list based on the MAC address
Provide 64/128/152 - bit WEP encryption, support WPA/WPA-PSK、WPA2/WPA2-PSK
security mechanism
Built-in firewall, support IP, MAC, URL filtering, can be flexible to control Internet access
and online time
Built-in DHCP server, and can automatically and dynamically assigned IP address
Support free software upgrade
2.2 Product Specifications
Working Temperature: 0 ℃ to 50 ℃
Storage Temperature: - 40 ℃ to 70 ℃
Work Humidity: 10% to 90%RH does not condense
Storage Humidity: 5% to 90%RH does not condense
Power Adapter Input: DC12V/0.5A

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
4
2.3 Device Interface Definition
LAN port: connect computers and other terminal devices.
WAN port: connect the operators network .

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
5
2.4 LED Description
Indicator
Description
1
PWR
Power status
On: The WIFI router is power on;
Off: The WIFI router is Power off;
2
WLAN
WLAN Status
Blinking：Have device connect to wifi
On：Wi-Fi function Opens
Off：Wi-Fi function Close
3
LANn
LAN port status
On: Ethernet connection is normal;
Blinking: Data is being transmitted
through the Ethernet port;
Off: Ethernet connection is not set up;
2.5 Device Connection
Connect to the Internet: Connect RJ - 45 cable to WIFI router WAN interface panel.
Connect cable: Connect router lan port to various household devices with RJ - 45 cable.
Connect the AC adapter: Plug the AC / DC adapter into the AC wall jack and the WIFI
router 12V DC power jack.
3 WIFI Router Local Web Login Management
3.1 Physical Connection of WIFI Router And PC
a) Local NIC of PC connects to LAN port of WIFI router via wires.
b) Set the IP address of PC’s local NIC as 192.168.1.X (X：2-254).

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
6
c) Open PC “cmd” windows and make sure that PC can ping the management IP (192.168.1.1)
of WIFI Router.
3.2 PC Access the WEB of WIFI Router
Make sure computers and WIFI router connected in # 3.1, open PC Web browser (IE, firefox,
Google), copy and paste the WIFI router to access the URL：http://192.168.1.1, then pop-up WIFI
router prompt login page as follows:

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
7
Input WIFI router UserName：admin PassWord：admin，Click “Log In” button.

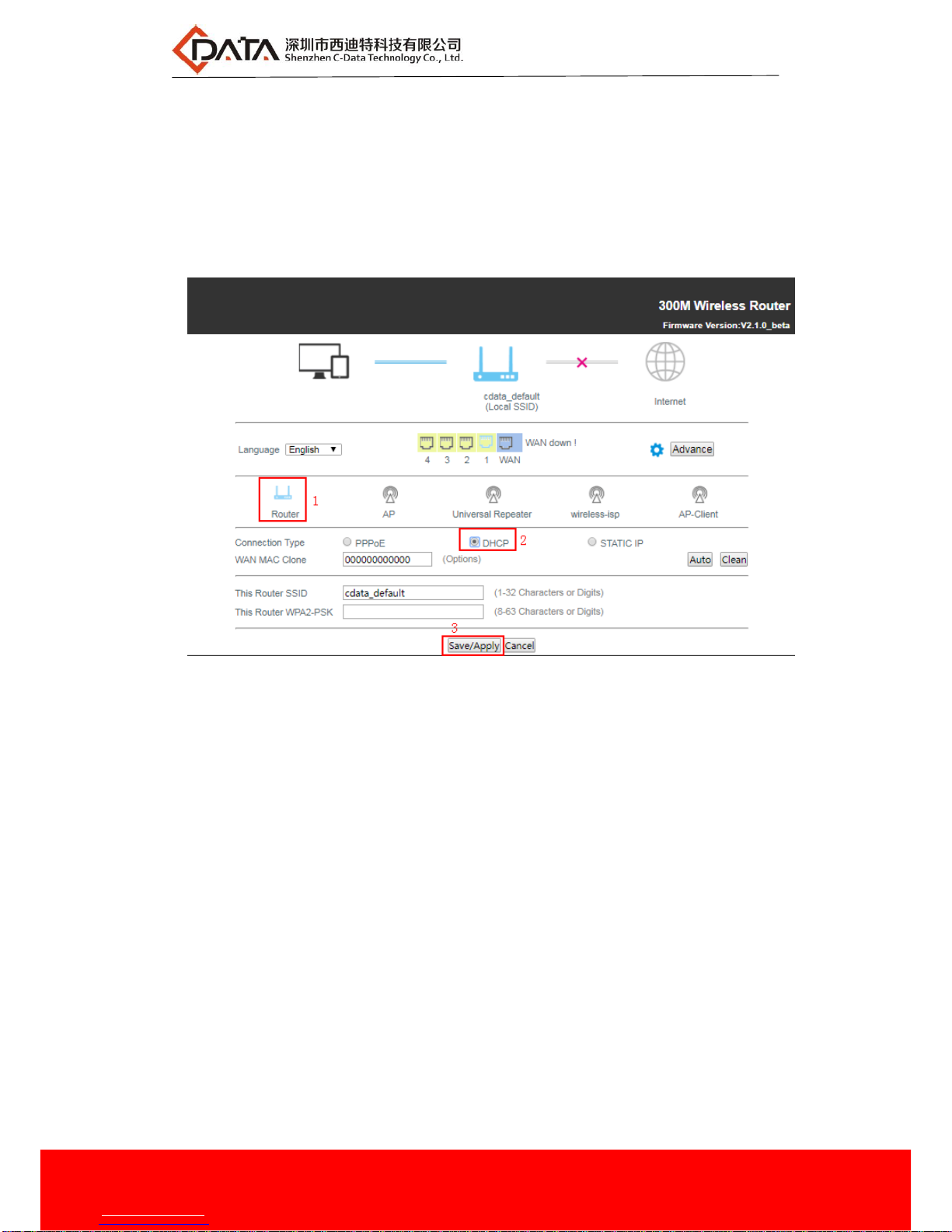

Then we can see setup guide as follows：
#1. Set WIFI router web interface languae,support chinese and english

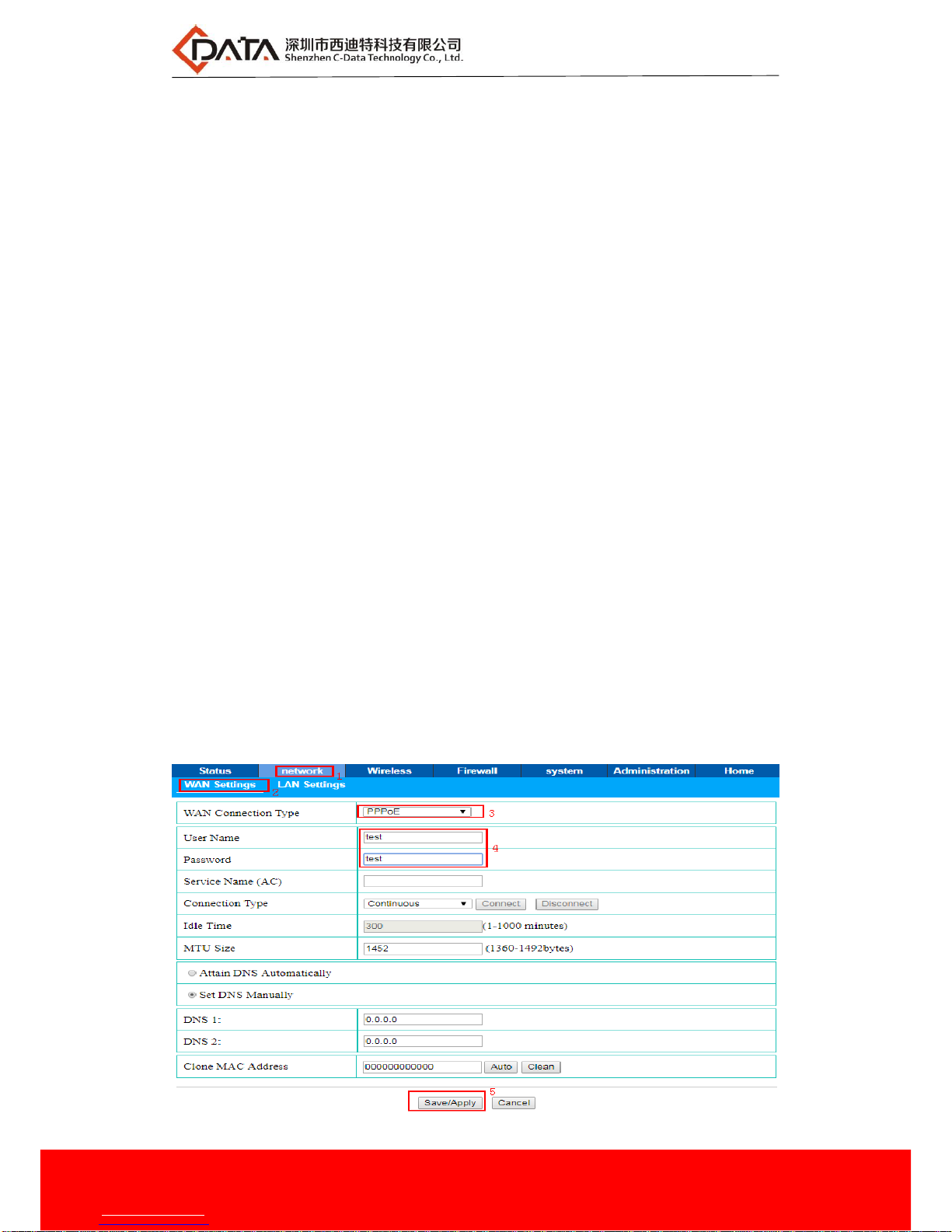

#2、3. Set the WIFI router internet access method.support PPPOE,DHCP and STATIC IP.
#4. Set WIFI SSID name and password
#5. Click【Advance】input WIFI router main web interface.
#6. Click【Save/Apply】to make setting work
After entering the main interface of the WIFI router, you can further set up the WIFI router,
next we can see the set guide.
4 View WIFI Router Status
4.1 View WIFI Router System Status
1. Entry WIFI router web main interface,then click Status ->Status -> System

Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055)
Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
Tel: [phone] Fax:[phone]
Website: www.cdatatec.com
8
Information,then we can see WIFI router uptime,firmware version and build time
information：
4.2 View WIFI Router LAN Port Information
1. Entry WIFI router web main interface,then click Status ->Status -> LAN Settings,then we
can view LAN port manage IP address and mac address.：
4.3 View WIFI Router Wireless Information
1. Input WIFI router web main interface,then click Status ->Status -> Wireless
Settings,then we can view WIFI router SSID,Auth and Encryption status,Addociated
Clients,Channel Number and Band Mode：
