Cabela's Ice Team 360 TC Hub Shelter User manual

C a b e l a ’ s / I c e T e a m 3 6 0 T C H u b S h e l t e r
M o d e l N o . 9602
S p e c i fi cat i o n s
▪
H e i g h t - 8 0 i n c h e s
▪
Footprint –9 ft diameter ▪ W e i g h t –45 l b s .
Instructions: 104071
- C u s t o m e r S e r v i c e I n f o r m a t i o n -
NOTICE: Please contact Clam Customer Service directly at the email address or phone
number below for any quality issues.
 Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
 Phone: [phone]
Fax: [phone]
Email: [e-mail]
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT! PLEASE READ: Warranty Information
This product is warranted to the original retail purchaser ( n o t t r a n s f e r a b l e ) its product t o be free
from manufacturers defects for one (1) year from the date of the original purchase. W a r r a n t y d o e s
n ot c o v e r c r a c k e d w i n d o w s , t e n t t e a r s , b r o k e n o r b e n t h o o p s d u e t o h i g h w i n d
w e a t h e r c o n d i t i o n s o r u n a t t e n d e d u s e . T h e p a r t will replaced or repaired (manufacturer’s
option) i f found defective within the one (1) year time frame. Warranty will be void if product has been
subject to neglect, misuse, improper installation, misapplication, alteration, or accident including, but not
limited to, improper maintenance or use of unauthorized parts or attachments. Please read this entire
owner’s manual to ensure proper installation, use, storage, and care for your shelter.
To submit a Warranty Claim Request, please use one of the following methods:
• Email: Custome [e-mail] (Preferred
Method)
• Call: 763-231-4120
• Write: Customer Service – Warranty Department
12135 Brockton Lane N.
Rogers, MN 55369
Information needed to submit a warranty claim: If you need to submit a warranty claim, please e-
mail the Customer Service Department at [e-mail]. In your e-mail, please include
your full name, address, phone number, a copy of your receipt, a brief description of the problem, and
pictures to clearly show the area(s) of concern. Clam’s warranty department will review your request and
a Clam representative will contact you regarding your claim status. All returns must be returned with
postage pre-paid.
- L i m i t a t i o n o f L i a b i li t y -
It is expressly understood that Clam Corporation’s liability for its products, whether due to breach of warranty,
negligence, strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Corporation is
not liable for any injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss
of use, income, profit, or damage to material arising in connection with the sale, installation, use of, inability to use,
or the repair or replacement of Clam Corporation products. Clam Corporation reserves the right to make alterations
or modifications in its products at any time, which in its opinion, may improve the performance and efficiency of the
product. Clam shall not be obligated to make such alterations or modifications to products already in service.

Page 2
SAFETY INSTRUCTIONS
Please fully understand and follow all safety instructions
outlined in this booklet. Failure to do so could result in
severe injury.
• Do not use open flame heaters in your ice shelter.
Open vents for cross ventilation.
• Ice Armor fabric will melt when contact is made with
hot surfaces (i.e., heaters).
• Never leave shelter unattended when set up.
• Due to the increase in traffic (snowmobiles, autos,
etc.) on area lakes, ice fishing can be hazardous at
night. If you choose to fish at night or in poor visibility
conditions, be sure to take precautions with lights or
reflectors to show drivers your whereabouts.
• Use external anchors in excessive wind (15+mph)
Death from asphyxiation may result from use of
oxygen depleting heaters. Open all vents for
fresh air ventilation.
Injury or death may result from fire if tent fabric is
exposed to open flame.
Tent fabric is not fireproof. Fabric will burn with
extended exposure to open flame. Do not use
open flame products inside tent. Tent fabric is
treated with fire retardant. Application of any for-
eign substance may render the flame retardant
properties ineffective.
Night time: exterior reflectors must be visible to
reduce risk of collisions.
This tent is made with flame resistant fabric
which meets CPAI-84 specifications.
CABELA’S / ICE TEAM 360 TC P ARTS LIST
IT EM #
DESCRIPTION
QT Y. PART NO.
Customer service hours:
1
HUB AND POLE KIT(ROOF)
1
109864
9am –4pm, (CentralTime)
2
ICE ANCHOR
5
102457
Monday-Friday.
3
EXTERNALANCHOR STRAP
5
104042
4
HUBAND POLE KIT (WALLS)
5
109078
[e-mail]
5
CARRY BAG
1
104073
6
INSTRUCTION S/OW N ER’S MANUAL
1
104071
Ice Anchors andtie ropes included in sm all carry pouch.
Replacement parts can be ordered on-line at http://www.clamcorp.com.
SET-UP INSTRUCTIONS
BEFORE ATTEMPTING TO USE THIS PRODUCT ON THE ICE go to www.clamcorp.com,
click on your shelter model, and watch the set-up video provided. Then practice
setting up and takingdown at home in the comfort of a heated area such as a garage or basement.
Repeat several times until comfortable. This will make your on-ice set-up much easier.
NO T OOLS ARE NEEDED FOR ASSEM BLY OF YOUR CABELA’S / ICE TEAM 6x6 SHELTER.
1. Unzip the storage bag completely and remove
the shelter. Use care not to misplace the anchor
pouch (Photo 1). It is advised to store your
anchors and pouch in the storage pocket of your
carry bag.
Anchor pouch Photo 1

Page 3
SET-UP INSTRUCTIONS
2. Open the shelter so that the roof is facing
upward. Lay the shelter as flat on the ice as you
can, making sure that the tent is not twisted or
overlapping any of the poles (Photo 2). Do NOT
force the shelter while unfolding.
3. Stand on the skirt of the shelter, grasp the
yellowstrap on the eyelet in the center of the roof.
Pull upward on the loop until the roof section pops
up (Photo 3).
NOTE: The yellow looped hub (roof) gets
deployed FIRST on set-up and collapsed LAST
on take- down.
Photo 2
Photo 3
4. Grasp the strap on the eyelet in the center of
one of the walls, stand on the skirt, and pull
outward until the wall pops out (Photo 4).
Photo 4
5. W alk around the entire shelter and pull each wall
strap until all sides are popped out-5X, as this is a 5
sided shelter (Photo 5).
Photo 5

Page 4
SET-UP INSTRUCTIONS

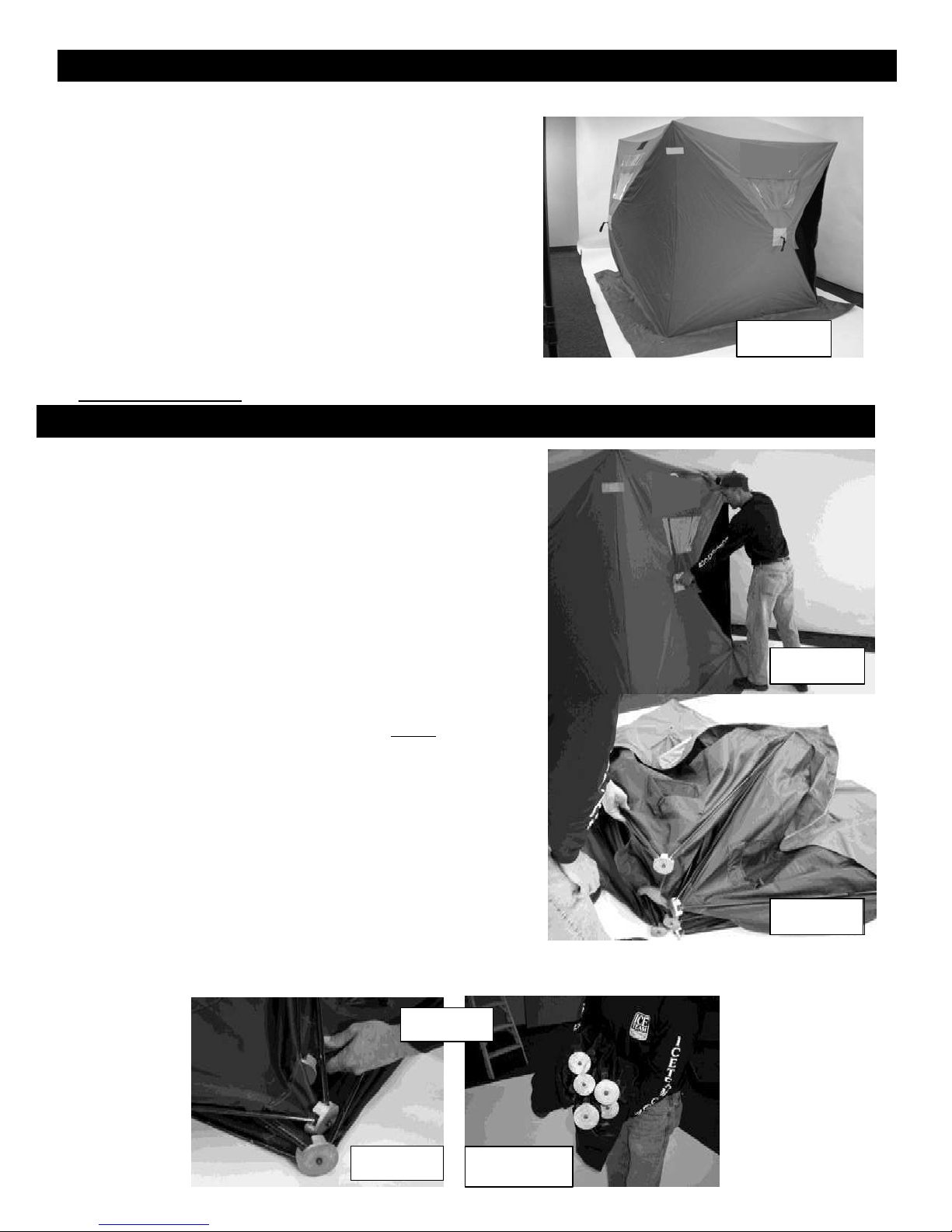

5. Your shelter should be standing up completely(Photo 6).
Anchor the shelter to the ice by using the provided ice
anchors and straps.
Screw two or more ice anchors into the ice several feet
away from the shelter using Clam’s Ice Anchor Installation
Tool PN 108348 (not included). Use the provided anchor
straps found in the pockets under each side wall hub to
secure the hubs to an anchor, and the adjustment slide on
the strap to achieve proper tension. Next, screw two
anchors through the windward corner shelter grommets
completely. This will help keep the shelter in place. If
more anchors are needed, order PN 108064 (pack of two)
via www.clamcorp.com.
Photo 6
TAKE-DOWN INSTRUCTIONS
TAKE-DOWN INSTRUCTIONS
1. Close all windows. Leave one or both doors open to allow
air to escape.
2. R emove ice anchors and store them in the provided
pouch. In windy conditions, remove ice anchors and straps
priorto collapsing the roof and walls.
3. Push the center hub on any wall until it collapses inward
(Photo 7). Continue pushing each wall inward until all the
walls are collapsed. The shelter will fall to the ice on its
own.
4. Push the hub of the roof (yellow loop) down
until it collapses.
5. The shelter will now be flat. Gather all corners of the
shelter and fold together (Photo 8). Do NOT force the
shelter when folding! Watch for entanglement of poles
(Photo 9).
6. Place the folded shelter and the ice anchor/rope pouch
back into the carrying case with the hubs toward the bottom
end of the bag.
Make sure your ice shelter is completely dried out after
each use and before storing. Store your ice shelter in a
cool, dry place. Keep away from rodents.
Photo 7
Photo 8
Photo 9
Tangled Untangled

- S a f e t y I n s t r u c t i o n s -
Please fully understand and follow all safety instructions as outlined. Failure to do so could result in severe
injury or death.
▪
Do not use open flame heaters in your ice shelter. Injury or death may result from fire if tent fabric is
exposed to open flame. The tent is not fireproof, but the fabric is treated with a fire retardant that meets
CPAI-84 specifications. Application of any foreign substance may render the flame retardant properties
ineffective. Ice Armor fabric will melt when contact is made with hot surfaces (i.e., heaters).
▪
Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for fresh air
ventilation.
▪Never leave shelter unattended when set up.
▪
Due to the increase in traffic (snowmobiles, autos, etc.) on area lakes, ice fishing can be hazardous at
night. If you choose to fish at night or in poor visibility conditions, be sure to take precautions with lights
or reflectors to show drivers your whereabouts. Night time: exterior reflectors must be visible to reduce
risk of collisions.
Death from asphyxiation may result from use of oxygen depleting heaters. Open all vents for
fresh air ventilation.
Injury or death may result from fire if tent fabric is exposed to open flame.
Tent fabric is not fireproof. Fabric will burn with extended exposure to open flame. Do not
use open flame products inside tent. Tent fabric is treated with fire retardant. Application of
any foreign substance may render the flame retardant properties ineffective.
Night time: exterior reflectors must be visible to reduce risk of collisions.
This tent is made with flame resistant fabric which meets CPAI-84 specifications.
*For replacement parts, frequently asked questions, shelter information, videos, and all of your ice fishing
needs visit our web site at www.clamcorp.com.
Due to Clam’s continued product development, Clam reserves the right to change specifications without notice. For complete de tails,
see the assembly and/or operating instructions that are provided and packaged with the purchased product.
Page 5

FREQUENTLY ASKED QUESTIONS
Q: How do Iset-up myhub shelter?
A: Go to www.clamcorp.comto watch an instructional video on the proper & simplest way to set-up and take-down a
hub style shelter.
Q: Ican see pin holes in my fabric:
A: There are a few explanations as to whythose pin holesexist.
Simplythe color and/or black-out coatingbeingworn off the fabric due exposure in the elements and wear
due to friction.
Ice Armor fabric is a woven material and these pin holes are parts of the thread that the coatingdid not
attach to. Either waythis has no effect on the function of the fabric and is simply an appearance issue.
Q: There are cracks on the inside finish of the fabric:
A: This is normal, when you fold up your shelter, lines develop in the fabric.The inside coating may even appear to be
peeling. This is normal and will not affect the overall function of the ice house.
Q: Will my Fish House leakbecause Ican see pin holes in the fabric?
A: Quite the opposite, as you heat your house and the snow and ice begin to melt, the vapors can better escape the
shelter through an uncoatedfabric. Whenit snows or rains, the water molecules are larger than the vapor molecules
and cannot pass through thefabric and into the house.
Q: Are patch kits available for my Fish Trap and Clamshelter?
A: Patch kits are available theycan be purchased online www.clamcorp.com.
Q: How do Iapplythe patch material?
A: When applyinga patch it works best to spray some adhesive (we recommend using 3M #77 or 3M #90 spray
adhesive) on to both surfaces; the part of the tent where the patch is going to be applied and the patch itself. Wait
until the adhesive begins to dry and becomes tacky, then place the patch on the tent, and theywill sticktogether.
Q: Is there anythingcan be put on outside of the tent to prevent water fromcomingthrough, when we are usingit? A:
Customers have been known to sprayor applywater repellant on the outside of the shelter that you would use for
campingtents or boots. (Camp Dry would be an example of this type of product).These products will not damage
your tent in anyway.
Q: What will help keep mice or rodents fromeating my ClamHub?
A: Some of our customers have had success with the followingways to keep mice out.
Keep your tent in a sealed plastic tote with DRYER SHEETS and or MOTH BALLS
Q: The zipper on my canvas freezes up and or sticks; is there anything Ican use to help prevent this fromhappening?
A: Yes, there are a couple of zipper lubricants out there that our customers and pro staff have had good luckwith.
Zipper Lube -A gel that you can applyjust bysqueezingit onto the zipper and movingthe zipper back
and forth.This brand can be found in the campingsection of most sportinggoods store.
Silicone spray mayalso be used as well.
Q: Wouldit be best to completelydry my shelter out everytime it gets used?
A: It is recommended to dryyour tent out completelyafter each use, if not dried completelymoisture left in the house
maycause damage to your tent.
Q: How do Iwash my shelters canvas?
A: You can use a bleach and water solution (10 parts water to 1 part bleach) to get rid of the mildew smell. If you want
to wash the tent you can use a standard soap to wash it.
*** Please note -We do not recommend placingyour shelter canvas/tent into a washing machine for cleaning.
Q: Am Iable to order parts and accessories fromyour website?
A: Absolutely, if you would like to order parts you can go to www.clamcorp.comunder “Parts/Info”
Page 6
