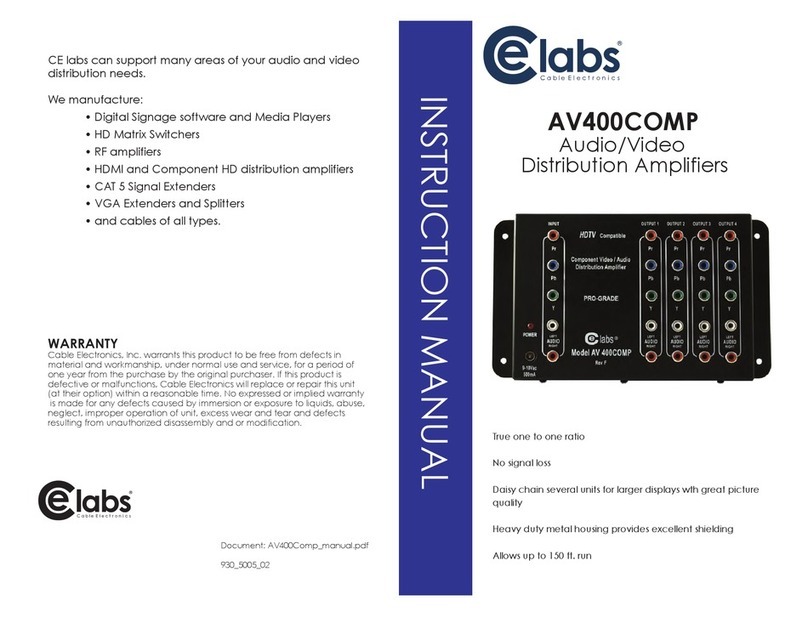

Cable Electronics e labs AV400COMP User manual

AV400COMP
HDTV, Component, (Y, Pr, Pb), Audio/Video Distribution Amplifier
COMPONENT DISTRIBUTION AMPLIFIERS
AV901HD & AV501HD
HDTV, Component,
(Y, Cb, Cr, or Y, Pb, Pr), Composite Video
Digital Audio, Left/Right Audio Distribution Amplifiers
New IC technology from CElabs allows
for multiple signal distribution equal to
source signal output with no signal loss.
Call 1.800.767.6189 or visit www.celabs.net
3209 Wood Drive
Garland, Texas 75041 ©2005 Cable Electronics, Inc. CEX and CElabs are registered trademarks of Cable Electronics, Inc.
All rights reserved
Distribute HDTV and analog television signals from a single A/V
source to multiple television receivers.
Compatible with all HDTV, digital and analog video signals
Daisychain several units for larger displays with great picture quality
Allows up to 150 ft. runs
Save the expense of additional A/V receivers
high
performance
PROGRADE
Component
A/V Distribution
Amplifiers
AV901COMP
HDTV, Component, (Y, Pr, Pb), Audio/Video Distribution Amplifier

COMPONENT DISTRIBUTION AMPLIFIERS
Video
Gain: 2 Volt unterminated, 1 Volt Terminated: 75 ohms + 5%
Input Impedance: 75 ohms + 5%
Output Impedance: 75 ohms + 5%
Video Insertion Loss: 50 Hz to 10 MHz < .40 dB
In to Out Isolation: 50 Hz to 10 MHz 32 dB Port to Port
Out to In Isolation: 50 Hz to 10 MHz 60 dB
Return Loss: 50 Hz to 10 MHz 20 dB
Video Bandwidth: > 100 MHz
Audio Response: > 100 KHz
Audio
Gain: Unity
Input Impedance: 22k ohm
Output Impedance: 1k ohm
THD: 0.05% at 1.0 Volts input level
Frequency Response: 20 Hz to 100 KHz
Channel Separation: > 75 dB @ 1 KHz
In to Out Isolation: 60 dB
Out to Out Isolation: 60 dB
Signal to Noise: 100 dB re 2 Volts (out)
Audio (Digital – AV501HD & AV901HD only)
Supports standard SPDIF digital audio. Unity gain when
terminated into 75 ohms (2X gain high imp.). Greater than
50 MHz of bandwidth to ensure minimal degradation.
(If not used for digital audio, this port can be used to
switch standard video).
Power
Requirement: External 9 to 10 Volt AC @ 500 mA
(AV901HD = 1000 mA) with a 2.1 mm coaxial connector.
Power supply is included.
high performance, prograde
A/V Distribution Amplifiers
AV901HD, AV501HD, AV901COMP, AV400COMP
Daisychain to large number of televisions with equal picture quality. Save the expense of additional
A/V receivers and allows up to 150 ft. runs.
HIGH PERFORMANCE
AUDIO AND VIDEO
COMPONENT
DISTRIBUTION AMPLIFIER
True One to One Ratio
Four Output
Model AV400COMP
CABLE ELECTRONICS, INC.
HIGH PERFORMANCE
AUDIO AND VIDEO
COMPONENT
DISTRIBUTION AMPLIFIER
True One to One Ratio
Four Output
Model AV400COMP
CABLE ELECTRONICS, INC.
DVD or Digital Set-Top Receiver
HIGH PERFORMANCE
AUDIO AND VIDEO
COMPONENT
DISTRIBUTION AMPLIFIER
True One to One Ratio
Four Output
Model AV400COMP
CABLE ELECTRONICS, INC.
Call 1.800.767.6189 or visit www.celabs.net
3209 Wood Drive • Garland, Texas 75041
