Cable-Tronix CT-HDBASET-330 User manual

Model No.: CT-HDBASET-330
Operating Instructions
Thanks for purchasing our product.
Please be sure to read this instruction manual
carefully before using this product.

Introduction
The CableTronix CT-HDBASET-330 is an HDBaseT Transmitter and Receiver
set with Pass Through HDMI OUT, IR, RS-232, Ethernet, and PoE (PSE).
Benefits of using The CT-HDBASET-330
1) The CT-HDBASET-330 transmitter and receiver transmits 1080P across
distances up to 330 feet. For general HDMI cables, cables must be
customized when the distance is over 30 feet and are still limited to about
50 feet before losing significant picture quality.
2) The IR system can control the Sources from the Displays or control the
Displays from Sources.

Contents
HDMI Extender .....................................................................................1
Product Overview .................................................................................1
Features................................................................................................1
Package Contents ................................................................................3
Connections and Operations................................................................3
Dip Switch Settings………………………………………………………………… 4
Specifications........................................................................................5
Panel Descriptions................................................................................6
Typical Application ................................................................................7
Maintenance .........................................................................................7
Product Service.....................................................................................7
Warranty................................................................................................8

HDMI Extender(By single CAT-5E/6E cable)

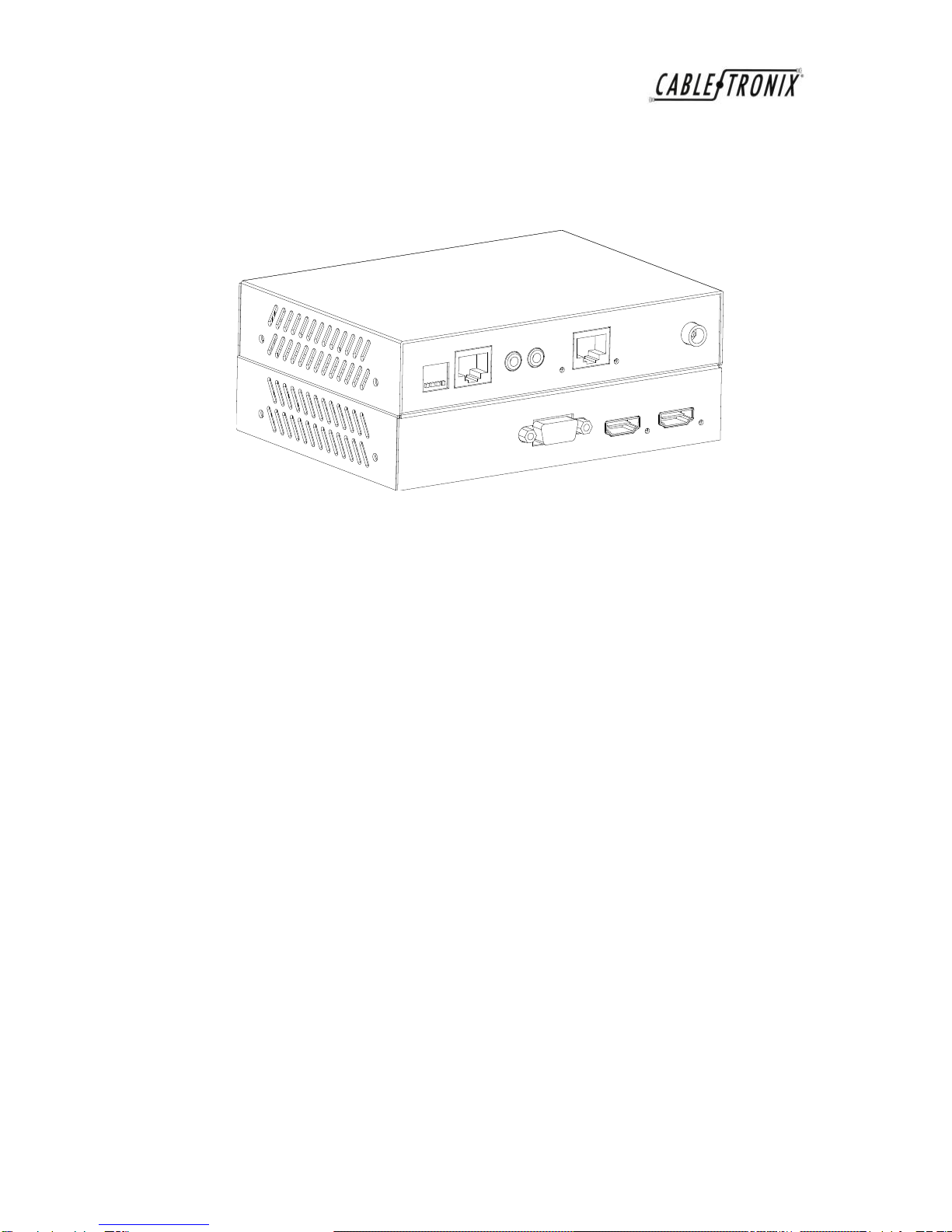

■Product Overview ( Model Number: CT-HDBASET-330 )
■Features
Uses a single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to
achieve long distance transmission.
UTP cable termination follows the standard of IEEE-568B.
Transmission distance reaches up to 330 feet (100 meters) under the
1080P video format.
Auto-adjustment of feedback, equalization and amplification.
HDMI V1.4 with 3D.
HDCP compliant.
LED indicators show the power status.
ESD protection inside.
Mounting ears supplied.
Transmission of 10M/100M Ethernet with the HDMI signal.
Transmission of Bidirectional Infrared control signal together with the HDMI
signal.
RS232 Port for firmware update or RS232 control signal transmission.
This model can be cascaded.
Supports local HDMI pass-through
PoE(PSE)

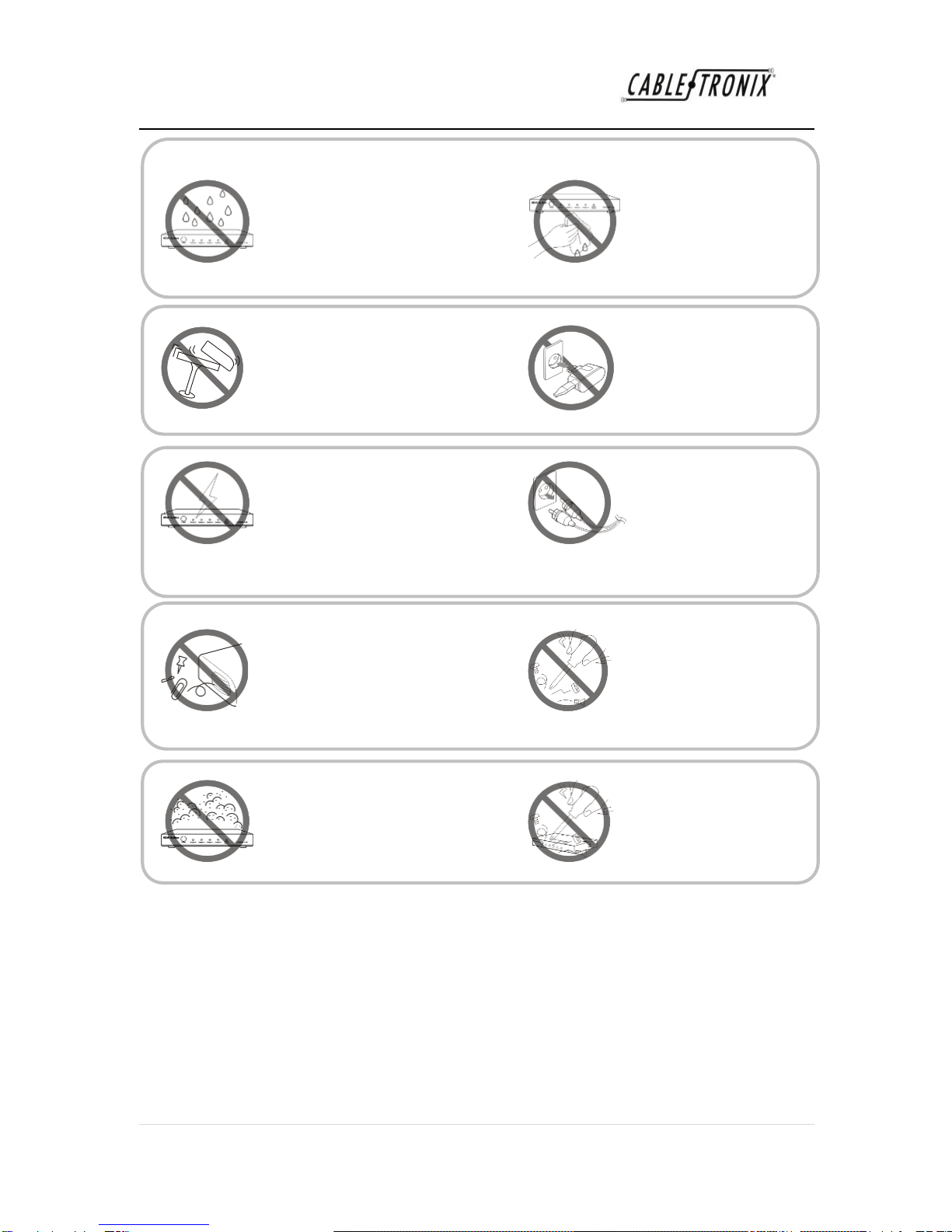

Notice To reduce the risk of fire, electric shock or product damage:

2 | P a g e
1. Do not expose this device to
rain, moisture, dripping or
splashing.
6. Clean this device with
a dry cloth.
2. Do not install or place this unit
in a bookcase, built-in cabinet or
in other confined spaces. Ensure
the unit is well ventilated.
3. To prevent risk of electric
shock or fire due to
overheating, do not obstruct
the unit’s ventilation openings
with newspapers, tablecloths,
curtains, and similar items.
4. Do not install near any heat
sources such as radiators, heat
registers, stoves, or other devices
(including amplifiers) that
produce heat.
5. Do not place open flames,
such as lighted candles, on the
unit.
7. Unplug the device
during lightning storms or
when unused for long
periods of time.
8. Protect the power cord
from being walked on or
pinched particularly at
the plugs.
9. Only use accessories
specified by the
manufacturer.
10. Refer all servicing to
qualified service
personnel.

■Package Contents
①Main unit NO.1. P/N_ CT-HDBASET-330
②Operating instructions. P/N_INS_CT-HDBASET-330.
③1x 12VDC power supply P/N_VDC1202.
④1x IR TX unit. (IR emitter cable)
⑤1x IR RX unit. (Broadband IR receiver cable)
⑥2x mounting ears.
NOTE: PART NUMBER (Abbreviation as P/N)
■Connections and Operations
1) Connect the HDMI Source ( such as HD-DVD、video game unit、NVR,
STB etc.) to HDMI Input of CT-HDBASET-330.
2) Connect a CAT-5E/6E cable from CAT6/STP Output of CT-HDBASET-330
to CAT6/STP Input of CT-HDBASET-330.
3) Connect the HDMI Display ( such as HD-LCD TV、HD-Projector, etc.) to
the HDMI Output of CT-HDBASET-330 (And to HDMI Pass Through of
CT-HDBASET-330 if necessary).
4) Connect the IR TX UNIT into CT-HDBASET-330 IR TX; Connect the IR RX
UNIT into CT-HDBASET-330 IR RX.
5) Connect the IR RX UNIT into CT-HDBASET-330 IR RX; Connect the IR TX
UNIT into CT-HDBASET-330 IR TX.
6) Power on CT-HDBASET-330
Attention: Please insert and disconnect cables gently.

4 | P a g e
※DIP Switcher Instruction:
1
2
3
4
Function
X
X
X
0
Normal mode
X
X
X
1
Long Cable mode
0
0
0
X
Copy from the first detected display (note1)
0
0
1
X
1080P 3D stereo (note2)
0
1
0
X
1080P stereo (note3)
0
1
1
X
1080i stereo (note4)
1
0
0
X
1080P 5.1 (note5)
1
0
1
X
1080P 7.1 (note6)
1
1
0
X
MCU Upgrade mode(note7)
1
1
1
X
Main Chip Upgrade mode(note8)
Note 1: Copy the first detected display’s EDID to the input port.
Note 2: The matrix will use the embedded 1080P-stereo 3D compatible EDID.
Note 3: The matrix will use the embedded 1080P-stereo EDID.
Note 4: The matrix will use the embedded 1080i-stereo EDID.
Note 5: The matrix will use the embedded 1080P-5.1 EDID.
Note 6: The matrix will use the embedded 1080P-7.1 EDID.
Note 7: Upgrade MCU through RS232 port.
Note 8: Upgrade Main Chip through RS232 port.
※For RS232 signal transmission, do not set RS232 port to upgrade modes.
Connect two RS232 cables to both RS232 ports of CT-HDBASET-330 and
CT-HDBASET-330, these two cables work together as one extension cable.

■Specifications
Operating Temperature Range
-5 to +35°C (-41 to +95 °F)
Operating Humidity Range
5 to 90 % RH (no condensation)
Input Video Signal
0.5-1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Video Format Supported
DTV/HDTV: 1080P/1080i/720P/576P
/480P/576i/480i
DVI VESA: 1280x1024/1920x1200
Output Video
HDMI 1.4+HDCP (repeat the source to
the display)
Output Audio
Support DTS-HD, Dolby-HD (repeat the
source to the display)
Maximum Transmission Distance
330 Feet
Power Supply
12V DC
Power Consumption
17 Watts Max
PoE
IEEE 802.3af™ compliant PSE
Dimensions
145mmW×106mmD×29mmH
/5.71’’W×4.17’’D×1.14’’H
Mass (Main unit)
0.44Kg / 0.97lb
NOTE1: Specifications are subject to change without notice. Mass and dimensions are
approximate.

6 | P a g e

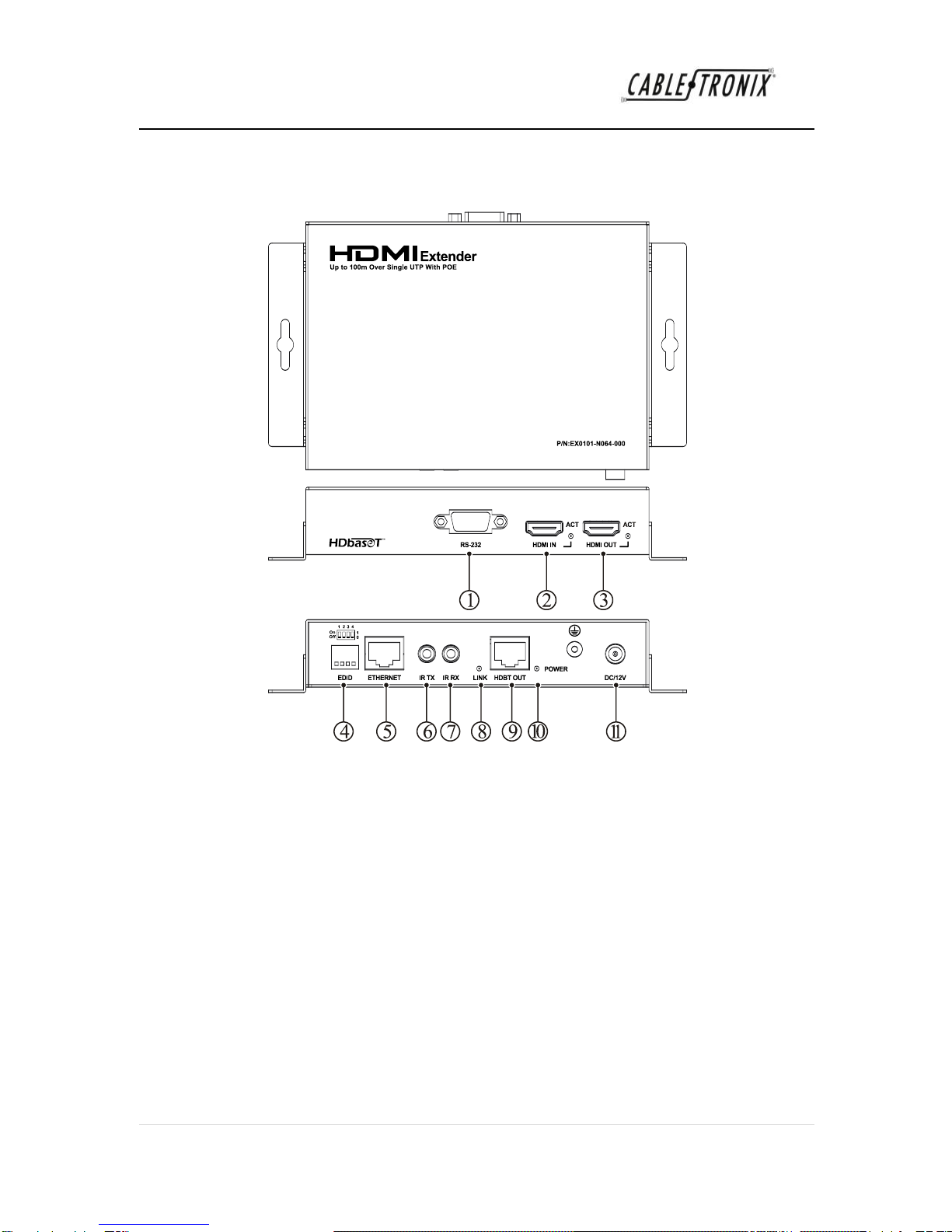

■Panel Descriptions
1. CT-HDBASET-330
①RS232 Port
②HDMI Input & Active Indicator
③HDMI Pass Through & Active Indicator
④DIP Switcher
⑤Ethernet Connecter
⑥IR TX
⑦IR RX
⑧HDBASET Link Indicator
⑨HDBASET Out
⑩Power Indicator
⑪DC 12V Power Input

Typical Application
NOTE: In order to be compatible with Electro Magnetic Compatibility
(EMC), Shielded twisted pair cables
and EMC approved HDMI cables are highly recommended.
■Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine
to clean this unit.
■Product Service
●Provided Service
1) Damage Requiring service: The unit should be serviced by qualified
service personnel if:
The DC power supply cord or AC adaptor has been damaged;
Objects or liquids have gotten into the unit;
The unit has been exposed to rain;
The unit does not operate normally or exhibits a marked change in
performance;

8 | P a g e
The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that
described in these operating instructions. Refer all other servicing to
authorized servicing personnel.
3) Replacement parts: When parts need replacing ensure the service uses
parts specified by the manufacturer or parts that have the same
characteristics as the original parts. Unauthorized substitutes may result
in fire, electric shock, or other hazards.
4) Safety check: After repairs or service, ask the service to perform safety
checks to confirm that the unit is in proper working condition.
●Warranty
CABLETRONIX. (the "Company") warrants to the Original Purchaser that the item purchased is
free from defects in workmanship or material under normal use. This warranty starts on the date
of shipment of the hardware to the Original Purchaser.
During the warranty period, the Company agrees to repair or replace, at its sole option, without
charge to Original Purchaser, any defective component. To obtain service, the Original Purchaser
must return the item to the Company properly packaged for shipping. All defective products must
be returned to the Company within thirty (30) days of failure. Products must be returned with a
description of the failure and Return Merchandise Authorization (RMA) number supplied by the
Company. To receive a RMA number and a return shipping address on where to deliver the
hardware, call 610-429-1821. The shipping, and insurance charges incurred in shipping to the
Company will be paid by Original Purchaser, and all risk for the hardware shall remain with the
Original Purchaser until such time as Company takes receipt of the hardware. Upon receipt, the
Company will promptly repair or replace the defective unit, and then return said unit to Original
Purchaser, shipping prepaid. The Company may use reconditioned or like-new parts or units, at its

sole option, when repairing any hardware. Repaired products shall carry the same amount of
outstanding warranty as from original purchase. Any claim under the warranty must include dated
proof of purchase or invoice. In any event, the Company's liability for defective hardware is
limited to repairing or replacing the hardware.
This warranty is contingent upon proper use of the hardware by Original Purchaser and does not
cover: if damage is due to Acts of God (including fire, flood, earthquake, storm, hurricane or other
natural disaster), accident, unusual physical, electrical, or electromechanical stress, modifications,
neglect, misuse, operation with media not approved by the Company, tampering with or altering of
the hardware, riot, war, invasion, act of foreign enemies, hostilities (regardless of whether war is
declared), civil war, rebellion, revolution, insurrection, military or usurped power or confiscation,
terrorist activities, nationalization, government sanction, blockage, embargo, labor dispute, strike,
lockout or interruption or failure of electricity, air conditioning, or humidity control, internet,
network, or telephone service
The warranties given herein, together with any implied warranties covering the hardware,
including any warranties of merchantability or fitness for a particular purpose, are limited in
duration to one year from the date of shipment to the Original Purchaser. Jurisdictions vary with
regard to the enforceability of warranty limitations, and you should check the laws of your local
jurisdiction to find out whether the above limitation applies to you.
The Company shall not be liable to your for loss of data, loss of profits, lost savings, special,
incidental, consequential, indirect, or other similar damages arising from breach of warranty,
breach of contract, negligence, or other legal action even if the Company or its agent has been
advised of the possibility of such damages, or for any claim brought against your by another party.
Jurisdictions vary with regard to the enforceability of provisions excluding or limiting liability for
incidental or consequential damages. You should check the laws of your local jurisdiction to find
out whether the above exclusion applies to you.
This warranty allocates risks of product failure between Original Purchaser and the Company. The
Company's hardware pricing reflects this allocation of risk and the limitations of liability

10 | P a g e
contained in this warranty. The warrantyset forth above is in lieu of all other expressed warranties,
whether oral or written. The agents, employees, distributors, and dealers of the Company are not
authorized to make modification to this warranty, or additional warranties bindingon the Company.
Accordingly, additional statements such as dealer advertising or presentations, whether oral or
written, do not constitute warranties by the Company and should not be relied upon.
This warranty gives you specific legal rights. You may also have other rights which vary from one
jurisdiction to another.
