Cables to Go 29346 User manual

2-Port USB SuperBooster
Receiver Dongle
Part #29346
User Manual

Introduction
Thank you for purchasing the USB SuperBooster Receiver Dongle. The USB
SuperBooster Receiver Dongle is one component of a complete solution that, when
paired with a transmitter (sold separately) allows you to conquer USB length limitations
and put your USB devices where you need them. This wall plate solution extends the
distance of a USB device to a host computer up to 150ft so you can place your USB
projector, camera, printer, or other USB device exactly where you want it! The USB
SuperBooster Dongle is powerful yet simple, with no drivers to install or special software
required. It is also compatible with any computer that supports USB.
This plug-and-play device consists of a transmitter unit and receiver unit incorporated
into single gang Decora compatible wall plates or dongles. Two transmitter options are
available so you can customize the configuration to meet your own needs. Choose from a
transmitter wall plate or a dongle.
The transmitter/receiver pair is connected via standard Cat5, Cat5E, or Cat6 UTP cable
allowing for easy installation. This makes for a clean, finished installation important for
home owners, classrooms, offices and anywhere you don’t want visible cables lying
around. Use pre-terminated network cables or pull un-terminated cable and use the
included tool-less IDC RJ45 connector. The USB SuperBooster Dongle is bus-powered
so no external power source is required.
1

Features
•Extends the distance of a USB device from a USB-enabled computer up to 150ft
•One part of a total solution- transmitter is purchased separately giving you the
flexibility to customize the configuration to your specific needs
•Transmitter options include a wall plate (part #29344) or a dongle (part #29348)
•Ideal for use with USB projectors, interactive whiteboards, cameras, printers,
web cams, hubs, and other USB devices
•Bus-powered so no external power source is required
•Uses standard Cat5/Cat5E/Cat6 patch cord (not included) for ease of use and
flexibility
•Included tool-less IDC RJ45 connector allows you to terminate your own cable
•Compliant with USB Specification 1.1
•Connectors:
oTransmitter (sold separately): USB Type B Female; RJ45 Female
oReceiver: Two USB Type A Female Ports; RJ45 Female
Package Contents
•USB SuperBooster Dongle- Receiver Unit
•(1) One RJ45 tool-less IDC connector
•User Guide
2

Installing your USB SuperBooster Dongle
The USB SuperBooster solution has a transmitter unit (sold separately) and a receiver
unit. Make certain you install the transmitter unit at your computer or
source side. The receiver unit needs to be installed on the device side.
1) Install the Wall Plate Transmitter in a standard J-box where you want your
source/computer or connect the Dongle Transmitter to your computer
2) Plug your device into the Dongle Receiver end (USB A side) using a standard
A/B (or A/Mini-B) USB cable
3) Use a pre-terminated Cat5/Cat5E/Cat6 cable (recommended) or terminate your
own cable using the tool-less RJ45 connectors included to connect the transmitter
and receiver together (see below for instructions on terminating your own cable)
4) If using a Wall Plate Transmitter, plug your computer into the transmitter end
(USB B side) using a standard A/B USB cable (The green LED will light to
indicate you have a good connection to the wall plate)
5) Turn your computer/source on and begin using your device

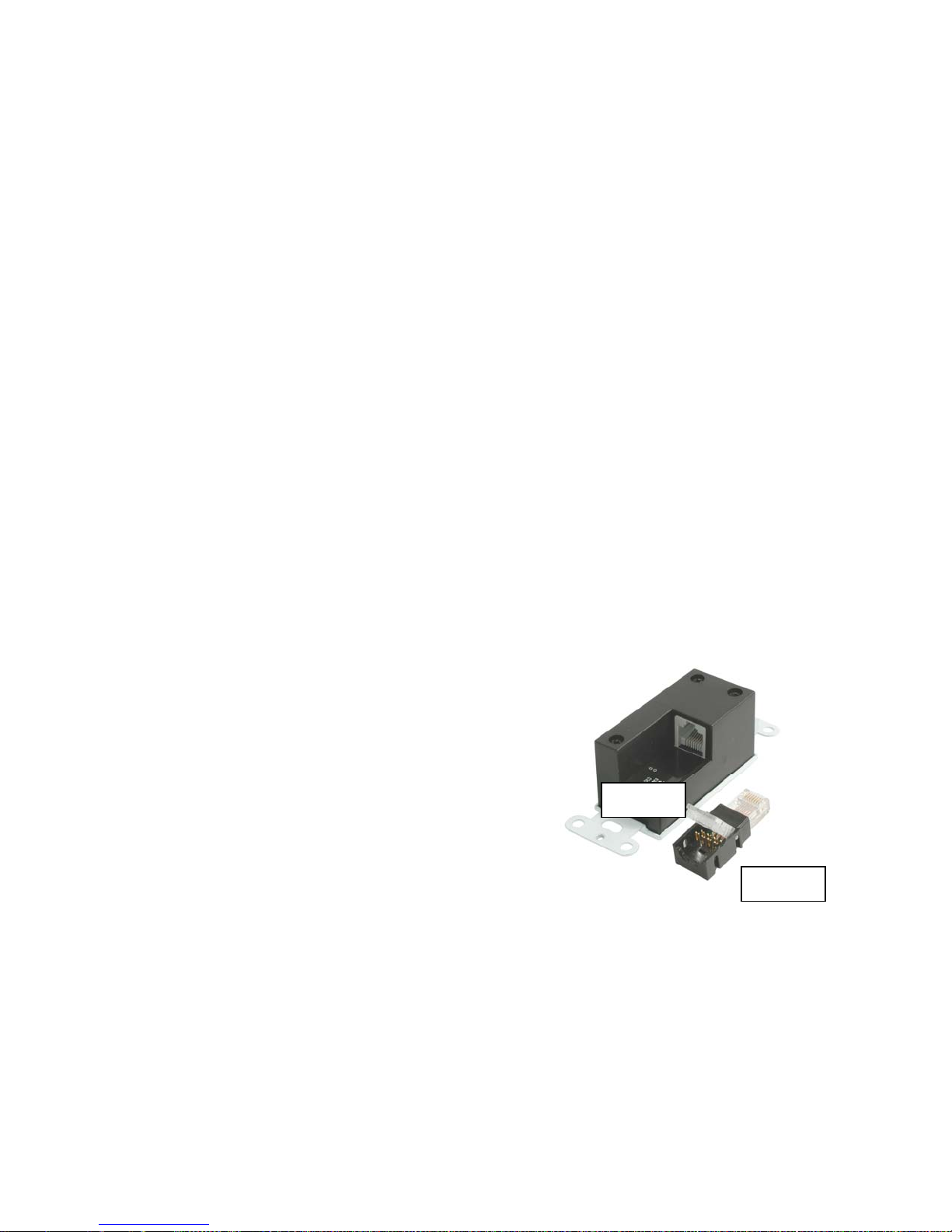

Terminating a Cat5/Cat5E/Cat6 Cable Using the Tool-less IDC
1) Open the plug by lifting the clear
plastic end
2) Pin 1 of the connector is on the
left side of the clear plastic shell
while Pin 8 is on the right side of
the connector (with RJ45
connector facing away from you)
3) Thread the white/orange
conductor on your Cat5/5E/6
cable into Pin 1
4) Thread the orange conductor on
your Cat5/5E/6 cable into Pin 2
5) Thread the white/green
conductor on your Cat5/5E/6
cable into Pin 3
6) Thread the blue conductor on
your Cat5/5E/6 cable into Pin 4
7) Thread the white/blue conductor
on your Cat5/5E/6 cable into Pin
5
8) Thread the green conductor on
your Cat5/5E/6 cable into Pin 6
9) Thread the white/brown
conductor on your Cat5/5E/6
cable into Pin 7
10)Thread the brown conductor on
your Cat5/5E/6 cable into Pin 8
11) Repeat steps 1-10 to terminate
the other end of your Cat5/5E/6
cable
Pin 1
Pin 8
3

Termination Chart
Pin Number Network (Cat5/5E/6)
Conductor Color
1 white/orange
2 orange
3 White/green
4 Blue
5 White/blue
6 Green
7 White/brown
8 brown

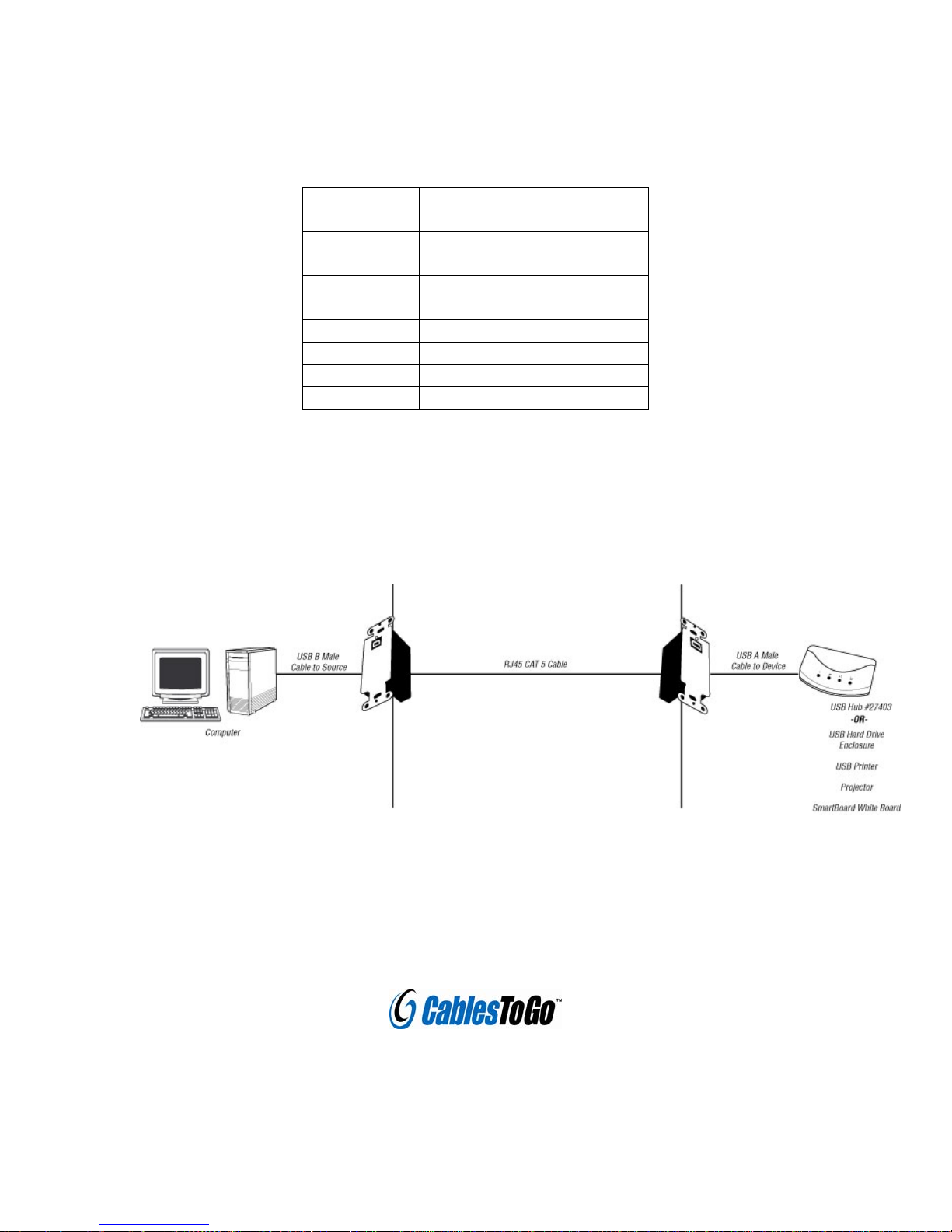

Application Diagram
Transmitter Receiver
3555 Kettering Blvd.
Moraine, Ohio 45439
1-800-293-4970
www.cablestogo.com
