Cabletron Systems CyberSWITCH CSX101 Owner's manual

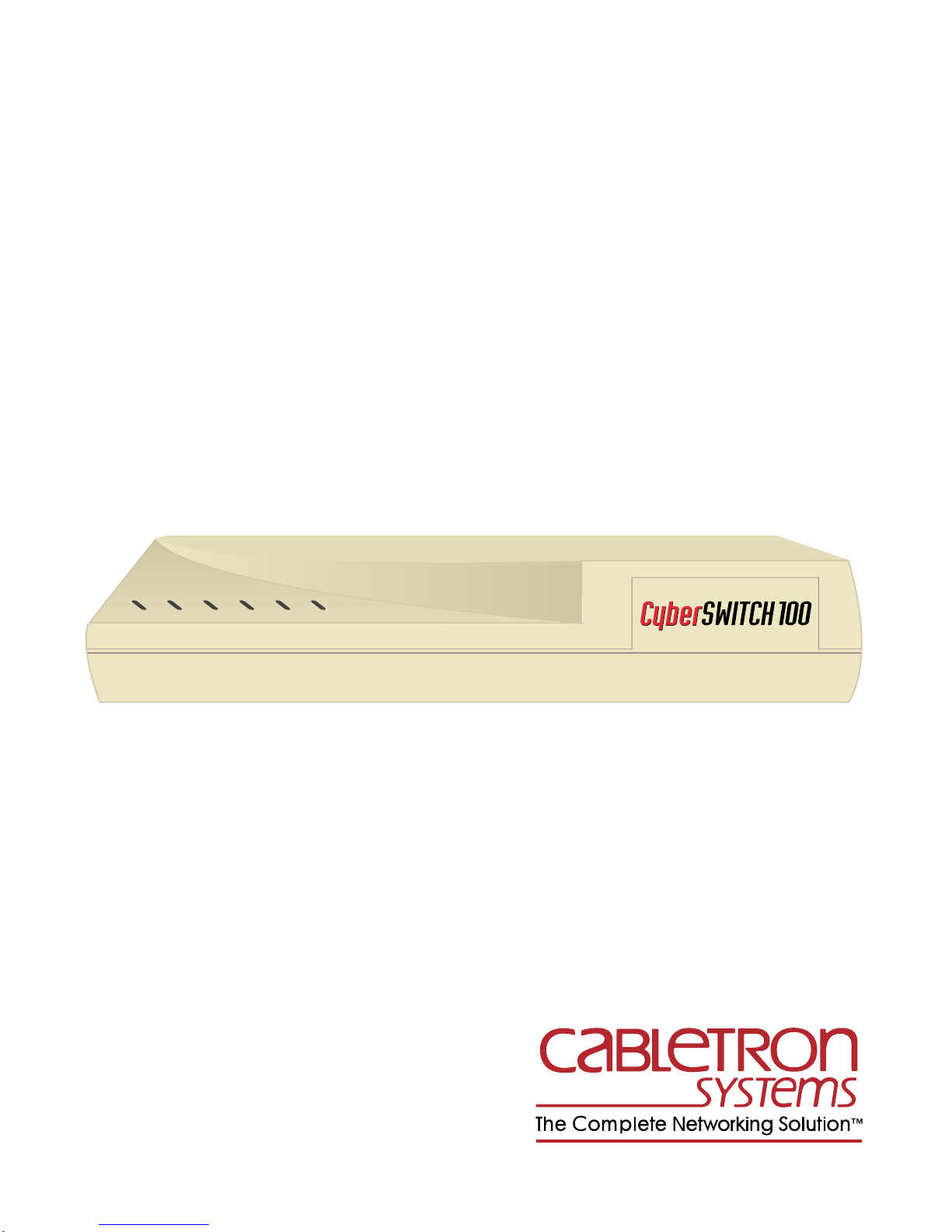

CyberSWITCH 100 FAMILY
INFORMATION
PWR LAN LINE CH1 CH2 NT1
P/N 9031944-01 September 1997

CyberSWITCH 100 Advanced User Information i
Notice
Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior
notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made.
The hardware, firmware, or software described in this manual is subject to change without notice.
IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR
CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS)ARISING OUT OF OR
RELATED TO THIS MANUAL OR THE INFORMATION CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN
ADVISED OF, KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH DAMAGES.
 Copyright September 1997, by Cabletron Systems, Inc., P.O. Box 5005, Rochester, NH 03866-5005
All Rights Reserved
Printed in the United States of America
Part Number: 9031944-01
CyberSWITCH and QuickSET are registered trademarks of Cabletron Systems, Inc.
All other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies.
FCC Notice
Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modifications made to this device which are not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
DOC Notice
This product conforms with Canadian Class B emissions regulations.
Ce produit se conforme aux réglements d’émision Canadienne classe B.

Notice
ii CyberSWITCH 100 Advanced User Information
VCCI Notice

Notice
CyberSWITCH 100 Advanced User Information iii
VCCI Notice

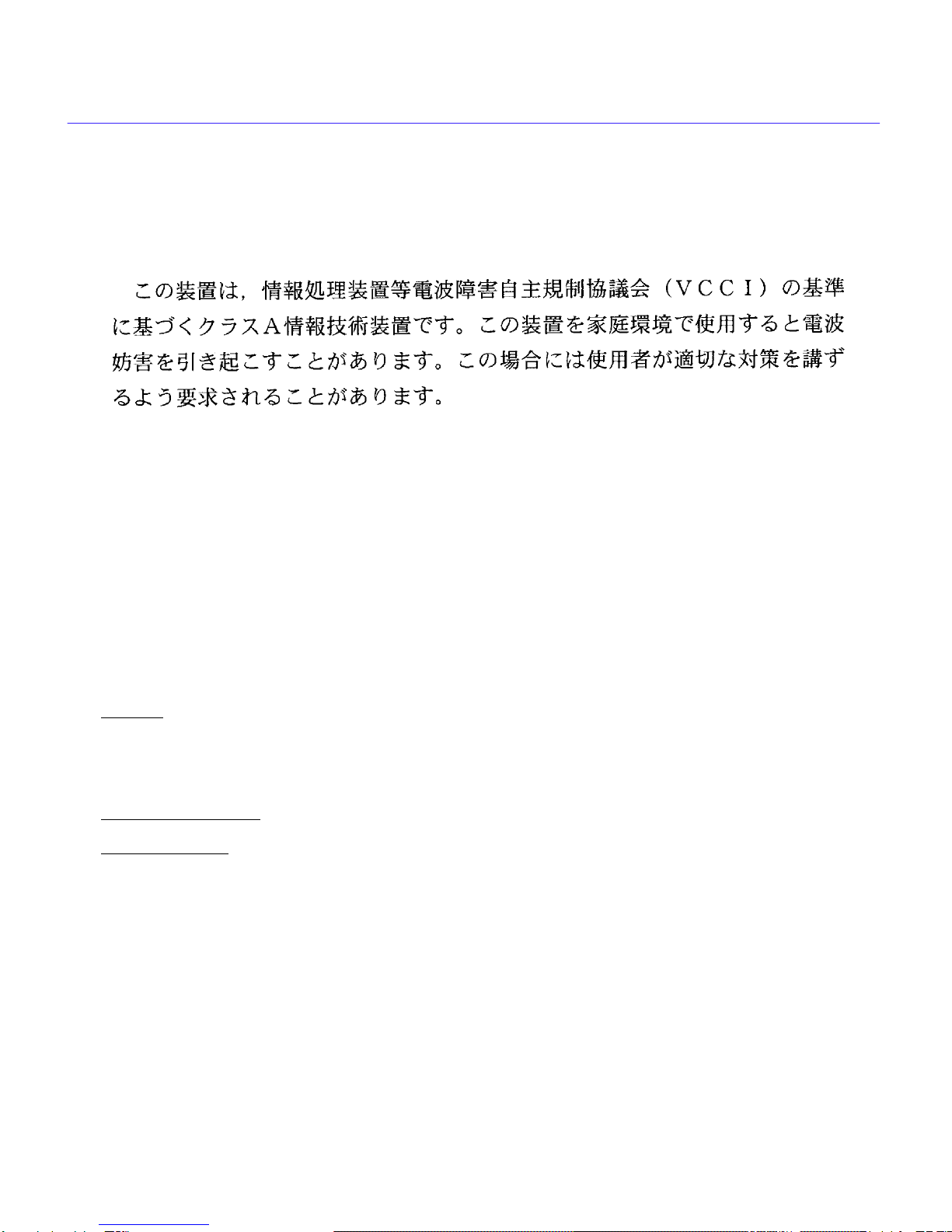

This is a Class A product based on the standard of the Voluntary Control Council for Interference by Information Technology
Equipment (VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the
user may be required to take corrective actions.
Cabletron Systems, Inc. Program License Agreement
IMPORTANT: Before utilizing this product, carefully read this License Agreement.
This document is an agreement between you, the end user, and Cabletron Systems, Inc. (“Cabletron”) that sets forth your rights and
obligations with respect to the Cabletron software program (the “Program”) contained in this package. The Program may be contained
in firmware, chips or other media. BY UTILIZING THE ENCLOSED PRODUCT,YOUAREAGREEING TO BECOME BOUND BY
THE TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSEAND THE LIMITATION OF WARRANTY AND
DISCLAIMER OF LIABILITY. IFYOU DO NOTAGREE TO THE TERMS OF THISAGREEMENT, PROMPTLY RETURN THE
UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL REFUND.
Cabletron Software Program License
1. LICENSE. You have the right to use only the one (1) copy of the Program provided in this package subject to the terms and
conditions of this License Agreement.
You may not copy, reproduce or transmit any part of the Program except as permitted by the CopyrightAct of the United States or
as authorized in writing by Cabletron.
2. OTHER RESTRICTIONS. You may not reverse engineer, decompile, or disassemble the Program.
3. APPLICABLE LAW. This License Agreement shall be interpreted and governed under the laws and in the state and federal courts
of New Hampshire. You accept the personal jurisdiction and venue of the New Hampshire courts.

Notice
iv CyberSWITCH 100 Advanced User Information
Exclusion of Warranty and Disclaimer of Liability
1. EXCLUSION OF WARRANTY. Except as may be specifically provided by Cabletron in writing, Cabletron makes no warranty,
expressed or implied, concerning the Program (including its documentation and media).
CABLETRON DISCLAIMS ALL WARRANTIES, OTHER THAN THOSE SUPPLIED TOYOU BY CABLETRON IN
WRITING, EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE PROGRAM, THE
ACCOMPANYING WRITTEN MATERIALS, AND ANY ACCOMPANYING HARDWARE.
2. NO LIABILITY FOR CONSEQUENTIAL DAMAGES. IN NO EVENT SHALL CABLETRON OR ITS SUPPLIERS BE
LIABLE FOR ANY DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF
BUSINESS, PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, SPECIAL, INCIDENTAL,
CONSEQUENTIAL, OR RELIANCE DAMAGES, OR OTHER LOSS) ARISING OUT OF THE USE OR INABILITY TO USE
THIS CABLETRON PRODUCT, EVEN IF CABLETRON HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES, OR ON THE DURATION OR LIMITATION OF IMPLIED
WARRANTIES, IN SOME INSTANCES THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
United States Government Restricted Rights
The enclosed product (a) was developed solely at private expense; (b) contains “restricted computer software” submitted with restricted
rights in accordance with Section 52227-19 (a) through (d) of the Commercial Computer Software - Restricted Rights Clause and its
successors, and (c) in all respects is proprietary data belonging to Cabletron and/or its suppliers.
For Department of Defense units, the product is licensed with “Restricted Rights” as defined in the DoD Supplement to the Federal
Acquisition Regulations, Section 52.227-7013 (c) (1) (ii) and its successors, and use, duplication, disclosure by the Government is
subject to restrictions as set forth in subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause at
252.227-7013. Cabletron Systems, Inc., 35 Industrial Way, Rochester, New Hampshire 03867-0505.
Instructions for Trained Service Personnel Only
CAUTION: Danger of explosion if battery is incorrectly placed. Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Approvals
Safety: EN 60950, UL 1950, CSA 22.2 No. 950
Emissions: EN 55022/CISPR22 Class B, VCCI Class 2, FCC Part 15 Class B

CyberSWITCH 100 Advanced User Information v
Contents
PREFACE .....................................................................................................................................VII
ISDN Overview ..............................................................................................vii
How to Use This Guide..................................................................................vii
Document Conventions.................................................................................viii
Getting Help................................................................................................... ix
CHAPTER 1 ISDN LINE ORDERING AND CONFIGURATION................................................1
Arranging ISDN Service..................................................................................1
Telephone Switch Support..............................................................................2
ISDN BRI Line Configuration ..........................................................................2
ISDN BRI Configurations..........................................................................3
SPIDs, Directory Numbers and Telephone Numbers...............................4
Telephone Switch Parameters........................................................................5
CHAPTER 2 ABOUT THE CYBERSWITCH 100 ROUTER.......................................................9
CyberSWITCH 100 Hardware.......................................................................10
ISDN WAN Connection ..........................................................................10
POTS Analog Telephone Connection ....................................................10
CyberSWITCH 100 Software Support ..........................................................10
IEEE 802.3 Ethernet...............................................................................11
Point-to-Point Protocol (PPP).................................................................11
PAP and CHAP Security ........................................................................11
ISDN.......................................................................................................12
Telephone Switch Support .....................................................................12
Bridging and Routing..............................................................................13
IP and IPX Routing .......................................................................................14
Network Information Diagrams...............................................................14
Bridging and Routing Protocol Filtering..................................................20
Bandwidth Optimization Features...........................................................20
POTS Analog Line Interface...................................................................21
Simple Network Management Protocol (SNMP) ....................................21
Software Upgrades.................................................................................21

Contents
vi CyberSWITCH 100 Advanced User Information
CHAPTER 3 PLANNINGYOUR ROUTER’S CONFIGURATION ............................................23
Configuration Process and Terminology.......................................................23
Custom Step-by-Step Configuration .............................................................23
Collect Network Information ...................................................................23
Remote Connections..............................................................................31
CHAPTER 4 CYBERSWITCH 100 HARDWARE FEATURES................................................39
Front Panel....................................................................................................39
Rear Panel....................................................................................................41
Port Descriptions...........................................................................................42
Configuration Switches .................................................................................44
CHAPTER 5 TROUBLESHOOTING ........................................................................................47
Investigating Hardware Installation Problems...............................................47
Investigating Software Configuration Problems............................................48
How to Obtain Technical Support .................................................................50
Getting Help..................................................................................................51
APPENDIX A HARDWARE SPECIFICATIONS........................................................................53
APPENDIX B GLOSSARY ........................................................................................................55

CyberSWITCH 100 Advanced User Information vii
Preface
Welcome to the Cabletron Systems CyberSWITCH 100 Family Advanced User Information
Guide
. This guide provides hardware specifications for the CyberSWITCH 100 family of products
that includes the CSX101, CSX103, CSX104, and CSX105. This guide also provides background
information about the INtegrated Services Digitak Network (ISDN) including a step-by-step guide
for ordering ISDN from your service provider, and bridging and routing information.
ISDN Overview
ISDN provides an inexpensive switched digital access to remote sites. The ISDN BRI standard
provides for two high speed 64 K bits per seconds (Kbps) bearer channels used for voice or data
connections and one 16 Kbps signaling data (D) channel used for call setup, signaling and other
information. ISDN allows all types of information to be transmitted including voice, data, fax and
video. Multiple devices can be linked to a single ISDN connection, each having its own telephone
number. Two or more channels can be combined into a single larger transmission pipe offering
variable transmission speeds.
How to UseThis Guide
Below is a list of the chapters comprising this guide, with brief explanations of their content:
Chapter 1 , ISDN Line Ordering and Configuration , provides the information you need to order
ISDN service from the telephone company.
Chapter 2 , About the CyberSWITCH 100 Router , describes the CSX100 family hardware
components and software protocols and features.
Chapter 3 , Planning Your Router’s Configuration , describes the router configuration process.
Chapter 4 , CyberSWITCH 100 Hardware Features , describes the front and rear panels of the
CyberSWITCH 100.
Chapter 5 , Troubleshooting , provides detailed troubleshooting help.
Appendix A, Hardware Specifications, provides the hardware specifications for the CSX100.
Apppendix B, Glossary, defines commonly used terms, and is located at the back of this guide.

Preface
viii CyberSWITCH 100 Advanced User Information
Document Conventions
The following conventions are used throughout this guide:
NOTE
Note symbol. Calls the reader’s attention to any item of information that may
be of special importance.
TIP
Tip symbol. Conveys helpful hints concerning procedures or actions.
!
CAUTION
Caution symbol. Contains information essential to avoid damage to the
equipment.
Warning symbol.Warns against an action that could result in equipment
damage, personal injury or death.

Preface
CyberSWITCH 100 Advanced User Information ix
Getting Help
If you need additional support related to this device, or if you have any questions, comments, or
suggestions concerning this manual, contact Cabletron Systems Global Call Center:
Before calling Cabletron Systems Global Call Center, have the following information ready:
• Your Cabletron Systems service contract number
• A description of the failure
• A description of any action(s) already taken to resolve the problem (e.g., changing mode
switches, rebooting the unit, etc.)
• The serial and revision numbers of all involved Cabletron Systems products in the network
• A description of your network environment (layout, cable type, etc.)
• Network load and frame size at the time of trouble (if known)
• The device history (i.e., have you returned the device before, is this a recurring problem, etc.)
• Any previous Return Material Authorization (RMA) numbers
Phone [phone]
Internet mail suppor[email protected]
FTP ctron.com (134.141.197.25)
Login anonymous
Password your email address
BBS [phone]
Modem setting 8N1: 8 data bits, No parity, 1 stop bit
For additional information about Cabletron Systems or our products,
visit our World Wide Web site: http://www.cabletron.com/
For technical support, select Service and Support .

Preface
x CyberSWITCH 100 Advanced User Information

CyberSWITCH 100 Advanced User Information 1
1 ISDN Line Ordering and Configuration
This chapter provides ISDN BRI (Basic Rate Interface) line ordering and configuration
information. It contains the following sections:
•Arranging ISDN Service
•Telephone Switch Support
•ISDN BRI Line Configuration
•SPIDs, Directory Numbers and Telephone Numbers
•Telephone Switch Parameters
Read the first section in this chapter for an overview of the steps required to order ISDN service
from your service provider (telephone company). The rest of the chapter details the information
that the service provider needs to give you, and which you need to give to the service provider.
Arranging ISDN Service
The service provider requires certain information about the capabilities of the CyberSWITCH 100.
You must give the service provider the required switch settings (parameters) for the provider’s
central office switch. Consult with your service provider at least two months before you require the
installation and use of the ISDN service.
Complete the following steps to arrange your ISDN service:
1. Contact the service provider and determine what type of ISDN central office switches are
available (see
Telephone Switch Support in this chapter).
2. Supply the service provider with the provisioning information for their switch type to enable
proper configuration of the ISDN line (see
Telephone Switch Parameters in this chapter).
3. Once the ISDN line is installed, ensure that the service provider supplies you with the following
information:
• ISDN telephone numbers
• ISDN Service Profile Identifier numbers (SPIDs) and/or Directory Numbers (DNs) (see
SPIDs, Directory Numbers and Telephone Numbers in this chapter)

ISDN Line Ordering and Configuration
2 CyberSWITCH 100 Advanced User Information
Telephone Switch Support
Your telephone company may offer a variety of ISDN switch types.You must contact your service
provider and find out which type of ISDN service is available.
The following switch types are currently supported by the CyberSWITCH 100 within the U.S.:
•National ISDN 1 (NI-1)
•AT&T 5ESS w/Custom Software
•DMS-100
Outside of the U.S. the following switch types are currently supported:
• NET3 (European ISDN)
• NET3SW (European Swiss-variant)
• NTT (Nippon Telegraph and Telephone)
• KDD (Kokusai Denshin Denwa Co., Ltd.)
• French Delta (VN4) switches
ISDN BRI Line Configuration
You need to order one Basic Rate Interface (BRI) ISDN line from your service provider. The Basic
Rate Interface ISDN line provides two full duplex 64 (Kbps) B channels used for voice, data, fax,
etc. and one full duplex 16 Kbps channel used for signaling. Each B channel can be used for a call;
i.e., two calls can occur at the same time. Services vary from individual service providers.
The service provider requires some information from you about your configuration.You must
provide your service provider with the required switch settings for the provider’s telephone switch
(see
Telephone Switch Parameters in this chapter). Consult with your service provider at least
two months before requiring the installation and use of the ISDN service.
NOTE
Full 64 Kbps for each channel (referred to as “clear channel”) may not be available
across the entire communications link.Today, many providers still use in-band
signaling (the 8 Kbps signaling is taken from the B channel bandwidth) so that you
may only achieve a 56 Kbps channel speed.

ISDN Line Ordering and Configuration
CyberSWITCH 100 Advanced User Information 3
In the U.S. and Canada, an NT1 Network Terminator is required to provide an interface between
the CyberSWITCH 100 and the ISDN line. The NT1 offers conversion between the two-wire
twisted pair (U-loop interface) used by telephone companies and the four-wire terminal equipment
(S/T Interface) as well as line-testing capabilities.You can order the CyberSWITCH 100 with an
internal NT1 (
CSX103 or CSX105 ) or use your own NT1 equipment (CSX101, and CSX104 ).
External Network Terminator equipment comes with its own power supply (built-in or external).
In Europe and Japan, the telephone company provides the NT1 and offers end-users the S/T
interface. The S refers to a connection between customer equipment in some ISDN configurations
when a PBX is present. The T refers to the connection between the NT1 device and the
CyberSWITCH 100.
The ISDN pairs are the same wires that exist for analog telephone service. In most cases, the same
wires can be used for the ISDN line. The EIA/TIA standard for wiring is Unshielded Twisted Pair
(UTP) cable. Category 3 or above, 24 AWG (American Wire Gauge). The standard also
recommends using 8-contact RJ45 jacks for new ISDN service installation. No special
conditioning is required; in some cases, conditioning must be removed.
ISDN BRI Configurations
ISDN BRI lines can be configured in point-to-point and multi-point configurations. With a
point-to-point configuration, only one device is connected to the ISDN line. With a multi-point
configuration, it is possible to have up to 8 devices (telephones, faxes, routers, etc.) connected to
the line.
Since the ISDN BRI line is used for a high speed LAN-to-LAN link, you must ensure that
additional devices connected to the S/T interface allow sufficient access for the bandwidth
requirements of the CyberSWITCH 100. The device support through the POTS (Plain Old
Telephone Service) interface allows multiple devices per port, but only one call initiated at a time
(though another call can be in progress).

ISDN Line Ordering and Configuration
4 CyberSWITCH 100 Advanced User Information
SPIDs, Directory Numbers andTelephone Numbers
The service provider gives you up to three sets of numbers for identifying the ISDN line and
devices.You may be assigned none, one, or two Service Profile Identifier numbers (SPIDs) or
Directory Numbers (DNs) depending on the service provider and country.
Directory Numbers
A Directory Number (DN) is the phone number of your ISDN line, assigned by your telephone
company. Some digital central office switches (AT&T 5ESS Custom) require only a single DN
Number for your CSX100. Others, like the AT&T 5ESS with the NT1 service, or the Northern
Telecom DMS-100 with the NT1 service, require a separate number for each B channel.
Service Profile Identifiers
SPIDs, also assigned by the ISDN service provider, identify the services and features that the
telephone company switch provides for your ISDN line. Commonly implemented in the U.S. and
Canada, the SPID is often derived from the directory number, combined in a series with other
digits. SPIDs are not generally implemented outside the U.S. and Canada.

ISDN Line Ordering and Configuration
CyberSWITCH 100 Advanced User Information 5
Telephone Switch Parameters
Once you have contacted your service provider and learned the type of ISDN switch being used,
refer to Tables 1 through 3.You must supply the appropriate provisioning information to the
service provider to ensure proper configuration of the ISDN line.
Table 1 National ISDN 1 (NI-1) Parameters
NOTE
ISDN Switch Parameters Value
B1 Circuit Switched Data & Voice
B2 Circuit Switched Data & Voice
D Signaling Only
Multipoint Yes
Terminal Type A
Display Off
TEI Dynamic
MTERM 1
MAXB CHL 2
ACT USR Y
CSD 2
CSD CHL Any
CSD Limit 2
CA Pref 1
EKTS No
Nail Up None
National ISDN (NI-1) is a specification released by Bellcore outlining a basic
set of ISDN services for standardization by equipment vendors.

ISDN Line Ordering and Configuration
6 CyberSWITCH 100 Advanced User Information
Table 2 AT&T 5ESS with Custom Software
ISDN Switch Parameters Value
B1 Circuit Switched Data & Voice
B2 Circuit Switched Data & Voice
D Signaling Only
Multipoint No
Terminal Type A
Display Off
TEI Dynamic
MTERM 1
MAXB CHL 2
ACT USR Y
CSD 2
CSD CHL Any
CSD Limit 2
CA Pref 1
Nail Up None

ISDN Line Ordering and Configuration
CyberSWITCH 100 Advanced User Information 7
Table 3 NorthernTelecom DMS-100
ISDN Switch Parameters Value
B1 Circuit Switched Data & Voice
B2 Circuit Switched Data & Voice
D Signaling Only
EKTS No
Ringing Indicator No
Release Key No
PVER 01
TEI Dynamic
MAXKEYS 64
Nail Up None

ISDN Line Ordering and Configuration
