Cabletron Systems IRM-3 User manual

IRM3
INTELLIGENT REPEATER
MODULE
USER’S GUIDE
A
U
I
T
X
R
X
ON LNK
ETHERNET

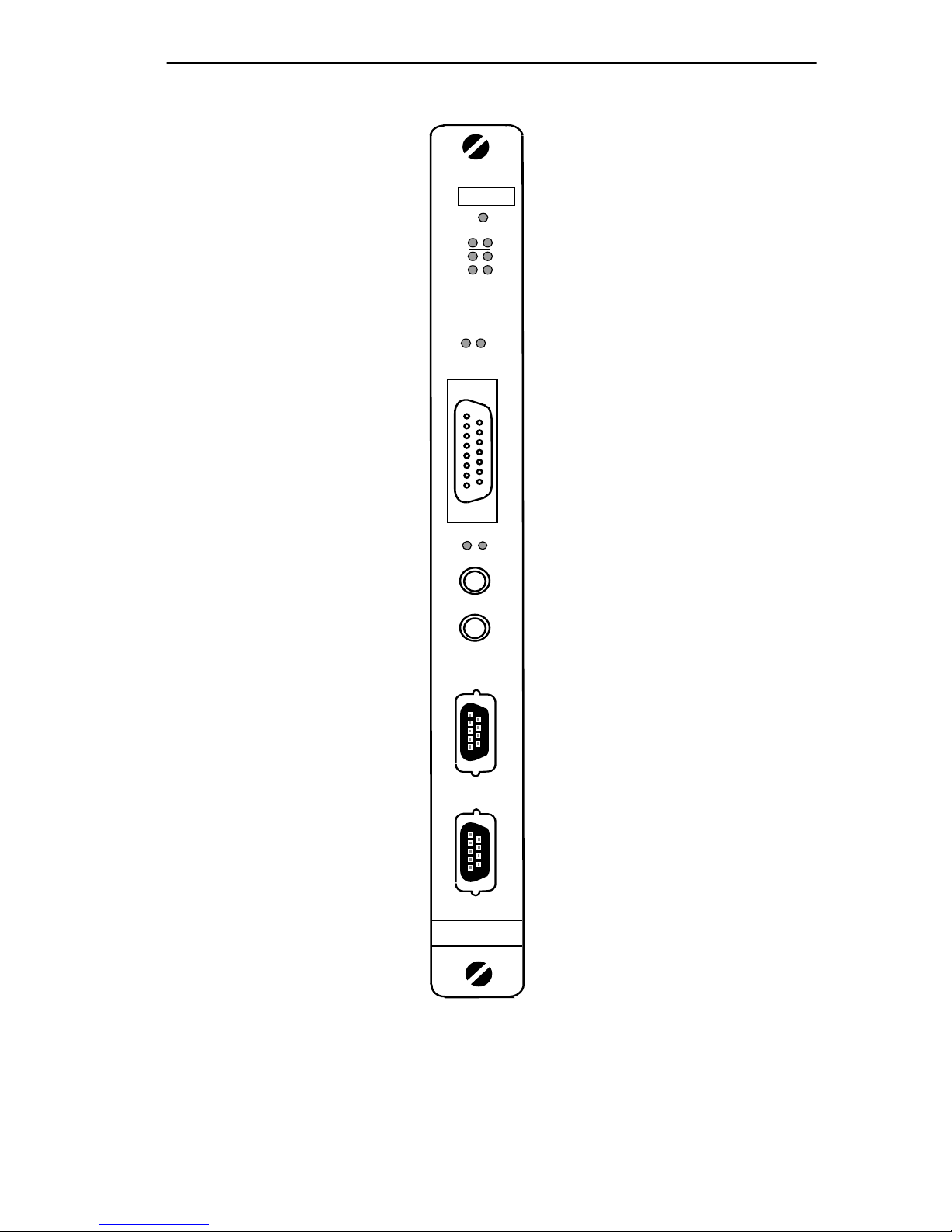

IRM3
SN
PWRON
PWR BOK
MGMT RCV
POK
CLN
RESET
U
P
S
C
O
N
S
O
L
E
F
O
I
R
L

IRM3 QUICK REFERENCE CARD
IRM3 User’s Guide Part of 9030494 -01

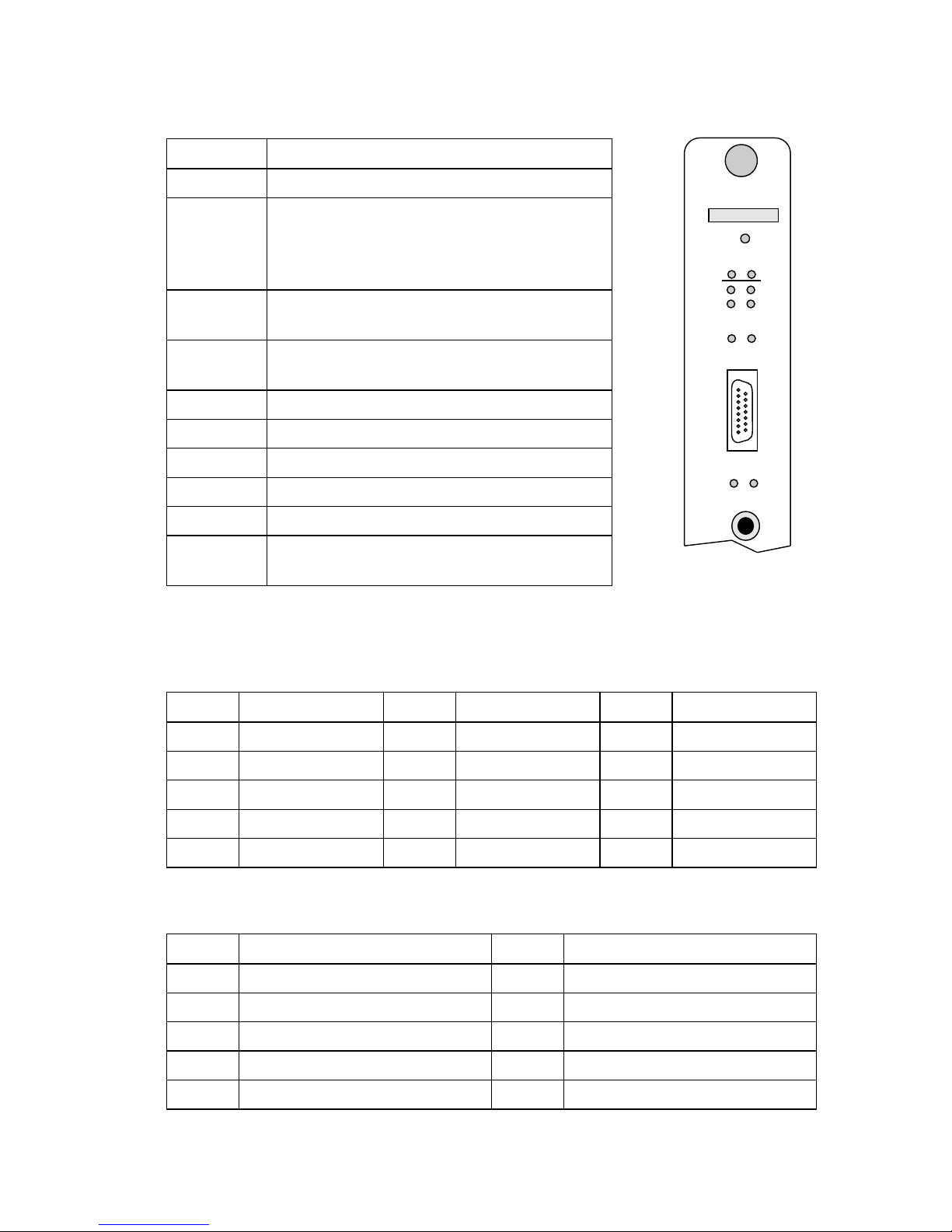

LED INDICATORS
LED Description
PWR IRM3 is receiving power from MMAC.
BOK LED lit-Board is operating properly.
LED not lit-Initialization problem.Press
Reset switch.
RCV IRM3 is repeating packet received from a
connected segment.
MGMT IRM3 is receiving/transmitting management
packets.
CLN Collision detected on a segment.
POK Internal repeater port is OK.
ON (AUI) AUI port is active repeater port.
PWR (AUI) AUI port is receiving power.
ON (FO) Fiber Optic port is active repeater port.
LNK (FO) Link is established between port and Fiber
Optic device.
CONNECTIONS
AUI Port: 15-pin D type receptacle
Pin Signal Pin Signal Pin Signal
1 Logic Ref 6 Power Return 11 Logic Ref
2 Collision+ 7 No Connection 12 Receive-
3 Transmit+ 8 Logic Ref 13 Power (+12Vdc)
4 Logic Ref 9 Collision- 14 Logic Ref
5 Receive+ 10 Transmit- 15 No Connection
Console/Modem Port: Standard 9-pin RS232 port
Pin Signal Pin Signal
1 Carrier Detect (CD) 6 Receive Clock (RXCL)
2 Transmit (TXD) 7 Request to Send (RTS)
3 Receive (RXD) 8 Clear to Send (CTS)
4 Data Terminal Ready (DTR) 9 Ring Indicator (RI)
5 Logic Ref
IRM3
SN
RESET
PWR BOK
MGMT RCV
CLN POK
A
ON PWR
ON LNK
T
XF
O
U
I

IRM3 QUICK REFERENCE CARD
Part of 9030494-01 IRM3 User’s Guide

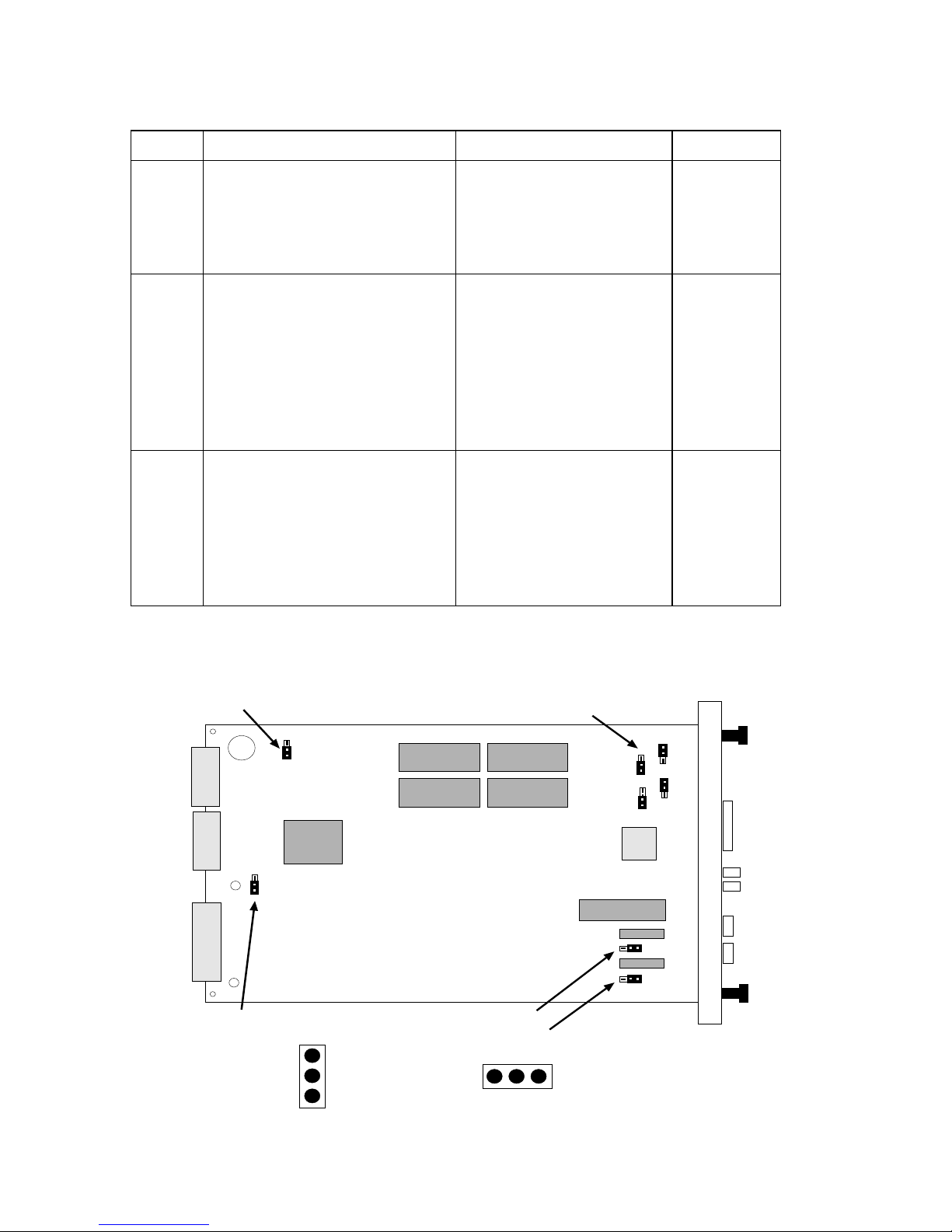

JUMPER SETTINGS
Jumper Function Setting Default
H1 Enables/Disables Battery.
When enabled, user-entered
parameters are saved if power
to the IRM3 fails.When
disabled, parameters are lost.
Enable:Jumper over pins
1 and 2
Disable:Jumper over pins
2 and 3
Disable
JP1 Makes IRM3 compatible with
any THN-MIMs being used in
the MMAC.This jumper is set
for THN-MIMs with part
numbers 9000043-06 and
above and for THN-MIMs with
part numbers below
9000043-06.
9000043-06 and up:
Jumper over pins 2 and 3
Below 9000043-06:
Jumper over pins 1 and 2
If using both, set over 1
and 2
Jumper
over pins 2
and 3
H6
and H8 SetsIRM3 console and modem ports for either internal (signal
generated by IRM3) or external
(signal generated by attached
device) Request to Send (RTS)
and Clear to Send (CTS)
signals.
Internal: Jumper over pins
1 and 2
External: Jumper over
pins 2 and 3
External
H1
JP1
H2
H3
H4
H5
H8
H6
Battery
Enable/Disable
THN-MIM Jumper CTS-Modem Port
CTS-Console Port
For Cabletron Use Only
0494104
1 2 3
1
2
3
H1/JP1
Pin Numbers H6/H8
Pin Numbers

IRM3 User’s Guide i
