Cabrinha Switchblade 2018 User manual

2018 KITE
USER MANUAL ENGLISH

DO NOT USE THIS PRODUCT UNLESS YOU HAVE READ AND UNDERSTAND
THESE WARNINGS, CAUTIONS, AND INSTRUCTIONS WHICH ARE FOR YOUR
SECURITY AND PROTECTION. THIS INFORMATION MAY BE SUBJECT TO
CHANGE AT ANY TIME. FOR CURRENT UPDATES, PLEASE VISIT OUR WEBSITE
AT: WWW.CABRINHAKITES.COM
IF YOU ARE BELOW THE AGE OF 18, YOU SHOULD HAVE YOUR PARENT OR
GUARDIAN READ THESE WARNINGS, CAUTIONS AND INSTRUCTIONS AND
SHOULD NOT USE THIS PRODUCT UNLESS YOU ARE UNDER THE PROPER
GUIDANCE AND SUPERVISION OF SUCH A PERSON.
The use of this product exposes the user to many unavoidable and unexpected risks, injury,
DANGERS and HAZARDS. The suppliers of this product are not responsible for any damage to
property or any personal injury caused by any use, misuse, abuse or irresponsible use of this
product by the user.
Kiteboarding is a HAZARDOUS sport. Power kites and their lines and control equipment can be
DANGEROUS to flyers and to anyone in the vicinity of their use. Kiteboarding must be taken
seriously and we recommend that, at least in the early stages of your use, you seek the guidance
of professional instructors and experienced kiteboarders. Improper and/or unreasonable use of
this kite may result in DEATH or SERIOUS INJURY to ANY part of your body and to OTHERS. Do
NOT use your kite near power lines, airports, buildings, automobiles, trees, streets, parking lots,
rocks, piers, breakwaters, buoys, etc. and keep your kite fly lines away from people and ALL
obstacles. Always fly in an open area and observe wind and weather conditions, particularly in
circumstances where you may encounter offshore, onshore, variable or strong winds. Do NOT at-
tempt to use your kite on water until you are confident and comfortable with the use of a trainer
kite on land. Spend time to become familiar with the operation of your kite and remember that
you are responsible for its operation and for the security of those around you. As you learn the
sport, work within your own limitations and do NOT exceed them. If you intend to use the kite on
water, always use appropriate protective gears and flotation devices and do NOT attach yourself
or tie yourself permanently to the kite lines. The kite is NOT intended for use as a flying device
nor indeed is it intended as a means of flotation.

RECOMMENDED KITEBOARDING PRACTICE:
Kiteboarding is an extremely diverse sport, with many disciplines and ability
levels. As with all sports, there can be certain inherent risks. The following
contains key security points to remember when operating your Cabrinha kite.
• Kiteboarding is a HAZARDOUS activity and the use of Kiteboarding equipment involves the
risk of serious personal injury to any part of the user’s body, or death.
• Injuries are an INHERENT RISK of kiteboarding and the participation in kiteboarding
implies the user’s acceptance and assumption of those risks.
• Children should ALWAYS be under adult supervision.
• It is strongly recommended that beginners take lessons.
• ALWAYS inspect your equipment for signs of wear and tear each time before use, particularly
all lines, canopy, bladders, screws and fittings.
• If ANY products are found to show signs of wear & tear, STOP using the product immediately
and repair or replace before further use. If in doubt about any signs of wear & tear, please
contact your local vendor. Contact details are available from www.cabrinhakites.com
• NEVER place yourself in a situation where breakage of any one of the various kiteboarding
components would pose a risk to yourself or others, or make it difficult to return to the shore
securely & unassisted.
• Make sure you use properly designed and manufactured parts from reputable suppliers.
• Take time to study the conditions including sea state, tides, currents, weather conditions and
forecasts before you decide to go sailing. Beware of sailing in offshore, onshore, variable or
strong winds.
• Familiarize yourself with any new location before venturing onto the water. Ask the locals to
tell you about any hazards.
• Watch out for other beach users, especially swimmers and small children. Make sure you
keep your board and rig under control at all times and that they don’t get blown about on the
beach or in the water.
• Always use appropriate protective gear and flotation devices. Wear the correct protective
clothing for the conditions such as a wetsuit or a UV top.
• We STRONGLY recommend wearing a kiteboarding specific helmet
• Make sure someone knows where you’ve gone & when you are expected back – always sail
with a buddy.
• Be aware of the conditions as they change. ALWAYS return to the beach if there is a
significant change in the conditions. i.e. wind dropping or wind & waves increasing.
• As you learn the sport, work within your own limitations and do NOT exceed them.
• Do NOT alter, modify or change this product.
• This product is designed and manufactured only for kiteboarding on water or snow.
• Keep these warnings, cautions and instructions for future reference.
• The following contains key security points to remember when operating your Cabrinha kite,
and associated kiteboarding equipment on water, land or snow.

SNOW USE GENERAL GUIDELINES
• The points listed under the Recommended Kiteboarding Practice also apply to the use of this
product on the snow. Please read the previous paragraphs even if you intend to use this
product primarily on the snow.
• These kites are intended for use on the snow as a traction device to propel a rider across
wide open snow fields in a controlled and appropriate manner.
• Do NOT attempt to use this kite as a flying device. Do NOT use this kite to soar from ridges,
cliffs or slopes.
• Do NOT attempt to launch yourself into the air in any manner which can create excessive
impact to the rider upon landing.
• EXTREME caution must be taken when using this kite in any mountainous region, uneven terrain
or glacier. Wind conditions in these areas are notoriously unstable and can change in velocity
and direction without notice.
• ALWAYS use appropriate protective gear. We STRONGLY recommend wearing a
snowboarding specific helmet.
• Do NOT tether yourself to any stationary or moving object such as a stake, snowmobile, or
car while flying this kite.
• ALWAYS stay in control and be able to stop or avoid other people or objects
• SNOWKITE: People downwind or down slope have right of way. It is your responsibility to
avoid them
• SNOWBOARD: People down slope have right of way. It is your responsibility to avoid them
• You must NOT stop where you obstruct others or are not visible.
• Whenever starting or merging with others look upwind/up hill and yield to others.
• Always use retention devices while riding to help prevent runaway equipment. If you remove
he retention device for any reason, turn snowboard upside down and push the bindings into
the snow to prevent runaways.
• Observe any and all posted signs and warnings
• Keep out of closed areas
• SNOWBOARD: Prior to using any lift you must have the knowledge and ability to load, ride
and unload safely.
• Do NOT snowboard/snowkite when tired or under the influence of alcohol or drugs.
• Snow terrain and snowboarding/snowkiting conditions VARY CONSTANTLY--AVOID ANY
man made structures, trees, tree-wells, rocks, debris, variations in terrain or slopes,
avalanche areas, crevasse, cliffs, power lines, lift lines, water hazards, changes in snow
surfaces or texture due to altitude and sun exposure, wind and weather changes, and any other
conditions which could affect your ability to properly control your snowboard/snowkite.

12018 KITE USER MANUAL
1
2018 KITE USER MANUAL
2 Introduction
3 Important Information
4 Wind, Water, & Weather Conditions
5 Wind Range Chart
6 Know Your Ability Level / Kiteboarding Location
7 Kite Care
8 Beach Etiquette
9 Area of Operation

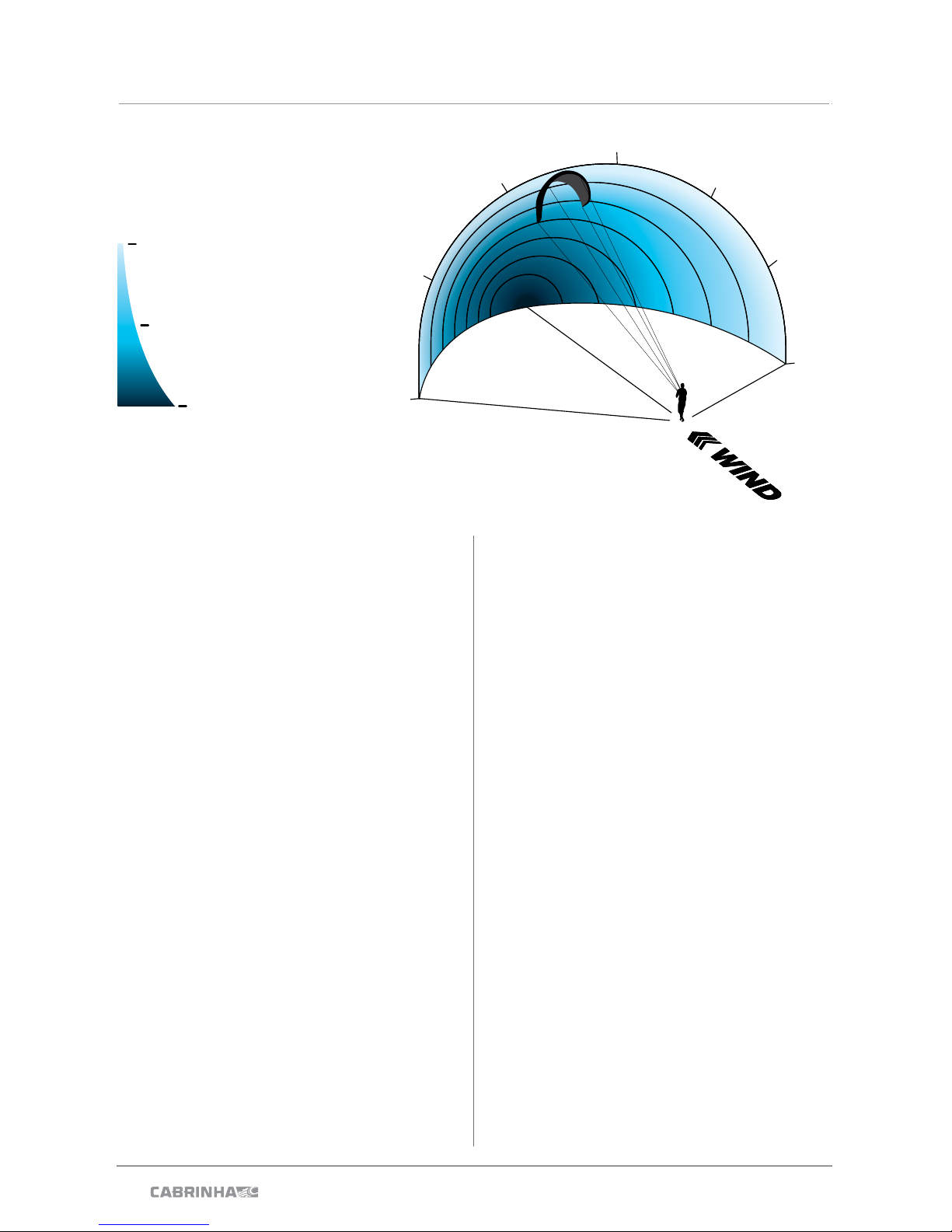

10 Kite Positions, Zone & Power
KITE OVERVIEW & CONTROL SYSTEM
11 2018 1X Control System Overview
SETUP
12 Sprint™ Inflation System
13 Inflating the Kite
16 Pause
HOW TO
17 Tuning
20 Repairs - Tears / Struts Bladders
22 Repairs - Leading Edge Bladders
24 Glossary
CONTENTS

22018 KITE USER MANUAL
Thank you for purchasing this Cabrinha product and welcome to the sport of kiteboarding.
As you may know, the excitement of Kiteboarding is attracting people of all ages from all
corners of the globe. It’s one of the most dynamic and fastest growing sports in the world.
Please read this user’s manual carefully and entirely before using this kite. This manual is
not intended to replace proper kiteboarding instruction, but rather to supplement it. Do not
attempt to kiteboard without appropriate instruction. It will make this sport more enjoyable,
not only for yourself, but for those around you.
INTRODUCTION
CAUTION:
Kiteboarding can be overwhelming if not approached in an educated man-
ner. That’s why we have supplied this extensive user’s manual. It will help
to educate you about your new kite and about the ways in which to use
it. It contains information regarding the setup, care and maintenance of
your control system. Please note that only compatible Cabrinha control
systems will benefit from all of the security and performance functions
associated with this Cabrinha kite. Consult www.cabrinhakites.com for a
list of compatible Control Systems for use with this kite.

3
2018 KITE USER MANUAL
IMPORTANT INFORMATION
PROTECTIVE GEAR
We strongly recommend the use of the following protective gear:
• Kiteboarding specific helmet
• Life Jacket, Impact Vest, or Flotation Vest
• Neoprene Wet Suit
• Gloves
• Foot Protection
• Eye Protection
• Knife
• Sunscreen
Kiteboarding is a hazardous sport, with many disciplines and ability levels. As with
all sports, there are inherent risks of injury. The following contains key points to
remember when operating your Cabrinha kite.
• Be familiar with the set up and use of the supplied security systems: Quickloop / Fireball 1x
and all the Quick Release systems.
• Make sure your control system is rigged and used according to the supplied instructions.
• Make sure your kite is compatible with the control system.
• Always use your Cabrinha kite with a bypass leash.
• NEVER permanently attach yourself to this kite, the control bar, or lines.
• NEVER use this kite as a flying device.
• NEVER touch the kite lines while they are under tension; do not catch the kite using these
lines.
• When inflated but not in use, secure your kite with sand or with something heavy and non-
abrasive; the more weight the better (see “Kite Care” for more information). An inflatable
power kite will still fly, even without a rider, so be mindful of those around you and secure
your kite. Your kite may cause serious injury or death if it launches unexpectedly.
• Do not lend your gear to someone who has not been fully instructed on the use of inflatable
kites. Other users should also read this user’s manual and be proficient in all its points.
• Check your gear before going on the water. Insure that your flying lines, security systems,
kite, board, etc. are all rigged properly and are in working order.

4
2018 KITE USER MANUAL
IMPORTANT INFORMATION
WIND, WATER, AND WEATHER CONDITIONS
• Do NOT under estimate the power of the wind.
• Be aware of unpredictable and changing weather conditions.
• Avoid “offshore” or “onshore” wind conditions.
• Avoid strong, gusty wind.
• Be careful of wave conditions, especially when learning.
• Be educated about tides and rip currents.
• Be mindful of your ability level. Do NOT kiteboard if conditions are beyond your ability
level.
• Be educated about air and water temperatures and wear appropriate protection against
the elements.
• Do NOT use this product in thunderstorms.
• Consult an anemometer and weather stations to determine wind speeds if necessary.
• Do NOT use an oversized kite. Consult your Wind Range Chart for the correct recom-
mended size. Use your common sense. If in doubt about what kite size to use, choose
smaller rather than bigger.
• Make certain that you are physically capable of operating the security Quick Release (QR)
and Overdrive 1X devices provided with this kite. This kite and control system has been
designed around a typical rider weight of 75kg(165 lbs).
Riders with a weight greater than 75kg may need to use more force to operate the QR than
lighter riders. Increases in wind strength may also result in greater force being required to oper-
ate the QR. Be certain to seek the advice of a professional such as your Authorized Cabrinha
Dealer about the performance of the security systems in relation to body weight.

52018 KITE USER MANUAL
IMPORTANT INFORMATION
SWITCHBLADE
KNOTSSIZE
4
5
6
7
8
9
10
11
12
14
SWITCHBLADE XO
KNOTSSIZE
6
7
8
9
10
11
12
CHAOS
KNOTSSIZE
7
9
11
13
FX
KNOTSSIZE
5
6
7
8
9
10
12
14
APOLLO
KNOTSSIZE
5
6
7
8
9
10
12
14
16
RADAR
CONTRA
KNOTSSIZE
13
15
17
19
DRIFTER
KNOTSSIZE
4
5
6
7
8
9
10
11
12
13
WIND RANGE CHART
This wind range chart is only to be used as a point of reference. It is based upon a rider who is
approximately 75kg(165 lbs). Actual use may vary based on your body weight, ability level, wa-
ter conditions, board size, and riding style. When choosing a kite size, please use your personal
experience, common sense, and always check what other riders are using on the water for a
size reference. Lighter riders should use a smaller kite and heavier riders may need a size larger.
Be certain to seek the advice of a professional such as an instructor or Authorized Cabrinha
Dealer before making your decision.

6
2018 KITE USER MANUAL
IMPORTANT INFORMATION
KNOW YOUR ABILITY LEVEL
• Do NOT attempt kiteboarding without ap-
propriate instruction.
• Do NOT kite alone.
• Launch, land, and ride together with a part-
ner or have someone on shore who can
keep an eye on you.
• Make sure you are in good physical condi-
tion before using this product.
• Practice flying a small, traction kite or a
“trainer kite” before flying this kite.
• The more time spent on the “trainer kite”, the
faster you will learn.
• Make sure you are a proficient swimmer be-
fore using this product in or near the water.
• Make sure the wind and water conditions
are within your ability level and that you have
made the correct equipment choices.
• NEVER kiteboard further from shore than
you are reasonably able to swim back.
• ALWAYS save a reserve of energy; end your
kiteboarding session before you are ex-
hausted.
• Make sure you’ve done your homework and
that you know the security precautions of
all aspects of the sport: rigging, Launching,
landing, flying, riding, kiting among other wa-
ter users, self rescuing, etc.
• Understand and practice operating your se-
curity systems before ever launching your
kite.
• Understand the technique of self-rescue be-
fore using this product in or near the water.
• NEVER let someone who is not familiar with
inflatable kites launch, catch, or use your
kite. You will endanger them, as well as your-
self and those around you.
• You are responsible for the proper operation
of your kite.
KITEBOARDING LOCATION
• Observe ALL local laws and regulations re-
garding this product and the usage area.
• Talk to the local riders about the weather
conditions and beach rules.
• Check your area thoroughly before launch-
ing your kite.
• Make sure you have considerable space in
which to launch, land, and use this product.
• You should have at least 100 meters of
space from all objects on both sides and
downwind of you. Be especially aware of
your downwind area.
• Be mindful and aware of the wind direction
in relation to your launch area.
• Avoid areas with rocks and/or shallow or ex-
posed reefs.
• Be mindful of tide changes. As water levels
change, you may be exposed to new ob-
structions.
• Avoid launching, landing or using this prod-
uct near power lines, telephone poles, trees,
people, pets, buildings, automobiles, streets,
sharp objects and airports.
• Avoid crowded beaches and waterways.
• Make sure your lines do not cross a walkway
or passage.
• Do NOT let others walk between you and
your kite.
• Be careful and mindful of other water us-
ers, including windsurfers, boaters, jet skiers,
swimmers, floating objects, etc.
• Before launching, make sure you have
scouted a backup landing area, in case you
do not make it back to your launch spot.

7
2018 KITE USER MANUAL
IMPORTANT INFORMATION
KITE CARE
Due to the often extreme nature of kiteboarding, a thorough approach should
be taken when caring for your kite and all its associated rigging, as well as your
protective gear.
PREPARING FOR YOUR SESSION
• Thoroughly check your protective equipment
(helmet, etc.) to make sure it is in working or-
der and in good condition.
• A frequent inspection of the kite and the
control system should be made in order to
identify punctures, tears, or abrasions in the
canopy, struts, or security systems. It is also
necessary to check the fly lines for wear and
for unwanted knots, which may reduce the
strength of the fly lines. Check bridle lines and
pulleys for wear and replace when necessary.
• Do NOT rig on asphalt, cement, gravel, or
other abrasive surfaces; doing so may dam-
age your equipment. It is best to rig on sand
or grass. Damage done to your equipment by
rigging on abrasive surfaces will not be cov-
ered under warranty.
• Do NOT rig among sharp objects that could
tear the canopy or puncture the struts and
leading edge bladder.
• Take care NOT to expose your flying lines to
sharp objects that may wear through them.
• While setting up, secure your kite with sand
or sand bags. Do NOT secure your kite with
rocks or other sharp or abrasive objects that
may damage your kite.
BETWEEN SESSIONS
• NEVER leave an inflated kite unattended on
the beach for a long period of time. Winds
may shift or change and the kite may become
unsecured and fly off.
• Do NOT leave an inflated kite (secured or
not) directly exposed to the wind for any
length of time. This allows the trailing edge
to flutter excessively. Any excessive fluttering
may quickly break down the finish properties
of the material and reduce it’s longevity. If you
must leave the kite exposed to the wind on
the beach, place sand or sand bags onto the
areas of the kite, near the trailing edge until
the flutter is stabilized. Do not use rocks or
other sharp objects.
• Do NOT leave your kite exposed to sunlight
for long periods of time. Between sessions,
choose a shaded area to secure your kite.
When not in use, stow away.
PROPER STORAGE
• ALWAYS dry your kite prior to rolling or fold-
ing. Folding or rolling a kite when wet may af-
fect the color clarity and longevity.
• It is recommended to wash the kite compo-
nents with fresh water and dry before storing.
• Clear the kite of sand or other foreign objects
before stowing.
• Once it is clean and dry, stow your kite in the
supplied bag in a clean, dry, cool place.
• Do NOT place heavy objects on the bag con-
taining the kite.
• Do NOT leave your kite inflated in your car
or car rack box; exposing the kite to extreme
temperatures while inflated may damage the
internal bladders.
• Wash your control system with fresh water
from time to time by placing the entire control
system (with lines wound onto the bar) into a
bucket of fresh water and let it sit for 5 min-
utes. Allow to dry thoroughly before storing in
a dry location.
• Once it is clean and dry, stow your control sys-
tem in a clean, dry cool place.

8
2018 KITE USER MANUAL
BEACH ETIQUETTE
Here are some basic things to consider when sharing beaches and water accesses with other
users:
SAFETY
• Follow ALL of the instructions outlined in this manual, other manuals and installation
guides.
• Follow the instructions and rules and regulations posted at the beaches you use.
• Check with local kiteboarding associations and shops prior to launching in a new area.
There may be local rules and regulations to follow which are not posted.
• Utilize common sense.
• Do NOT touch other people’s gear, unless instructed to do so by the owner. Picking up
their bars, kites, etc. may disrupt a setup ritual they have.
• ALWAYS secure your kite with sand or sand bags. An unmanned kite is dangerous.
• NEVER leave an inflated kite unattended. Winds may shift and cause the kite to become
unsecured and fly off.
SETTING UP
• Set up only the gear that you plan on using immediately. Deflate and put away your kites
when not in use.
• Set up in an area where you have plenty of space.
• Set up in a manner conducive to having multiple users in the area.
• Roll up your lines when not in use.
• ALWAYS keep other beach and water access users in mind when launching, landing, and
kiteboarding.
• Yield to other beach users. Be courteous and cooperative.
• ALWAYS be ready to lend assistance to other kiteboarders. The favor may be returned
sooner than you think.
IMPORTANT INFORMATION

92018 KITE USER MANUAL
RIDER
SAFER SAFER
POTENTIALLY HAZARDOUS:
DO NOT SET YOUR KITE FOR A
STRAIGHT DOWNWIND LAUNCH.
IMPORTANT INFORMATION
PLANNING YOUR LAUNCH
• Choose an area where you have at least 100 meters of space from all obstacles to your left
and right and especially downwind of you.
• Set up your equipment so that your kite is downwind of where you will be launching, but
most importantly, so that it is at an angle off of the wind.
• DO NOT SET UP YOUR KITE FOR A STRAIGHT DOWNWIND LAUNCH! The kite will
launch with too much power and you will endanger the lives of yourself and those around
you if you launch in this manner.
• Basically, if the wind is at your back, and straight downwind is at a 180°, then you will want
to set your kite at about a 100° off the wind, either to the left or to the right of you.
• The more the kite is positioned into the wind when you launch, the less power it will have
when it goes up, and the easier your launch will be.
• Your partner will stand with the kite while you will stand 30 meters away at your control bar.
• Make sure you launch slowly, and launch the kite at an angle, NOT STRAIGHT DOWNWIND!
AREA OF OPERATION
This is the 100 meters of area with no obstacles to each side and downwind of the rider. Do
not launch your kite if you do not have this distance between yourself and other people, or
obstructions.

10 2018 KITE USER MANUAL
10
11
12
1
2
9
NEUTRAL ZONE
MEDIUM POWER ZONE
MAX POWER ZONE
3
LEFT SIDE
RIGHT SIDE
IMPORTANT INFORMATION
POWER ZONES
It is important to understand kiteboarding’s basic
zones of power before you launch a kite. Kite-
boarding accidents can happen over land when
kiteboarders put their kites in what is called neu-
tral position. People think that the kite is stable
in neutral position. However, wind fluctuates-it
gusts and lulls-and in neutral position, some-
thing known as lofting can occur when wind
fluctuates. When a kite luffs (or receives less
wind in its foil), the kite will move slightly away
from the pilot. When a gust hits, the kite receives
a surge of power, and often that surge of power
is too much for a kiteboarder standing with the
kite high overhead. As a result, the kiteboarder
may be lofted (lifted) into the air. Lofting can be
serious, but you may reduce the chances of loft-
ing by understanding the power zones, and by
avoiding putting your kite in the neutral position
while on land.
Neutral Position – This is the position just
above the pilot’s head in the sky. If the pilot levels
out the bar, the kite will gravitate to the neutral
position. However, it is difficult to keep the kite
in this position. Although in this position the kite
may feel steady and may feel like it has the least
amount of power or pull, it is also the position
in which on land the pilot is most susceptible to
lofting. On the water, the neutral position can be
utilized to rest while you reel in your board, but
on land, we strongly suggest you do NOT utilize
the neutral position. After launching, it is best to
make your way to the water without delay. Do
NOT linger on land with the kite in neutral posi-
tion– this could be potentially hazardous.
Lofting – Lofting occurs when the kite is above
the riders head in the neutral position. Instability
in the wind can cause sudden vertical force and
lift a rider off of their feet.
Neutral Zone – This is the area that includes
the neutral position and the area to the left and
right of the pilot. It encompasses the most up-
wind or windward positions in which to fly the
kite. When flown here, the kite has less power
or pull than when it is in the power zone. How-
ever, use caution when the kite is in this zone,
especially when on land, and especially in gusty
wind conditions.
Power Zone – This is the area in front and to
the sides of the pilot, but excluding the neutral
position and zones. It is the area in which the
kite has the most power and pull. When flown
in this area, the kite can be powerful and harder
to control, so avoid flying your kite in this zone
when learning. Use extreme caution when flying
the kite in this zone.
KITE POSITIONS, ZONE & POWER
10
11
12
1
2
9
NEUTRAL ZONE
MEDIUM POWER ZONE
MAX POWER ZONE
3
LEFT SIDE
RIGHT SIDE

11 2018 KITE USER MANUAL
8) Pulley
9) Front line attachment point
10) Rear line attachment point
11) Front (center) Lines
12) Steering (rear) Lines
2018 CABRINHA KITE 1X
1) Kite Body
2) Leading Edge
3) Airlock™ High Volume Valve
4) Sprint™ Valves
5) Sprint™ Air Distribution Tube
6) Sprint™ Air Clips
7) Bridle
*image not to scale
OVERVIEW
1
6
5
4
2
7
8
10
12
11 11
12
9 9 10
8
7
3

12 2018 KITE USER MANUAL

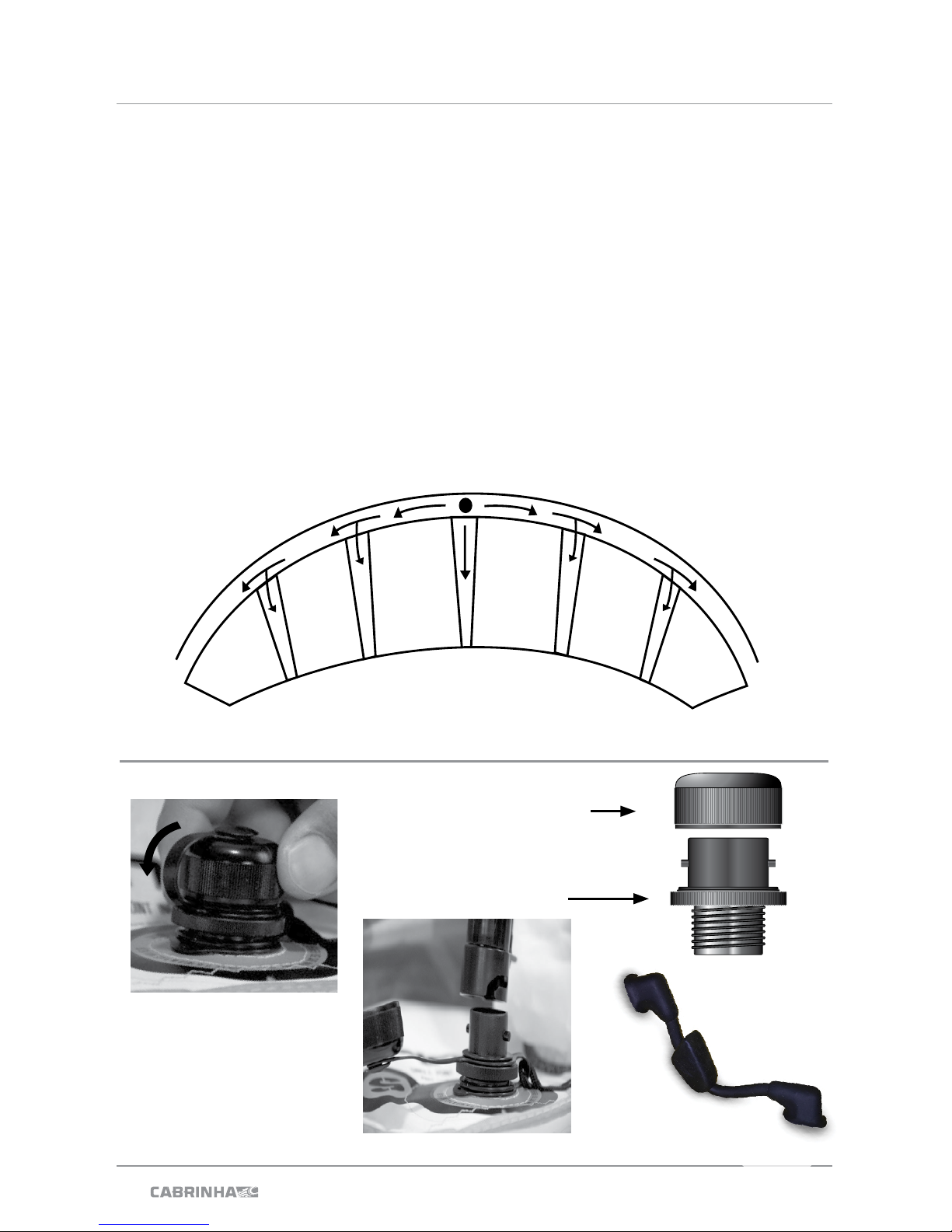

SPRINT™ INFLATION SYSTEM
The SPRINT™ inflation system is a simple to use feature to quickly inflate your kite to an even
pressure. The SPRINT™ system uses a single inflation point to connect your high volume, two way
Cabrinha pump. As you pump your kite with air, all struts and your leading edge inflate quickly and
simultaneously to the desired pressure. The supplied leash pump and threaded valve connection
keeps your kite under control even when pumping up directly in the wind.
Once the kite is pumped you can choose to clip off the air to the struts. This way if you damage a
strut while in use, the rest of the kite will maintain its pressure. At the end of the session you can
choose to deflate your kite completely by disengaging the strut clips.
You can also keep your struts inflated and put your kite away rolled up so that the next session
will take just minutes to set up.
FIG 3
FIG 2
FIG 1
AIRLOCK™ INFLATION/DEFLATION VALVE
SETUP
THE UPPER SECTION IS
THE INFLATION CAP
THE LOWER SECTION IS THE
RELEASE VALVE
SINGLE INFLATION VALVE FILLS THE ENTIRE KITE WITH AIR

13
2018 KITE USER MANUAL
INFLATION BASICS
See the section on Kite Care before inflating your kite.
• Unroll your kite with the struts facing up.
• Make sure your back is to the wind and that the leading edge of the kite is closest to your
body. Secure the kite with sand to keep it from flapping in the wind.
• Use the supplied pump leash to connect the pump to the kite. This will free your hands to
pump the kite.
• Open the inflation cap by turning it counter-clockwise. (FIG 1)
• Make sure that the release valve is seated firmly by turning clockwise. Do not over tighten
the release valve when the kite is not inflated. Doing so may twist and damage the bladder.
The valve base is held in place by a Velcro disc
• Attach the pump end directly to the Airlock Valve on the kite. No connectors are necessary
for this operation. (FIG 2)
• Open all of the Air Clips to allow air to flow from the LE into the struts. (FIG 3)
• When inflating, hold the pump with both hands and provide even pressure to the handle.
This will help maintain the life of the Pump.
• Confirm that the corners of each strut under the leading edge are able to fully inflate.
Lightly push air around in the bladders until the corners are free and correctly lined up.
• It is common that the LE will inflate before the struts. If a strut is not inflating, make sure
that the air clip is open and the air tube is not pinched or damaged.
SETUP
FIG A
• When the kite is fully inflated, remove pump hose and
screw the inflation cap back on. Lightly turn/tighten until
inflation cap is firmly secured.
• Tighten the lower release valve.
• Do not under-inflate or over-inflate the kite. Proper
inflation will make it difficult but not impossible to bend
the ends of the kite in. If it is very easy to bend the wing
tips in, the leading edge is under-inflated. (FIG A) Your
kite should be firm enough that while on its back, the
wing tips should extend into the air and the kite should
retain its bowed shape. (FIG B) If the leading edge is
under-inflated, it may cause poor performance and re-
launching problems. All kites have been tested using
450mB pressure. NOTE: The pumps are rated to 1bar
of pressure, however due to wear and tear; pumps can
fail at a much lower pressure.
• It is recommended that you isolate the air in your struts.
After the kite is inflated, close the clips on the air
distribution tubes.
• Once the kite is properly inflated, turn the kite over and
secure with sand. (see SETUP TIPS ON SECURING
YOUR KITE)
PROPERLY-INFLATED KITE
UNDER-INFLATED KITE
FIG B

14
2018 KITE USER MANUAL
INFLATION PRESSURE CHART
SETUP
CAUTION:
These inflation pressures are for your reference only.
Temperature, pressure gauge accuracy and other
factors can have an effect on the final inflation pres-
sure of your kite. We highly recommend you still use
the test referenced in our user manual for checking
the final amount of pressure. Over inflation will short-
en the life span of your kite.
Kite Size
19.0 - 17.0
15.0 - 13.0
12.0 - 11.0
10.0 - 9.0
8.0 - 7.0
6.0 & smaller
Inflation
Pressure (psi)
4-5 psi
5-6 psi
6-7 psi
7-8 psi
8-9 psi
10-11psi

15 2018 KITE USER MANUAL
TIPS FOR SECURING YOUR KITE
• Never leave an inflated kite unattended on the beach
for a long period of time. Winds may shift or change
and the kite may become unsecured and fly off.
• Always secure your kite with sand, using more weight
than you think you need. An unmanned kite is dangerous.
• Never secure your kite with rocks or sharp objects
(including your board); they will compromise the life of
the kite. If you do not have a sandy beach launch,
consider sand bags.
• Do not leave an inflated kite (secured or not), directly
exposed to the wind for any length of time. This allows
the trailingedge toflutterexcessively, whichcandamage
the kite or tangle the control lines. If you must leave
the kite exposedtothewind on thebeach, placesufficient
amounts of sand between each strut and near the trailing
edge to minimize or stop the fluttering. Also, if possible,
leave the kite in a shaded area.
• Keep in mind other beach users and make sure your
kite and lines will not be a danger to others.
• Wind your lines onto the bar when you are not kiting.
This will keep the beach free of lines and will prevent
other beach users from becoming tangled in your
equipment.

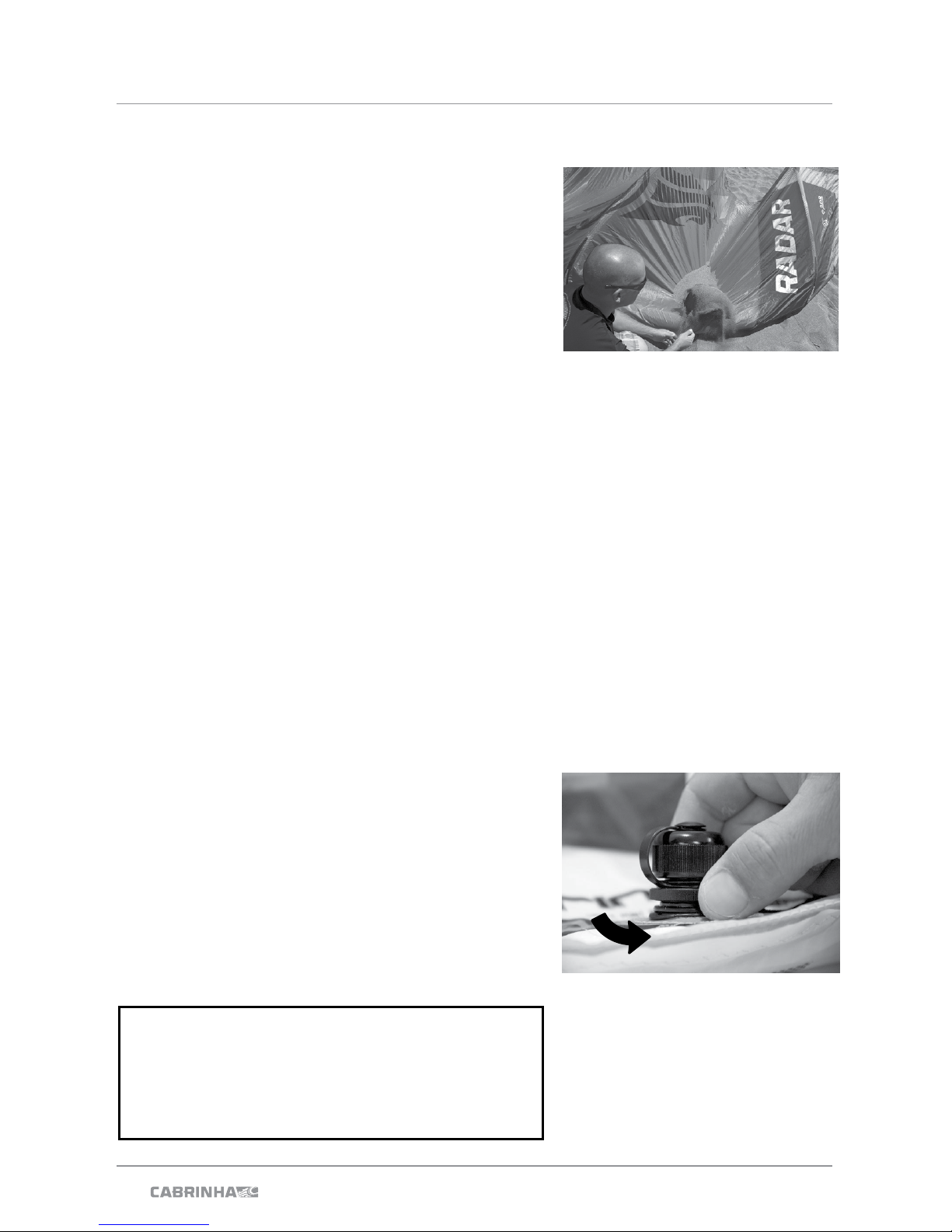

DEFLATING THE KITE
The kite may be deflated completely or partially for your
convenience. To deflate only the Leading Edge, you
must be sure that all the SPRINT™ air clips are pinched
closed, thereby isolating each individual strut. Next,
unscrew the release valve and not the inflation cap. The
release valve is the lower portion of the AIRLOCK. (FIG
A) After deflating, roll up each end of the kite starting
at a wingtip and moving towards the center. Clear the
valve of any sand or debris; then seal the valve before
stowing kite to prevent debris from getting inside internal
bladder. To deflate the entire kite, unclip the air clips at
each strut. Lift the neoprene hood, then unscrew the
release valve. This will allow all the air to flow through
the leading edge and out of the airlock.
SETUP
CAUTION:
When closing valve on a deflated kite, hold bladder
in place to prevent twisting the bladder. Do not over
tighten valve when kite is deflated. You may tighten it
further when kite is partially inflated again.
FIG A
TO DEFLATE REMOVE
HOOD AND UNSCREW
RELEASE VALVE.

16 2018 KITE USER MANUAL
IMPORTANT
FOR SETUP OF YOUR CABRINHA CONTROL SYSTEM, REFER TO
YOUR SUPPLIED CONTROL SYSTEM MANUAL.
IF YOU ARE UNSURE AS TO WHICH CONTROL SYSTEMS ARE
COMPATIBLE WITH THIS KITE, PLEASE REFER TO THE KITE/CON-
TROL SYSTEM COMPATIBILITY CHART AVAILABLE ONLINE AT
WWW.CABRINHAKITES.COM.
PAUSE!
IMPORTANT!
