CAD Audio U1 User manual

U1 USB Recording Microphone
Before using the U1 in your favorite audio or communications
application you must confirm that the computer’s operating
system recognizes the U1.
Windows XP recognition instructions
1. Plug the U1 into the USB port on the computer.
(When using a USB hub, check with the hub manufacturer to
be sure the hub supports a device such as a microphone. Plug
the U1 directly into the computer’s powered USB port for
optimal performance.)
2. Allow 30 to 60 seconds for the system software to recognize
the U1. (A series of bubbles will appear by the Windows
toolbar to notify you of a new device.)
3. In the Start Menu, select Control Panel.
4. Select “Sounds, Speech, and Audio Devices”.
5. Select “Sounds and Audio Devices”.
6. Select the “Audio” tab. Confirm that under the “Sound
recording” section the “C-Media USB Audio Device” is
selected. (The “Sound playback” should remain your usual
sound output device).
7. Select the “Volume” tab under the Sound recording heading
and select “Advanced Controls” in the Options menu of this
window.
8. Click the “Advanced” button to open the “Advanced Controls
for Wave In” window. Depending upon your system, you
might have the option of selecting “1 AGC” or “Mic boost”.
Checking this option will significantly increase the sensitivity
of the microphone. Use this for recording softer sounds. If you
experience distortion when recording louder sounds, try
unchecking this option.
(Default playback device)
9. Launch your audio recording software.
10. Position the U1 approximately 4 to 6 inches from the sound
source for best results.
11. Locate the preferences in your audio program and select
the “C-Media USB Audio Device”. Adjust the input level in this
program so that the audio signal is not distorted.
12. Enjoy your CAD U1 USB Recording Microphone.
Mac OSX recognition instructions
1. Plug the U1 into the USB port on the computer.
(When using a USB hub, check with the hub manufacturer to
be sure the hub supports a device such as a microphone. Plug
the U1 directly into the computer’s powered USB port for
optimal performance.)
2. Allow 30 to 60 seconds for the system software to recognize
the U1.
3. Go to the Apple Menu and locate “System Preferences”.
4. Under “Hardware” click on the “Sound” icon.
5. Click on the “Input” button and choose the “C-Media USB
Audio Device”.
©2007 CAD Professional Microphones Part No. 64513-24-00 Oct2007
6. Click on the “Output” button and choose the internal speakers
or the output speakers of your choice. (The “Sound playback”
should remain your usual sound output device).
7. Position the U1 4 to 6 inches away from your source (your
mouth or music instrument).
8. Test the U1 by speaking or playing into the microphone.
9. You will see activity in the “Input Level” meter.
10. As you are speaking or playing adjust the “Input Volume”
slider. Take care not to allow the signal to go beyond the
meter, if the meter is fully illuminated the sound can become
distorted. The meter should be illuminated 3/4ths of the way
to obtain the best sound quality.
11. Close the System Preferences window to complete the
settings.
12. Launch your audio recording software.
13. Position the U1 approximately 4 to 6 inches from the sound
source for best results.
14. Locate the Preferences in your audio program and select the
“C-Media USB Audio Device”. Adjust the input level in this
program so that the audio signal is strong but not distorted.
15. Enjoy your CAD U1 USB Recording Microphone.
CAD Professional Microphones
6573 Cochran Rd., Bldg. I Solon, OH 44139
800-762-9266 www.cadmics.com
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio commu-
nications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to
correct the interference at his own expense.
Two-Year Limited Warranty
CAD Professional Microphones hereby warrants that this product will be free of defects in material and workman-
ship for a period of two years from the date of purchase. In the unlikely event that a defect occurs CAD will, at its
option, either repair or replace with a new unit of equal or greater value. Retain proof of purchase to validate the
purchase date and return it with any warranty claim.
Return warranty claims carefully packed, insured and prepaid to the Service Department at the address listed
below.
This warranty excludes exterior finish or appearance, damage from abuse, misuse of the product, use contrary
to CAD’s instructions or unauthorized repair. All implied warranties, merchantability, or fitness for a particular
purpose is hereby disclaimed and CAD hereby disclaims liability for incidental, special or consequential damages
resulting from the use or unavailability of this product.
This warranty gives you specific legal rights and you may have other rights that vary from state to state. Some
states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long
an implied warranty lasts, so the above exclusions and limitations may not apply to you.
Note: No other warranty, written or oral is authorized by CAD Professional Microphones.
Shipping Instructions
Please call our customer service department at 440-349-4900 for a pre-approved return authorization number.
Carefully repack the unit and return it to: CAD Professional Microphones, 6573 Cochran Road, Building I, Solon,
Ohio 44139.
RETURNS WITHOUT A PRE-APPROVED RETURN AUTHORIZATION NUMBER WILL BE REFUSED.
If outside the United States, contact your local dealer or distributor for warranty details.

Other CAD Audio Microphone manuals

CAD Audio U7 User manual

CAD Audio

CAD Audio U7 User manual

CAD Audio U37 User manual

CAD Audio

CAD Audio U37 User manual

CAD Audio GXLIEM User guide

CAD Audio

CAD Audio GXLIEM User guide

CAD Audio MB-18 User manual

CAD Audio

CAD Audio MB-18 User manual

CAD Audio U9 Mini-mic User manual

CAD Audio

CAD Audio U9 Mini-mic User manual

CAD Audio U3 User manual

CAD Audio

CAD Audio U3 User manual

Popular Microphone manuals by other brands

Philips SBCMD150 Specifications

Philips

Philips SBCMD150 Specifications

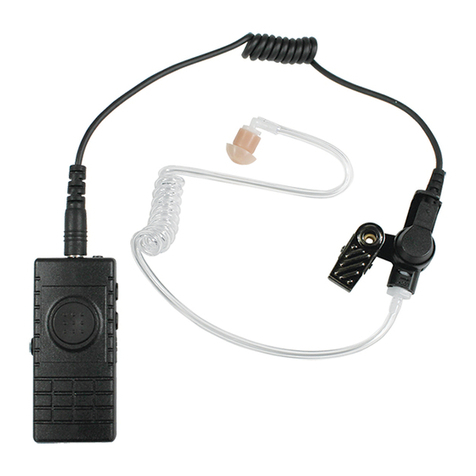

Cobalt Digital Inc BLUE-MIC2-KU manual

Cobalt Digital Inc

Cobalt Digital Inc BLUE-MIC2-KU manual

Polsen RC-77-U product manual

Polsen

Polsen RC-77-U product manual

Sennheiser MK 8 instruction manual

Sennheiser

Sennheiser MK 8 instruction manual

DPA 4003 user manual

DPA

DPA 4003 user manual

Samson CL2 owner's manual

Samson

Samson CL2 owner's manual

Alead ALMICRX5C2XXX user guide

Alead

Alead ALMICRX5C2XXX user guide

Beyerdynamic Classis GM 301 Product information

Beyerdynamic

Beyerdynamic Classis GM 301 Product information

Conrad HX-0018A operating instructions

Conrad

Conrad HX-0018A operating instructions

Toa WM-D5200 instruction manual

Toa

Toa WM-D5200 instruction manual

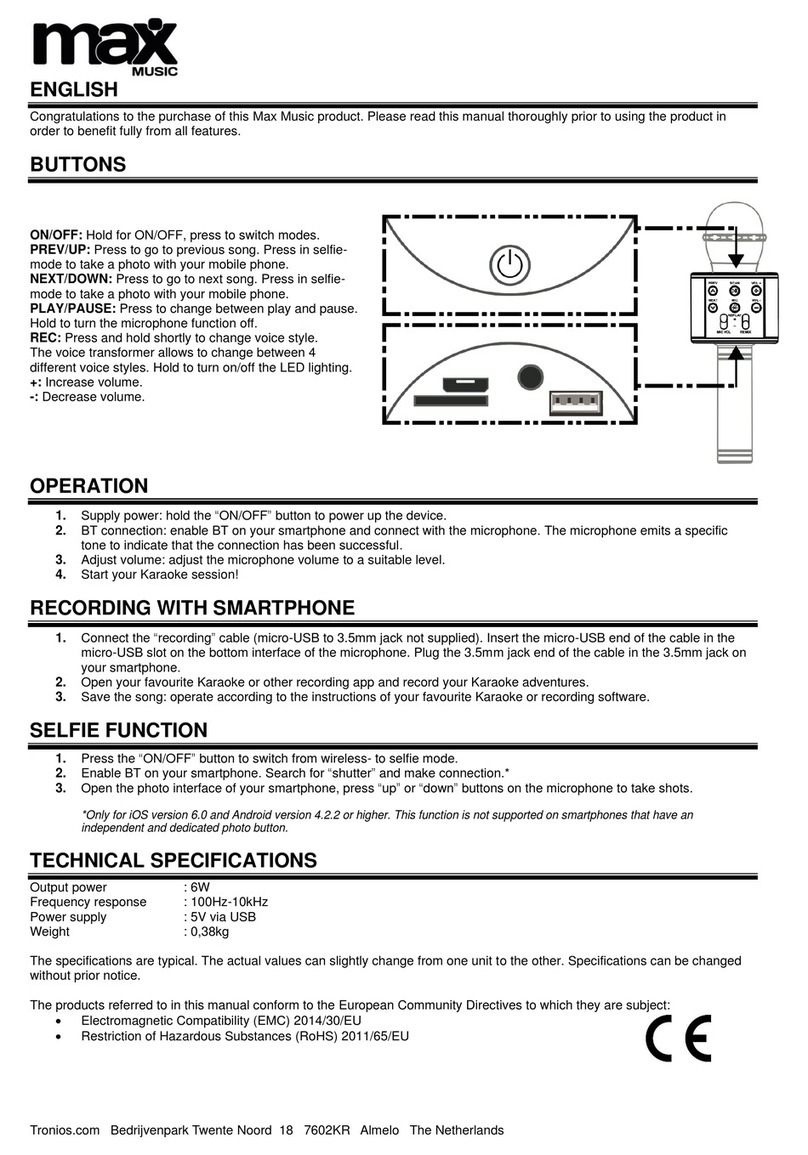

Max Music KM15S quick start guide
