Cadet The Perfectoe UC072 User manual

800-442-2338
360-693-2505
Fax: [phone]
P.O. Box 1675
Vancouver, WA
98668-1675
WARNING!
Take extreme caution when
working with electricity.
Turn off all power at the
circuit panel or fuse box
before doing any electrical
wiring. Lock, tape, or tag the
circuit panel door so power
cannot be turned on during
installation. Failure to do so could result in serious
injury or possible fatality!
OWNER’S GUIDE
The Perfectoe
Keep for future reference
1. Read all information labels. Verify that the electrical
supply wires are the same voltage as the heater.
2. All electrical work and materials must comply with the
National Electric Code (NEC), the Occupational
Safety and Health Act (OSHA), and all state and local
codes.
3. The heater must be grounded to the grounding pigtail
(copper wire) provided in the wall can.
4. If you need to install a new circuit or need additional
wiring information, consult a qualified electrician.
5. Protect electrical supply from kinks, sharp objects,
oil, grease, hot surfaces or chemicals.
6. DO NOT install the heater in a floor, behind doors,
towel racks, drapes, furniture or coat racks, or
anywhere the air discharge may be blocked in any
manner.
7. DO NOT install heater in any area where combustible
vapors, gases, liquids, or excessive lint or dust are
present.
8. Maintenance instructions must be followed. Clean
heater at least every six months or more as needed.
General Safety Information
14 1 /2"
81
/4"
1/4"
31/2"
18"
The Perfectoe Models: The Perfectoe
UC072
UC102
UC101
Features and Benefits
■Two forms of thermal protection for
safety and assurance: a high
temperature manual reset limit and a
back-up over temperature safeguard.
■Oversized high temperature limit
switch with 25 amp rating at 240 Volt.
■Rugged steel-finned element.
■Ideal for bathrooms and kitchens.
■Low profile for rooms with limited
space.
■Two-year extended warranty.
■Single pole or double pole field mount
thermostat kit available.
■Black or white powder coat paint for
a durable finish.
Front
Top Side

Figure 1

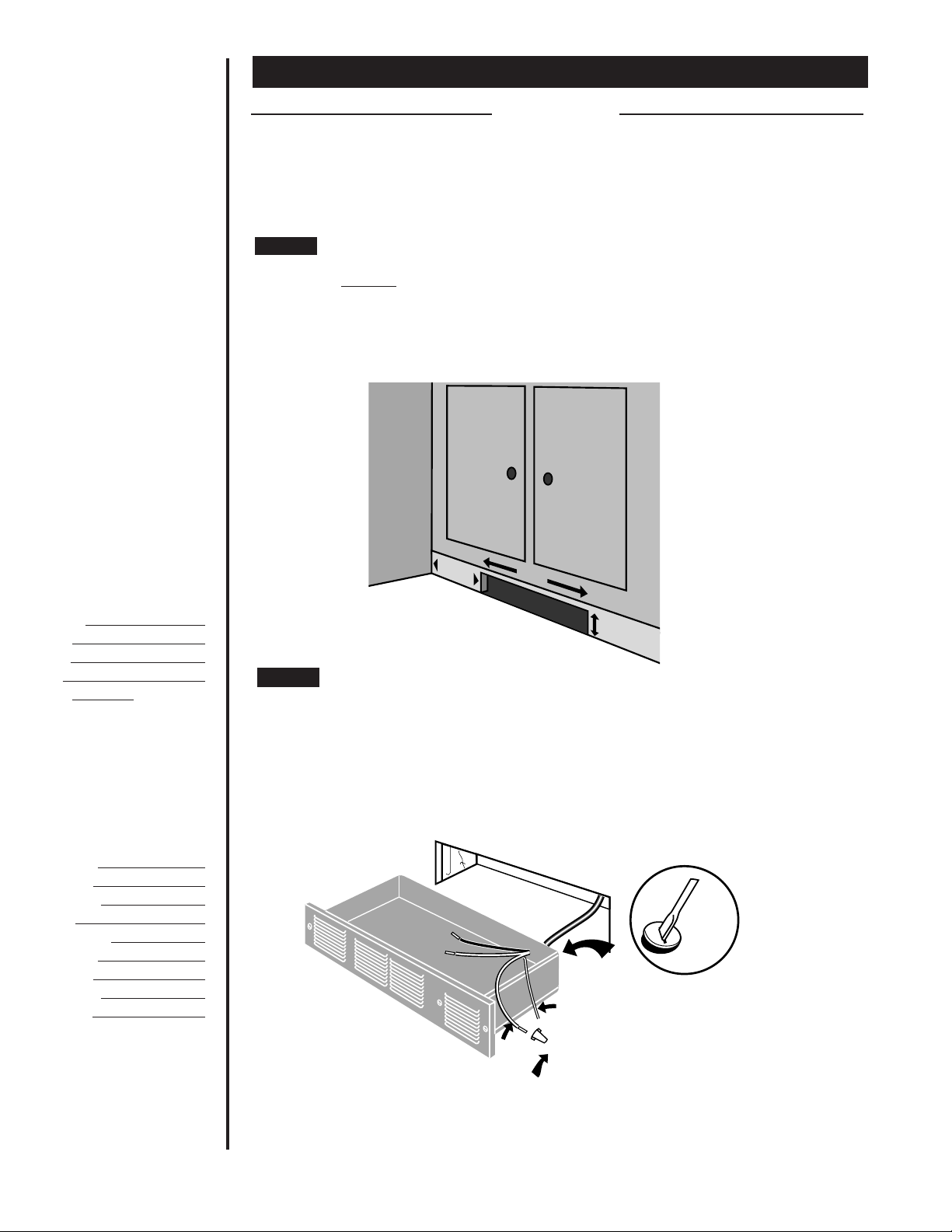

Installation Instructions
Mount The Perfectoe
UL requires a minimum distance of 6" from adjacent surfaces.
Cut rough opening 14 1/2” wide x 3 1/2” high. Opening must be 8 1/2” deep and 6”
(minimum) from adjacent wall.
Provide the appropriate AC two wire with ground service to the right rear corner of rough opening,
allowing enough wire to extend at least 12” out the opening.
Step 1
Connect supply wires
Remove heater lid and a knockout for the supply wire and attach with an approved clamp. Leave
six-inch long leads in the wall can to connect the heater assembly. Connect the grounding lead to
grounding “pigtail”(green insulated copper wire) provided in the junction box.
Attach supply conductors to heater lead wires inside junction box. Re-install heater lid using four
screws provided. Slide heater into rough opening. Fasten heater to opening with screws, then
install grill to heater.
STEP 2
READ ALL
INSTRUCTIONS
AND SAFETY
INFORMATION
Part One
PLACEMENT: Do not install the UC heater in the floor. Heater must be installed horizontally. It is
not necessary to install header or bracing of any kind to install this unit. Note: For the best results,
install at least 6”from the inside corner and/or vertical adjacent surfaces.
Warning!
Vinyl floor
manufacturers warn
that some vinyl may
discolor from
temperatures in
excess of 110°F. See
your vinyl floor
manufacturer for
temperature
specifications for
your vinyl floor
covering.
14
/"
2
ADJACENT WALL
FLOOR
1
3
/"
2
1
6
"
Min.
GROUNDING
PIGTAIL
KNOCK-
OUT
WIRE
CONNECTOR
Ground
IMPORTANT!
It is extremely important
that you verify that the
electrical supply wires
are the same voltage as
the heater (i.e. 120 volt
heater to 120 volt power
supply and 240 volt
heater to 240 volt power
supply). If replacing an
existing heater, check
the labels of the old
heater and replace
using the same voltage.
Hooking a 240 volt
heater to a 120 volt
power supply will
drastically reduce the
heater's output.
Hooking a 120 volt
heater to a 240 volt
power supply will
destroy the heater.
Connecting your
heater to an
incompatible power
supply will void
the warranty.
Figure 2

WARNING!
Risk of Electrical
Shock. Connect
grounding lead to
grounding wire
provided. Keep all
foreign objects out
of heater.
WARNING!
Risk of Fire.
Heater must be
kept clear of all
obstructions: 3 feet
in front and above;
6 inches on both
sides minimum.
WARNING!
Heaters must be
kept clean of lint,
dirt and debris.
Failure to follow
warnings may
cause heater to
eject sparks, ignite
materials, or cause
electrical shock and
will void warranty.
WARNING!
TURN OFF POWER
AT THE CIRCUIT
PANEL OR FUSE
BOX BEFORE
ATTEMPTING ANY
MAINTENANCE.
Operation & Maintenance
1. Warning! Risk of Electric Shock! Turn power to
heater off at circuit breaker panel or fuse box
before servicing heater.
2. Remove thermostat knob, if equipped. Remove the
screws at each end of the grill, remove grill and
set aside.
3. Wash the grill with hot, soapy water and dry
immediately.
4. If present, remove the screws securing the heater
assembly to the opening, then pull heater out of
opening.
5 Remove the four screws securing the lid to the top
of the heater assembly, remove lid.
6. Thoroughly vacuum accumulated dust, lint or other
debris from blower wheel and heater outlet.
Important: Be careful not to damage the blower
wheel, and do not allow the blower wheel to spin
freely when vacuuming.
7. Install lid and slide heater assembly back into
opening. Secure heater assembly to opening, then
install grill and thermostat knob (if equipped).
8. Restore power to heater at circuit breaker panel or
fuse box, then test heater operation by turning
thermostat on and/or adjusting to a higher
temperature.
Part Two
Wiring diagram
H H G
UC
With inbuilt single pole thermostat
1. Once installation is complete and power has been
restored, turn the thermostat knob fully
clockwise.
2. When the room reaches your comfort level, turn
the thermostat knob counterclockwise until the
heater turns off. The heater will automatically
cycle around this preset temperature.
3. To reduce the temperature, turn the knob
counterclockwise. To increase the temperature,
turn the knob clockwise.
How to operate your heaters
Maintenance
As needed or every six monthsminimum. Failure to do so will void warranty
The heater is protected by two temperature limiting controls. The first is a high temperature reset
switch, designed to open the heater circuit when excessive operating temperatures are detected.
Further protection is provided by a backup over-temperature switch, which will permanently open
the heater circuit in severe over-temperature conditions, or in the event of component failure. If
this occurs, the heater must be replaced.
About the heater temperature-limiting controls
If the manual-reset limit control has opened the heater circuit due to excessive operating
temperatures, the heater will not work until the limit reset button is pressed. After allowing the unit
to cool for 10 minutes, clean the heater as instructed in the Maintenance section above. Use a
narrow, non-conductive object to access the reset button through the upper-right section of the
grill. Press GENTLY, and be sure to listen and feel for a click indicating it has been reset.
Note that resetting the manual reset limit control may not restore heater operation if a severe
over-temperature condition has occurred. See the following Troubleshooting Chart for more
information.
Resetting the Manual-Reset Limit Control

LIMITED TWO-YEAR WARRANTY: Cadet Manufacturing Co. will repair
or replace, without charge to the original consumer, any Perfectoe
Model UC heater found to be defective or malfunctioning during the
first year after date of delivery to the original consumer.
These warranties do not apply:
1. To conditions resulting from (a) improper installation, or (b)
incorrect electric current.
2. To conditions resulting from improper maintenance, misuse, abuse,
accident or alteration.
3. To service calls or labor involved in replacing defective part.
4. If the date of manufacture cannot be determined.
5. To freight damaged products.
Cadet shall not be liable for commercial consequential damages such
as property damage and incidental expenses resulting from breach of
these written warranties or any implied warranty. These warranties
give you specific legal rights, and you may also have other rights which
vary from state to state. Cadet neither assumes, nor authorizes anyone
to assume for it, any other obligation or liability in connection with these
electric heaters or any part of such heaters. If the product warranted
should become defective during the warranty period, contact Cadet
Manufacturing Co. for instructions on how to have the repair or
replacement processed. Products returned without authorization will be
refused. To prolong the life of your heater, it is necessary to
follow the maintenance guidelines included with each heater.
Failure to maintain your heater will result in the warranty
being voided.
©1999 Copyright Cadet Manufacturing Co. Printed in U.S.A #720002 2/99
Warranty
WARNING: CONSULT LOCAL ELECTRICAL CODES TO DETERMINE WHAT WORK MUST BE PERFORMED BY QUALIFIED
ELECTRICAL SERVICE PERSONNEL.
Symptom Problem Solution
Breaker trips immediately upon
energizing heater
Heater fan operating, but does
not discharge warm air
Heater will not shut off
Heater discharges smoke or
emits a burnt odor
Element heats for a moment
without the fan turning, then
immediately stops heating.
Heater does not run
Troubleshooting chart
1.Incorrect supply voltage.
2.Overloaded circuit.
3.A short circuit exists in the
supply or heater wiring.
4.Defective circuit breaker.
1.Insufficent element temperature.
2.Incorrect supply voltage.
3.Element has failed.
1.Heat loss from room is greater
than heater capacity.
2.Defective thermostat.
3.Thermostat wired incorrectly to
heater.
1.Dust, lint or other matter is
accumulated inside heater.
1.Defective motor or internal
connection.
2.Jammed fan or motor
1.Thermostat set too low.
2.Heater has tripped the high-
temperature reset switch.
3.Heater has tripped the over-
temperature switch.
4.Power not on at the circuit
breaker.
5.Broken or poorly connected
wire(s) to heater.
6.Defective thermostat
1. Verify that supply voltage matches the heater rating.
2. The total amperage of all heaters on a branch circuit must not be
more than 80% of the amperage rating of the circuit breaker and
supply wire ratings. Use a lower wattage heater, or reduce the
number of heaters in the circuit.
3. Shorted supply or heater wires may be accompanied by severe
sparking. Inspect all supply and heater wiring insulation for damage.
Do not reset the circuit breaker until any electrical shorts have been
repaired.
4. Replace the circuit breaker.
1. Allow a few moments for element to reach operating temperature.
2. Verify that supply voltage matches the heater rating.
3. Replace heater.
1. Close doors and windows. Provide additional insulation, or install a
higher-wattage heater (or multiple heaters if necessary).
2. Adjust themostat to its lowest setting. If heater continues to run
(allow a few moments for the thermostat to respond to the
adjustment), replace thermostat.
3. Refer to thermostat documentation and correct wiring.
1. Clean heater (see "Operation & Maintenance" section for
instructions).
1. Heater requires replacement.
2. Remove obstruction and press heater reset button after allowing the
unit to cool. Test heater operation--if reset button has been pressed
(be sure to listen and feel for a click indicating it has been reset), but
heater does not run, heater requires replacement.
1. Adjust thermostat to a higher temperature until heater operates (see
Problem #6 below if the problem persists).
2. Press the heater reset button (see "Operation & Maintenance"
section for instructions).
3. A severe over-temperature condition has occurred. Replace heater.
4 Turn the correct circuit breaker in the main panel on.
5. Turn off power at circuit breaker. Check supply wire continuity and
proper connection to heater wires.
6. Turn off power at circuit breaker. Jumper across thermostat
terminals. Turn on main circuit breaker. If heater operates,
thermostat is defective and should be replaced. Remove jumper
before operating heater.
