Caiman Lightning Bolt CMN KS 36731 User manual


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International USA. The pages must be reproduced and folded
in order to obtain a booklet A (+/- 148. mm width x 210 mm
height). When folding, make sure you keep the good
numbering when you turn the pages of the I/B. Don’t change
the page numbering. Keep the language integrity. Print only
what is inside the frame.

Front cover page (first page)
Assembly page 1/12
Fax [phone]
Wet and Dry Handheld Vacuum Cleaner
CM KS 36731
14.4V DC – 100W (Adapter 18V – 150mA)


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International USA. The pages must be reproduced and
folded in order to obtain a booklet A (+/- 148. mm
width x 210 mm height). When folding, make sure you
keep the good numbering when you turn the pages of
the I/B. Don’t change the page numbering. Keep the
language integrity. Print only what is inside the frame.
2 CMN 36731 - 11121
Assembly page 2/12
Fax [phone]
IMPORTA T SAFEGUARDS
When using your appliance, basic safety precautions should always be
followed, including the following.
WAR I G : To reduce the risk of fire, electric shock or personal
injury:
1. Read all instructions prior to using
2. Check that your mains voltage corresponds to that stated on the
adapter.
3. Do not use outdoors and do not charge the unit outdoors. Do not
expose to rain. Always store indoors.
4. Locate the adaptor indoors in a cool, dry area, not exposed to the
severe weather, to avoid electrical shock and/or damage.
. To avoid excessive heat and damage to the unit or batteries, do not
operate the vacuum cleaner while charging the unit.
6. Do not allow to be used as a toy. Close attention is necessary when
used by or near children.
7. Use only as described in this manual. Use only manufacturer's
recommended attachments.
8. Do not use with extension cords.
9. Do not place the nozzle or unit near eyes or ears when operating.
10. For best performance, keep the unit and filters clean and always repair
or replace a damaged filter.
11. Do not use with damaged adapter, cord or plug. If appliance is not
working as it should, has been dropped, damaged, left outdoors, or
dropped into water, return it to the service center.
12. Do not abuse the cord. Never carry the adapter by the cord or yank to
disconnect from an outlet; instead grasp the adapter and pull to
disconnect.
13. Never unplug the recharging unit by pulling on the supply cord.
14. Keep cord away from heated surfaces. Do not pull cord around sharp
edges or corners. Do not close door on the charger cord.
1 . Do not handle plug or appliance with wet hands.
16. Unplug the charger from the outlet before any routine cleaning or
maintenance.
17. Use only the charger supplied by the manufacturer to recharge this
appliance.


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International USA. The pages must be reproduced and
folded in order to obtain a booklet A (+/- 148. mm
width x 210 mm height). When folding, make sure you
keep the good numbering when you turn the pages of
the I/B. Don’t change the page numbering. Keep the
language integrity. Print only what is inside the frame.
3 CMN KS 36731 - 11121
Assembly page 3/12
Fax [phone]
18. Do not put any object into openings. Do not use with any opening
blocked; keep free of dust, lint, hair, and anything that may reduce the
airflow.
19. Keep hair, loose clothing, fingers, and all parts of body away from
openings and moving parts.
20. Do not incinerate or mutilate batteries as they will explode at high
temperature.
21. Leaks from battery cells can occur in case of extreme usage or
temperature conditions. If the liquid gets on the skin wash quickly with
soap and water or neutralizer with a mild acid such as lemon juice or
vinegar. If the liquid gets into the eyes, flush them immediately with
clean water as quickly as possible.
22. Do not pick up anything that is burning or smoking such as cigarettes,
matches or hot materials.
23. Do not use without a filter in place.
24. Do not use to pick up flammable or combustible liquids such as
gasoline, or use in areas where they may present.
2 . Do not pick up large or small pieces of sharp-edge debris such as glass.
26. Repair or replacing the battery should be only done by the
manufacturer or its service, to avoid electric shock, fire hazard or
personal injury.
27. Should you notice any kind of damage on the appliance, please
unplug it immediately and contact Customer Service.
28. All repairs should be made by the qualified service indicated by the
Customer Service.
29. Unplug the unit when not in use for a long period of time.
30. Do NOT immerse the appliance, its cord or its adapter, in water, or any
other liquid.
31. This appliance designed for domestic use only, not for a commercial
application.
SAVE THESE I STRUCTIO S
HOUSEHOLD USE O LY


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International USA. The pages must be reproduced and
folded in order to obtain a booklet A (+/- 148. mm
width x 210 mm height). When folding, make sure you
keep the good numbering when you turn the pages of
the I/B. Don’t change the page numbering. Keep the
language integrity. Print only what is inside the frame.
4 CMN KS 36731 - 11121
Assembly page 4/12
Fax [phone]

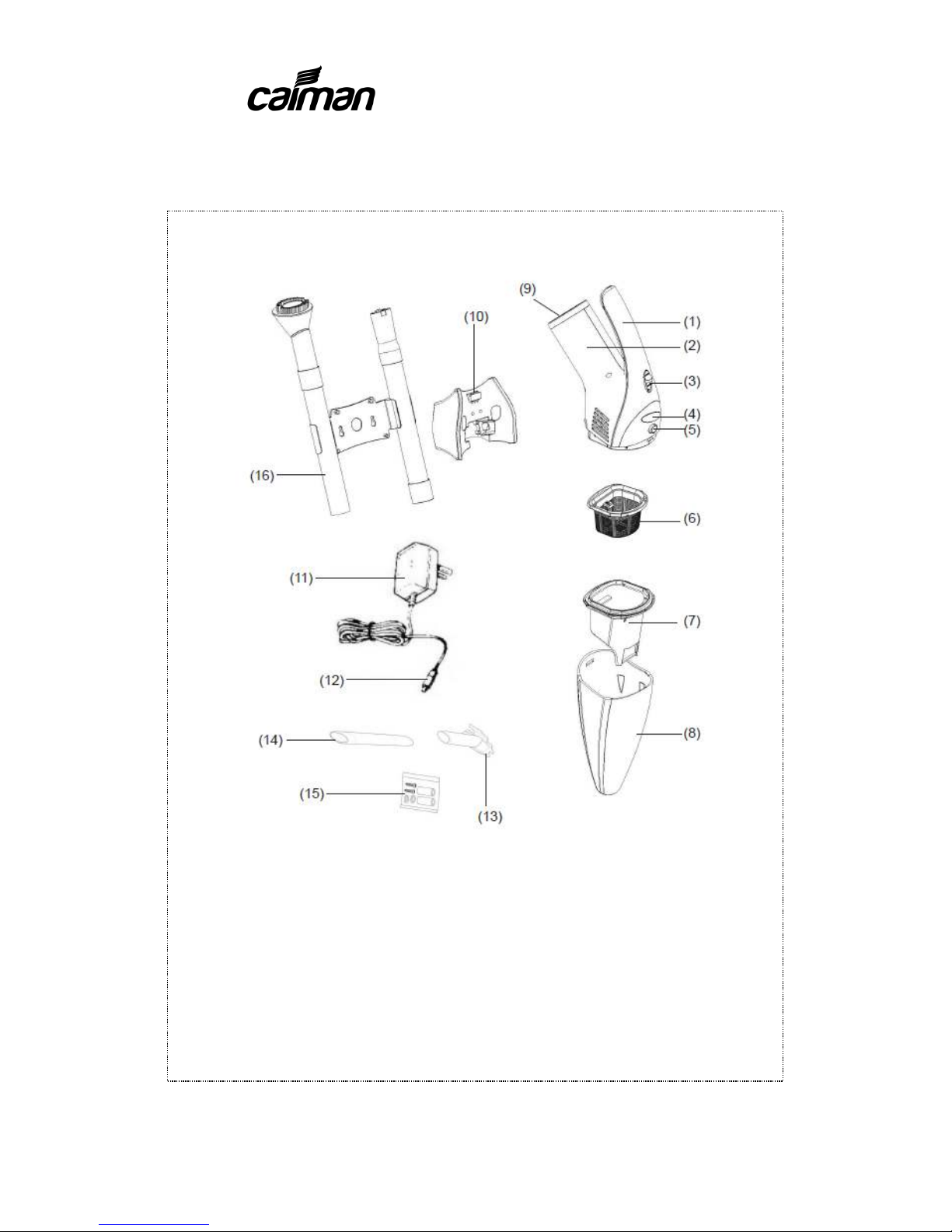

PART DESCRIPTIO
(1) Handle
(2) Battery compartment
(3) On/off switch (0: Off; 1: On)
(4) Lighted charging indicator
( ) Dust compartment release button
(6) Filter
(7) Filter bracket
(8) Dust compartment
(9) Battery compartment cover
(10) Charging base/socket
(11) Adapter
(12) Charging pin
(13) Wet nozzle
(14) Crevice tool
(1 ) Screw, washer and anchors
(16) Long tube
on wall-mount bracket
(17) Wall mount screws (not shown)


Copies of the I/B. Please reproduce them without any
changes except under special instruction from Team
International USA. The pages must be reproduced and
folded in order to obtain a booklet A (+/- 148. mm
width x 210 mm height). When folding, make sure you
keep the good numbering when you turn the pages of
the I/B. Don’t change the page numbering. Keep the
language integrity. Print only what is inside the frame.
CMN KS 36731 - 11121
Assembly page /12
Fax [phone]
PRODUCT DESCRIPTIO
• This unit is equipped with a 14.4V battery pack (12 rechargeable
batteries of 1.2V, Ni-Mh type, 1200mA).
• This unit is equipped with an overcharge protection circuit, that protects
the battery pack of discharging completely or from overcharging
• The adapter supplied is rated 18V, 1 0mA. Only use with the adapter
supplied.
• This unit is suitable for wet and dry use (you can vacuum dust, debris or
liquids with it)
CHARGI G THE VACUUM CLEA ER
• Place the vacuum cleaner on the charging base (10)
• Ensure that the socket on the base fits correctly around the charging pin
(12).
• Plug the adapter (11) into the wall socket. The charge indicator (4) on
the unit lights up.
• The required charging time for this appliance is 14 hours when batteries
are fully depleted or for the first use.

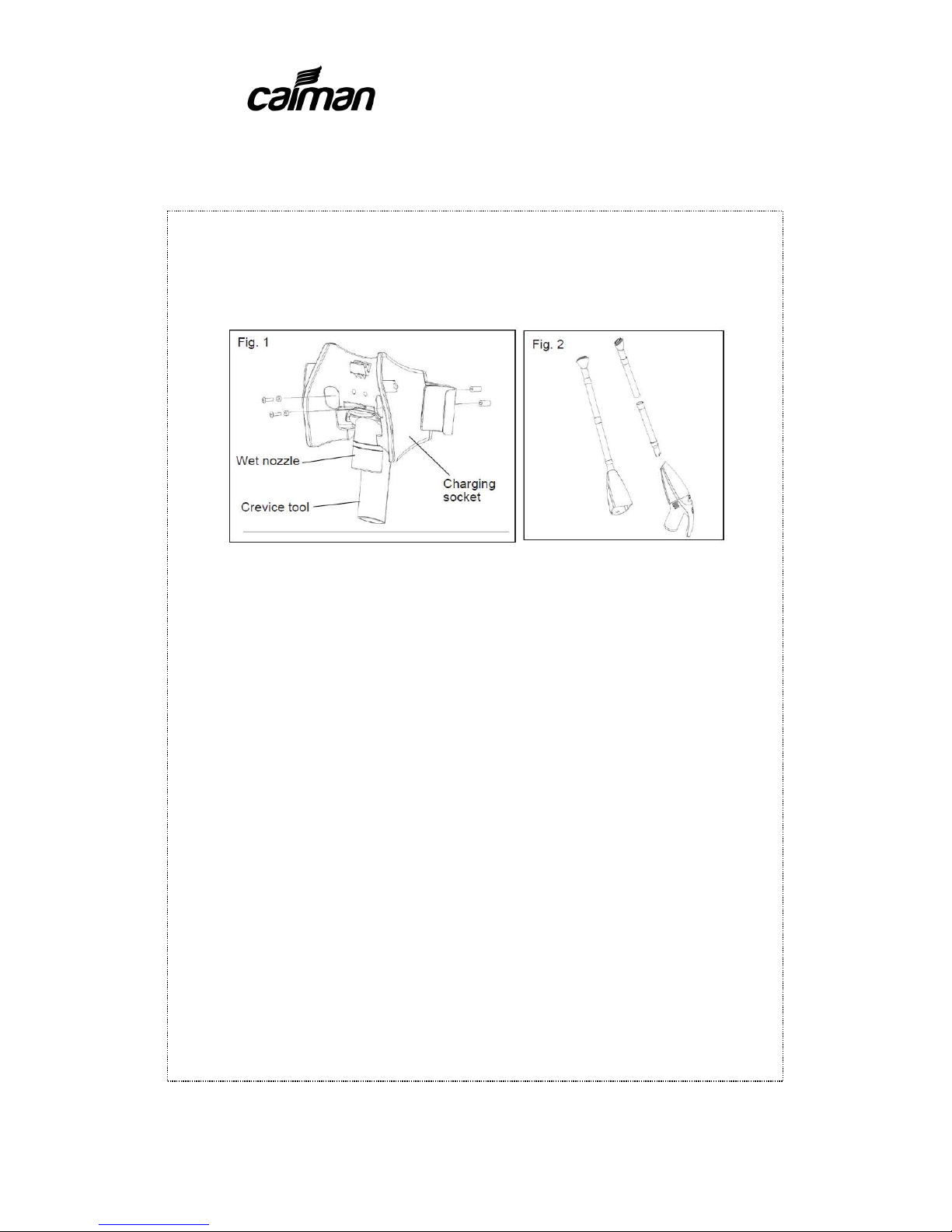

HOW TO MOU T THE CHARGI G BASE
Your vacuum cleaner comes with a charging socket (10), where to place
the unit for it to recharge, and which holds the nozzles. A special bracket is
also included, to hold the long tubes (16) (Fig 1).
• To mount the bracket, place it against the wall in the desired position,
and then trace the mounting holes of the bracket, by using a sharp
pencil, on the wall or the mounting surface. Make sure the wall bracket
is positioned so that the tubes can hang vertically (the 2 marks shall be
drawn along a horizontal line).
• Drill a hole at each of the marked positions, with a diameter adapted to
the anchors and screws used. Insert an anchor into each hole.
ote: please make sure to use anchors adapted to the wall you are
mounting the bracket onto. The anchors supplied may not be adapted
to the wall material you are mounting the bracket onto.
• Place the bracket (16) at the back of the charging socket (10), by
aligning and inserting the pins on the bracket into the back of the
charging socket. Drive one screw into each anchor, leaving the end of
the crew exposed (do not drive the screw all the way into the anchor)
