INTRODUCTION
The new Quilter’s FabriCalc Design and
Fabric Estimating Calculator is perfect for
all of your design needs.
The Quilter’s FabriCalc easily calculates
your material yardage so you can focus on
creativity.
Your Calculator Helps You Solve:
• Quilt Fabric Yardage for any size or
style of quilt, including:
• Backing Yardage
• Border Yardage (mitered or straight
corners)
• Drop Yardage (mitered or straight
corners)
• Binding Yardage
• Yardage for various sizes of Blocks,
including Sashing, if needed.
• Yardage, cut sizes (including seam)
and number of strips to cut for various
sizes of Squares, including 1/2
Square and 1/4 Square Triangles.
• Yardage, cut sizes (including seam)
and number of strips to cut for 45˚
and 60˚ Diamonds.
• Also calculates number of Squares or
Diamonds that can be cut from any
size of fabric you want to use – make
the most of your “stash” of fabric.
• Easily keep track of how much fabric
you need for various colors of fabrics;
store up to six different types of fabrics.

TABLE OF CONTENTS
INTRODUCTION
GETTING STARTED ................................1
Basic Operation and Entry Keys ............1
Fabric Default Values ............................2
Yardage and Meterage Keys..................3
Converting Fractional Yardage to
Decimal Yardage ..............................4
Converting Yardage to Meterage ........4
Dimensional Measurement Unit Keys ....5
Entering Linear Dimensions ................5
Entering Area Dimensions ..................6
Additional Functions ..............................7
CALCULATING QUILT YARDAGE ..........7
Quilt Top Length, Top Width,
Border and Drop ................................10
Calculating the Quilt’s Diagonal............12
CALCULATING BLOCK YARDAGE......13
Blocks (Square-Shaped),
Including Sashing ..............................16
Blocks (Rectangular-Shaped),
No Sashing ........................................18
Calculating the Block’s Diagonal..........20
CALCULATING YARDAGE FOR
SQUARES, TRIANGLES
AND DIAMONDS ................................20
Yardage Required for a
Number of Squares............................24
Number of Squares Calculated
From Fabric (“Stash”) ........................25
Number of Squares Calculated
From Fabric (Length) ........................26
FABRIC STORAGE................................27
Storing Yardage for Multiple Fabrics ....28

MEMORY OPERATION..........................30
Basic Cumulative Memory (M+)
Example ............................................31
CALCULATING COST OF MATERIAL ....32
Fabric Cost Example............................32
UNIT CONVERSIONS .......................... 33
Converting Fractional Inches to
Decimal Inches ..................................33
Converting Inches to Centimeters,
Millimeters ............................................33
Area Conversions ................................34
BASIC MATH..........................................34
Adding Values ......................................34
Subtracting Values................................35
Multiplying Values ................................35
Dividing Values ....................................36
Percentage Calculations ......................37
APPENDIX A — DEFAULT SETTINGS 38
Reset Function......................................38
APPENDIX B —
PREFERENCE SETTINGS..................39
How to Set Preferences........................39
Accessing Preference Settings ............39
APPENDIX C —
OPERATING INSTRUCTIONS ............41
Battery ..................................................41
Battery Replacement Instructions ........42
APPENDIX D — ACCURACY, ERRORS
AND AUTO SHUT-OFF........................42
Accuracy/Errors....................................42
Auto Shut-Off........................................43
APPENDIX E - REPAIR AND RETURN 44
WARRANTY............................................45
INDEX ....................................................48

POCKET REFERENCE GUIDE — 1
GETTING STARTED
Your calculator is designed to work
with common fabric measurements for
easy calculation of various quilt
requirements.
Your calculator is defaulted to display
the calculated results in fractional for-
mat. You can also set your calculator
to display in decimal or metric format
(see Preference Settings for details
on how to change formats).
Basic Operation and Entry Keys
N— On/Clear Key
Turns on power. Pressing once
clears the display. Pressing twice
clears all temporary values.
F— Off Key
Turns all power off, clearing all
entered Quilt, Block, and Square
values. Your calculator is also
designed to shut itself off after
about 8-12 minutes of non-use.
+-x÷=
Arithmetic operation keys. See
Basic Math section for details.
%
Four-function (+, –, x, ÷) percent
key. See Percentage Calculations
section for details.

POCKET REFERENCE GUIDE — 2
0– 9and •
Keys used for entering digits.
/— Fraction Bar
Used to enter fractions. Fractions
may be entered as proper (1/2, 1/3,
1/4, 1/8) or improper (7/6, 9/3).
They will be displayed in 1/8, 1/4,
1/3, or 1/2 increments. You can also
use /to toggle between fractional
and decimal displays.
c
Used to convert between units of
measure or access secondary
functions.
R
Used for recalling entered or stored
values.
Fabric Default Values
These keys are used for storing
values used for proper calculation of
fabric Yardage.
c+— Seam
Stores the Seam width (default: 1/4
Inch). This value is used in the
material functions for proper
material calculations.

POCKET REFERENCE GUIDE — 3
c 8 — Binding Cut
Stores the Binding Cut Width
(default: 2 1/2 Inches). This value is
used in the Binding calculation
found in the Total Quilt Yardage
function. This value should be
stored with seam allowance
included in the stored value (no
seam allowance adjustments are
made to the Binding calculations).
c - — Fabric Width
Stores the Fabric Width (default: 40
Inches). This value is used in all of
the material functions for providing
the proper Yardage based on the
stored Fabric Width.
c ÷ —Backing +
Stores the Backing Overage (default:
4 Inches). This value is used in the
Backing calculation found in the Quilt
Yardage function, and is added to all
four sides of the quilt to accommo-
date the extra material needed for
the quilting process.
Yardage and Meterage Keys
y— Yardage
Enters or converts to
Yardage (linear
Yards
). Yardage is based on the
stored Fabric Width (default is 40
Inches). Also used with the /key for
entering fractional Yardage values
(e.g., 4y1/2).
(Cont’d)

POCKET REFERENCE GUIDE — 4
Note: Repeated presses after c toggle
between fractional and decimal values
(e.g.,
4y1/2cy converts to 4.5
linear Yards (“yardage”); press
y again to
return to fractional Yardage).
m—Meterage
Enters or converts to linear
Meters .
Meterage is based on the stored
Fabric Width (default is 40 Inches,
but you may store any fabric width
desired (e.g. 1 Meter).
Convert Fractional Yardage to
Decimal Yardage
Convert 8-1/8 Yards to Decimal Yards.
Then convert back to Fractional Yards.
KEYSTROKE DISPLAY
N N 0.
8y1/8 8-1/8 YD
c y 8.125 YD
c y 8-1/8 YD
Convert Yardage to Meterage
Convert 8-1/8 Yards to Meterage.
KEYSTROKE DISPLAY
N N 0.
8y1/8 8-1/8 YD
c m 7.430 M
(Cont’d)

POCKET REFERENCE GUIDE — 5
Dimensional Measurement Unit Keys
The following keys are used for
entering units of measure, with ease
and accuracy:
i— Inch
Enters or converts to
Inches . Also
used with the /key for entering
fractional Inch values (e.g., 9 i
1 / 2).
Note: Repeated presses after c toggle
between fractional and decimal Inches (e.g.,
9 i 1 / 2 c i converts to 9.5 Inch;
press
i again to return to Inch-Fractions).
ç— Centimeters
Enters or converts to
Centimeters .
c 9 — Millimeters
Enters or converts to
Millimeters .
Entering Linear Dimensions
When entering fractional values for
Inches, identify your entry by using the
ikey
. Enter fractions by entering the
numerator (top), pressing /(fraction
bar key) and then the denominator
(bottom). Press Nafter each
example.
INCH KEYSTROKE
5 Inch 5 i
5-1/2 Inches 5 i 1 / 2
5.5 Inches 5•5i
(Cont’d)

POCKET REFERENCE GUIDE — 6
CENTIMETERS KEYSTROKE
5 Centimeters 5 ç
5.5 Centimeters 5•5ç
MILLIMETERS KEYSTROKE
5 Millimeters 5 c 9
5.5 Millimeters 5•5c9
Entering Area Dimensions
You can enter or calculate area values
for Inches, Centimeters, or Millimeters.
For instance, if you are working with a
piece of fabric that is 40 Inches x
10 Inches (400 sq. Inches), you can
enter this area for use in the Square,
Triangle, and Diamond functions
(see sections for examples).
INCH KEYSTROKE
400 sq. in. 400ii
25.5 sq. in. 25•5ii
CENTIMETERS KEYSTROKE
100 sq. cm 100çç
25.5 sq. cm 25•5çç
MILLIMETERS KEYSTROKE
100 sq. mm 100c99
25.5 sq. mm 25•5c99
Note: Yardage and Meterage are linear functions,
linked to Fabric Width. They do not allow entry of
Square or Cubic Yards or Meters.
(Cont’d)

POCKET REFERENCE GUIDE — 7
Additional Functions
c%— Pi (π)
Constant = 3.141593.
c•— Access Preference Settings
Used to access various customiz-
able settings. See Preference
Settings for details .
cx— Clear All
Clears all stored values, including
Memory, and resets to default values
(except Preference Settings which
are retained).
Note: Use only when necessary, as it deletes all
stored values.
CALCULATING QUILT YARDAGE
The following keys are used to
calculate Yardage including backing,
binding, borders, and drops.
t
Enters finished width of quilt top for
calculating the top Yardage of
material required.
T
Enters finished length of quilt top for
calculating top Yardage required. A
second consecutive press of T
calculates the diagonal of the fin-
ished top quilt based on the entered
Top Width and Top Length.

POCKET REFERENCE GUIDE — 8
ƒ
Enters the finished Border Width
(4-sided border). This value then
calculates, upon repeated presses,
the following:
Press Result
1 Border Yardage
2 Number of Strips
(to cut for the Border)
3 Border Strip Cut Width
Note: Border values are based on the Corner
(Miter vs Straight) Preference Setting (default:
Mitered Corners). See Preference Settings for
details.
d
Enters the finished Drop Width
(3-sided drop). This value then
calculates, upon repeated presses,
the following:
Press Result
1 Drop Yardage
2 Number of Strips
(to cut for the Border)
3 Drop Strip Cut Width
Note: Drop values are based on the Corner
(Miter vs. Straight) Preference Setting (default:
Mitered Corners). See Preference Settings for
details.

POCKET REFERENCE GUIDE — 9
q
Consecutive presses of this key
calculate:
Press Result
1 Top Quilt Yardage
2 Backing Yardage*
3 Border Yardage**
4 Number of Strips to cut
for Border**
5 Border Strip Cut Width**
6 Drop Yardage**
7 Number of Strips to cut
for Drop**
8 Drop Strip Cut Width**
9 Binding Yardage***
10 Quantity of Strips to cut
for the Binding***
11 Stored Binding Strip Cut
Width***
Note: Continued presses of q will repeat
above sequence.
*Backing Yardage does not include repeats
.
**If Border or Drop is not entered, these values are
not displayed in the above Total Quilt Yardage list.
***All calculated items include adjustments for
seam allowance, except for Binding (it is
assumed the seam allowance is included in the
stored Binding cut value used for calculating
Binding Yardage and number of strips).
Note: Entries of top width, top length, border,
and drop are semi-permanent entries; that
means, they do not clear until you turn off your
calculator or until you enter a new value. You
can enter zero to clear these values if you have
previously stored values.

POCKET REFERENCE GUIDE — 10
Quilt Top Length, Top Width,
Border and Drop
Find the top Yardage of a standard
queen-size quilt (80 Inches length x
60 Inches width), with a finished
Border width of 4 Inches, and a fin-
ished Drop width of 18 Inches.
Then calculate the following values:
• Top Yardage
• Backing Yardage
• Border Yardage, number of strips
and strip cut width
• Drop Yardage, number of strips
and strip cut width
• Binding Yardage, number of strips
and strip cut width
Note: You will notice the Drop is outside of the
Border (this is typical for a standard bedspread). If
you need your Drop to be included inside of the
Border, add your Drop values to your Top Width
and Top Length (do not enter Drop separately).

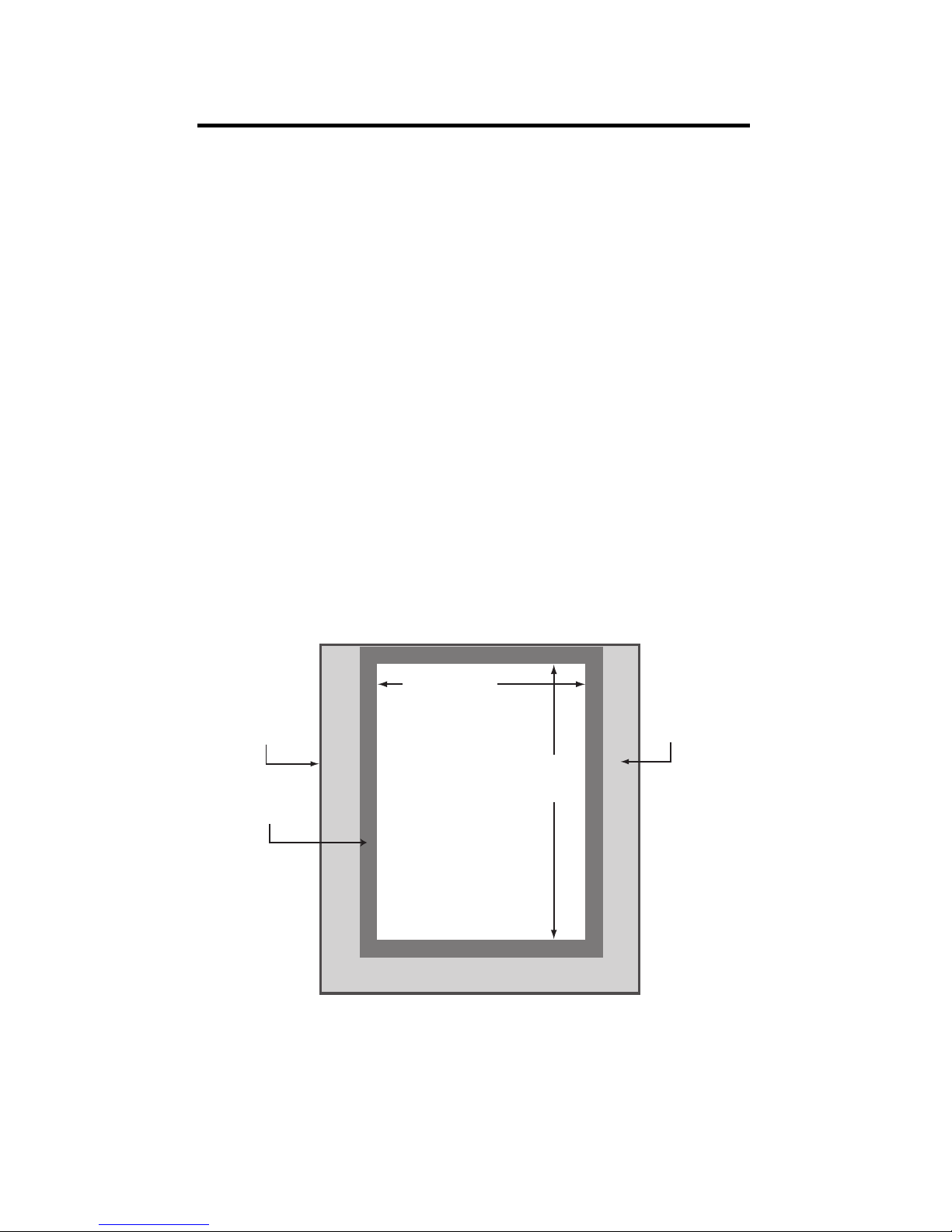

Border
Binding Drop
Top
Length
Top Width

POCKET REFERENCE GUIDE — 11
KEYSTROKE DISPLAY
1. Enter finished top quilt measurements:
N N 0.
6 0 i t WIDTH 60 INCH
8 0 i T LNGTH 80 INCH
2. Enter finished Border width:
4 i ƒ BORDR 4 INCH WIDTH
3. Enter finished drop width
1 8 i d DROP 18 INCH WIDTH
4. Find top Quilt Yardage:
qTOP 4-1/2 YD
5. Find backing Yardage:
qBKNG 9-1/2 YD
6. Find Border Yardage:
q** BORDR 1 YD
7. Find Border number of strips:
q** BORDR 8. QTY STRIPS
8. Find Border cut width:
q**
BORDR 4-1/2 INCH CUT WIDTH STRIPS
9. Find drop Yardage:
q*** DROP 4-5/8 YD
10. Find drop number of strips:
q*** DROP 9. QTY STRIPS
(Cont’d)

POCKET REFERENCE GUIDE — 12
11. Find drop strip cut width:
q***
DROP 18-1/2 INCH CUT WIDTH STRIPS
12. Find binding Yardage:
qBNDNG 0-7/8 YD
13. Find binding number of strips:
qBNDNG 11. QTY STRIPS
14. Display stored binding strip cut width:
qBNDNG 2-1/2 INCH CUT WIDTH
*Continued presses of q will repeat
above sequence.
**Border values are not displayed if Border is not
entered.
***Drop values are not displayed if Drop is not
entered.
Calculating the Quilt’s Diagonal
Find the diagonal measurement of the
quilt if the quilt has a top length of 80
Inches, a top width of 60 Inches.
KEYSTROKE DISPLAY
1. Enter finished quilt measurements:
N N 0.
6 0 i t WIDTH 60 INCH
8 0 i T LNGTH 80 INCH
2. Find the quilt’s diagonal:
TDIAG 100 INCH
*Continued presses of T will toggle between
the entered Top Length and the Diagonal.
(Cont’d)

POCKET REFERENCE GUIDE — 13
CALCULATING BLOCK YARDAGE
The following keys are used to calcu-
late the Yardage of material required
for a number of blocks.
B
Enters the Block Width for calculat-
ing Total Block Yardage via the
bkey. A second consecutive
press of Balso displays the
diagonal of the Block.
If no Block Height is entered, the
entered block is assumed to be
square (e.g., 4iBstores a
4 x 4 block to calculate Block
values).
cB— Block Height
Enters the Block Height for rectan-
gular-shaped Blocks. This value
does not need to be entered if the
Block is square, as explained
above. Continuous presses of B
displays Block Width, Block Height,
and Block Diagonal.
If you enter a Block Height, this
value remains until you enter a
Bvalue again. You will need to
re-enter a Block Height if you do not
want to use the entered Bas
your block Height.

POCKET REFERENCE GUIDE — 14
Rectangular Block Quick-entry method :
you can enter a 4 x 6 Inch Block by
simply entering the Block Width and
Height values as 4x6(Inches
are assumed). For instance, enter
the Block Width value, followed by
the xkey, and then the Block
Height value, and then press the
Bkey (e.g. 4 x 6 B stores
the Block Size of 4 Inch Width by 6
Inch Height).
A
Enters the number of Blocks that
will be placed across the width of
the quilt (e.g., the number of blocks
in one row). Default is one (1)
Block Across (if user does not enter
this value).
D
Enters the number of Blocks that
will be placed down the length of
the quilt (e.g., the number of blocks
in one column). Default is one (1)
Block Down (if user does not enter
this value).
S
Enters the finished Sashing Width
(e.g., in inches). This key calculates,
upon repeated presses, the following
values:

POCKET REFERENCE GUIDE — 15
Press Result
1 Sashing Yardage
2Number of Strips
(to cut for the Sashing)
3 Sashing Strip Cut Width
Note: Sashing is calculated, by default, to
include Sashing surrounding the perimeter of the
Blocks (see Preference Settings for details) in
addition to the Sashing between Blocks. You may
select not to include the Sashing surrounding the
Blocks and only calculate the Sashing between
Blocks (see figure below). See Preference
Settings for how to change this Sashing
Preference Setting.
b
Consecutive presses of this key
calculate:
Press Result
1 Total Block Yardage
2 Number of Blocks
3 Number of Strips
4 Block Strip Cut Width
5 Total Sashing Yardage*
6 Number of Strips
(to cut for the Sashing)*
7 Sashing Strip Cut Width*
Note: Continued presses of b will repeat
above sequence.
*Sashing values do not display if Sashing is zero.
Note: Entries of Block size, number of Blocks across,
number of Blocks down, and Sashing are semi-
permanent entries; that means, they do not clear until
you turn off your calculator or until you enter a new
value. You can enter zero for Sashing if you do not
want Sashing included in the Block Yardage calcula-
tion.

POCKET REFERENCE GUIDE — 16
Blocks (Square-Shaped),
Including Sashing
Find the total Yardage of material
required for Blocks if the finished Block
width is 10 Inches and the quilt will
have 3 Blocks across and 4 Blocks
down. The finished sashing width is 2
Inches.
Then calculate the following values:
• Number of Blocks
• Number of Block strips
• Block cut width
• Sashing Yardage
• Number of Sashing strips
• Sashing cut width
Note: This example includes Sashing around the
perimeter of the Blocks, based on the Sashing
Preference Setting. To change your Sashing
Preference settings to exclude Sashing around
the Block perimeter, see Preference Settings
for details on how to change this.
# Blocks Across
# Blocks Down
1 2 3
2
3
4
