Caleg WOWMAKER 9003305 User manual
WOWMAKER Suspension wit Eye Bolts
General According to static calculations the WOW AKER may only be suspended using the
Information following eye bolts
Item number: 9003305
Supplier: caleg Schrank und Gehäusebau GmbH, Zum Gerlen 1, D-66131 Saarbrücken,
Phone +49 6893 89200, Fax +49 6893 89262, ail [email protected]
The static analysis is limited to the load distribution in the supporting structure. The load may only be applied
vertically - oblique tensile forces are not permitted (if necessary, a cross beam must be used).
Dead load: The dead load of the frame is 210 kg (2.1 kN) – without the Studiolifter.
Screw
connection: With a hex key. The eye bolt remains rotatable after fastening.
Use: Inside buildings only.
Wind load: None.
ATTENTION: The hoist must be designed so that the increase in load caused by lifting does not
exceed the factor fdyn 0 3.
ATTENTION: The bolt screws must be screwed at least 10 mm into the suspension blocks. (flat on
the frame).
WOWMAKER – Attac ing t e eye bolts and lifting it out of t e Studiolift.
STEP 1: Turn the WOW AKER off and disconnect all cables connected to the Studioframe (as delivered: 2x
Neutrik plugs and 1x connection to S-Box).
STEP 2: Screw the eye bolts flat on the frame into the block using a hex key.
STEP 3: Connect the bolts to a crane or other hoist device so that the Studioframe is secure even without the
Lifter.
STEP 4: Loosen the locking screws (2x). Caution, spacer washer is no longer fixed.
STEP 5: Loosen the screws of the holding knobs (4x) one turn with a 7 mm hex key.
STEP 6: Lift the Studioframe vertically out of the Lifter with the crane.
ATTENTION: Never stand under a suspended load! Stay out of the extended danger zone where risk
of the suspended load falling may occur!
ATTENTION: The eye bolt’s suspension point is not suitable for swiveling under load.
ATTENTION: Do not use the eye bolt to lift persons!
ATTENTION: Observe the instructions for use, operation and maintenance provided by the
manufacturer of the eye bolts. Non-compliance may cause personal injury and damage to property.

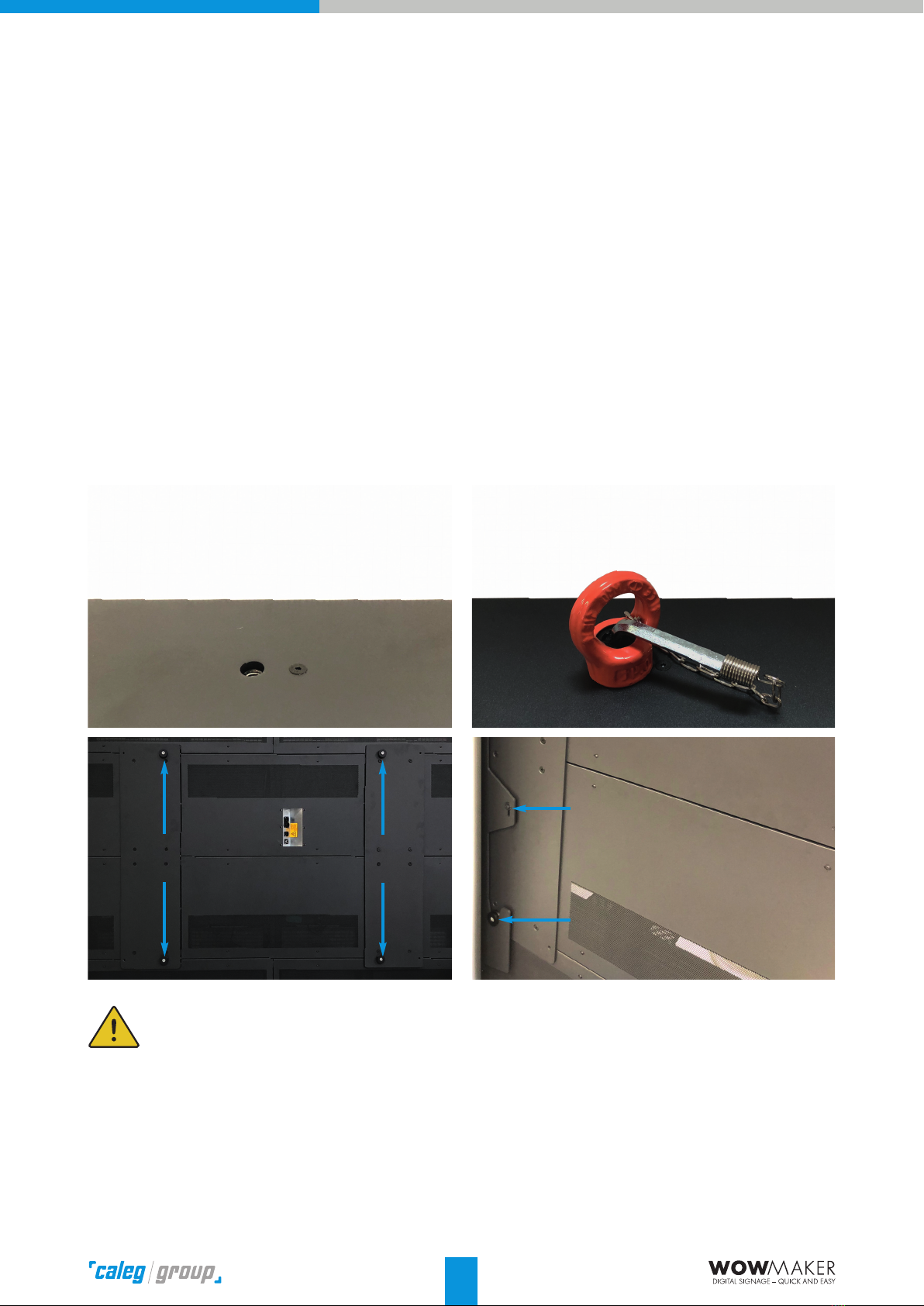

Holding knobs
Eye bolt
screwed in flat
Block with screw thread
under the frame
Locking screw (middle)
Holding knob (bottom)
