Calrec Artemis User manual

calrec.com Putting Sound in the Picture
ARTEMIS INSTALLATION & TECHNICAL MANUAL
Digital Broadcast Production Console
Shine - Beam - Light

Calrec Audio Ltd
Nutclough Mill
Hebden Bridge
West Yorkshire
England UK
HX7 8EZ
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
calrec.com
No part of this manual may be reproduced
or transmitted in any form or by any means,
electronic or mechanical, including photocopying
and scanning, for any purpose, without the prior
written consent of Calrec Audio Ltd.
Whilst the Company ensures that all details in this
document are correct at the time of publication,
we reserve the right to alter specifications and
equipment without notice. Any changes we make
will be reflected in subsequent issues of this
document. The latest version will be available
upon request. This publication is for International
usage.
Calrec Audio Ltd reserve the right to change
specifications without notice. E & O.E.
The established policy of Calrec Audio
Ltd. is to seek improvements to the design,
specifications and manufacture of all products.
It is not always possible to provide notice outside
the company of the alterations that take place
continually.
Despite considerable effort to produce up to
date information, no literature published by
the company nor any other material that may
be provided should be regarded as an infallible
guide to the specifications available nor does
it constitute an offer for sale of any particular
product.
Apollo, Artemis, Summa, Alpha, Sigma, Omega,
Zeta, Hydra Audio Networking and Bluefin
High Density Signal Processing (HDSP) are
trade marks of Calrec Audio Ltd. Dolby®E is a
registered trade mark of Dolby Laboratories, Inc.
All other trade marks are acknowledged.
© 2016 Calrec Audio Ltd. All Rights Reserved.

ARTEMIS
CONTENTS
Information 5
Important Information 6
Health and Safety 7
Technical Support 8
Control Surface 9
Surface Dimensions and Assembly 10
Desk-top mounting 10
Floor stand options 10
Bolt-down 'OB' stands 11
Reduced height stands 12
Surface sizes 12
Typical surface measurements 13
Access to surface connections 14
Access to internal surface components 14
Rear Connector Interface and Covers 14
Floor Stand Removal 15
Surface Components 16
POE (Power Over Ethernet) switch 16
POE Reset connections 18
Surface Switches 19
Surface Power - AC 20
Surface Power - DC 21
Control Surface Cat5 Cable Coding 22
System PC 23
PC power and reset 23
System network data connection 23
LAN connection 24
Keyboard and mouse 24
Touchscreen monitor 24
Accessible PC USB port 24
Operating system 24
3rd Party software 24
Serial port 24
Antivirus Protection 24
Backup PC 25
Processing Core – Beam / Shine 27
Core Dimensions and Mounting 28
Airflow 28
Acoustic Noise 28
Support 28
Connections 28
Card Types & Layout 29
Card layout 29
Reset, sync interface & fan status 29
Installing / removing cards 30
Standard Status LED's 30
Master Control processor 31
DSP 31
Router / Expander 32
Power Supply 32
Processing Core – Light 33
Core Dimensions and Mounting 34
Airflow 34
Support 34
Connections 35
Card layout 35
Installing / removing cards 35
Card types & Layout 35
Reset & sync interface card 36
Standard status LEDs 36
Control Processor Module 36
DSP 37
Router 37
Power supply 37
Pre-2015 Cores 38
Standard status LEDs 38
Obsolete Control Processor 38
Airflow 39
Support 39
Connection Information 41
SFP - Overview 42
SFP slot orientation 42
SFP latching and extraction 42
SFP slot covers 43
Loose SFP storage 43
Power Budgets & Heat Management 43
Here is a simple 5 point guide to this:- 43
Copper SFP Connectivity 44
Shielded cables and connectors 44
Maximum cable length 44
Cable routing considerations 44
Termination - strain relief 44
Termination - pin-out 45
Testing / certification 45
Temporary / reusable cables 45
Fibre SFP Connectivity 46
Singlemode vs multimode 46
Identification 46
Duplex Connectors / terminations 46
Single strand, bi-directional SFPs 46
SFP / fibre specifications 46
Testing / certification 47
Areas of loss 47
Fibre handling practise 47
Ruggedised fibre 47
Cleaning and preventative maintenance 47
Fibre - General Rules 47
WARNING 47
Cleaning fibre optic cables and connectors 48
Cleaning procedure 48
Additional notes 48
Cleaning optical transceivers 48
Cleaning procedure 48
Synchronisation 49
Sync source selection 49
Surface to Core Connection 50

4 ARTEMIS Digital Broadcast Production Console
Control Surface SideCar Connection 51
Extended Control Surface Connections 52
Audio I/O Connections 53
Audio Formats 53
Power 53
ID configuration 53
Fixed format I/O box IDs 53
Address 2 53
Modular I/O box ID setting 53
Hydra2 connection 54
GPIO Connections 56
GP inputs 56
GP outputs 56
Dry closure only outputs 56
Connecting to Other Consoles/Routers 60
Surface Rear Connector Pin-Outs 62
Moving coil meters* 62
RTW meters 63
DK meters 64
Headphone sockets 65
Loudspeaker panels 65
External Control 67
SW-P-08 Router Remote Control 68
Connection and redundancy 68
Connection configuration 68
SW-P-08 I/O mapping configuration 68
Ember Remote Control 69
Connection and redundancy 69
Connection configuration 69
Control configuration and enabling 69
Calrec Serial Control Protocol 70
CSCP versions 70
Faders controlled by CSCP 70
Controls available via CSCP 70
Connection 70
Secondary connections 71
Multiple consoles 71
Connecting via corporate LAN 71
Configuration 71
User & boot up enable / disable 71
System Status over SNMP 72
Connecting to the SNMP server 72
Configuring the SNMP Agent 72
Scope of System Status over SNMP 72
Wireless Router Configuration – Assist 73
Console Configuration 73
Wireless Router Configuration 74
DHCP Configuration 74
Other Configuration Parameters 74
Security Considerations 75
Assist Application Configuration 75
RS232/422 Conversion 76
Perle IOLAN Configuration 77
Telnet IP configuration 77
Main configuration - Web Manager 77
Setup & Configuration 81
Overview and GUI Access 82
Creating a Clean Starting Point 83
Screensaver Timeout - 'Dark-Mode' 84
Sync Setup 85
Main Application Sync 85
H20 Sync 85
I/O Configuration 86
Assigning Paths to Faders 87
Assignable faders 87
Assigning paths 87
Using Tone 88
Monitoring Output Setup 89
Speaker configuration 89
Metering Setup 90
Calrec TFT meters 90
Moving coil and third party meters 90
Monitor / Meter Source Selection 91
Input & Output Port Patching 93
Talkback and external tone 94
Assigning GPIO 95
User Control Logging Setup 96
Path Controls Logged 97
User Logs 99
Panel Options 101
Fader Panel - IC5791 102
Upstand TFT Panel - MU5794 103
Monitor Panel - MY5792 104
Monitor Panel - MW5940 105
Reset / 3rd party Meter Panel 106
3rd party meters 106
Moving coil meters 106
RTW TM7 meter types and layout 106
Audio interface for 3rd party meters 106
Hydra2 output provision 107
Resets 107
Talkback mic 107
USB port 107
Loudspeaker Panel - LS5958 108
Connections 108
Obsolete Panels 111
Mechanical Moving Coil Panels 112
Surround scopes 112
V U 112
PPM RG/RG 112
PPM RG/WO 112
DIP switch configuration 113
Le ve l 113
L/R or M/S 113
Resets 113
Talkback mic 113
USB port 113
Specifications 115
General Specifications - Shine/Beam/
L i g ht 116
Power/Environmental Specification 117
Audio Performance Specification 121

calrec.com Putting Sound in the Picture
ARTEMIS
INFORMATION

6 ARTEMIS Digital Broadcast Production Console Information
IMPORTANT INFORMATION
After Sales Modifications
Please be aware that any modifications
other than those made or approved by
Calrec Audio Limited or their agents, may
invalidate the console’s warranty. This
includes changes to cabling provided by
Calrec and variations to the recommended
installation as detailed in Calrec
documentation.
Modifications to this equipment by any
party other than Calrec Audio Limited
may invalidate EMC and safety features
designed into this equipment. Calrec
Audio Limited can not be liable for any
legal proceedings or problems that may
arise relating to such modifications.
If in doubt, please contact Calrec Audio
Limited for guidance prior to commencing
any modification work.
Installation
In many installations the AC power
connectors will not be readily accessible,
effectively making the equipment
permanently connected. The installation
should be carried out in accordance
with all applicable installation rules and
regulations.
Service Personnel
The AC power disconnect devices are
the 2 x IEC (IEC60320-1 C13/C14)
couplers located at the rear of each unit.
WARNING: The apparatus has a dual
power system. It is essential that BOTH
AC power IEC couplers are disconnected
to prevent exposure to hazardous voltage
within the unit.
Third Party Equipment
Integrating third party equipment into
a Calrec system may compromise the
product's ability to comply with the
radiated emission limits set in the EMC
(Electro Magnetic Compatibility) standard
EN55022.
Calrec Audio Limited can not be
responsible for any non-conformities
due to use of third party equipment. If
in doubt, please contact Calrec Audio
Limited for guidance prior to integrating
any third party equipment.
ESD (Static) Handling Procedures
In its completed form, this equipment has
been designed to have a high level of
immunity to static discharges. However,
when handling individual boards and
modules, many highly static sensitive
parts are exposed. In order to protect
these devices from damage and to protect
your warranty, please observe static
handling procedures, for example, use an
appropriately grounded anti-static wrist
band. Calrec will supply an electrostatic
cord and wrist strap with all of its digital
products.
All modules and cards should be returned
to Calrec Audio Limited in anti-static
wrapping. Calrec Audio Limited can
supply these items upon request, should
you require assistance.
This applies particularly to digital products
due to the types of devices and very
small geometries used in their fabrication,
analogue parts can however still be
affected.
RoHS Legislation
In order to comply with European RoHS
(Reduction of Hazardous Substances)
legislation, Calrec PCB and cable
assemblies are produced with lead-free
(tin/copper/silver) solder instead of tin/
lead solder. See Figure 1.
In the unlikely event of a customer
having to carry out any re-soldering on
Apollo, Artemis or Hydra2 hardware,
it is imperative that lead-free solder is
used; contaminating lead-free solder with
leaded solder is likely to have an adverse
effect on the long-term reliability of the
product. Circuit boards assembled with
lead-free solder can be identified (in
accordance with IPC/JEDEC standards)
by a small oval logo (see Figure 2) on the
top-side of the circuit board near the PCB
reference number (8xx-xxx). The same
logo is used on the connector hoods of
soldered cable assemblies.
If in doubt, please check with a Calrec
customer support engineer before
carrying out any form of re-soldering.
ISO 9001 and RAB Registered
Calrec Audio Ltd has been issued
the ISO9001: 2008 standard by the
Governing Board of ISOQAR.
The award, for both UKAS (Figure 3)
and RAB (Figure 4) registration, is the
most comprehensive of the ISO9000
international standards. Granted in
recognition of excellence across design,
development, manufacture and after-
sales support, the certification follows a
rigorous and thorough review of Calrec’s
internal and external communication and
business procedures.
FIGURE 1 - LEAD FREE
Pb
Pb-Free
Lead
Free
FIGURE 3 - UKAS REGISTRATION
FIGURE 4 - RAB REGISTRATION
FIGURE 2 - LEAD FREE LOGO
e1

CALREC Putting Sound in the Picture 7
HEALTH AND SAFETY
Important Safety Instructions:
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
• Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
• Protect the power cord from being
walked on or pinched particularly at
the plugs, convenience receptacles,
and the point where they exit from the
apparatus.
• Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
• Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug is damaged, liquid has been
spilled or objects have fallen into the
apparatus, the apparatus has been
exposed to rain or moisture, does not
operator normally, or has been dropped.
• Warning: To reduce the risk of fire
or electric shock, do not expose this
apparatus to rain or moisture.
• Not intended for outdoor use.
• This equipment must be EARTHED.
• Before starting any servicing operation,
equipment must be isolated from the
AC power supply. The disconnect
devices are the 2 x IEC connectors
(IEC 60320-1 C13/C14 couplers).
• Do not allow ventilation slots to be
blocked.
• Do not leave the equipment powered
up with the dust cover fitted.
Cleaning
For cleaning the front panels of the
equipment we recommend using a soft
anti-static cloth, lightly dampened with
water if required.
Explanation of Warning Symbols
Triangular warning symbols contain a
black symbol on a yellow background,
surrounded by a black border.
The lightning flash with arrow head
symbol within an equilateral triangle, as
shown on this page, is intended to alert
the user to the presence of dangerous
voltages and energy levels within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock or injury.
The exclamation mark within an
equilateral triangle, as shown on this page,
is intended to prompt the user to refer
to important operating or maintenance
instructions in the documentation supplied
with the product. See Figures 5 & 6.
Earthing
This is a Class I product. An Earth
connection MUST be provided in each AC
power cord.
The Earth Bolt connection at the rear of
the console should be connected to Earth
using Earth cable at least 6mm2 in cross
section (10 AWG).
Lithium Battery Replacement
Caution: Danger of explosion if battery is
incorrectly replaced. Replace only with
the same or equivalent type. Batteries
must not be exposed to excessive heat
such as sunshine, fire or the like.
This device complies with part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
FIGURE 5 - DANGEROUS VOLTAGES
FIGURE 6 - IMPORTANT INSTRUCTIONS

8 ARTEMIS Digital Broadcast Production Console Information
Should you require any technical
assistance with your Calrec product
then please contact your regional
Calrec distributor. Customers within
the UK or Ireland should contact
Calrec directly.
For a complete list of worldwide
distributors by region, go to
www.calrec.com or contact us for
more information.
For pre-delivery technical enquiries, UK
and Ireland customers should contact the
Calrec project manager assigned to their
order. Post delivery, the Calrec Customer
Support team will take care of your
technical enquiries.
Our UK customer support team work
closely with our global distributor network
to provide the highest level of after sales
support. Your distributor should be your
first point of contact and will often be
able to provide an instant solution, be it
technical advice, spares or a site visit by
an engineer.
Calrec UK customer support and our
global technical team provide free of
charge technical support and advice by
phone or e-mail to all customers.
Once your console is installed we can
provide an engineer on site to carry out
system commissioning. Commissioning
ensures the equipment is correctly
installed and fully functioning before it
goes into use. During commissioning, our
engineers can also help and advise with
configuration and setup.
Calrec after sales support includes:
• Free of charge comprehensive
technical advice and support by phone
and e-mail.
• Software and hardware upgrades.
• Repairs.
• Quick supply of replacement or loan
hardware in the event of a failure.
• Providing export documentation for the
return of faulty parts.
• On site commissioning visits.
• On site service and health check visits.
• Emergency engineer visits.
• On site on-air support, for complete
peace of mind - providing operational
guidance, and technical engineering
support for new installations or high
profile events.
• Operational training.
• Maintenance / technical training.
• Supply of replacement components.
• Supply of documentation.
Service contracts
We offer a range service contracts to our
UK and Ireland customers, offering 24/7
telephone support, regular health checks
and extended warranty amongst other
benefits. Please contact our customer
support team for more information on
service contracts.
Product Warranty
A full list of our conditions & warranties
relating to Goods & Services is contained
in the Company’s standard Terms and
Conditions. A copy of this is available on
request.
Repairs
If you need to return goods to Calrec, for
whatever reason, please contact your
TECHNICAL SUPPORT
regional distributor or Calrec customer
support beforehand for guidance, as
well as to log the details of the problem
and receive a reference number. For
customers outside the UK and Ireland,
shipping via the distributor saves
customers from dealing with exportation
paperwork. If there is a need to send
direct to Calrec, contact us beforehand to
log the incoming repair and for assistance
with exportation documents.
Standard of Service
Ensuring the highest standards is a
priority, if you have any comments on
the level of service, product quality
or documentation offered to you by
Calrec, please contact the Calrec
Customer Support team in the UK who
will endeavour to address the issues.
Calrec welcomes all customer feedback.
For feedback specific to this document,
please contact [e-mail].
[email protected]
Telephone:
Email - Technical:
Email - General:
Postal address:
Fax:
Website:
[phone]
[email protected]
Calrec Audio Ltd.
Nutclough Mill,
Hebden Bridge,
West Yorkshire,
HX7 8EZ,
U.K.
[phone]
www.calrec.com
(9:00am-5:30pm)

calrec.com Putting Sound in the Picture
ARTEMIS
CONTROL SURFACE

10 ARTEMIS Digital Broadcast Production Console Control Surface
SURFACE DIMENSIONS AND ASSEMBLY
The Artemis control surface can be
customised in terms of width and
fader count, and can be provided with
a number of stand and trim options.
Desk-top mounting
The control surface can be supplied with
no floor stand, or if supplied, the floor
stand can be removed allow for desk-top
mounting, as shown in Figure 1.
Floor stand options
Several floor stand types are available.
The standard 'Studio' type, as shown in
Figure 2 has adjustable feet for levelling.
The 'OB' version, shown in Figure 3
allows for the stand to be bolted to the
floor, typically for use in mobile or outside
broadcast units. Note the OB version
is 7.8mm [0.31'] taller than the Studio
version. Both the Studio and OB style
are also available with a reduced height,
sitting the console 40mm [1.57'] lower
than the standard versions.

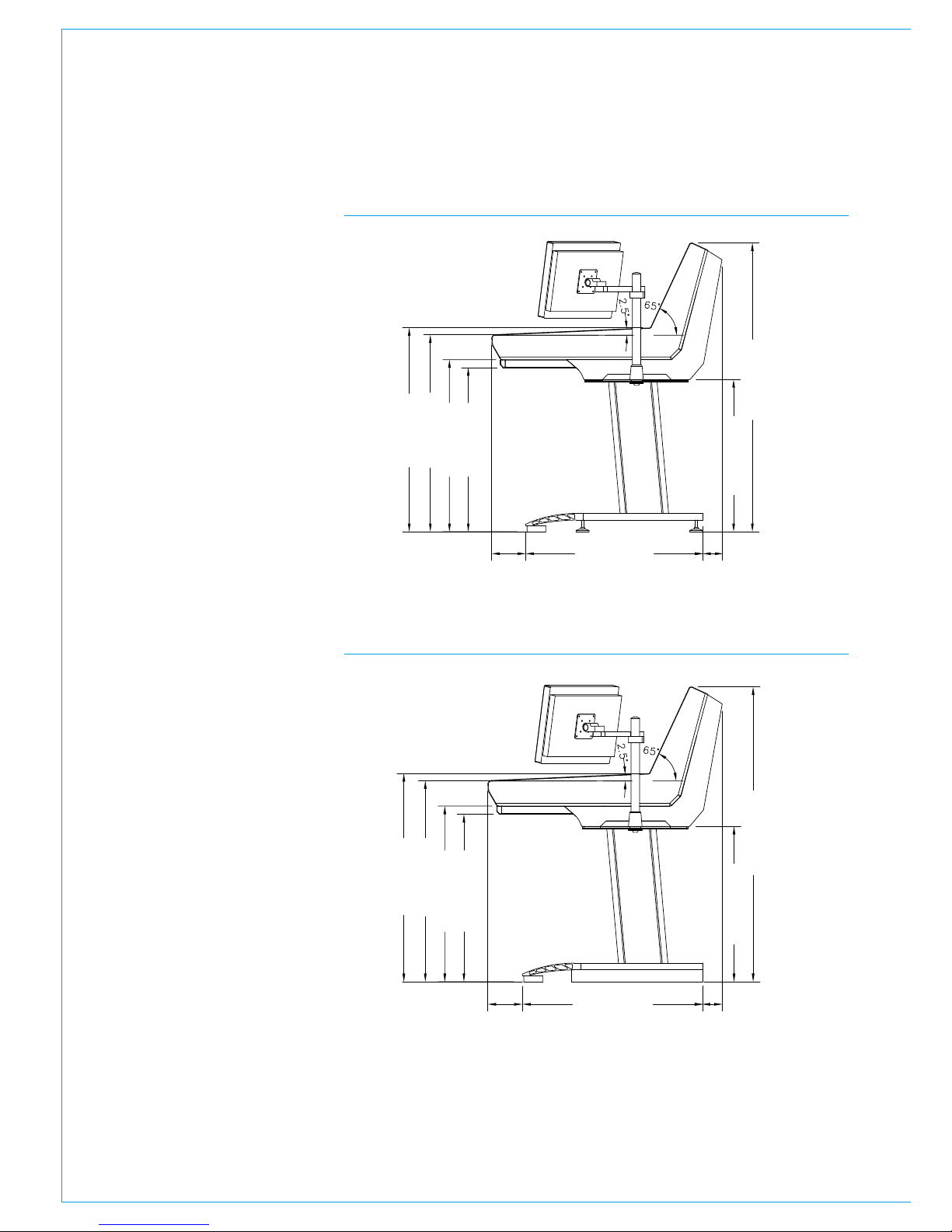

FIGURE 2 - STANDARD HEIGHT STUDIO STAND, END ELEVATION
FIGURE 1 - NO FLOOR STAND FITTED, END ELEVATION
857 [33.74”]
129 [5.08”]
384 [15.19”]
74 [2.91”]122 [4.41”]

CALREC Putting Sound in the Picture 11
618.3 [24.34”]
573.8 [22.59”]
660.0 [25.98”]
1082.8 [42.63”]
647.8 [25.50”]
740.8 [29.17”]
766.8 [30.19”]
122
[4.41”]
74
[2.91”]
FIGURE 3 - STANDARD HEIGHT BOLT-DOWN OB STAND, END ELEVATIONBolt-down 'OB' stands
To provide the option of securing the
control surface to the floor by its stand,
as required when fitted in mobile or
outside broadcast units, the OB style
stand replaces the adjustable feet with
extra support and 2 x 11mm [0.43'] holes
in each foot plate, as shown in Figure 4.
Note that the OB stands are slightly taller
than their studio equivalents, sitting the
control surface 7.8mm [0.31'] higher.
75.8 [2.98”]
FIGURE 4 - BOLT-DOWN OB STAND, FIXING HOLES

12 ARTEMIS Digital Broadcast Production Console Control Surface
Reduced height stands
Both the OB and studio stands are
available in reduced height versions,
sitting the control surface 40mm
[1.57'] lower than their standard height
equivalents, as shown in Figures 5 and 6.
Surface sizes
Artemis surface sizes are stated in the
number of faders they can contain.
A number of chassis sections are fitted
together to provide a control surface of a
suitable width to contain the number of
faders required, or to fit the physical space
available. Often chassis' are ordered to
be larger than is required at the time to
allow for a future increase in the quantity
of faders.
Chassis sections come in a variety of
widths and are defined by the number
of control panels that they can contain
across their width. Chassis sections
currently available are '2', '2.5' & '3.5'
A standard Artemis layout consists of a
number of fader panels and a monitor
panel. The standard fader panel is
260mm [10.24'] wide and is fitted with
eight faders across its width. The monitor
panel is 200mm [7.87'] wide and is loosely
termed as 'half-width'
Therefore, for example, a 3.5 section can
be fitted with 3 x fader panels and 1 x
'half-width' or '.5' monitor panel.
Each frame section is as wide as the
modules it can contain, plus a 3mm
[0.118'] bulkhead at each end. Once
assembled, the overall chassis is fitted
with a side-trim at each end. The standard
side-trim is 18mm, adding 36mm [1.42'] to
the overall width.
Standard Artemis consoles are supplied
with a PC monitor screen and keyboard
tray which can be fitted on the left or right
FIGURE 5 - 40MM REDUCED HEIGHT STUDIO STAND
FIGURE 6 - 40MM REDUCED HEIGHT BOLT-DOWN OB STAND
660.0 [25.98”]
77.7
[3.06”]
119.3
[4.70”]
526.0 [20.71”]
1035.0 [40.75”]
570.5 [22.46”]
600.0 [23.62”]
693.0 [27.28”]
719.0 [28.31”]
578.3 [22.77”]
533.8 [21.02”]
660.0 [25.98”]
1042.8 [41.06”]
607.8 [23.99”]
700.8 [27.59”]
726.8 [28.61”]
119.3
[4.70”]
77.7
[3.06”]

CALREC Putting Sound in the Picture 13
FIGURE 7 - LEG MEASUREMENTS
External Leg Measurement
Internal Leg Measurement
FIGURE 8 - TOTAL SURFACE WIDTH
Total surface width (including trim)
Total surface width (including trim and monitor mount)
FIGURE 9 - TYPICAL SURFACE MEASUREMENTS
side of the chassis, as specified at order.
If required, a second PC monitor/monitor
mount (and / or keyboard tray) can be
fitted at the other end of the chassis.
PC monitor mounts attach to the side
of the chassis, outside the side trims,
increasing the overall width again by a
further 45mm [1.77'] per monitor mount
fitted..
Consoles can also be supplied without
any PC monitor mounts, minimising the
surface width but requiring the installation
provides a convenient location to display
the main application for the audio
operator.
Where surface width is critical, optional
narrower 5mm side trims (10mm [0.39']
per pair) can be fitted in place of the
standard 18mm (36mm [1.42']) trims.
Typical surface measurements
Measurements for typical surface widths
are shown in Figure 9.
Fader
Count
Section
Make-Up
Total Width
Standard trim
1 x monitor mount
Total Width
Standard trim
2 x monitor mount
Total Width
Standard trim
No monitor Mount
Total width
Thin trim (5mm)
No monitor mount
Internal Leg External Leg
16 2.5 807mm [31.77'] 852mm [33.54'] 762mm [30.00'] 736mm [28.98'] 450mm [17.72'] 610mm [24.02']
24 3.5 1067mm [42.01'] 1112mm [43.78'] 1022mm [40.24'] 996mm [39.21'] 580mm [22.83'] 740mm [29.13']
32 2/2.5 1333mm [52.48'] 1378mm [54.25'] 1288mm [50.71'] 1262mm [49.69'] 840mm [33.07'] 1000mm [39.37']
40 2/3.5 1593mm [62.72'] 1638mm [64.49'] 1548mm [60.94'] 1522mm [59.92'] 1106mm [43.54'] 1266mm [49.84']
48 2/2.5/2 1859mm [73.19'] 1904mm [74.96'] 1814mm [71.42'] 1788mm [70.39'] 1140mm [44.88'] 1300mm [51.18']
56 2/3.5/2 2119mm [83.43'] 2164mm [85.20'] 2074mm [81.65'] 2048mm [80.63'] 1330mm [58.66'] 1490mm [58.66']
64 2/2/2.5/2 2385mm [93.90'] 2430mm [95.67'] 2340mm [92.12'] 2314mm [91.10'] 1330mm [58.66'] 1490mm [58.66']
72 2/3.5/2/2 2645mm [104.13'] 2690mm [105.91'] 2600mm [102.36'] 2574mm [101.34'] 1596mm [62.83'] 1756mm [69.13']

14 ARTEMIS Digital Broadcast Production Console Control Surface
Access to surface connections
The data connections from the Artemis
processing core to the control surface
are made through a small cut-out on the
rear cover of the control surface located
near the IEC AC input connectors. Two
fibres or Cat5e cables need to be routed
through the cut-out to connect to the
Surface Switches inside the control
surface. A rear interface panel provides
power connections on three IEC's along
with a connection point for earthing the
chassis. Audio and data connections
are also provided for interfacing to audio
driven devices along with ancillary data
connections.
The format of the interface plate may vary
depending on the optional hardware fitted
within the surface. Connector and pin-out
information is provided in the Console
Connection section of this document.
Access to internal surface
components
Removing up-stand meter panels and
control surface panels gives open access
to the Surface Switches and other internal
components. Some early production
models are fitted with hinged rear covers
that allow access from the back of the
control surface.
Non-hinged rear covers can be removed,
however, care needs to be taken to
support the weight of internal components
mounted on the inside of the rear covers
and the cabling to them..

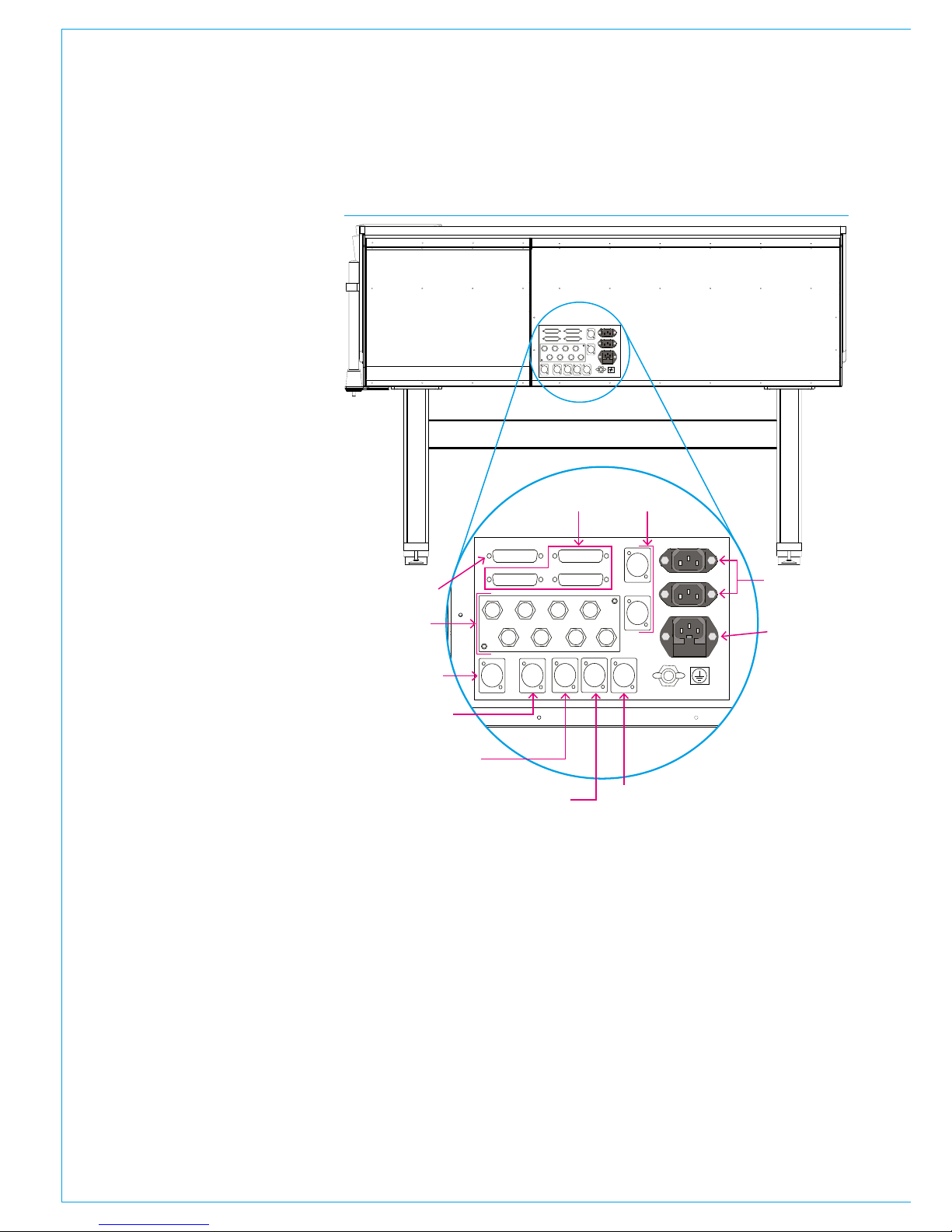

FIGURE 1 - REAR OF ARTEMIS CONTROL SURFACE
REAR CONNECTOR INTERFACE AND COVERS
Anciliary Inputs
PC interface (RJ45)
Talkback Microphone
Output (XLR Male)
Primary Surface to
Processing Rack
Connection (SFP)
Secondary Surface to
Processing Rack
Connection (SFP)
Screen/Anciliary
power
Surface PowerHeadphone
Input (D25
Meter IN/OUT
connectors (x8)
Spare
Spare

CALREC Putting Sound in the Picture 15
FIGURE 1 - STAND MOUNTING POINTS
FLOOR STAND REMOVAL
If the control surface is supplied with
a floor stand, it can be removed if
required to reduce the overall size
and weight aiding installation logistics
or for where desk-top mounting is
preferred.
The floor stand is attached to the control
surface by eight bolts as highlighted in the
drawing to the right.
With the fixing bolts removed, as long as
the cross beam between the stand legs
is fitted, the stand will be stable, however
care needs to be taken whilst the surface
is not fixed to the stand. If the cross beam
is not fitted and the stand not attached
to the surface, it will be very unstable.
It is not recommended to be working
under the control surface unless it is fixed
in place.
When re-attaching the stand, ensure the
cross beam is fitted to provide stability.
Take care to align the fixings to avoid
cross-threading the bolts. The surface
MUST be correctly fastened to the stand
to prevent possible equipment damage or
personal injury.

16 ARTEMIS Digital Broadcast Production Console Control Surface
SURFACE COMPONENTS
There are a range of components
within the surface. This section
explains how these components
are connected, receive power and
communicate with each another.
POE (Power Over Ethernet) switch
Control panels in the surface have a single
connection that carries all data and power
via an RJ45 connector from a POE switch.
The number of POE switches fitted in
a control surface is determined by the
number of panels fitted. Each POE switch
can connect to up to six control panels.
POE switches are mounted to the inside
of the rear cover and are accessible by
removing control and up-stand meter
panels, or by removing the rear covers as
shown in the Surface Dimensions and
Assembly section of this document.
Each POE switch has two AC mains
inputs and two PSU's to provide internal
and external power redundancy. 'Power
Good' LED's 1 & 2 indicate each power
supply is receiving mains and active.
A PSU failure or loss of a mains input will
generate a System Status error message.
Each POE switch has 16 RJ45
connections, split into two groups - A & B.
The A group of connectors are full POE
- carrying both data and power. Status
LED's are provided for these ports which
should display a steady, regular flashing
pattern once the system is booted and
comms have been established.
Connections P1 to P6 are used to
connect to control panels. Control panels
must be connected to the correct POE
unit and port, as defined by the Surface
Layout page in the main application. The
Surface Layout page, and other utility
software refers to these ports simply as
POE ports 1 - 6. See Figure 1.
When a surface reset command is
received by a POE switch it momentarily
cuts the power on ports P1 - P6. Control
surface panels are 'reset' by cycling power
to them.
Each POE switch requires a connection to
both the primary and secondary Surface
Switches. POE connector S1 connects to
the primary Surface Switch and connector
S2 connects to the secondary Surface
Switch. Although S1 & S2 are full POE,
power and data, Surface Switches do not
use the power from this feed.
Ports SPR1 & SPR2 are uninterrupted
during reset and are used to provide
power to the Surface Switches, PC and
any other items that may need to remain
powered during reset, such as ancillary
audio feeds. The SPR connections also
contain the reset lines from the up-stand
reset panel for the surface, control and
DSP which the active Surface Switch acts
upon accordingly. All other hardware,
such as the PC will ignore the reset lines
in the SPR feed.
The B group of connectors do not pass
data. Ports AP1 - AP4 are ancillary
power, used to power 'non-intelligent'
units with no control processor or
data connection, such as moving coil
meters. AP connections drop power
during surface reset. Artemis up-stand
TFT panels do not have a direct data
connection from a POE. They have a
connection to a fader panel which carries
out the processing and passes on the
data to the display. Due to the size of
Artemis up-stand TFT's, the fader panel
cannot power them and therefore they
require an additional connection, from a
POE AP port for power only. See Figure 2.
FIGURE 1 - POE SWITCH
P1
P2
P3
P4
P5
P6
S1
S2
USB
YZ5706 - POE SWITCH
P
S
AP
SPR
RST
AP1
AP2
AP3
AP4
SPR1
SPR2
RST
RST
A B
21
POWER
GOOD
A B
AC IN 1 AC IN 2
P1
P2
P3
P4
P5
P6
S1
S2
Panel
Surface switch
Ancillary Power
Surface switch
Power & Reset
Reset
-
-
-
-
-
Serial number

CALREC Putting Sound in the Picture 17
P1
P2
P3
P4
P5
P6
S1
S2
USB
YZ5706 - POE SWITCH
P
S
AP
SPR
RST
AP1
AP2
AP3
AP4
SPR1
SPR2
RST
RST
A B
21
POWER
GOOD
A B
AC IN 1 AC IN 2
P1
P2
P3
P4
P5
P6
S1
S2
Panel
Surface switch
Ancillary Power
Surface switch
Power & Reset
Reset
-
-
-
-
-
Serial number
AP Connections to upstand
TFT & moving coil meters -
power only
Upstand TFT connection
via DVI cable - data only
(Not DVI compatible!)
P1-P6 Panel connections -
data & power
FIGURE 2 - POE TO PANEL CONNECTIONS

18 ARTEMIS Digital Broadcast Production Console Control Surface
POE Reset connections
The two ports labelled RST are used
to pass hard reset lines between the
POE's. The reset lines originate from
the up-stand reset panel and are wired
to the 'Reset and Meter' connector on
the monitor panel via a D25 cable. This
cable's pin-out is shown in Figure 3. The
monitor panel's 'Reset' RJ45 connector
outputs the reset signals and is wired to
a POE RST port, the other RST port is
used to pass the signals on to the next
POE and so on, daisy-chaining the signal
through all the POE switches.
It does not matter which RST is used
for 'in' & 'out' or in what order the POE's
are connected. These are hard logic
lines rather than data, ensuring reset
commands can be passed throughout
the system irrespective of the functioning
state of each piece of hardware.
FIGURE 4 - POE RESET CONNECTIONS
Cat5e Reset Cable
D25 Reset Cable
FIGURE 3 - RESET CONNECTION
Function Pin
Control Reset 9
DSP Reset 22
Reset LED 10
Surface Reset 23
Common 14, 15, 16, 17, 18, 19,
20, 21, 13
25 24 23 22 21 20 19 18 17 16 15 14
13 12 11 10 9 8 7 6 5 4 3 2
25 Pin Female D-Type - Wiring side of connecting cable
1
25 Pin Male D-Type - Wiring side of connecting cable
252423222120191817161514
13121110987654321
During surface reset, all POE's & Surface
Switches reboot and power is momentarily
dropped to all panels forcing them to
reboot. DSP and control resets are
passed on to the processing core via
the active Surface Switch.
All Calrec fitted Cat5e cables are wired
'straight-through' or 'pin to pin' Panel
cables and I/O to Router cables can be
either straight-through or cross-over,
however POE RST and SPR cables MUST
be wired straight-through.

CALREC Putting Sound in the Picture 19
Surface Switches
The Surface Switch is the interface
between the control surface and the
processing core. To provide redundancy,
two Surface switches are fitted, primary
and secondary. The system will always
attempt to boot and run on the primary,
however if there is a problem with the
primary or its connections, the secondary
will automatically take over.
Like POE's, the Surface Switches are
mounted to the inside of the rear cover,
usually in the same section as the IEC
inlets. Access is gained by removing
control panels or the rear cover as shown
in the surface dimensions section of this
document. When viewed from the front,
the primary Surface Switch is always the
left hand unit. See Figure 5.
To communicate with all the control panels
and PC, each Surface Switch requires a
direct connection to each POE switch.
POE switches MUST be connected to
specific ports in the correct order:
POE #1 connects to surface switch port
PS1, POE#2 to PS2, POE #3 to PS3 etc.
POE's are numbered by location from
left to right across the console. Figure 6
shows the correct data connections for a
3 x POE system. On each POE, port S1
connects to the primary Surface switch,
port S2 to the secondary. LEDs 1 - 6
show activity on these ports and should
display a regular flashing pattern once
booted and comms established. Although
the POE sends power down these lines,
the Surface Switches do not use it.
Any POE SPR ports can be used to feed
Surface Switch PR1/PR2 ports to power
the Surface Switch as well as passing on
the reset signals. LEDs I/P1 and I/P2
indicate if power is present on these ports.
Ports A & B are SFP slots Port A is used
to interface with the Control Processor
in the processing core, port B is currently
unused. The primary Surface Switch
should connect to the primary Control
Processor's 'Surface 1' connector (MAC7
for the 8U or older 4U Control Processor
design) . The secondary Surface
Switch should connect to 'Surface 1'
on the secondary Control Processor.
These connections are NOT supplied
by Calrec and need to be made by the
installer. Please see the Surface to Core
Connection section of this document for
more details.
USB
YZ5716-2
Surface Switch
IP
PS
PR
PS1
PS2
PS3
PS4
PS5
PS6
PR1
PR2
- Input Power
- POE Switch
- Power & Reset
IP2
2
4
6
1
3
5
IP1
AB
Serial number
FIGURE 5 - SURFACE SWITCH
Primary
Surface
Switch
Secondary
Surface
Switch
POE #1 POE #2 POE #3
FIGURE 6 - POE TO SURFACE SWITCH DATA CONNECTIONS

20 ARTEMIS Digital Broadcast Production Console Control Surface
Artemis control surfaces have 3 x IEC
AC mains inputs requiring 100–240V
AC.
The AC power inlets are wired internally to
three distribution blocks mounted to the
base of the inside of the control surface.
The POE switches have dual power
supplies for redundancy and take two
AC inputs, one from each of the first
two mains sources. The majority of the
remaining hardware in the control surface,
SURFACE AC POWER CONNECTIONS
P1
P2
P3
P4
P5
P6
S1
S2
USB
YZ5706 - POE SWITCH
P
S
AP
SPR
RST
AP1
AP2
AP3
AP4
SPR1
SPR2
RST
RST
A B
21
POWER
GOOD
A B
ACIN 1 ACIN 2
P1
P2
P3
P4
P5
P6
S1
S2
Panel
Surfaceswitch
AncillaryPower
Surfaceswitch
Power& Reset
Reset
-
-
-
-
-
Serialnumber
P1
P2
P3
P4
P5
P6
S1
S2
USB
YZ5706 - POE SWITCH
P
S
AP
SPR
RST
AP1
AP2
AP3
AP4
SPR1
SPR2
RST
RST
A B
21
POWER
GOOD
A B
ACIN 1 ACIN 2
P1
P2
P3
P4
P5
P6
S1
S2
Panel
Surfaceswitch
AncillaryPower
Surfaceswitch
Power& Reset
Reset
-
-
-
-
-
Serialnumber
P1
P2
P3
P4
P5
P6
S1
S2
USB
YZ5706 - POE SWITCH
P
S
AP
SPR
RST
AP1
AP2
AP3
AP4
SPR1
SPR2
RST
RST
A B
21
POWER
GOOD
A B
ACIN 1 ACIN 2
P1
P2
P3
P4
P5
P6
S1
S2
Panel
Surfaceswitch
AncillaryPower
Surfaceswitch
Power& Reset
Reset
-
-
-
-
-
Serialnumber
MU5734
1
md
04/03/08
Approved
Calrec
Alpha
RTWmeter10600
MeterModule
..
..
Meter
PSU
POE POE POE
PC MONITOR
Surface AC inputs
1 2 Anc
SURFACE POWER - AC
including the PC is DC powered via POE
connections.
The third IEC input and distribution block
is used to power ancillary or third party
items with a single mains input, such as
DK/RTW meters and PC monitors.
To ensure all equipment is powered and
redundancy is applied where available,
all three IEC inputs to the control surface
need to be fed with 100–240V AC. If only
one of the first two inputs is fed, System
Status error messages will be generated
by each POE indicating they are not
receiving power on both inputs.
It is recommended that these two mains
inputs are fed from two separate AC
supplies where possible to provide
redundancy against external power failure.
