CaMate CM48 Series User manual

Installation Guide
CM48 Series
Vari-Angle IR Illuminator
Rev. 1.2
QIG Part no.: 625037102G

2
Revision History:
* Rev. 1.0: Initial Release * Rev. 1.1: Updated illumination range and beam angles. Added the
rear panel plug opener. * Rev. 1.2: Added safety instructions and warning messages.
Package Contents
X3
X1
X2
X2
• The wall-mount (CMA-B04), corner-mount (AM-412), pole-
mount adaptor (AM-311/312), and other brackets are separately
purchased.
• The screws and anchors for securing the illuminator to wall are
user-supplied. Apply M6 anchors or screws.
NOTE:
• Please avoid eye exposure or apply appropriate protection, such as wearing a pair of Infrared
protection glasses, when working with the product. Always use camera live view to oberve IR
lighting effects.
WARNING:
The 1/4" screws and washers are used to secure the illuminator
to an external camera housing.
• The luminaire should be positioned so that prolonged staring into the luminaire at a distance
closer than 2.5 m is not expected.
• Theexternalexiblecableorcordofthisluminairecannotbereplaced;ifthecordisdamaged,
the luminaire shall be destroyed.
• Thelightsourceofthisluminaireisnotreplaceable;whenthelightsourcereachesitsendoflife
the whole luminaire shall be replaced.
• Please make sure Reinforce/Double insulation shall be maintained between LV supply and control
circuits after installation.
• ThisoodlightshallbeusedwithaIEC/EN61347-2-13approvedLEDdriverwithSELVoutput
equaltoratedvoltageoftheluminaire,andoutputpowerofLEDdriversshallbeatleastequalto
rated power of the luminaire.
• Terminalblockisnotincluded.Installationmayrequireadvicefromaqualiedpersonnel.

3
• Do not install the product with unstable brackets, or installed on fragile mount surfces.
• This product shall be used in compliance with local laws and regulation.
• Please avoid using chemical oraerosolcleaninguidstocleantheproduct. Use a clean cloth
slightly moistened with water.
• This product contains no parts repairable by the users. Contact CaMate for services.
• Power off the Illuminator as soon as smoke or unusual odors are detected.
• Do not place the Illuminator on unsteady surfaces.
• Replacing or failing to properly install the waterproof components, e.g., cables or cable glands,
will void our IP67 warranty.
• Refer to your datasheet for the operating temperature.
• Do not touch the Illuminator during a lightning storm.
IMPORTANT:
Class III luminaires
Do not stare at the operating light source.
This marking indicates that this product should not be disposed with other household
wastesthroughouttheEU.Topreventpossible harm totheenvironmentorhumanhealth
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection
systems or contact the retailer where the product was purchased. They can take this
product for environmental safe recycling.
RISK GROUP 3
WARNING IR emitted from this product,
Do not look at operating lamp.
IRilluminatorsRISKGRORP3/WARNINGIR emitted from this product. /Avoideyeexposure.Use
appropriate shielding or eye protection. Do not look at operating lamp.
CM48W5:RISKGRORP2/CAUTIONPossibly hazardous optical radiation emitted from this product /
Do not stare at operating lamp. May be harmful to the eyes.

4
160mm(6.3")
220mm(8.7")
73mm(2.9")
103.8mm(4.1")
134.6mm(5.3")
61.5mm(2.4")
164.6mm(6.5")
59.5mm(2.3")
43mm(1.7")
43mm(1.7")
59mm(2.3")
32mm(1.3")
Mechanical Drawings
134
M6x1
4
64
29.3
8.2
30
82
Standard Small U bracket

5
Hardware Overview
I
Reserved mounting holes for
external camera housing
U bracket
Waterproofcover
for angle selector
Optionalmountingpointsfor
U bracket
Light sensor
Combo cable
Dehumidier
membrane
Reserved
Mounting holes
Unit Weight:2.1KG.
Max. Project Area: 34684.7mm2.
160mm(6.3")
220mm(8.7")

6
Installation
II
U Bracket Positions & Orientation
Use the included allen wrench to attach and adjust the U bracket to your needs at the installation site.
It is highly recommended that the illuminator should be installed at a position higher than 3 meters from
the ground.
IMPORTANT:

7
35-Kg-cm
Beam angle
selector
Angle wider
Angle narrower
Longer distance
Shorter distance
Youmustrstsurveytheinstallationsiteanddeterminetheilluminationdistance.
Useacoinoratbladescrewdrivertoopenthewaterproofcoveratthebackoftheilluminator.

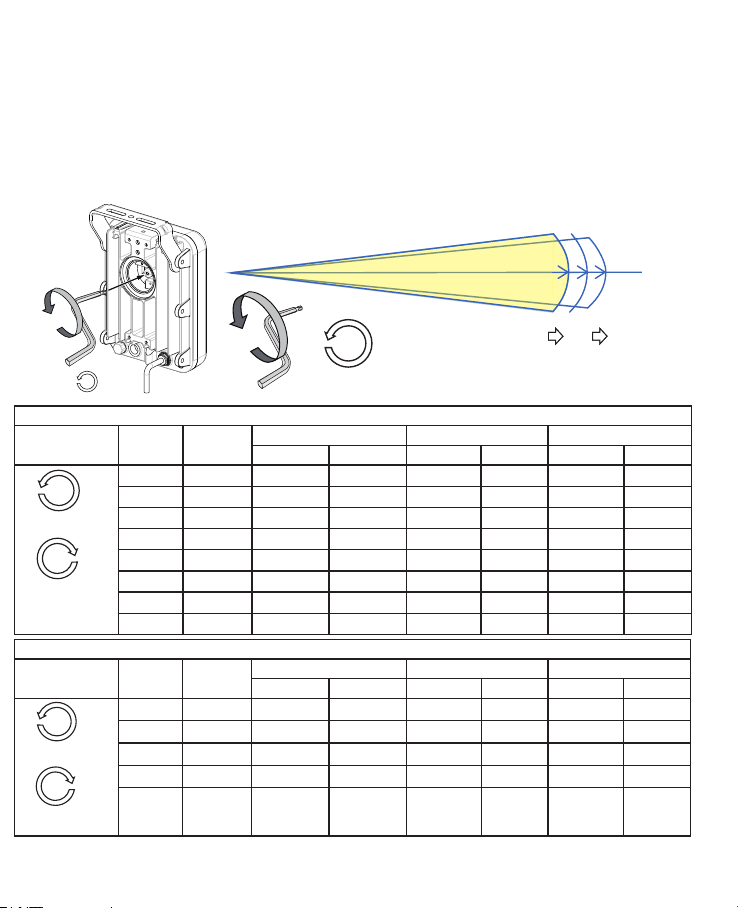

Use the 4mm side of the allen wrench to turn the beam angle to an estimated illumination distance, e.g.,
200meters.Seethetablesonthenextpageforhowtodoit.
You may forget your current beam angle
conguration. In this case, turn many full circles
clockwise until the rotation resistance is felt (returns
to the widest angle, reaches its mechanical stops),
and then turn the selector counter-clockwise
accordingtotheanglelistedonthetables.Eachfull
circle corresponds to a preset beam angle.
Tips:

8
CM48I8-1040
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 40° 100 72.8 141.4 102.9 173.2 126.1
1 36° 107 69.5 151.3 98.3 185.3 120.4
2 30° 127 68.1 179.6 96.3 220.0 117.9
3 27° 137 65.8 193.7 93.0 237.3 113.9
4 24° 150 63.8 212.1 90.2 259.8 110.4
5 16° 206 57.9 291.3 81.9 356.8 100.3
6 15° 215 56.6 304.1 80.1 372.4 98.1
7 10° 250 43.7 353.6 61.9 433.0 75.8
Counter-clockwide
Narrower
Clockwide
Wider
CM48I8-2040
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 40° 120 87.4 169.7 123.5 207.8 151.3
1 36° 125 81.2 176.8 114.9 216.5 140.7
2 29° 150 77.6 212.1 109.7 259.8 134.4
3 27° 158 75.9 223.4 107.3 273.7 131.4
4 20° 200 70.5 282.8 99.7 346.4 122.2
Counter-clockwide
Narrower
Clockwide
Wider
The factory default for the beam angle selector is always at the Widest angle.Whenyouturnthe
selector many rounds to its widest or the narrowest position, a rotation resistance can be felt. That
means the mechanical stop is reached, and you should not use more force.
RefertothetablesbelowforthecongurableIRlightbeam angles and the number of full circles
neededtochangetothepreferredbeamangles.Eachfullcirclecorrespondstoapresetbeamangle.
For example, if you need to change CM48I8-1040's beam angle to 30° (127m), turn the beam angle
selector Counter-clockwise 2 full circles. If you are at the narrowest angle (10°) and prefer to turn to
24°,turn3fullcirclesclockwise.Whendone,installthewaterproofcover.
X2
Width
Distance
Angle
X2 30°36°
40°

9
CM48I8-4080
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 80° 60 100.7 84.9 142.4 103.9 174.4
1 77° 62 98.6 87.7 139.5 107.4 170.8
2 74° 64 96.5 90.5 136.4 110.9 167.1
3 66° 67 87.0 94.8 123.1 116.0 150.7
4 63° 69 84.6 97.6 119.6 119.5 146.5
5 60° 71 82.0 100.4 115.9 123.0 142.0
6 55° 75 78.1 106.1 110.4 129.9 135.2
7 52° 79 77.1 111.7 109.0 136.8 133.5
8 50° 82 76.5 116.0 108.2 142.0 132.5
9 45° 86 71.2 121.6 100.8 149.0 123.4
10 40° 90 65.5 127.3 92.7 155.9 113.5
CM48I8-90120
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 120° 45 155.9 63.6 220.5 77.9 270.0
1 105° 50 130.3 70.7 184.3 86.6 225.7
2 90° 55 110.0 77.8 155.6 95.3 190.5
Counter-clockwide
Narrower
Clockwide
Wider
Counter-clockwide
Narrower
Clockwide
Wider
CM48I8-180
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Distance(m) Distance(m)
Fixed angle N/A 180° 40 56.6 69.3
CM48I9-1040
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 40° 60 43.7 84.9 61.8 103.9 75.6
1 36° 64.2 41.7 90.8 59.0 111.2 72.3
2 30° 76.2 40.8 107.8 57.8 132.0 70.7
3 27° 82.2 39.5 116.2 55.8 142.4 68.4
4 24° 90 38.3 127.3 54.1 155.9 66.3
5 16° 123.6 34.7 174.8 49.1 214.1 60.2
6 15° 129 34.0 182.4 48.0 223.4 58.8
7 10° 150 26.2 212.1 37.1 259.8 45.5
Counter-clockwide
Narrower
Clockwide
Wider

10
CM48I9-2040
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 40° 72 52.4 101.8 74.1 124.7 90.8
1 36° 75 48.7 106.1 68.9 129.9 84.4
2 29° 90 46.6 127.3 65.8 155.9 80.6
3 27° 94.8 45.5 134.1 64.4 164.2 78.8
4 20° 120 42.3 169.7 59.8 207.8 73.3
Counter-clockwide
Narrower
Clockwide
Wider
CM48I9-4080
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 80° 36 60.4 50.9 85.4 62.4 104.6
1 77° 37.2 59.2 52.6 83.7 64.4 102.5
2 74° 38.4 57.9 54.3 81.8 66.5 100.2
3 66° 40.2 52.2 56.9 73.8 69.6 90.4
4 63° 41.4 50.7 58.5 71.8 71.7 87.9
5 60° 42.6 49.2 60.2 69.6 73.8 85.2
6 55° 45 46.9 63.6 66.3 77.9 81.1
7 52° 47.4 46.2 67.0 65.4 82.1 80.1
8 50° 49.2 45.9 69.6 64.9 85.2 79.5
9 45° 51.6 42.7 73.0 60.5 89.4 74.0
10 40° 54 39.3 76.4 55.6 93.5 68.1
CM48I9-90120
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Width(m) Distance(m) Width(m) Distance(m) Width(m)
0 120° 27 93.5 38.2 132.3 46.8 162.0
1 105° 30 78.2 42.4 110.6 52.0 135.4
2 90° 33 66.0 46.7 93.3 57.2 114.3
Counter-clockwide
Narrower
Clockwide
Wider
Counter-clockwide
Narrower
Clockwide
Wider
CM48I9-180
Rotate
direction
Full circle Beam angle Single mount Double mount Triple mount
Distance(m) Distance(m) Distance(m)
Fixed angle N/A 180° 24 34 42

11
Selectapositionattheinstallationsite.e.g.,underahangingroof.Youcanusethealignmentsticker
and start drilling a hole on the roof.
Apply the included grip sticker to the U bracket.

12
M6 anchor
Hammertheanchorin(usersupplied,M6anchorsarerecommended).SecuretheUbrackettoit,such
as securing it using the bolt on a threaded pole.
Securetheilluminatortobracketusingthehexsocketscrews.

13
You will need to turn on both the partner camera and illuminator to precisely match the illuminated area
withthecamera'seldofview.Ifnecessary,adjustthebeamangleagain.
TurntheilluminatortowardtheFOVofthepartnercamera,shiftthetiltangle,andthentightenthe
screw to secure the illuminator.

14
Name Color Gauge Description
V+ Red (20AWG) Power input
12~24V DC±10%
24V AC±10% (50~60Hz), (14.5VDC current controlled)
V- Black (20AWG)
DI+ Green (26AWG) LEDON/OFFcontrol
* Dry contact
Logiclevel1(Open)=LEDoff
Logiclevel0(ClosetoGND)=LEDon
*Wetcontact
Logiclevel1:4V~40V=LEDoff
Logiclevel0:0.8VMAX=LEDon
DI- Yellow (26AWG) Ground
DO+ Purple (26AWG) Light sensor status output
1.Open=Day
2.Short=Night(300luxforIRON)
DO- Blue (26AWG) Ground
RS485+ Orange (26AWG) RS485interfacecontrol
RS485- Brown (26AWG)
Cable Pinouts

15
External
power source
Relay
NO NC
+3.3V+3.3V
R
R
R
GND GND GND
Switch
+3.3V
R
GND
Fuse/50mA
GND
Camera DI pins
DI+
DI-
DO+
DO-
Coordination with Cameras via the DI and DO Pins
IR LED ON/OFF control (Green & Yellow wires)
This mode means that CaMate illuminatorOn/Offcontrolistriggeredbycameraorotheralarmsystem.
User can decide using the appropriate dry/wet contacts depending on wiring condition.
DI+:Green=TTL+voltage
DI-:Yellow=TTL–voltage(GND)
* Dry contact
Logiclevel1(Open)=LEDoff
Logiclevel0(ClosetoGND)=LEDon
*Wetcontact
Logic level 1: 4V~40V=LEDoff
Logiclevel0:0.8VMAX=LEDon

16
Light sensor status output (Purple & Blue wires)
ThismodemeansthatcameraDay/Nightmodeswitchingiscoordinatedwithandistriggeredbythe
illuminator'slightsensorviatheDO(Digitaloutput)connection(connectedtothecamera'sDIpins).
UserscancongurethecameracongurationtocontrolthecorrespondingilluminatorOn/Offstatus.
DO+:Purple=Opendrainoutput,45VMax.(currentmustbeunder100mA)
DO-:Bule=GND
Light sensor status output
1.Open=Day
2.Short=Night(lowerthan300luxforIRtoturnON)
Stand-alone illuminator mode
Thismodemeansthattheilluminator'sOn/Offcontrolistriggeredbyitslightsensor,inthecase,the
default wiring is connecting the green wire with purple wire.
Somecamerashaverelatedsettingsthatneedtheinter-connectionwiththeilluminator.Forexample,
somecamerascomewithanIRcutlterthatneedtobeturnedoffwhenenteringnightmode;or,
automatically turn on the adjacent illuminator when entering night mode.
