CAME AMERICA AUTOMATION Z Series User manual

Z SERIES
INSTALLATION MANUAL
ZLJ24U
CONTROL PANEL FOR 24 V OPERATORS

IMPORTANT UL-325 SAFETY INSTRUCTIONS
ZLJ24U
It is extremely important that all parties involved in the installation and operation of the gate operator system read and understand
the following warning instructions.
WARNING – To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls. Keep the remote control away from children.
3. Always keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.
4. Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or stop when an object activates
the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and
retest the gate operator properly can increase the risk of injury or death.
5. Use the emergency release only when the gate is not moving.
6. KEEP GATES PROPERLY MAINTAINED. Read the installation manual and have a qualified service person make repairs
to gate hardware.
7. The entrance is for vehicles only. Pedestrians must use separate entrance.
8. SAVE THESE INSTRUCTIONS.
Instructions regarding intended installation of the gate operator.
A. Install the gate operator only when:
1. The operator is appropriate for the construction of the gate and the usage Class of the gate.
2. All openings of a horizontal swing gate are guarded or screened from the bottom of the gate to a minimum of
4 feet (1.22m) above the ground to prevent a 2-1/4 inch (57.2mm) diameter sphere from passing through the
openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open
position.
3. All exposed pinch points are eliminated or guarded.
4. Guarding is supplied for exposed rollers.
B. The operator is intended for installation only on gates for vehicles. Pedestrians must be supplied with a separate
access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that
persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.
C. The gate must be installed in a location so that enough clearance is supplied betweehbe employed, and adjacent
structures when openening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access areas.
D. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.
Do not over-tighten the operator clutch or pressure relief valve to compensate for a damaged gate.
E. For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that the user has full view of the gate area when the gate is not
moving.
2. The placard provided marked in letters at least 1/4 - in (6.4mm) high with the word “WARNING” and the
following statement or equivalent: “Moving Gate Can Cause Serious Injury or Death” shall be placed adjancent
to the controls.
3. An automatic closing device (such as a timer, loop sensor, or similar device) shall not be employed.
4. No other activation device shall be connected.
Pag. 2 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.

F. All openings of a horizontal slide gate are guarded or screened from the bottom of the gate to a minimum of 4 feet (1.22m)
above the ground to prevent a 2-1/4 inch (57.2mm) diameter sphere from passing through the openings anywhere in the gate,
and in that portion of the adjacent fence that the gate covers in the open position.
G. All exposed pinch points are eliminated or guarded.
H. The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent
structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access area.
I. Controls intended for user activation must be located at least six feet (6’) away from any moving part of the gate and
where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or easily
accessible controls shall have a security feature to prevent unauthorized use.
K. For gate operators utilizing a non-contact sensor:
1. See instructions on the placement of non-sontact sensors for each type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while
the gate is still moving
3. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such as
the perimeter reachable by a moving gate or barrier.
L. For a gate operator utilizing a contact sensor:
1. One or more contact sensors shall be located where the risk of entrapment or obstruction exists, such as the
leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the bottom edge of a vehicular vertical lift gate.
3. One or more contact sensors shall be located at the pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its wiring arranged so that the communication between the
sensor and the gate operator is not subjected to mechanical damage.
5. One or more contact sensors shall be located on the inside and outside leading edge of a swing gate.
Additionally, if the bottom edge of a swing gate is greater than 6 inches (152mm) above the ground at any
point in its arc of travel, one or more contact sensors shall be located on the bottom edge.
M. A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
a. Power should be disconnected before installing or servicing a gate operator.
b. All electrical wiring should comply with all local building and electrical codes.
c. All entrapment zones and pinching points should be covered.
d. All safety devices should be tested to assure their proper functionality.
e. The operation of the gate system: operator, controls and safety devices should be reviewed with the end user
or owner, who should be informed of the need for periodic maintenance of the safety and control equipment.
f. All installation operating and safety manuals should be left with the owner.
N. All gate operators systems should include safety devices such as reversing edges or photocells in order to provide
added protection. These safety devices should be installed in accordance to the design and application of the system
being installed.
O. A qualified professional installer should install a gate operator system, its safety accessories and should observe these
minimum procedures:
Pag. 3 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.

CAME AMERICAS AUTOMATION, LLC
MANUFACTURER’S LIMITED 3-YEAR WARRANTY
Verification of the warranty period requires copies of receipts or other proof of purchase.
Warranty cannot be honored without proof of purchase. Please retain these records.
Came Americas Automation, LLC (“CAME®”) products are warranted by CAME® against defects in materials and manufacturer
workmanship for a period of thirty-six (36) months from the date of purchase, provided the recommended installation manual and
procedure have been followed. CAME®’s sole obligation under this warranty is limited to repairing or replacing, at our option, any
parts which shall be determined by CAME® to be defective, and is conditioned upon CAME® receiving notice of any such defect
within the warranty period. Claims under this warranty may only be made by a purchaser of CAME® products (the “Customer”).
CAME® reserves the right to make the final determination as to whether there is a defect in the materials and/or workmanship,
and whether or not a product is within the warranty period. CAME® is not responsible for any damages or other costs caused by,
or which may result from installation, handling, non-recommended operation, product abuse, or modifications not authorized by
CAME® or for any damages which may arise out of the use of CAME® products.
CAME® sells its products through authorized distributors. This warranty on CAME® products is NOT VALID if the products have
been purchased from an unauthorized distributor, reseller, online E-tailer ( e.g., E-bay®), or if a product serial number has been
altered, removed, or replaced in any way. To verify that you are buying from an authorized CAME distributor or reseller please
call [phone].
In the case of product failure due to defective material or manufacturer workmanship within the thirty-six (36) months warranty
period, the product will be repaired or replaced (at the manufacturer’s option) at no charge to the Customer,
if returned, freight prepaid, to CAME AMERICAS AUTOMATION, LLC, 11345 NW 122nd Street Medley, Florida 33178.
IMPORTANT: Obtain a Return Goods Authorization (RGA) number before returning item(s) to our facilities by submitting a warranty
claim and request for RGA with our customer service department. Products shipped without an RGA number will not be accepted.
Replacements or repaired parts are covered by this warranty for the remainder of the thirty-six (36) month warranty for the original
product or six (6) months from the date of repair or replacement, whichever is greater. CAME® will pay shipping costs at the ground
transport rate for the return to owner of item(s) repaired under warranty.
The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or the
reinstallation of these parts after repair. Use of any (00021996.doc V.2) components that are not CAME® specified (e.g. batteries,
light bulbs, drive belts, chains or transformers) will void the warranty. This warranty shall be void if damage to the product(s) was
due to improper installation or use, neglet, accident, use of non-CAME® specified or approved components or replacement parts,
connection to an improper power source, tampering, or if damage was caused by lighting, strikes, power surges, wind, fire, floor,
insects, or other natural agents or disasters.
This warranty gives you specic legal rights, and you may also have other rights, which vary from
state to state (or jurisdiction to jurisdiction.) CAME's responsibility for malfunctions and defects in
equipment is limited to repair and replacement as set forth in this warranty statement.
THE CUSTOMER ACKNOWLEDGES AND AGREES THAT THIS WARRANTY IS MADE EXPRESSLY IN LIEU OF
ALL OTHER EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT(S), INCLUDING BUT NOT LIMITED
TO ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABLE QUALITY, MERCHANTABILITY,
FITNESS FOR A PARTICULAR PURPOSE, OR ANY OTHER EXPRESS OR IMPLIED WARRANTY ARISING OUT
OF LAW, STATUTE, USAGE OF TRADE OR COURSE OF DEALINGS.
The warranty hereunder is limited in time to the term of the limited warranty period reected in this
limited warranty. No warranties, whether express or implied, will apply after the limited warranty
period has expired. Some states do not allow limitations on the term of an implied warranty, so this
limitation may not apply to you.
Pag. 4 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.

CAME® DOES NOT ASSUME, AND SPECIFICALLY DISCLAIMS, ANY LIABILITY OR OBLIGATION WHATSOEVER IN THE SALE OF THE
PRODUCT(S), INCLUDING ANY LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, PUNITIVE OR SPECIAL DAMAGES TO YOU OR ANY
OTHER PERSON OR ENTITY, INCLUDING, WITHOUT LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR
DAMAGES. THE CUSTOMER ACKNOWLEDGES THAT THIS LIMITED WARRANTY PROVIDED IN LIEU OF ALL OTHER WARRANTIES
AND CUSTOMER’S WAIVER OF SPECIAL, INCIDENTAL AND CONSEQUENTIAL DAMAGES IS COMMERCIALLY NECESSARY AND
REASONABLE, AN ESSENTIAL AND MATERIAL ELEMENT OF THIS TRANSACTION, AND UPON WHICH BOTH THE CUSTOMER AND
CAME® HAVE RELIED AND HAVE HAD THE OPPORTUNITY TO NEGOTIATE.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. CAME®‘s liability will be no more than the amount you paid for the product that is the subject of a claim.
This is the maximum amount recoverable under this warranty. The limitations in this section shall apply whether or not the
alleged breach or default is a breach of a fundamental or material condition or term,
or a fundamental or material breach.
Pag. 5 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
CAME AUTOMATION GATES UL 325 CLASSES
CLASS DESCRIBTION DUTY CYCLE ZLJ24U
IResidential Vehicular Gate Operator
Typical use: Home, 1-4 apartment condominium.
Limited Public access. Continuous X
II Commerical/ General Access Vehicular Gate Operator
Typical use: Condominiums, hotels, parking lots.
No general public access. Continuous X
III Industrial/ Limited Access Vehicular Gate Operator
Typical use: industrial location, Factory, Loading Dock.
No general public access. Continuous X
IV Restricted Access Vehicular Gate Operator
Typical use: Security area with restricted access.
No general public access. Continuous X
Power Connection
CAUTION
Be sure that the circuit breaker for the line input power is turned off before connecting the input power to the unit.
Warning: CAME SPA is not responsible for researching and complying with local building codes. Be sure to check these
codes before installation.
The installer must use 14AWG conductors and ½” conduit for the power connection.

Pag. 6 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
4 Description
1 Legend of symbols
This symbol indicates sections to be read with particular care.
This symbol indicates sections concerning safety.
This symbol indicates notes to communicate to users.
2 Intended use and application
The ZLJ24U control panel is engineered to command 24 V DC automation for swing gates of the Axo (AX3024U, AX5024U) -
Amico (A1824U) - Frog (FROG-A24U, FROG-A24E, FROG-JU) - Ferni (F1024) - Fast (F7024E)
The use of this product for purposes other than as described above and installation executed in a manner other
than as instructed in this technical manual are prohibited.
3 Reference Standards
“IMPORTANT INSTALLATION, SAFETY INSTRUCTIONS”
“CAUTION: IMPROPER INSTALLATION MAY CAUSE SERIOUS DAMAGE, FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY”
“THIS MANUAL IS ONLY FOR PROFESSIONAL INSTALLERS OR QUALIFIED PERSONS”
For its quality processes management Came Cancelli Automatici is ISO 9001:2000 certified, and for its environmental management it is
ISO 14001 certified. Came designs and manufactures entirely in Italy.
This product complies with the following standards: UL325, and CSA C22.2 NO.247
Make sure you respect the distances and cable diameters as shown in “cable types and minimal thicknesses” table.
The overall power of the motors must not exceed 1/2 hp.
This product is engineered and manufactured by CAME cancelli automatici s.p.a. and complies with current safety regulations.
The control panel works on 120 V AC of power, 50/60 Hz frequency.
The command devices and accessories are 24 V rated. Warning! Accessories must not exceed an overall total of 50 W.
All connections are protected by quick fuses, see table.
The input and output contact functions, the timing settings and users’ management, are set and viewed on the display, which is run by
software.
Set up to connect the LB180 board to power the batteries, which, in case of a power failure, intervene automatically. When the power
comes back on, the board automatically recharges the batteries.
FUSES TABLE
to protect: fuse:
Electrolock 3.15 Amp
Electronic board (power supply line) 5 Amp
24 V accessories 2 Amp
Command device (control panel) 630 mA-F
Motor 10 A =120 V Ø6,3x22
2.1 Intended use
2.2 Application
TECHNICAL FEATURES
Power supply 120 V - 50/60 Hz
max. rated power 1/2 hp
Power draw when idling 110 mA
Max power of 24 V accessories 50 W
Insulation class of the circuits II
Container material ABS
Protection rating of the material IP54
operating temperature -4ºF / +131°F

11.61
12.60
8.46 9.45 5.71
4.72
26V
0V
17V
0
120V 26V
0V
17V
0
120V
8
1
11
5
4
9
10
15
1
7
12
6
2
13
14
17
3
16
Pag. 7 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
4.1 Dimensions, spans and anchoring holes
(measurement in inches)
4.2 Main components
Warning! Before acting on the machinery,
cut off the main power supply and disconnect
any emergency batteries.
1 - Transformer
2 - Card fuse
3 - Accessories fuse
4 - Electrolock fuse
5 - Display
6 - Display lighting adjustment trimmer
7 - Memory roll card connector
8 - AF card connector
9 - R700 card connector
10 - Open contact error - warning LED
11 - Programming buttons
12 - Terminal board for connecting
13 - Terminal board for 120 V AC power grid
14 - Line fuse
15 - 120 V-power signalling LED
16 - Motor 1 fuse 1
17 - Motor 1 fuse 2

!!
15 mm~
11.6
8.4
(measurement in ft.)
0 . 5 9
Pag. 8 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
Before installing do the following:
• Check that the panel’s anchoring point is protected from possible blows, and that the anchoring surface is solid.
Also check that the anchoring is done using the appropriate bolts, screws etc.
• Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off) power
supply
• Make sure that any connections inside the case (that provide continuance to the protective circuit) are fitted with extra insulation
as compared to the other conductive parts inside
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with
the current standards and regulations. The following figure illustrates the minimum equipment
needed by the installer. Here are some examples.
5.1 Preliminary checks
5.2 Tools and materials
Installation must be carried out by expert qualified personnel and in full observance of regulations in force.
1) Fix the base of the panel in a protected area; we suggest
using cross slot phillips head bolts of max.
1/4 inch in diameter.
5.3 Fixing and mounting the box
2) Perforate the pre-punched holes and insert the cable
glands with the corrugated tubing for the electrical
cables to travel through.
Note: diameter of the pre-punched holes: 3/4 inch.
3) Assemble the pressure hinges.
4) Insert the pressure hinges into the box (on the left or right as you
wish) and set them using the provided screws and washers.
They must slide in order to tum
5 Installation

L
B1 B2
+ -
*AX3024U, AX5024U, A1824U **FROG-A24U, F1024, FROG-JU, FROG-A24E, F7024E ***FROG-A24U, FROG-JU, F1024
****FROG-A24E, F7024E
Pag. 9 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
Note: If the cable length differs from that specified in the table, then you must determine the proper cable diameter based on the actual
power draw from the connected devices and according to the local electrical code standards.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power draw
and distances.
When connecting products that are not specified in this manual, please follow the documentation provided with said products.
6.1 Cable and type and section Always check first for local electrical codes.
Connections Type
of cable Length of cable 3 < 32 ft
Length of cable
32 < 65 ft
Length of cable
65 < 100 ft
Control panel power supply
UL LISTED
CABLE/ WIRE
3G x 14AWG 3G x 14AWG 3G x 14AWG
Power to motor with encoder * 3G x 14AWG 3G x 14AWG 3G x 14AWG
Power to motor** 2G x 14AWG 2G x 14AWG 2G x 14AWG
flashing lamp 2 x 20AWG 2 x 20AWG 2 x 20AWG
Transmitter photocells 2 x 20AWG 2 x 20AWG 2 x 20AWG
Receiver photocells 4 x 20AWG 4 x 20AWG 4 x 20AWG
Power supply to accessories 2 x 20AWG 2 x 20AWG 2 x 20AWG
Limit switch connection *** 3 x 14AWG 3 x 14AWG 3 x 14AWG
Control and safety devices 2 x 20AWG 2 x 20AWG 2 x 20AWG
Encoder connection **** TWISTED 22AWG max. 100 ft
Antenna connection RG58 max. 32 ft
6 Electrical connections
6) After the adjustments and settings, fix the cover
using the provided screws.
5) Snap the cover into place onto the hinges.
Terminals for powering the following accessories:
- 24 V AC.,DC Overall power allowed: 50 W
Power supply to accessories
Power supply
120V AC 50/60 Hz
Electrolock
connection
(12 V - 15 W max)
Possible output of the
radio receiver’s second
channel (N.O. socket).
Socket rating: 500 mA-24 V DC.
6.2 Electrical connections

L
L
CAME
ACCESS CONTROL
CANCELLI AUTOMATICI
R700
Pag. 10 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
Entrapment-Signalling and Lighting devices
Command devices
Stop button (N.C. contact) - Button to stop gate while
excluding the automatic closing cycle. For movement to
resume you must press the command button or transmitter
button.
Note: if contact is unused, select Disabled on the
“FUNCTIONS” menu.
Key selector and/or opening button
(N.O. contact) - Gate opening command.
Key selector and/or commands button
(N.O. contact) - Commands for opening and closing
the gate – pressing the button or turning the key-
switch, inverts the gate’s movement or stops it
depending on how it is set on the 2-7 command in
the “FUNCTIONS” menu.
Key selector and/or partial opening button
(N.O. contact) - Partial gate opening for pedestrian
access.
Key selector and/or closing button
(N.O. contact) - Gate closing command.
TSP00 - Transponder sensor
Note: insert the (R700) coding board to have the
(TSP00) sensor or (LT001) card reader recognised.
LT001 - Magnetic card reader
Black
Red
Antenna with RG58 cable for
the remote control.
Open gate indicator-light
(socket rating: 24 V – 3 W max.).
Turns on when the gate is ajar or open.
It turns off when the gate is closed.
WARNING DEVICE (contact power: 24V A.C. - 25W max)
After the encoder has detected an obstacle in the same
direction twice running, the card activates the warning device
and blocks the radio transmitter for 5 minutes.
After 5 minutes the alarm is deactivated and the radio
transmitter restored (the PROG Led goes OFF).
To restore the radio transmitter before 5 minutes, press the
total stop key (the PROG Led goes OFF).

FROG-JU
M1 N1 E1 M2 N2 E2
2 FA1 FC1 FA2 FC2
L
L
RX TX
RX TX
+NO C NC
-+ -
F1024
FROG-A24U
M1 N1 E1 + E - M2 N2 E2 + E -
FROG-A24E
ENCODER B
ENCODER A
AX3024U/AX5024U
F1024
FROG-A24U
FROG-A24E
M1 N1 E1 M2 N2 E2 2 FA1 FC1 FA2 FC2
FROG-JU
A1824U A1824U
AX3024U/AX5024U
Pag. 11 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
M1 - 24 V DC gearmotor featuring delayed action on opening M2 - 24 V DC gearmotor featuring delayed action on closing
Safety devices
Configure either (N.C.) contacts CX, CY or CZ, input for
safety devices such as photocells, that comply with
UL 325 standards.
See CX, CY or CZ input functions in:
- C1 «re-open during closing phase», When the gate leaf
is closing, opening the contact triggers the inversion of the
direction of movement until the gate leaf is fully open.
- C2 «re-close during opening phase», When gate is
opening, if the contact is opened it triggers an inversion of
the direction until gate is fully closed.
- C3 «partial stop», Halts moving gate leaves and causes
them to automatically close (if this functions has been
selected).
- C4 «stand-by Obstacle», Halts the moving gate leaves
causing them to start moving again once obstacle is
removed.
- Deactivated, if contact is unused.
DIR photocells
DOC photocells
Gearmotor, mechanical stops
Gearmotor, encoder
M1 - 24 V DC gearmotor featuring delayed action on opening M2 - 24 V DC gearmotor featuring delayed action on closing
White
Brown
Green
Green
Brown
White
F7024E F7024E

L
L
L
L
DF
N.O.
N.C.
C.
+-+-
FUSIBILE 200mA
TX 2
TX 2
10 2 TX C
-
+-
NC
+-
(DOC) (DIR)
Pag. 12 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
DF with DFI connections
monitor card
At each opening and closing command, the control board assesses the efficiency status of the control devices (photocells). Any
anomaly found is signalled with the flashing of the LED on the control panel. Consequently it cancels any commands coming from the
remote control or the button.
Electrical connection to enable the photocell safety test:
- the transmitter and the receiver, must be connected as per the diagram;
- from the functions menu, select “safety tests” and select either CX - CY - CZ input/s to activate the test.
6.3 Electrical connection for running the photocell safety test
Configure either (N.C.) contacts CX, CY or CZ,
input for UL 325 compliant safety devices such as
sensitive edges. See CX, CY or CZ input functions
in:
- C7 «Open while closing», During gate closing,
opening the contact causes inversion of
movement until gate is fully open;
- C8 «close while opening», During gate
opening, opening the contact causes inversion of
movement until gate is fully close.
- Deactivated, if contact is unused.

Lingua
Italiano
< >
Lingua
Italiano
< >
{
{
{
{
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Pag. 13 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
To enter the menu, keep the
ENTER key pressed for at least
one second.
To select a menu item,
mode using the greater
than-lesser than keys...
...then press ENTER
also use the greater
than-lesser than keys
for the “sub-menus”...
If the <> are on the TIME
function, you may modify the
value.
To increase or reduce values,
use the greater than-lesser
than keys...
...then press ENTER to confirm...
...to exit the menu, wait 30
seconds, or press ESC, until start
screen is displayed.
Note: when the menu is active, the system cannot be used.
7 Programming
...then press ENTER
7.2 Browsing the menu
7.1 Description of display commands
The ENTER key is for:
- entering the menu
- confirming and memorizing set values.
The ESC key is for:
- exiting the menu;
- cancelling modifications.
The < > keys are for:
- shifting from one menu item to another;
- increase or decrease values.
the <...> symbols on the display are for:
-pointing out the currently, selected item
LANGUAGE
English
< >
LANGUAGE
English
< >
FUNCTIONS
English
< >
TIMING ADJ.
< >
A.C.T.
90s
< >
Cycle Time
90s
< >
Cycle Time
90s
< >
Cycle Time
100s
< >

ENTER
>
ENTER >
ENTER
>
>
ENTER
ENTER
ENTER >
>
>
>
ENTER
>
>
>
>
>
>
ENTER
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
ENTER
>
ENTER
ENTER
ENTER
>
>
ENTER
>
>
ENTER
>
>
>
>
>
>
ENTER
ENTER
>
>
ESC
>
ENTER
ENTER
ENTER x 3¨
ENTER
ENTER
>
ENTER
>
ENTER
>
ENTER
ENTER
ENTER
Pag. 14 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
< Imp. Run >
< LANGUAGE > <English><Francais> <Deutsch>
<Espanol>
<Italiano>

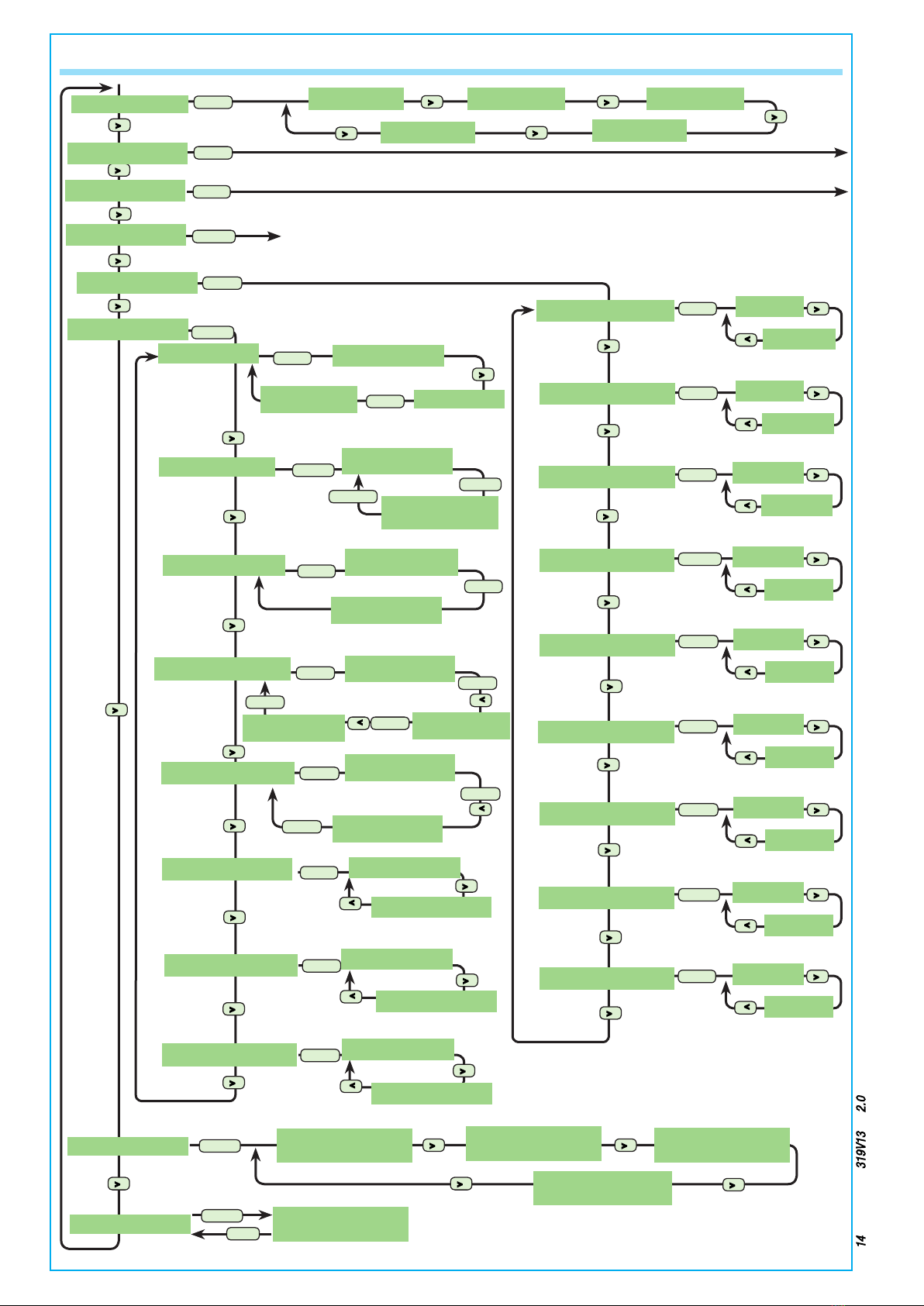

7.3 Menu structure
< TIMING ADJ >
< INFO >
< T.C.A. >
< FUNCTIONS >
< USERS >
Choose User
<001:-U001->
< 0s. >
< 300s.>
< 0s. >
< 300s.>
< 10s. >
< 150s.>
< 1s. >
< 10s. >
< 1s. >
< 60s >
< 1s. >
< 60s.>
< 1s. >
< 5s. >
< 1s. >
< 3s. >
< 5s. >
< 60s.>
Choose User
<001:-U001->
Code waiting
Choose User
<001:-U001->
Choose User
<001:-U001->
< TEST MOT. > TEST MOT.
< <=M1 M2=> >
< ENCODER >
< System Reset >
<Pedestrian ACT>
< Cycle Time >
< Op. Delay M1 >
< Cl. Delay M2 >
<Preflashing T.>
< Lock time >
< Ram hit time >
< Ped.opening >
< Add User >
< Mod. name >
< Mod. Code >
<Related Func.>
< Remove Usr. >
<Delete all Usr>
< Backup data >
<Restore backup>
< Standby Msg. >
< Version >
fw. 2.0
< No. of Runs >
16480
confirm? (no)
confirm? (yes)
confirm? (no)
confirm? (yes)
confirm? (no)
confirm? (yes)
confirm? (no)
confirm? (yes)
< Mod. name >
--U001--
Related Func.
<2-7>
Related Func.
confirm? (yes)
Remove Usr.
confirm? (yes)
Related Func.
<2-7>
See detail of functions on pages 23, 24, 25 and 26 (the “ENCODER” function, appears only if selected
from the “Config.” function in the FUNCTIONS menu.

ENTER
ENTER
ENTER
>
>
>
>
>
>
>
>
ENTER
>
>
>
>
>
>
>
>
ENTER
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
>
ENTER
>
ENTER
>
>
>
>
>
•••
•••
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
ENTER
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
*
*
**
**
*
ENTER
>
>
>
>
>
>
ENTER >
>
Pag. 15 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
<-oooooooooooo+>
< Disabled >
< C1 >
< C4 >
< C2 >
< C3 >
< Turn on >
<Disabled>
< CX+CZ >
<CX+CY+CZ>
< CX+CY >
< CY+CZ >
<Maintained Act>
<Obstacle Det.>
<Safety d.Test>
< Preflashing >
< Total Stop >
< CX Input >
<CZ Input>
<Lock>
< Config. >
<Ram hit funct.>
< end stop >
< cmd 2-7 >
<dmd 2-3P>
<output B1-B2>
< C7 >
< C8 >
< Slow run >
<Fcap-RallCh> < Limit switch>
< Time of Run >< encoder >
<Cl. Thrust.>
<No.Motors>
<Motor type>
<High speed%>
<low Down Spd>
<Slow Star>
<Sens.Amperom>
<run Amperom.>
<Slow down time>
<M1+M2>
< M2 >
Frog
FROG-J
< 50 >
< 100 >
< 10 >
< 50 >
< Turn on >
<Disabled>
< Turn on >
<Disabled>
< 0s. >
< 30s. >
< Turn on >
<Disabled>
<Autoclose>
AMICO
AXO
FERNI
FAST
<-oooooooooooo+>
< Turn on >
<Disabled>
< Turn on >
<Disabled>
<Disabled>
< Turn on >
<Disabled>
< Turn on >
<Disabled>
<Open-Close>
<Op.-Stop-Cl.>
<Pedestrian>
< Parzial >
< Bistable >
<Monostable>
< N.C. >
< N.O. >
< Disabled >
< C1 >
< C4 >
< C2 >
< C3 >
< C7 >
< C8 >
< Disabled >
< C1 >
< C4 >
< C2 >
< C3 >
< C7 >
< C8 >
< Disabled >
< CX >
< CY >
< CZ >
<CY Input>
<when close >
<Disabled> Close >
< Open >
< Open-Close >
< lamp E >
lamp E
<Courtesy>
lamp E
<Cycle>
lamp E
Flashing light
•
•
Appear on the menu, only if any excluded <Encoder>
configuration is enabled.
Appear only if the <Decelaration> or <fcap-Rall CH>
configurations are enabled.
< Lock >
Close >
< Open >
< Open-Close >

X 2
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
X 2
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Pag. 16 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
LANGUAGE
< English >
LANGUAGE
< Francais >
LANGUAGE
< Deutsch >
LANGUAGE
< Espanol >
LANGUAGE
< Italiano >
7.4 Main menu
Press ENTER
for 1 second
7.5 Language menu
Select language: Selects among the languages displayed.
7.6 Functions menu
< AutoClose >
Turn on
AutoClose
< Turn on >
AutoClose
< Disabled >
Automatic Closing: Activates or deactivates the automatic closing function.
The automatic closing timer activates at each opening endpoint. The predetermined time may be adjusted, and is in any case dependent on any
safety devices that may activate; and it does not activate after a total safety “stop” or during a power outage.
Maintained Act
< Disabled >
<Maintained Act>
Disabled
Maintained action: The gate works by keeping the button pressed (button 2-3 for opening, button 2-4 for closing, or if set to the “On Closing”
function, only with button 2-4. (This excludes the function of the transmitter fitted with the AF card).
Maintained Act
< when close >
Memory stores 250 users maximum
It appears only if selected from the “Config.”
Section in the FUNCTIONS menu.
Maintained Act
< Turn on >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
< LANGUAGE >
English
< FUNCTIONS >
<TIMING ADJ.>
< USERS >
250
< INFO >
< Imp. Run >
< TEST MOT. >
< ENCODER >

X 2
X 2
X 4
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
X 2
X 3
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
X 2
Pag. 17 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
<Safety d.Test>
Disabled
Safety d.Test
< Disabled >
Safety d.Test
< CX >
Safety d.Test
< CY >
Safety d.Test
< CZ >
Safety d.Test
< CX+CY >
Safety d.Test
< CX+CZ >
Safety d.Test
< CX+CY+CZ >
Obstacle Det.
< Disabled >
<Obstacle Det.>
Disabled
Obstacle Det.
< Turn on >
Obstacle detected: When motor is stopped (gate closed or after a total stop command) it prevents any movement if safety devices, such as
photocells, detect any obstacles.
Safety test: Allows the card to check the efficiency of any safety devices (i.e. photocells) after every opening or closing command.
Preflashing
< Disabled >
< Preflashing >
Disabled
Pre-flashing: After an opening or closing command, the flashing light, connected to 10-E, starts flashing before the gate begins its run (to set the
time, see “Pre-flashing timing” from the Adjust Timings menu).
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
X 2
X 5
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Ram blow: Before any opening run, the gate leaves will press onto the mechanical endstop for a few seconds, to help release the electrolock (to set
the time, see “Ram timing” in the Adjust Timings menu).
Ram hit funct.
< Disabled >
<Ram hit funct.>
Disabled
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Ram hit funct.
< Close >
Ram hit funct.
< Open >
Ram hit funct.
< Open-Close >

X 2
X 6
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Pag. 18 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
CX input: The N.C. safety contact input can take on the following functions: C1 (re-opening when closing), C2 (re-closing when opening), C3 (partial
stop), C4 (obstacle stall), C7 (re-opening when closing, for sensitive edges), C8 (re-closing when opening,
for sensitive edges) or, be deactivated. See safety devices on electrical connections.
Total Stop
< Turn on >
< Total Stop >
Turn on
Total Stop
< Disabled >
Total Stop: This function stops the gate and consequently excludes any automatic closing cycle; for movement to Resume, you need to use the
keypad or transmitter. Insert safety device on [1-2]; Insert the safety device on [1 -2]; if used, select “Deactivated.”
CY input: Safety contact input can take on the following functions: C1 (re-opening when closing), C2 (re-closing when opening), C3 (partial stop), C4
(obstacle stall), C7 (re-opening when closing, for sensitive edges), C8 (re-closing when opening, for sensitive edges) or, be deactivated. See safety
devices on electrical connections.
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
Lingua
Italiano
< >
X 2
X 7
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< CX Input >
Disabled
CX Input
< Disabled >
CX Input
< C2 >
CX Input
< C3 >
CX Input
< C4 >
CX Input
< C1 >
CX Input
< C7 >
CX Input
< C8 >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
Lingua
Italiano
< >
X 2
X 8
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< CY Input >
Disabled
CY Input
< Disabled >
CY Input
< C2 >
CY Input
< C3 >
CY Input
< C4 >
CY Input
< C1 >
CY Input
< C7 >
CY Input
< C8 >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run

(F1024,FROG-A24U)
Pag. 19 - Manual code: 319V13 ver. 2.0 09/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
Configuration:
- encoder: Managing decelerations, obstacle detection and sensitivity, (default function):
(AX3024U, AX5024U, FROG-A24E, A1824U, FROG-JU, F7024E)
- slow run: Decelerations when opening and closing;
- Fcap-RallCh.: End stop when opening and deceleration when closing.
- Time of Run: Timed end stop.
- Limit switch (endstop): Opening and closing endstop.
CZ input: Safety contact input can take on the following functions: C1 (re-opening when closing), C2 (re-closing when opening), C3 (partial stop), C4
(obstacle stall), C7 (re-opening when closing, for sensitive edges), C8 (re-closing when opening, for sensitive edges) or, be deactivated. See safety
devices on electrical connections.
Closing thrust:At the endpoint stage during closing, the gearmotors perform a final closing-thrust of the doors for a few seconds.
}
X 2
X 12
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
Config.
< Fcap-RallCh >
Config.
< encoder >
< Config. >
Slow run
Config.
< Slow run >
Config.
<Time of Run>
Config.
<Limit switch>
Lingua
Italiano
< >
X 2
X 9
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< CZ Input >
Disabled
CZ Input
< Disabled >
CZ Input
< C1 >
CZ Input
< C2 >
CZ Input
< C3 >
CZ Input
< C4 >
CZ Input
< C7 >
CZ Input
< C8 >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
X 2
X 10
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
X 2
X 11
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lock: To lock the gate leaves.
Cl. Thrust.
< Disabled >
< Cl. Thrust. >
Disabled
Cl. Thrust.
< Turn on >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
Imp. Run
Lock
< Disabled >
< Lock >
Disabled
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Lock
< Close >
Lock
< Open-Close >
Lock
< Open >

X 2
X 16
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Pag. 20 - Manual code: 319V13 ver. 2.0 09/20010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
Endstop: Configure the endpoints are normally closed or open contacts.
Note: this function appears only if selected from the “Config.” function in the FUNCTIONS menu.
Command 2-7: Setting the 2-7 contact to step-by- step mode (open-close) or sequential (open-stop-close-stop).
< lamp E >
lamp E
< Cycle >
Command 2-3P: setting the 2-3P contact to pedestrian opening (second gate leaf opens fully) or partial (second gate leaf opens artially depending
on the time set on “Partial opening” from the Adjust Times menu).
E Lamp: Setting up the flashing light or cycle lamp or courtesy lamp connected on 10-E:
- courtesy light:outdoor lamp that can be freely positioned, for additional lighting of the driveway - stays on for 5 minutes.
- cycle: Outdoor lamp, which can be positioned at leisure, for better illumination in the parking/driveway area.
It stays on from the moment the gate leaf begins to open, until it is fully closed (including automatic closing time).
In case the automatic closing function is not inserted, it stays on only during gate movement.
- flashing light: signals the gate opening or closing movement.
X 2
X 14
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< cmd 2-7 >
Op.-Stop-Cl.
cmd 2-7
<Op.-Stop-Cl.>
cmd 2-7
<Open-Close>
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
X 2
X 13
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< endstop >
N.C
endstop
< N.C >
endstop
< N.A >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
Imp. Run
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
INFO
Imp. Run
X 2
X 15
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
Lingua
Italiano
< >
< cmd 2-3P >
Pedestrian
cmd 2-3P
< Pedestrian >
cmd 2-3P
< Partial >
< LANGUAGE >
English
FUNCTIONS
TIMING ADJ.
USERS
Imp. Run
lamp E
< Courtesy >
lampada E
<Flashing light>
