Camec emove EM303A User manual
EM303A
Caravan Manoeuvring
System
®
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 2
TABLE OF CONTENTS
Package contents (Parts list)
Introduction
Intended use
Specifications
Installation - safety guidelines
Installation - mechanical components
Installation - electrical/electronic components
Installation - twin axle
Operation - safety guidelines
Operation - motor units
Operation - remote control handset
Operation - electronic control unit
Operation - getting started
Operation - hitching and unhitching
Maintenance
Tro uble-s hooti ng
PACKAGE CONTENTS
Ref Qte Description
1 1 Motor unit (A)
21 Motorunit(B)
31 Maincrossbar
4 1 Electronic control unit
51 Remotecontrolhandsetwithlanyard
6 1 Emergency key
7 2 Aluminium chassis clamp plates (set)
84 Bolt-M10x60
9 2 Chassis U plate
10 1 Instruction manual
11 1 Convoluted cable trunking
14 1 Positive (+) red battery cable 1.8m including fuse holder & 80A fuse
15 1 Negative (-) black battery cable 1.6m
16 8 Bolt - M10x50
17 12 Nylon nut M10
18 24 Washer 10mmØ
19 20 Screw - M4x15
20 10 Cable trunking P-clip 19.2mm
21 10 Cable P-clip 10.4mm
22 4 Battery terminal connector 8mmØ
23 2 Battery terminal connector 6mmØ
24 4 Spade fork connector big
25 3 Cable number markers (1,2,3,4)
26 3 Cable polarity markers (+,-)
28 10 Cable tie 2x70
29 1 Battery isolation switch, cover & key
30 2 Roller distance spacers 20x20
31 2 Rubber isolation shell for battery isolation switch
33 2 Screw – M5x40
34 4 Spade fork connector small
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 3
EC DECLARATION OF CONFORMITY
Product: Manoeuvring Device for Caravans
Model No: EM303A
Manufacturer: The Ace Supply Company Ltd T/A Streetwize Accessories
Address: Unit 1, Royce Trading Estate, Ashburton Road West, Trafford Park, Manchester M17 IRY
This declaration is issued under the sole responsibility of the manufacturer.
The object of the declaration described above is in conformity with the relevant EC Directives:
2014/53/EU RE Directive
2014/30/EC EMC Directive
2006/42/EC Machinery Directive
2011/65/EU RoHS Directive
ECE-R10
Conformity is shown by compliance with the applicable requirements of the following standards:
EN300 220-1
EN300 220-2
EN301 489-1
EN301 489-3
EN 62311
EN ISO 12100
ECE-R10.05
Technical Data
Remote Control Frequency Class 1 Frequency 868 MHz <20mA
Operational Voltage 12v DC Current Consumption Average 20A maximum 100A
Power Transmitted 6.345 dBm
Area of operation Single axle caravan with a total weight up 2250kg on hard / flat surfaces
1800kg on other surfaces,
1450kg on 18% gradient
Speed approx: 9cm per second
Weight approx: 34kg
Signed for and on behalf of: The Ace Supply Company Ltd T/A Streetwize Accessories
Place of Issue: Manchester
Date of Issue: 10/09/2019
Name: Lesley Cooper
Position: QC Manager
Signature:
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 4
INTRODUCTION
Congratulations on choosing the emove EM303A caravan manoeuvring system. This has been produced
according to very high standards and has undergone careful quality control procedures.
Simply by using the remote control handset you can move your caravan effortlessly into any position required
within operating guidelines. Soft start and soft stop technology allows you to manoeuvre your caravan even
more accurately without any shocks.
The caravan manoeuvring system consists of two 12V motor-power rollers, a 12V electronic control unit and a
remote control handset. To function, the motor-powered rollers must be engaged against the tyres of your
caravan. The emove EM303A caravan manoeuvring system is provided with an automatic engaging system.
By pushing two buttons on the remote control, both motor-powered rollers will be simply pressed on the tyre.
Once this is done the manoeuvring system is ready for operation. The remote control will allow you to move
your caravan in any direction. You can even rotate the caravan on its own axis without moving forwards or
backwards (this function just can work under the “single-axle function”).
Before proceeding with installation and starting to use the manoeuvring system, please read
this manual very carefully and be aware of all the safety instructions! The owner of the
caravan will always be responsible for correct use. Keep this manual inside your caravan for
future reference.
INTENDED USE
The emove EM303A caravan manoeuvring system is suitable for single axle and double axle caravans.
Suitable only for L-profiled and U-profiled chassis with a chassis thickness between min. 2.5mm and max.
3.5mm.
Depending on the weight of the caravan, the manoeuvring system cannot overcome obstructions that are more
than about 2cm in height without assistance (please use wedges as a ramp).
The standard installation kit only provides parts for installing the caravan manoeuvring system within the
measurements given in Fig. 14.
SPECIFICATIONS
emove EM303AnoitangiseD
CDtloV21egatlovlanoitarepO
erepmA02noitpmusnoctnerrucegarevA
erepmA001noitpmusnoctnerrucmum
ixaM
Transmitting frequency remote control 868MHz
.cesrepmc9.xorppadeepS
)yrettabevisulcxe(gk43.xorppa)tesrotom2(thgieW
Permissible overall Weight single axle (2 motors) 2250kg hard flat surfaces, 1800kg other surfaces,
1500kg on 18% gradient.
Permissible overall Weight double axle (2 motors) 2250kg hard flat surfaces, 1800kg other surfaces,
1500kg on 18% gradient.
Permissible overall Weight double axle (4 motors) 3500kg hard flat surfaces, 2500kg other surfaces,
1800kg on 18% gradient.
mm0081)reliart/navarac(htdiwmuminiM
mm0052)reliart/navarac(htdiwmumixaM
mm502htdiwerytmumixaM
OPeFiL)yre
ttab(ecruosrewoP 4: 12V, 20Ah
Lead acid: 12V, 80Ah (min.)
INSTALLATION - SAFETY GUIDELINES
Read this user manual carefully before installation and use. Failure to comply with these
rules could result in serious injury or damage to property.
These symbols identify important safety precautions. They mean CAUTION! WARNING!
SAFETY FIRST! IMPORTANT INFORMATION!
Before starting installation under the caravan
:
Check the towing load of your vehicle and the gross weight of your caravan in order to establish whether they
are designed for the additional weight. The manoeuvring system itself has a weight of about 34kg and a
traditional lead acid battery has a weight of about 20-25kg .
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 5
Check the minimal installation dimensions of the manoeuvring system based on figure 14.
Only use adapters and accessories that are supplied or recommended by the manufacturer.
Check that the caravan is disconnected from the battery supply and the mains electrical supply.
Check that the tyres are not over worn and do have the same size and design (fitting to new or nearly new
tyres is the best option).
Make sure that the tyre-pressures are correct to the recommendation.
Make sure the chassis is in good condition without any damage and is free from rust, dirt etc.
Stop work immediately if you are in doubt about the assembly or any procedures and consult one of our
engineers (Please refer to contact information on the last page of this manual).
Locate the battery isolation switch to be accessible at all times when parking and moving the caravan.
Do not remove, change or alter any parts of the chassis, axle, suspension or brake mechanism. Any drilling of
holes in the chassis is not allowed.
Do not install the unit if you are under the influence of drugs, alcohol or medication that could impair your
ability to use the equipment safely.
INSTALLATION
-
MECHANICAL
COMPONENTS
FOR
PROFESSIONAL
INSTALLATION
ONLY!
These
instructions
are
for
general
guidance.
Installation
procedures
may
vary
depending
on
caravan
type.
Working
under
a
vehicle
without
appropriate
support
is
extremely
dangerous!

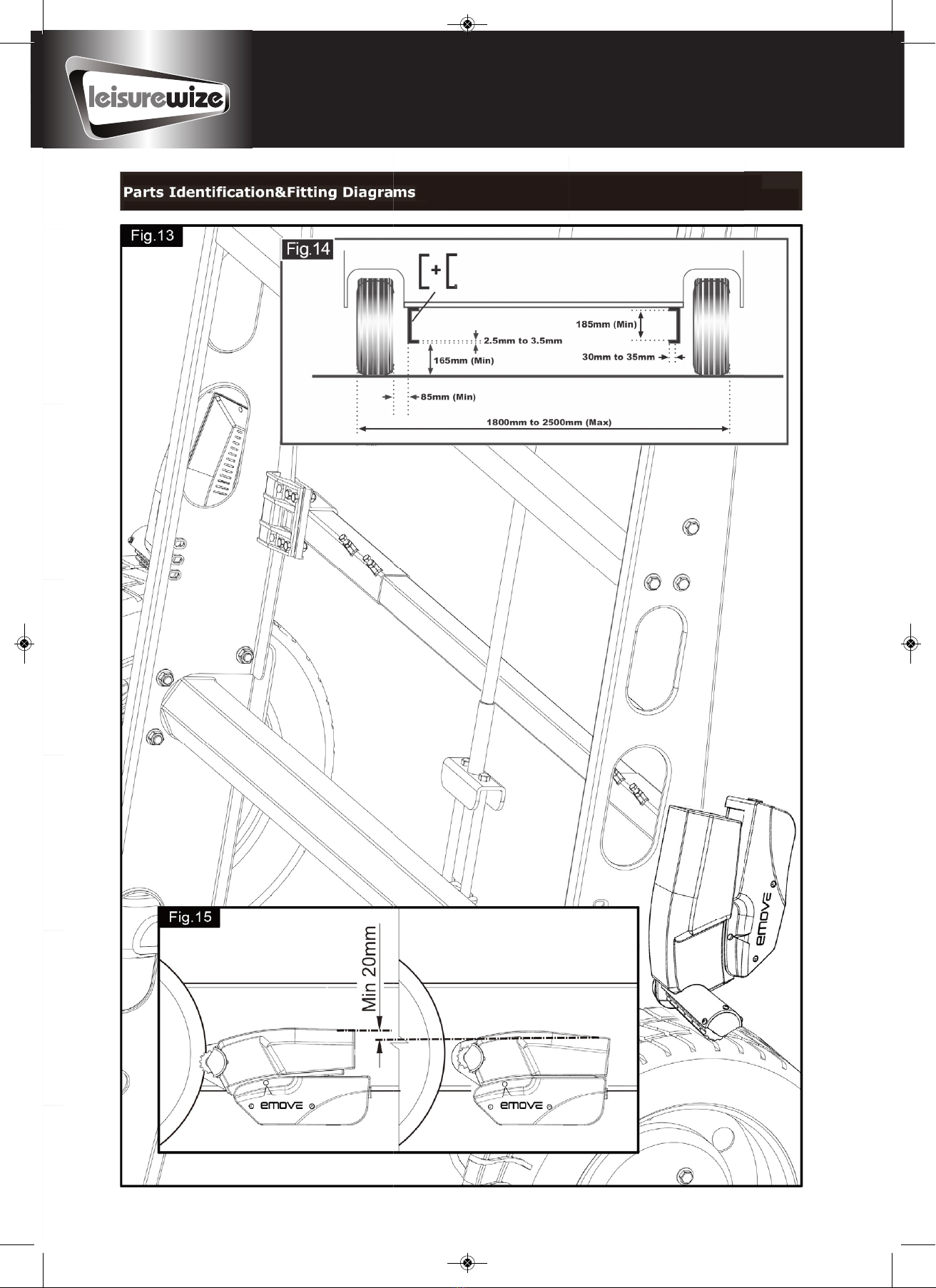

Please
refer
to
figure
13
for
an
overview
of
the
whole
assembly
fully
fitted.
Place the caravan on ahard, level surface. The use of alifting ramp or an assembly pit is ideal for access and
personal safety.
Unpack all the components and check for the presence of all parts (see package contents list). Write down, on
the product warranty registration card, the 10-digit serial number (this is located on an aluminium plate on the
side of one of the motor units).
Clean the area of your chassis where you need to mount all components to ensure agood fitting.
Make sure the caravan is prepared for installation. Check before installation that important areas, such as
drains/spare tyre etc. do not cause any obstruction to the function of the caravan manoeuvring system.
Ensure both rollers are in the DISENGAGED position (Fig. 10), as the unit will not fit correctly otherwise (Note:
when fully disengaged, the pointer is positioned in the beginning of the yellow area).
Loosely assemble the left hand motor unit (1), right hand motor unit (2) and main cross bar (3) (Fig. 1). The
nuts (Fig. 1A), on the cross bar (3) to secure both motor units, must be no more than finger-tight at this stage.
Note
:In principle, the unit should be fitted in front of the caravan road wheels, but if fitting in this position is
not possible because of obstacles or atoo high hitch ball weight, it is permissible to fit it to the rear of the
wheels by rotating the whole assembly (Fig. 1) by 180° degrees.
Loosely fit the two clamping assemblies (7) to the chassis (Fig. 2&13) and attach. Use the bolts M10x60, nuts
M10 and washers M10 (8,17,18) and put them in the diagonal positioned holes of the aluminium chassis clamp
plates. Nuts must be no more than finger-tight.
Assemble the pre-mounted manoeuvring system on the aluminium chassis clamp plates by using the two U-
shaped brackets (9), bolts M10x50, nuts M10 and washers M10 (16,17,18). Nuts must be no more than finger-
tight.
Make sure that aluminium drive rollers of the motors are approximately on the same altitude as the centre
(axle) of the caravan wheel (0mm~40mm, see Fig. 10). As well make sure that between the top of the motor
housing and the floor of the caravan is minimal 20mm space to make sure the motors can move freely (see Fig.
10 &15). To compensate apossible unevenness (and lower the motors), emove has aset of distance plates
available. One set can compensate 15mm. In total three sets can be used so that an altitude of 45mm can be
compensated.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 6
Adequate
ground
clearance:
Please
notice
that
the
min.
distance
between
the
lowest
line
of
motors
and
ground
is
110mm,
no
matter
what
kind
of
chassis
or
install
situation.
Make sure that the main cross bar (3) is positioned in the middle of the caravan (the centre of the bar is
marked).
With the main assembly is loosely fitted onto the chassis, slide the whole assembly along the chassis until the
rollers are 20mm away from the surface of the centre each tyre (Fig. 10). Two 20mm spacers (30) are provided.
It
is
vitally
important
that
each
roller
is
at
exactly
the
same
distance
away
from
the
tyre.
The
whole
assembly
must
be
parallel
to
the
caravan/trailer
axle.
Slide
the
motor
units
in
or
out
of
the
cross
bar
(3)
accordingly
to
ensure
the
roller
will
have
the
maximum
possible
contact
with
the
tread
of
the
tyre.
Ensure
that
the
position
of
each
motor
unit
does
not
obstruct
shock
absorbers
(if
fitted)
and
that
the
gear
cover
(Fig.
8)
is
not
too
close
to
the
surface
of
the
tyre/shock
absorber.
The
minimum
clearance
when
the
drive
units
swivelled
in
is
10mm.
Re-check
that
there
is
sufficient
space
available
(minimal
20mm)
between
the
top
of
the
motor
housing
and
the
floor
of
the
caravan
so
the
motors
can
move
freely
(Fig.
15).
Fully tighten the four bolts (Fig. 1A) on the main cross bar (3) and
lock them by
the additional nuts.
Fully tighten all the nylon nuts on both clamping assemblies (Fig. 2). First tighten the diagonal placed M10x60
bolts with a20Nm torque, and then M10x50 bolts to a40Nm torque.
Re-check the distance of 20mm from the rollers to the tires, the position of the aluminium rollers in addition to
the surface of the tire and finally the distance between the gear cover (Fig. 8) and the tires &shock absorbers
(>10mm). The weight of the caravan must be on the wheels when doing this. If necessary, loosen the bolts and
re-adjust the position of the assembly.
Re-check
that
all
bolts/nuts
have
been
tightened
to
the
correct
torque!
The main mechanical components have now been installed.
INSTALLATION
-
ELECTRICAL/ELECTRONIC
COMPONENTS
Make
sure
the
12V
supply
from
the
battery
and
any
230V
electricity
supply
are
disconnected.
Remove battery cable terminals and disconnect any external electrical power before starting work.
Find asuitable place for the electronic control unit (4), such as astorage area, under aseat or abed. Make
sure this place is dry and close to the battery (40cm to 60cm). The electronic control unit can be mounted
vertically on aside wall or be mounted flat. When mounted vertically, the connections must point downwards to
avoid any short-circuits by objects falling into.
Fix the electronic control unit securely into position with two screws M5x40 (33). Note: if the provided screws
are not of suitable length or type for the desired location/material please substitute these as appropriate.
Drill a25mm hole through the floor of the caravan approximately 150mm centrally in front of the control unit
(4) terminals.
Caution!
Take
extra
care
to
avoid
any
chassis
members,
gas
pipes
and
electrical
wires!
Route and connect the motor-cables in accordance with wiring diagram (Fig. 12) (red =positive, black =
negative).
The wiring diagram (Fig. 12 +Ta b l e . A(see below)) depicts the wiring route when installing the motor units in
front of the wheels/axle towards the frame. Please refer to table B(below) for fitment of the motor units to
the rear of the axle.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 7
Table. A
FRONT OF AXLE FITTING
(4,6mm2cables)
Motor unit A Positive (+) cable to terminal 4
Motor unit A Negative (-) cable to terminal 3
Motor unit B Positive (+) cable to terminal 2
Motor unit B Negative (-) cable to terminal 1
Automatic engaging system (1,5mm2cables):
Motor unit A: Positive (+) cable to terminal d
Motor unit A: Negative (-) cable to terminal c
Motor unit B: Positive (+) cable to terminal b
Motor unit B: Negative (-) cable to terminal a
Table. B
REAR OF AXLE FITTING
(4,6mm2cables)
Motor A Positive (+) cable to terminal 1
Motor A Negative (-) cable to terminal 2
Motor B Positive (+) cable to terminal 3
Motor B Negative (-) cable to terminal 4
Automatic engaging system (1,5mm2cables):
Motor unit A: Positive (+) cable to terminal b
Motor unit A: Negative (-) cable to terminal a
Motor unit B: Positive (+) cable to terminal d
Motor unit B: Negative (-) cable to terminal c
Mark the motor cables (12 & 13) for both motor units using the cable markers (25). The cables for the left and
the right motor should have the same length. Avoid any loops.
Connect the spade connectors to the motors. Please note that the red cable is connected to the terminal under
the moulded ‘+’ symbol on the weatherproof terminal cover.
Remember to leave a small amount of slack cable near the motors to allow for their movement when the drive
rollers are engaged.
Route all the cables along the underside of the caravan floor, inside the supplied convoluted trunking (11) (this
will protect the electrical cables against sharp edges and dirt) and through the drilled hole.
Secure the cable trunking (11) to the chassis or under body of the caravan by using the P-Clips (20) and screws
(19).
Once the all cables are through the drilled hole next to the control unit (4), cut the cables, ensuring that they
are the same length. Remove approx. 5mm of the insulation from the ends. Fix the big spade fork connectors
(24) to the motor cables and the small spade fork connectors (34) to the automatic-engaging-cables by using
crimping pliers. A secure and good quality connection on each cable is essential.
Attach the spade fork connectors to the terminals on the control unit (see wiring diagram Fig. 12) and fix them
tightly by the screws. A safe and good quality connection on each cable is again essential.
Find a suitable place for the battery power isolation switch (29) which includes an external holder with hinged
cover.
Important: The switch must be mounted onto the exterior body of the caravan and be easily
accessible from the outside of the caravan in case of any emergency.
The switch must be mounted close
to the location of the battery in order to keep the length of the battery cables to a minimum.
Use the cardboard template to position the hole positions and the drill holes. Mount the switch and the housing
with the bolts, washers and nuts, and finally mount it on the caravan with stainless steel screws (19).
Route the positive (+) power cable (including fuse) from the battery to the battery power isolation switch (29)
and than further to the control unit (4).
The electronic connections of the battery power isolation switch (29) must be covered by the supplied rubber
isolation shells (31).
Route the negative (-) power cable directly to the control unit (4).
No cables may be routed over the control unit!
Again it is recommended to use the supplied trunking (11) to protect the cables against sharp edges. Attach the
trunking with P-clips (20) and P-clip screws (19).
Cut the cables to an appropriate length and remove approx. 5mm of the insulation from the ends. Fix the
battery terminal connectors by using crimping pliers. Two types of battery terminal connector (22 & 23) are
provided for use as appropriate. A secure and good quality connection on each cable is essential.
Connect the battery cables (14 & 15) to the control unit (4): Attach the spade fork connectors to the positive
(+) en negative (-) terminal of the control box and fix them tightly by the screws.
Connect the battery cables to the existing battery terminals (red = positive, black = negative).
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 8
Caution! Make sure that you do not reverse the Positive (+) and Negative (-) connections.
Incorrect connection (reverse polarity) will result in damage to the control unit.
Connect the battery cables (14 & 15) to the control unit (4).
Seal the 25mm hole in vehicle under body using plastic body sealant.
Installation of the caravan manoeuvring system is now complete.
INSTALLATION – TWIN AXLE
This manual describes the general installation and use of the manoeuvring system for single axle caravans.
When you use the manoeuvring system for a twin axle caravan, please check the following:
Permissible overall weight twin axle (2 motors) 1800kg (1500kg on 18% gradient)
Permissible overall weight twin axle (4 motors) 2500kg (1800kg on 18% gradient)
2 motors:
The procedure for installing a 2 motors manoeuvring system on a twin axle caravan is the same as for a single
axle caravan. The electronic control unit (4) only must be prepared for twin axle use:
Turn off the battery power isolation switch and move the single/twin axle function switch (Fig 3S/T) on the
control unit to the twin axle position (Fig. 3T), so that the manoeuvring system can be used for a twin axle
caravan. In the twin axle function when making curves, all wheels will drive but at a different speed.
4 motors:
The procedure for installing a 4 motors manoeuvring system on a twin axle caravan is similar than for a single
axle caravan but then with two sets of manoeuvring system.
Follow the procedure for
installing the mechanical components
twice: one time for the manoeuvring set
mounted in front of the twin axle and one time for the manoeuvring set mounted behind the twin axle.
Follow the procedure for
installing the electrical/electronic components
twice: one time for the
manoeuvring set mounted in front of the twin axle and one time for the manoeuvring set mounted behind the
twin axle.
Note:
When installing the four motors it will be necessary to use
one
higher capacity battery to supply both
sets of manoeuvring system (including two electronic control units and two of battery power isolation switches).
Do not use two separate batteries for a 4 motors manoeuvring system on a twin axle caravan.
Now
both
electronic control units (4) must be prepared for twin axle use:
Turn off the battery power isolation switch and move the single/twin axle function switch (Fig 3S/T) on the
control unit to the twin axle position (Fig. 3T), so that the manoeuvring system can be used for a twin axle
caravan. In the twin axle function when making curves, all wheels will drive but at a different speed.
Finally both electronic control units (4) must be prepared for the use of only one remote handset (32). The
remote handset need to be synchronised with both electronic control units using the following procedure:
Check the installation in accordance with the installation instructions and ensure that the drive rollers are
not applied. Check that the battery is properly connected, check the condition of the battery and that a
voltage of 12V is present at the control unit.
Please ensure that both battery isolation switches are on.
Activate the remote control handset by sliding the slide switch to “On”-I (Fig. 5A). The green LED on the
remote control handset (Fig. 5H) starts to flash slowly.
Press the reset button (Fig. 3A) on the control unit. All three LED’s on the control unit (Fig. 3B, 3C & 3D)
will flash slowly.
Press both forwards (Fig. 5B) and reverse (Fig. 5C) button on the remote control handset for about 3
seconds. Then the handset buzzer will give a short beep to confirm that the synchronisation is complete.
After successful synchronisation, the green LED on the control unit (Fig. 3B) and on the remote control
handset (Fig. 5H) will illuminate continuously.
Repeat this procedure with the second electronic control unit.
Turn the remote handset “Off” and then “On” again so both control units will be activated.
The installation of the caravan manoeuvring system for twin axle use is now complete. For details of the
operation, use and all the LED and button functions, please refer to the standard chapters of this manual.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 9
OPERATION
-
SAFETY
GUIDELINES
Practice operating the manoeuvring system in an open area before using for the first time. This is to fully
familiarise yourself with the handset /manoeuvring system operation.
Before use, always check the caravan manoeuvring system for any damage.
When towing or moving the caravan please be aware, at all times, that ground clearance is reduced
when the manoeuvring system has been fitted.
Always ensure that children and pets are kept well out of the way during operation.
When operating the system, ensure that no hairs, fingers or other body parts, clothing or any other
objects carried on the body can become trapped by moving or rotating parts (e.g. drive rollers).
In the event of malfunctions, pull on the handbrake immediately and turn off the main isolation power
switch.
To maintain signal strength, always make sure that, during manoeuvring, the distance between the
remote control and the caravan does not exceed 5
metres.
Due to the nature of aradio signal, it can get corrupted by external terrain or objects. So there may be
small areas around the caravan where the quality of reception reduces, hence the manoeuvring system
may stop momentarily.
Always be aware that the manoeuvring system increases the weight of your caravan or trailer. So this
reduces the payload of the caravan.
Do not exceed the total safe working load of 1800kg laden weight (caravan including load) when 2
motors are used and 2500kg laden weight (caravan including load) when 4
motors (twin axle) are used.
Always make sure that the rollers are fully disengaged from the tyres when the manoeuvring system is
not in use. This is better for the tyres and for the system.
Always make sure that the rollers are fully disengaged before towing/moving the caravan by vehicle or
manpower. This can damage the tyres, manoeuvring system and the towing vehicle.
Always make sure that after you have finished using the manoeuvring system, the battery power
isolation switch (29) is switched off and the key is removed and stored in asafe place (out of reach of
children or other unauthorised people). If you switch off, the battery will be discharged by the
small current.
Always make sure that the remote control handset is switched off and stored (in the wall holder) in a
safe place (out of reach of children or other unauthorised people). If you switch off, the battery
will be discharged by the small current.
Do not rely on the manoeuvring system to act as abrake.
Always apply the handbrake after manoeuvring, before disengaging the drive rollers from the tyres.
Do not use the manoeuvring system as asupport when jacking up the caravan, since this can damage
the drive unit.
Depending on the weight of the caravan, the manoeuvring system cannot overcome all obstructions
without assistance. Please use wedges as aramp.
All wheels and tyres on the caravan must be of the same size and design. If tyres are worn or new
tyres are fitted, the distance between the drive rollers and the tyres may need readjusting (see
-Mechanical
Sensitive objects such as cameras, DVD-Players etc. Must not be kept in the stowage box near the
control unit or the motor cable. They can be damaged by the electromagnetic fields.
Do not make any modifications on the caravan manoeuvring system (mechanical or electronically).
This can be very dangerous! No warranty claim will be accepted and we cannot guarantee the function
of the system if any modifications are made. We will not be liable for any damage whatsoever caused
as aresult of incorrect installation, operation or modification.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:53 Page 10
OPERATION
-
MOTOR
UNITS
The manoeuvring system has two motor units (1 &2). In general they are mounted in front of the axle of the
caravan. Both units are identical but cannot be switched.
Fig.
4
A.
Aluminium drive roller
B.
12V Motor
C.
Motor connection terminals (+ and -)
D.
Motor for automatic engaging system
E.
Base unit
F.
Drive unit
G.
Gear
Traction
indicator
label:
The yellow-green-red traction indicator label (Fig. 11A), on the side of each motor unit indicates if the roller is
depressing the tyre sufficiently to provide adequate traction.
If the pointer is in the yellow area Rollers are not touching or depressing the tyre sufficiently.
If the pointer is in the green area Rollers should be connecting correctly to the tyre (margin of 15mm).
If the pointer is in the red area Rollers are connected to the tyre but in an extreme position. It could be
that the tyre of the caravan has insufficient air pressure or the drive unit has been knocked out of position
and avisit to aworkshop is required to reposition the assembly.
Disconnect
the
motor
powered
rollers
in
case
of
emergency:
In the case that the caravan battery is discharged to far to automatically take of the motor powered rollers of
the tyre, or there is adefect, you can also do this manually. See figures 9&9.1.
Tak e the plastic cap (Fig. 9B) at the rear side of the housing of the motor for the automatic engaging system.
If necessary use ascrewdriver. Place the emergency key (6) on the emergency socket in the motor unit (Fig.
9A &9.1C) and turn it until the motor unit including motor powered rollers are in the beginning position. Repeat
this also on the motor unit on the other side.
Put the plastic caps back on the motor housing.
As soon as the battery is charged again, or the problem is solved, the motor powered rollers automatically work
again.
OPERATION
-
REMOTE
CONTROL
HANDSET
The remote control handset (5) is powered by one PP3 9Volt battery, and is activated by moving the slide
switch to -I (Fig. 5A). Once activated the green LED (Fig. 5H) will illuminate and the directional controls
can now be used.
Fig.
5
A.
Slide switch Oand -I)
B.
Caravan forwards (both wheels rotate in forwards direction)
C.
Caravan reverse (both wheels rotate in reverse direction)
D.
Caravan left forwards (right wheel rotates in forwards direction)
E.
Caravan right forwards (left wheel rotates in forwards direction)
F.
Caravan left reverse (right wheel rotates in reverse direction)
G.
Caravan right reverse (left wheel rotates in reverse direction)
H.
Green LED: reflects status of the remote control and caravan manoeuvring system
I. Two handed service for automatic engaging of the motor powered rollers to the tyre
J. Two handed service for automatic disengaging of the motor powered rollers from the tyre
K.
Blue LED: reflects status of the automatic engaging system
L.
Red overload LED: Amp overload protection is activated. Wait about 60 seconds and try again.
M.
Blue 9V battery LED: The internal 9V battery of handset is near empty and needs to be replaced.
N.
Blue battery voltage LED: Caravan battery voltage too low or too high.
When you drive straight forwards or reverse (press button Bor C), it is also possible to adjust the direction by
additional pressing button Dor E(when driving forwards) or button For G(when driving reverse).
In addition, the (E) and (F) buttons or (D) and (G)
buttons may be pressed at the same time to turn the caravan around on its own axis without moving forward or
backward (this function just can work under the -axle
When you switch within 2seconds from forward driving to reverse driving (and the other way around), asmall
delay of 1second will appear to protect the electronics and the motors.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 11
The
slide
switch
(Fig.
5A)
also
acts
as
an
The
automatic
engaging
system:
To activate the automatic engaging system of the motor powered rollers on the tyre, press the two buttons for
engaging (Fig. 5I) or disengaging (Fig. 5J) for at least three seconds. The blue LED (Fig. 5K) will blink fast
during these three seconds and every second there will be abeep. This warns you that the system will be
activated!
Engaging: After these three seconds the motor powered rollers will be pressed against the tyre, and the blue
LED will illuminate constant. Now you can release the two buttons. When the motor powered rollers are pressed
on the tyre strongly enough you hear ashort beep, the blue LED will switch off and the system is ready to use.
Disengaging: after these three seconds the motor powered rollers will be released from the tyre, and the blue
LED will illuminate constant. Now you can release the two buttons. When the motor powered rollers are
completely
disengaged
you
hear
a
short
beep,
the
blue
LED
will
switch
off
and
is
the
system
ready
for
transport.
The
remote
hand
set
switches
off:
After 3minutes, if no button is pressed: After 2minutes the buzzer will beep for 5times with arepetition
after 3minutes. Than the system switches in the - modes.
After 6minutes, if one of the movement buttons is permanently held down: After 5minutes the buzzer will
beep for 5times with arepetition after 6minutes. Than the system switches in the - modes.
The green LED goes off and the remote control handset is in the - modes which means that there
always will be used some current which causes the battery to go down. So always make sure the remote
control handset is turned off by the slide switch.
To reactivate the remote control, move slide switch to Oand then back to -I after approximately 1
second.
Error
messages
via
the
remote
control
handset:
Error messages of the emove EM303A will be communicated via the remote control handset by the green LED
(Fig. 5H), the error message (Fig. 5L, 5M &5N) and abuzzer signal:
Green LED (Fig. 5H) off, no buzzer: remote control handset is turned off and also system is not activated
Green LED (Fig. 5H) continue on, no buzzer: remote control handset is turned on and system is activated
and ready to use.
Green LED (Fig. 5H) is blinking, no buzzer: no communication between handset and control unit. This could
be because of too much distance between remote control handset and control unit, or the battery isolation
switch for manoeuvring system is not turned on or that there is adistortion signal disturbing the
communication. As soon as connection is good again the green LED will be continue on and the system is
ready to use.
Blue battery voltage LED (Fig. 5N) is blinking in combination with buzzer (2 times blinking, break, 2times
blinking, break etc.): Battery voltage too low (<10V). Battery needs to be recharged.
Blue battery voltage LED (Fig. 5N) is blinking in combination with buzzer (4 times blinking, break, 4times
blinking, break etc.): Battery Voltage too high (over charged). Try to discharge the battery by turning on a
user (for example alamp or water-pump).
Red overload LED (Fig. 5L) is blinking in combination with buzzer (6 times blinking, break, 6times blinking,
break etc.): Amp overload protection is activated. Wait about 60 seconds and try again.
Blue 9V battery LED (Fig. 5M) is blinking, no buzzer: The internal 9V battery is near empty and needs to be
replaced.
Changing
batteries
in
the
remote
control:
When the battery is empty (blue 9V battery LED (Fig. 5M) is blinking), it needs to be replaced.
Open the rear cover of the handset (Fig. 7A).
Tak e out the dead/old battery and dispose in the appropriate way.
Install anew replacement battery (Fig. 7.1). Make sure to use aleak proof PP3 (9Volt) battery (No claims
under guarantee can be considered for damage caused by leaking batteries).
Close the rear cover again.
Dead and used batteries may leak and damage the remote control handset! Remove the batteries if the
handset is not going to be used for an extended period.
OPERATION
-
ELECTRONIC
CONTROL
UNIT
The electronic control unit (4), which is mounted inside your caravan, is responsible for controlling the
manoeuvring system.
The control unit has three one pushbutton and one slide switch (Fig. 3):
Green
LED
(Fig. 3B): Power LED continuously illuminated when system is activated (by moving slide switch to
-I). If the handset far away from the control unit, beyond the availably distance, this LED will go out.
Blue
LED
(Fig. 3C): Error message LED concerning caravan battery:
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 12
Blue LED is blinking (2 times blinking, break, 2times blinking, break etc.): Battery voltage too low (<10V).
Battery needs to be recharged.
Blue LED is blinking (4 times blinking, break, 4times blinking, break etc.): Battery Voltage too high (over
charged). Try to discharge the battery by turning on auser (for example alamp or water-pump).
Red
LED
(Fig. 3D) is blinking (6 times blinking, break, 6times blinking, break etc.): Amp overload protection is
activated. Wait about 60 seconds and try again.
In general all error messages will reset automatically after one minute. If this is not the case, reset the
electronics of the manoeuvring system by switching off the system via the isolation switch and the remote
control handset for at least 15 seconds and then turning it on again.
The
Reset
Button
(Fig. 3A): The remote control handset and the control unit are synchronised with each other
in the factory. If the control unit or the remote control handset is replaced, they must be re-synchronised as
described below:
Check the installation in accordance with the installation instructions and ensure that the drive rollers are
not applied. Check that the battery is properly connected, check the condition of the battery and that a
voltage of 12 Vis present at the control unit.
Please ensure that the battery isolation switch is on.
Activate the remote control handset by sliding the slide switch to -I (Fig. 5A). The green LED on the
remote control handset (Fig. 5H) starts to flash slowly.
Press the reset button (Fig. 3A) on the control unit. All three on the control unit (Fig. 3B, 3C &3D)
will flash slowly.
Press both forwards (Fig. 5B) and reverse (Fig. 5C) button on the remote control handset for about 3
seconds. Then the handset buzzer will give ashort beep to confirm that the synchronisation is complete.
After successful synchronisation, the green LED on the control unit (Fig. 3B) and on the remote control
handset (Fig. 5H) will illuminate continuously.
The
single-twin
axle
function
switch
(Fig. 3S/T): The emove EM303A caravan manoeuvring system is
suitable for both single axle and twin axle caravans. You just need to pull the single-twin axle function switch
(Fig 3S/T) on the control unit, so that the manoeuvring system can be used for asingle-axle caravan or atwin-
axle caravan (for 2motor use but also for 4motor use). In the twin axle function the all wheels will drive but at
adifferent speed.
The switch standard pre-selected for single axle use (Fig 3S). For twin axle use, just move the switch to the
twin axle position (Fig. 3T). When move the single-twin axle function switch, the battery power isolation switch
(29) must be turned off.
OPERATION
-
GETTING
STARTED
Please
make
sure
you
read
the
safety
instructions
very
carefully
and
make
sure
that
you
follow
these
guidelines!
Make
sure
that
the
battery
that
supplies
the
system
is
fully
charged
and
in
good
condition.
Make
sure
that
the
caravan
is
free
from
the
vehicle
and
the
handbrake
is
on.
Also
make
sure
that
the
corner
steady
feet
are
fully
raised.
Turn on the battery power isolation switch (29).
Activate the manoeuvring system by move slide switch to -I on the remote control (Fig. 5A). The green
LED (Fig. 5H) on the remote control handset will illuminate and you will hear ashort beep. The remote control
is ready for use.
Press at the same time, during at least three seconds, the two buttons for engaging the motor powered rollers
(Fig. 5I). The blue LED (Fig. 5H) will blink fast during these three seconds and every second there will be a
beep. This warns you that the system will be activated!
After these three seconds the motor powered rollers will be pressed against the tyre and the blue LED will
illuminate constant. Now you can release the two buttons. When the motor powered rollers are pressed on the
tyre strongly enough, the blue LED will switch off and is the system ready to manoeuvre. The colour of the
traction indicator label (Fig. 11A) should be into the green area.
Before operating the manoeuvring system, release the handbrake.
Now you can choose the movements according the symbols shown on the remote control. Straight forward (Fig.
5B), straight reverse (Fig. 5C), left forward (Fig. 5D), left reverse (Fig. 5F), right forward (Fig. 5E), right
reverse (Fig. 5G).
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 13
In addition, the left forward (Fig. 5D) and right reverse (Fig. 5G) buttons or right forward (Fig. 5E) and left
reverse (Fig. 5F) buttons may be pressed at the same time to turn the caravan around on its own axis without
moving forward or backward (this function just can work under the -axle
When you drive straight forwards or reverse (press button 5B or 5C), it is also possible to adjust the direction
by additional pressing button 5D or 5E (when driving forwards) or button 5F or 5G (when driving reverse).
Because of the technology, the caravan will slowly speed up. Because of the technology,
the caravan will stop slowly. This allows you to manoeuvre your caravan even more accurately without any
shocks.
WARNING:
When
the
buttons
on
the
remote
control
handset
are
released,
the
caravan
will
slowly
stop
after
0.5
second
and
continue
to
move
about
6cm
(depending
on
final
speed).
When
the
buttons
of
the
remote
control
handset
are
released
when
the
system
is
still
in
the
stage
(slowly
speed
up),
the
caravan
will
stop
immediately.
After the stage the caravan moves according one fixed speed. The speed can increase alittle when
going downhill and decrease alittle when going uphill.
TIP:
The manoeuvring system is more efficient when
reversing the caravan up an incline.
When
you
are
ready
with
manoeuvring
you
need
to
secure
the
handbrake.
Press at the same time, during at least three seconds, the two buttons for disengaging the motor powered
rollers (Fig. 5J). The blue LED (Fig. 5H) will blink fast during these three seconds and every second there will be
abeep. This warns you that the system will be activated!
After these three seconds the motor powered rollers will be released from the tyre and the blue LED will
illuminate constant, now you can release the two buttons. When the motor powered rollers are completely
disengaged the blue LED will switch off and the system is ready for transport.
After manoeuvring, deactivate the manoeuvring system by moving the slide switch to -O on the remote
control handset (Fig. 5A). The green LED (Fig. 5H) on the remote control handset will turn off. Store remote
control in asafe place (out of reach of children or other unauthorised people).
Turn off the battery power isolation switch.
Before
you
start
driving
always
make
sure
that
the
both
drive
units
are
fully
disengaged!
OPERATION
-
HITCHING
AND
UNHITCHING
It is possible to position the hitch exactly over astationery tow ball using the manoeuvring
system. But please be very careful!
Use the button controls on the remote control to bring the hitch of the caravan to the car. The soft start
technology allows you to locate the tow-ball of the car by centimetre. It is better reach the tow ball with several
short rather than trying to do it in one
WARNING:
When
the
buttons
on
the
remote
control
handset
are
released,
the
caravan
will
slowly
stop
after
0.5
second
and
continue
to
move
about
6cm
(depending
on
final
speed).
When
the
buttons
of
the
remote
control
handset
are
released
when
the
system
is
still
in
the
stage
(slowly
speed
up),
the
caravan
will
stop
immediately.
When the hitch is right above the tow ball of the vehicle, lower the hitch to the ball and engage in the normal
way using the jockey wheel.
Release
the
rollers
from
the
tyres.
You
cannot
tow
the
caravan
with
the
drive
units
are
engaged!
Before
you
start
driving
always
make
sure
that
the
both
drive
units
are
fully
disengaged!
Trying
to
drive
away
with
the
drive
units
still
engaged,
will
damage
the
manoeuvring
system,
your
caravan
tyres
and
strain
your
tow
vehicle!
MAINTENANCE
To prevent the battery from becoming totally discharged during long periods of inactivity it must be
disconnected, fully charged and frost-proof stored.
Please check regularly that the rollers of the drive units are free of any dirt, or debris that may have been
picked up from the road.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 14
Regularly clean the drive units with awater hose to dissolve mud etc.
Please check regularly the distance between the rollers and the tyres. In the neutral (fully disengaged) position
this must be about 20mm.
Once ayear have your caravan manoeuvring system maintained and visually inspected. This inspection must
include all the bolt/nut connections, the cables and electrical connections and lubrication of movable
parts/joints.
In
case
of
any
failure
or
problem,
please
contact
your
emove
supplier.
TROUBLE
SHOOTING
Should your manoeuvring system fail to operate, please check the following:
Unit
fails
to
operate,
does
not
function
at
all:
Make sure that the battery power isolation switch (29) is turned on.
Check the cable-connection between the caravan battery and the control unit.
Check the fuse (80A) in the red positive battery cable (Fig. 6). If the fuse is blown, it must be replaced with a
fuse of the same value (80A). Never the fuse (if needed contact your emove supplier). To replace the
fuse, first disconnect the positive (+) power cable from the battery. Than release the mounting screws that hold
the fuse (Fig. 6A), replace the fuse (Fig. 6B), and finally tighten the screws securely. Close the housing of the
fuse and connect the positive (+) power cable again to the battery. The system is ready again for use.
Check the battery of the remote control handset. If empty, renew the 9V battery.
Caravan battery could be empty. If empty, recharge completely or renew caravan battery before taking any
further action.
Caravan battery could be overloaded. Check your charging equipment and try to discharge the battery by
connecting/using alight or any other load. If this does not give any result, renew caravan battery before taking
any further action.
Check the distance between the remote control and the caravan is not more than 5metres. If there is no signal
between the remote control handset and the control unit, the manoeuvring system will not function at all and
the green LED on handset is blinking.
Check if there is any distortion signal (other transmitter, high power cables, Wifi etc.) that disturbs agood
communication between remote control handset and control unit. If there is no good communication between
the control unit and remote control handset, the manoeuvring system will not function and the green LED on
remote control handset is blinking.
In general, all error messages will reset automatically after one minute. If this is not the case, reset the
electronics of the manoeuvring system by switching off the manoeuvring system via the isolation switch and the
remote control handset for at least 15 seconds and then turn them on again.
Unit
fails
to
operate
or
moves
intermittently:
Check the battery of the remote control. If empty, renew the 9V battery.
Caravan battery could be empty. If empty, recharge completely or renew caravan battery before taking any
further action.
Caravan battery could be low -with the rollers engaged. Check the voltage drop on the caravan battery, if this
drops well below 10 volts, charge or renew caravan battery
Caravan battery could be overloaded. Check your charging equipment and try to discharge the battery by
connecting/using alight or other load. If this does not give any result, renew caravan battery before taking any
further action.
Check the cable-connection between the caravan battery and the control unit.
Badly connected or corroded battery terminals can cause intermittent problems, check battery terminals, clean
and connect again.
Check the distance between the remote control and the caravan is not more than 5metres. If there is no signal
between the remote control handset and the control unit, the manoeuvring system will not function at all and
the green LED on handset is blinking.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 15
Check if there is any distortion signal (other transmitter, high power cables, Wifi etc.) that disturbs agood
communication between remote control handset and control unit. If there is no good communication between
the control unit and remote control handset, the manoeuvring system will not function and the green LED on
remote control handset is blinking.
In general, all error messages will reset automatically after one minute. If this is not the case, reset the
electronics of the manoeuvring system by switching off the manoeuvring system via the isolation switch and the
remote control handset for at least 15 seconds and then turn them on again.
Roller
will
not
turn,
spindle
rotates
freely:
The motor or gear is broken, please contact your emove supplier.
In
case
of
any
doubt,
please
call
your
emove
supplier.
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 16
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 17
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 18
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 19
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 20
The Ace Supply Co. Ltd. T/A
Leisurewize Accessories
Unit 1, Royce Trading Est, Ashburton Road West, Trafford Park, Manchester, M17 1RY, United Kingdom
Telephone: +44 (0)161 447 8580 Fax: +44 (0)161 764 2780
Five Year Warranty
Your emove caravan mover is covered by a five years’ parts and labour warranty
(when registered).
You are covered against reasonable use of your caravan mover for the period of five years. It does not cover against
misuse or accidental damage of the e caravan mover. It does not cover against issues caused by the ill-fitting of the
emove caravan mover. It does not cover against the fitting of the mover, when carried out by non-authorised fitter/dealer
or fitted DIY. You are not covered by the warranty if the mover has been bought second-hand or from a non-authorised
dealer or the mover has been transferred to another caravan. Any modification made to your caravan mover or non-use of
emove authorised spare parts will make your warranty null and void. Any non-use of maker’s instructions when fitting or
using the emove caravan mover will make your warranty null and void. The emove caravan mover is a leisure product and
your warranty does not cover you for commercial or industrial use. emove reserves the right to make a call out charge if
faced with an issue outside the control of the company (such as faults with leisure battery, misuse of the mover, accidental
damage, or unauthorised modification etc.).
Important! Retain this manual for future reference! Please forward this manual to the new owner when you
sell the manoeuvring system!
The Ace Supply Co. Ltd. T/A
Leisurewize Accessories
Unit 1, Royce Trading Est, Ashburton Road West, Trafford Park, Manchester, M17 1RY, United Kingdom
Telephone: +44 (0)161 447 8580 Fax: +44 (0)161 764 2780
WARRANTY: The 12 month warranty on this product will need to be activated within
30 days of purchase, please go to our web site and click on the “Warranty” link and
enter your details on the warranty screen. www.streetwizeaccessories.com.
Important! Retain this manual for future reference! Please forward this manual to the new owner when you
sell the manoeuvring system!
EM303A Manual AW 2019.qxp_Layout 1 23/12/2019 15:54 Page 1
Table of contents
