Camec RVMedia 042702 User manual

042702 (32")
Instruction Manual
FULL HD
1920 x 1080 RESOLUTION
12/24/240V FULL HD LED TV/DVD/USB Combo

Contents
What’s in the Box
TV Controls
TV Inputs and Outputs
Remote Control
SYSTEM CONNECTIONS
AV Input
PC Input
HDMI Input
YPbPr Component Input
USB Input
2
3
4
9-11
5
5
6
6
7
COAXIAL Output 7
OSD MENU OPERATION
Main Menus
Channel Menu
Picture Menu
Sound Menu
Time Menu
Option Menu
MEDIA OPERATION
Photo Viewer
Music Playback
Video Playback
Text Viewer

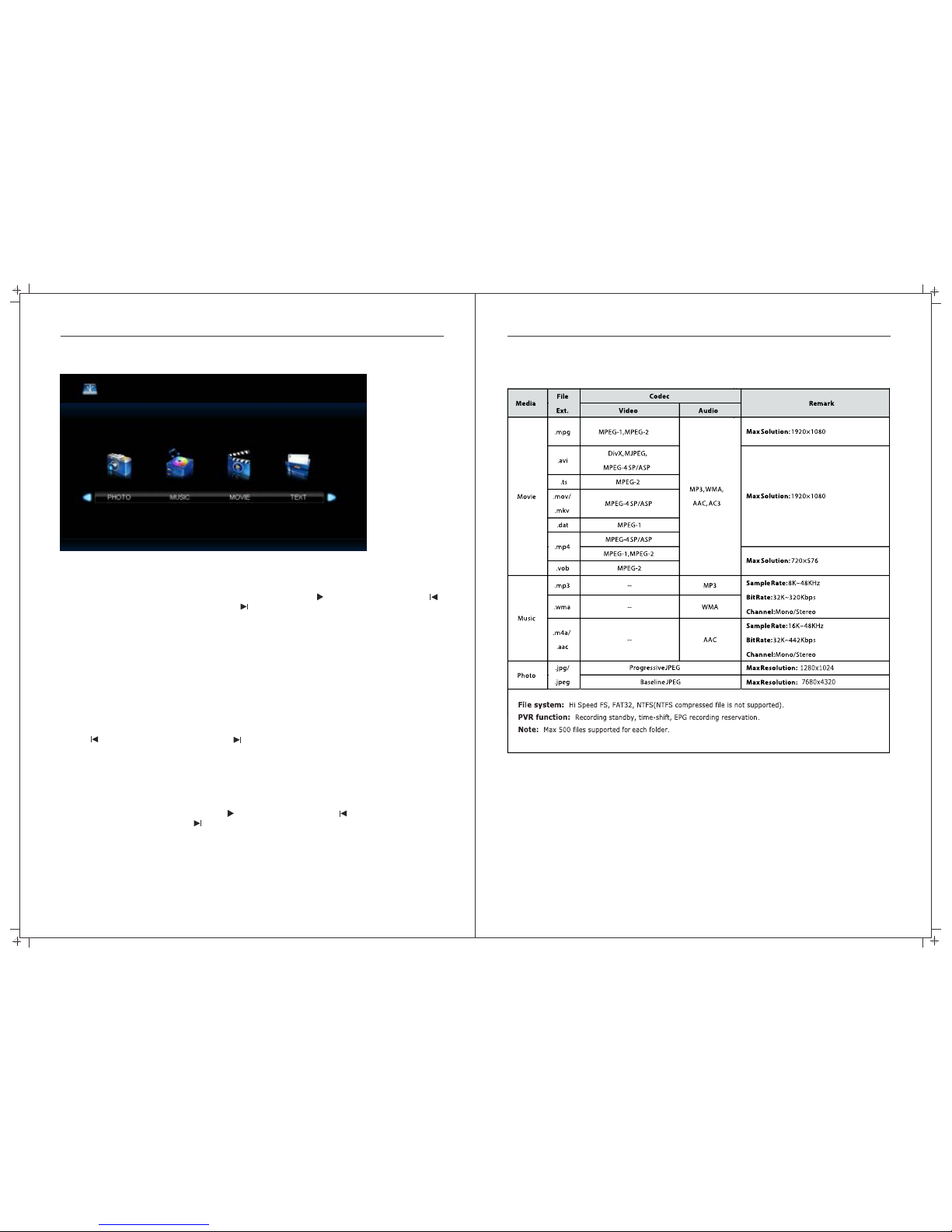

USB Multimedia Playback Formats
Built-in DVD Player Operation
12
13
14
15
16
17
22
23
23
23
24
25-30
Lock Menu 18
8
Installing Batteries in the remote Control
Cleaning and Maintenance
Troubleshooting
31
32-33
34
Specifications
Antenna Connection 8
Important Safety Instructions
Source Selection 12
Hotel Mode 19
EPG - Eletronc Program Guide 20
PVR - Personal Video Recorder 21

reference, along with the warranty card, purchase receipt and carton. The safety
correctly adhered to.
Important Safety Instructions
• Before installing this TV set, make sure your outlet voltage corresponds to the
voltage stated on the appliance rating label of the power adaptor being used..
• Do not overload the power outlet.
• CAUTION
the power supply cord, plug and antenna cable to rain or moisture; do not use it
anywhere near water; do not touch the power plug with wet hands.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not allow anything to rest on or roll over the power cord and antenna cable.
Protect the cord and run all cables so that no one steps on or trips over them.
• Do not run the cord near heat-producing appliances such as radiators, stoves or
irons. The excessive heat could melt the insulation and expose live wires.
• Only use this TV with the power adaptors supplied. If either plug does not
fit into your outlets, consult your dealer or an RV service center for
• When not in use, disconnect the power cord from the outlet. Hold the plug, not
the cord, when disconnecting the unit. Pulling the cord can damage the internal
wires and may cause a fire.
• Never touch the TV screen, antenna or cord during thunderstorms. Stop use
during thunderstorms; unplug the unit when a thunderstorm is approaching.
Usage conditions and restrictions
• Follow the instructions in this manual when installing and adjusting the TV set.
Only adjust those controls that are covered in this instruction manual; improper
adjustment of other controls may result in damage. If this happens, unplug the TV
and have it serviced by appropriately qualified personnel.
• Do not change or modify the TV set in any way. Only use the attachments/
accessories specified.
• Do not cover the ventilation openings with items such as newspapers, tablecloths,
curtains etc., as this could impede ventilation.
• Do not insert any objects of any kind into this unit through the ventilation slots or
DVD slot, as they could touch the current-carrying parts or short-circuit parts,
resulting in fire, electric shock or damage to the unit.
• Do not touch the screen with fingers, as this may scratch or smudge the TV screen.
• Do not expose the batteries to excessive heat such as sunshine, fire or the like.
• Unplug the TV set in all of the following circumstances:
• If it has been subject to impact or has been dropped and is damaged.
• If its voltage adaptor plugs, or the wall socket, are damaged.
• The appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Young children should be supervised to ensure they do not play with the TV.
Position
• If a television is not positioned in a sufficiently stable location, when stand
mounted, it can potentially be hazardous if it falls. Many injuries, particularly to
children, can be avoided by taking simple precautions such as:
Important Safety Instructions (cont)
• Using cabinets, shelves or stands that provide a sturdy support for the TV and are
not in areas where the TV can be accidently knocked or bumped .
• Only using furniture that can safely support the television.
• Ensuring the TV is not overhanging the edge of the supporting furniture.
• Not placing the TV on tall furniture (for example, cupboards or bookcases)
without anchoring both the furniture and the TV to a suitable support.
• Educating children about the dangers of climbing up to reach the TV controls.
• Not standing the TV on cloth or other materials placed between the TV and
supporting furniture.

1 2

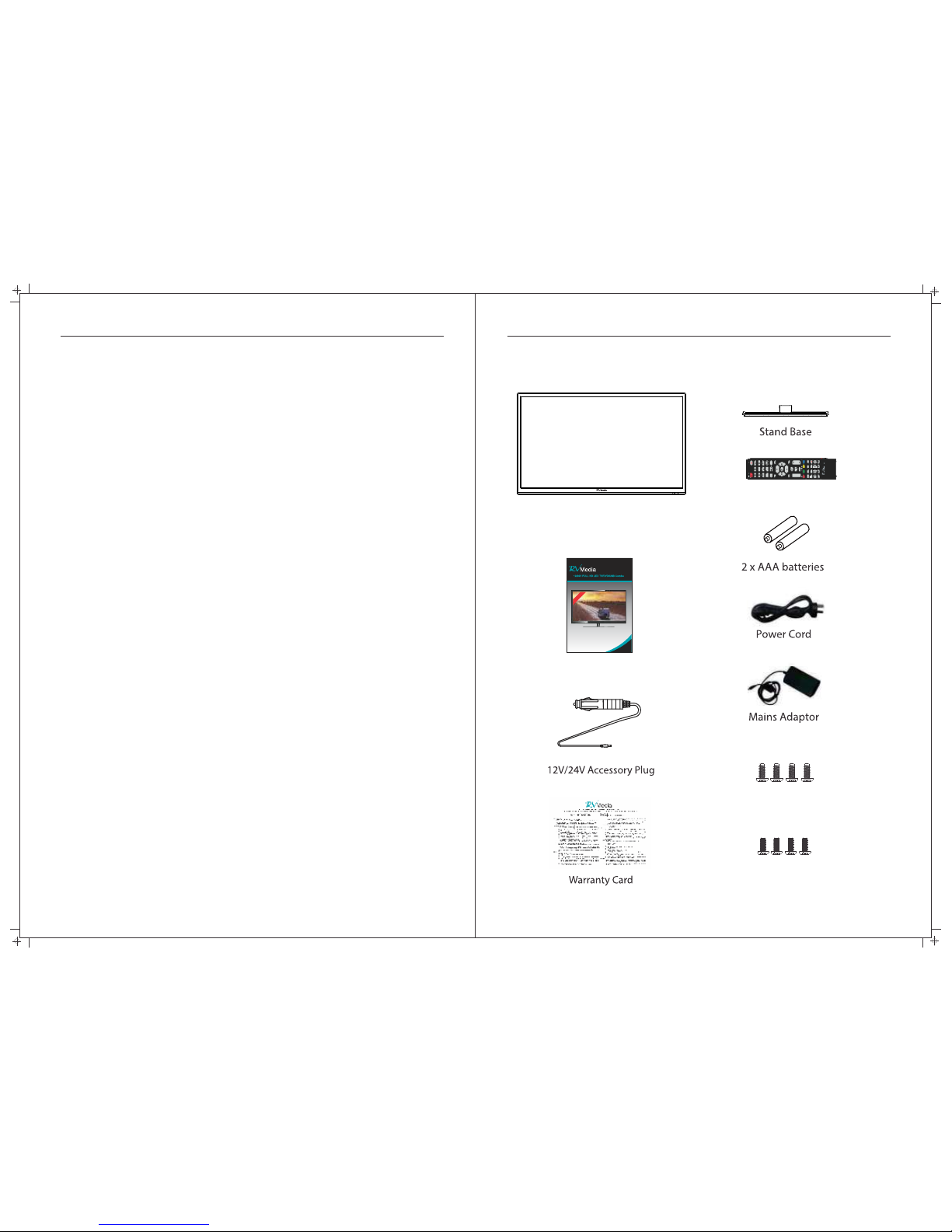

What’s in the Box
042702 (32")
BB4*12 4PCS
BM4*10 4PCS
32" TV with inbuilt DVD Player
• When deciding where to put the TV set, make sure the location is:
• Well ventilated. Leave at least a 20cm space all around the TV set for good
ventilation.
• Protected from overheating and away from direct sunlight.
• Away from damp and cold.
• Away from areas with extremes of temperature (below 0°C or exceeding 40°C)
or moisture.
• Away from moisture drips or splashes.
• Protected from excessive dust.
• Do not install this equipment in a confined space such as a bookcase or similar.
• Do not put any objects filled with liquids, such as vases, on top of the TV set.
• Do not place any naked flame sources, such as lighted candles, on top of the TV.
Important Safety Instructions (cont)
042702 (32")
Instruction Manua l
FULL HD
1920 x 1080 RESOLUTION
Manual
Remote Control

TV Controls
Controls on the TV
1. After you load a disc, press to play the disc, and press twice to pause.
2. Press the button when the power is on the disc will eject, Press the button again to load the
disc automatically.
3. VOL(+) - This button increases the TV’s volume. If the OSD menu is active, pressing this button will
move the selection to the right.
4. VOL(-) - This button decreases the TV’s volume. If the On Screen Display(OSD) menu is active,
pressing this button will move the selection to the left.
5. CH(+) - This button performs the channel up function. If the OSD menu is active, this button functions
as up control for the menu.
6. CH(-) - This button performs the channel down function. If the OSD menu is active, this button
functions as down control for the menu.
7. MENU - This button activates the OSD menu. If a sub-menu is active, pressing this button will return
the selection to the previous menu level.
8. SOURCE - This button switches between all the different sources of the TV. When the OSD is active,
this button acts as the enter button and confirms the menu selection.
9. POWER - Turn on the TV by pressing the button once. Press the button again to turn off the TV.
3 4
SOUR CE
MENU
CH+ CH-VOL+ V OL - POWE R
SOURCE
MENU
CH+ CH-VOL+ VOL- POWER
200 100
TV Inputs & Outputs
1. POWER(DC12V/24V) input
2. L/R AUDIO output: Audio RCA outputs for external amplifiers & devices.
3. Y/Pb/Pr Input: Component Video in.
4. AV 1 Input: Composite Video & Audio (A/V) in.
5. HDMI3 Input: HDMI in.
6. HDMI2 Input: HDMI in.
7. HDMI1 Input: HDMI in.
8. VGA Input: Connect to a computer VGA output jack.
9. PC Audio Input: Connect to the audio output jack on a computer.
10. RF Input: Connect to an external antenna to receive ATV/DTV TV signals
in ATV/DTV mode.
11. USB: USB input.
12. COAXIAL: Co-axial Digital audio output.
13. Headphone: Headphone/audio output. Use this output to connect to RV
Media Head Unit’s TV Input.
Rear Bottom
Rear Side
1 2 3 4 5
VIDE O L R HDMI 3 L R Y Pb Pr
DC 12V /2 4V
6 7 8 9 10 11 12 13
EARP HO NE
OUT
COAX IA L
OUT
HDMI 2 HDM I 1 VGA
PC
AUDI O
IN
RF
IN USB
