CammSys BlackSys CW-100 User manual

User’s Manual

2Notice
This product helps you to use the recorded video as a reference in case of car accident.
The recorded video by this product carries no legal binding force. CammSys will not be responsible for any legal conict and damage caused by
recorded or non-recorded video.
fFor the safety, do not operate the product during driving or stare at the product. Such action may result a car accident.
fOn an accident with the impact lower than certain degree of acceleration, please be aware that the event data may
not be recorded in the product.(however it is recorded as a Normal le)
fRecording may not be executed in case the product is defect caused by car accident or other reason.
fRecording can be distorted under the condition where brightness suddenly changes like passing through a tunnel,
Direct sunlight reection during the day time or where light is not available at night time.
fAll right to hardware, software and relevant data are reserved by CammSys Corp. and protected under copyright
Law. In case of illegal copy and process, not only civil compensation but criminal punishment based on protection of
intellectual property rights can be engaged.
fDo not use the product for other purpose rather than Car Black box. CammSys will not be held responsible for
damage caused by negligence, careless and improper management of user.
Recommended System for PCViewer
● OS: Window XP(32bit), Windows Vista(32bit), Windows7(32/64bit)
● CPU: Pentium 4/ 2,8Ghz or higher
● Memory: RAM 1G or higher
● HDD: 4GB / Directx 9.0 or higher
● Microsoft Intenet Explorer 7 or higher
Notice

3
Caution
Before use the product, check if operation and video recording goes well.
Installation and Management
fKeep clean the camera lens by preventing dust or foreign substance from getting in the lens part. Otherwise, it
may result in video distortion. If another object is placed around, it can be reected from the window. So do not put
another object around the installed product.
fIf installation location of the product is changed, it may not record properly even if it worked after initial installation.
Therefore, install the product rmly and do not give an excessive shock or force to move the product.
fLong time use of product or in case of severe vibration by driving unpaved road, changed angle or location of
product may cause malfunctioning. Correct the angle or location of product properly in a at road after pull over to
the side of the road.
fDo not disassemble or remodel this product as it can cause an accident due to malfunctioning and such action will
Result in the product being unt for use and void all warranty/service provisions.
fDo not use chemicals or detergents to clean the product. This can result in malfunctioning of the product.
fNever give an excessive shock to or inject a foreign substance into the product. Give an excessive force or shock or
injecting a foreign substance into this product can cause a trouble.
Caution

4Caution
SD Card Use
Be sure to turn OFF the power and LED is OFF before removing or
inserting the SD card. Removing the SD card while product is in use,
it can cause malfunctioning.
fUse the authorized SD card which a manufacturer/
distributor provided. If authorized SD card is not used,
it can cause malfunctioning and loss of recorded Data.
fDo not disassemble or remodel this product. It can
cause malfunctioning and service is not available.
fSD card is expendable supply. After long period of use,
it may not able to record data correctly. Please change
the SD card To the new one.
fBack up the important data in other storage devices
such as HDD,CD, USB. Data can be lost and damaged
if data is kept in SD card for a long time.
fCheck the recorded data of SD card in a regular basis
to make sure the recording is working well.
Power
fThis product is designed to use cigar jack power. In
case of using the power from the vehicle, consult it with
dealer in shop and any damage caused by the user’s
misuse, be noted that it’s user’s fault and manufacturer
is not responsible for any case.
fUse the authorized cigar cable contained in the product
box. Avoid connection of power supply without
knowledge and experience. Any damage caused by
user’s misuse, be noted that it’s user’s fault and
manufacturer is not responsible for any case
fDo not remove or insert SD card while power is turned
on, it can cause serious error of the product. Make
sure to turn OFF the power and LED is OFF before
removing or inserting the SD card. Removing the SD
card while product is in use it can cause damage of
video le.

5
How to format
PC format
Check the virus and format the SD card in a regular basis (twice a
month at least ) to avoid disadvantage caused by storage error such
as non-recording and abnormal recording.
How to format
1. Insert or connect SD card to PC.
2. Click [Start] ➝[My Computer].
3. Place mouse pointer in [Portable USB drive] SD card and
click the right button of mouse. then click the [Format].
4. Once click the [Start] button, format is started.
Notice
● AT16/32 format is required if SD card recognition and record
error happen.
● Change SD card if PC doesn’t recognize SD card or format is not
able to be completed.
●If SD card contains other data, it can cause malfunctioning.
Therefore, please remove it.
Caution
ÚAs SD card is expendable supply, manufacturer is not responsible
for any data loss and damage. Also, manufacturer cannot
guarantee the recorded Normal/EVENT data on SD card.
Manual format
Manual format is available without PC.
How to format
1. Turn off the power.
2. Press Event [▲] button deeply and turn on the power
simultaneously.
3. Format is started after 5 sec. with buzzer sound and
LED off.
4. Once format is completed, it starts rebutting
automatically.
Caution
ÚKeep press the event button until format is started.
How to format

6Table of contents
Table of contents
Notice 2
Caution 3
Installation and Management 3
SD Card Use 4
Power 4
How to format 5
PC format 5
Manual format 5
Details on Video Record 7
Main features 8
Name of the components 9
Main components 9
Optional components 9
Front 10
Rear 10
Left Side 11
Right Side 11
Installation 12
LED and Buzzer 14
Function 14
Error 15
PC Viewer Installation 16
How to install PC Viewer 16
How to uninstall PC Viewer 17
PC Viewer Layout 18
PC Viewer Conguration 20
How to update rmware 21
Technical Specication 22
Customer Service 23
Before applying for Service 24
Product Warranty 25

7
Details on Video Record
Normal Recording
Video Record starts when vehicle power is turned on and
recorded data are stored in SD card(“REC” folder).
Parking Mode Recording
f10 minutes after parking or stopping the car, if no
motion is detected, it converts to Parking mode
recording automatically.(In case of product is con-
nected with a car battery or extra power supply)
fIf motion is detected consistently and driving is
resuming, it converts Normal recording again.
fWhen it detects impact during Parking mode, the video
le is stored in “EVENT” folder.(Long period of
parking may cause discharge of a car battery.)
Last Scene Recording
Though power supply is disconnected caused by accident
or manually, last scene is recorded and stored in EVENT
folder by using built-in super capacity battery.
EVENT Recording
If Acceleration sensor(G-Sensor) detects impact, sudden
unintended acceleration and quick braking or manually
pressing the event button during the car runs, it records 20
sec. of video to the “EVENT” folder(10 sec. before and
after the EVENT).
Notice
● The less G-Sensor gure, the less shock sensitivity.
(Initial settings come with 3 level. 1 is insensitive, 3 is medium,
6 is sensitive)
Details on Video Record
Caution
ÚIf power is disconnected within 2 min. after power is on, recorded le can be broken.

8Main features
Icon Features
The feature providing clear images under
back light circumstances
Wide angle of view(120°) makes
seamless recording(30fps)
Event recording starts when impact
happen and records 10 sec. before and
after impact
Built-in Super Capacitor keeps recording
for 5 sec. even when power supply is
disconnected
Normal recording(720 x 480 resolution,
D1) continues Max 30fps
Playback the video les through PC
viewer(for Windows)
Clear voice recording
Buzzer indicates operation status and
alarms an Error
Icon Features
Parking mode recording
(In case of being powered)
LED Indicator for surveillance
Video review by connecting to navigation
system
Emergency Recording
Zoom in through PC viewer
Manual Format
GPS(option) module
Video out(option) cable
Main features

9
Name of the components
Main components
Adepter
Lock
Main unit User’s manual Cable holder Micro SD Card Cigar jack cable
Optional components
G
P
S
External GPS module A/V Out cable
Name of the components

10 Name of the components
Front
Buzzer
Camera Lens
For video recording
Surveillance LED
LED indicator for parking
or video recording
Rear
MIC
Voice recording
Event button
For manual recording
REC, GPS LED
LED indicator for error
or REC/GPS is running
(Refer to page 12~13
regarding LED indicator)

11
Name of the components
Left Side
Power Terminal
For supplying power to
the main unit
GPS Port
Check the location
and speed of Vehicle
through the PC viewer
A/V Out Port
Video review by
connecting to external
device
Right Side
Holder
For attaching main
unit to windshield
Clamping lever
For xing the holder to
the unit and available
adjustment on up/
down, left/right side
Micro SD Card Slot

12 Installation
1. Attaching double-sided adhesive tape
Wipe up the foreign matters or moisture completely from
the location of installation. Remove the release paper in
double sided tape and attach it to the holder and remove
the red adhesive protector.
2. Installing unit
Installation is recommended on the left/right of room mirror.
Tightly fasten the adhesive of holder to the windshield by
pushing it. Adjust the angle of camera to record forward
and unit to be vertically installed. Finally, tighten the
clamping lever.
Caution
ÚIf a video from navigation system or dashboard reect in wind-
shield, it can affect video quality. so avoid it.
Installation

13
Installation
3. Power cable arrangement and connection
By using the cable holders, arrange the Cigar jack cable
and connect it to the DC IN port(upper hole). If car
navigation system is installed on the car, it is recommended
to connect video out cable(option) to navigation system to
adjust by checking the current view of the camera.
4. Power cable connection and check the LED status
After inserting the Cigar jack cable(Power cable) into cigar
jack, turn on the car ignition. If all LEDs of power status
are on, installation is completed.

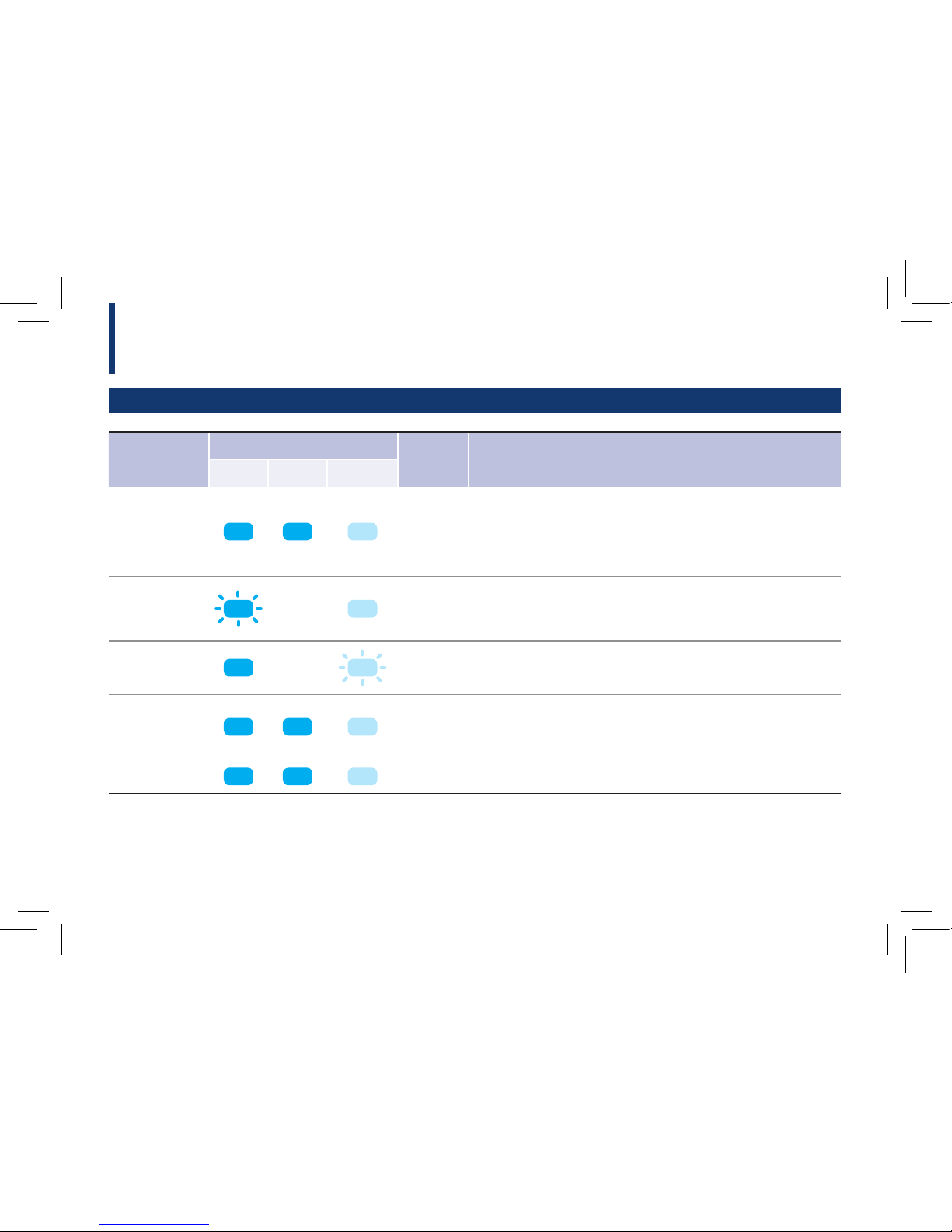

14 LED and Buzzer
Function
Mode LED Buzzer Description
REC GPS Parking
Initial
Booting
Beep
x 2
1 time beep sound R
EC LED ON, Parking LED ON
* With GPS Module GPS LED ON, without GPS Module
GPS LED OFF
Event Rec. - Beep
1 time per a sec. beep sound
Rear left/right LED 10 times ickers per a sec.
(until end of Event)
Parking
Mode - X (10 min. after parking) Front LED ickers per 2 sec.
Update Beep
x 2
ALL LED ON when it upgrade, after upgrade completed,
2 times beep sound and front and rear LED ickers per a
sec. and rebooting
GPS ON XGPS LED ON
LED and Buzzer

15
LED and Buzzer
Error
Mode LED Buzzer Description
REC GPS Parking
No SD Card or
Recognition
error
Beep
x 3
Beep sound per 3 sec.
Rear left/right LED OFF
Camera Error Beep Beep sound per a sec.
Rear left/right LED OFF
Manual
Format
Beep
x 2
Press Event button and then turn on the unit.
Keep pressing Event for 5 sec. then formatting get
started automatically.
Notice
●If abnormal status rather than above happen, reconnect power cable to the unit.
●Format the SD care if recognition error or recording error occurred.
● If PC doesn’t recognize SD card or formatting is not running correctly, change the SD card.
Caution
ÚDo not turn on the power while inserting SD card to the unit. (Inserting SD card while power is connected, it can cause an error or fault)

16 PC Viewer Installation
How to install PC Viewer
1. Download and execute
Setup.exe
2. Click “Agree” of the
contract for Viewer instal-
lation
3. Prepare component for
installation
4. Start installation wizard
5. Select folder to install
and execute
6. Installation ready 7. Start installation 8. Installation completion
PC Viewer Installation

17
PC Viewer Installation
How to uninstall PC Viewer
1. Click the “Start” button. 2. Click the All program and search
CW-100Player.
3. Select Uninstall in CW-100Player
folder.
4. Select [Yes] when window
installer ask Uninstall.
5. Uninstallation is in progress.
ÚHow to uninstall the PC Viewer
Execute C:\Program les (x86)\BlackSys\CW-100 Player\Uninstall.bat

18 PC Viewer Installation
PC Viewer Layout
1
13 14 15 16 17 18 19 20 21 22 23 24 25 26
9
8
10
2 3 4 5 6 7
11
12

19
PC Viewer Installation
No. Icon Function
1File List Update
2Normal Recording File List
3Event Recording File List
4All Recording File List
5Screen Minimization
6Full Screen
7End
8Version Information
9GPS Speed (Km/h  mph)
10 Large Screen Map
11 Volume Control
12 Image Brightness Control
13 Con guration
No. Icon Function
14 G-Sensor Data Review
15 Enlargement of a part of Screen
16 Video Screen Capture
17 Select Drive of SD card
18 Stop Video Playback
19 Move to Previous File in the List
20 Move to 1sec. Before
21 Playback the Video
22 Move to 1sec. After
23 Move to Next File in the List
24 Move to Next Frame
25 Screen Horizontal
26 Screen Vertical

20 PC Viewer Installation
PC Viewer Conguration
Voice Recording
Conguration
Save
Conguration
Cancel
Buzzer
Parking Mode Time
Setting
G-Sensor Sensitivity
Setting
The higher gure, the
higher sensitivity to impact.
In case of Time Setting
Upgrade SD card
through Car DVR
immediately
