INSTRUCTION MANUAL
ET106 Weather Station
Revision: 9/02
Copyright (c) 1993-2002
Campbell Scientific, Inc.

Warranty and Assistance
The ET106 WEATHER STATION is warranted by CAMPBELL
SCIENTIFIC, INC. to be free from defects in materials and workmanship under
normal use and service for twelve (12) months from date of shipment unless
specified otherwise. Batteries have no warranty. CAMPBELL SCIENTIFIC,
INC.'s obligation under this warranty is limited to repairing or replacing (at
CAMPBELL SCIENTIFIC, INC.'s option) defective products. The customer
shall assume all costs of removing, reinstalling, and shipping defective products
to CAMPBELL SCIENTIFIC, INC. CAMPBELL SCIENTIFIC, INC. will
return such products by surface carrier prepaid. This warranty shall not apply
to any CAMPBELL SCIENTIFIC, INC. products which have been subjected to
modification, misuse, neglect, accidents of nature, or shipping damage. This
warranty is in lieu of all other warranties, expressed or implied, including
warranties of merchantability or fitness for a particular purpose. CAMPBELL
SCIENTIFIC, INC. is not liable for special, indirect, incidental, or
consequential damages.
Products may not be returned without prior authorization. The following
contact information is for US and International customers residing in countries
served by Campbell Scientific, Inc. directly. Affiliate companies handle repairs
for customers within their territories. Please visit www.campbellsci.com to
determine which Campbell Scientific company serves your country. To obtain
a Returned Materials Authorization (RMA), contact CAMPBELL
SCIENTIFIC, INC., phone [phone]. After an applications engineer
determines the nature of the problem, an RMA number will be issued. Please
write this number clearly on the outside of the shipping container.
CAMPBELL SCIENTIFIC's shipping address is:
CAMPBELL SCIENTIFIC, INC.
RMA#_____
815 West 1800 North
Logan, Utah 84321-1784
CAMPBELL SCIENTIFIC, INC. does not accept collect calls.

i
ET 106 Weather Station
Table of Contents
PDF viewers note: These page numbers refer to the printed version of this document. Use
the Adobe Acrobat® bookmarks tab for links to specific sections.
1. Preparation and Siting.............................................1-1
1.1 Installation Tasks.................................................................................. 1-1
1.2 Tools Required...................................................................................... 1-2
1.3 Siting and Exposure.............................................................................. 1-5

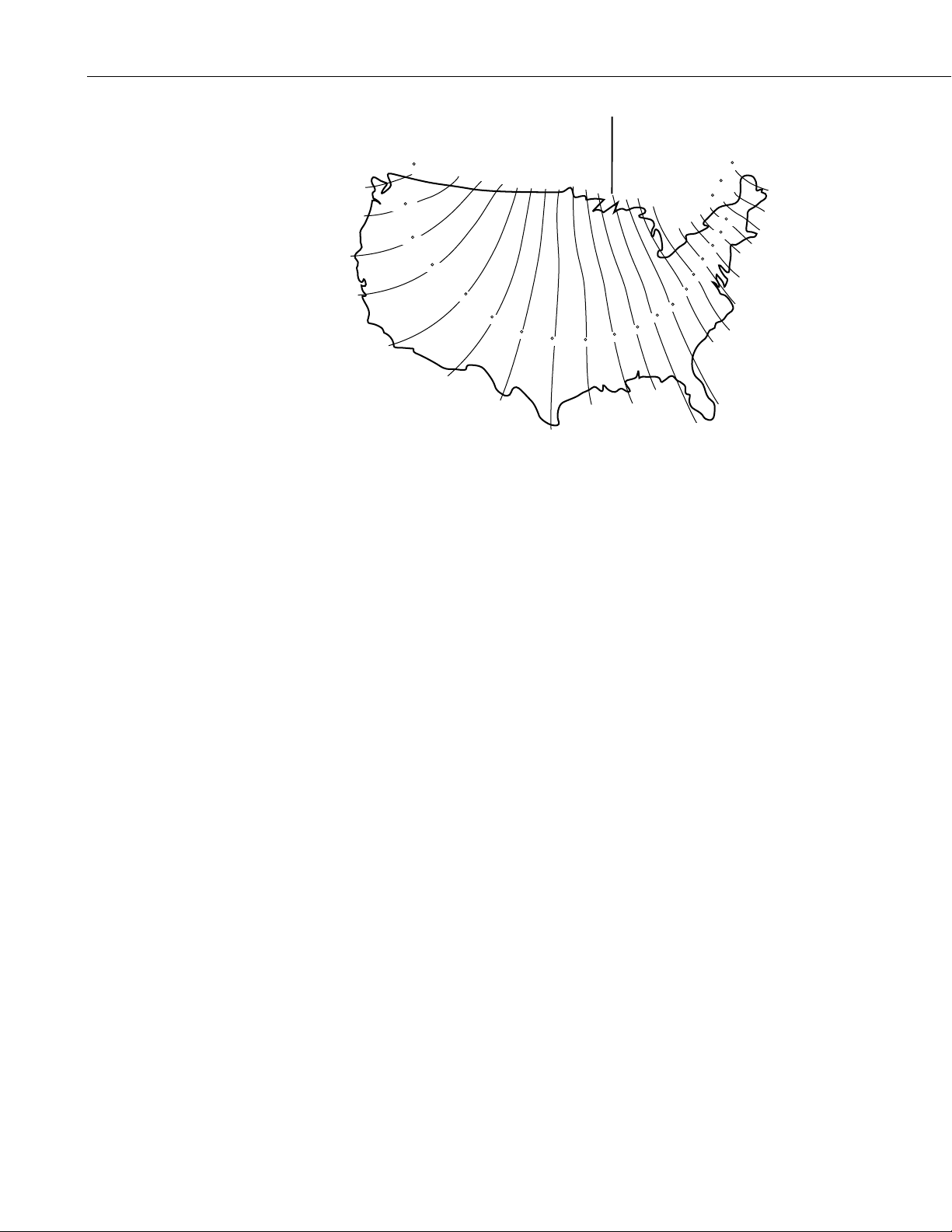

1.4 Determining True North for Wind Vane Orientation............................ 1-7
2. ET Tower Installation...............................................2-1
2.1 Base Installation.................................................................................... 2-1
2.2 Tower Installation................................................................................. 2-3
2.3 Tower Grounding.................................................................................. 2-4
3. ET Instrumentation Installation ..............................3-1
3.1 Enclosure, Datalogger, Power Supply................................................... 3-2
3.2 Sensor Connection................................................................................ 3-5
3.3 Communication and Data Storage Peripherals...................................... 3-6
3.4 Sealing and Desiccating the Enclosure ............................................... 3-12
4. ET106 Sensor Arm Installation ...............................4-1
4.1 Components.......................................................................................... 4-1
4.2 Installation ............................................................................................ 4-1
4.3 Sensor Connection................................................................................ 4-1
4.4 034A Wind Sensor Installation............................................................. 4-2
4.5 RH and Temperature Radiation Shield................................................. 4-3
4.6 Pyranometer.......................................................................................... 4-3
4.7 Soil Temperature Sensor (Optional) ..................................................... 4-3
4.8 Sensor Verification and Clock Set........................................................ 4-3
4.9 Upgrading an ET101 to an ET106........................................................ 4-4
4.10 Sensor Schematics .............................................................................. 4-6
5. ET Software Installation..........................................5-1
5.1 Quick Start Review............................................................................... 5-1
6. Maintenance and Troubleshooting.........................6-1
6.1 Maintenance.......................................................................................... 6-1
6.2 Troubleshooting.................................................................................... 6-3

This is a blank page.

1-1
Section 1. Preparation and Siting
These guidelines apply to several different Campbell Scientific weather stations.
1.1 Installation Tasks
1.1.1 Indoors
•Immediately upon receipt of your shipment…
⇒Open shipping cartons.
⇒Check contents against invoice. Contact CSI immediately about any
shortages.
•Several days prior to the planned installation date…
⇒Collect tools and site information (Section 1)
⇒Assemble datalogger, communications device, and power supply in
enclosure (Section 3)
⇒Install datalogger support software on PC (Section 5)
⇒Establish communications between the datalogger and the PC
(Section 5)
⇒Program datalogger, test sensors, and retrieve data (Section 5)
⇒Trial run the tower / tripod installation, assembling as much as
possible (Section 2)
⇒Repackage equipment for transport to the field site
1.1.2 Outdoors
•Locate suitable site (Section 1)
•Prepare tower or tripod base (Section 2)
•Tripod and UT10 (3 meter tower) tower stations:
⇒Raise tripod or tower (Section 2)
⇒Install instrumentation enclosure (Section 3)
⇒Install sensors (Section 4)

Section 1. Preparation and Siting
1-2
•UT30 (10 meter tower) tower stations:
⇒Install 3 to 10 meter level sensors (Section 4)
⇒Raise tower (Section 2)
⇒Install instrumentation enclosure (Section 3)
⇒Install 0 to 3 meter level sensors (Section 4)
•ET101 / ET106 ET Stations:
⇒Place instrumentation enclosure low on the ET Tower (Section 3)
⇒Install sensor option (Section 4)
⇒Slide enclosure to top of tower and secure with correct orientation
(Section 3)
1.2 Tools Required
Tools required to install and maintain a weather station are listed below.
1.2.1 Tools for Tower Installation
All Towers
Shovel
Rake
Open end wrenches: 3/8", 7/16", ½", (2) 9/16"
Magnetic compass
6' Step ladder
CM6/CM10
Tape measure (12')
Level (12" to 24")
Small sledge hammer
Teflon tape or pipe dope
Allen hex wrench (5/64)
UT10
Tape measure (12' to 20')
Level (24" to 36")
Pick or digging bar
Claw Hammer
Materials for concrete form:
Hand saw
(4) 12" wood stakes
(1) 2"x 4"x 8' piece of lumber
(8) 8p double-head nails
(8) 16p double-head nails
Concrete trowels
(2) 1 to 1.5" thick x 24" boards to support base above forms (optional)
Concrete (0.4 cubic yards)

Section 1. Preparation and Siting
1-3
ET Tower
Tape measure (12’ to 20’)
Claw hammer
Level (24” to 36”)
Hand saw
Materials for concrete form:
(4) 1" x 2" x 12" stakes
(2) 2" x 4" x 96" lumber
(12) 8p double-head nails
(8) 16p double-head nails
20 ft form wire
½ Yard concrete
Concrete trowel, edger
Electrical Fish tape or 20 feet of small diameter rope
Wheelbarrow
UT30
Tape measure (12' and 20')
Nut driver (3/8")
Level (36" to 48")
Small sledge hammer
Pliers
Tie wire
Climbing harness
Hard hat
Haul rope (50')
Non-stretch line (20')
Wire rope cutters
Materials for B18 Base and UTEYE Anchors:
(4) Wood stakes 12"
Pick or digging bar
Concrete form materials (2"x 4" lumber, stakes, saw, hammer, nails, etc.)
Concrete trowel and edger
Materials for UTDUK Duckbill Anchors
Sledgehammer
Highlift jack
Chain (to attach jack to anchor loops)
Materials for RFM18 Base:
(3) anchors appropriate for mounting surface
(3) bolts and washers to secure base to anchors
1.2.2 Tools for Instrumentation and Maintenance
All Towers
Lock and key for enclosure
Magnetic declination angle (Section 4)
Magnetic compass
Straight bit screwdrivers (small, medium, large)
Phillips-head screwdrivers (small, medium)
Small diagonal side-cuts
Needle-nose pliers
Wire strippers
Pocket knife
Calculator
Volt / Ohm Meter
Electrical Tape

Section 1. Preparation and Siting
1-4
Step ladder (6')
Datalogger prompt sheet (Section 6)
Station manuals
Station log and pen
Open end wrenches: 3/8", 7/16", ½", (2) 9/16"
Socket wrench and 7/16" deep well socket
Adjustable wrench
Pliers
Conduit and associated tools (as required)
Felt-tipped marking pen
Claw hammer
Pipe wrench (12")
CM6/CM10
Tape measure (12')
Level (12" to 24")
Teflon tape or pipe dope
UT10
Tape measure (12' to 20')
3/8" nut driver
Level (24" to 36")
Teflon tape or pipe dope
(12) 1/4" washers (for the 015 Crossarm stand only)
Allen wrench set
UT30
Tape measure (12' to 20')
3/8" nut driver
Level (36" to 48")
Pliers
Climbing harness
Hard hats
50' haul rope
Crescent wrench
Channel-lock pliers
1/4" washers (spacers for U-bolts)
5/64" Allen hex wrench
1.2.3 Supplies for Power and Communications Options
AC Power
Wire, conduit, and junction boxes as needed
Phone Modem
Hayes compatible calling modem for PC
Phone line to weather station or junction box
Short-Haul Modem
4 Conductor communications cable from PC to weather station or junction box
6' copper ground rod and clamp for PC surge protection (optional)

Section 1. Preparation and Siting
1-5
1.3 Siting and Exposure
If any part of the weather station comes in contact with
power lines, you could be killed. Contact local utilities for
the location of buried utility lines before digging or driving
ground rods.
Selecting an appropriate site for the weather station is critical in order to obtain
accurate meteorological data. In general, the site should be representative of
the general area of interest, and away from the influence of obstructions such as
buildings and trees.
The weather station should not be located where sprinkler irrigation water will
strike sensors or instrument enclosure.
Some general guidelines for site selection are listed below, which were
condensed from EPA (1988)1, WMO (1983)2, and AASC (1985)3publications.
1.3.1 Wind Speed and Direction
Wind sensors should be located over open level terrain, and at a distance of at
least ten times (EPA) the height of any nearby building, tree or other
obstruction, as illustrated in Figure 1.3-1.
Standard measurement heights:
3.0 m ± 0.1 m recommended (AASC)
2.0 m ± 0.1 m, 10.0 m ± 0.5 m optional (AASC)
10.0 m (WMO and EPA)
1.3.2 Temperature and Relative Humidity
Sensors should be located over an open level area at least 9 m (EPA) in
diameter. The surface should be covered by short grass, or where grass does
not grow, the natural earth surface. Sensors should be located at a distance of
at least four times the height of any nearby obstruction and at least 30 m (EPA)
from large paved areas. Sensors should be protected from thermal radiation,
and adequately ventilated.
Situations to avoid include:
•large industrial heat sources
•rooftops
•steep slopes
•sheltered hollows
•high vegetation
•shaded areas
•swamps
•areas where snow drifts occur
•low places holding standing water after rains
CAUTION

Section 1. Preparation and Siting
1-6
Standard measurement heights:
1.5 m ± 1.0 m (AASC)
1.25 - 2.0 m (WMO)
2.0 m temperature (EPA)
2.0 m and 10.0 m for temperature difference (EPA)
1.3.3 Precipitation
A rain gage should be sited on level ground that is covered with short grass or
gravel. In open areas, the distance to obstructions should be two to four times
(EPA, AASC) the height of the obstruction.
The height of the opening should be as low as possible, but should be high
enough to avoid splashing from the ground. Wind shields, such as those used
by the National Weather Service, are recommended for open areas.
Collectors should be heated, if necessary, to properly measure frozen
precipitation. The gage must be mounted above the average level of snow
accumulation in areas that experience significant snowfall.
Standard measurement heights:
1.0 m ± 1.0 cm (AASC)
30.0 cm minimum (WMO, EPA)
1.3.4 Solar Radiation
Pyranometers should be located to avoid shadows on the sensor at any time.
Mounting it on the southern most (northern hemisphere) portion of the weather
station will minimize the chance of shading from other weather station
structures. Reflective surfaces and sources of artificial radiation should be
avoided. The height at which the sensor is mounted is not critical.
1.3.5 Soil Temperature
The measurement site for soil temperature should be at least 1 m2and typical of
the surface of interest. The ground surface should be level with respect to the
immediate area (10 m radius).
Standard measurement depths:
10.0 cm ± 1.0 cm (AASC)
5.0 cm, 10.0 cm, 50.0 cm, 100.0 cm (WMO)

Section 1. Preparation and Siting
1-7
REGCOMENDED
FeedSENSORS
PortlandOrUSA
Serial27115
REGCOMENDED
FeedSENSORS
PortlandOrUSA
Serial27115
REGCOMENDED
FeedSENSORS
PortlandOrUSA
Serial2711527115
H
10H
10T
Height of tree (T)
FIGURE 1.3-1. Effect of Structure on Wind Flow
1.4 Determining True North for Wind Vane
Orientation
Magnetic declination, or other methods to find True North, should be determined
prior to installing the weather station. True North is usually found by reading a
magnetic compass and applying the correction for magnetic declination*; where
magnetic declination is the number of degrees between True North and Magnetic
North. Magnetic declination for a specific site can be obtained from a USFA map,
local airport, or through an internet service called NSSDC CGM (Section 1.4.1). A
general map showing magnetic declination for the contiguous United States is
shown in Figure 1.4-1.
Declination angles east of True North are considered negative, and are subtracted
from 0 degrees to get True North as shown Figure 1.4-2. Declination angles west
of True North are con-sidered positive, and are added to 0 degrees to get True
North as shown in Figure 1.4-3. For example, the declination for Logan, Utah is
14.5°East. True North is 360°- 14.5°, or 345.5°as read on a compass.
* Other methods employ observations using the North Star or the sun, and
are discussed in the Quality Assurance Handbook for Air Pollution
Measurement Systems, Volume IV - Meteorological Measurements4.

Section 1. Preparation and Siting
1-8
Subtract declination from 360°Add declination to 0°
22 E
18 E
16 E
14 E
12 E
10 E 8 E 6 E 4 E 2 E 02 W
4 W
6 W
8 W
10 W
14 W
12 W
16 W
18 W
20 W
20 E
FIGURE 1.4-1. Magnetic Declination for the Contiguous United States
1.4.1 NSSDC CGM Service
The NSSDC CGM (Corrected Geomagnetic) Service provides an easy way of
determining magnetic declination of a specific site. Since magnetic declination
fluctuates with time, it should be determined each time the wind vane
orientation is adjusted. It can be accessed on the world wide web at
http://nssdc.gsfc.nasa.gov/space/cgm/cgm.html
If you know the latitude and longitude of your site, fill out Form 1as shown
below for an accurate magnetic declination. If you do not know the latitude
and longitude of your site, fill out Form 2 for estimate of magnetic declination.
Note that longitude is expressed in 0 to 360 degrees east of the Greenwich
prime meridian, and that north latitudes are positive.
Query Form 1: Latitude/Longitude
Latitude/Longitude below specified in: Geographic
Year (from 1945 to 2000): 1998
Altitude above Earth's surface (km) [from 0. to 40000.]: 0
Latitude (degrees) [from -90.00 to 90.00]: 42.03
Longitude (degrees) [from 0.00 to 360.00]: 248.15
Query Form 2: Image Map
Year (from 1945 to 2000): 1998
Altitude above Earth's surface (km) [0. - 40000.]: 0
Click on map to specify location and submit: (select area on map provided)
A table containing similar information to the following will be returned after
submitting Forms 1 or 2.

Section 1. Preparation and Siting
1-9
Geographic Alt. CGM IGRF Magnetic Field Dipole
Lat. Long. (km) Lat. Long. H(nT) D(deg) Z(nt) Lat. Long.
42.03 248.15 0. 49.80 311.06 20608. 14.417 50505. 49.68 312.14
Magnetic declination is bold in this example to show its location in the table. A
positive declination is east, while a negative declination is west. The
declination in this example is 14.417 degrees. As shown in Figure 1.4-1, the
declination for Logan, UT is east, so True North for this site is 360 - 14.417, or
345.5 degrees.
FIGURE 1.4-2. Declination Angles East of True North Are
Subtracted From 0 to Get True North
FIGURE 1.4-3. Declination Angles West of True North Are
Added to 0 to Get True North

Section 1. Preparation and Siting
1-10
References
1EPA, (1987). On-Site Meteorological Program Guidance for Regulatory
Modeling Applications, EPA-450/4-87-013. Office of Air Quality Planning
and Standards, Research Triangle Park, North Carolina 27711.
2WMO, (1983). Guide to Meteorological Instruments and Methods of
Observation. World Meteorological Organization No. 8, 5th edition, Geneva,
Switzerland.
3The State Climatologist, (1985) Publication of the American Association of
State Climatologists: Height and Exposure Standards for Sensors on Automated
Weather Stations, v. 9, No. 4 October, 1985.
4EPA, (1989). Quality Assurance Handbook for Air Pollution Measurement
Systems, EPA Office of Research and Development, Research Triangle Park,
North Carolina 27711.

2-1
Section 2. ET Tower Installation
DANGER: Do not install near power lines. If any part of the tower comes in contact with
power lines you could be KILLED. Contact local utilities for the location of buried utility
lines before digging or driving grounding rods.
CAUTION: Do not fit the 3 meter ET Tower sections together until the appropriate time.
Once attached, they cannot be detached.
The ET Tower provides a support structure for mounting the ET101 and ET106 weather
station components. Figure 2.1-1 shows a typical ET Tower installation option. The
tower is designed to withstand winds of 100 mph. The lightning rod assembly is attached
after the instrumentation enclosure is installed (Section 3.1).
Transformer User Supplied
Junction Box
110 VAC
16 VAC
Power Valve Box
Communications
Line Direct Bury Splices Concrete Base
Ground
Rod
ET Tower

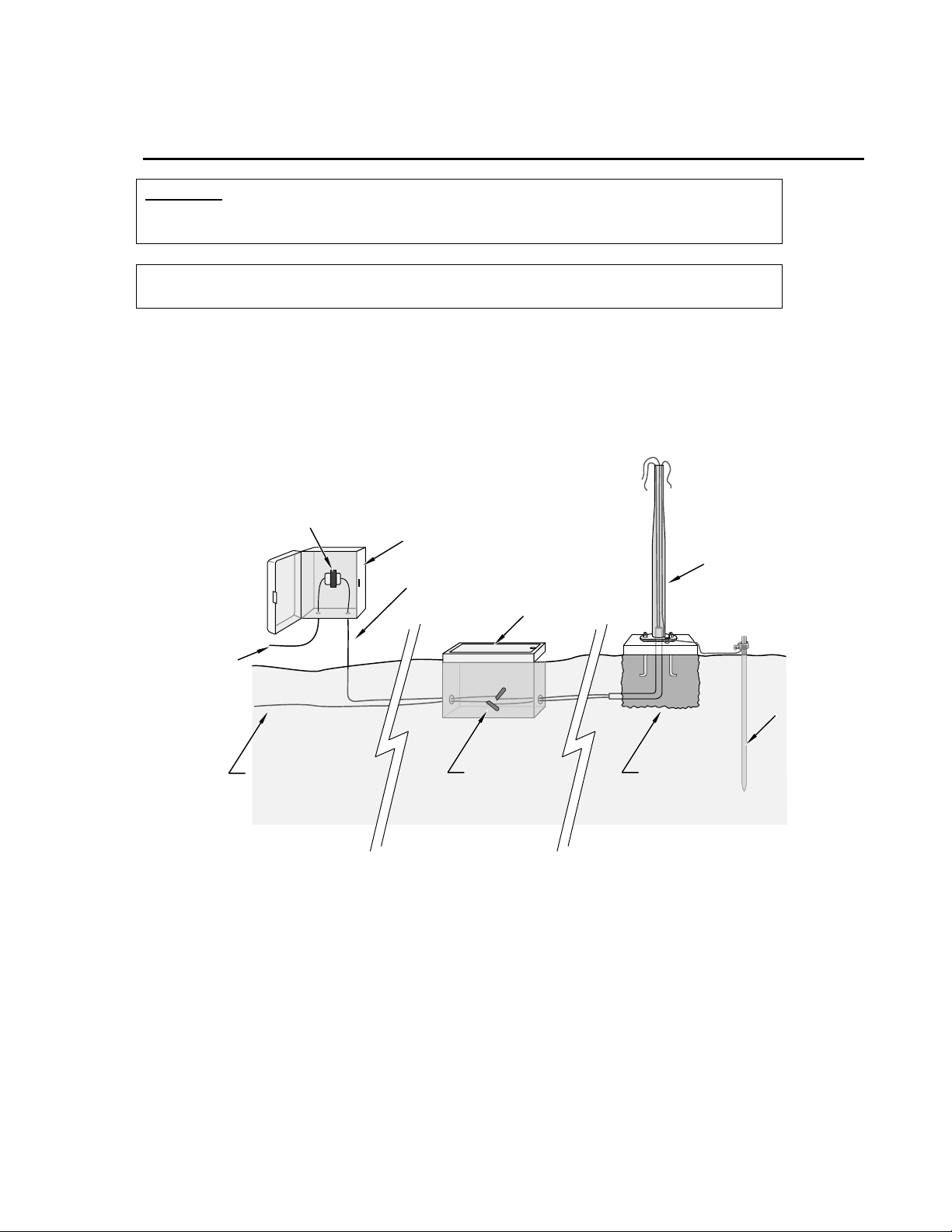

FIGURE 2.1-1. ET Tower Installation
2.1 Base Installation
2.1.1 Supplied Components
(3) ½ inch L-Bolts
(9) ½ inch Nuts
(1) Anchor Template
Refer to Section 1 for components supplied by installer.

Section 2. ET Tower Installation
2-2
2.1.2 Installation
1. The ET Tower attaches to a user supplied concrete foundation constructed
as shown in Figure 2.1-2.
2. Construct the concrete form with 2" x 4" lumber and 16p nails.
3. Assemble the template and anchor bolts. There should be two nuts below
and one nut above the template on each bolt.
4. Clear an area large enough to set the form at the desired elevation.
5. Dig a hole 2 feet x 2 feet x 2 feet. Lighter soils may require a deeper hole.
About 20 inches below the top of the hole, gouge a small cavity in one wall
of the hole. The cavity should be about 4 inches deep and just large
enough in diameter to insert one end of the conduit. Make certain the
cavity "points" in the direction from which power and communications
cables will come.
6. Center the form over the hole. Adjacent to the form, drive four stakes into
the soil. Secure the leveled form to the stakes with the 8p nails.
7. Cap the ends of the conduit with duct tape. Position the conduit and wire
into place by securing the wire to nails in the form.
8. Fill the hole and form with approximately ½ yard of concrete. Screed the
concrete level with the top of the form. Center the template assembly over
the conduit and press into the concrete. Put 2 x 4 spacers between the
template and the top of the form. The bottom of the bolt threads should be
about ½ inch above the concrete. The template must be level in two
dimensions. Use a trowel and edger to finish.
9. Wait 24 hours before removing the concrete form. Wait 7 days before
mounting the ET Tower.

Section 2. ET Tower Installation
2-3
SIDE VIEW
TOP VIEW
ANCHOR BOLT
FORM
FORM WIRE
CEMENT PAD
SMALL
CAVITY
24"
24"
24"
TEMPLATE
2"
NORTH
FORM WIRE

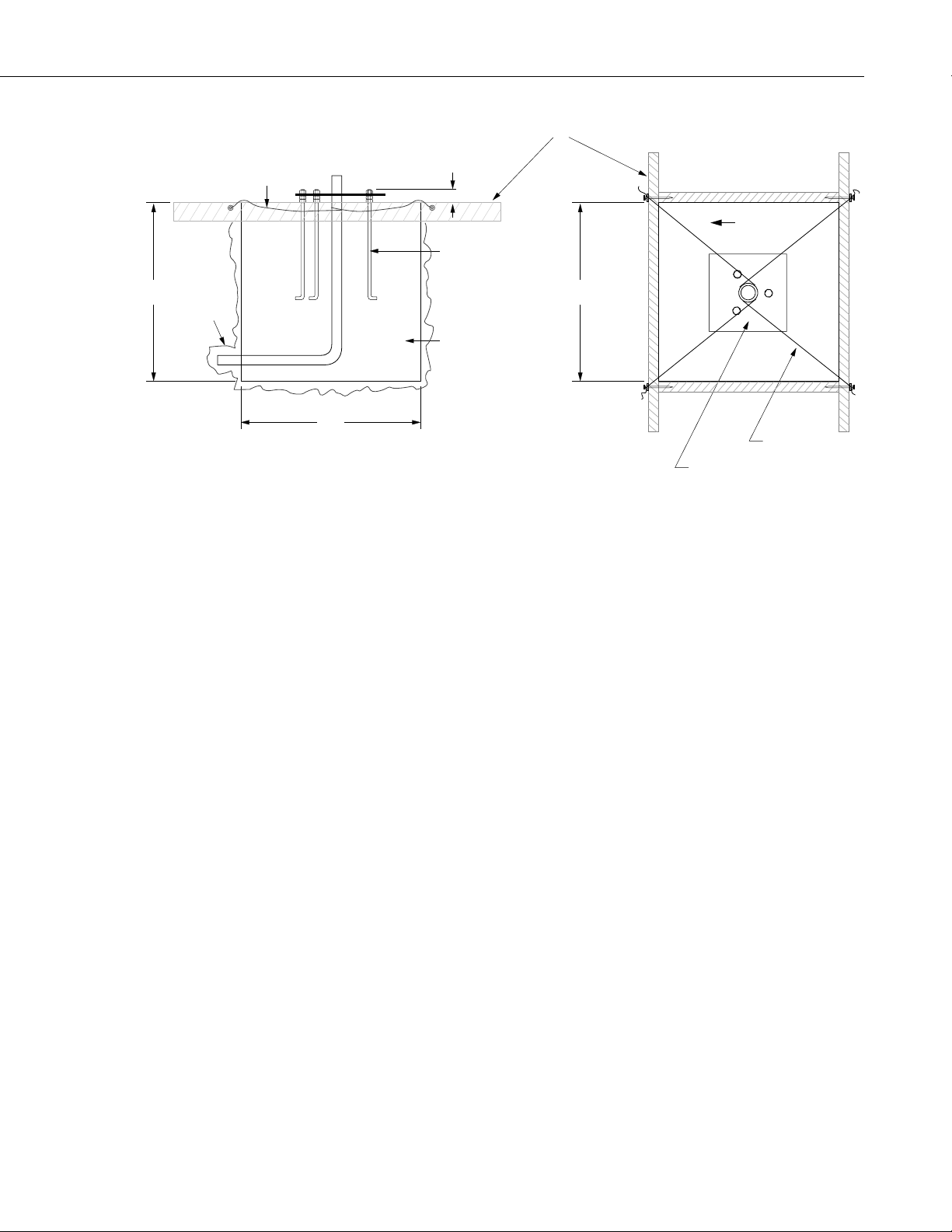

FIGURE 2.1-2. ET Tower Base Installation
2.2 Tower Installation
2.2.1 Supplied Components
(1) Upper Tower Section (Tapered)
(1) Lower Tower Section
(6) ½ inch Washers
(1) 12 foot 12 AWG Ground Cable
(1) Tower Cap
(1) 20' communications cable
(1) 20' power cable
Refer to Section 1 for components supplied by installer.
2.2.2 Installation
Attach the tower to the base as shown in Figure 2.2-1.
1. Dig a hole close to the concrete base to access the lower conduit opening.
From the hole, trench to the power and communications sources. Remove
the duct tape from both ends of the conduit.
2. Remove the template. Attach the two pieces of the tower. This is a
permanent connection and cannot be undone. Lay the tower on the ground
with the base next to the concrete foundation.
3. Thread communications and power cables through the tower and conduit.
Electrical fish tape will help.

Section 2. ET Tower Installation
2-4
4. Cut and save a 9 inch piece of 12 AWG ground wire from the 12 foot
length provided. Thread the remaining 11 foot ground wire through the
tower. Secure all wiring so it does not slip back into the tower or conduit.
5. Place the tower cap over the tower end.
6. Raise the tower on a still day. Place a washer on top of the two nuts on
each foundation bolt. Taking great care not to damage cables between the
tower and conduit, raise the tower and lower it onto the conduit and
mounting bolts. Install a washer and nut on each bolt and hand tighten.
Check plumb of the tower by placing a level on the north and east sides of
the lower tower section. Adjust the topmost of the two lower nuts (leveling
nut) on each bolt as necessary. When plumb is established, lock the
leveling nut in place by tightening the lowest nut against it. Tighten the
three top nuts with the wrench.
12AWG Wire 4AWG Cable
Ground Lug
FIGURE 2.2-1. Raising and Grounding the ET Tower
2.3 Tower Grounding
2.3.1 Supplied Components
(1) 5 foot 4 AWG Ground Cable
(1) Copper Ground Lug, Bolt
(1) Ground Rod, Clamp
Refer to Section 1 for components supplied by installer.

Section 2. ET Tower Installation
2-5
2.3.2 Grounding Procedure
Ground the tower as shown in Figure 2.2-1.
1. Place the ground rod clamp on the rod. Secure it about 3 inches from the
top. Do this before the rod is driven into the ground. Be careful not to
damage the clamp with the hammer
2. Taking care not to damage power or communications lines, drive the
ground rod close to the foundation using a fence post driver or sledge
hammer. Drive the rod at an angle if an impenetrable hardpan layer exists.
Soften hard clay soils with water if necessary.
3. Strip 1 inch of insulation from both ends of the 4 AWG ground cable.
Strip 1 inch of insulation from the lower end of the 14 AWG ground wire.
Install the tower grounding lug to the tower base with the 7/16 bolt
provided (Figure 2.1-5). Loosen the lug's set screw and insert the 4 AWG
and 14 AWG wire. Tighten the set screw.
4. Loosen the ground rod clamp. Insert the 4 AWG wire. Tighten the clamp
(Figure 2.1-5).

Section 2. ET Tower Installation
2-6
This is a blank page.
