IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using electrical appliances, basic safety precautions to reduce the risk
of fire, electric shock, or injury to persons should be followed, including:
1. READ ALL INSTRUCTIONS BEFORE USING THIS WATER HEATER.
2. This water heater must be grounded. Connect only to properly grounded outlet.
See “GROUNDING INSTRUCTION” found on page 10.
3. Install or locate this water heater only in accordance with the provided
installation instructions.
4. Use this water heater only for its intended use as described in this manual.
5. Do not use an extension cord set with this water heater. If no receptacle is
available adjacent to the water heater, contact a qualified electrician to have
one properly installed.
6. As with any appliance, close supervision is necessary when used by children.
7. Do not operate this water heater if it has a damaged cord or plug, if it is not
working properly, or if it has been damaged or dropped.
8. This water heater should be serviced only by qualified service personnel.
Contact nearest authorized service facility for examination, repair, or
adjustment.
9. Do not use surge protectors or multi-outlet adaptors with this water heater.
SAVE THESE INSTRUCTIONS
The manufacturer and/or distributor is not responsible for damages caused by
improper installation, or bynon observance of the instructions in this manual.
A qualified, licensed technician must always install the water heater and conduct
all subsequent service work and or maintenance.
IMPORTANT
Never plug in the power cord until the tank is completely full and water is flowing
out of the hot water faucet.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

Technical Data
Model ME10 ME25 ME40 ME60
Capacity (Gallons)
Voltage (VAC)
Power at 120 VAC (Watts)
Max. Water Pressure (PSI)
Weight (empty) (LBS.)
Amperage (Amps)
Phases
1.3
120
1440
150
12.1
12
1
2.5
120
1440
150
14.4
12
1
4.0
120
1440
150
18.2
12
1
6.0
120
1440
150
25.4
12
1
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
Indicator Light
Power
Water Outlet Temperature &
Pressure Relief Valve
Thermostat
Water Outlet
Shell
Tank
Insulation Foam
Water Inlet
Water flow figure
Assembly figure
Water Inlet

Model
ME10
ME25
ME40
ME60
A (Inch)
12 1/2″
14 1/2″
19 1/4″
18″
B (Inch)
11″
11 3/4″
11 3/4″
15 3/4″
C (Inch)
10″
10 3/8″
10 3/8″
15 1/2″
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
Schematic construction
Wiring diagram
Dimensions
A
B C
K
L
G
E
N
T°
R
V
Grounding Wire
Element
Fastening Plate
Protection Device
Overheating Protection
Device
Power Plug
Overheating
Thermostat
L
G
N

1 5
General Information
The Camplux mini-tank water heaters can be used in most under-the-counter,
point-of-use applications.
Models ME10, ME25, ME40, and ME60 are designed to supply hot water for
handwashing in a residential, commercial or industrial environment. The Camplux
mini-tank water heaters are slow recovery, small reservoir, not intended for
showers or filling tubs. The Camplux mini-tank water heaters are lightweight,
compact, and manufactured for easy installation. The ME10, ME25, ME40, and
ME60 are designed to be mounted on the wall.
The ME10, ME25, ME40 and ME60 are designed to operate at 150 PSI maximum
water pressure. Install a pressure reducing valve if your water pressure is greater
than 80 PSI.
CAUTION
The manufacturer cannot be responsible for the damage caused by improper
installation or by failure to follow instructions in this manual. Comply with the
Installation Instructions before connecting to electrical outlet.
CAUTION
The thermostats on this water heater have been set at the factory to 125°F (52°C)
or lower to reduce the risk of scald injury;
Locate the front panel and temperature adjustment knob on the water heater. The
recommended starting setpoint is identified on the dial as. The red indicator 125°F
(52°C) at the center of the display will illuminate when the water is heating. When
the water in the tank is at the desired temperature, the red indicator will NOT be
illuminated.
If you choose a higher temperature, be sure to read and follow the warnings
outlined on the label below. This label is also located on the water heater near the
top of the tank. Thermostatic Mixing Valves located at each point-ofuse are
particularly important to help avoid scalding.
Temperature
Time to
Produce a
Serious Burn
120°F
(49°C)
More than
5 minutes
125°F
(52°C)
1-1/2 to2
minutes
130°F
(54°C)
About 30
seconds
135°F
(57°C)
About 10
seconds
140°F
(60°C)
Less than
5 seconds
145°F
(63°C)
Less than
3 seconds
150°F
(66°C)
About 1-1/2
seconds
155°F
(68°C)
About 1
seconds
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

6
CAUTION
Hydrogen gas builds up in a hot water system when it is not used for a long
period ( two weeks or more). Hydrogen gas is extremely fammable.
If the hot water system has not been used for two weeks or more, open a hot
water faucet for several minutes at the kitchen sink before using any electrical
and most distant sink being served by this water heater before using any
electrical appliance connected to the hot water system .Do not smoke or have an
open flame or other ignition source near the faucet while it is open.
WARNING
Installer should review the contents of this manual with the owner upon
completion of the installation, and the manual should remain with the owner and
placed in a location close to the water heater.
Technical Description
There are 4 Camplux Mini Tank models with 1.3, 2.5, 4.0 and 6.0 gallon capacity.
The pressure vessel (water tank) is welded, glass lined steel and is equipped with
an anode rod. The water heater is equipped with a thermostat and a high limit
temperature switch. A temperature pressure relief valve is supplied with
the unit.
Installation Instructions
ME10 / ME25 / ME40 / ME60
The installation must be completed by a licensed professional. All state and local
codes must be adhered to. The manufacturer will not be liable for any damages
because of failure to comply with these installation instructions or because of
improper installation performed by an unqualified installer. Choose a location that
allows ease of access for maintenance or servicing, ideally installed at least 8” to
9” from the ceiling (inside top of cabinet) or any adjacent walls.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

1 7
Wall Mounting
Fasten the supplied mounting bracket to the wall. Use screws that are suitable for
the wall material and the weight of the water heater filled to capacity (ME10=24
lbs, ME25=41 lbs, ME40=57 lbs, ME60=76 lbs). Hang the water heater on the
bracket and pull downwards on the water heater to ensure that both "fingers" of
the bracket are seated in the mounting slots. Confirm your water piping
orientation (hot and cold) before wall mounting. Only install in vertical position.
The heater can sit on the floor in a tray with a drain. Confirm water piping
orientation before finalizing on the floor. Again, only install in vertical position!
Models ME10, ME25, ME40, and ME60 can be installed under the sink.
Plumbing Connections
Connect the cold water inlet pipe to the inlet nipple (marked with a blue ring) and
the hot water outlet pipe to the outlet nipple (marked with a red ring).
IMPORTANT
If water pipes are copper or bronze, use dielectric connections to prevent
corrosion. Failure to provide dielectric insulation may result in the premature tank
or nipple failure and may void your warranty. Ensure that the water heater is
installed in a level position. Install a shut-off valve on the cold water side of the
water heater. The valve is for servicing and the valve should be in the open
position when the water heater is in operation. In order to protect the water heater
from heat damage due to soldering, solder a piece of tubing to a threaded union
fitting before screwing the union to the tank. Do not apply heat directly to inlet
or outlet connections.
Bracket
Studs
Plywood
Bracket Anchors
Drywall
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

8
Temperatures & Pressure Relief Valve
CAUTION
To reduce the risk of excessive pressures and temperatures in this water heater,
Install the Temperature and Pressure protective equipment required by local
codes and no less than a combination temperature and pressure relief valve
certified by nationally recognized testing laboratory that maintains periodic
inspections of production of listed equipment or materials, as meeting the
requirements for relief valves and Automatic Gas shutoff devices for Hot water
supply systems ANSI 121.22. This valve must be marked with a maximum set
pressure not to exceed the marked maximum working pressure of the water
heater (150 PSI). Install the T/P valve into an opening provided and marked for
this purpose in the water heater,and Orient it or provide tubing so that any
discharge from the valve exits only within 6 inches above, or at any distance
below the structural foor, and does not contact any live electrical part. The
discharge opening must not be blocked or reduced in size under any
circumstances.
T/p valve discharge pipe
1. Must not be smaller in diameter than the outlet diameter of the valve, or have
any reducing couplings.
2. Must not be plugged or blocked.
3. Must be made of suitable material for hot water.
4. Must not be over 15” in length.
5. Must not have more than two elbows.
6. Must terminate at an adequate drain.
7. Must not have a shut off valve between relief valve and tank or relief valve and
termination of discharge.
Figure - The T&P Relief Valve discharge pipe must be
installed properly and piped to an adequate drain.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

1 9
Closed system thermal expansion:
Periodic discharge of the t/p relief valve or failure of the element gasket may be
due to thermal expansion in a closed water supply system. The water utility
supply meter may contain a check valve, backflow preventer, or water pressure
reducing valve which will create a closed water system. During the heating cycle
of the water heater, the heated water expands causing pressure inside the water
heater to increase. The t/p relief valve may discharge hot water under these
conditions which results in a loss of energy and a build-up of lime on the relief
valve seat.
To prevent this from happening, there are two recommendations:
1. Install a diaphragm-type domestic hot water expansion tank (suitable for
potable water) on the Cold water supply line. The expansion tank must have a
minimum capacity of 1.5 U.S. Gallons for Every 50 gallons of stored water.
2. Install a 125 psi pressure relief valve in the cold water supply line. Make sure
the discharge Of this valve is directed to an open drain and protected from
freezing. Contact your local water Utility or plumbing inspector for information
on how to control this situation. Never plug the outlet of the relief valve.
Filling the Water Heater
CAUTION
Before plugging in the water heater power cord into an outlet, be sure that
the system is completely charged with water and all air is removed. Before
connecting the power, fill the tank and system with water and check for
leaks. To be sure that all air is out of the water system, open the hot water
faucets on your fixtures until constant water flows from them. Otherwise,
any air remaining in the tank will cause the water heater element to
self-destruct.
1. Open the hot water faucet.
2. Open the cold water supply valve.
3. When continuous water flows out of the faucet, the tank is filled.
4. Close the hot water faucet.
5. Check entire system for leaks.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

10
Electrical Connections
To be certain that all of the air is out of the water heater, open the hot water faucet
on your fixtures until constant water flows from them. If air remains in the tank, the
element will be damaged when the electric cord is plugged in.
GROUNDING INSTRUCTION
Connect the water heater to a grounded outlet.
The water heater is fitted with a power cord that is intended to plug into a
grounded 120V/AC receptacle. Adhere to all pertinent state and local codes.
Install the correct size circuit breaker into the master panel. The Camplux
mini-tank water heater was manufactured and wired in accordance with UL
requirements.
The water heater is equipped with an overheat limiting device with a manual
reset. Also known as the temperature high limit, this device has been factory
installed to interrupt the power supply in the event of a thermostat failure. This
water heater is designed for only 120V electrical service！
Do not connect to any other voltage.
Failure to use proper voltage may result in personal injury and/or property
damage. If the supplied electrical power cord is either damaged or not long
enough, do not use an extension cord. Have a licensed electrician replace the
power cord.
Instructions for Use
Congratulations!
You are now ready to use your water heater. Run the hot water at a nearby sink
and evaluate the hot water temperature. Make any temperature adjustment using
the section below:
Setting the thermostat
The water heater is equipped with an adjustable thermostat that once set will
automatically control water temperature. The red indicator lamp remains
illuminated while the water is being heated. If the water in the tank is at the
desired temperature the lamp will not be illuminated.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

1 11
The temperature adjusting knob will increase the temperature by turning the knob
clockwise and decrease the water temperature by turning the knob counter
clockwise.
When not being used for a lengthy period of time, you can conserve energy by
reducing the water temperature setting.
Setting the freeze protection
When the water heater is not being used for an extended period of time and there
is a risk of freezing, either unplug and drain the water heater or turn the
thermostat knob to the snowflake position to guard against freezing. This position
will keep the internal water temperature above the freezing point. See the photo
below.
Maintenance Instructions
Do not attempt to repair this water heater yourself. Call a service person (plumber
or electrician) for service assistance. Always unplug the power supply cord when
the water is turned off or when servicing or draining the water heater.
Before calling for service, first confirm that the water heater is properly filled and
that 120 VAC power has not been interrupted.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
Temperature adjusting knob in
“Freeze Protection” position

www.camplux.com
12
WARNING
Before servicing or cleaning the water heater, disconnect the power cord from the
electrical outlet.
Note: For most maintenance operations, the water heater will need to be drained.
In all cases before draining first unplug the power cord.
Draining and removing the water heater
1. Unplug the water heater.
2. Open a hot water faucet to let hot water run out. Allow water to flow until water
is no longer hot.
3. Turn off the cold water supply to the water heater.
4. Close the hot water faucet.
5. Disconnect the water heater from both the hot and cold water connections.
6. If possible siphon out remaining water.
7. Carefully detach the water heater from the wall.
8. Tilt the water heater to drain remaining water out of the heater.
Removing the heating element
1. Unplug water heater power cord and drain (see above).
2. Remove cover.
3. Remove all the line wires from the heating element.
4. Unscrew the heating element retaining nuts.
5. Remove the element.
Descaling the heating element
Scale deposits can affect the heating capability of the element. Heavy scale can
even cause the element to burn out. The element can be descaled chemically or
manually.
1. Remove the heating element (see above).
2. To descale chemically, soak the heating element in white vinegar or other
descaling solution and then rinse well with fresh water. (cont.)
3. To descale manually, let element dry and then using a non metallic brush
similar to a tooth brush; brush the residue from the element. Avoid damaging
the surface of the element.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

www.camplux.com
1 13
4. Reinstall the element and gasket.
5. Refill the tank with water before plugging in the power cord.
Replacing the heating element
1. Unplug and drain the water heater (see page 12).
2. Remove heating element noting original positions of all connections.
3. Install new element with gasket making sure the new element and gasket are
positioned correctly.
4. Tighten retaining nuts and make the wire connections to their original locations.
Changing the thermostat
1. Unplug water heater power cord from the electrical outlet.
2. Drain and remove the water heater. (see page 12)
3. Remove six screws retaining the bottom panel of the water heater and remove
the panel.
4. Remove thermostat knob and unscrew two retaining screws. It may be
necessary to pry the knob off of the thermostat spindle. Now remove front
panel.
5. Disconnect the push-pull wire connectors on the thermostat noting which
connector goes to which terminal. Terminals are marked.
6. Remove the thermostat probe from the well.
7. Install new thermostat, attach wires and tighten screws.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
Thermostat

www.camplux.com
14
Resetting the high limit switch:
For various reasons the high limit safety shut off switch will occasionally shut the
water heater down. This shut down will occur when water temperatures exceed
140°F(60°C). Power is automatically turned off to the heating element. The shut
off device may activate as a result of a power outage or an electrical storm.
Note: Do not attempt to reset the high limit switch without first allowing the water
heater to cool down the high temperature water inside the heater.
WARNING
Do not tamper with the reset button to override overheating shut down.
1. Unplug water heater power cord from the electrical outlet.
2. Drain and remove the water heater. (see page 12)
3. Remove six screws retaining the bottom panel of the water heater and remove
the panel.
Locate the high limit reset button.
4. Depress the small red button in the center of the junction box, replace the
bottom panel and place the water heater back into service.
Note: A lower temperature setting saves energy and reduces the risk of scalding.
CAUTION
Call a technician if the high limit needs to be reset frequently.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
PAG 1

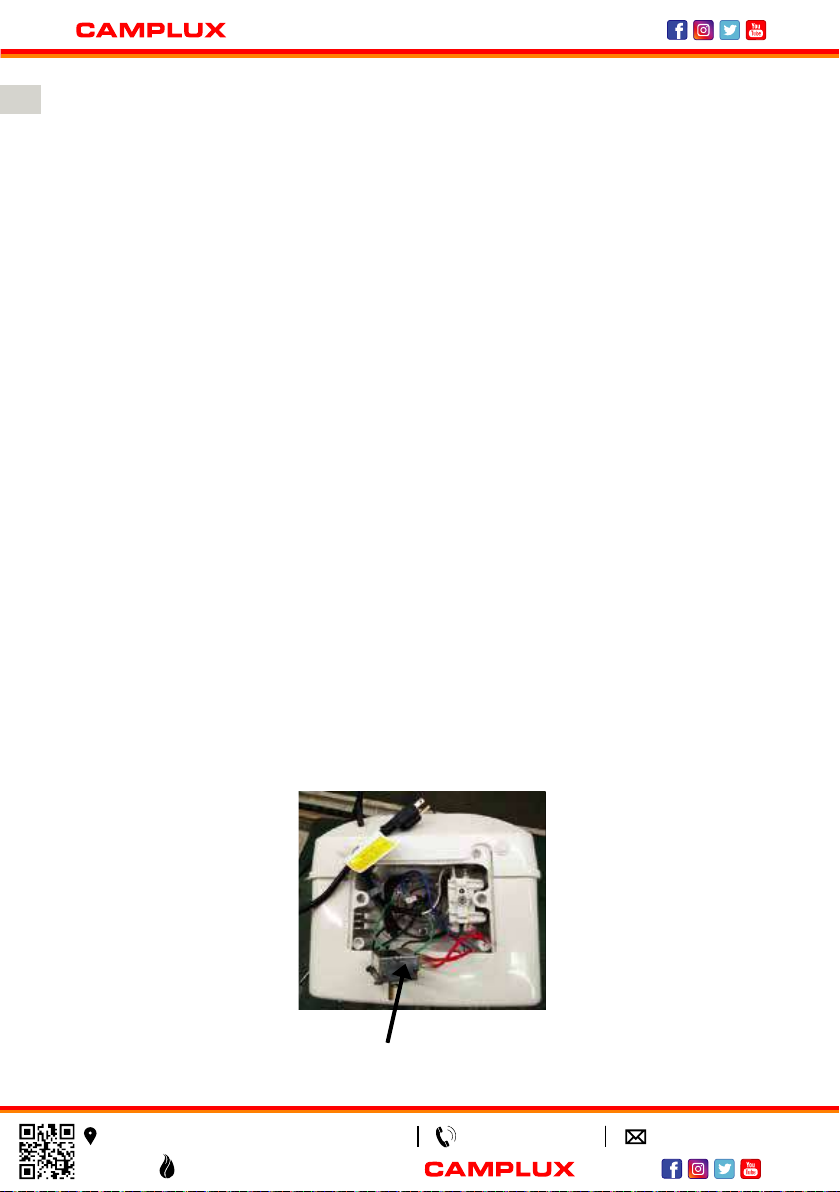

High Limit Reset Button
Heating Element

www.camplux.com
1 15
Troubleshooting
Problem: Water does not get hot
1. Make sure the power supply is on and working.
2. If light does not come on, check that the reset button is pushed in; follow steps
from previous section.
3. If the indicator light is illuminated, but water temperature does not get hot at the
sink, test for a plumbing crossover as follows; shut off the cold water supply to
the water heater and open the hot water tap. There should be no water flowing.
Any continuous flow indicates a cross over which will effect the temperature
and will need to be corrected.
4. If there is no crossover, then replace the heating element (see page 13).
Problem: Indicator light not on
1. If the light does not come on, but water gets hot, check for faulty bulb.
2. Check reset button; follow steps from previous section.
Problem: Water is too hot
1. Turn the temperature knob counter clockwise to a lower temperature setting. If
temperature does not lower within 60 minutes, then replace thermostat.
Problem: Water is not hot enough
1. Under Instructions for Use, see “Setting the thermostat”.
Problem : Water is leaking
1. Unplug water heater power cord from the electrical outlet.
2. Check water fittings T&P fitting in the top of the tank.
3. Remove cover and inspect heating element gasket.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

www.camplux.com
16
Camplux Mini Tank Water Heaters
Limited One (1) Year Warranty
Coverage
Camplux warranties this water heater to the Owner (hereinafter “Owner”) of the
water heater at the original installation location against defects in material and
workmanship for the periods specified below.
Warranty Period
1. When a failure of the inner tank of a Camplux Mini Tank water heater, exposed
to normal usage, occurs within one (1) year from the date of the original
installation and is supplied with potable water, and such failure is proven to be
a result of a defect in material or workmanship, Camplux will furnish to such
owner a new water heater of the then prevailing comparable model.
2. If any component part (other than the inner tank) is proven to be defective in
material or workmanship within one (1) year from date of original installation,
used with potable water, Camplux will furnish the Owner with a replacement of
the defective part(s).
3. Verification of Date Original Installation - When the owner can not verify or
document the original date of installation, the warranty period begins on the
date of manufacture marked on the tag affixed to the water heater.
Exclusions
1. This limited warranty shall be the exclusive warranty made by the manufacturer
and is made in lieu of all other warranties, expressed or implied (whether
written or oral), including, but not limited to, warranties of merchantability and
fitness for a particular purpose.
2. The Manufacturer shall not be liable for any incidental, consequential, special
or contingent damages or expenses arising, directly or indirectly, from any
defect in the water heater or the use of the water heater.
3. The Manufacturer shall not be liable for any water damage arising, directly or
indirectly, from any defect in the water heater component part(s) or from its
use.
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

4. Manufacturer shall not be liable under this warranty if:
a) The water heater or any of its component parts has been subject to
excessive water pressure, misuse, abuse, alteration, neglect or accident, or
b) The water heater has not been installed in accordance with the applicable
local plumbing, electrical and/or building code(s) and/or regulation(s), or,
c) The water heater has not been installed in accordance with the printed
manufacturer’s instructions, or,
d) The water heater is not continuously supplied with potable water, otherwise
described as dry firing.
e) The water heater is exposed to conditions resulting from floods,
earthquakes, winds, fire, lightning, or circumstances beyond the control of
the manufacturer.
f) The water heater is installed by non-qualified personnel.
5. The owner and not the manufacturer or his agent/representative shall be liable
for and shall pay for all field charges for labor or other expenses incurred in the
removal and/or repair of the water heater or any expense incurred by the
owner in order to repair the water heater.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. This
warranty gives you specific legal rights and you may also have other rights which
may vary from state to state.
IMPORTANT
The owner should retain this document.
Note: Most tank water heaters eventually leak. Your Camplux water heater should
be installed in such a manner that if it should leak, the resulting flow of water will
not cause damage to the area in which it is installed.
www.camplux.com
1 17
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

How the owner can secure service assistance or make a
warranty claim
1. Owner should contact the dealer who sold the water heater covered by this
warranty or
2. Owner should submit the warranty claim directly to Camplux at the address
listed below, and they will arrange for the handling of the claim.
3. Whenever a warranty service request is made, be sure to include Proof of
Purchase, the water heater model number and the date of manufacture, date of
installation, dealer’s name and the watts and voltage.
4. When returning the water heater or component part(s), they must be
individually tagged and dentified with the Returned Goods Authorization
issued by Camplux and shipped prepaid to Camplux at the address provided
with the claim.
www.camplux.com
18
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475

www.camplux.com
1 19
1
2
3
4
5
6
7
8
9
10
11
13
14
15
16
17
18
Name of Part
Tank Component
Thermostat
Temp. Adjust Panel
Inside Wiring Assembly
Cross Screws
Inside Cover
Bottom Cover
Indicate Light Cover
Power Indicate Light
Support 1
Support 2
Wire Press Plate
Heating Element
Over Heat Limiter
Heating Element Gasket
Temp. Control Knob
Red Circle
QTY
1
1
1
1
6
1
1
1
1
2
2
1
1
1
1
1
1
Name of Part
Front Cover
Back Cover
Power Cord
Screw
Blue Circle
Power Cord Sheath
Power Cord Sheath Press
Cross Screw
Connect Plate
Cross Screw
Bolt
Nut
Aluminum Anode Rod
Bolt
Cross screw
Red Thread Cover
Blue Thread Cover
19
20
23
24
25
26
27
28
29
30
31
32
33
34
36
37
38
QTY
1
1
1
2
1
1
1
2
1
1
5
5
1
1
2
1
1
Visit Us: Camplux.com
[email protected]
3330-A Marathon Ct Charleston, SC 29418 1(844) 538-7475
Schematic Disassembly & Parts List
