CamTron CMNC-200 User manual

IP Network A/V Camera,
“Cywatch HD(High Definition)
Megapixel IP camera”
Operating Instructions
CamTron Industrial Inc.
Cywatch HD Megapixel IP camera Operating Instructions (Ver 1.0_CT0901130)

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 1
First of all, we would like to express our appreciation on your choosing our Cywatch HD Megapixel
IP Camera.
Cywatch HD Megapixel IP camera is a state of the art network A/V camera designed for demanding
professional surveillance applications with the latest and most advanced H.264 codec. And Cywatch
HD Megapixel IP camera is specially optimized for video surveillance, two-way video communications
and wireless video network, where very high channel densities, high performance, low latency and
power efficiency are critical requirements.
Cywatch HD Megapixel IP camera features the sensor Input, relay output, RS485 port. These
functions may be utilized to control various system integration solution as well as remote
surveillance. Cywatch HD Megapixel IP camera supports both Static IP and Dynamic IP for diverse IP
connection as well.
In summary, Cywatch HD Megapixel IP camera provides multiple access/control options to the user.
The examples of access/controls are as follows:
¾To record Event in FTP server installed in remote place.
¾To search / delete / down-load / replay the recorded video.
¾To support PoE (optional) for easy and convenient installation.
For more information or inquiry, please contact us to the followings;
Home Page :
www.camtron.co.kr
e-mail : camtr[email protected].kr
Telephone : [phone]
Fax : [phone]
Address : 5th floor, Keum-ah B/D, 31-3, Karak-dong, Songpa-gu, Seoul, 138-801,
Korea
Notice : IP camera’s appearance, function and specification may be changed without prior
notification.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 2
IMPORTANT NOTES for Safety Precaution
. Please be sure to read the following with carefulness, before installing the product,
Make sure to turn off the power before installing Cywatch HD Megapixel IP camera.
Do not install under the direct sunlight or in dusty areas.
Make sure to use the product within the temperature and humidity specified in the specification.
Do not operate the product in presence of vibrations or strong magnetic fields.
Do not put electrically conducting materials in the ventilation hole.
Do not open the top cover of the product. It may cause a failure or electric shock on the
components.
To prevent from overheating, make sure to keep the distance at least 10cm from the ventilation
hole.
Check for proper voltage before connecting the power.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 3
Table of Content
1 Introduction.........................................................................................................4
1.1 About Operating Instructions manual........................................................................ 4
1.2 Feature ................................................................................................................ 4
1.3 System Connections .............................................................................................. 5
2 System Operation ................................................................................................8
2.1 Remote Video Monitoring ....................................................................................... 8
2.2 Initialization of IP Address ....................................................................................... 9
3 Remote Configuration........................................................................................10
3.1 Using Internet Explorer .........................................................................................10
3.2 IP camera Configuration ........................................................................................11
3.2.1 System Configuration....................................................................................11
3.2.2 Video Configuration .....................................................................................13
3.2.3 Audio Configuration .....................................................................................16

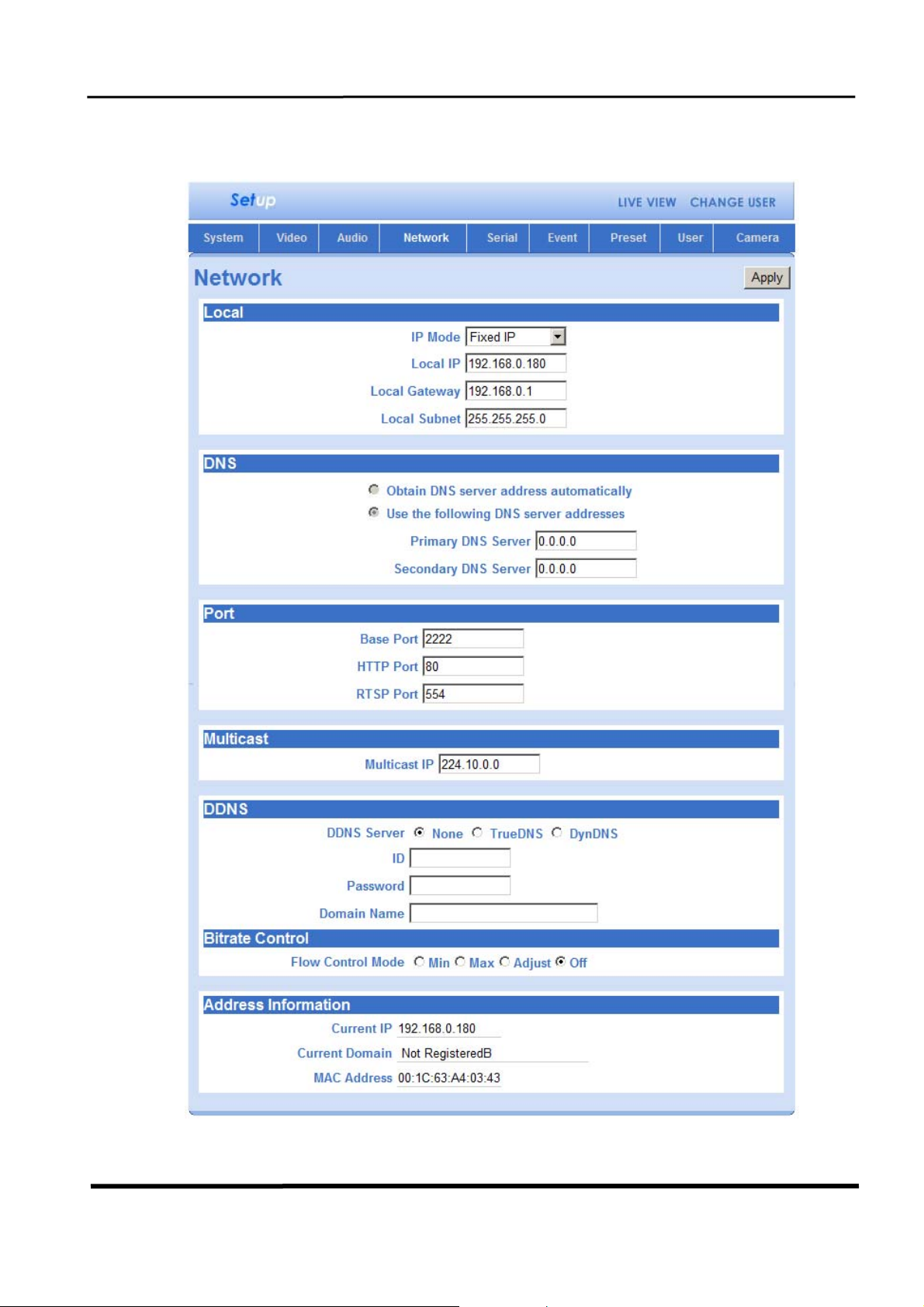

3.2.4 Network Configuration .................................................................................17
3.2.5 Serial Port Configuration ...............................................................................20
3.2.6 Event Configuration ......................................................................................22
3.2.7 Preset Configuration.....................................................................................25
3.2.8 User Configuration.......................................................................................26
3.2.9 Camera Configuration...................................................................................28

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 4
1Introduction
1.1 About Operating Instructions manual
The Operation Instructions manual is to provide information on operation of the high quality HD
Megapixel IP Network Camera. In this guide, information on installation, operation, configuration of
IP Network Camera is written as well as how to trouble shoot in case problems arise.
1.2 Feature
Cywatch HD Megapixel IP Camera is a network camera and a video and audio surveillance
transmission system based on IP network through LAN,ADSL/VDSL, and Wireless LAN.
Video
-High-quality compression algorithm, H.264
-Compression in various resolution: CIF (352x240) ~ Full HD (1920x1080)
-Wide range of video transmission rate: 32kbps ~ 8Mbps
-Various transmission mode: CBR,VBR
-Motion detection
-Supports HDMI output
Audio
-Multi-transmission mode: Uni-direction (Cywatch -> Client PC or Decoder, Client PC or
Decoder -> Cywatch HD Megapixel IP camera), Bi-direction
Network
-Static IP and Dynamic IP(DHCP)
-One to one and one to many connection
-Multicasting
-Automatic transmit rate control according to network condition
Serial Data
-One serial ports (RS-485)
-Data pass-through mode: Serial data communication between Cywatch HD Megapixel IP
camera – Decoder
Sensor and Alarm
-Connections to external sensor and alarm devices
-Event Alarm

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 5
User Interface
-System status display utilizing OSD(On Screen Display)
-System configuration using Internet Explorer
Reliability
-Reliable embedded system
-System recovery utilizing dual watch-dog functions
1.3 System Connections
Cywatch HD Megapixel IP cameras can be connected in either 1-to-1 fashion where one Cywatch
HD Megapixel IP camera is connected one decoder or 1-to-many fashion where one Cywatch HD
Megapixel IP camera connected to many PC and decoders. (Cywatch video server can work as a
decoder system which takes the data from a video server or IP camera, decodes and outputs analog
video.)
To p o l o g y
Generally, the Cywatch HD Megapixel IP camera and the PC & decoder are connected in 1-to-1
mode or 1-to-many connection is also supported.
1:1 Connection (Unidirection)
Mostly used configuration is 1 to 1 connection. A Cywatch HD Megapixel IP camera is installed at a
site where video images can be transmitted and a PC or a decoder is installed at a center location to
receive and view the video images on analog monitor. Audio and serial data are transferred in either
direction.
HD IP camera PC
Local Site Remote Center
HD IP camera HD Decoder
Local Site Remote Center

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 6
1:N Connection (Unidirection)
In this configuration, a site can be monitored from many remote center locations. Although up to 64
PCs or decoders can be connected to on Cywatch HD Megapixel IP camera, in the real network
environment, network bandwidth can limit the maximum connections.
Functionally, the central monitoring system software can replace the decoder.
Multicast Mode
Within the network that supports multicasting, a large number of decoders can be used to receive
video effectively from a Cywatch HD Megapixel IP camera using a single streaming of video and
audio.
Relaying
In this arrangement, video and audio can be retransmitted from a center to another center. The
arrangement is useful when the network bandwidth to the site is limited while there are more than
one center wanting to monitor the site.
Central Monitoring System
HD IP camera HD Decoder
Local Site Remote Center
HD IP camera HD Decoder
Local Site Center 1
HD Decoder
Center 2
HD IP camera Cymanager
HD IP camera PC or HD Decoder
PC or HD Decoder
PC or HD Decoder
Remote Center
Local Site
Cymanager
Local Site Remote Center

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 7
Cymanager is a Windows based remote monitoring program to access multiple Cywatch HD
Megapixel IP camera for real-time monitoring or control of the encoders and connected cameras.
Please refer to Cymanager User Manual for more information on Cymanager.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 8
2System Operation
2.1 Remote Video Monitoring
There are two ways to view the video once connections are made between local the site and center
system. In order for a proper operation, an IP address must be set accordingly and please refer to
‘Cyexplorer User’s Guide’ or ‘Remote Configuration in Chapter 3’ for a further details.
Video Monitoring with Decoder System
Once the IP address of Cywatch HD Megapixel IP camera is set in the remote IP address section of
the decoder, the decoder system will connect to the Cywatch HD Megapixel IP camera and start
receiving the video images. Normally, a monitor connected to the decoder will display video images.
Video Monitoring using Internet Explorer
If a system’s IP address is entered on the Internet Explorer, the system will ask for confirmation to
install Active-X Control. Once authorized, the Internet Explorer will start to display video images
from IP camera as shown below.
http://192.168.10.100
Default ID : admin Password : 1234

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 9
2.2 Initialization of IP Address
If a system’s IP address is lost, the system can be reset to a known IP address using the reset button
in the back side of the system:
cWhile system is in operation, press the reset button more than 5 seconds.
dThe system will reboot automatically
eOnce the system has been rebooted, IP address will be set to the following.
-IP mode: Fixed IP
-IP address: 192.168.10.100
-Subnet mask: 255.255.255.0
-Gateway : 192.168.10.1
-Base port : 2222
-Http port : 80

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 10
3Remote Configuration
3.1 Using Internet Explorer
The IP camera can be configured using web browser. Type IP address of IP camera in the address
input area of Internet Explorer, then a live viewing screen will be displayed. Press Setup button
located in the upper right area of the monitoring screen, then the se page for server setup will be
displayed.
The configurations are grouped into 9 categories: System, Video, Audio, Network, Serial, Event,
Preset, User and Camera. Any configuration changes are not applied until Apply is pressed.
Leaving the page without pressing Apply button, changes in the page will be discarded.
cEnter IP address dPress Setup button

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 11
3.2 IP camera Configuration
3.2.1 System Configuration

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 12
System ID
System ID:Alphanumeric System ID to be transferred to remote software
Language
English, Korean, Japanese, Russian, Spanish, Portuguese and Chinese are supported in web-
based configuration.The language can be selected at System tab.
Firmware version
Current firmware version
Start Time
Latest system boot date and time
Current Time
Current date & time: Enter a new date and time and press Set Current Time button to
update date & time.
Time Zone
Time zone: Select time zone of where the system is installed. Depending on the time zone,
Daylight Saving Time will work automatically.
Automatically synchronize with NTP server
Synchronize system time with an NTP server using NTP(network time protocol). Name of
the NTP server should be registered on NTP server Name.
Reboot Server
Pressing Reboot Server button will cause the system to reboot. Do not press the Reboot
button unless the server needs a reboot.
Factory Reset
Set all settings to the factory default values. System log and user registrations are also
cleared.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 13

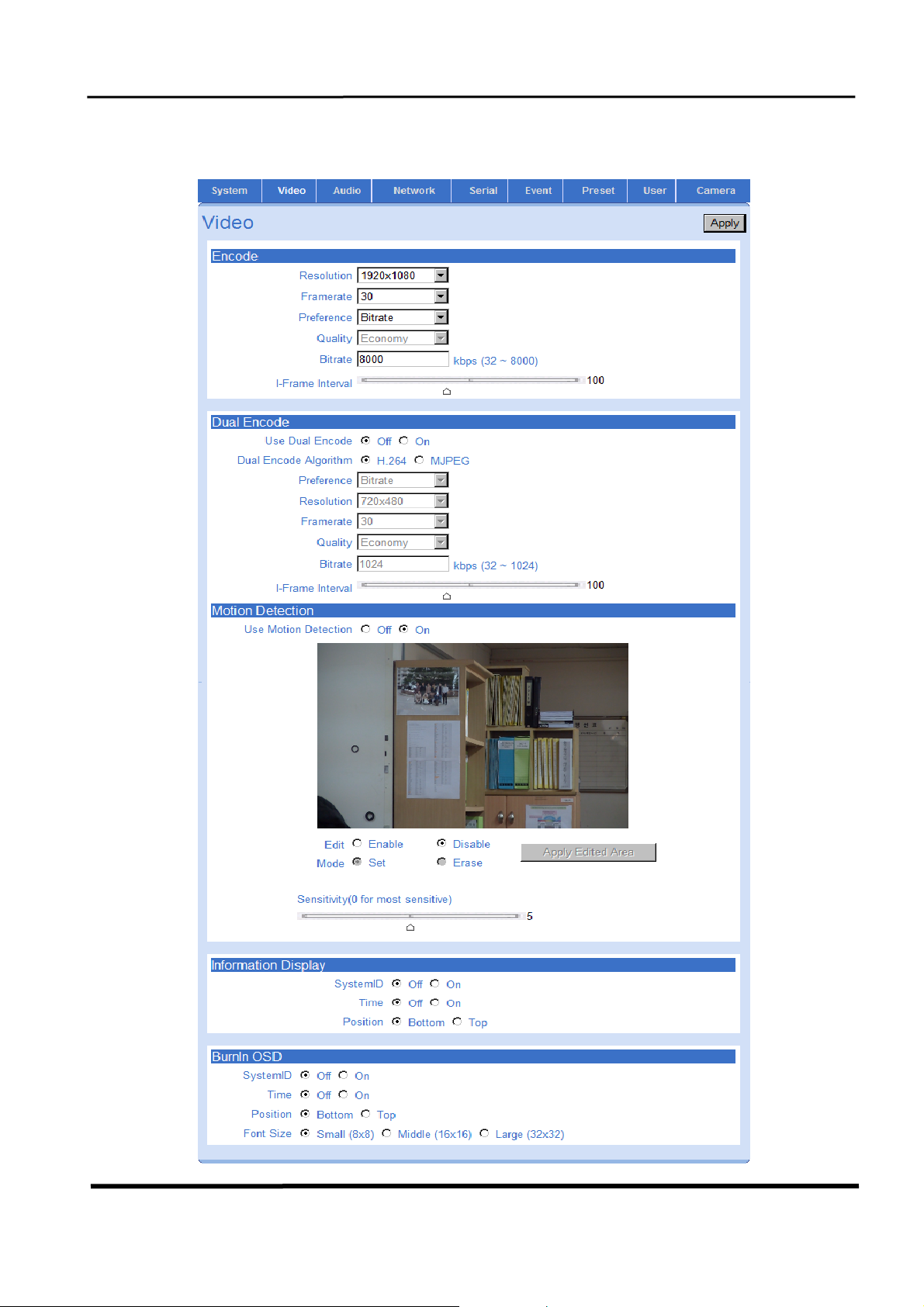

3.2.2 Video Configuration

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 14
Preference
Preference in video compression and transmission: With ‘Bitrate’ selected, the video
compression will be effected by the ‘Bitrate’ value entered. With ‘Quality’ selected, the
video compression will be effected by the quality of image selected. Therefore, ‘Bitrate’
and ‘Quality’ corresponds to CBR and VBR respectively.
Resolution
Selectable video compression resolution:
1920 X 1080, 1280 x 720, 1680 x 1050, 1600 x 900, 1440 x 900,
1280 x 1024, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 352 x 288, 352 x 576 720 x
288 720 x 576 352 x 240 352 x 480 720x 240 720 x 480
Frame rate
Selectable video frame rate: Determine the maximum number of frames of video images
to compress. The frame rate of actually transmitted video can be affected by the
network bandwidth limitation.
Quality
Video image compression quality: The selection is possible with Preference is set to
‘Quality’.
Bitrate
Video bitrate:The value is applicable when Preference is set to ‘Bitrate’.
I-Frame Interval
I-frame interval: Possible values between 0 and 255. There will be no I-frames if 0 is
selected.
Use motion detection
Use to enable or disable motion detection.
Motion Detection Area Editing
Configure regions for motion detection. Regions of arbitrary shape can be configured by
the following steps.
cEnable Edit item.
dSelect editing Mode. Set is for including cells to motion detection region and Erase
is for excluding.
eSelect cells using the right button of the mouse. Multiple cells can be selected
conveniently by press and dragging.
fPress Apply Edited Area to save the editing.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 15
Sensitivity
A condition to trigger an event with motion detection. The value determines the sensitivity
of the motion detection within a block: the smaller, the more sensitive.
Information Display
System ID and/or server time can be display over the video window in Internet Explorer.
Each item can be turn on or off separately, and position also can be configure. These
information are displayed after the video is decompressed.
Burn-in OSD
Inserts system ID and date/time in the compressed video. Separately System ID and
Time can be turned On or Off in the video. Position specifies the position of such
data.
Brightness
Controls input video brightness by selecting values between 0 and 100.
Contrast
Controls input video contrast by selecting values between 0 and 100.
Hue
Controls input video Hue by selecting values between 0 and 100.
Saturation
Controls input video saturation by selecting values between 0 and 100.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 16
3.2.3 Audio Configuration
Mode
Select audio operation mode.
Mode Action
Off No operation
Tx-Only Transmit only
Rx-Only Receive only
Tx & Rx Transmit and Receive
Input Gain
Set audio input gain.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 17
3.2.4 Network Configuration

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 18
IP Mode
Three IP modes are supported. Depending on the selected mode, further configuration items
come as follows.
IP Mode Selection Description
Local IP Fixed IP address
Local Gateway Gateway IP address
Fixed IP
Local Subnet Subnet mask
DHCP N/A
☞Please ask an IP address information from ISP provider or network manager.
DNS
Set DNS server IP address.
Base Port
Network base port to be used for communication among systems. In case for the IP
cameras and remote systems to be connected together, the port number must be identically
set.
HTTP Port
HTTP port use for web-based connection
RTSP port
Audio and video streaming from server to client conforms to RFC standards.
Streaming and direction Protocol Remarks
Server -> Client
- Audio and video
- RTP(RFC1889) / RTSP(RFC2326)
- RTP over RTSP(TCP)
Video: H.264
Audio: G.711 u-law
Client -> Server
- Audio - Non standard*
Additional remarks
- Audio channel from client to server is not implemented yet, for standard way of delivering
stream in such direction is not defined.The scheme can be discussed with client
application developers and can be implemented easily if the scheme is determined.
- RTSP over HTTP tunneling will be supported soon.
Multicast IP
The multicast IP address selection range is between 224.0.1.0 and 238.255.255.255. The
selection can be used only when media protocol is set to Multicast. The multicast address
must be the same for the system to be connected using multicast protocol.

Cywatch HD Megapixel IP camera Operating Instructions (Ver. 1.0)
CamTron Industrial Inc. 19
DDNS
Select the DDNS(Dynamic DNS) server to use. One of the two IP cameras can be selected.
- TrueDNS : use TrueDNS service. Systems can be registered on the website for TrueDNS
service: http://ns1.truecam.net. System will get a domain name of xxx.truecam.net style.
Refer user guide document for True DNS service.
- DynDNS : use DynDNS service. Refer www.dyndns.org for details.
Flow Control Mode
When several clients connect to an IP camera, bandwidths of networks clients may differ
and some clients may not receive encoded stream fully. To handle such situation, three flow
control modes which can be chosen according to users’ preference are provided.
Mode Description
Min The bitrate is automatically adjusted to a client with smallest network bandwidth.
Max The bitrate automatically adjusted to a client with largest network bandwidth size. When set to this
mode, a client with smaller bandwidth will not receive all frames of video.
Adjust The bitrate is adjusted to most optimum rate by learning the network bandwidth.
Off Flow control is off.
Address Info
Display network related information.
IP Address
The IP camera own IP address. This information is useful when the IP camera’s IP mode is
set to DHCP.
Domain Name
In case the IP camera is registered with DDNS server, the registered domain name is
displayed.
MAC Address
Display the MAC address of the IP camera. In case the IP camera is registered with DDNS
server, the MAC address is used in DDNS registration.
