Canaan AvalonMiner1246 User manual

AvalonMiner1246 User Manual
Overview
Thank you for purchasing our products. To ensure that you can fully
understand and install this product, please read the manual carefully.
Please keep it for future reference.
Safety regulation
Warning: in order to prevent equipment damage, falling, electric shock,
fire and other accidents that threaten personal safety, please install and
use in strict accordance with the instructions. Do not transform the
equipment or replace the parts by yourself.
• Do not use power supply beyond rated voltage range.
•Do not place equipment in unstable places.
•When checking and repairing the equipment, please entrust
professional personnel to operate.
• When the equipment is abnormal, cut off the power supply quickly and
contact the after-sales department.
Hardware connection
1. Network port connection；2 is the fan connection. Connect the 4 Pin fan
extension cable, as shown in the figure：

3 is the fan connection, connecting the 4Pin fan extension cable; 4 is connecting the
power supply with the control board and connecting it with 6pin cable, as shown in
the following
figure:
5 is to connect the hash board with the control board with 2 × 7pin cable, as shown
below:

Button and indication LED
Button
RESET：System reset button, system reset will not affect the network
series.
FUNC：Function button can be used to restore factory configuration, enter
configuration mode, switch on light status during operation, etc

Indication LED
•After power on, the indicator light flashes red several times
•After the device is started, the indicator light will be yellow for
about three seconds. During this period, press the func key to enter
the configuration mode.
•The indicator led is green under normal mining condition.
•The indicator light is yellow during system preparation.
•When the system is overheated, the indicator light is red.
•During the operation of the system, through FMS software or manually
pressing the func key, the indicator light flashes alternately yellow
and green, and then press again to restore the original color
•Restore the factory settings: press the func function key when power
on, keep it unchanged for five seconds until the red light flashes,
then press reset or disconnect the power to restart.
Work mode
The device has two working modes: "normal mode" and "configuration mode".
The default mode is DHCP mode.
Normal mode
In normal operation mode, the device runs in this mode most of the life
cycle. In this mode, the network can use DHCP (dynamic acquisition) or
static IP, and the factory setting is DHCP.
Configuration mode
Enter this mode by press the func button during the Red LED light at second
time (about 3 seconds ) at miner start up.
Press the func key before starting and then start the machine. During the
red light period (about three seconds), the device will enter this mode.
In this mode, the IP address is static (address: 192.168.168.168, subnet
mask: 255.255.255.0). The built-in web services of the device can be
accessed through PC browser, and then the network, mine pool, password and
other information can be configured.
After setting the PC to static IP address: 192.168.168.100 (or any other
non conflict address in the same network segment), subnet mask:
255.255.255.0, connect the PC to the same network (under the same switch or
router, or the PC is directly connected with the device network cable).

1.Right click ，Open network and Internet settings
2. Change the adapter options, disable WLAN and enable Ethernet.
You can access it with your browser http://192.168.168.168/ Configure the
device (modify static IP, etc.). After the device configuration is
completed, it needs to be rebooted. You can click reboot on the left side
of the console, or manually power off and restart. Don't forget to switch
the network connection so that the device can't access the Internet.
Use the browser to access the modified IP address again. If the indicator
is green, the operation is correct.
System setting
Access the built-in web service of the device through the browser, and
access the device console after login
User login
Default user name：root，default password：root，after login you could see
the Overview page.

Network setting
Click Network on the left side of the console to set it as DHCP (dynamic
access) or static IP (static).
Note: after saving the network settings, you must restart it. You can click
reboot on the left side of the console, or press the reset button to
restart. You can also disconnect the power supply and power on again.
Pool setting
The following figure shows the factory default settings. Normal mode
(normal mode / low power consumption mode) or high performance (high power
consumption mode) can be selected for work mode. When using high
performance mode, please pay attention to using the power supply with
higher power output to avoid damaging the hardware.
Note: after saving the configuration of the ore pool, it must be restarted.
You can click reboot on the left side of the console, or press the reset
button to restart. You can also disconnect the power supply and power on
again.

-
User Password
Default username：root，Default password：root
Click administrator on the left side of the console to set a new password
and save it.
Firmware Upgrade
The upgrade package file format of this device is *. AUP, which can be
downloaded through the official website or contact customer service.
The firmware of the device can be upgraded by FMS software.
Restore to factory setting
When power on, press the func key for 5 to 10 seconds, and the system will
automatically clear the saved configuration, including network, mine pool,
password and other information. After the configuration is cleared, the
white indicator light flashes frequently, indicating that the configuration
is restored successfully. After releasing the func key, press the reset

button to restart, or disconnect the power supply and power on again. The
system will work with the default factory configuration.
Device guarantee
In the process of use, the equipment may not work normally due to loose
connection and abnormal damage of device wire. You can check and remove the
fault by yourself. If the device is damaged and within the scope of
warranty, you can contact our after-sales personnel for quick repair.
This product provides a 180 day warranty from the time the customer
receives the goods, but the following conditions will void the warranty:
•Any physical damage caused by self dismantling equipment or other
reasons (including but not limited to: fracture, fragmentation,
missing corner, missing components, etc.)
•Damage caused by lightning strike, voltage surge, etc
•There are burn marks on the circuit board or the chip is burned
•Damage caused by water inflow and immersion
•The circuit board is damp and corroded
•beyond the warranty period
If the above situation happens unfortunately, we can still provide charge
maintenance service for your equipment, you can also contact the after-
sales personnel to purchase parts for self repair.
Malfunction
Boot failure
1、Failure phenomenon
Fan does not turn or LED light does not light up after starting.
2、Possible Cause
Mine fan wiring loose, Miner control board power supply line
disconnected, AC power input is not well connected, power module is
broken, control board is broken, power output short circuit protection.
3、Inspection and repair methods
• Power on the whole miner, turn on the power switch of the miner, and
plug in the network cable connected with the switch (or router).
Check that the network port link light flickers. If the network port
light is not on, it indicates that the MM control board has no power.
It is necessary to check the power line connection, replace the power
supply or check whether there is a short circuit in the power output.
• If the network port light is on, but the LED light of MM control

board is not on, it is necessary to replace the MM control board.
• If the MM control board LED is on but the fan does not rotate, check
the fan connection line or replace the fan.
Can’t mine
1、Faulty phenomenon
• Unable to connect the pool for a long time (more than 5 minutes)
after starting up (the miner lights up yellow for a long time, does
not turn green light, has no hashrate).
• The miner pool can be connected after the machine is turned on (the
LED light of the miner is green), but it has no hashrate.
2、Possible cause
• pool configuration error.
• Network configuration error.
• The miner cannot access the Internet.
• The miner power supply has no main circuit output (wiring error,
overload, short circuit or damage).
• The miner's hashboard does not work。
• overheat protection.
3、Check and repair
• If the PC cannot be connected to the miner through the network, you
can try to restore the factory settings after confirming that the
network environment is normal, the network cable is firmly connected,
and the miner is started normally. The method of restoring factory
settings is shown in Appendix I.
• Check the current firmware version of mining machinery, and it is
recommended to update it to the latest version with FMS. See Appendix
3 for the upgrade method.
• Check the status of the hashboard .
• Click log to view the working status as shown in the figure below. It
should be in work normally. If it is overheating shutdown, check the
fan and ambient temperature as follows.
• Check the number of hash boards shown in the figure below. If the
value is 1 or 2, you need to contact our after-sales personnel for
handling. If it is 0, you need to check the status of the power
supply according to the following.

1. Check the power supply, temperature, network status and fan status,
and click log in the left column, as shown in the figure below:
Check the following fields in the right interface：
2. NETFAIL: The time of disconnection from the pool is recorded (if it
has not been disconnected or has never been connected to the pool,
here is all 0). In this record, the odd number items (items 1, 3, 5)
are the time of disconnection from the pool, and the even number
items (items 2, 4, 6) are the time to restore the connection with
the pool. If only the odd number items have data and the even number
items are 0, it indicates that the connection with the pool is
currently disconnected and has not been restored (usually because
the server at the end of the pool is disconnected due to excessive
pressure, if it occurs frequently for a long time, other mining
pools can be replaced).
• SYSTEMSTATU: The current working status is recorded. It is in work
normally. Among them, hash board: is the number of hash boards in
operation. If it is 1 or 2, you need to contact the after-sales
department for solution.
• TAvg is average chip temperature.
• Vo is average chip voltage range:290mV-350mV。
• PS is PSU status ,include 1-6 item as below：
Item 1: error code. Other values indicate power failure or
output short circuit。
Item 2: voltage supplied to the control board. The normal
value is 12xx.
Item 3: the voltage supplied to the hash board is normally
between 1200 and 1320.

Item 4: the current output from the power supply to the hash
board, which is related to the output power and voltage.
Item 5: the output power of the power supply to the hash
board. The normal value is between 3100 and 3300.
Item 6: the desired output voltage of the power supply to
the hashboard, which is configured by the control board.
If the six parameters in the PS field of the power supply are
all 0, it means that the control board cannot communicate with
the power supply. Please check the circuit connection. If the
connection is correct, the power supply PSU needs to be replaced.
3. Check whether the password configuration of mine pool, miner and
miner is correct.
In the background of the mining machine, click pool on the left
column to check the configuration of pool, worker and password.
Finally, click the Save button to save the settings, restart the
machine, and the configuration takes effect
4. Check network setting
Click Network on the left. The default configuration is DHCP
mode. If all the data here is empty, press F5 to refresh the page.
Note that if you need to use static IP configuration. Incorrect
DNS configuration will cause the miner to lose access to the pool.
The commonly used DNS address in China is 114.114.114.114, and
the commonly used DNS address outside China is 8.8.8.8.
Note: after modifying the configuration, you need to click the
Save button to save the configuration and restart the machine to
take effect.

Miner Simple Makeup
1．The assembled hash boards, case shell and rear panel are assembled as
follows：

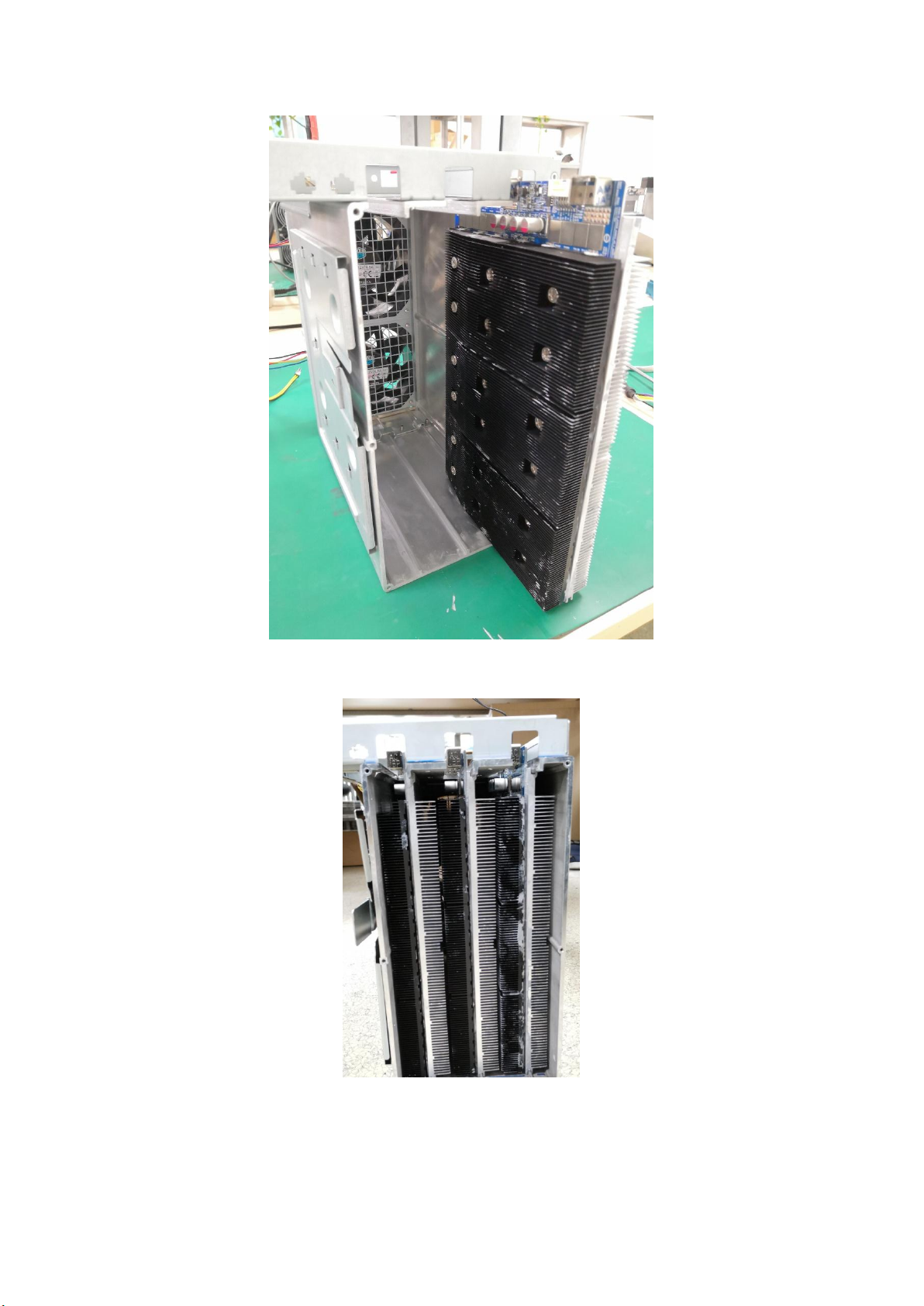

2. Place the chassis vertically, push the three hash board onto the guide
rail of the chassis, and pay attention to the assembly direction of the
hash board components, as shown in the figure：

3. Assemble the hashboards in place, as shown in the figure:
4. Assemble the rear panel to the chassis, pay attention to the assembly
direction, as shown in the figure,

5. As shown in the figure, align the opening position of the power supply
with the hook position of the power support, press it to level, and push
the power supply horizontally according to the arrow direction in the
figure until the snap pops up (with a click sound), indicating that the
power supply is assembled in place.

7. Assemble mm board according to the direction shown in the figure, and
pay attention to the position of locating pin.
8. As shown in the figure, place the conductive aluminum bar (positive pole)
at the position shown in the figure, first assemble the set screw, but do
not tighten it; tighten other screws, and finally tighten the set screw.

9. Connect the fan extension cable with MM board, pay attention to the
connection sequence.
10. As shown in the figure, place the conductive aluminum bar (negative
Set
screw
1
1
2
2

pole) at the position shown in the figure, first assemble the set screw,
but do not tighten it; tighten other screws, and finally tighten the set
screw.
11. Connect the voltage regulating line of the power supply to the MM board,
and connect the plug of the temperature sensing line to the MM board.
Set
Screw

12. Hash, as shown in the assembly diagram.
13. Place the upper shell and fix it with flat head screw, as shown in the
figure:

14. Assemble the fan line in sequence as shown in the figure
