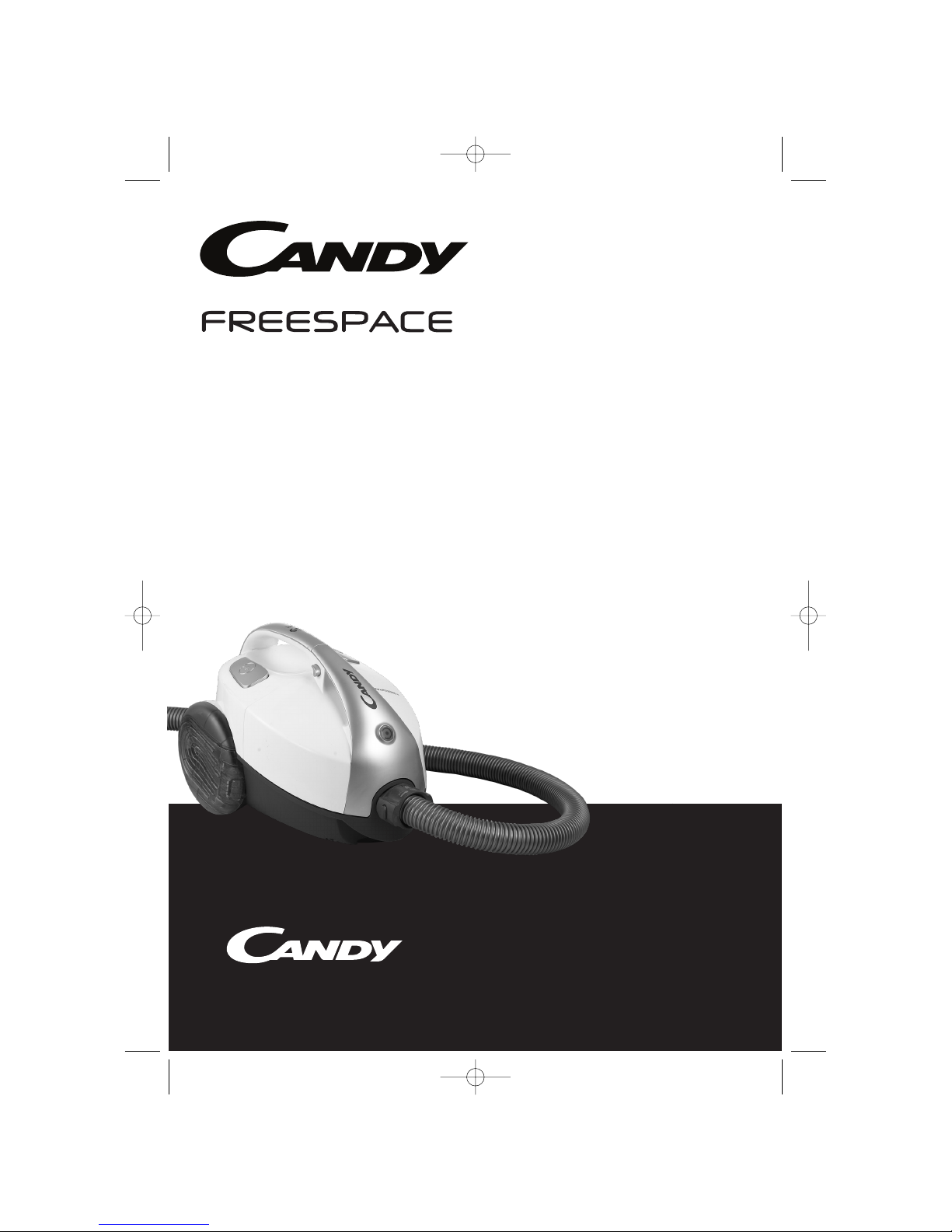

Candy Freespace Series User manual

User Instructions
ENGLISH GB
ESPAÑOL ES

P1
P3
P5
P7
P2
P4
P6
P8
Candy Bagged Standard.indd 2 04/02/2008 17:04:14

P9
P11
P13
P15
P10
P12
P14
P16
Candy Bagged Standard.indd 3 04/02/2008 17:04:14

P17
P19
P21
P18
P20
Candy Bagged Standard.indd 4 04/02/2008 17:04:16

1
IMPORTANT SAFETY REMINDERS:
This cleaner should only be used for domestic cleaning, as described in this User
Guide. Please ensure that this guide is fully understood before operating the
appliance.
Warning: Electricity can be extremely dangerous. This appliance is double insulated
and must not be earthed.
Important: The wires in the mains power lead are coloured in accordance with the
following code:
Blue - Neutral Brown - Live
Static electricity: Some carpets can cause a small build up of static electricity. Any
static electricity discharge is not hazardous to health.
Remember: After use, switch the cleaner off and remove the plug from the electricity
supply. Always switch off and remove the plug before cleaning the appliance or
attempting any maintenance.
Safety with children, elderly or the infirm: Do not let children play with the appliance
or its controls. Please supervise the use of the appliance by older children,
the elderly or the infirm.
IT IS IMPORTANT THAT YOU DO NOT:
• Position the cleaner above you when cleaning the stairs.
• Use the cleaner out of doors on wet surfaces or for wet pickup.
• Pick up matches, hot ash, cigarette ends, hard or sharp objects or anything that
may damage the cleaner.
• Spray with or pick up flammable liquids, cleaning fluids, aerosols or their va
pours as this may cause risk of fire/explosion.
• Run over the supply cord whilst using the cleaner or remove the plug by pulling
on the cord.
• Stand on or wrap the power cord around arms or legs when using the cleaner.
• Continue to use your cleaner if it appears to be faulty. If the supply cord is
damaged, stop using the cleaner IMMEDIATELY. To avoid a hazard, an
authorised Candy service engineer must replace the supply cord.
• Remove the dust bag before removing the hose from the cleaner.
• Use the appliance to clean people or animals.
Candy Bagged Standard.indd 1 04/02/2008 17:04:16
GB

2
ASSEMBLING YOUR CLEANER:
Remove the cleaner and accessories from their packaging. Please dispose of the
packaging material in a safe and conscientious way.
Insert the hose end into the cleaner, ensuring it clips and locks into position.
To release: simply press the two buttons on the hose end and pull (P1).
Fit the hose/handle and floor nozzle onto opposite ends of the telescopic tube (P2 &
P3). The accessory tools can be stored on the tool holder clipped to the telescopic
tube (P3).
USING YOUR CLEANER:
Power supply - Pull cord and plug into power supply (P4). Please make sure the
cord is fully extended before using the cleaner. Press the on/off pedal once to start
the cleaner (P5). Press it again to stop the cleaner before removing the plug after
use. Press the cord rewind button to wind the power cord back into the cleaner (P6).
Fixed power control (depending on model) - Adjust the suction by moving the
handle valve: suction will decrease when opening the valve (P7). Use low suction for
delicate fabrics.
Variable power control (depending on model) - Slide the variable power adjuster to
increase or decrease the suction (P8). Use low suction for delicate fabrics.
Telescopic Tube - The telescopic tube can be extended in length when required
by sliding the tube latch forward to release the extension tube. The extension tube
can then be pulled out to the desired length (P9).
Carpet & Floor Nozzle - Press the pedal on the nozzle to lower the brush head
when cleaning hard floors (P10). Press the pedal again to lift the brush head when
cleaning carpets.
Mini Turbo Nozzle (depending on model) - Use the mini turbo nozzle (P11) for deep
cleaning on textile surfaces. Important: do not use the Mini Turbo Nozzle on rugs with
long fringes, animal hide and with carpet piles deeper than 15mm. Do not keep the
nozzle stationary while the brush is rotating.
Multifunction Tool - (P12) This tool can be used as:
1. Crevice tool: for corners and hard to reach areas
2. Dusting brush: for bookshelves, frames, keyboards etc.
Furniture Nozzle (depending on model) - For soft furnishings and fabrics (P12).
Parking and storage - The extention tube can be parked for temporary storage
during cleaning or in the storage position when not in use (P13 & P14).
Candy Bagged Standard.indd 2 04/02/2008 17:04:16
GB

3
CLEANER MAINTENANCE:
Replacing the dust bag (depending on model) -If the bag check indicator is
illuminated (P15) please check and, if necessary, replace the dust bag.
1. Remove the hose from the cleaner (P1).
2. Press buttons on handle (P16) and remove the bag door (P17).
3. Pull the bag collar to remove the dust bag (P18) and carefully dispose of the
bag into a bin.
4. Fit a new bag into the cleaner by inserting the bag collar into the bag holder.
Important: The hose must be removed before removing or replacing the dust bag.
Remember: The bag check indicator will also illuminate if an obstruction has occurred.
In this case refer to the section "Removing a blockage from the system".
Emptying the permanent dust bag (depending on model) - If the bag check
indicator is illuminated (P15) please check and if necessary, empty the permanent
dust bag.
1. Remove the hose from the cleaner (P1).
2. Press buttons on handle (P16) and remove the bag door (P17).
3. Pull the bag collar to remove the dust bag (P18) from the cleaner.
4. Remove the plastic guide at the end of the bag allowing dirt collected to fall
into the bin (P19).
5. Return the guide back into the original position.
6. Replace the permanent dust bag by inserting the bag collar into the bag
holder.
7. Check the filters for excessive build up of dust and if necessary clean the
washable filter (see 'Cleaning the washable filters').
Removing the pre-motor and exhaust filters
To remove the Hepa pre-motor filter:
1. Open the bag door and remove the dust bag from the cleaner (see 'Replacing
the dust bag').
2. Press the latch at the top of the Hepa pre-motor filter frame to unlock it from
the cleaner. Tilt then remove the filter from the cleaner (P20).
To remove the Purefilt exhaust filter:
1. Unlatch and remove exhaust filter cover (P21)
2. Remove the washable exhaust filter.
Cleaning the permanent dust bag (depending on model) - To maintain optimum
performance we recommend that you wash the permanent bag under handwarm
water after every 5 full bags. Remove excess water with a dry cloth and leave to dry
fully before replacing.
Cleaning the washable filters - To maintain optimum performance please tap and, if
necessary, wash the pre-motor and exhaust filters after each bag change using
handwarm water. Remove excess water with a dry cloth and leave to dry fully before
replacing.
Candy Bagged Standard.indd 3 04/02/2008 17:04:16
GB

4
Important: Do not use hot water or detergents to wash the filters or permanent dust
bag. In the unlikely event of the filters or dust bag becoming damaged, fit a genuine
Candy replacement. Do not try and use the product without the bag or filters fitted.
Removing a blockage from the system - If the bag check indicator is illuminated:
1. Check if the bag is full. If so refer to 'Replacing the dust bag'.
2. If the bag is not full but the indicator is illuminated:
Do the filters need cleaning? If so refer to 'Cleaning the washable filters'
Check if there is any other blockage in the system - Use a rod or pole to re
move any blockage from the extension tube or flexible hose.
Warning –The bag check indicator will remain illuminated if the cleaner is used when
the bag is full, if there is a blockage or if the filters are dirty. If used for a period of
over ten minutes with the bag check indicator illuminated, an electronic cut out will
switch the cleaner off to prevent any risk of overheating. If this should happen, switch
the cleaner off, unplug and correct the fault (see ‘ Removing a Blockage From the
System’). The cut out will automatically reset upon switching the cleaner back on.
USER CHECKLIST:
Should you have a problem with the product, complete this simple user checklist
before calling your local Candy Service office.
• Is there a working electricity supply to the cleaner? Please check with another
electrical appliance.
• Is the dust bag over-filled? Please refer to 'Cleaner Maintenance'.
• Is the filter blocked? Please refer to 'Cleaner Maintenance'.
• Is the hose or nozzle blocked? Please refer to 'Removing a Blockage from the
System'.
Candy Bagged Standard.indd 4 04/02/2008 17:04:16
GB

5
Candy Bagged Standard.indd 5 04/02/2008 17:04:16
GB
IMPORTANT INFORMATION:
Genuine Candy Spares and Consumables - Always replace parts with Genuine
Candy Accessories and Consumables. These are available from your local Candy
Dealer.
Pure Hepa Bag: H63 C - 35601097
Consumables:
Hepa Pre-Motor Filter: S85 C - 35601098
Purefilt Exhaust Filter: T87 C - 35601099
Hepa Exhaust Filter: T93 C - 35601101
Spares:
Complete Hose: D93 C - 35601102
Carpet & Floor Nozzle: G85 C - 35601103
Parquet Caresse Nozzle: G89 PC C - 35601104
Mini Turbo Nozzle: J26 C - 35601105
Should you require service at any time, please call your local Candy Service office.
The Environment
This appliance is marked according to the European Directive 2002/96/EC on Waste
Electrical Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly you will help prevent potential
negative consequences for the environment and human health, which could otherwise
be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as
household waste. Instead it shall be handed over to the applicable collection point for
the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for
waste disposal.
For more detailed information about treatment, recovery and recycling of this product,
please contact your local city office, your household waste disposal service or shop
where you purchased the product.
Guarantee
The guarantee conditions for this appliance are as defined by our representative in
the country in which it was sold. Details regarding these conditions can be obtained
from the dealer from whom it was purchased. The bill of sale or receipt must be
produced when making any claim under the terms of this guarantee. Subject to
change without notice.

6
ADVERTENCIAS IMPORTANTES DE SEGURIDAD:
Este aspirador debe utilizarse sólo para la limpieza doméstica tal y como se describe
en el presente manual del usuario. Asegúrese de haber comprendido todo el
contenido de este manual antes de poner en funcionamiento el aparato.
Advertencia: La electricidad puede ser extremadamente peligrosa. Este aparato
dispone de doble aislamiento y no debe conectarse a tierra. Este enchufe dispone de
un fusible de 13 amperios (solo para el Reino Unido).
Importante: Los cables que componen el cable de toma de corriente siguen el
siguiente código de color: Azul - Neutral Marrón - Con corriente
Electricidad estática: Algunas alfombras pueden provocar una pequeña
acumulación de electricidad estática. Las descargas de electricidad estática no son
peligrosas para la salud.
Recuerde: Tras utilizar el aparato, apáguelo y saque el enchufe de la toma de
corriente. Apague y desenchufe siempre el aparato antes de limpiarlo o de realizar
cualquier labor de mantenimiento.
Seguridad con relación a niños, ancianos o enfermos: No permita que los niños
jueguen con el aparato ni con sus mandos. Supervise a niños mayores, ancianos o
enfermos cuando utilicen el aparato.
ES IMPORTANTE RECORDAR QUE NO DEBE:
•Situar el aspirador por encima de usted cuando esté limpiando las escaleras
•Utilizar el aspirador en exteriores, sobre superficies húmedas o para recoger
líquidos
•Aspirar cerillas, cenizas calientes, colillas, objetos duros o afilados, ni cualquier
otra cosa que pudiera dañar el aspirador
•Pulverizar el aparato con líquidos inflamables, productos de limpieza, aerosoles o
sus vapores, ni tampoco recoger ninguno de los anteriores, dado que podría
provocarse una situación de riesgo de incendio/explosión
•Pasar por encima del cable de alimentación cuando utiliza el aspirador o
desenchufarlo tirando del cable
•Pisar el cable o enrollarlo en los brazos ni las piernas al utilizar el aspirador
•Seguir utilizando el aparato si parece tener algún defecto. Si el cable de
alimentación está dañado, deje de utilizar el aspirador INMEDIATAMENTE: para
evitar que se produzcan riesgos para su seguridad, el cable de alimentación sólo
debe ser sustituido por un técnico de Candy autorizado
•Extraer la bolsa antes de sacar la manguera del aspirador.
•Emplear el aparato para limpiar a personas o animales.
ES
Freespace_bag_std t7.qxp 09/02/2007 16:53 Page 24
