Canmac DMA EC3R User manual

CANMAC
CATERING EQUIPMENT SUPPLIER
ELECTRIC DONER MACHINE
INSTRUCTION MANUAL

ELECTRIC
DONER MACHINE
1. INTRODUCTION
2. TECHNICAL SPECIFICATION
3. SIZES, WARNING SIGNS, LABELLINGS
4. SECURITY MATTERS
5. RELOCATION AND PLACING
6. INSTALLING
7. INTENDED USE AND OPERATING
8. CLEANING AND MAINTENANCE

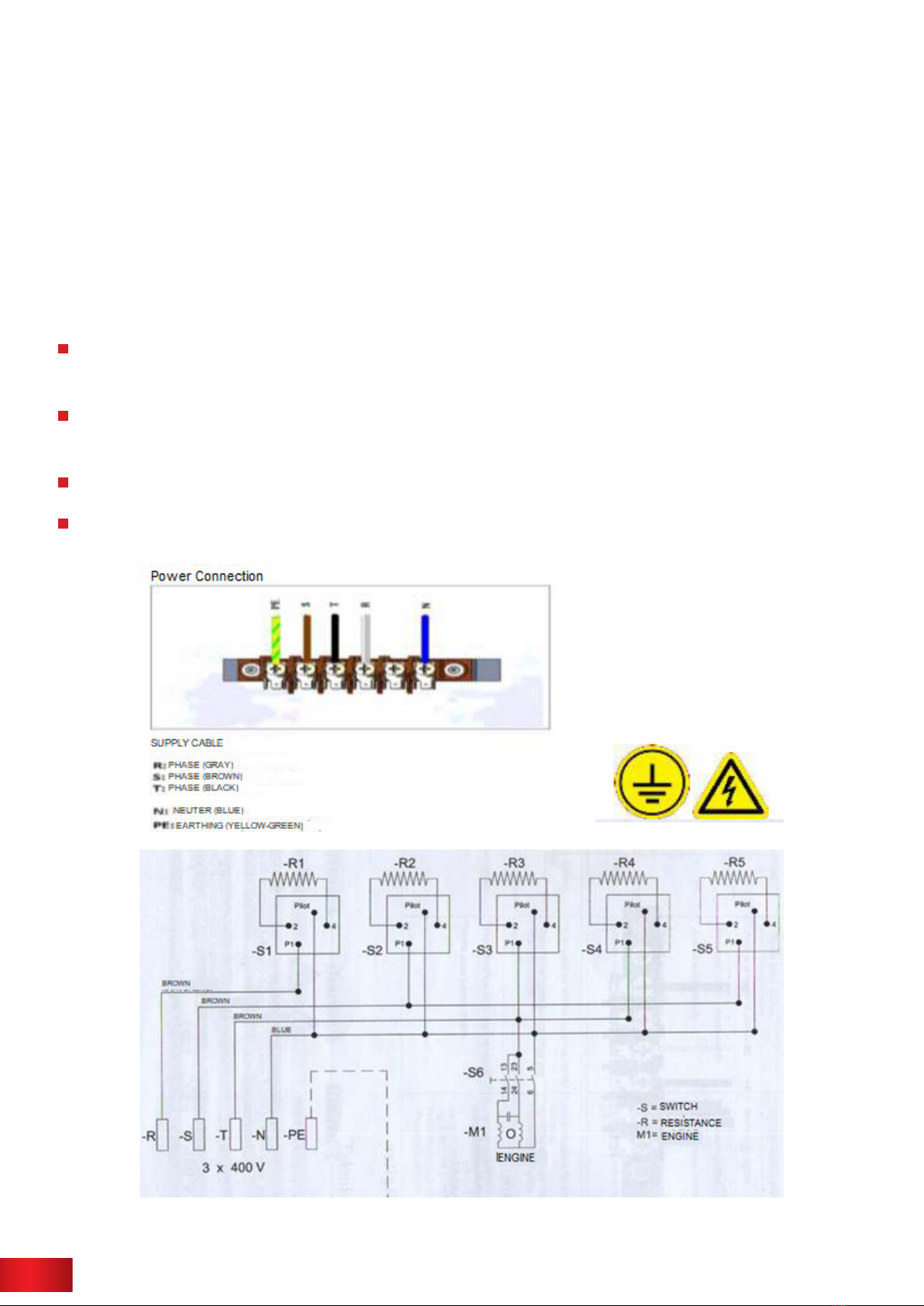

9. POWER CONNECTION
10. WARRANTY
11. AUTHORISED SERVICES
INDEX
2

Doner machines are vertical machines for meat cooking. The cooking unit is
of four stages and involves a fuse energy regulator. Doner machines are used
in restaurants, fast food take-aways, tourist facilities and canteens.
The main body design and functional areas of the device are manufactured
from stainless steel, healthy and durable material. The device obtains the
desired heat through electric power, and the temperature can be adjusted
during operating of the device.
The operating of the device and the start of the power can be monitored via con-
trol panel. Power switch is on the side of the device. Power inlet of the device is
in accordance with EN 60335-1 and EN 60335-2-38 standards.
* In case of any possible malfunction, contact authorised service only.
1. INTRODUCTION
3
ELECTRIC
DONER MACHINE

ELECTRIC
DONER MACHINE
4
MODEL NAME ENGINE POWER
DATA
ENGINE
RPM
ENGINE
POWER
DMA EC3R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA EC4R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA EC5R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA EC2R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA ECV10R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA ECV8R f=50Hz U=220V 1,3 rpm 0.25 kW
DMA ECV6R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU EC3R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU EC4R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU EC5R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU EC2R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU EC1R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU ECV10R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU ECV8R f=50Hz U=220V 1,3 rpm 0.25 kW
DMU ECV6R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM EC1R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM EC2R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM EC3R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM EC4R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM EC5R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM ECV10R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM ECV8R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM ECV6R f=50Hz U=220V 1,3 rpm 0.25 kW
DMM ECA5R f=50Hz U=220V 1,3 rpm 0.25 kW
2. TECHNICAL SPECIFICATION

MODEL
NAME
WIDTH DEPTH HEIGHT WEIGHT RESIST-
ANCE
POWER
NUMBER
OF RESIST-
ANCE
kW Amp kW/h POWER
INPUT
DMAEC3R 546 mm 662 mm 862 mm 32 kg 1750 Watts 3 pcs 5.25 kW 13.13 Amp 220V / 400V
DMAEC4R 546 mm 662 mm 1022 mm 35 kg 1750 Watts 4 pcs 7.00 kW 17.50 Amp 220V / 400V
DMAEC5R 546 mm 662 mm 1182 mm 38 kg 1750 Watts 5 pcs 8.75 kW 21.88 Amp 220V / 400V
DMAEC2R 546 mm 662 mm 702 mm 27 kg 1750 Watts 2 pcs 3.50 kW 8.75 Amp 220V / 400V
DMAECV10R 751 mm 795 mm 1204 mm 62 kg 1750 Watts 10 pcs 17.50 kW 43.75 Amp 220V / 400V
DMAECV8R 751 mm 795 mm 1044 mm 57 kg 1750 Watts 8 pcs 14.00 kW 35.00 Amp 220V / 400V
DMAECV6R 751 mm 795 mm 884 mm 52 kg 1750 Watts 6 pcs 10.50 kW 26.25 Amp 220V / 400V
DMUEC3R 545 mm 690 mm 1103 mm 29 kg 1750 Watts 3 pcs 5.25 kW 13.13 Amp 220V / 400V
DMUEC4R 545 mm 690 mm 1173 mm 32 kg 1750 Watts 4 pcs 7.00 kW 17.50 Amp 220V / 400V
DMUEC5R 545 mm 690 mm 1333 mm 35 kg 1750 Watts 5 pcs 8.75 kW 21.88 Amp 220V / 400V
DMUEC2R 545 mm 690 mm 853 mm 23 kg 1750 Watts 2 pcs 3.50 kW 8.75 Amp 220V / 400V
DMUEC1R 545 mm 690 mm 693 mm 19 kg 1750 Watts 1 pcs 1.75 kW 4.38 Amp 220V / 400V
DMUECV10R 750 mm 798 mm 1103 mm 48 kg 1750 Watts 10 pcs 17.50 kW 43.75 Amp 220V / 400V
DMUECV8R 750 mm 798 mm 943 mm 45 kg 1750 Watts 8 pcs 14.00 kW 35.00 Amp 220V / 400V
DMUECV6R 750 mm 798 mm 783 mm 42 kg 1750 Watts 6 pcs 10.50 kW 26.25 Amp 220V / 400V
DMMEC1R 545 mm 649 mm 593 mm 12 kg 1750 Watts 1 pcs 1.75 kW 4.38 Amp 220V / 400V
DMMEC2R 545 mm 665 mm 753 mm 17 kg 1750 Watts 2 pcs 3.50 kW 8.75 Amp 220V / 400V
DMMEC3R 545 mm 665 mm 913 mm 27 kg 1750 Watts 3 pcs 5.25 kW 13.13 Amp 220V / 400V
DMMEC4R 545 mm 665 mm 1073 mm 30 kg 1750 Watts 4 pcs 7.00 kW 17.50 Amp 220V / 400V
DMMEC5R 545 mm 665 mm 1233 mm 33 kg 1750 Watts 5 pcs 8.75 kW 21.88 Amp 220V / 400V
DMMECV10R 585 mm 746 mm 1243 mm 43 kg 1750 Watts 10 pcs 17.50 kW 43.75 Amp 220V / 400V
DMMEC8R 585 mm 746 mm 1083 mm 39 kg 1750 Watts 8 pcs 14.00 kW 35.00 Amp 220V / 400V
DMMEC6R 585 mm 746 mm 963 mm 35 kg 1750 Watts 6 pcs 10.50 kW 26.25 Amp 220V / 400V
DMMECA5R 606 mm 822 mm 2082 mm 72 kg 1750 Watts 5 pcs 8.75 kW 21.88 Amp 220V / 400V
3. SIZES, WARNING SIGNS, LABELLING
5
ELECTRIC
DONER MACHINE

ELECTRIC
DONER MACHINE
6
3. SIZES, WARNING SIGNS, LABELLING
1. Lower Body 8. Skewer 15. Lower Body Rear Cover
2. Upper Body 9. Disk 16.
3. Power Switch 10. Screwer for Skewer 17.
4. Electric Engine On-O󰀨 Switch 11. Skewer Security Pin – Top 18. Stand
5. Oil Drawer 12. Upper Tray 19. Resistance
6. Upper Body Stabilizing Arm 13. Prole 20. Robox Color Glass
7. Sledge 14. Upper Body Rear Cover 21. Skewer Crank

4. SECURITY MATTERS
7
ELECTRIC
DONER MACHINE
This device is for professional use only. Our device is manufactured in accordance with
international standards, thank you for choosing and trusting us. We kindly request the device
is used in accordance with the instructions given in this manual for a long-lasting, secure and
high-performance operating. Please make sure that the operator is well-studied the instruction
manual and well-trained to operate the device. In case of any failure, please check the details
below before contacting authorised service.
THIS DEVICE SHOULD BE INSTALLED IN ACCORDANCE WITH THE REGULATIONS
IN FORCE AND SHOULD ONLY BE INSTALLED IN A WELL-VENTILATED ENVIRONMENT.
REFER TO THE INSTRUCTIONS BEFORE INSTALLING AND OPERATING THE DEVICE.
THIS INSTRUCTION MANUAL APPLIES ONLY IF THE RELATED COUNTRY CODE IS ON
THE DEVICE. OTHERWISE, PLEASE REFER TO THE REQUIREMENTS GUIDE GIVING
REQUIRED TECHNICAL SPECIFICATIONS OF THE RELATED COUNTRY FOR ADAPTATION.
This manual contains specications, operating instructions and principles,
and further information about the device.
Before making the connections, check the compatibility of the electricity
distribution network and device settings.
Ensure the earth connection. DO NOT OPERATE WITHOUT EARTHING!
Before operating, make the power connections according to the information labels
both on the device and the package containing the destination country.
DO NOT OPERATE THE DEVICE IF THE DESTINATION COUNTRY
OR ELECTRICITY CATEGORY IS DIFFERENT!
Please conform to minimum installation distances.
Make sure that the power supply voltage conforms with supply voltage info given on the device.
This device is electrical and should be installed in a well and regularly ventilated environment.
If the device is operated within an enclosed environment, please use hood ventilation.

ELECTRIC
DONER MACHINE
8
4. SECURITY MATTERS
Please make the power connections carefully and in accordance with the instructions.
After the connections are made, check each and every connection ports
for electric leakage. (Use a voltage tester, DO NOT touch with bare hands!)
DO NOT COVER AIR DUCTS! – located on top and rear of the device.
KEEP FLAMMABE MATERIALS AWAY FROM THE DEVICE!
Keep in mind that the device will be way heavier and hotter than usual when loaded
with meat and in operation.
Do not touch hot surfaces (Robox colour glass, side covers) on the device
and use a proper safety glove during operating.
Guard Heater On-O󰀨 Switch (3), Engine On-O󰀨 Switch (6), Front Protective Glass (4),
and Output Cable Connectors from impact.
Take required precautions for food safety and security issues,
and cleanse the device on a daily basis.
Make sure that the device is unplugged after meat-cutting process is over.
Do not move the device during operating.
If relocation is desired, make sure that the device is cooled down and unplugged before doing so.
Do not use out of intended purpose!
In case of any doubt during or after operating, immediately turn o󰀨 and unplug the device.
If an open-air usage is in question, do not use under bad weather conditions
(wind, rain, snow etc.).
Secure usage is only e󰀨ectual if the spare parts are original. In case of any malfunction,
please use original spare parts.

4. SECURITY MATTERS
5. RELOCATION AND PLACING
9
ELECTRIC
DONER MACHINE
In case of any doubt or malfunction, turn o󰀨 and unplug the device, and immediately contact
authorised reseller. Do not operate the device before required maintenance is carried out.
If any hazard (impact, falling etc.) occurs during transportation, contact authorised
service for an electric leakage test before operating the device.
Third party intervention may cause damage and personal injuries, please contact authorised
tech service.
If any transportation is required, please carry the device in its original packaging
and carefully read the transportation signs on the package.
If the original packaging cannot be found, it is strictly recommended that the mobile parts
(Robox color glass, skewer, skewer knob, upper mobile body and oil drawer) are tightly
stretch lmed to avoid any possible damages.
Take required precautions against impacts that may damage Heater On-O󰀨 Switch (3),
Engine On-O󰀨 Switch (6), Front Protective Glass (4), and Output Cable Connectors.
Do not place heavy materials on top of the device.
Keep the device right up during relocation.
If the device is to be stored without usage, keep it away from moisture and dust,
and in its original package.
Manufacturer takes no responsibility for damages caused by faulty power connections.
All maintenance work should be held by the authorised tech service. Otherwise, warranty
will no longer be in force.
If the power connection is made by authorised service or certied expert, and the device
used in accordance with the manual, (6) months material warranty will be e󰀨ective.

ELECTRIC
DONER MACHINE
10
6. INSTALLING
Installing of the device should only be held by authorised personnel or certied expert.
The environment in which the device will be installed and operated should be well-ventilated.
Metal surfaces – especially those contacting the food – of the device should be cleansed
before operating.
Use proper cleaning appliance for food safety.
The device should be installed in an environment with minimum 1 m3 air for 300 kcal/h
– if the environment is enclosed, provide a hood or proper ventilation.
Use the device with a proper electric connection that conforms with the given details.
Place the device on top of a plain, strong marble or stainless platform with 70 cm height.
Make sure that the side on-o󰀨 switches are o󰀨 before operating.
Place the device with minimum 150 mm distance from the wall.
Power network cables should be tested by certied experts.
IMPORTANT: Maximum heat power of the device during operation is 1.750 kW.
Faulty parts should only be changed with original spare parts produced
by the manufacturer itself.
Manufacturer strictly recommends the usage of original parts for secure operating of the device.
Manufacturer takes no responsibility for damages caused by faulty installing or connection.

7. INTENDED USE AND OPERATING
11
ELECTRIC
DONER MACHINE
Doner machines are vertical devices used for cooking meet, produced with double motors
(upper and lower) and of stainless steel.
Make sure that the power connections are made in accordance with the related
standards and regulations.
Areas of use are hotels, restaurants, fast food take-aways, touristic facilities and canteens.
Main body and functional parts of the device are of stainless, healthy and durable material.
When the power switch is on, the device reaches the desired heat.
Operation process can be tracked through control panel.
Plug the device.
Make sure that the connections are made correctly before operating.
To heat the device up, rotate the power on-o󰀨 switch in direction of the ame sign.
Do not plug the engine if there is no earth line.
Skewer the meat and place the skewer in skewer socket knob on the mid-lower body.
Clamp the upper safety lock.
Tighten the skewer-screw on the skewer socket knob.
Make sure that the skewered meat is properly placed on the machine.
Ensure an equal cooking via xed rotation speed by using on-o󰀨 switch
(located on the lower right-hand side).
Depending on the amount of meat, adjust the distance between upper body
(with resistance) and meat by using clamping bolt on the right hand side
– in accordance with the related food safety regulations.
Turn the device o󰀨 when there is no more meat loaded and unplug it.

ELECTRIC
DONER MACHINE
12
7. INTENDED USE AND OPERATING
Electric connections should be checked before operating. To let the power in,
rotate the knob arrow direction (to the left).
First turn the knob till it reaches 1 and let the power in.
Power inlet can be observed through observation port. You can adjust the heating
by turning the knob arrow direction to the points of 2, 3, and Max.
ELECTRIC ENGINE PLUG
Make sure that the plug socket, in which the electric
engine to be plugged, has earth line.
ELECTRIC ENGINE ON-OFF SWITCH
After plugging in, mobilize the engine either clockwise or
counter-clockwise through the on-o󰀨 switch on front of the device.
SLEDGE
To stabilise or mobilise the upper-body, use the side
sledge-stabiliser (6) and adjust the position.

8. CLEANING AND MAINTENANCE
13
ELECTRIC
DONER MACHINE
Unplug the device.
Make sure all electric switches are o󰀨.
Wait for the device to cool down. Wipe the doner fat with a cloth.
Electric connections should be checked before each operation.
Cleanse the device on a daily basis with proper cleaning agents for food safety.
Check the oil drawer regularly during operation.
Do not pour the waste oil into the sink, deal with the waste oil in accordance
with the regional regulations.
Do not use pressure water or vapour machines during cleansing. Manufacturer
takes no responsibilty for damages caused by faulty cleaning.
Do not use cleaning abrasive agents such as stain or rust remover and rigid rags
that may cause damages on the stainless surface.
Towel your device after every wet cleaning.
Clean your device regularly, after each cooking process ends.
The surfaces contacting the meat should be cleaned carefully for food safety.
Clean it with a wet cloth and soap.
POSSIBLE MALFUNCTIONS AND SOLUTIONS
MALFUNCTION REASON SOLUTION
DEVICE IS NOT
HEATING UP
FUSE MAY BE BLOWN CHECK THE FUSE
SWITCHES MAY BE TURNED OFF TURN THE SWITCHES OFF
RESISTANCE MAY BE FAILING TURN THE FUSE OFF
SWITCHES MAY BE MALFUNCTIONING TURN THE SWITCHES OFF
POWER NETWORK MAY BE FAILING CONTACT A CERTIFIED EXPERT
HEATING IS NOT EFFICIENT TEMPERATURE KNOW M
AY BE SET TO LOW HEAT
TURN THE KNOB TO HIGH HEAT
FRONT PROTECTIVE
GLASS IS BROKEN
IT MAY BE HIT BY A HARD OBJECT TURN THE SWITCHES OFF
COLD WATER OR OIL CONTACT MAY BE OC-
CURED WHEN THE GLASS IS HOT
CONTACH AUTHORISED
TECH SERVICE
ENGINE
IS FAILING
ENGINE ON-OFF SWITCH MAY BE FAILING CHECK THE SWITCH
ENGINE MAY BE MALFUNCTIONING CONTACT AUTHORISED TECH SERVICE

ELECTRIC
DONER MACHINE
14
9. POWER CONNECTION
Power connections should be made by a certied expert, and should be
in accordance with EN 60335 standards.
Commissioned expert should know and practice the regional power regulations
and sanctions.
Engine: 230V/50Hz Resistance: 400V/50Hz
Ensure an earth line.

9. POWER CONNECTION
10. WARRANTY
11. AUTHORISED SERVICE
15
ELECTRIC
DONER MACHINE
SUPPLY TABLE
PE EARTH (YELLOW-GREEN)
L PHASE (BROWN)
N NEUTER (BLUE)
If the power connection is made by authorised service or certied expert, and the device
used in accordance with the manual, (6) months material warranty will be e󰀨ective.
Technical service is provided in our premises.

CANMAC
CATERING EQUIPMENT SUPPLIER
www.canmac.co.uk
[e-mail]
MAKFRY UK LTD
Northfield House Farm
Rugby Road, Cotesbach
LUTTERWORTH
LE17 4HT
([phone]
