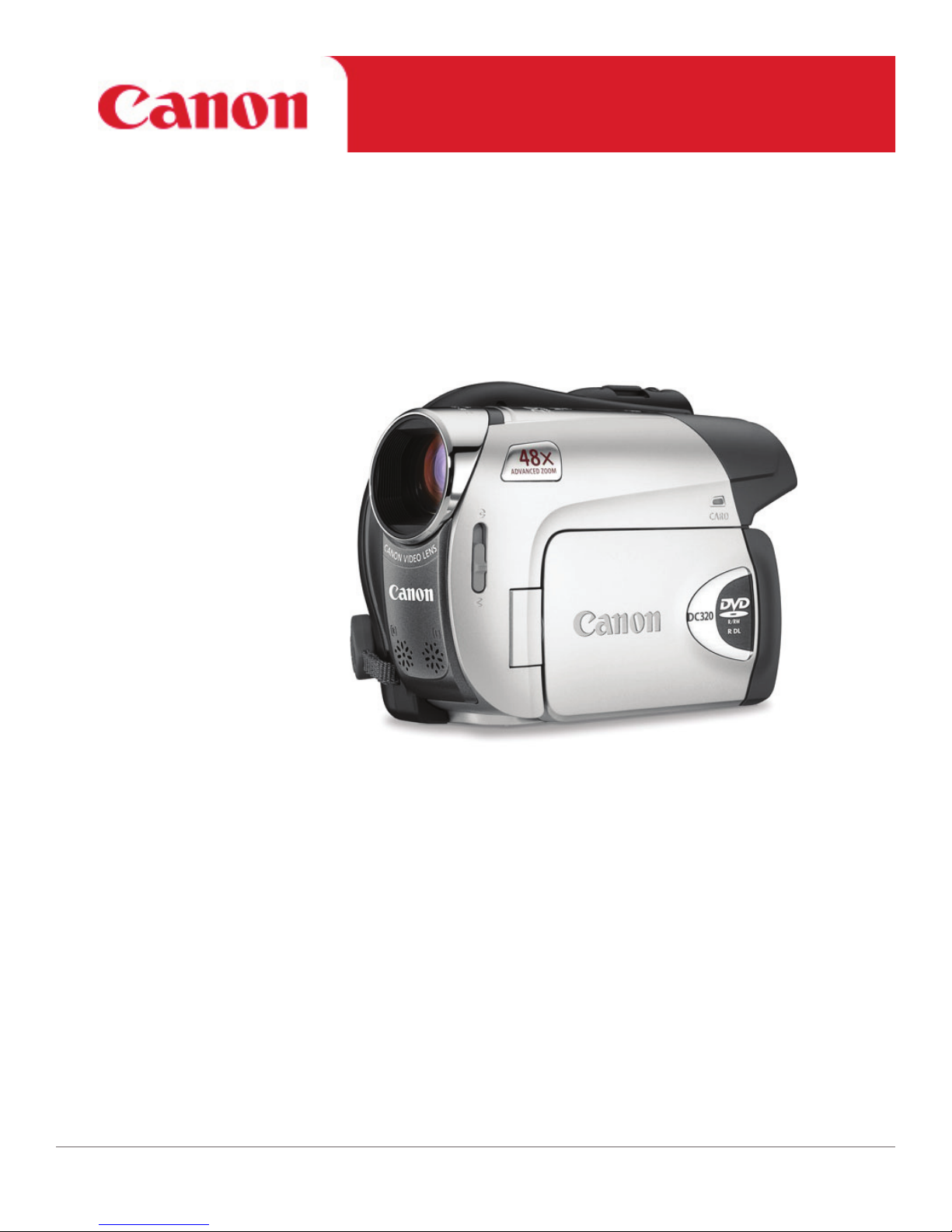

DC320

DVD Camcorder

Item Code: 2691B001

Overview

Around the world, the name Canon means optical excellence, advanced image processing and

superb performance. And Canon digital video camcorders are no exception.

If your choice of recording media is DVD, you’ll ﬁnd a family of capable and technologically

sophisticated DVD camcorders built with the Canon know how which you’ve come to expect in all our

products.

Affordable, sleek and easy-to-operate, the Canon DC320 gives you the convenience of DVD

technology, along with our exclusive Canon 48x Advanced Zoom- a feature only possible with our

industry-leading optical technology. It also boasts our advanced DIGIC DV II image processor, a 1.07

Megapixel CCD, SD card image storage capability, Quick Start and Joystick Control. Add to that the

long recording time available thanks to its high capacity battery and low power consumption and you’ll

see that the DC320 makes it simpler than ever to capture and share all the unforgettable moments of

your life.

Features

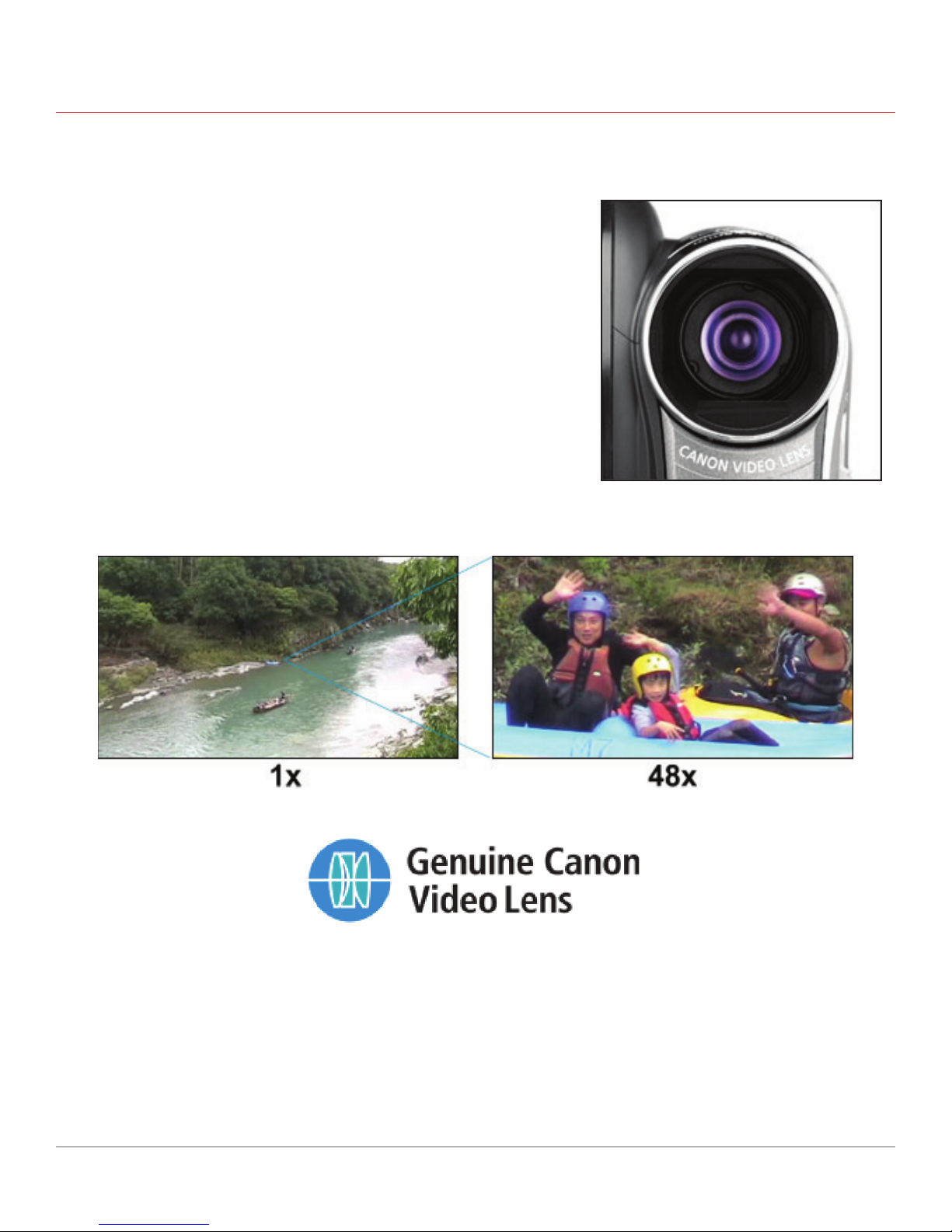

Canon Exclusive- Genuine Canon 48x Advanced Zoom

Canon is known throughout the world for optical excellence.

Every Canon broadcast TV lens, 35mm ﬁlm camera, digital

camera and camcorder share this brilliant optical quality. And

now, to take better advantage of that quality, Canon introduces

a new Canon Exclusive feature.

The Canon 48x Advanced Zoom on the DC320 is just the kind

of exclusive Canon feature you’ve come to expect from the

leader in imaging and optics. Advanced Zoom extends the

power of your zoom and is the longest zoom Canon has ever

offered. In both wide angle and telephoto positions, there is

virtually no loss in image quality throughout the range. How is

this accomplished? With a Genuine Canon lens which remains

in constant motion through the entire extended zoom range aided by our proprietary DIGIC DV II

image processor.

And thanks to Canon’s superior electronic expertise, the DC320’s image

stabilization system corrects camcorder shake instantly. The built-in,

high-quality image stabilizer allows you to shoot professional-looking,

rock-steady video -- whether you’re recording sporting events, your child’s

birthday party, or a long focal length shot without a tripod. Your life never sits still, and the DC320 will

help you capture it all.

The DC320 offers you more ﬂexibility to get just the shot you need by giving you the choice of Canon

48x Advanced Zoom in default mode or you can select a 37x Optical Zoom or a 2000x Digital Zoom.

You will always be able to get the shot you need, no matter how close or far away, and always with

the quality you expect from Canon. And with our unique super spectra coating, which reduces ﬂare

and ghosting, the image you capture will be cleaner than ever.

Image Stabilization

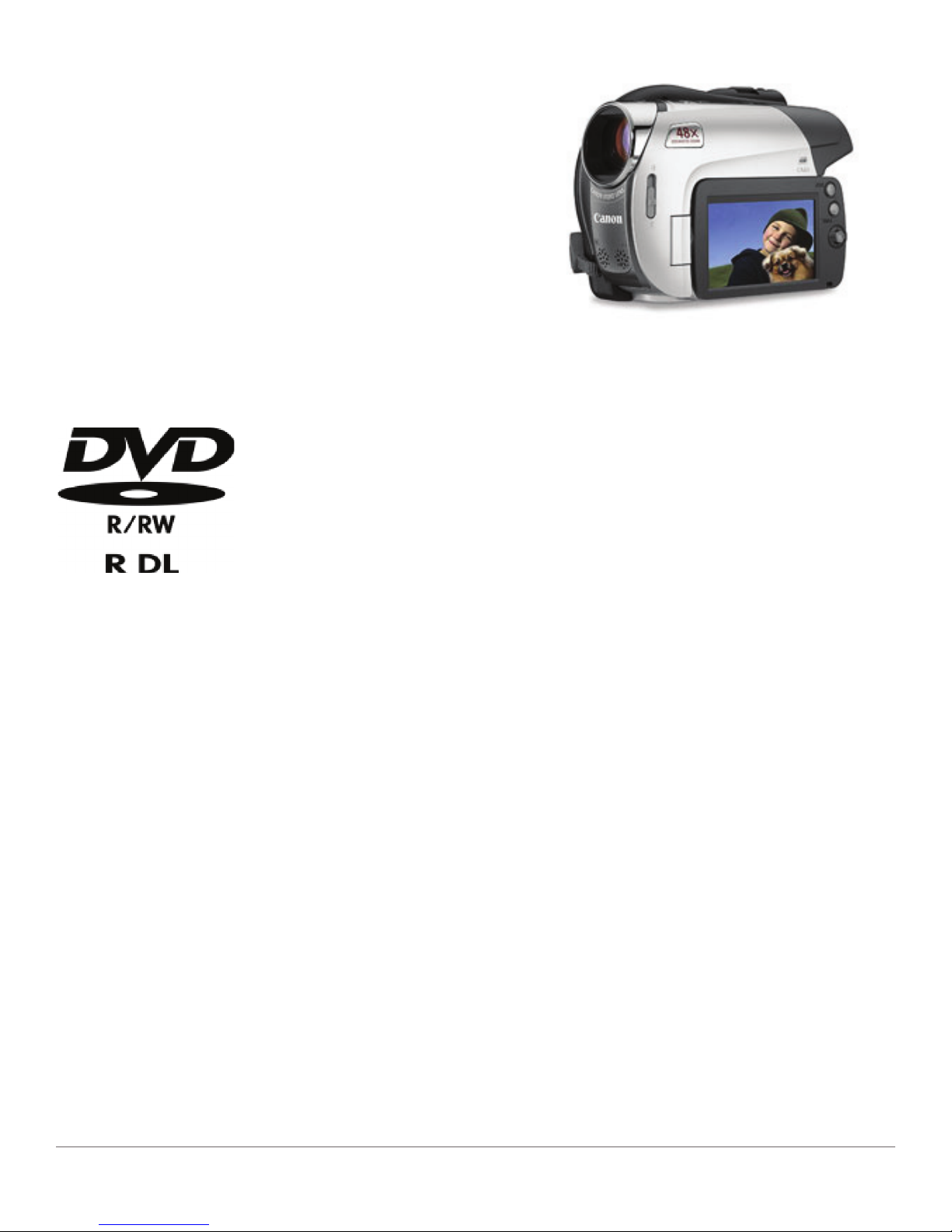

Record Direct To DVD

The DC320 digital camcorder lets you record directly

to DVDs, and lets you shoot and share video through a

variety of options. Only 3” (8cm) in diameter, the DC320’s

DVD-R/-RW discs are compatible with most DVD players

and can store up to 30 minutes of video in standard mode

and 60 minutes of video in long play mode. They also

record to DVD-R DL (dual layer) discs that can store up to

108 minutes of video.

When using the DC320’s DVD technology, there’s no worry about mistakenly taping over a once-in-

a-lifetime piece of footage. Just shoot and the DC320 makes sure you record onto a blank part of the

DVD.

You can also review your footage quickly and easily without spending lots of

time in rewind or fast-forward searching. With the DC320’s Visual Index, you

can review your footage at a glance and play the selection you want. You can

even select shots and arrange them in a playlist. It’s like editing your video

right in your camcorder! You can also capture vibrant still images direct to the

DVD.

What’s more, the ﬁnalization process for these DVDs is quick and easy with the DC320. It’s just one

more reason why you’ll love recording direct to DVD with your DC320.

Canon Exclusive- DIGIC DV II Image Processor

The Canon DIGIC DV II Image Processor is the next generation of Canon’s exclusive DIGIC DV

signal processing technology. Because video and still images have different color requirements,

DIGIC DV II digital signal processing ensures the best image quality for both by speciﬁcally optimizing

the settings for video and stills. Thanks to DIGIC DV ll image processing, the DC320 produces video

with improved color reproduction -- especially in skin tones, and dark and light scenes. It also uses a

hybrid noise reduction system that employs two types of noise reduction -- for images that are crystal

clear.

Brilliant Video

Widescreen HR Recording

The DC320 records true High Resolution Widescreen for picture perfect video. Canon’s Widescreen

HR Mode uses the entire width of the image sensor, capturing true 16:9 widescreen. What difference

does it make? It’s simple. The more pixels which are captured, the better your ﬁnal image quality is.

The widescreen story doesn’t end there. Even the LCD monitor of your DC320

displays the image in 2.7” widescreen color. From side to side and top to

bottom, what you see will be what you get. No need to guess what your ﬁnal

image will look like when you’re shooting. Not only that, but the DC320’s big,

2.7” LCD screen and .35” widescreen viewﬁnder let you see exactly what

you’re recording.

The DC320 also lets you show your great Widescreen HR video on a standard

television in letterbox format.

To make it even easier, a Widescreen Button lets you switch from standard 4:3

to 16:9 Widescreen Mode at the touch of your ﬁnger. The widescreen feature

can also be used in both Program Mode and Easy Recording Mode, as well as with the camcorder’s

advanced image stabilization.

Smooth Zoom Control

Smooth Zoom Control allows you to choose between three ﬁxed-zoom speeds to ensure smooth,

steady zooms automatically.

Level and Grid Markers

Level, well-composed shots are simple with the

Level and Grid Marker features. Line up the horizon

or other horizontal lines with the Level Marker in

the viewﬁnder for level landscapes. Or, use the

Grid Marker to help compose the perfect shot. Both

markers can be set to white or grey for enhanced

visibility, no matter what the background.

Megapixel Performance

With the DC320, you get a 1.07 Megapixel CCD image sensor with a color correction ﬁlter. Your video

will be sharper, clearer and more true to life, as will your photos. Every sunset on the beach will be

more dramatic with every color in the sky faithfully captured. The joy on the face of a child scoring her

ﬁrst goal on the soccer ﬁeld is recorded just as you saw it.

Compact Size and Convenience

All of the convenience of recording onto DVD is found in the DC320s slim,

lightweight, gracefully designed body. It’s compact- only 2.6” wide x 3.5”

high x 5” deep (not including grip belt) and weighs just under a pound,

making it easy to take the DC320 with you wherever you go.

Joystick Control

Adding to the ease of using the DC320 is Canon’s Joystick Control. The

Joystick makes using your camcorder easier than ever. Extra buttons have been

eliminated, allowing you to access many functions from one convenient place.

The Joystick lets you control Play, Stop, Fast Forward, and Rewind functions

during playback. It also controls exposure lock and exposure compensation

during recording.

Easy Menu

The DC320’s easy-to-read menu system makes it a breeze to operate. For

the ultimate in stress-free shooting, there’s the Easy Mode. In this setting,

your DC320 automatically chooses the focus, exposure and any additional

available parameters to ensure that whatever you’re recording comes out

looking great. Simply select, point and shoot- there’s nothing else to worry

about.

Built-in Lens Cover

You’ll never have to go searching for your lens cover with the DC320’s built-in lens cover. There’s

also no more chance of your lens cap dangling from your camcorder and interfering with your shot or

getting in your way.

Quick Start

With Quick Start, you’ll never miss a shot again as you rush to turn your

camcorder on and start recording. With this feature, you simply push the

Quick Start button to put your DC320 in stand-by mode. Then, with your

camcorder in stand-by mode, you can simply push it again and the DC320

begins to record in less than a second. With Quick Start, it’s easy to capture

the spontaneous and surprising moments that happen in your life. It also

saves battery power so you get more recording between charges.

Stunning Digital Photography

Now, you can leave your digital still camera at home, because,

with Canon’s advanced technology, you get the best of both video

and photography in the DC320. You also have a wealth of photo

features usually only found on advanced digital still cameras.

The DC320 helps you make accurate exposures with its histogram

display. Special Scene Modes also ensure accurate exposures

under a wide variety of difﬁcult lighting conditions. Modes include:

Portrait, Sports, Night, Snow, Beach, Sunset, Spotlight, or

Fireworks. Plus, Auto Exposure Bracketing automatically shoots

three frames: normal exposure, -0.5 EV and +0.5 EV.

Progressive Photo ensures images with sharp detail, while Image Effects let you adjust the image

depending on your subject. Effects include: Vivid, Neutral and Soft Skin Detail.

You also get 9-point AiAF (Auto Intelligent Autofocus) for sharp focus even if your subject isn’t in the

center of your shot.

No matter how you take your photos, you have the choice of capturing those still images either onto

DVD or a SD card.

The DC320 also comes equipped with different Drive modes for greater ﬂexibility. You get: Single

Shooting, Continuous Shooting, High Speed Continuous Shooting, and Auto Exposure Bracketing.

Audio Excellence

To match the brilliance of its video image quality, the DC320 records

audio with Dolby Digital Stereo*. This ensures a complete movie

theater experience in the comfort of your living room as you share vivid

memories with your friends and families.

*Dolby and the double-D symbol are registered trademarks of Dolby

Laboratories.

Share Your Videos

Of course, with the convenience of DVDs, it’s easy to share your video with friends or family simply by

letting them view your ﬁnalized discs in their DVD players. You can also watch the video you’ve just

shot by connecting your DC320 to your TV and viewing your unﬁnalized DVD. (Your DC320 comes

with a Composite output terminal.)

Share Your Photographs

With the DC320, you can print directly from your camcorder to any PictBridge-compatible printer, or

store your digital photos on a Secure Digital (SD) Memory Card.

Additional Features

■9 Digital Effects/9 Fades (Camera Mode) add

professional-looking touches to your videos.

■21 Selectable Display Languages include:

English, Japanese, French, German, Spanish,

Russian, Simpliﬁed Chinese, Traditional Chinese,

Korean, Italian, Polish, Romanian, Turkish,

Ukrainian, Arabic, Persian, Thai, Greek, Czech,

Hungarian and Malay.

■1 Year Parts And Labor Limited Warranty

provides protection long after other manufacturers’

warranties expire.

Speciﬁcations

Digital Video

Power Consumption TBA

Image Sensor 1/6-inch CCD

Total Pixels Approx. 1,070,000 pixels

Effective Pixels disc: 16:9 - approx. 550,000 pixels (ADV.Z off)

16:9 - approx. 710,000 pixels (ADV.Z on, wide)

16:9 - approx. 410,000 pixels (ADV.Z on tele)

card: approx. 800,000 pixels (4:3); 600,000 pixels (16:9)

Maximum recording time Single Layer: 1.4GB - XP: 20min., SP: 30min., LP: 60min.

Dual Layer: 2.8GB - XP: 36min., SP. 54min., LP: 108min.

Lens Zoom Ratio: 48x Advanced Zoom

37x Optical/2000x Digital

Focal length: f=2.6 - 96.2mm

Zoom Speed: Variable/3 Fixed Zoom Speeds

Max. F/Stop: f/2.0 - 5.2

Minimum Illumination 2 lx (Night Mode)

Recommended Illumination More than 100 lx

Viewﬁnder 0.35-inch widescreen EVF (approx. 114,000 pixels)

LCD Screen 2.7-inch widescreen LCD (approx. 112,000 pixels)

Recording Media DVD-R/-RW/-R DL

Audio Dolby Digital 2ch (AC-3 2 ch)

Dimensions (WxHxD) 2.6 x 3.5 x 5 in. (66 x 90 x 126mm)

Weight (not including lens and

battery pack)

13.4 oz. (380g) (camcorder body only)

Note: *ADV.Z - Canon 48x Advanced Zoom

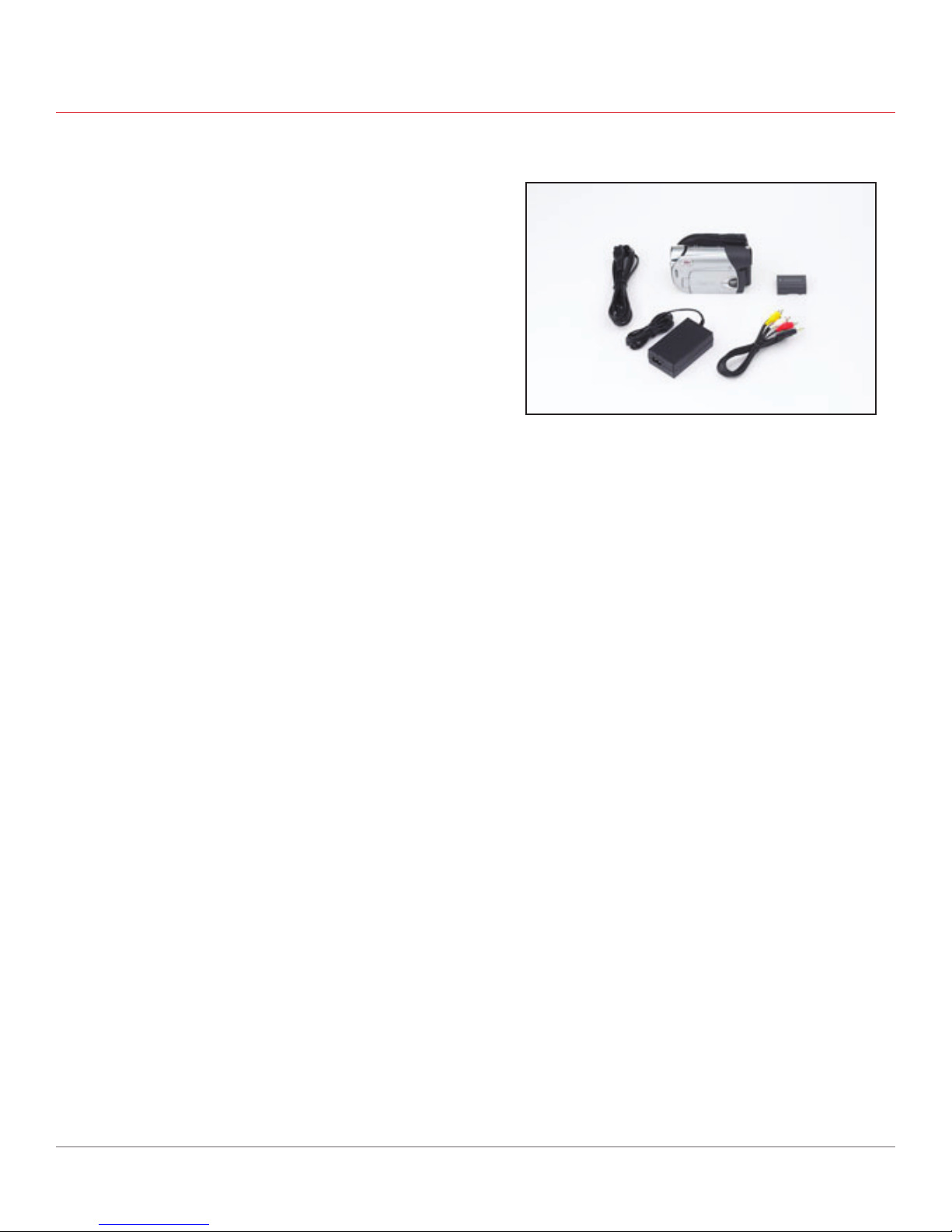

Supplies & Accessories

CB-2LW Battery Charger

Use the battery charger to charge the battery packs. It plugs directly into a power outlet without a

cable.

CA-570 Compact Power Adapter

This compact adapter powers your camera from an AC power supply and charges your batteries on

the camera. This allows for uninterrupted recording of your special events and keeps your batteries

ready to go.

Car Battery Charger CBC-NB2

BP-2L14 Battery Pack

Battery Pack - Lithium-Ion batteries, unlike Nickel-Cadmium batteries, have no “memory effect” which

can reduce the usable power of the battery over time.

STV-250N Mini Plug to RCA

Used to connect to a TV or VCR.

Shoulder Strap SS-600

SC-A30 Genuine Leather Carrying Case

Once you ﬁnish recording, keep your camcorder and all your accessories in this professional-looking,

genuine leather soft carrying case.

SC-A40 Genuine Leather Carrying Case

Once you ﬁnish recording, keep your camcorder and all your accessories in this professional-looking,

genuine leather soft carrying case.

Soft Case SC-A70

Battery Pack NB-2LH

BP-2L24H

2400mAh Lithium Ion Battery pack.

SC-A60 Genuine Leather Carrying Case

Once you ﬁnish recording, keep your camcorder and all your accessories in this professional-looking,

genuine leather soft carrying case.

Can’t ﬁnd the part or accessory you’re looking for? Customer Support can help.

Call 1-800-828-4040 for assistance.

SC-2000 Soft Carrying Case

Protect your camcorder with the professional-quality SC-2000 Soft Carrying Case, featuring secure

compartments for ﬁlters and extra battery packs.

What’s in the Box

DC320 Kit Contents:

1. DC320 Camcorder

2. Compact Power Adapter CA-570

3. Battery Pack NB-2LH

4. Stereo/Video Cable STV-250N

Canon 2691B001 User manual

Popular Camcorder manuals by other brands
