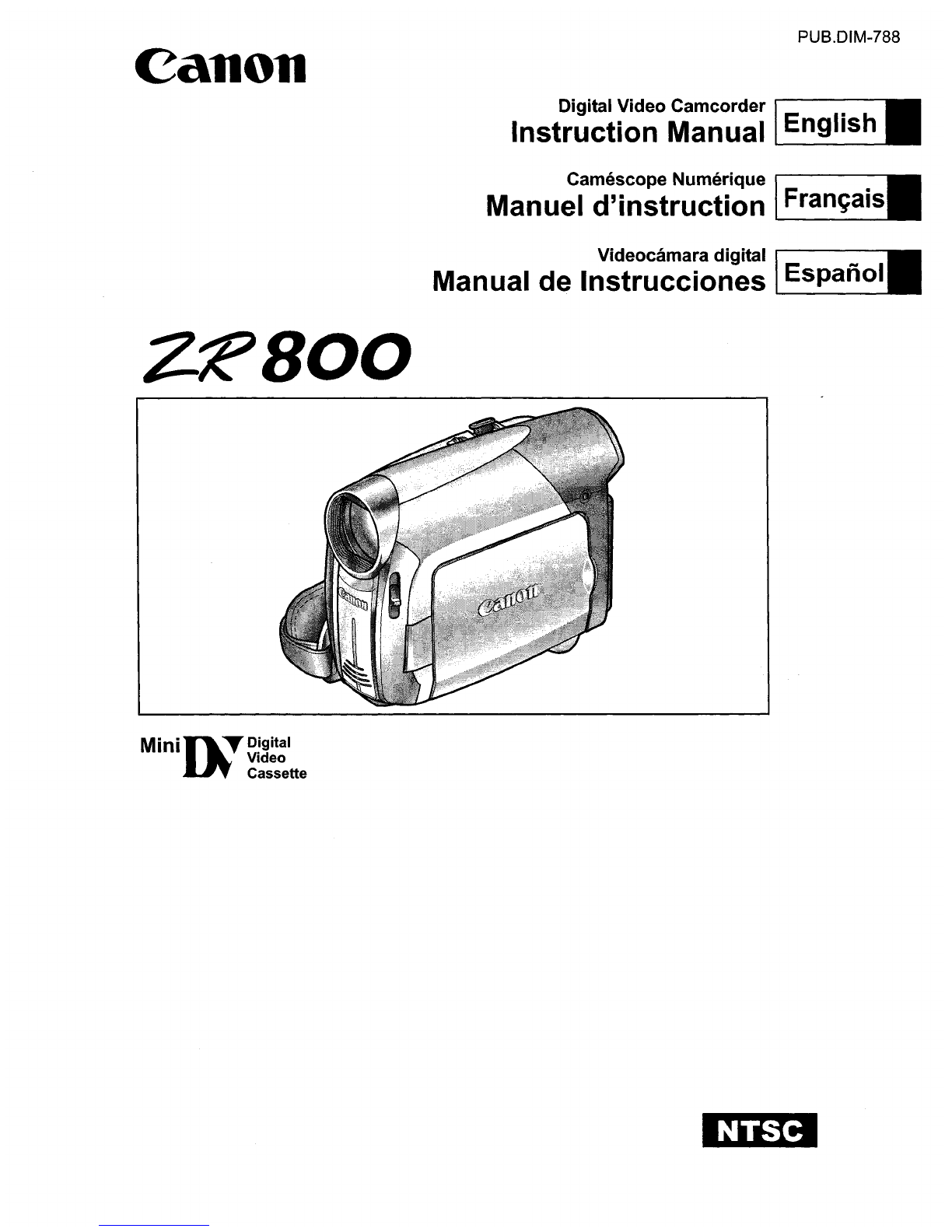

Canon ZR 800 - Camcorder - 680 KP User manual

Canon
2-~800
PUB.DIM-788
Digital Video Camcorder II
Instruction Manual Englis~
Camescope Numerique II
Manuel d'instruction •Franc;ais
Videocilmara digital II
Manual de Instrucciones Espanol
Mini o;~ Digital
Video
Cassette
NTSC

..... -------------------------------

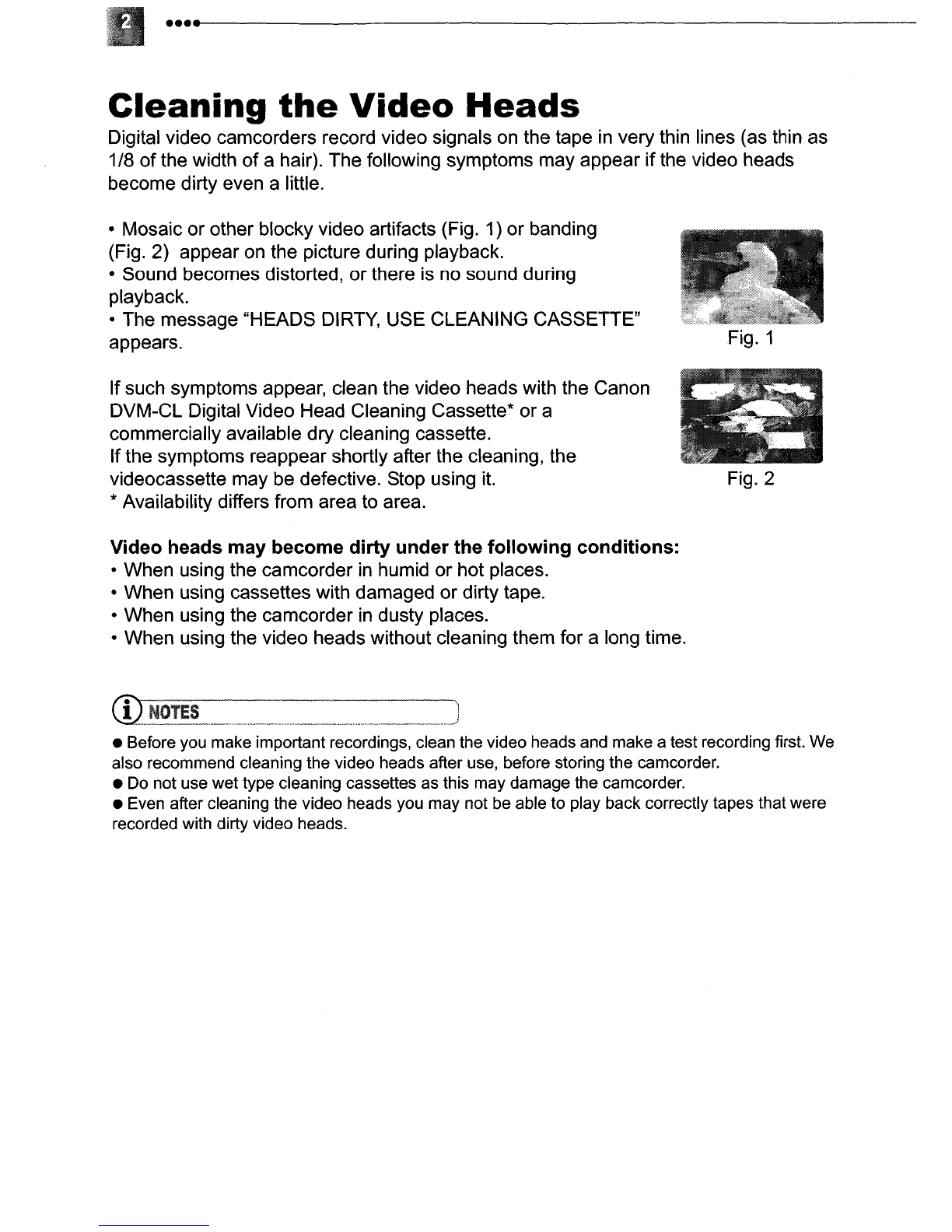

Cleaning the Video Heads
Digital video camcorders record video signals on the tape in very thin lines (as thin as
1/8
of the width of ahair). The following symptoms may appear ifthe video heads
become dirty even alittle.
•Mosaic or other blocky video artifacts (Fig. 1)
or banding
(Fig. 2) appear on the picture during playback.
•Sound becomes distorted, or there is no sound during
playback.
•The message "HEADS DIRTY, USE CLEANING CASSETTE"
appears. Fig. 1
If such symptoms appear, clean the video heads with the Canon
DVM-CL Digital Video Head Cleaning Cassette* or a
commercially available dry cleaning cassette.
Ifthe symptoms reappear shortly after the cleaning, the
videocassette may be defective. Stop using
it. Fig. 2
*Availability differs from area to area.
Video heads may become dirty under the following conditions:
•When using the camcorder in humid or hot places.
•When using cassettes with damaged or dirty tape.
•When using the camcorder
in dusty places.
•When using the video heads without cleaning them for along time.
CD)~~!ES,_ .. " __ C"'"H.'m.".H •• _.H."~,. __ ." •• ,'c .. m"_ ... , .... ",""_".c, ...... J
•Before you make important recordings, clean the video heads and make atest recording first. We
also recommend cleaning the video heads after use, before storing the camcorder.
•Do not use wet type cleaning cassettes as this may damage the camcorder.
•Even after cleaning the video heads you may not be able to play back correctly tapes that were
recorded with dirty video heads.

-----------------------------~-------__e ••••
r--
I

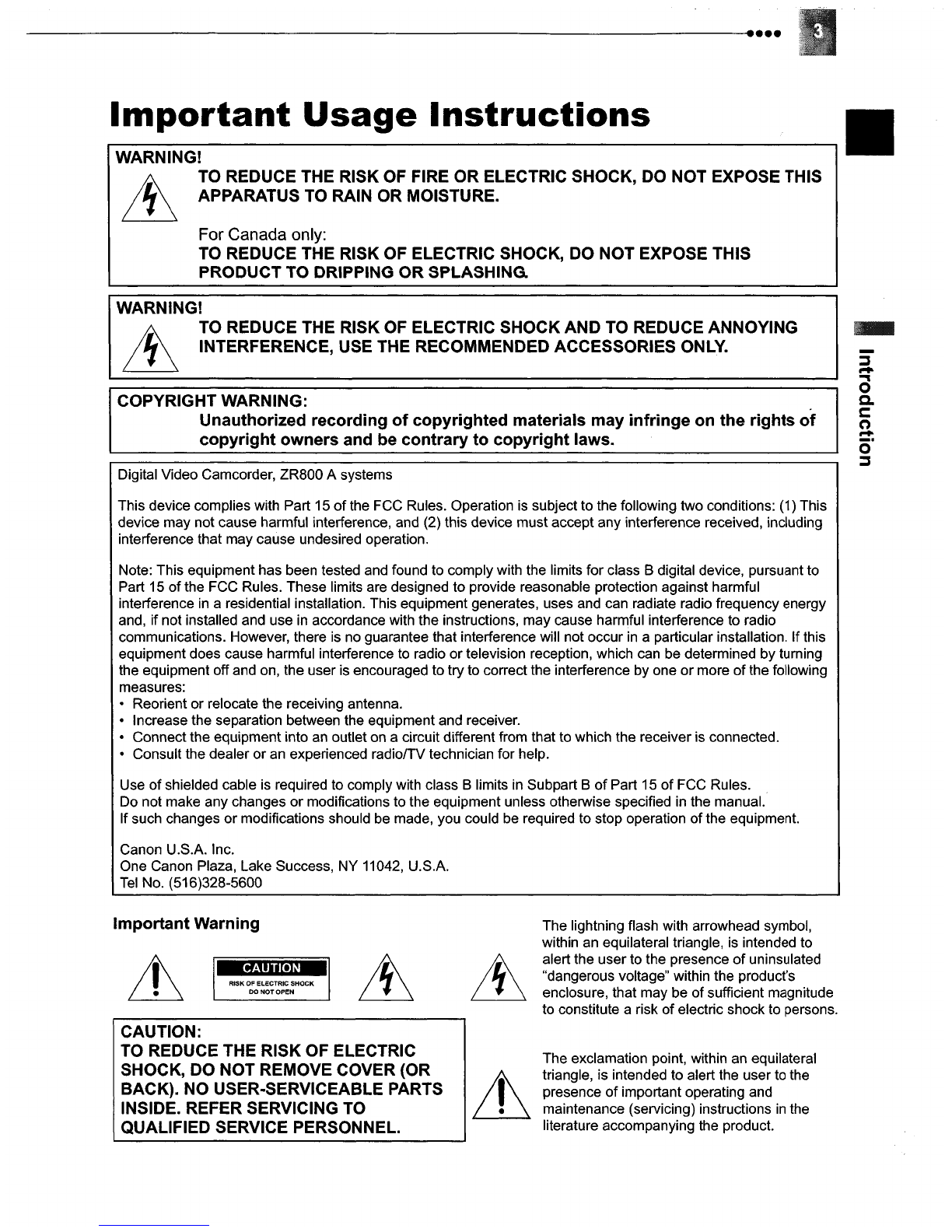

m_p_o_f_t_a_n_t_U_s_a_g_e_I_"_s_tf_u_c_t_i_o_n_s --, II
WARNING!
~ TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
~ APPARATUS TO RAIN OR MOISTURE.
For Canada only:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO DRIPPING
OR SPLASHING.
WARNING!
~ TO REDUCE THE RISK OF ELECTRIC SHOCK AND TO REDUCE ANNOYING
~ INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.
COPYRIGHT WARNING: .
Unauthorized recording
of copyrighted materials may infringe on the rights of
copyright owners and be contrary to copyright laws.
Digital Video Camcorder, ZR800 Asystems
This device complies with Part 15
of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for class Bdigital device, pursuant to
Part 15 ofthe FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference
in aresidential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and use in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in aparticular installation. Ifthis
equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one
or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on acircuit different from that to which the receiver is connected.
•Consult the dealer or
an experienced radiolTV technician for help.
Use
of shielded cable is required to comply with class Blimits in Subpart B of Part 15 of FCC Rules.
Do not make any changes or modifications
to the equipment unless otherwise specified in the manual.
If such changes or modifications should
be made, you could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. [phone]
-
::s
..
~
o
Q.
t:
(")
~
o
::s
Important Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO
NOT OPEN
CAUTION:
TO REDUCE THE RISK
OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK).
NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle,
is intended to
alert the user to the presence
of uninsulated
"dangerous voltage" within the product's
enclosure, that may be
of sufficient magnitude
to constitute arisk
of electric shock to persons.
The exclamation point, within
an equilateral
triangle, is intended to alert the user to the
presence
of important operating and
maintenance (selVicing) instructions
in the
literature accompanying the product.

.••.. ----------------------------------

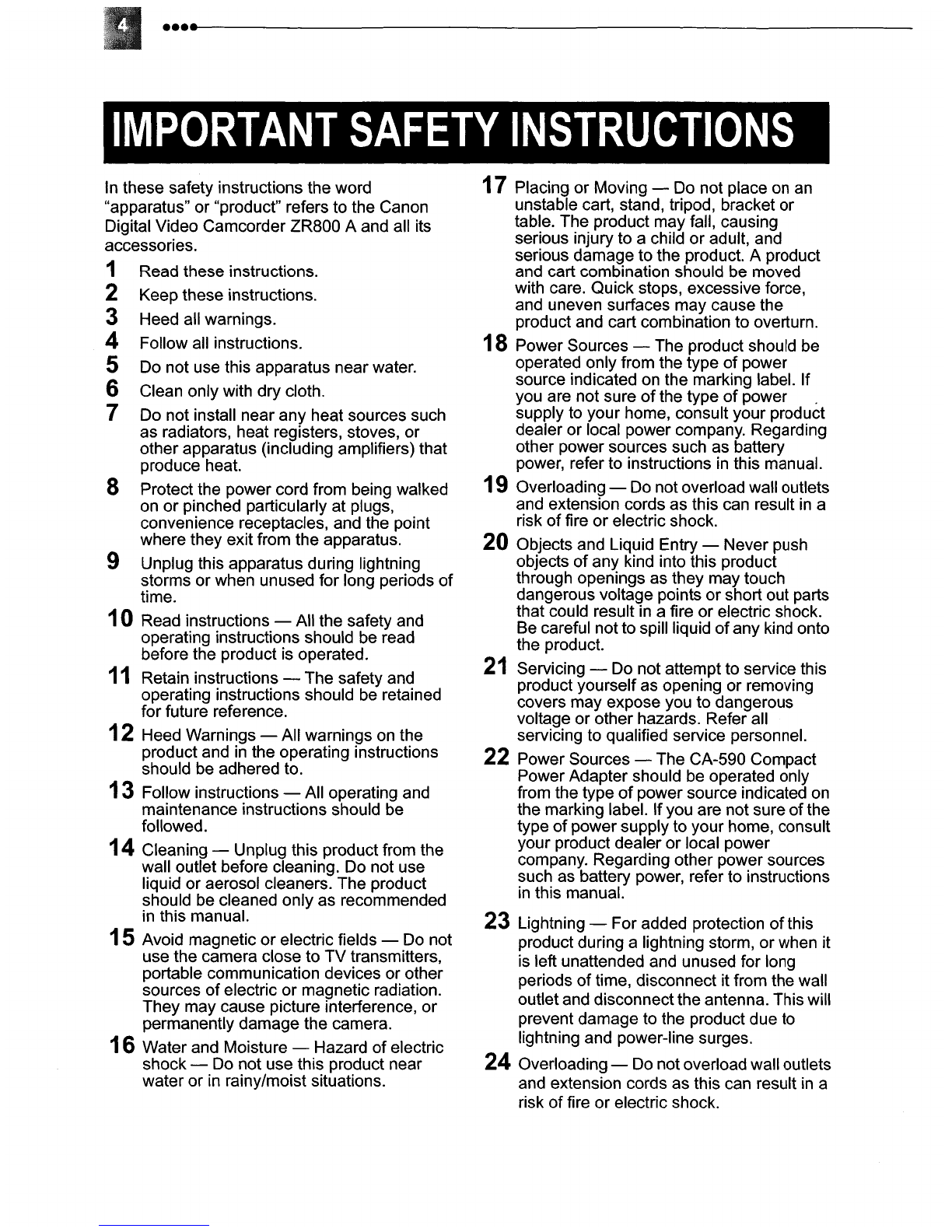

IMPORTANT SAFETY INSTRUCTIONS
In these safety instructions the word
"apparatus"
or "product" refers to the Canon
Digital Video Camcorder ZR800 Aand all its
accessories.
1Read these instructions.
2Keep these instructions.
3Heed all warnings.
4Follow all instructions.
5Do not use this apparatus near water.
6Clean only with dry cloth.
7Do not install near any heat sources such
as radiators, heat registers, stoves,
or
other apparatus (including amplifiers) that
produce heat.
8Protect the power cord from being walked
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
9Unplug this apparatus during lightning
storms
or when unused for long periods of
time.
10 Read instructions -All the safety and
operating instructions should be read
before the product is operated.
11 Retain instructions -The safety and
operating instructions should
be retained
for future reference.
12 Heed Warnings -All warnings on the
product and
in the operating instructions
should be adhered to.
13 Follow instructions -All operating and
maintenance instructions should be
followed.
14 Cleaning -Unplug this product from the
wall outlet before cleaning. Do not use
liquid
or aerosol cleaners. The product
should be cleaned only as recommended
in this manual.
15 Avoid magnetic or electric fields -Do not
use the camera close to
TV transmitters,
portable communication devices
or other
sources
of electric or magnetic radiation.
They may cause picture interference,
or
permanently damage the camera.
16 Water and Moisture -Hazard of electric
shock -Do not use this product near
water
or in rainy/moist situations.
17 Placing or Moving -Do not place on an
unstable cart, stand, tripod, bracket
or
table. The product may fall, causing
serious injury to achild
or adult, and
serious damage to the product. Aproduct
and cart combination should be moved
with care. Quick stops, excessive force.
and uneven surfaces may cause the
product and cart combination to overturn.
18 Power Sources -The product should be
operated only from the type
of power
source indicated on the marking label. If
you are not sure
of the type of power .
supply to your home, consult your product
dealer or local power company. Regarding
other power sources such as battery
power. refer to instructions
in this manual.
19 Overloading -Do notoverload wall outlets
and extension cords as this can result
in a
risk
of fire or electric shock.
20 Objects and Liquid Entry -Never push
objects
of any kind into this product
through openings as they may touch
dangerous voltage points or short out parts
that could result
in afire or electric shock.
Be careful notto spill liquid
of any kind onto
the product.
21 Servicing -Do not attempt to service this
product yourself as opening or removing
covers may expose you to dangerous
voltage
or other hazards. Refer all
servicing to qualified service personnel.
22 Power Sources -The CA-590 Compact
Power Adapter should be operated only
from the type
of power source indicated on
the marking label. Ifyou are not sure
of the
type
of power supplyto your home, consult
your product dealer or local power
company. Regarding other power sources
such as battery power, refer to instructions
in this manual.
23 Lightning -For added protection of this
product during alightning storm, or when it
is left unattended and unused for long
periods
of time, disconnect it from the wall
outletand disconnectthe antenna. This will
prevent damage to the product due to
lightning and power-line surges.
24 Overloading-Do notoverload wall outlets
and extension cords as this can result
in a
risk
of fire or electric shock.

------------------------------------e ••••

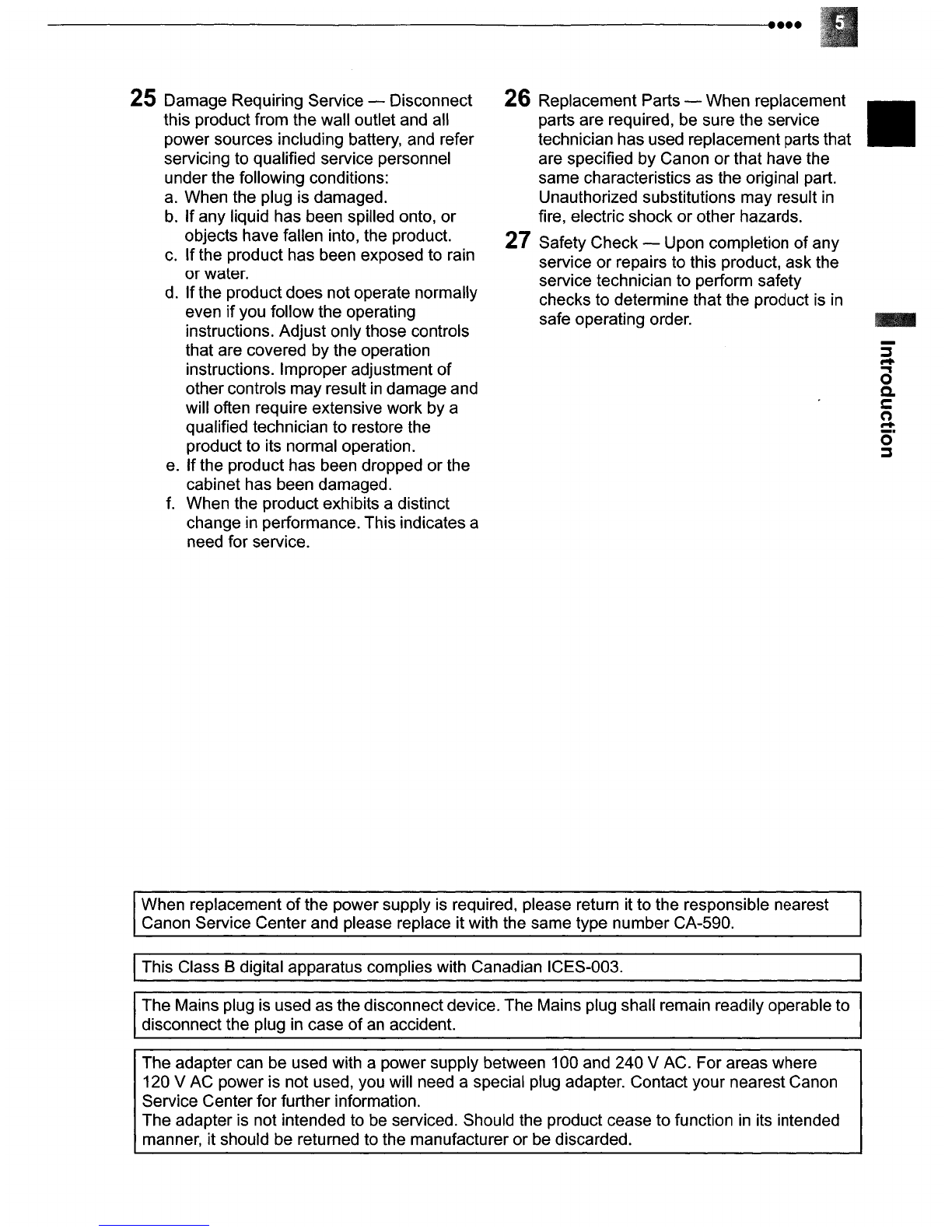

25 Damage Requiring Service -Disconnect
this product from the wall outlet and all
power sources including battery, and refer
servicing to qualified service personnel
under the following conditions:
a. When the plug is damaged.
b. Ifany liquid has been spilled onto, or
objects have fallen into, the product.
c. Ifthe product has been exposed to rain
or water.
d. Ifthe product does not operate normally
even ifyou follow the operating
instructions. Adjust only those controls
that are covered by the operation
instructions. Improper adjustment
of
othercontrols may result in damage and
will often require extensive work by a
qualified technician to restore the
product to its normal operation.
e. Ifthe product has been dropped or the
cabinet has been damaged.
f. When the product exhibits adistinct
change
in performance. This indicates a
need for service.
26 Replacement Parts -When replacement
parts are required, be sure the service
II
technician has used replacement parts that
are specified by Canon
or that have the
same characteristics as the original part.
Unauthorized substitutions may result
in
fire, electric shock or other hazards.
27 Safety Check -Upon completion of any
service
or repairs to this product, ask the
service technician to perform safety
checks to determine that the product is
in
safe operating order. _
~
..
a
c.
c
(")
..
o'
~
When replacement of the power supply is required, please return it to the responsible nearest
Canon Service Center and please replace it with the same type number CA-590.
IThis Class Bdigital apparatus complies with Canadian ICES-003.
The Mains plug is used as the disconnectdevice. The Mains plug shall remain readily operable to
disconnect the plug
in case of an accident.
The adapter can be used with apower supply between 100 and 240 VAC. For areas where
120 VAC power is not used, you will need aspecial plug adapter. Contact your nearest Canon
Service Centerfor further information.
The adapter is not intended to be serviced. Should the product cease to function
in its intended
manner, it should be returned to the manufacturer or be discarded.

........ -----------------------------

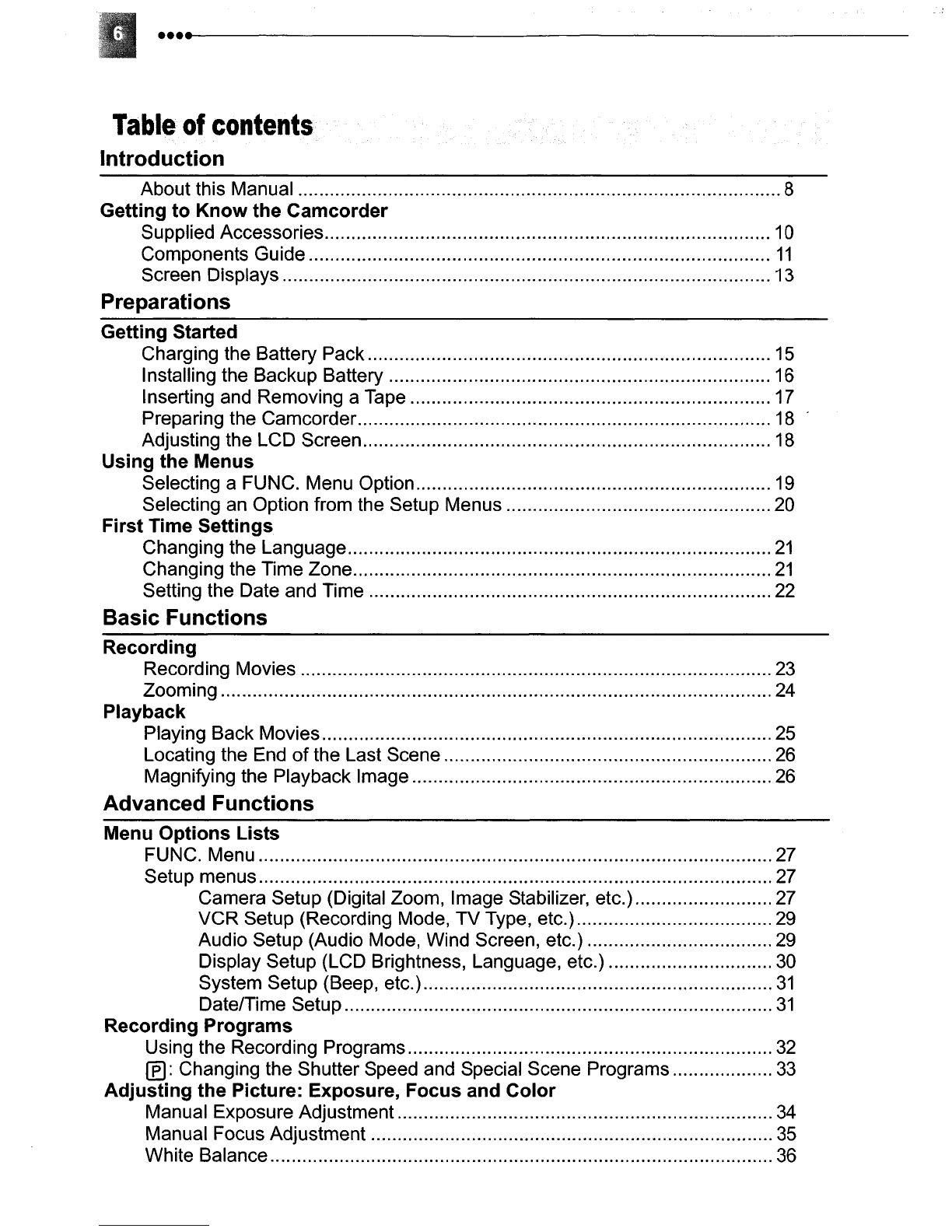

Table of contents
Introduction
About this Manual 8
Getti
ng to Know the Camcorder
Supplied Accessories 10

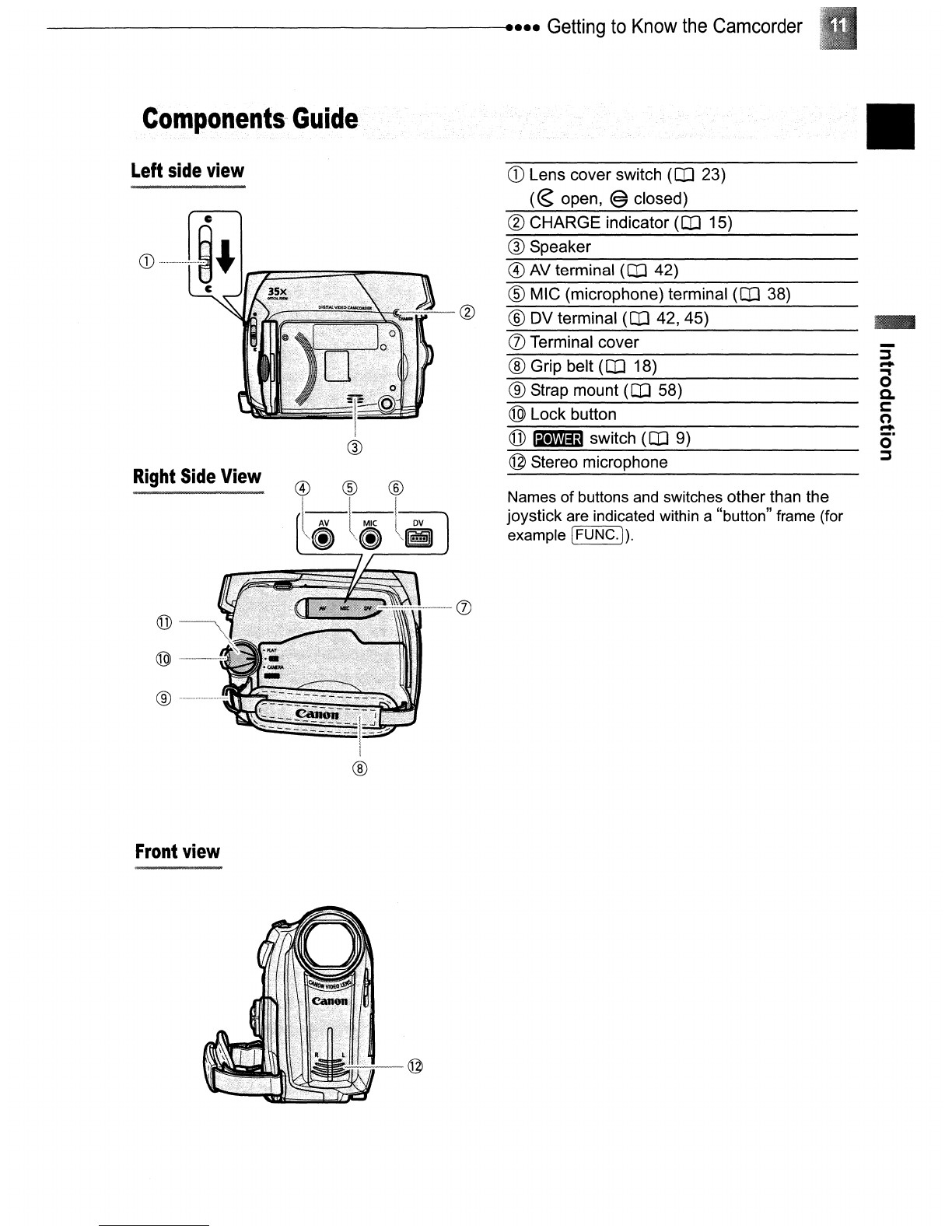

Components Guide
11

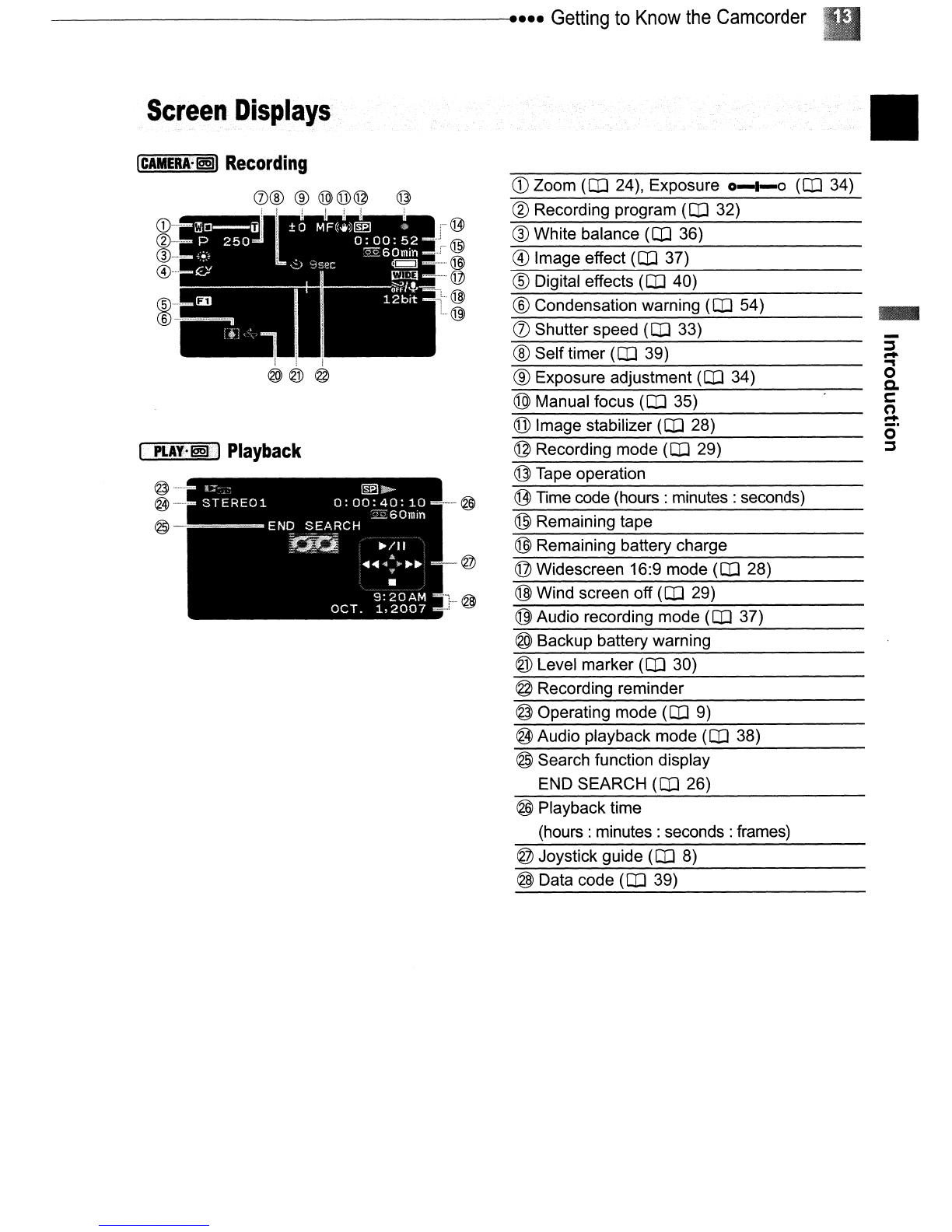

Screen Displays 13
Preparations
Getting Started

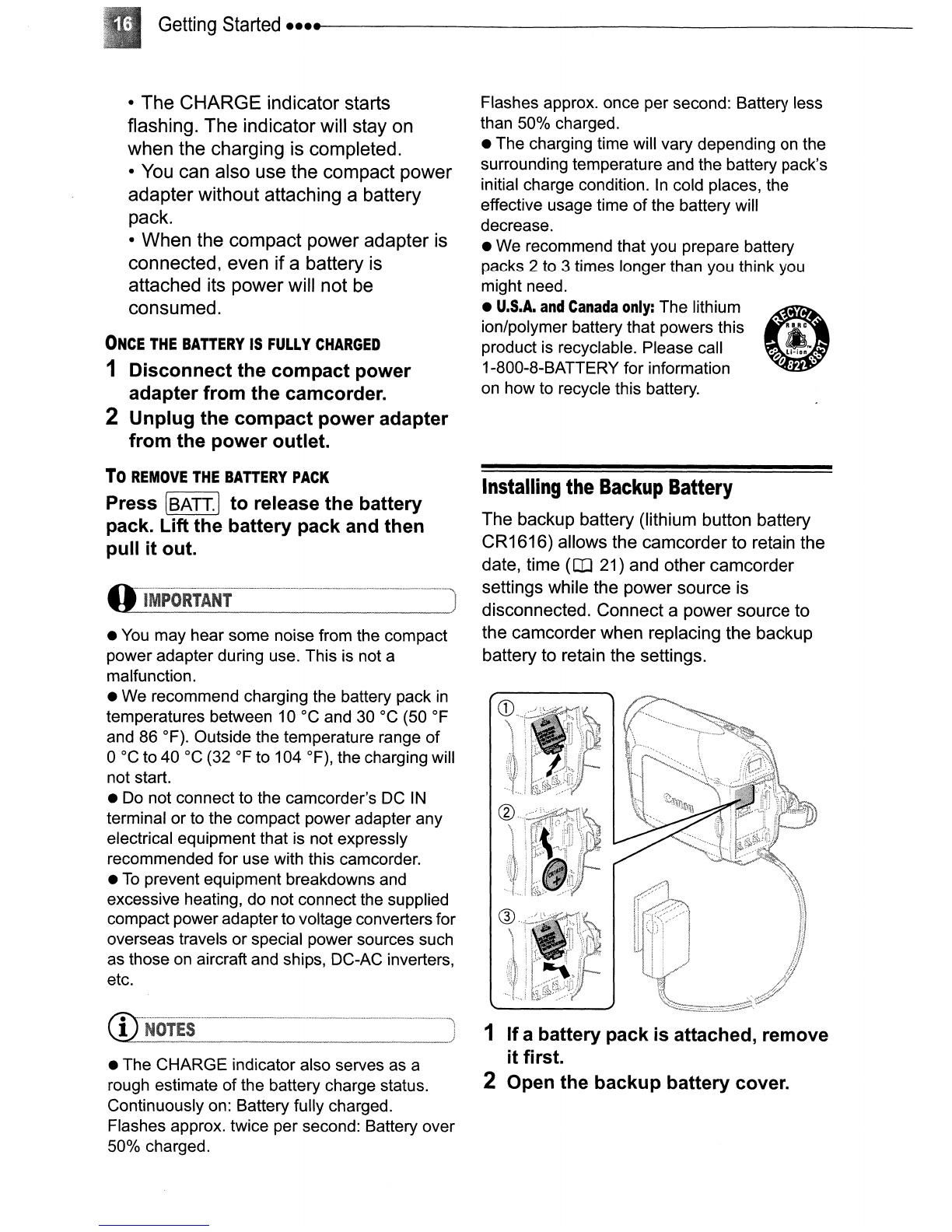

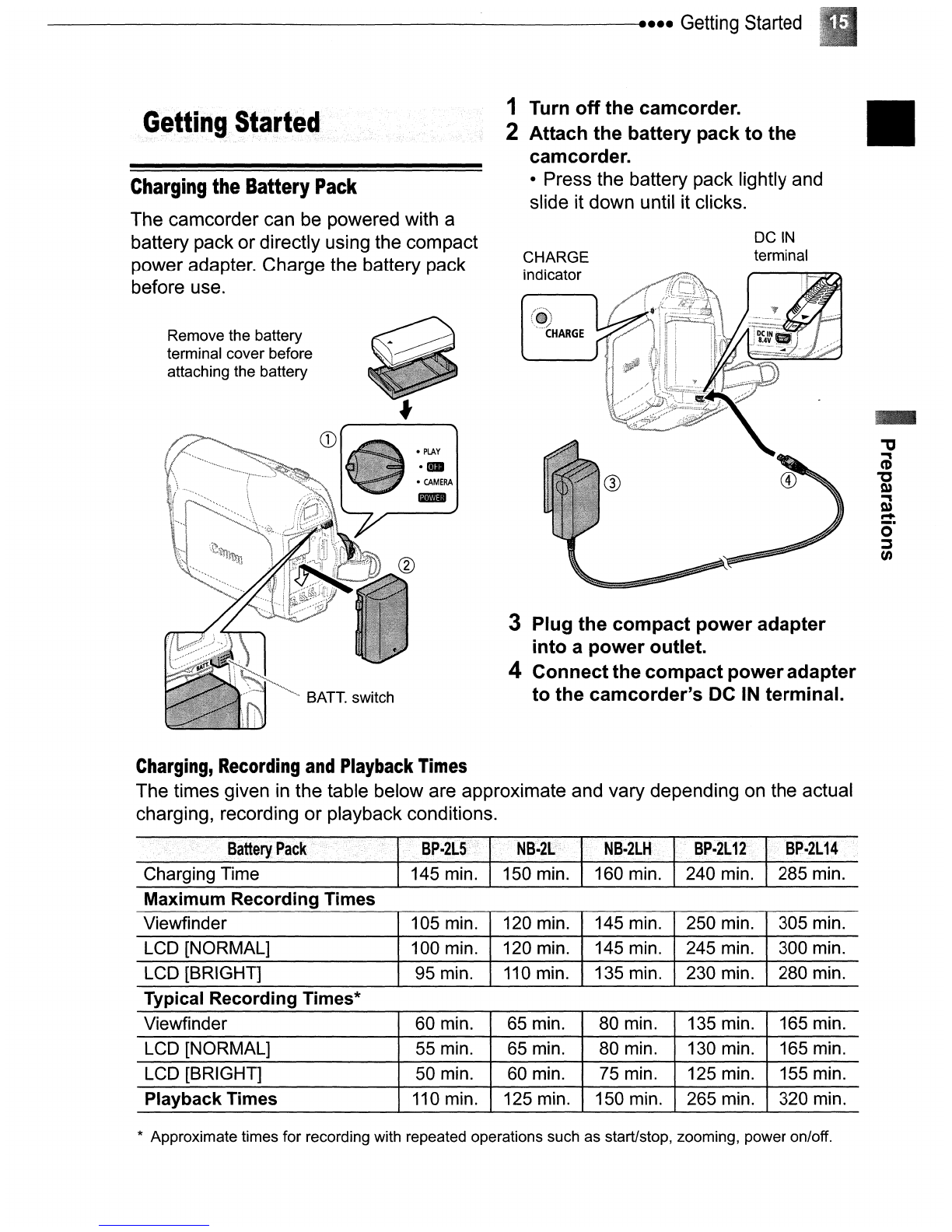

Charging the Battery Pack 15
Installing the Backup Battery 16

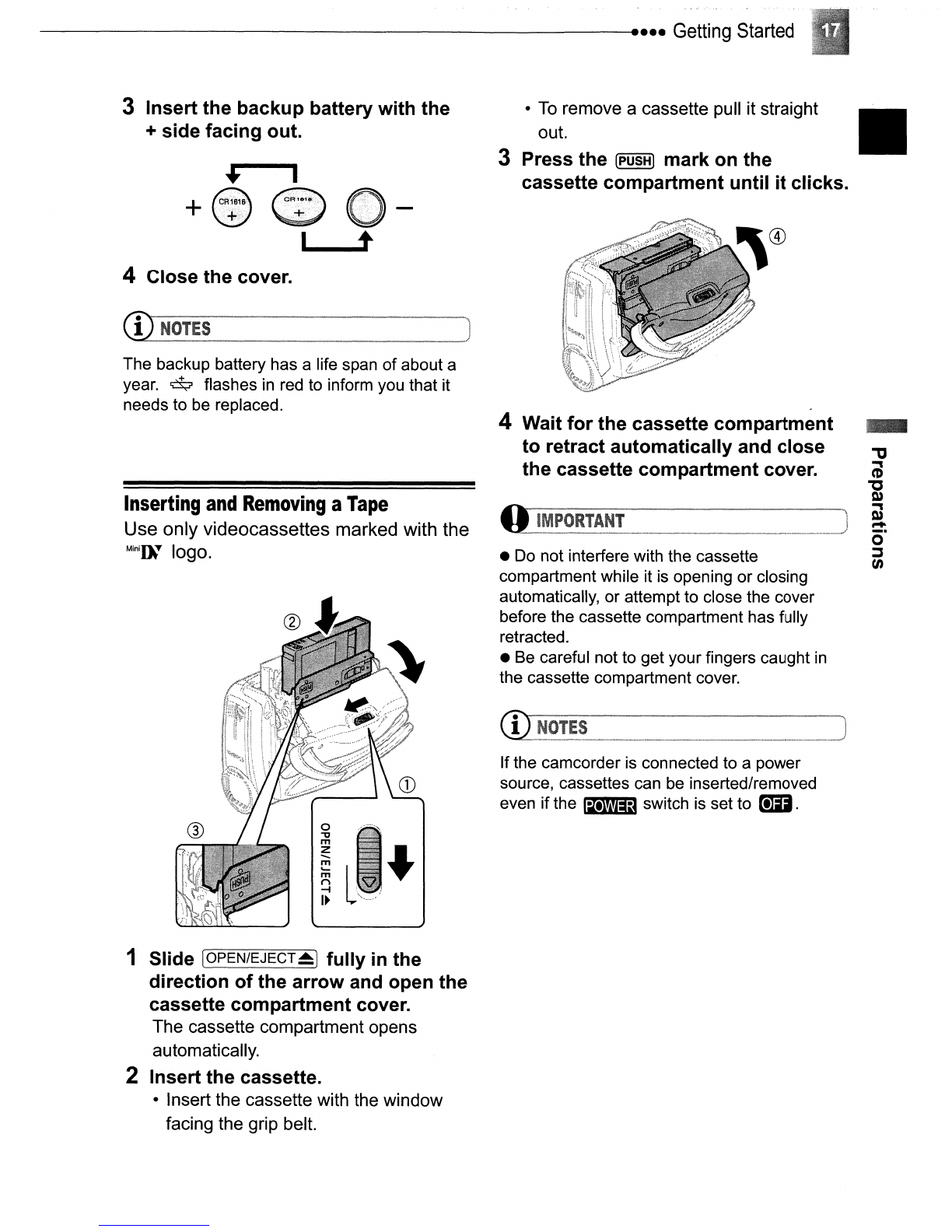

Inserting and Removing aTape 17

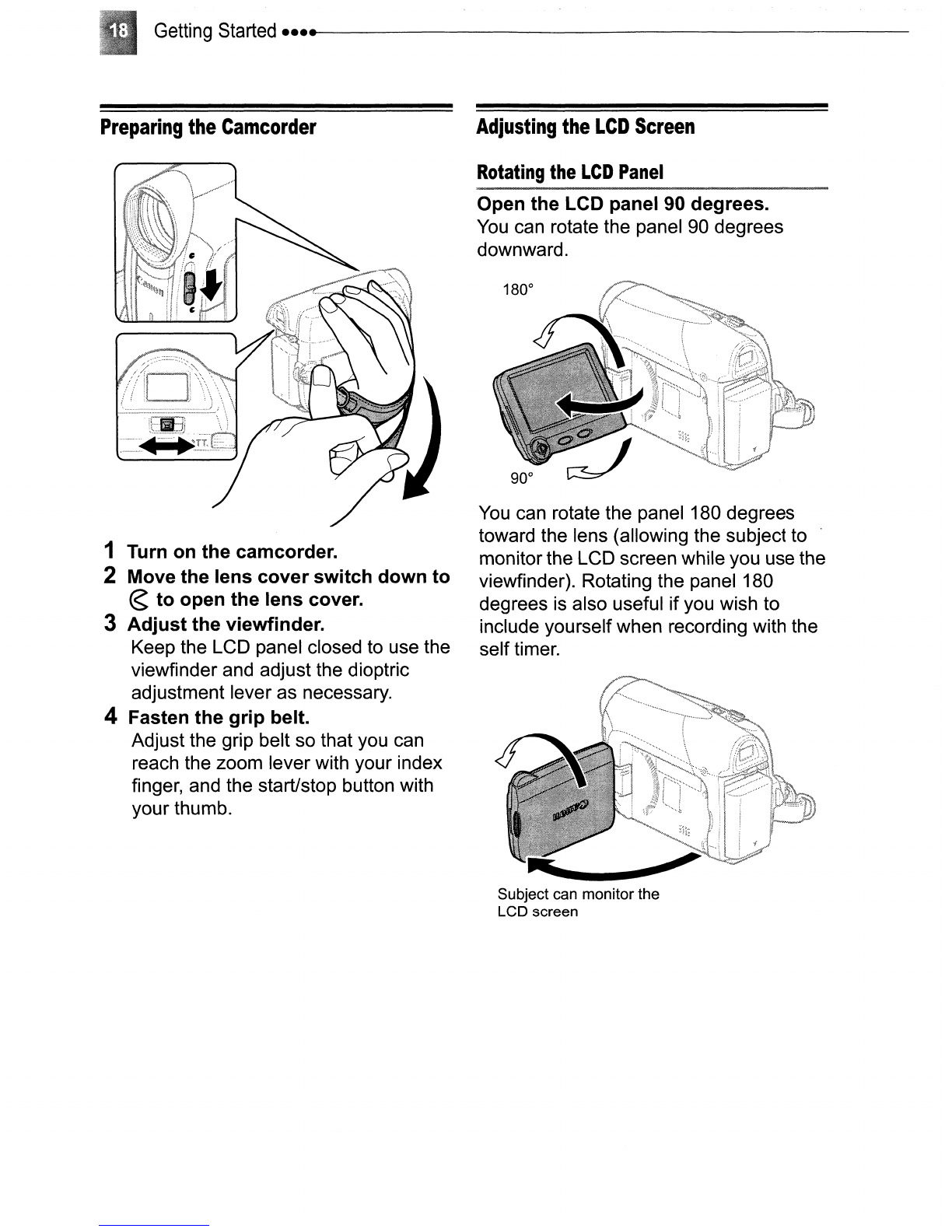

Preparing the Camcorder 18
Adjusting the LCD Screen 18

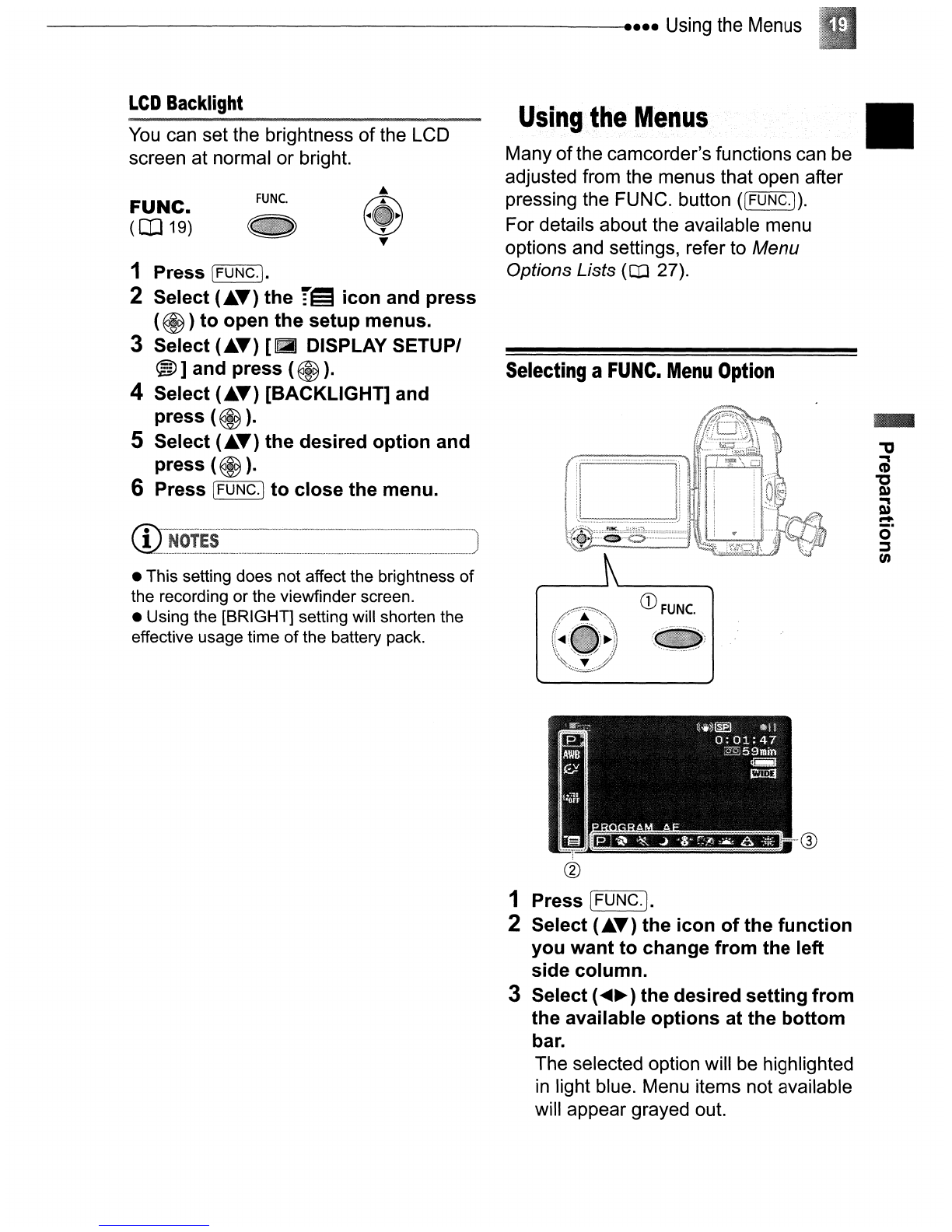

Using the Menus
Selecting aFUNC. Menu Option 19

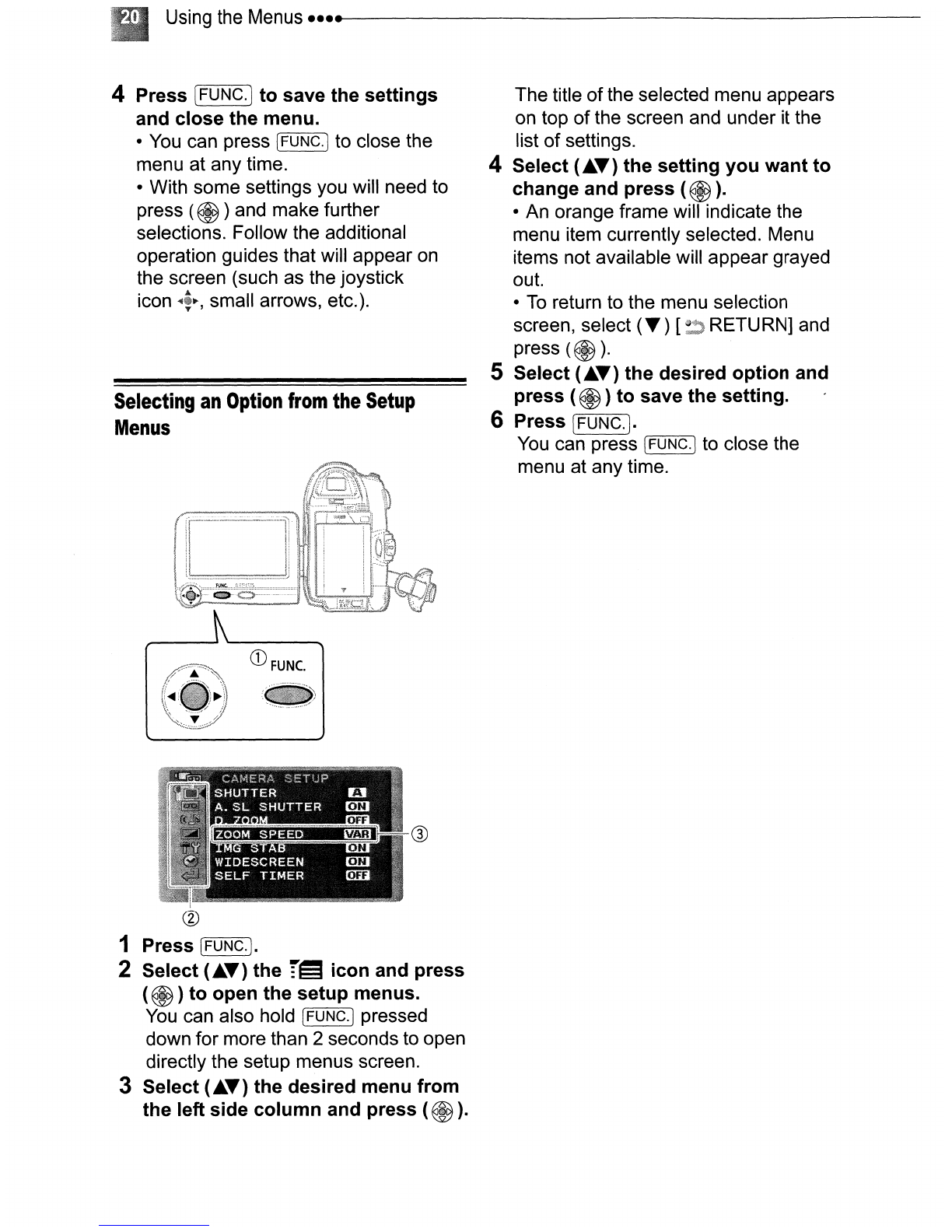

Selecting an Option from the Setup Menus 20
First Time Settings
Changing the Language
21
Changing the Time Zone 21
Setting the Date and Time 22
Basic Functions
Recording
Recording Movies 23
Zooming 24
Playback
Playing Back Movies 25
Locating the End
of the Last Scene 26
Magnifying the Playback Image 26
Advanced Functions
Menu Options Lists
FUNC. Menu 27
Setup menus 27
Camera Setup (Digital Zoom, Image Stabilizer, etc.) 27
VCR Setup (Recording Mode, TV Type, etc.) 29
Audio Setup (Audio Mode, Wind Screen, etc.) 29
Display Setup (LCD Brightness, Language, etc.) 30
System Setup (Beep, etc.)
31
Date/Time Setup 31
Recording Programs
Using the Recording Programs 32
(f]: Changing the Shutter Speed and Special Scene Programs 33
Adjusting the Picture: Exposure, Focus and Color
Manual Exposure Adjustment 34
Manual Focus Adjustment 35
White Balance 36

-------------------------~---___e ••••
Image Effects 37
Audio Recording and Playback
Audio Recording Mode 37
Audio Playback Modes 38
Other Functions
Data Code 39
SelfTimer 39
Digital Effects 40
External Connections
Connecting to aTV or VCR
Connection Diagrams 42
Playback on aTV Screen 43
Recording to aVCR or Digital Video Recorder 43
Digital Video Dubbing 44
Connecting to a Computer
PC Connection Diagrams 45
Transferring Video Recordings 46
Additional Information
Trouble?
Troubleshooting 47
List
of Messages 49
Do's and Don'ts
Handling Precautions 51
Maintenance/Others 53
Using the Camcorder Abroad 55
General Information
System Diagram 56
Optional Accessories 57
Product Codes 59
Specifications 60
Index 62
II
-
-
::s
...
a
Co
c:
n
...
ci"
::s

..•.. ----------------------------------
About this Manual
Thank you for purchasing the Canon ZR800. Please read this manual carefully before
you use the camcorder and retain it for future reference. Should your camcorder fail to
operate correctly, refer to the Troubleshooting table
(CD 47).
Conventions Used in the Manual
• 0 IMPORTANT: Precautions related to the camcorder's operation.
• CD NOTES: Additional topics that complement the basic operating procedures.
•e POINTS TO CHECK: Restrictions that apply ifthe function described is not
available
in all operating modes (the operating mode to which the camcorder should be
set, etc.).
• OJ :Reference page number.
•"Screen" refers to the LCD and the viewfinder screen.
•The photos included in the manual are simulated pictures taken with astill camera.
First Time Settings
Changhlg tile Language
on The language for on-screen and menu
displays can
be changed. The Iisl of
available languages depends an the
region where you purchased the
camcorder.
Language Set A
English. Gennan, SpaniSh, French, Italian, Polish.
Russian, Simplified Chinese and Japanese.
Language Set 8
English. Simplified Chinese. Traditional Chinese
and Korean,
+Delault",alue
ed to refer to menu
~ DISPLAY SETUP/~
I
en. Menu options in
L.-H I LANGUAGE ENGUSW
I)
(for example [ON], IruMe
r·~ ~ ]
(019i ., .!,
1 Press [FuriiD
2Select ("'''') the ria Icon and press
( @;, ) to open the setup menus.
3Select ("'''') [DISPLAY SETUP/~J
and press ( @) ).
.4 ~AIA,.tt .. y
ndpress
I
L@l.
5Select ("'''') the desired option and
therthan
pres~
n" frame 6Pres
~to close the menu.
m ~OTES
:
If you c:I1angod the language by mistake.
follow tha e mark 0-8)(( to the manu item to
Menu item shown at its default positi
Names
of buttons and switches are 0
the joystick indicated within a"butto
(for example IFUNC.]).
Brackets [ ] and capital letters are us
options as they are displayed on scre
boldface indicate the default setting
[OFF]).
Buttons and switches to be operated
About the Joystick and the Joystick Guide
The mini joystick allows you to control many of the camcorder's operations and to
make selections and changes
in the camcorder's menus.
w ~
Push the joystick up, down, left or right (~., ~ ... )to select an
item or change settings.
~Press the joystick itself (@ )to save the settings
or confirm an
action. On menu screens, this
is indicated by the joystick icon ool~'"

---------------------------------.e ••••

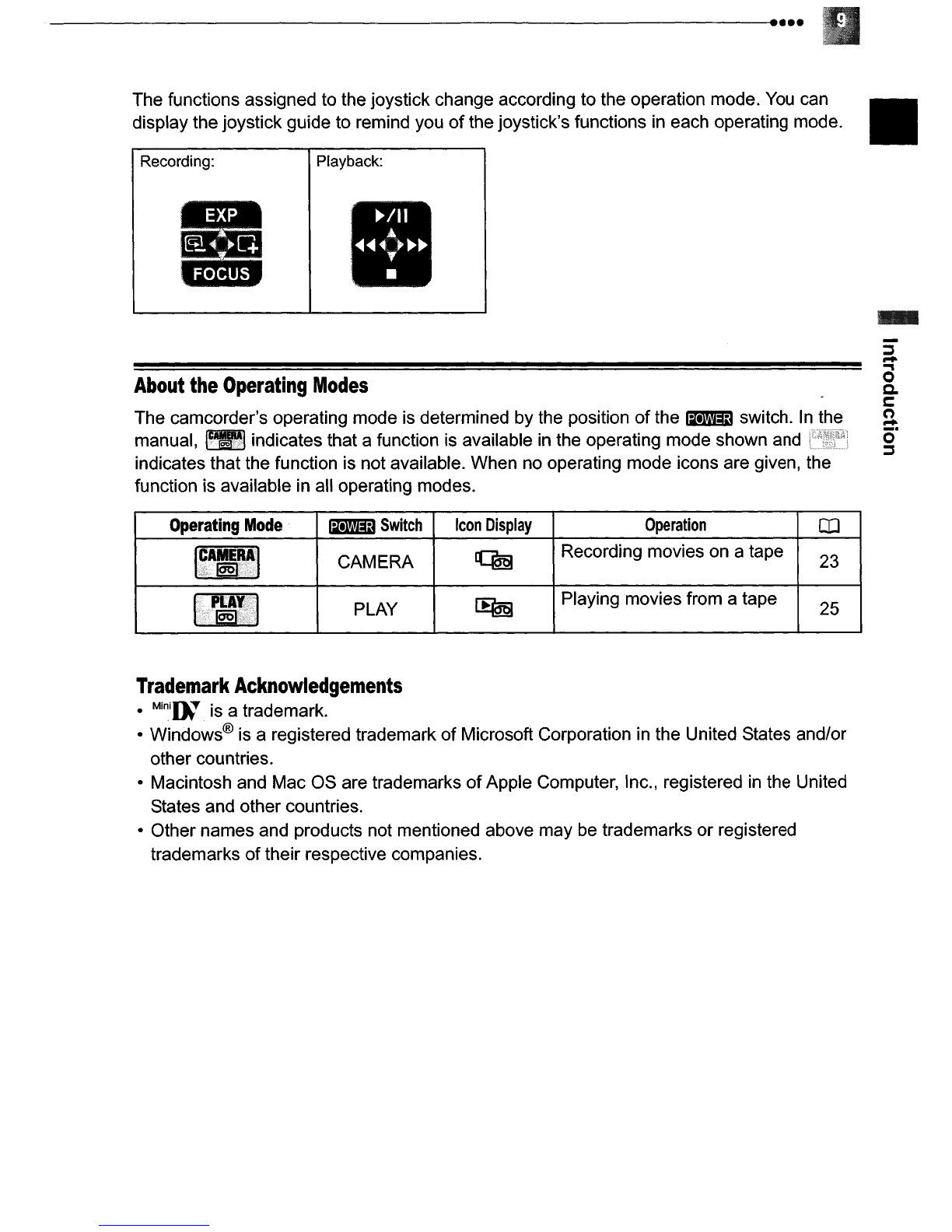

The functions assigned to the joystick change according to the operation mode. You can II
display the joystick guide to remind you of the joystick's functions in each operating mode.
Recording:
•
..
Playback:
II
-
About the Operating Modes
The camcorder's operating mode is determined by the position of the ~ switch. In the
manual, _indicates that afunction is available
in the operating mode shown and
indicates that the function is not available. When no operating mode icons are given, the
function is available in all operating modes.
:::s
,..
~
o
Q.
c
n
,..
c)"
:::s
Operating Mode
~Switch
CAMERA
PLAY
Icon Display Operation
~ Recording movies on atape
~ Playing movies from atape
OJ
23
25
Trademark Acknowledgements
• Minif)." is atrademark.
•Windows® is aregistered trademark
of Microsoft Corporation in the United States and/or
other countries.
•Macintosh and Mac
as are trademarks of Apple Computer, Inc., registered in the United
States and other countries.
•Other names and products not mentioned above may
be trademarks or registered
trademarks
of their respective companies.

GeWngtoKnowtheCamcorder ••••• ~~~~~~~~~~~~~~~~~~~~
Supplied •.. Accessories
CA-590 Compact Power BP-2L5 Battery Pack
Adapter Lithium Button Battery STV-250N Stereo Video CR1616 Cable
Online product registration for U.S.A. Customers only.
Register your product online at www.registercanon.com
../ Protect your product
We will keep the model number and date of purchase of your new Canon product on
file to help you refer to this information
in the event of an insurance claim such as loss
or theft.
../ Receive information on new products and promotions
Upon your request, we will send you information on Canon new products and
promotions.
The serial number
of this product can be found at the battery attachment unit of the
camcorder. Write down the number and other information here and retain this book as a
permanent record
of your purchase to aid identification in case of theft.
Date
of Purchase: Model Name: ZR800 A
Purchased From: Serial No.:
.Dealer Address:
Dealer Phone No.:

---------------------. •••• Getting to Know the Camcorder
Components Guide
•
Left side view
~
...
.,
o
C.
t:
n
~
o
~
®DV terminal ([IJ 42, 45)
®Lock button
@Stereo microphone
@ 1:l.l'.'J:I;j switch ([IJ 9)
®Strap mount ([IJ 58)
®Grip belt ([IJ 18)
®MIC (microphone) terminal ([IJ 38)
(J) Terminal cover
® AV terminal ([IJ 42)
®Speaker
®CHARGE indicator ([IJ 15)
CD Lens cover switch ([IJ 23)
(~ open, @closed)
Names of buttons and switches other than the
joystick are indicated within a"button" frame (for
example [FUNC.)).
®
®® ®
1--1--1--
l AV lMIC ! DV
.. ,.,.(i) \.(i) \··11
@ ..
@
@
"" ~ .
•
G)--i~~~
C \f-®
Right Side View
®
Front view

Getting to Know the Camcorder ....... -------------------
Back view
CD Viewfinder (CIJ 18)
@Zoom lever (CIJ 24)
®Start/stop button (CIJ 23)
@FUNC. button (CIJ 19,27)
@Mode switch (CIJ 32)
~ Easy recording
[f) Recording programs
@Joystick (CIJ 8)
® BATT. (battery release) switch (CIJ 15)
®D.EFFECTS button (CIJ 40)
®LCD screen (CIJ 18)
®DC IN terminal (CIJ 15)
®Backup battery compartment (CIJ 16)
(J) Serial number, Battery attachment unit
(CIJ 15)
@Dioptric adjustment lever (CIJ 18)
@ @ ®
CD ~~~~~~~~
r~~~xINI
@ rH.~ I'ff/,......,~'~
® , ,. : 'I~:!l __ ~ .. __ .
~===~II ®
...... ~ _., _ ®
< 1111ff:"'.,··.~( ••• ·.·.···~i.~ •.. \,ll~ (j)
Top view
@Cassette compartment (CIJ 17)
@OPEN/EJECT ~ switch (CIJ 17)
@Cassette compartment cover (CIJ 17)
@Tripod socket (CIJ 24)
Names of buttons and switches other than the
joystick are indicated within a"button" frame (for
example [FUNC. D.
Bottom view
@
@
@

---------------------- •••• Getting to Know the Camcorder
Screen .. Displays
•
(CAMEO-I2§I) Recording
cv® ® @@@
~
,..
...
o
Q.
c
n
~
o
~
@Audio recording mode (OJ 37)
@Wind screen off (OJ 29)
@Widescreen 16:9 mode (OJ 28)
®Remaining battery charge
@Remaining tape
@Recording mode (OJ 29)

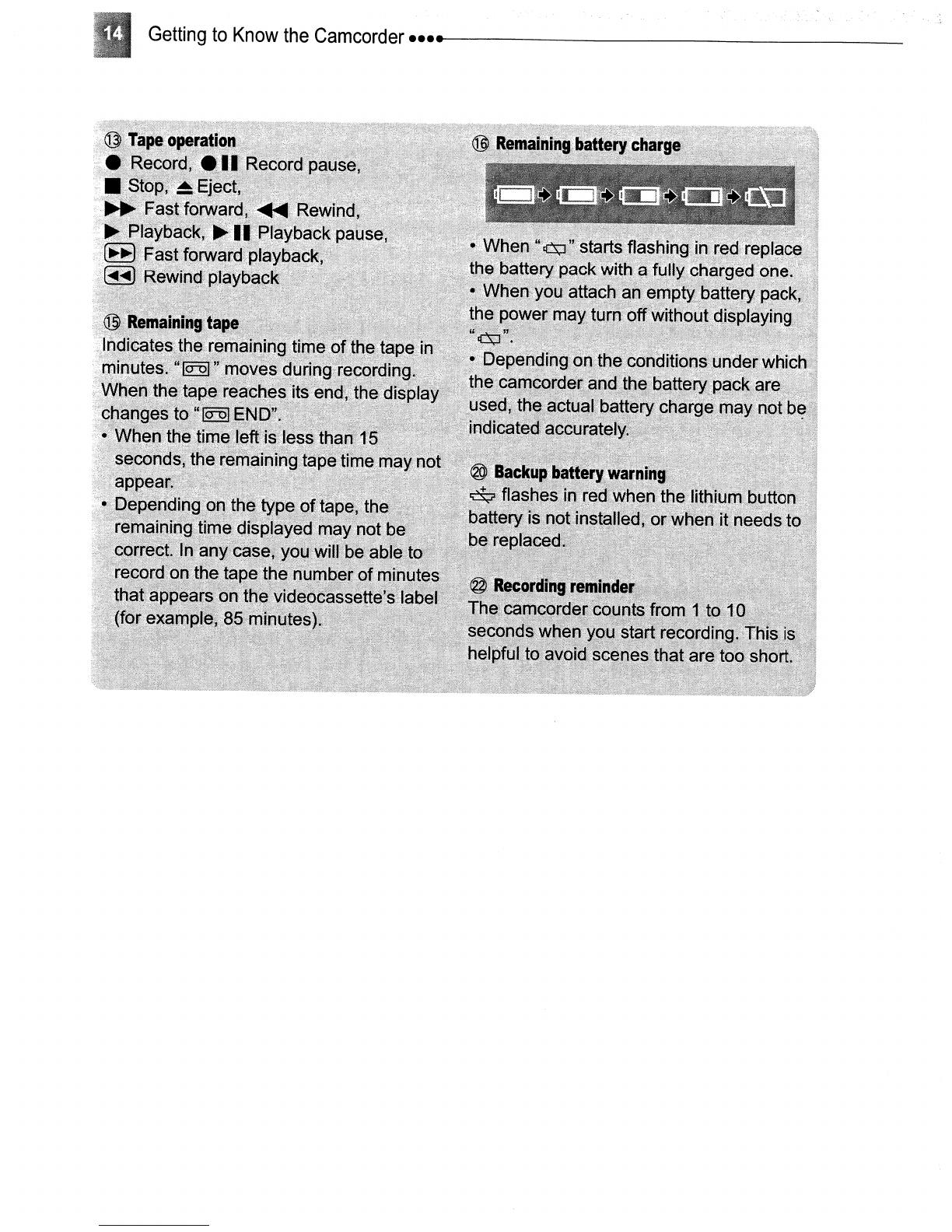

@Tape operation
@Time code (hours: minutes: seconds)
®Condensation warning (OJ 54)
(jJ) Image stabilizer (OJ 28)
®Manual focus (OJ 35)
®Exposure adjustment (OJ 34)
®Selftimer (OJ 39)
®Image effect (OJ 37)
®Digital effects (OJ 40)
(J) Shutter speed (OJ 33)
®White balance (OJ 36)
CD Zoom (OJ 24), Exposure 0-1-0 (OJ 34)
®Recording program (OJ 32)
'I.AJ·.I§§1:» Playback
@
:-" ••.
@Backup battery warning
@Level marker (OJ 30)
@Recording reminder
@Operating mode (OJ 9)
@Audio playback mode (OJ 38)
@Search function display
END SEARCH (OJ 26)
@Playback time
(hours: minutes: seconds: frames)
@Joystick guide (OJ 8)
@Data code (OJ 39)

Getting to Know the Camcorder ••••

---------------------------- •••• Getting Started
•
DC IN
terminal
Ci)
·· .... CHARGE
CHARGE
indicator
3Plug the compact power adapter
into a power outlet.
4 Connect the compact power adapter
to the camcorder's DC IN terminal.
1Turn off the camcorder .
2Attach the battery pack to the
camcorder.
•Press the battery pack lightly and
slide it down until it clicks.
• PLAY
• DID
• CAMERA
IDIII
BATT. switch
Remove the battery
terminal cover before
attaching the battery
Charging the Battery Pack
The camcorder can be powered with a
battery pack ordirectly using the compact
power adapter. Charge the battery pack
before use.
Charging, Recording and Playback Times
The times given in the table below are approximate and vary depending on the actual
charging, recording or playback conditions.
Charging Time
Bp·2LS
145 min.
NB~2l
150 min.
NB·2LH
160 min.
Bp·2L12·
240 min.
BP·2L14
285 min.
Maximum Recording Times
Viewfinder 105 min. 120 min. 145 min. 250 min. 305 min.
LCD [NORMAL] 100 min. 120 min. 145 min. 245 min. 300 min.
LCD [BRIGHT] 95 min.
110 min. 135 min. 230 min. 280 min.
Typical Recording Times*
Viewfinder 60 min. 65 min. 80 min. 135 min. 165 min.
LCD [NORMAL] 55 min. 65 min. 80 min. 130 min. 165 min.
LCD [BRIGHT] 50 min. 60 min. 75 min. 125 min. 155 min.
Playback Times 110 min. 125 min. 150 min. 265 min. 320 min.
*Approximate times for recording with repeated operations such as start/stop, zooming, power on/off.

Getting Started ....... --------------------------
•The CHARGE indicator starts
flashing. The indicator will stay on
when the charging is completed.
•
You can also use the compact power
adapter without attaching abattery
pack.
•When the compact power adapter
is
connected, even if abattery is
attached its power will not be
consumed.
ONCE THE BATTERY IS FULLY CHARGED
1 Disconnect the compact power
adapter from the camcorder.
2 Unplug the compact power adapter
from the power outlet.
To REMOVE THE BATTERY PACK
Press I BATT. I to release the battery
pack. Lift the battery pack and then
pull it out.
NT
• You may hear some noise from the compact
power adapter during use. This is not a
malfunction.
•We recommend charging the battery pack
in
temperatures between 10°C and 30 °C (50 of
and 86 OF). Outside the temperature range of
a°C to 40°C (32 of to 104 OF), the charging will
not start.
•Do not connect to the camcorder's DC
IN
terminal or to the compact power adapter any
electrical equipment that is not expressly
recommended for use with this camcorder.
•
To prevent equipment breakdowns and
excessive heating, do not connect the supplied
compact poweradapterto voltage converters for
overseas travels or special power sources such
as those on aircraft and ships, DC-AC inverters,
etc.
•The CHARGE indicator also serves as a
rough estimate ofthe battery charge status.
Continuously on: Battery fully charged.
Flashes approx. twice per second: Battery over
50% charged.
Flashes approx. once per second: Battery less
than
500/0 charged.
•The charging time will vary depending on the
surrounding temperature and the battery pack's
initial charge condition.
In cold places, the
effective usage time
of the battery will
decrease.
•We recommend that you prepare battery
packs 2to 3times longer than you think you
might need.
• U.S.A. and Canada only: The lithium
ion/polymer battery that powers this
product is recyclable. Please call
1-800-8-BATTERY for information
on how to recycle this battery.
Installing the Backup Battery
The backup battery (lithium button battery
CR1616) allows the camcorder to retain the
date, time (OJ 21) and other camcorder
settings while the power source is
disconnected. Connect apower source to
the camcorder when replacing the backup
battery to retain the settings.
1 If abattery pack is attached, remove
it first.
2Open the backup battery cover.

--------------------------- •••• Getting Started
4Close the cover.
Ifthe camcorder is connected to apower
source, cassettes can be inserted/removed
even ifthe
1:t'V.~j;J switch is set to _.
•Do not interfere with the cassette
compartment while it is opening or closing
automatically, or attempt to close the cover
before the cassette compartment has fully
retracted.
•Be careful not to get your fingers caught
in
the cassette compartment cover.
4Wait for the cassette compartment
to retract automatically and close
the cassette compartment cover.
4QI IMPORTANT I
.... - - -.- ' - -.- - -.-.-.-.·.' ' ~ .- ·.· •••• · ·.·.·.v ·- - -d<-.
• To remove acassette pull it straight •
out.
3Press the [PUSH] mark on the
cassette compartment until it clicks.
~~~~~~~-~~~~~<"l
~v~~_~~~~ __ ~/
~ I
+ • ., ()-
, __ t
Inserting and Removing a Tape
Use only videocassettes marked with the
Mini~T logo.
The backup battery has alife span of about a
year.
~ flashes in red to inform you that it
needs to be replaced.
CD NOTES
3Insert the backup battery with the
+side facing out.
1Slide [OPEN/EJECT ~) fully in the
direction of the arrow and open the
cassette compartment cover.
The cassette compartment opens
automatically.
2Insert the cassette.
•Insert the cassette with the window
facing the grip belt.

Getting Started ......... -------------------------
Preparing the Camcorder
1Turn on the camcorder.
2Move the lens cover switch down to
g to open the lens cover.
3 Adjust the viewfinder.
Keep the LCD panel closed to use the
viewfinder and adjust the dioptric
adjustment lever as necessary.
4Fasten the grip belt.
Adjust the grip belt so that you can
reach the zoom lever with your index
finger, and the start/stop button with
your thumb.
Adjusting the LCD Screen
Rotating the LCD Panel
Open the LCD panel 90 degrees.
You can rotate the panel 90 degrees
downward.
90°
You can rotate the panel 180 degrees
toward the lens (allowing the subject to
monitorthe LCD screen while you use the
viewfinder). Rotating the panel 180
degrees is also useful if you wish to
include yourself when recording with the
self timer.
Subject can monitor the
LCD screen

------------------------ ........ Using the Menus
LCD Backlight •
CD FUNC .
_.'
Selecting a FUNC. Menu Option
U~ingthe Menus
Many of the camcorder's functions can be
adjusted from the menus that open after
pressing the FUNC. button
((FUNC.)).
For details about the available menu
options and settings, refer to Menu
Options Lists (OJ 27).
•
~.
{i~~
--x'
....
'Y
FUNC.
•This setting does not affect the brightness of
the recording or the viewfinder screen.
•Using the [BRIGHT] setting will shorten the
effective usage time of the battery pack.
You can set the brightness of the LCD
screen at normal or bright.
FUNe.
([J]19)
1Press [FUNC.].
2Select (~T) the r~ icon and press
(~ ) to open the setup menus.
3Select (~T) [III DISPLAY SETUPI
@] and press (@).
4Select (~T) [BACKLIGHT] and
press (@).
5Select (~T) the desired option and
press (~ ).
6Press [FUNC.) to close the menu.
rfill
I,l: !
I I
I~J~~~~,~~)~."'.- .. ®
®
1Press [FUNC.).
2Select (~T) the icon of the function
you want to change from the left
side column.
3Select (~~) the desired setting from
the available options at the bottom
bar.
The selected option will be highlighted
in light blue. Menu items not available
will appear grayed out.

Using the Menus ••• --e ------------------------
4Press (FUNC.) to save the settings
and close the menu.
• You can press [FUNC.) to close the
menu at any time.
•With some settings you will need to
press
(~ )and make further
selections. Follow the additional
operation guides that will appear
on
the screen (such as the joystick
icon
~!t·, small arrows, etc.).
Selecting an Option from the Setup
Menus
The title of the selected menu appears
on top
of the screen and under it the
list
of settings.
4Select (~T) the setting you want to
change and press (~ ).
•An orange frame will indicate the
menu item currently selected. Menu
items not available will appear grayed
out.
•
To return to the menu selection
screen, select
(T) [RETURN] and
press
(@).
5Select (~T) the desired option and
press
(@) to save the setting.
6Press [FUNC.].
You can press ["-F-UN-C--"'.) to close the
menu at any time.
CD FUNC.
®
1Press [FUNC.).
2Select (~T) the r~ icon and press
(@ ) to open the setup menus.
You can also hold (FUNC.) pressed
down for more than 2seconds to open
directly the setup menus screen.
3Select (~T) the desired menu from
the left side column and press (~ ).
