Canon EF 200mm f/2L IS USM User manual

EF200mm f/2L IS USM
Instruction
ENG
COPY

ENG-1
Dedicated to EOS cameras, the EF200mm f/2L
IS USM is a high-performance telephoto lens
equipped with an Image Stabilizer.
• "IS" stands for Image Stabilizer.
• "USM" stands for Ultrasonic Motor.
Features
1. The Image Stabilizer gives the equivalent
effect of a shutter speed five stops faster*.
The lens also has a second image stabilizer
mode that is optimized for following shots of
moving subjects.
2. With fluorite and UD lens elements,
outstanding image delineation is obtained.
3. Ultrasonic motor (USM) for quick and quiet
autofocusing.
4. Manual focusing is available after the subject
comes into focus in autofocus mode (ONE
SHOT AF).
5. The AF Stop button for stopping the AF
operation at anytime.
6. Focus preset enables you to focus instantly at
a preset distance.
7. A truly round aperture hole results in a nicer
background blur.
8. The lens is compatible with Extender EF1.4X ll
and EF2X ll.
9. Tight seal structure ensures excellent dust-
proof and drip-proof performance.
10 .Designed for lighter weight with major parts
made of magnesium alloy.
*Based on [1/focal length] second. Generally, it requires
a shutter speed [1/focal length] second or faster to
prevent camera shake.
Thank you for purchasing a Canon product.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
COPY

ENG-2
aSafety Precautions
aSafety Precautions
•Do not look at the sun or a bright light source
through the lens or camera. Doing so could result in
loss of vision. Looking at the sun directly through the
lens is especially hazardous.
•Whether it is attached to the camera or not, do not
leave the lens under the sun without the lens cap
attached. This is to prevent the lens from concentrating
the sun’s rays, which could cause a fire.
•Do not stand on the lens case. Falling off the case
could result in injury.
•Do not stack lens cases. A falling lens case could
cause an injury.
Handling Cautions
•If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment
into a cold one.
•Do not leave the lens in excessive heat such as in a
car in direct sunlight. High temperatures can cause
the lens to malfunction.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
COPY

ENG-3

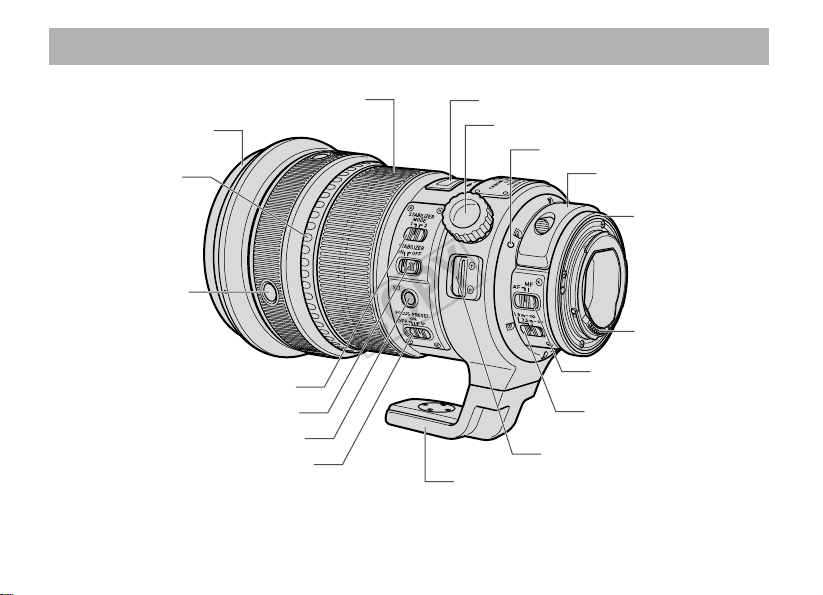

Nomenclature
Orientation locking knob (→14)
Lens mount index (→4)
Distance scale (→6)
Drop-in filter (→12)
Strap mount (→4)
Contacts (→4)
Focus mode switch (→5)
Focusing distance range
selection switch
(→5)
Image stabilizer mode selector switch (→9)
Focus preset button (→8)
Focus preset switch (→8)
Image stabilizer switch (→9)
Tripod mount (→14)
AF stop button (→7)
Playback ring (→8)
Focusing ring (→5)
Rubber ring (→4)
Hood mount (→7)
For detailed information, reference page numbers are provided in parentheses (→**).
COPY

ENG-4
•After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
electrical contacts from getting scratched.
•If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
•If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
•If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the
K index of the dust cap as shown
in the diagram, and turn clockwise. To remove it,
reverse the order.
Thread the end of the strap through the strap
mount on the lens and then back through the
clasp on the strap. Pull the strap tight and check
that there is no slack in the clasp.
Attaching the strap
See your camera’s instructions for details on
mounting and detaching the lens.
1. Mounting and Detaching the Lens
The lens mount has a rubber ring for enhanced
water- and dust-resistance. The rubber ring may
cause slight abrasions around the camera's lens
mount, but this will not cause any problems. If the
rubber ring becomes worn, it is replaceable by a
Canon Service Center at cost.
COPY

ENG-5
After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway
and turning the focusing ring. (Full-time manual
focus)
You can set the focusing distance range to
1.9 m/6.2 ft. to infinity or 3.5 m/11.5 ft. to infinity.
By setting the suitable focusing distance range,
the actual autofocusing time can be shorter.
3. Switching the Focusing
Distance Range
2. Setting the Focus
Mode
To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus
mode switch to MF, and focus by turning the
focusing ring. The focusing ring always works,
regardless of the focus mode.
COPY

ENG-6
4. Infinity Compensation Mark
Infinity compensation mark
Distance index
To compensate for shifting of the infinity focus
point that results from changes in temperature.
The infinity position at normal temperature is the
point at which the vertical line of the L mark is
aligned with the distance indicator on the
distance scale.
For accurate manual focusing on subjects at
infinity distance, look through the viewfinder while
rotating the focusing ring.
5. Depth-of-Field Scale
The depth of field is the distance in front of and
behind the plane of focus on the subject that
appears sharp. The depth of field is indicated by
the area between the depth-of-field scale lines
below the distance scale.
The number on the scale is the F value.
The depth-of-field scale is an approximate
indicator.
COPY

ENG-7
During autofocus operation, you can press the
AF stop button to temporarily pause autofocus.
If the shutter button is still pressed halfway when
the AF stop button is released, autofocusing will
continue as before.
•With the EOS 630/600, RT, A2/A2E/5, or 10S/10
set to the AI Servo AF mode and continuous
shooting, AF will not resume even after you let
go of the AF stop button. Press the shutter
release button halfway to resume AF.
•With the EOS A2/A2E/5 and 10S/10 set to the
Sports mode, AF will not resume even after you
let go of the AF stop button. Press the shutter
release button halfway to resume AF.
•The AF stop function also works in AI Servo AF
mode.
•By setting the camera's Custom Function, you
can change the AF stop button's function. For
details, see the camera's instruction manual.
6. AF Stop Button
The dedicated Lens Hood ET-120B helps to
prevent stray light from entering the lens and
protects the front of the lens from rain, snow or
dust.
To attach the hood, loosen the hood locking knob
by turning it counterclockwise. Fit the hood onto
the lens hood mount, and tighten the locking
knob to fix it in place. Use the same procedure,
in reverse, to remove the hood.
7. Hood
COPY

ENG-8
By presetting any focusing distance, you can
instantly focus at that point even while you are
shooting a different subject. This function
operates in both the AF and MF modes. How to Focus at the Preset Distance
While turning the playback ring to the left or
right, press the shutter button completely.
•The lens will focus at the preset distance.
•If the focus preset switch was set to , the beeper
will sound twice.
How to Set
Set the focus preset switch to or .
Press the shutter button halfway to focus the
distance you want to preset.
Press the focus preset button.
•The focused distance will be preset.
•If the focus preset switch was set to , the
beeper will sound once.
8. Focus Preset
•When turning the playback ring, keep your finger
away from the shutter button. In One-Shot AF
mode, the exposure will be locked when you
press the shutter button halfway and focus is
achieved. So if you press the shutter button
halfway while turning the playback ring, the
exposure may not be correct.
•When not using the focus preset, set the switch
to OFF.
In the following cases, the focusing distance scale
will move slightly. It will not affect the image.
•When you press the focus preset button.
•When you turn the playback ring.
COPY

ENG-9
9. Image Stabilizer Settings
You can use the image stabilizer in AF or MF mode.
Select the stabilizer mode.
•MODE 1: Corrects vibrations
in all directions. It is mainly
effective for shooting still
subjects.
•MODE 2: It compensates for
vertical camera shake during
following shots in a horizontal
direction, and compensates for
horizontal camera shake
during following shots in a
vertical direction.
When you press the shutter
button halfway, the Image
Stabilizer will start
operating.
•Make sure the image in the
viewfinder is stable, then press
the shutter button the rest of
the way down to take the
picture.
Set the STABILIZER switch
to .
•If you are not going to use the
image stabilizer function, set
the switch to .
COPY

ENG-10
10. Tips on Using the Image Stabilizer
●MODE 1 ●MODE 2
The image stabilizer in this lens is effective for hand-held shots under the following conditions.
•In semi-darkened areas such as indoors or
outdoors at night.
•In locations where flash photography is
prohibited, such as art museums and theater
stages.
•In situations where your footing is uncertain.
•In situations where fast shutter settings cannot
be used.
•When panning subjects in motion.
COPY

ENG-11
Tips on Using the Image Stabilizer
•The Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
•Set the STABILIZER switch to when you
are taking pictures using the Bulb setting (long
exposures). If the STABILIZER switch is set to
, the image stabilizer function may introduce
errors.
•The Image Stabilizer might not be fully effective
in the following cases:
•You shoot while riding on a bumpy road.
•You move the camera dramatically for a
panning shot in Mode 1.
•You shoot using techniques other than
following shots in Mode 2.
•The Image Stabilizer consumes more power
than normal shooting, so fewer shots can be
taken if you use the function.
•The image stabilizer operates for about two
seconds even when your finger is off the shutter
button. Do not remove the lens while the
stabilizer is in operation. This will cause a
malfunction.
•With the EOS-1V/HS, 3, ELAN 7E/ELAN
7/30/33, ELAN 7NE/ELAN 7N/30V/33V, ELAN
II/ELAN II E/50/50E, REBEL2000/300, IX, and
D30, the Image Stabilizer will not work during
self-timer operation.
•Using a tripod also stabilizes the image.
However, depending on the kind of tripod and
shooting conditions, sometimes it may be better
to turn off the Image Stabilizer function.
•The stabilizer is equally effective for hand-held
photography and photography with a monopod.
•The Image Stabilizer function also operates
when the lens is used with the EF12 II or EF25
II Extension Tube, and the EF1.4X II or EF2X II
Extender.
•Pictures may look distorted after being taken
depending on the camera, but this doesn't affect
shooting.
•If you set the camera’s Custom Function to
change the assigned button to operate the AF,
the Image Stabilizer will operate when you press
the newly assigned AF button.
COPY

ENG-12
11. Drop-In Filters
The lens comes with the drop-in Gelatin Filter
Holder 52 holding a glass filter. The holder
accepts commercially-available gelatin filters.
14mm
14mm
47mm
47mm
Removing and Installing
To remove the drop-in filter, press in the left and
right lock buttons and pull the filter holder straight
up out of the slot.
To install the drop-in filter, push the filter holder
straight down into the slot until it clicks into place.
•The filter holder can be installed facing either forwards
or backwards.
Using a Gelatin Filter
Lift up the holder’s retaining frame
Tr im the gelatin filter as shown in the figure,
and mount it in the holder.
Return the retaining frame to its closed
position.
Because the lens optics are designed to include a
glass filter, you must always install the filter
holder, even if no gelatin filter is fitted.
The Drop-In Screw-Type Filter Holder 52 and
Drop-In Circular Polarizing Filter PL-C52 are also
available (Sold separately).
COPY

ENG-13
12. Extenders (Sold separately)
•First attach the Extender to the lens, then attach the lens to the camera. Detach it from the
camera in the reverse order. If you attach the lens to the camera first, misoperation may
occur.
•Only one Extender can be attached to the lens and camera.
•If you use an Extender on the lens mounted on a EOS A2/A2E/5, set the exposure
compensation to -1/2 stop for the EF1.4X II or -1 stop for the EF2X II.
With Extender EF1.4X ll or EF2X ll attached, the lens specifications will change as follows:
When an Extender is attached, the AF speed will become slower by design to retain proper AF
control.
Item With EF1.4X ll Extender With EF2X ll Extender
Focal length (mm) 280 400
Aperture f/2.8 – 45 f/4 – 64
Diagonal 8°50’ 6°10’
Angle of view Vertical 4°55’ 3°30’
Horizontal 7°20’ 5°10’
Maximum magnification (×)0.18 0.24
COPY

ENG-14
Camera-to-Subject Magnification
Distance (mm)
Near Far Near Far
EF12 II 1380 3397 0.19×0.06×
EF25 II 1092 1716 0.26×0.14×
15. Case
Belt
Keyhole Lever
Lid
You can attach Extension Tube EF12 II or EF25
II for magnified shots. The shooting distance and
magnification are shown below.
13. Extension Tubes (Sold separately)
Manual focusing is recommended for accurate
focusing.
When putting the lens into its case, follow the
procedure below.
Attach the hood in reverse direction, then attach the lens
cap. Keep the hood locking knob facing the direction
opposite the tripod mount as shown in the left figure.
Position the tripod mount straight upwards and lay
the lens into the case as shown in the right figure.
Secure the lens with the belt.
Press the lever while holding the lid from the
top, and lock it.
14. Using the Tripod Mount
Adjusting the Revolving Mount
You can loosen the orientation lock-knob on the
tripod mount to allow it to rotate as needed to fit
a particular camera model for switching between
vertical and horizontal positions.
COPY

ENG-15
Specifications
•The lens length is measured from the mount surface to the front end of the lens. Add 26.5 mm when including the
lens cap and dust cap.
•The size and weight listed are for the lens only, except as indicated.
•Closeup Lenses 250D/500D cannot be attached.
•Aperture settings are specified on the camera.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.
Focal Length/Aperture 200 mm f/2
Lens Construction 12 groups, 17 elements
Minimum Aperture f/32
Angle of View Diagonal: 12° Vertical: 7° Horizontal: 10°
Min. Focusing Distance 1.9 m/6.2 ft.
Max. Magnification 0.12 ×
Field of View approx. 97 ×145 mm/3.8 ×5.7 inch (at 1.9 m)
Filter Drop-in 52-series
Max. Diameter and Length 128 ×208 mm/5.0 ×8.2 inch
Weight 2520 g/88.9 oz.
Hood ET-120B
Lens Cap E-145B
Case Lens Case 200
COPY

©CANON INC. 2008CT1-7580-003 2009.7
COPY
