EF100-400mm
F4.5-5.6L IS USM Instructions

ENG-1
The Canon EF100–400mm f/4.5–5.6L IS USM
lens is a high-performance telephoto zoom lens
for EOS cameras. It is equipped with an image
stabilizer effective for hand-held shooting at slow
shutter speeds.
●“IS” stands for Image Stabilizer.
●“USM” stands for Ultrasonic Motor.
Features
1. Fluorite and super UD lens elements for truly
exceptional imaging capability.
2. Dual mode image stabilizer with up to
two-stop shutter speed conversion.
• A second image stabilizer mode that is optimized
for continuous shooting (MODE 2) is provided.
• The image stabilizers can be switched on and off
as needed.
3. USM for fast, quiet focusing.
4. Manual focusing available in autofocusing
mode.
5. Adjustable zoom ring touch lets you lock at
any focal length.
6. Can be used with EF1.4×II or EF2×II
extenders.
• Extenders operate with manual focusing only.
• Image stabilizer will operate with extender*.
* Accoding to camera model. See page 9.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
Thank you for purchasing a Canon IS USM lens.
aHandling Cautions
If the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation in
this case, first put the lens into an airtight plastic bag
before taking it from a cold to warm environment. Then
take out the lens after it has warmed gradually. Do the
same when taking the lens from a warm environment into
a cold one.

ENG-2
aSafety Precautions
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for
help.
This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the
interference-causing equipment standard entitled “Digital
Apparatus”, ICES-003 of the Industry Canada.
aPrecautions after fitting to EOS-1N RS
• When shooting with this lens fitted to EOS-1N RS, use –1/3
step exposure compensation (–1/2 step if CF-6-2 is selected)
under all conditions including the lens alone or in conjunction
with extender EF1.4×II or EF2×II.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
aSafety Precautions
1. Do not look at the sun or a bright light source
through the lens or camera. Doing so could result in
loss of vision. Looking at the sun directly through the
lens is especially hazardous.
2. Whether it is attached to the camera or not, do not
leave the lens under the sun without the lens cap
attached. This is to prevent the lens from concentrating
the sun’s rays, which could cause a fire.

ENG-3
Nomenclature
STABILIZER
STABILIZER
MODE
SMOOTH
TIGHT
21
6.5m
MF
AF
1.8m
C
A
N
O
N
Z
OO
M
L
E
N
S
C
100
F
100
135
150
Hood mount
(→12)
Filter mounting
thread (→12)
Zoom ring
(→6)
Focusing ring (→5)
Image stabilizer switch (→7)
Image stabilizer mode selector switch (→7)
Zoom position index
Focus mode switch (→4)
Distance scale
(→10)
Lens mount index
(→11)
Contacts
(→4)
For detailed information, reference page numbers are provided in
parentheses (→**).
Zoom touch adjustment ring (→6)
Focusing range selection
switch (→5)

ENG-4
See your camera’s instructions for details on
mounting and detaching the lens.
To shoot in autofocus mode, set the focus mode
switch to AF.
To use only manual focusing, set the focus
mode switch to MF, and focus by turning the
focusing ring.
1. Mounting and
Detaching the Lens
2. Setting the Focus
Mode
AF MF
●After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
contacts from getting scratched.
●If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
●If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
●If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the index of the dust cap as shown
in the diagram, and turn clockwise. To remove it,
reverse the order.

ENG-5
3. Switching the
Focusing Range
Arange switch lets you select a focusing range
of either 1.8 m/5.9 ft. to infinity or 6.5 m/21.3 ft.
to infinity, depending on shooting conditions.
This setting can reduce the actual autofocusing
time.
●Before switching the focusing range, turn the
focusing ring to select a focusing distance
somewhere within the desired range.
●If you do not set the lens to a focusing distance that
is within the selected focusing range, autofocusing
may stop when it reaches the range boundary. This
is not a fault. If it happens, press the shutter button
halfway down again.
The focusing ring always works, regardless of
the focus mode.
●After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway and
turning the focusing ring.
4. Full-Time Manual
Focusing
1.8m 6.5m

ENG-6

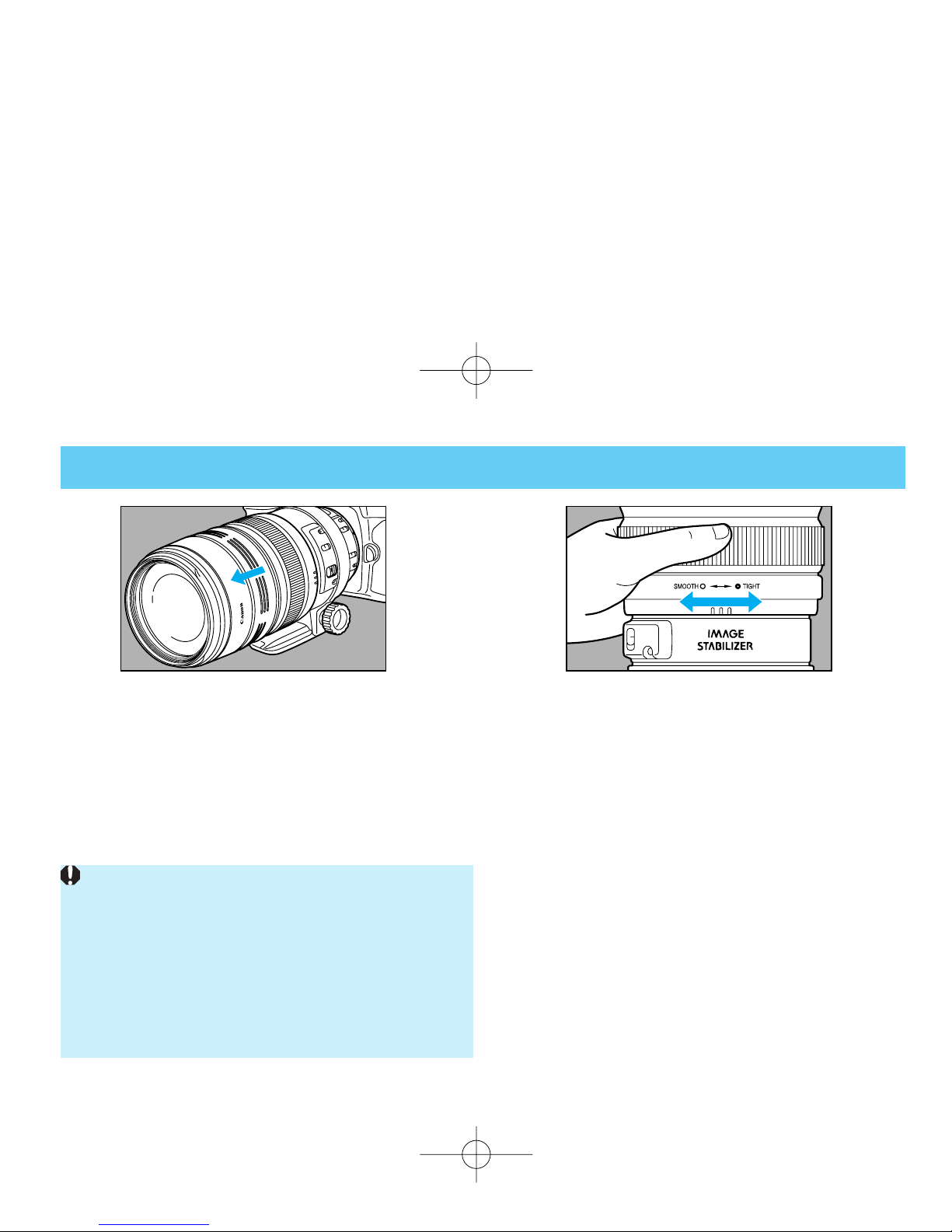

5. Adjusting the Zooming Touch
Move the zoom ring forward or backward to
zoom.
You can adjust the zooming “touch” (resistance)
as needed by holding the focusing ring in place
and turning the adjustment ring.
●Turn the adjustment ring towards the word SMOOTH
to reduce the zooming touch, or towards TIGHT to
increase it. To lock the zoom ring in place, turn the
adjustment ring towards TIGHT until it stops.
●Be sure to finish zooming before focusing.
Changing the zoom ring after focusing can affect
the focus.
●To prevent unintended zooming when not
shooting, be careful not to set the zooming
touch too loose.
●This lens can partially obstruct the light from the
built-in flash units. To avoid this, use an external
flash.

ENG-7
STABILIZER
Press the shutter button
down halfway to check the
stabilization.
●Make sure the image in the
viewfinder is stable, then
press the shutter button all
the way down to take
pictures.
6. Image Stabilizer
You can use the image stabilizer in AF or MF mode.
Set the image stabilizer
switch to (ON).
●If you are not going to use the
image stabilizer function, set
the switch to (OFF).
Select the stabilizer mode.
●Select MODE 1 for standard
photography. MODE 1
corrects all vibrations no
matter whether the camera is
being held horizontally,
vertically, or at an angle.
●To pan a moving subject,
select MODE 2.
MODE 2 corrects vibrations
and shaking only in the
direction at right angles to the
camera’s panning movement.
12
STABILIZER
MODE
STABILIZER

ENG-8
7. Tips on Using the Image Stabilizer
qIn semi-darkened areas such as indoors or
outdoors at night.
wIn locations where flash photography is
prohibited, such as art museums and theater
stages.
eIn situations where fast shutter settings
cannot be used.
rIn situations where your footing is uncertain.
The image stabilizer is particularly effective for hand-held shots in the following conditions.
qWhen panning subjects in motion.
wWhen following subjects that are moving
erratically.
*We recommend MODE 1 for all other situations.
●MODE 1 ●MODE 2
(OFF)
(ON)
(OFF)
(ON)

ENG-9
Tips on Using the Image Stabilizer
●The image stabilizer does not compensate for
subject movement (where the subject itself moves).
●The image stabilizer should be (OFF) in the
following situations. If the switch is (ON), the
image stabilizer may not operate correctly.
• Shots using a tripod
• Bulb (time exposure) shots
●The image stabilizer may not be fully effective in
the following situations:
• Panning with large camera movements in
MODE 1.
• Taking pictures from a moving object such as a
vehicle in MODE 1.
• Taking pictures other than panning shots in
MODE 2.
●When this lens is used with an extender, the
image stabilizer operates normally with models
sold since the fall of 1993 (EOS REBEL XS/500,
EOS-1N/DP/HS/RS, EOS ELAN IIE/50E,
EOS REBEL G/500 N, EOS 5000/888, EOS IX,
EOS IX Lite/IX 7 etc.), but does not operate with
the following EOS-series cameras sold before
that date:
* EOS650, EOS620, EOS 630/600, EOS RT,
EOS 700, EOS750, EOS850, EOS-1,
EOS A2/A2E/5, EOS10S/10, EOS ELAN/100,
EOS REBEL S/REBEL/1000F/1000,
EOS REBEL SII/REBEL II/1000FN/1000N
If you set the camera’s Custom Function to change
the assigned button to operate the AF, the image
stabilizer will operate when you press the newly
assigned AF button.
●The image stabilizer operates for about two
seconds even when your finger is off the shutter
button. Do not remove the lens while the
stabilizer is in operation. This will cause a
malfunction.
●
With the EOS-1V/HS, EOS-3, EOS ELAN 7E/7/EOS
30/33, EOS ELAN7NE/ELAN7N/EOS30V/33V,
EOS ELAN IIE/50E, EOS REBEL 2000/300,
EOS IX, and EOS D30, the image stabilizer will
not work during self-timer operation.
●The image stabilizer does not operate with the
manual-focus EF-M camera.

ENG-10
8. Infinity Distance Mark
The infrared index corrects the focus setting
when using monochrome infrared film. Focus on
the subject manually, then adjust the distance
setting by moving the focusing ring to the
corresponding infrared index mark.
The intermediate marker between 200 and 135
is 150 mm.
9. Infrared Index
20
5030 ft
m
100135200
10
20
5030 ft
m
100135200
10
●The infrared index position is based on a
wavelength of 800 nm.
●Be sure to observe the manufacture’s
instructions when using infrared film.
●Use a red filter also when you take the picture.
To compensate for shifting of the infinity focus
point that results from changes in temperature.
The infinity position at normal temperature is the
point at which the vertical line of the L mark is
aligned with the distance indicator on the
distance scale.
For accurate manual focusing on subjects at
infinity distance, look through the viewfinder while
rotating the focusing ring.
Some EOS cameras cannot use infrared film. See
the instructions for your EOS camera.

ENG-11
10. Using the Tripod Mount
Adjusting the Tripod Mount
Loosening the orientation lock knob on the tripod mount allows you to turn the lens and camera freely.
This is useful when you want to switch the camera between landscape and portrait positions while it is
mounted on a tripod. Once you have set the camera to the desired position, tighten the lock knob
firmly.
Detaching the Tripod Mount
First remove the lens from the camera and then remove the tripod mount from the lens as shown
below. To attach the tripod mount, reverse the procedure.
Align the red mark on the
tripod mount with the lens
mount index.
●Rotate the tripod mount to
align the red marks.
Loosen the orientation lock
knob.
Move the tripod mount
towards the back of the
lens.

ENG-12
11. Hood
The ET-83C hood can keep unwanted light out
of the lens, and also protects the lens from rain,
snow, and dust.
To mount the hood, align it with the front of the
lens, and turn clockwise until the hood is firmly
in place.
The hood can be reverse-mounted on the lens
for storage.
You can attach filters to the filter mounting
thread on the front of the lens.
●You can use up to two 77 mm/2.8 inch filters with
this lens.
●If you need a polarizing filter, use Canon’s PL-C
77mm II polarizing filter.
●To adjust the polarizing filter, first remove the lens
hood.
●When using the PL-C 77mm II polarizing filter, a lens
cap cannot be mounted.
12. Filters (Sold Separately)
When attaching or detaching the hood, grasp the
base of the hood to turn it. To prevent deformation,
do not grasp the rim of the hood to turn it.

ENG-13
13. Extenders (Sold Separately)
This lens can use the EF1.4×II or EF2×II extender with manual focusing. Using an extender
changes the lens specifications as follows.
●When using this lens with an extender, the focusing mode is automatically set to manual mode, even if
the switch is set to AF mode.
●Extenders cannot be used more than one at a time.
●Use the following exposure compensations when shooting with this lens fitted to EOS-1N RS or EOS
A2/A2E/5 and used in conjunction with extender EF1.4×II or EF2×II.
EOS-1N RS EOS A2/A2E/5
Extender EF1.4×II –1/3 step (–1/2 step for CF-6-2) –1/2 step
Extender EF2×II –1 step
Item With EF1.4×II Extender With EF2×II Extender
Focal length (mm) 140 – 560 200 – 800
Aperture 1/2 steps Wide-angle (100mm) f/6.7 – 45 f/9.5 – 64
Telephoto (400mm) f/8 – 54 f/11 – 76
1/3 steps Wide-angle (100mm) f/6.3 – 45 f/9 – 64
Telephoto (400mm) f/8 – 57 f/11 – 81
Angle of view Diagonal 17° 34’ – 6° 10’ 12° – 3° 06’
Vertical 9° 48’ – 3° 22’ 7° – 1° 40’
Horizontal 14° 39’ – 5° 05’ 10° – 2° 35’
Maximum magnification (×)0.28 0.41

ENG-14
Specifications
Image Size 24 ×36 mm
Focal Length/Aperture 100 – 400 mm f/4.5 – 5.6
Lens Construction 14 groups, 17 elements
Minimum Aperture f/32 – 38 *
Angle of View Diagonal: 24° – 6° 10’
Vertical: 14° – 3° 30’
Horizontal: 20° – 5° 10’
Min. Focusing Distance 1.8 m/5.9 ft.
Max. Magnification 0.2×(at 400 mm)
Field of View Approx. 120 ×180 mm/4.7 ×7.1 inch (at 0.5 m/5.9 ft.)
Filter Diameter 77 mm/2.8 inch
Max. Diameter and Length 92 ×189 mm/3.6 ×7.4 inch
Weight 1380 g/48 oz (1510 g/53.3 oz with tripod mount)
Hood ET-83C
Case LZ1324
* Values shown are for models with aperture settings shown in half-step increments. For models with
1/3 step aperture increments, the values are f/32 to f/40.
•The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm
when including the lens cap and dust cap.
•The size and weight listed are for the lens only, except as indicated.
•Aperture settings are specified on the camera. The camera automatically compensates for
variations in the aperture setting when the camera is zoomed in or out.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.

MEMO

2007.1.1
CT1-8533-000 0906SZ2 © CANON INC. 2006 PRINTED IN JAPAN
キヤノン株式会社 http://canon.jp
キヤノンマーケティングジャパン株式会社
〒108-8011 東京都港区港南2-16-6
canon.jp/ef
100％再生紙を使用しています。揮発性有機化合物（VOC）ゼロのインキを使用しています。
CANON INC.
30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A.
CANON U.S.A. INC.
One Canon Plaza, Lake Success, NY 11042-1198, U.S.A.
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA
CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, AFRICA & MIDDLE EAST
CANON EUROPA N.V.
Bovenkerkerweg 59-61, P.O. Box 2262, 1180 EG Amstelveen, The Netherlands
CANON COMMUNICATION & IMAGE FRANCE S.A.S.
12 Rue de l’Industrie 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8 I-20097 San Donato Milanese, Milano, Italy
CANON Schweiz AG
Geschäftsbereich Wiederverkauf, Industriestrasse 12, CH-8305 Dietlikon,
Switzerland
Canon GMBH
Zetschegasse 11, A-1230 Wien, Austria
CANON España, S.A.
C/Joaquín Costa, 41, 28002 Madrid, Spain
SEQUE Soc. Nac. de Equip., Lda.,
Praça da Alegria, 58, 2°, 1269-149 Lisboa, Portugal
CANON Belgium N.V./S.A.
Bessenveldstraat 7, B-1831 Diegem, Belgium
CANON Netherland NV
Neptunusstraat 1, 2132 JA Hoofddorp, The Netherlands
CANON LUXEMBOURG S.A.
Rue des Joncs 21, L-1818 Howald, Luxembourg
CANON DANMARK A/S
Knud Hoejgaards Vej 1 DK-2860 Soeborg, Danmark
CANON OY
Huopalahdentie 24 PL 1 00351 Helsinki, Finland
CANON SVENSKA AB
Gustav III:s Boulevard 26 169 88 Solna, Sweden
CANON NORGE as
Hallagerbakken 110, Postboks 33, Holmlia, 1201 Oslo, Norway
CENTRAL & SOUTH AMERICA
CANON LATIN AMERICA, INC.
703 Waterford Way, Ste. 400 Miami, FL 33126, U.S.A.
ASIA
CANON (China) Co., Ltd.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005,
China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 HarbourFront Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Startower Bldg.17F, 737, Yeoksam-Dong, Kangnam-Ku, Seoul, 135-984, Korea
OCEANIA
CANON AUSTRALIA PTY.LTD.
1 Thomas Holt Drive, North Ryde, N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN
CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
