Thank you for purchasing a Canon product.
Canon RF70-200mm F2.8 L IS USM is a
telephoto zoom lens for use with EOS R series
cameras.
z“IS” stands for Image Stabilizer.
z“USM” stands for Ultrasonic Motor.
Camera Firmware
Please use the latest version of firmware with the
camera in use. For details on whether the firmware is
the latest version or not, and for details on updating
the firmware, please check the Canon website.
Conventions used in these instructions
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.

ENG-2
Precautions to ensure that the camera is used
safely. Read these precautions thoroughly. Make
sure all details are observed in order to prevent
risks and injury to the user and other people.
Warning
Details pertaining to risks that may
result in death or serious injury.
zDo not look directly at the sun or other strong
light sources through a lens. This may result in
loss of sight.
zDo not leave a lens in the sun without the lens
cap attached. The lens may concentrate entering
sunlight and cause a malfunction or fire.
Caution
Details pertaining to risks that
may result in injury or damage to
other objects.
zDo not leave the product in places exposed to
extremely high or low temperatures. The product
may cause burns or injury when touched.
zDo not insert your hand or fingers into the
product. This may result in injury.
zWhen using a tripod, please use one that has
sufficient strength.
zMake sure that the lock knob on the tripod
mount is firmly tightened.
Safety Precautions

ENG-3
Handling Precautions
zDo not leave the product in excessive heat such as
in a car in direct sunlight. High temperatures can
cause the product to malfunction.
zIf the lens is taken from a cold environment into a
warm one, condensation may develop on the lens
surface and internal parts. To prevent condensation
in this case, first put the lens into an airtight
plastic bag before taking it from a cold to warm
environment. Then take out the lens after it has
warmed gradually. Do the same when taking the
lens from a warm environment into a cold one.
zThe lens interior may appear to waver, but this
does not indicate a defect or failure, and will not
cause any problems in use.
zPlease also read any lens related handling
precautions listed in your camera’s instruction
manual.
General Precautions

ENG-4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such
changes or modifications should be made, you could be
required to stop operation of the equipment.
This equipment has been tested and found to comply with
the limits for a class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAN ICES-3 (B) / NMB-3 (B)

ENG-5
Filter mounting thread
(→ 16)
Focus mode switch (→ 7)
Image stabilizer switch (→ 10)
Rubber ring (→ 6)
Image stabilizer mode selector switch (→ 10)
Hood mount (→ 13)
Zoom ring (→ 7)
Lock knob (→ 15)
Focusing distance range
selector switch (→ 9)
Vertical position
indicator (→ 15)
Contacts (→ 6)
Lens mount (→ 6)
Lens mount index (→ 6)
Control ring (→ 9)
Tripod mount (→ 15)
Zoom ring lock lever
(→ 8)
Focusing ring (→ 7)
Horizontal position
indicator (→ 15)
z For detailed information, reference page numbers are provided in parentheses (→ **).
Nomenclature

ENG-6
Lens mount index
Lens release button Dust cap
Attaching the Lens
Align the lens mount indexes of the lens and
camera, and turn the lens clockwise until you
hear a click.
Detaching the Lens
Turn the lens counterclockwise while pressing
the camera’s lens release button. Detach the
lens once it has stopped turning.
Please refer to the camera's instructions for
details.
zSet the camera’s power switch to OFF when
attaching or detaching the lens.
zAttach the lens cap before detaching the lens
from the camera.
zAfter detaching the lens, place the lens with the
rear end up and attach the dust cap to prevent
the lens surface and contacts from getting
scratched. Make sure the lens and dust cap
mount indexes are aligned when attaching the
dust cap.
zContacts that are scratched, soiled, or have
fingerprints on them may result in faulty
connections or corrosion, which may lead to
malfunctions. If the contacts get soiled, clean
them with a soft cloth.
zThe lens mount has a rubber ring to improve
dust-resistance and water-resistance
performance. This rubber ring may cause
friction marks to appear around the camera’s
lens mount, although this will have no effect on
usage.
zRubber rings can be replaced at Canon Service
Center. (chargeable)
1. Attaching and Detaching the Lens

ENG-7

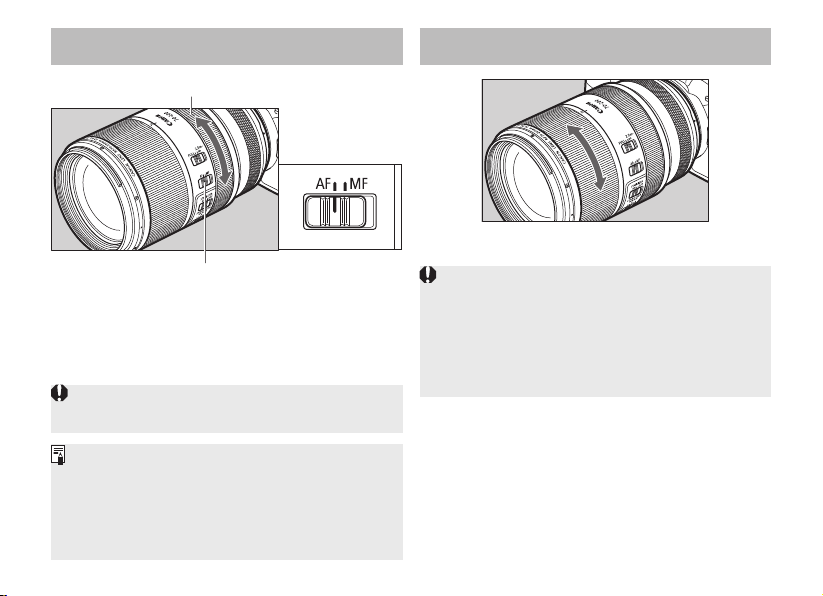

2.
Setting the Focus Mode
3. Zooming
To zoom, turn the lens’ zoom ring.
zBe sure to finish zooming before focusing.
Zooming after focusing can affect the focus.
zBlurring may temporarily occur if the zoom ring is
quickly turned.
zMake sure you do not get your fingers caught
between the front of the lens and the zoom ring
when zooming.
Focusing ring
Focus mode switch
To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus
mode switch to MF, and focus by turning the
focusing ring.
zQuickly turning the focusing ring may result in
delayed focus.
zThe lens’ focusing ring is electronic.
zManual focus is possible even when the focus
mode switch is set to AF. (Full-time manual
focus) However, the camera settings need
to be changed. Please refer to the camera's
instructions for details.

ENG-8
4. Fixing the Zoom Ring
The zoom ring can be fixed to keep the lens at the shortest point. This function is convenient for
carrying a camera on a strap because it prevents the lens from extending.
2Slide the zoom ring lock
lever in the direction
indicated by the arrow.
zTo release the zoom ring, slide
the zoom ring lock lever in the
direction opposite to the arrow.
1Turn the zoom ring to
the widest position
(70 mm).
zThe zoom ring cannot be fixed in place at any position other than the
widest position.

ENG-9
The control ring can be assigned the functions
that are commonly used with cameras, such as
shutter speed and aperture settings.
Control ring
The click action of the control ring allows you to
have a sense of how much it is being turned.
Please refer to the camera's instructions for
details on how to use the control ring.
zThere are cases in which the sound of control
ring operations may be recorded when shooting
movies.
zThe clicking sensation of the control ring can
be removed by the Canon Service Center.
(chargeable)
6. Control Ring
5. Setting the Focusing
Distance Range
Focusing distance range selector switch
You can set the focusing distance range with a
switch. By setting a suitable focusing distance
range, the actual autofocusing time will be
shorter.
Focusing distance range
1. FULL (0.7 m/2.30 ft. - ∞)
2. 2.5 m/8.20 ft. - ∞

ENG-10
Image stabilization corrects vibrations that occurs with hand-held shots.
7. Image Stabilizer
Image stabilizer switch
1Set the STABILIZER switch to ON.
zIf you are not going to use image stabilization, set
the image stabilizer switch to OFF.
Image stabilizer mode selector switch
2Select an Image Stabilizer mode
according to the application and shooting
conditions.
Image Stabilizer modes
zMODE 1: Corrects vibrations in all directions.
It is suited to shooting still subjects.
zMODE 2: When you take a panning shot either horizontally or vertically, corrects vibrations at right
angles to the direction of panning.
It is suited to shooting moving subjects.
zMODE 3: During exposure, corrects vibrations in the same way as MODE 2.
Since vibration is corrected only during exposure, It is suited to shooting irregularly
moving subjects.

ENG-11
The Image Stabilizer for this lens is suited to hand-held shots in the following conditions.
Image Stabilizer
MODE 1
Shooting still subjects
zIn semi-darkened areas such as indoors or
outdoors at night.
zIn locations where the flash cannot be used,
such as art museums and theater stages.
zIn situations where your footing is uncertain.
zIn situations where fast shutter speed settings
cannot be used.
MODE 3
Shooting irregularly moving subjects
MODE 2
Shooting moving subjects
zSports photography
of soccer, basketball,
etc.
zPhotography of
animals
zPanning shots of
vehicles, trains, etc.

ENG-12
Image Stabilizer
zThe Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
zThe Image Stabilizer might not be fully effective in
the following conditions:
• Large shake or fast vibration
• Panning in MODE 1
zWhen using a tripod, it is recommended that you
set the image stabilizer switch to OFF.
zEven with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting conditions,
there are cases in which the Image Stabilizer
effect may be less effective.

ENG-13
The custom lens hood cuts out unwanted light and protects the front of the lens from rain, snow, and
dust.
8. Hood
Attachment position mark
Stop position mark
Attachment position mark
Red dot
Red dot
Red dot
Attaching the Hood
Align the red attachment position mark on the
hood with the red dot on the front of the lens,
and then turn the hood in the direction of the
arrow until you hear a click.
Button
Detaching the Hood
Keep your finger pressed down on the button
located on the side of the hood, and then turn
the hood in the direction of the arrow until the
attachment position mark on the hood is aligned
with the red dot on the front of the lens to detach
it.
The hood can be reverse-mounted on the lens
for storage.
zIf the hood is not attached properly, vignetting (darkening of the perimeter of the picture) may occur.
zGrasp and turn the base of the hood when attaching and detaching it. There are cases in which it may
become deformed if the hood is turned with it grasped near to the rim.

ENG-14
Hood
The hood features a filter adjustment window which, when opened, allows the user to adjust the
circular polarizing filter while the hood is attached to the lens.

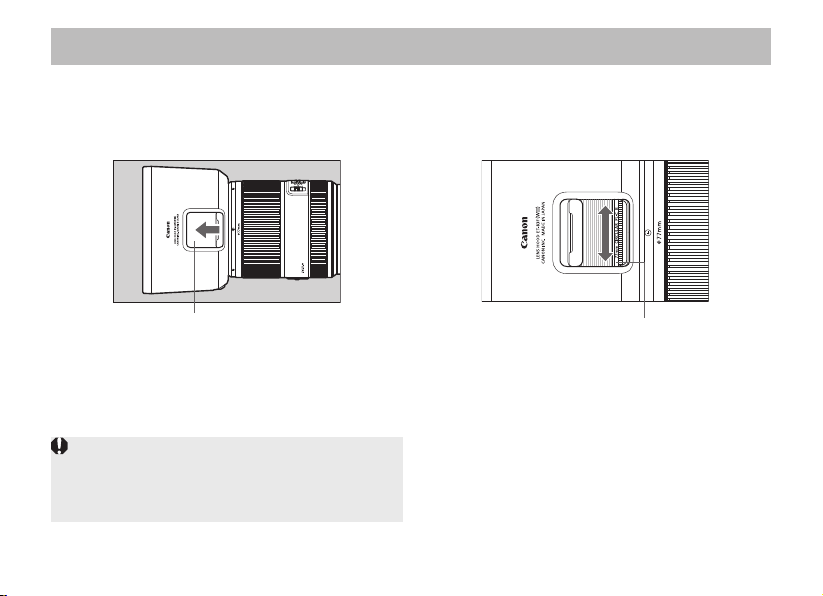

Filter Adjustment Window
Filter adjustment window
1Open the filter adjustment window which
is installed in the hood by sliding it
forward.
Circular polarizing filter
2Adjust the circular polarizing filter via the
open filter adjustment window.
zDetach the hood when attaching or detaching the
circular polarizing filter.
zPlease close the filter adjustment window during
shooting.

ENG-15
A tripod or monopod attaches to the tripod mount on the lens.
Attaching the Tripod Mount
9. Tripod Mount
①
③
②
Collar
Lock
knob
1Open the collar of the
tripod mount
z
Turn the lock knob
counterclockwise until it becomes
loose (about 3 turns) (
① ).
zPull the knob in the direction
of the arrow (②) to release the
collar (③).
④Tripod
mounting
location
2Attach tripod mount to
lens
zWith the collar open, insert
it into the tripod mounting
location on the lens and close
the collar (④).
⑦
⑤
⑥
3Fix tripod mount to lens
zWhile pulling the lock knob
(
⑤ ), insert the end of the open
collar until it reaches its original
position (
⑥ ).
zTurn and tighten the lock knob,
fixing it securely to the lens (⑦).
When removing the tripod mount, hold the camera and lens and remove the mount following the
above procedure in reverse.
Switching the Orientation of the Image
By loosening the lock knob on the tripod mount you can rotate the camera and the lens to switch the
image in any orientation (vertical, horizontal, etc.). Make sure that the lock knob is tightened after
setting the camera in place.

ENG-16
10.
Filters (Sold separately)
11. Close-up Lenses
(Sold separately)
You can attach filters to the filter mounting thread
on the front of the lens.
zOnly one filter may be attached.
zIf you need a polarizing filter, use the Canon
Circular Polarizing Filter PL-C B.
zPlease refer to p.14 for details on how to use
the circular polarizing filter.
Attaching a 500D (77 mm) Close-up Lens
enables close-up photography.
It provides a magnification of 0.14x to 0.46x.
zClose-up Lens 250D cannot be attached
because there is no size that fits the lens.
zMF mode is recommended for accurate
focusing.

ENG-17
Specifications
Focal Length/Aperture 70-200mm f/2.8
Lens Construction 13 groups, 17 elements
Minimum Aperture f/32
Angle of View Horizontal: 29° - 10°, Vertical: 19° 30' - 7°, Diagonal: 34° - 12°
Min. Focusing Distance 0.7 m/2.30 ft.
Max. Magnification 0.23x (at 200 mm)
Field of View Approx. 322 x 212 - 152 x 101 mm/
12.68 x 8.35 - 5.98 x 3.98 in. (at 0.7 m/2.30 ft.)
Filter Diameter 77 mm
Max. Diameter and Length Approx. 89.9 x 146.0 mm/3.54 x 5.75 in.
Weight Approx. 1070 g/37.7 oz (excluding a tripod)
Hood ET-83F (WIII)
Lens Cap E-77 II
Case LP1424
zThe lens length is measured from the lens mount surface to the front end of the lens.
Add 24.2 mm/0.95 in. when including the lens cap and dust cap.
zThe size and weight listed are for the lens only.
zAll data listed is measured according to Canon standards.
zProduct specifications and appearance are subject to change without notice.

CT1-D121-A 0819Ni © CANON INC. 2019
