EF70-300mm f/4-5.6L IS USM
Instruction
ENG
COPY

ENG-1
Dedicated to EOS cameras, the Canon EF70-
300mm f/4-5.6L IS USM lens is a high-
performance telephoto zoom lens equipped
with an Image Stabilizer.
•“IS” stands for Image Stabilizer.
•“USM” stands for Ultrasonic Motor.
4. Ultrasonic motor (USM) for quick and quiet
autofocusing.
5. Manual focusing is available after the subject
comes into focus in autofocus mode (ONE
SHOT AF).
6. The zoom ring can be fixed to keep the lens at
the shortest point.
7. A truly round aperture hole results in a nicer
background blur.
8. Tight seal structure ensures excellent dust-
proof and drip-proof performance.
*Based on [1/focal length] second. Generally, it requires
a shutter speed [1/focal length] second or faster to
prevent camera shake.
Features
1. The Image Stabilizer gives the equivalent
effect of a shutter speed four stops faster*.
The lens also has a second image stabilizer
mode that is optimized for following shots of
moving subjects.
2. UD lens elements for excellent imaging
performance.
3. A fluorine coating has been applied to the
lens’s front and rear lens elements which
allows dust to be wiped from the outside of the
lens more easily compared with previous
lenses.
Thank you for purchasing a Canon product.
Conventions used in this instruction
Warning to prevent lens or camera malfunction
or damage.
Supplementary notes on using the lens and
taking pictures.
COPY

ENG-2
aSafety Precautions
aSafety Precautions
•Do not look at the sun or a bright light source
through the lens or camera. Doing so could result
in loss of vision. Looking at the sun directly through
the lens is especially hazardous.
•Whether it is attached to the camera or not, do
not leave the lens under the sun without the
lens cap attached. This is to prevent the lens from
concentrating the sun’s rays, which could cause a
fire.
Handling Cautions
•If the lens is taken from a cold environment into
a warm one, condensation may develop on the
lens surface and internal parts. To prevent
condensation in this case, first put the lens into an
airtight plastic bag before taking it from a cold to
warm environment. Then take out the lens after it
has warmed gradually. Do the same when taking
the lens from a warm environment into a cold one.
•Do not leave the lens in excessive heat such as in
a car in direct sunlight. High temperatures can
cause the lens to malfunction.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Do not make any changes or modifications to the equipment
unless otherwise specified in the instructions. If such changes or
modifications should be made, you could be required to stop
operation of the equipment.
This equipment has been tested and found to comply with the
limits for a class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Consult the dealer or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
COPY

ENG-3
Nomenclature
Hood mount (→6)
Filter mounting
thread (→13)
Image stabilizer switch (→8)
Image stabilizer mode selector switch (→8)
Focus mode switch (→5)
Zoom ring (→5)
Focusing ring (→5)
Distance scale (→11)
Contacts (→4)
Lens mount index (→4)
Rubber ring (→4)
Tripod mounting location (→12)
Zoom ring lock
lever (→7)
For detailed information, reference page numbers are provided in parentheses (→**).
COPY

ENG-4
See your camera’s instructions for details on
mounting and detaching the lens.
•After detaching the lens, place the lens with the
rear end up to prevent the lens surface and
electrical contacts from getting scratched.
•If the contacts get soiled, scratched, or have
fingerprints on them, corrosion or faulty
connections can result. The camera and lens
may not operate properly.
•If the contacts get soiled or have fingerprints on
them, clean them with a soft cloth.
•If you remove the lens, cover it with the dust
cap. To attach it properly, align the lens mount
index and the
K index of the dust cap as shown
in the diagram, and turn clockwise. To remove it,
reverse the order.

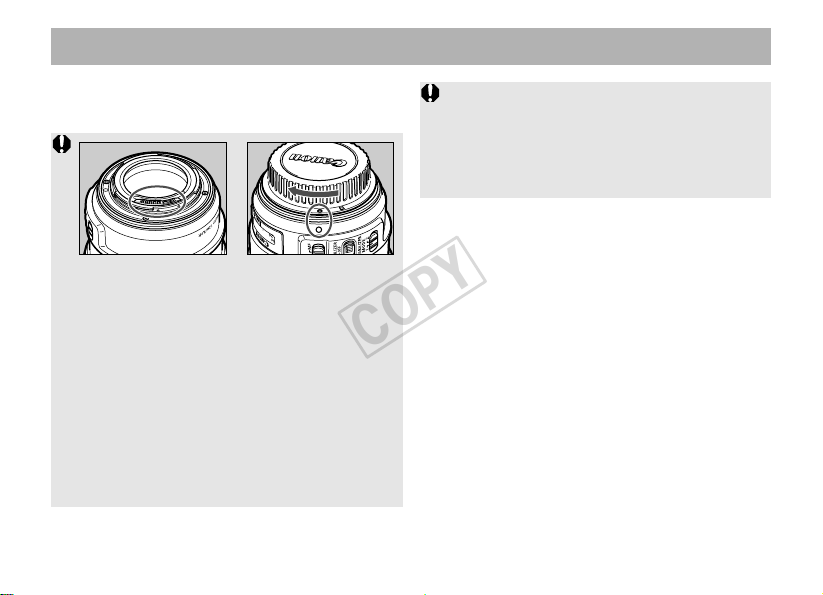

1. Mounting and Detaching the Lens
The lens mount has a rubber ring for enhanced
water- and dust-resistance. The rubber ring may
cause slight abrasions around the camera's lens
mount, but this will not cause any problems. If the
rubber ring becomes worn, it is replaceable by a
Canon Service Center at cost.
COPY

ENG-5
3. Zooming
To zoom, turn the zoom ring.
Be sure to finish zooming before focusing.
Zooming after focusing can affect the focus.
Especially for shooting distances shorter than 3 m
/ 9.8 ft., zooming to another focal length will
greatly change the focus.

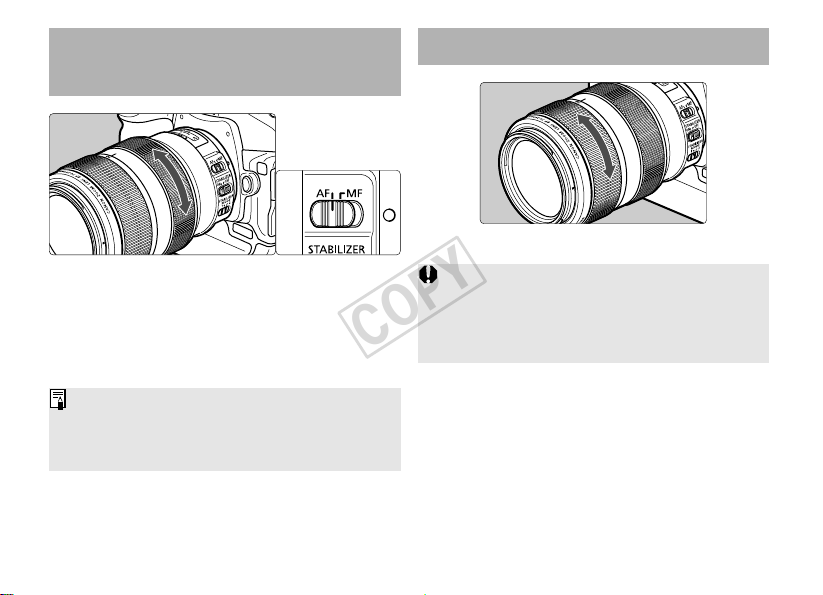

2. Setting the Focus
Mode
To shoot in autofocus (AF) mode, set the focus
mode switch to AF.
To use only manual focusing (MF), set the focus
mode switch to MF, and focus by turning the
focusing ring. The focusing ring always works,
regardless of the focus mode.
After autofocusing in ONE SHOT AF mode, focus
manually by pressing the shutter button halfway
and turning the focusing ring. (Full-time manual
focus)
COPY

ENG-6
4. Hood
The ET-73B hood can keep unwanted light out of the lens, and also protects the lens from rain,
snow, and dust.
To attach the hood, align the hood’s attachment position mark with the red dot on the front of the
lens, then turn the hood as shown by the arrow until the lens' red dot is aligned with the hood's stop
position mark.
The hood can be reverse-mounted on the lens for storage.
•Part of the picture may be blocked if the hood is not attached properly.
•When attaching or detaching the hood, grasp the base of the hood to turn it. To prevent deformation, do not
grasp the rim of the hood to turn it.
COPY

ENG-7
The zoom ring can be fixed to keep the lens at the shortest point. This function is convenient for
carrying a camera on a strap because it prevents the lens from extending.

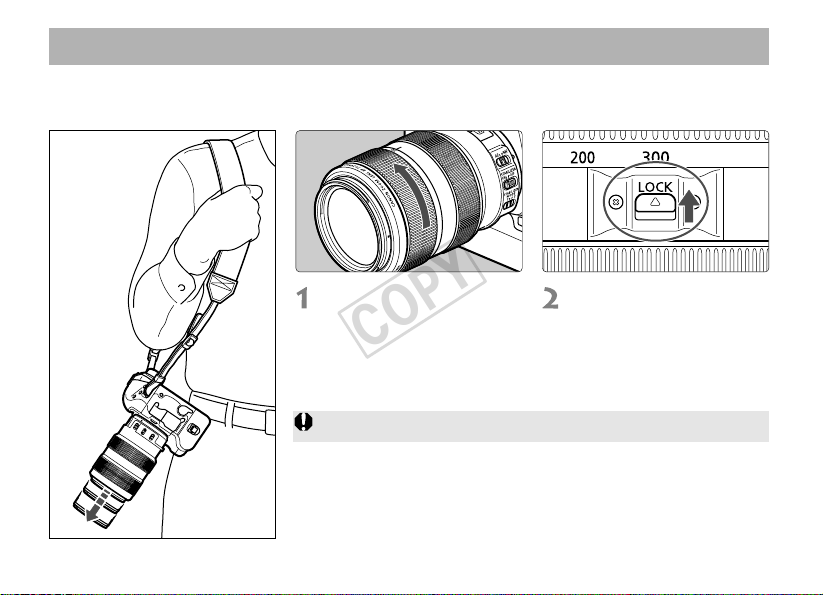

5. Fixing the Zoom Ring
Slide the zoom ring lock
lever in the direction
indicated by the arrow.
•To release the zoom ring, slide
the zoom ring lock lever in the
direction opposite to the arrow.
Turn the zoom ring to the
widest position (70mm).
The zoom ring can only be locked at maximum wide angle.
COPY

ENG-8
You can use the image stabilizer in AF or MF mode.

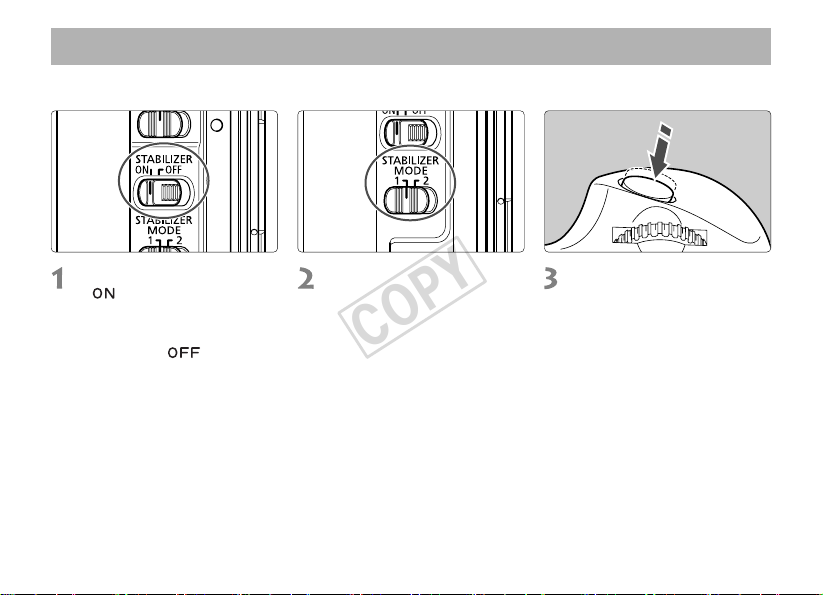

6. Image Stabilizer Settings
Select the stabilizer mode.
•MODE 1: Corrects vibrations
in all directions. It is mainly
effective for shooting still
subjects.
•MODE 2: It compensates for
vertical camera shake during
following shots in a horizontal
direction, and compensates for
horizontal camera shake
during following shots in a
vertical direction.
When you press the shutter
button halfway, the Image
Stabilizer will start
operating.
•Make sure the image in the
viewfinder is stable, then press
the shutter button the rest of
the way down to take the
picture.
Set the STABILIZER switch
to .
•If you are not going to use the
image stabilizer function, set
the switch to .
COPY

ENG-9
7. Tips on Using the Image Stabilizer
•In semi-darkened areas such as indoors or
outdoors at night.
•In locations where flash photography is
prohibited, such as art museums and theater
stages.
•In situations where your footing is uncertain.
•In situations where fast shutter settings cannot
be used.
•When panning subjects in motion.
●MODE 1 ●MODE 2
The image stabilizer in this lens is effective for hand-held shots under the following conditions.
COPY

ENG-10
Tips on Using the Image Stabilizer
•The Image Stabilizer cannot compensate for a
blurred shot caused by a subject that moved.
•
Set the STABILIZER switch to when you are
taking pictures using the Bulb setting (long
exposures). If the STABILIZER switch is set to ,
the image stabilizer function may introduce errors.
•The Image Stabilizer might not be fully effective
in the following cases:
•You shoot while riding on a bumpy road.
•You move the camera dramatically for a
panning shot in Mode 1.
•You shoot using techniques other than
following shots in Mode 2.
•The Image Stabilizer consumes more power
than normal shooting, so fewer shots can be
taken if you use the function.
•
The image stabilizer operates for about two
seconds even when your finger is off the shutter
button. Do not remove the lens while the stabilizer
is in operation. This will cause a malfunction
.
•With the EOS-1V/HS, 3, ELAN 7E/ELAN
7/30/33, ELAN 7NE/ELAN 7N/30V/33V, ELAN
II/ELAN IIE/50/50E, REBEL 2000/300, IX, and
D30, the Image Stabilizer will not work during
self-timer operation.
•Using a tripod also stabilizes the image.
However, depending on the kind of tripod and
shooting conditions, sometimes it may be better
to turn off the Image Stabilizer function.
•Even with a monopod, the Image Stabilizer will
be as effective as during hand-held shooting.
However, depending on the shooting
environment, the Image Stabilizer effect may be
less effective.
•The image stabilizer function also operates
when the lens is used with an Extension Tube
EF12 ll or EF25 ll.
•Pictures may look distorted after being taken
depending on the camera, but this doesn't affect
shooting.
•If you set the camera’s Custom Function to
change the assigned button to operate the AF,
the Image Stabilizer will operate when you press
the newly assigned AF button.
COPY

ENG-11

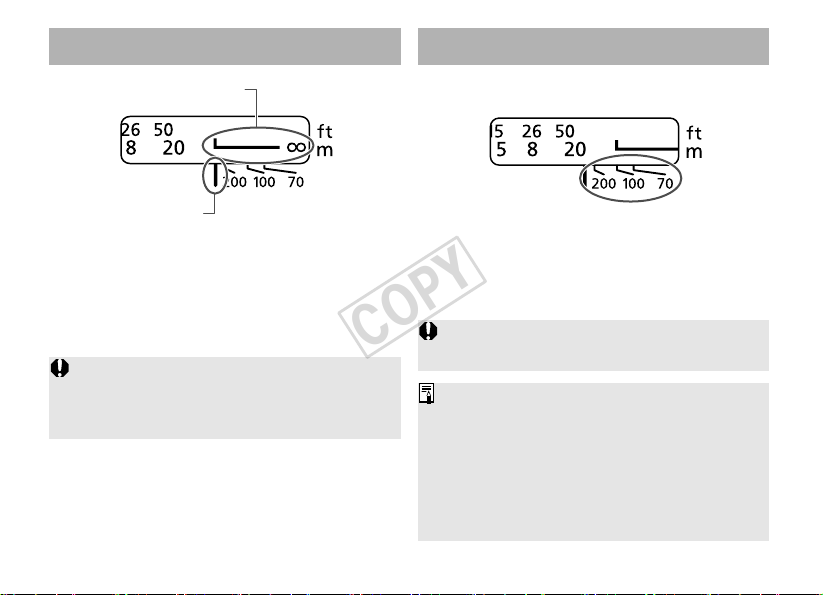

8. Infinity Compensation Mark 9. Infrared Index
Infinity compensation mark
Distance index
To compensate for shifting of the infinity focus
point that results from changes in temperature.
The infinity position at normal temperature is the
point at which the vertical line of the L mark is
aligned with the distance indicator on the
distance scale.
For accurate manual focusing of subjects at
infinity, look through the viewfinder or look at the
magnified image* on the LCD screen while
rotating the focusing ring.
* For cameras with Live View shooting capability.
The infrared index corrects the focus setting when using
monochrome infrared film. Focus on the subject
manually, then adjust the distance setting by moving the
focusing ring to the corresponding infrared index mark.
•The infrared index position is based on a
wavelength of 800 nm.
•
The compensation amount differs depending on
the focal length. Use the indicated focal length as
a guide when setting the compensation amount.
•Be sure to observe the manufacturer’s
instructions when using infrared film.
•Use a red filter when you take the picture.
Some EOS cameras cannot use infrared film. See
the instructions for your EOS camera.
COPY

ENG-12
10. Using the Tripod Mount (Sold separately)
Adjusting the Revolving Mount
This lens can be used with the C (W II) tripod mount ring, sold separately.
You can loosen the orientation lock-knob on the tripod mount to allow it to rotate as needed to fit a
particular camera model for switching between vertical and horizontal positions.
Detaching
Use the following procedures to remove and attach the tripod mount.
The tripod collar can be attached to or detached from the lens while the lens is attached to the camera.
Depending on the EOS camera model, if a battery pack or vertical grip is attached, the tripod mount may
bump into it. If that is the case, remove the battery pack/vertical grip or the tripod mount.

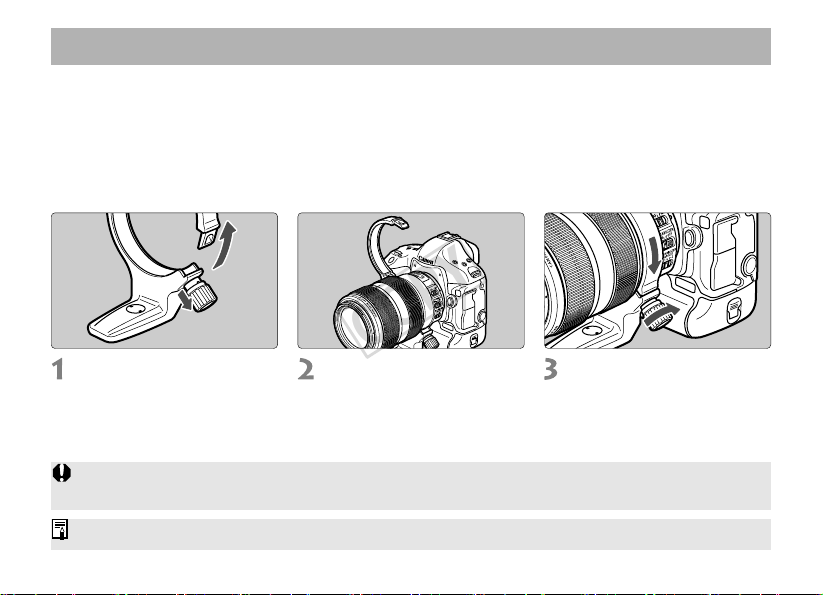

Turn the locking knob
counterclockwise until it
becomes loose (about 3 turns),
and pull the knob in the direction
of the arrow to release the collar.
With the collar open,
remove the tripod mount.
To install, while pulling the
locking knob, bring the collar
to the original position, and
tighten the locking knob
securely.
COPY

ENG-13
•If you need a polarizing filter, use the Canon
Circular Polarizing Filter (67mm).
•To adjust the polarizing filter, first remove the
lens hood.
You can attach filters to the filter mounting thread
on the front of the lens.
11. Filters (Sold separately) 12. Extension Tubes
(Sold separately)
Camera-to-Subject
Magnification
Distance (mm)
Near Far Near Far
EF12 ll 70mm 469 627 0.25×0.17×
300mm 1011 7584 0.29×0.04×
EF25 ll 70mm 357 410 0.47×0.38×
300mm 887 3842 0.38×0.09×
You can attach Extension Tube EF12 II or EF25
II for magnified shots. The shooting distance and
magnification are shown below.
Manual focusing is recommended for accurate
focusing.
COPY

ENG-14
Specifications
Focal Length/Aperture 70-300 mm f/4-5.6
Lens Construction 14 groups, 19 elements
Minimum Aperture f/32-45
Angle of View Diagonal: 34° - 8° 15’ Vertical: 19° 30’ - 4° 35’ Horizontal: 29° - 6° 50’
Min. Focusing Distance 1.2 m / 3.9 ft.
Max. Magnification 0.21×(at 300 mm)
Field of View 364 ×545 - 113 ×169 mm / 14.3 ×21.5 - 4.4 ×6.7 in. (at 1.2 m)
Filter Diameter 67 mm / 2.6 in.
Max. Diameter and Length 89 ×143 mm / 3.5 ×5.6 in.
Weight approx. 1050 g / 37 oz.
Hood ET-73B
Lens Cap E-67U
Case LP1424
Tripod Collar Ring-type tripod mounting socket C (W II) (Sold separately)
•The lens length is measured from the mount surface to the front end of the lens. Add 21.5 mm when including the
lens cap and dust cap.
•The size and weight listed are for the lens only, except as indicated.
•The EF1.4X III/EF1.4X II/EF2X III/EF2X II extenders cannot be used with this lens. There are no compatible
close-up lenses.
•Aperture settings are specified on the camera. The camera automatically compensates for variations in the
aperture setting when the camera is zoomed in or out.
•All data listed is measured according to Canon standards.
•Product specifications and appearance are subject to change without notice.
COPY

©CANON INC. 2010CT1-8568-001
COPY
