Canon OPTURA XI - Camcorder - 2.2 MP User manual

Digital Video Software Version 8 / Version 9
Instruction Manual
If you are using Windows operating system, use the supplied
DIGITAL VIDEO SOLUTION DISK For Windows.
If you are using Macintosh operating system, use the supplied
DIGITAL VIDEO SOLUTION DISK For Macintosh.
Si vous travaillez avec le système d’exploitation Windows, utilisez le disque
DIGITAL VIDEO SOLUTION DISK For Windows fourni avec l’appareil.
Si vous travaillez avec le système d’exploitation Macintosh, utilisez le disque
DIGITAL VIDEO SOLUTION DISK For Macintosh fourni avec l’appareil.
Si está utilizando el sistema operativo Windows, use el disco
DIGITAL VIDEO SOLUTION DISK For Windows suministrado.
Si está utilizando el sistema operativo Macintosh, use el disco
DIGITAL VIDEO SOLUTION DISK For Macintosh suministrado.
Mode d’emploi
Manual de Instrucciones
PUB. DIM-587
E
F
Es

READ CAREFULLY BEFORE USING
Canon Software License Agreement
IMPORTANT - READ THIS AGREEMENT BEFORE USING THE SOFTWARE ON THE CD-ROM
IN THIS BOX. BY USING THE SOFTWARE, YOU AGREE TO BE BOUND BY THE TERMS OF
THIS AGREEMENT.
This is a license agreement (the “Agreement”) between you and Canon Inc. (“Canon”).
IF YOU DO NOT AGREE TO THE TERMS AND CONDITIONS OF THIS AGREEMENT, DO NOT
USE THE SOFTWARE PROGRAM ON THE CD-ROM (INCLUDING ALL SOUND AND IMAGE
DATA) AND THE USER MANUAL IN THIS BOX (COLLECTIVELY, THE “SOFTWARE”) AND
PROMPTLY RETURN THE SOFTWARE TO YOUR POINT OF PURCHASE FOR A REFUND.
In consideration of the right to use the SOFTWARE, you agree to abide by the terms and
conditions of this Agreement.
1. LICENSE: Canon grants you the personal, non-exclusive right to use the SOFTWARE only on a
single computer. You may physically transfer the SOFTWARE from one computer to another
provided that the SOFTWARE is used on only one computer at a time. You shall not install or
use the SOFTWARE on a network, multiple CPU, multiple site arrangement, or any other
hardware configuration where the SOFTWARE is accessible to more than one CPU or to more
than one user.
With respect to the sound and image data (“Data”) contained in the Software, which are to
be downloaded to the applicable Canon digital camera product, Canon grants you a personal,
non-exclusive license to use the Data on a single Canon digital camera product only.
YOU SHALL NOT ASSIGN, SUBLICENSE, RENT, LEASE, LOAN, CONVEY OR OTHERWISE
USE, TRANSFER, COPY, TRANSLATE, CONVERT TO ANOTHER PROGRAMMING
LANGUAGE, ALTER, MODIFY, DECOMPILE OR DISASSEMBLE THE SOFTWARE, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THIS AGREEMENT.
2. BACK-UP COPY: You may make one copy of the SOFTWARE solely for back-up purposes, or
copy the SOFTWARE onto the permanent storage device (e.g. a hard disk) of your computer
and retain the original for back-up purposes. Any other copying of the SOFTWARE is a
violation of this Agreement. You must reproduce and include the copyright notice on the
back-up copy.
3. SUPPORT AND UPDATES: Neither Canon, nor its subsidiaries, dealers or distributors will be
responsible for providing maintenance or support for use of the SOFTWARE. No updates, fixes
or support will be made available for the SOFTWARE.
4. LIMITED WARRANTY AND LIMITATION OF LIABILITY: It is your responsibility to choose,
maintain and match the hardware and software components of your computer system. Thus
Canon does not guarantee uninterrupted service or correction of errors or that the functions
or performance of the SOFTWARE will meet your requirements. THE SOFTWARE IS LICENSED
ON AN “AS IS” BASIS AND WITHOUT WARRANTY OR CONDITION OF ANY KIND. The CD-
ROM storing the SOFTWARE is warranted only against defective material under normal use for
a period of ninety (90) days after purchase from an authorized Canon dealer as evidenced by
your sales receipt. Your sole remedy for a defective CD-ROM shall be replacement of the same
without charge when returned by you at your expense to your point of purchase and proven
to be defective upon inspection. The Replacement CD-ROM will be warranted for the
remainder of the original ninety (90) day warranty period of the defective CD-ROM. The
limited warranty does not apply if the failure of the CD-ROM resulted from accident, abuse or
misapplication of the SOFTWARE and shall not extend to anyone other than the original user
of the SOFTWARE.
2

3
E
EXCEPT AS SPECIFICALLY SET FORTH IN THIS PARAGRAPH 4, CANON, CANON’S
SUBSIDIARIES, DISTRIBUTORS AND DEALERS DISCLAIM ALL WARRANTIES, OR
CONDITIONS, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OR CONDITION OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE
SOFTWARE.
NEITHER CANON NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR DEALERS IS
LIABLE FOR ANY DAMAGES HOWSOEVER CAUSED, INCLUDING WITHOUT LIMITATION,
DIRECT, CONSEQUENTIAL OR INCIDENTAL LOSS OR DAMAGE INCLUDING LOSS OF
PROFITS, EXPENSE OR INCONVENIENCE HOWSOEVER CAUSED OR ARISING OUT OF
THE SOFTWARE OR THE USE THEREOF.
NEITHER CANON, NOR ANY OF CANON’S SUBSIDIARIES, DISTRIBUTORS OR DEALERS
SHALL HAVE ANY OBLIGATION TO INDEMNIFY YOU AGAINST ANY CLAIM OR SUIT
BROUGHT BY A THIRD PARTY ALLEGING THAT THE SOFTWARE OR THE USE THEREOF
INFRINGES ANY INTELLECTUAL PROPERTY OF SUCH THIRD PARTY.
SOME STATES, PROVINCES OR LEGAL JURISDICTIONS DO NOT ALLOW THE EXCLUSION
OF IMPLIED WARRANTIES, OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR PERSONAL INJURY OR DEATH
RESULTING FROM NEGLIGENCE ON THE PART OF THE SELLER, SO THE ABOVE
DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY TO YOU.
5. TERM: This Agreement is effective upon your using the SOFTWARE and remains in effect until
expiration of all copyright interests in the SOFTWARE unless earlier terminated. You may
terminate this Agreement by destroying the SOFTWARE. This Agreement will also terminate
without notice to you if you fail to comply with any of the terms of this Agreement and you
must then promptly return the SOFTWARE. In addition, Canon may enforce its other legal
rights.
6. U.S. GOVERNMENT RESTRICTED RIGHTS NOTICE:
The SOFTWARE is a “commercial item,” as that term is defined at 48 C.F.R. 2.101 (Oct 1995),
consisting of “commercial computer software” and “commercial computer software
documentation,” as such terms are used in 48 C.F.R. 12.212 (Sept 1995). Consistent with 48
C.F.R. 12.212 and 48 C.F.R. 227.7202-1 through 227.72024 (June 1995), all U.S. Government
End Users shall acquire the SOFTWARE with only those rights set forth herein. Manufacturer is
Canon Inc./30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan.
7. EXPORT RESTRICTIONS: You agree to comply with all export laws and restrictions and
regulations of the country involved, and not to export or re-export, directly or indirectly, the
SOFTWARE in violation of any such laws and restrictions and regulations, or without all
necessary approvals.
8. SEVERABILITY:
In the event that any provision of this Agreement is declared or found to be illegal by any court
or tribunal of competent jurisdiction, such provision shall be null and void with respect to the
jurisdiction of that court or tribunal and all the remaining provisions of this Agreement shall
remain in full force and effect.
9. CONTROLLING LAW: The terms of this Agreement as it relates to purchases of the Software
in the United States of America shall be governed and construed in all respects in accordance
with the laws and regulations of the State of New York, without reference to choice of law
principles. The terms of this Agreement as it relates to purchases of the Software in Canada
shall be governed by the laws of the province of Ontario.

4
10. OWNERSHIP: All rights, including but not limited to copyrights and trade secret rights, to the
SOFTWARE belong to Canon, its affiliated corporations and third party licensors. Your use of
the SOFTWARE is subject to the laws of the United States, and Canada, and other applicable
copyright and trademark laws, and nothing in this Agreement constitutes a waiver of the
rights of Canon, its affiliated corporations and third party licensors under such laws. You only
own the CD-ROM media in which the Software is stored. Except as expressly provided herein,
no license or right, express or implied, is hereby conveyed or granted by Canon to you for any
intellectual property of Canon. Nothing contained in Paragraph 1 shall be construed to give
Canon any ownership rights in any images, graphics or textual material that you save in
connection with the Software.
You may not modify, remove or delete any or all copyright notices (i) which are contained in
the Software, including any copy thereof, and (ii) which are on the original CD-ROM and on
the medium of a back-up copy made pursuant to Section 2 above.
11 .ACKNOWLEDGEMENT: BY USING THE SOFTWARE, YOU ACKNOWLEDGE THAT YOU
HAVE READ THIS AGREEMENT, UNDERSTOOD IT, AND AGREE TO BE BOUND BY ITS
TERMS AND CONDITIONS. YOU ALSO AGREE THAT THIS AGREEMENT IS THE
COMPLETE AND EXCLUSIVE STATEMENT OF AGREEMENT BETWEEN YOU AND CANON
CONCERNING THE SUBJECT MATTER HEREOF AND SUPERSEDES ALL PROPOSALS OR
PRIOR AGREEMENTS, VERBAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS
BETWEEN THE PARTIES RELATING TO THE SUBJECT MATTER HEREOF. NO
AMENDMENT TO THIS AGREEMENT SHALL BE EFFECTIVE UNLESS SIGNED BY A DULY
AUTHORIZED OFFICER OF CANON.

5
E
Contents
READ CAREFULLY BEFORE USING ........................................................................ 2
Canon Software License Agreement .................................................................... 2
Read This First ....................................................................................................... 8
Checking Supplied Accessories ............................................................................ 9

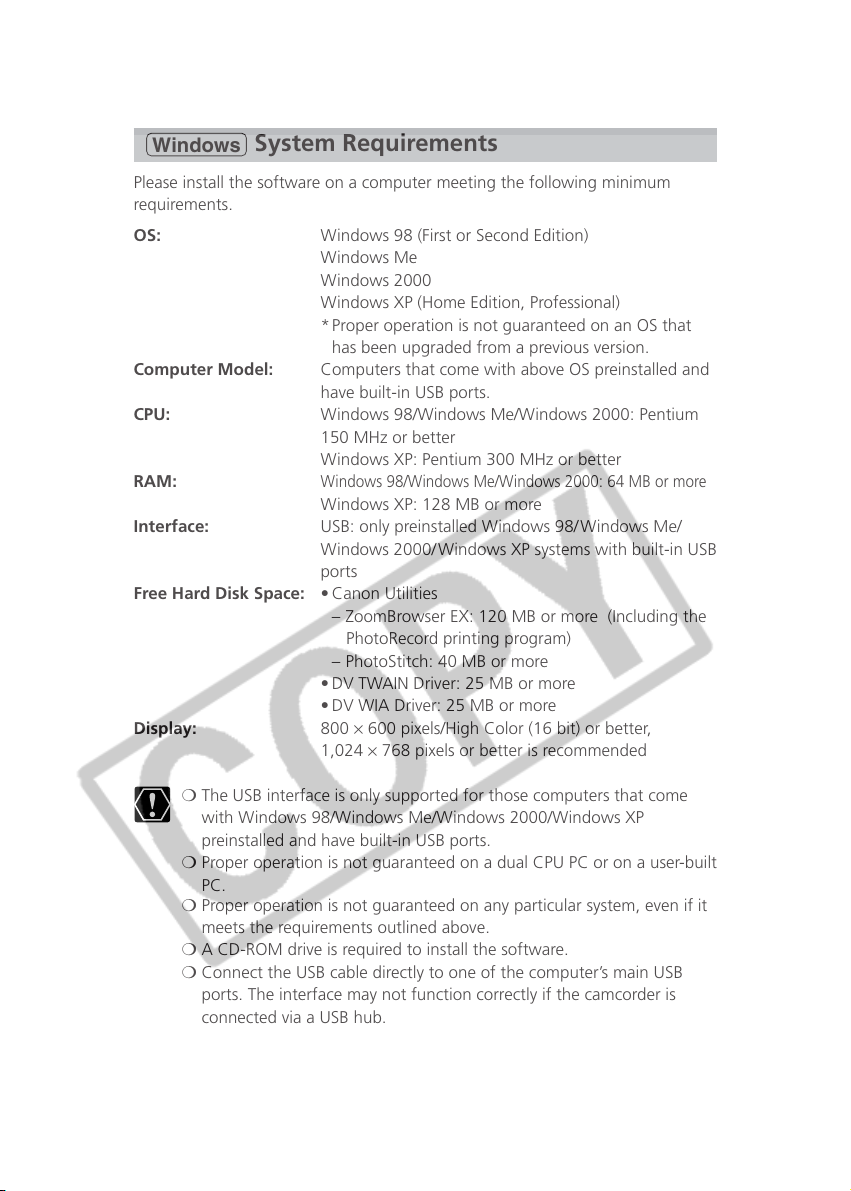

System Requirements ......................................................................................... 10
What Can Be Accomplished with the Software ................................................ 12
Installing the Software ....................................................................................... 13

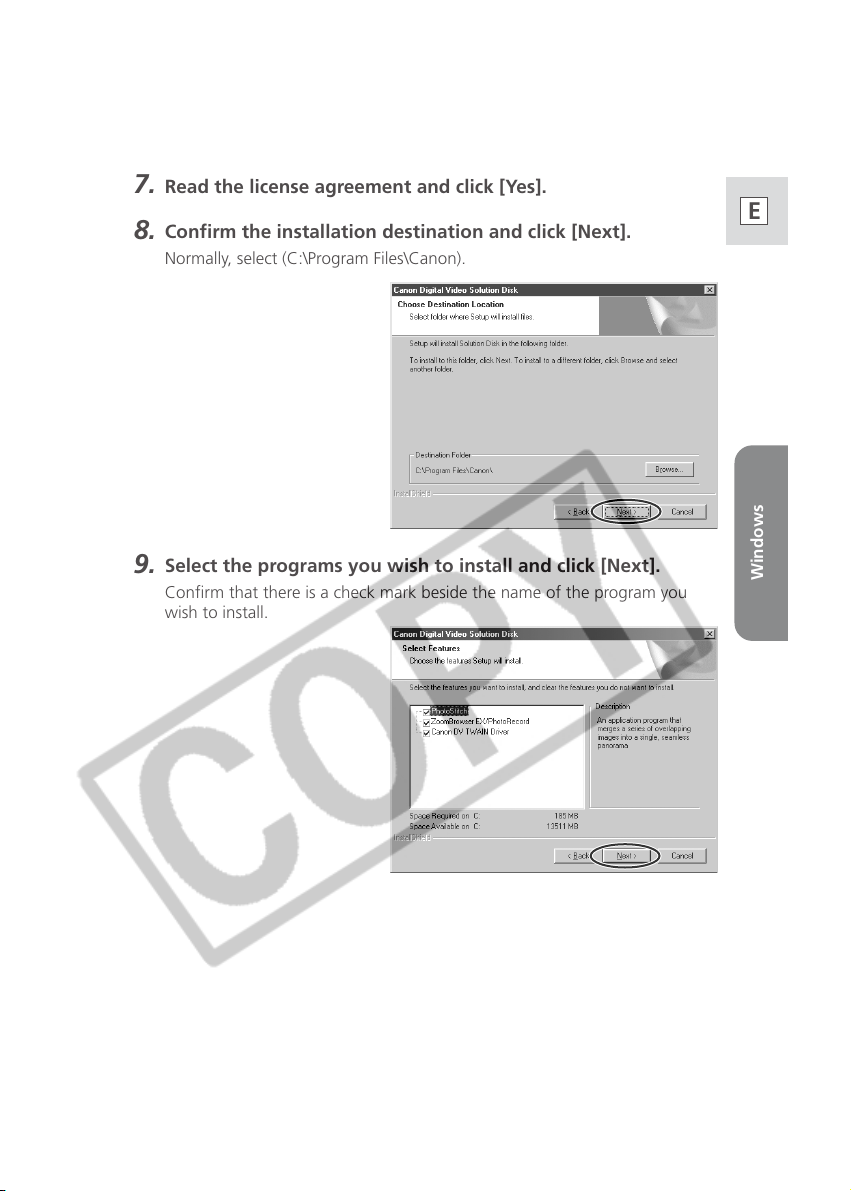

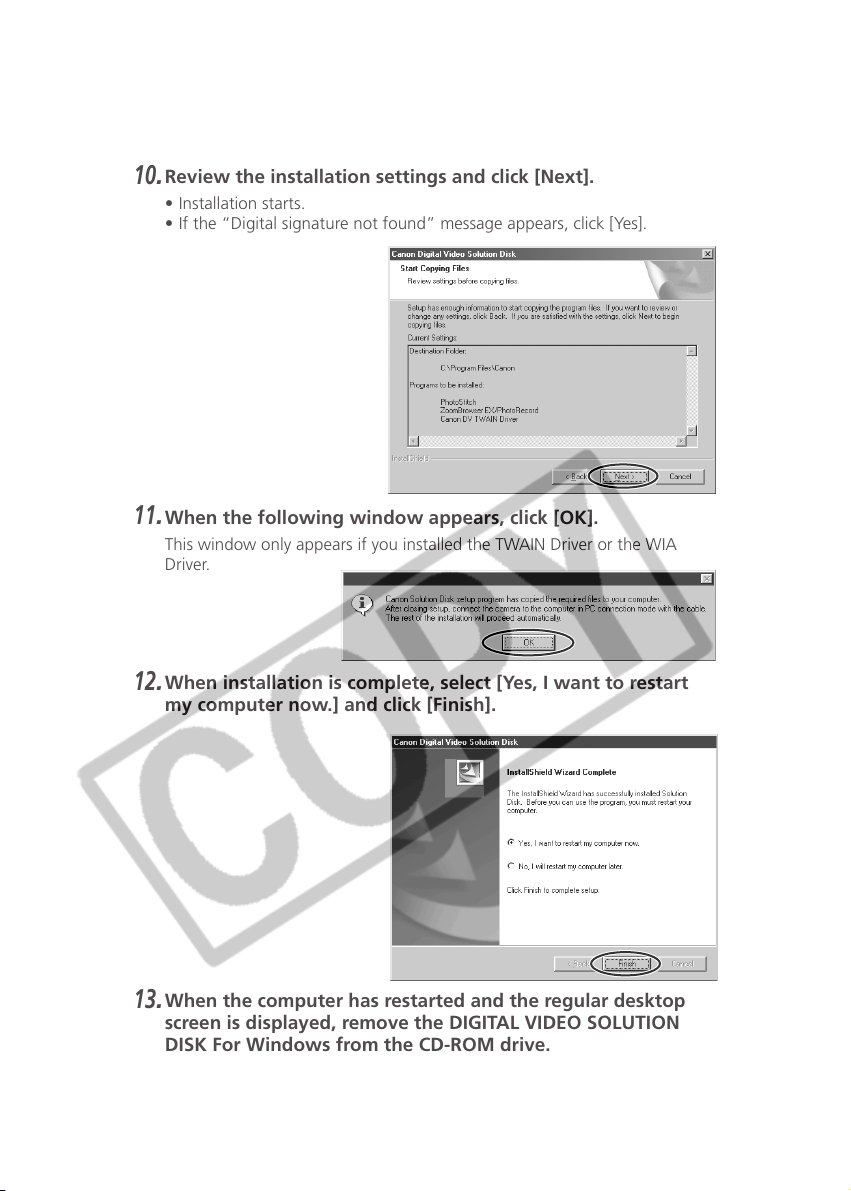

Installing the Digital Video Software .................................................................. 13
Installing the TWAIN Driver/WIA Driver .............................................................. 17
Installing the DVC Storage Driver (Users of Windows 98 Only) .......................... 19
Connecting the Camcorder to a Computer ....................................................... 24
Downloading Still Images (ZoomBrowser EX) .................................................. 26
Starting ZoomBrowser EX ................................................................................. 27
Downloading Still Images to the Computer ....................................................... 29
Using a PC Card Reader/Writer .......................................................................... 31
Using Other ZoomBrowser EX Functions .......................................................... 33
Camera Window ............................................................................................... 33
Download Settings Window .............................................................................. 34
Camera Settings Window ................................................................................. 34
Main Window ................................................................................................... 35
Image Viewer Window ...................................................................................... 37
Downloading MPEG-4 Movies to the Computer .............................................. 38
Playing Back MPEG-4 Movies on the Computer ................................................. 39
Running a Slide Show ......................................................................................... 40
Adding Sound to a Still Image ........................................................................... 42
Adding Sound to a Still Image ........................................................................... 42
Playing Back the Sound ..................................................................................... 42
Attaching Still Images to E-mail Messages ........................................................ 43
Printing Still Images (PhotoRecord) ................................................................... 46
Selecting the Print Layout and Album Design .................................................... 49
The PhotoRecord Window ................................................................................ 51
Adjusting Image Quality and Printing (Exif 2.2 Compliant) ................................. 54
Selecting the Print Mode and Number of Copies (DPOF Print Settings) .............. 55
Merging Panoramic Images (PhotoStitch) ........................................................ 56
Adding Still Images from Your Computer to the Memory Card ...................... 58
Adding Still Images to the Memory Card ........................................................... 58
Adding Sample Images to the Memory Card ..................................................... 60
Customizing Your Camcorder with the My Camera Settings ........................... 62
Displaying the My Camera Window .................................................................. 62
My Camera Window ......................................................................................... 64
Saving the My Camera Settings to the Camcorder ............................................ 65
Windows

6

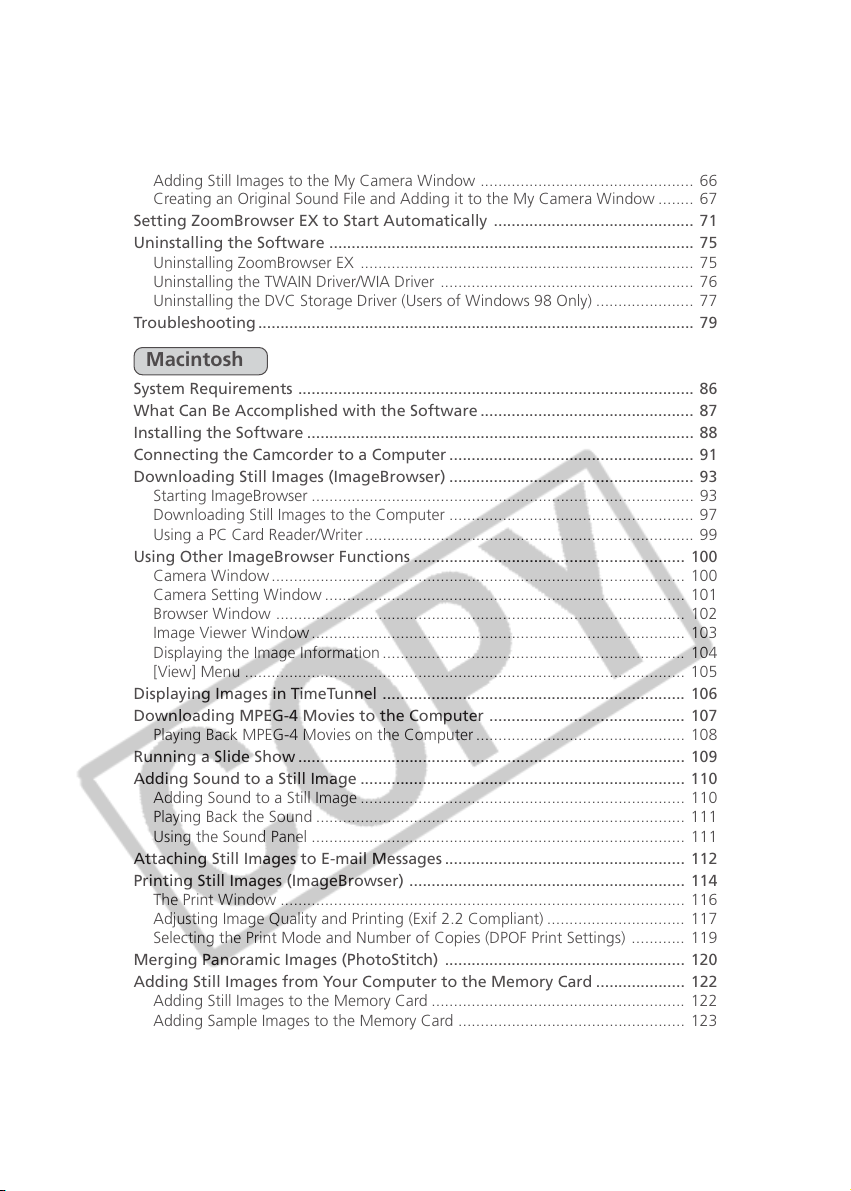

Adding Still Images to the My Camera Window ................................................ 66
Creating an Original Sound File and Adding it to the My Camera Window ........ 67
Setting ZoomBrowser EX to Start Automatically ............................................. 71
Uninstalling the Software .................................................................................. 75
Uninstalling ZoomBrowser EX ........................................................................... 75
Uninstalling the TWAIN Driver/WIA Driver ......................................................... 76
Uninstalling the DVC Storage Driver (Users of Windows 98 Only) ...................... 77
Troubleshooting .................................................................................................. 79
System Requirements ......................................................................................... 86
What Can Be Accomplished with the Software ................................................ 87
Installing the Software ....................................................................................... 88
Connecting the Camcorder to a Computer ....................................................... 91
Downloading Still Images (ImageBrowser) ....................................................... 93
Starting ImageBrowser ...................................................................................... 93
Downloading Still Images to the Computer ....................................................... 97
Using a PC Card Reader/Writer .......................................................................... 99
Using Other ImageBrowser Functions ............................................................. 100
Camera Window ............................................................................................. 100
Camera Setting Window ................................................................................. 101
Browser Window ............................................................................................ 102
Image Viewer Window .................................................................................... 103
Displaying the Image Information .................................................................... 104
[View] Menu ................................................................................................... 105
Displaying Images in TimeTunnel .................................................................... 106
Downloading MPEG-4 Movies to the Computer ............................................ 107
Playing Back MPEG-4 Movies on the Computer ............................................... 108
Running a Slide Show ....................................................................................... 109
Adding Sound to a Still Image ......................................................................... 110
Adding Sound to a Still Image ......................................................................... 110
Playing Back the Sound ................................................................................... 111
Using the Sound Panel .................................................................................... 111
Attaching Still Images to E-mail Messages ...................................................... 112
Printing Still Images (ImageBrowser) .............................................................. 114
The Print Window ........................................................................................... 116
Adjusting Image Quality and Printing (Exif 2.2 Compliant) ............................... 117
Selecting the Print Mode and Number of Copies (DPOF Print Settings) ............ 119
Merging Panoramic Images (PhotoStitch) ...................................................... 120
Adding Still Images from Your Computer to the Memory Card .................... 122
Adding Still Images to the Memory Card ......................................................... 122
Adding Sample Images to the Memory Card ................................................... 123
Macintosh

7
E
Customizing Your Camcorder with the My Camera Settings ......................... 125
Displaying the My Camera Window ................................................................ 125
My Camera Window ....................................................................................... 127
Saving the My Camera Settings to the Camcorder .......................................... 128
Adding Still Images to the My Camera Window .............................................. 129
Uninstalling the Software ................................................................................ 130
Troubleshooting ................................................................................................ 131

8
Disclaimer
• While every effort has been made to ensure that the information contained in
this guide is accurate and complete, no liability can be accepted for any errors
or omissions. Canon reserves the right to change the specifications of the
hardware and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data
due to mistaken operation or malfunction of the camcorder, the software,
memory cards (MultiMediaCards or SD Memory Cards), personal computers,
or peripheral devices, or due to use of a memory card not formatted by a
Canon camcorder.
Trademark Acknowledgments
• Canon is a registered trademark of Canon Inc.
• Macintosh is a trademark of Apple Computer Inc., registered in the United
States and other countries.
iPhoto and QuickTime are trademarks of Apple Computer, Inc.
• Microsoft®, Windows®and Windows Media®are either registered trademarks
or trademarks of Microsoft Corporation in the United States and/or other
countries.
• Other names and products not mentioned above may be registered
trademarks or trademarks of their respective companies.
Copyright © Canon Inc. 2003 All rights reserved.
Safety Precautions
Do not play the supplied CD-ROM(s) in any CD player that does not support
data CD-ROMs. Playing the CD-ROM(s) in an audio CD player (music player)
could damage the speakers. It is also possible to suffer from hearing loss from
listening with headphones to the loud sounds of a CD-ROM played on a music
CD player.
MPEG-4 Visual Consumer Recorded Video Decoders and/or Encoders
USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4
VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE BY A CONSUMER
ENGAGING IN PERSONAL AND NON-COMMERCIAL ACTIVITIES.
Read This First

9
E
Checking Supplied Accessories
Use the following accessories to download recorded images from a memory
card to your computer.
• IFC-300PCU USB Cable
• DIGITAL VIDEO SOLUTION DISK For Windows
• DIGITAL VIDEO SOLUTION DISK For Macintosh
• Windows users: Move on to p. 10.
• Macintosh users: Move on to p. 86.
The explanations in this manual use mainly Windows 98 and Mac OS 9.2
screen shots.

10
Windows
System Requirements
Please install the software on a computer meeting the following minimum
requirements.
OS: Windows 98 (First or Second Edition)
Windows Me
Windows 2000
Windows XP (Home Edition, Professional)
*Proper operation is not guaranteed on an OS that
has been upgraded from a previous version.
Computer Model: Computers that come with above OS preinstalled and
have built-in USB ports.
CPU: Windows 98/Windows Me/Windows 2000: Pentium
150 MHz or better
Windows XP: Pentium 300 MHz or better
RAM:
Windows 98/Windows Me/Windows 2000: 64 MB or more
Windows XP: 128 MB or more
Interface: USB: only preinstalled Windows 98/Windows Me/
Windows 2000/ Windows XP systems with built-in USB
ports
Free Hard Disk Space: • Canon Utilities
– ZoomBrowser EX: 120 MB or more (Including the
PhotoRecord printing program)
– PhotoStitch: 40 MB or more
• DV TWAIN Driver: 25 MB or more
• DV WIA Driver: 25 MB or more
Display: 800 ×600 pixels/High Color (16 bit) or better,
1,024 ×768 pixels or better is recommended
❍The USB interface is only supported for those computers that come
with Windows 98/Windows Me/Windows 2000/Windows XP
preinstalled and have built-in USB ports.
❍Proper operation is not guaranteed on a dual CPU PC or on a user-built
PC.
❍Proper operation is not guaranteed on any particular system, even if it
meets the requirements outlined above.
❍A CD-ROM drive is required to install the software.
❍Connect the USB cable directly to one of the computer’s main USB
ports. The interface may not function correctly if the camcorder is
connected via a USB hub.
